Product Overview

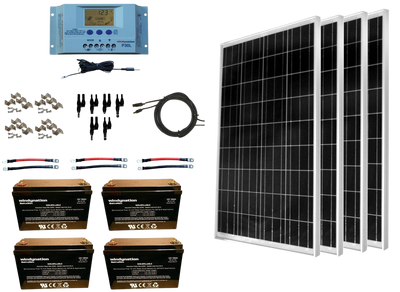

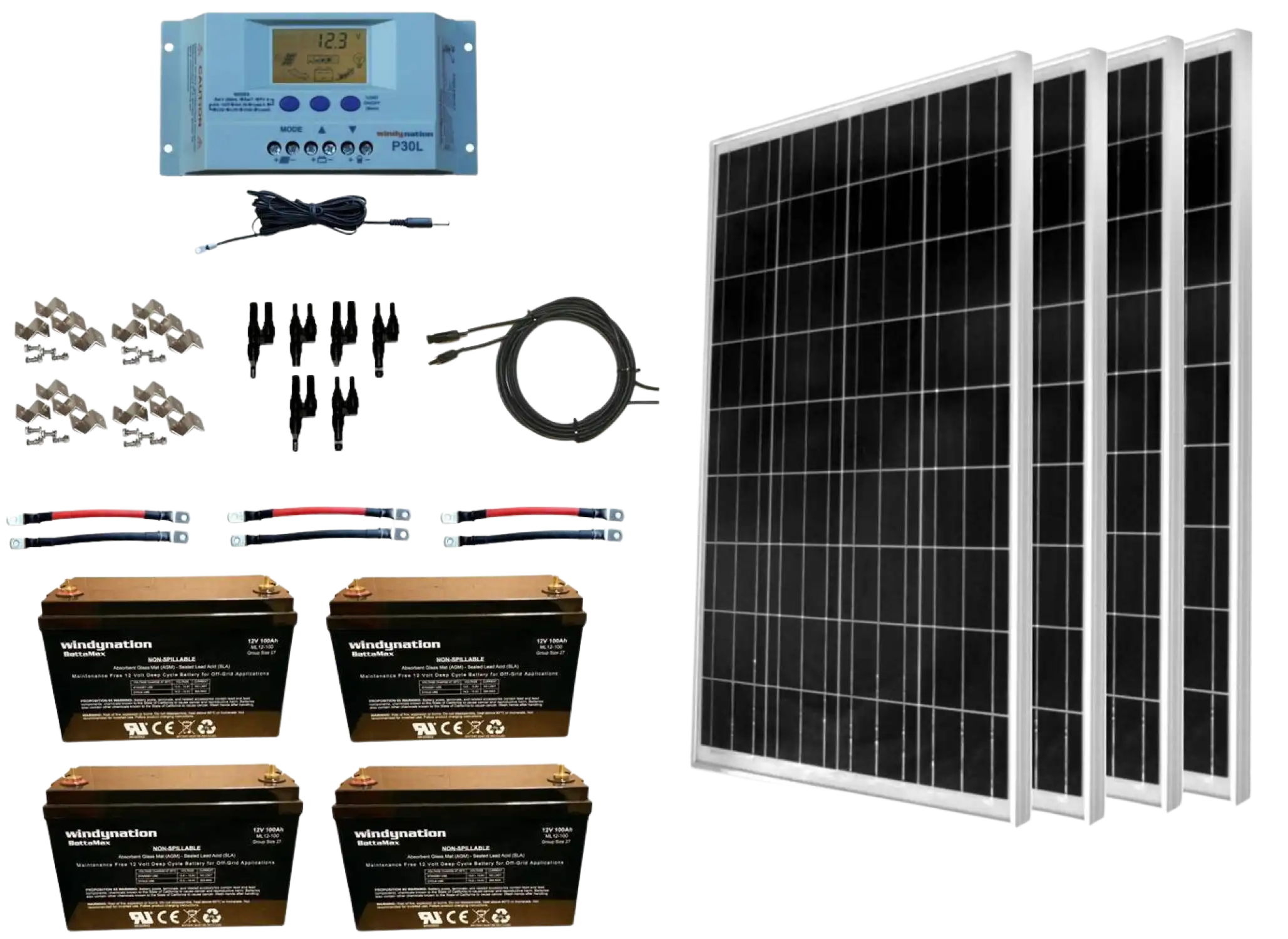

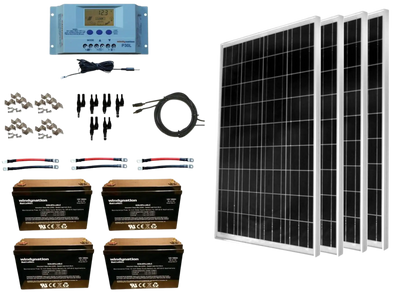

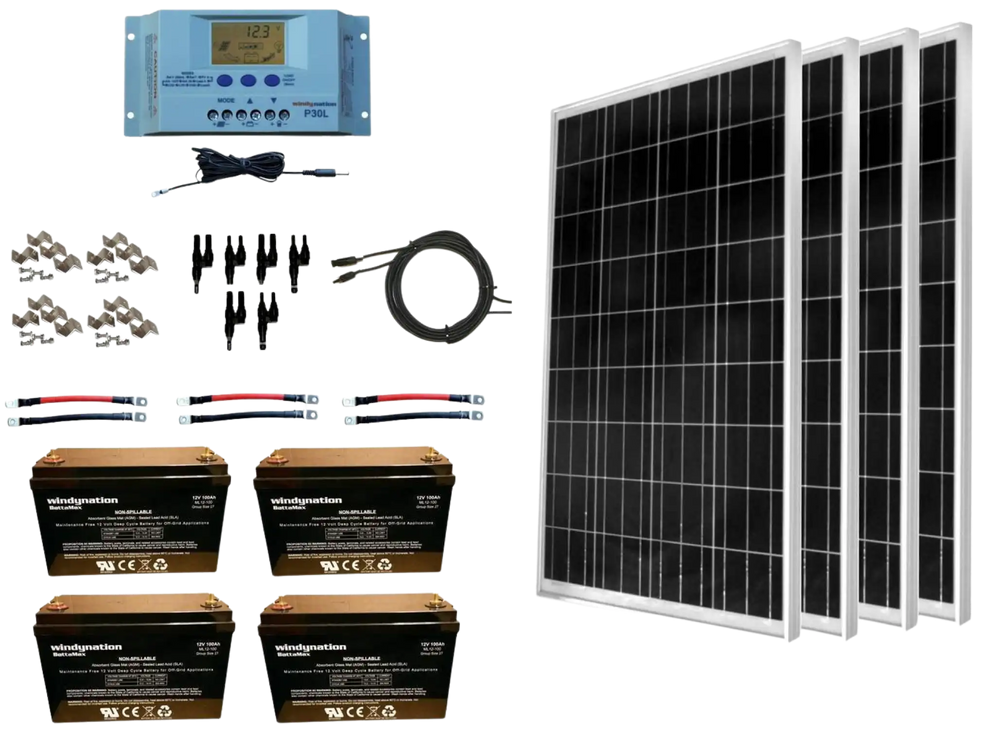

The Windy Nation 400-Watt Complete Solar Charging Kit and 400Ah Battery Bank comes with everything you need to start producing free, clean power from the sun. Perfect for RV's, boats, cabins and back-up power. WindyNation's 400-Watt Solar Kit with batteries includes everything you need to get started: four 100-Watt Polycrystalline Solar Panels, four 100Ah AGM Deep Cycle Batteries with 2/0 AWG Interconnect Cables, 30 Amp P30L Solar Charge Controller, 40 ft. of UL Listed 12 AWG Solar Cable, all necessary MC4 Connectors for wiring and all the necessary mounting hardware. Product photos above show pictures of all the included items and additional technical information. The WindyNation 400-Watt Solar Charging Kit is the ideal solution for providing back-up power or off-grid power when you need it. Solar panels will provide on average 1700 Watt Hours (Wh) or 150 Amp hours of charge per day (depends on sunlight availability)

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Fast shipping from CA

checkmark

Authorized WindyNation dealer

Features

  • 30 Amp P30L Solar Charge Controller with LCD Display
  • WindyNation P30L PWM 30 Amp solar charge controller prevents battery from being overcharged and damaged by the solar panel
  • LCD digital display provides system information (amperage, voltage, temperature, etc).
  • System settings are user adjustable by using the MODE and UP and DOWN buttons
  • Overload, short circuit, and reverse polarity protected. Battery temperature sensor (BTS) is included
  • Solar Panel Mounting Bracket and Fastener Set
  • Includes sixteen anodized aluminum Z-brackets and sixteen sets of stainless steel fasteners
  • Quickly and easily mount the solar panel to a RV, boat or roof
  • Corrosion resistant materials (anodized aluminum and stainless steel)
  • Solar Branch Connectors
  • Three Pairs of Solar Branch Connectors
  • The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used
  • BattaMax 100Ah (400ah total) Batteries
  • AGM, Maintenance Free, Deep Cycle 12V Batteries with 2/0 AWG Interconnect Battery Cables
  • 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
  • Four panels are perfect for 12 or 24 Volt battery bank charging
  • Windynation's UL 1703 Certified 100 Watt Solar Panels combine high efficiency with long term reliability and stability
  • Outstanding electrical performance under high temperature and low irradiance conditions
  • See image in the photo gallery above for the technical specifications of the solar panel.
  • Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual
  • Solar Panel Cable and Solar Connectors
  • 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
  • One Pair of Solar Connectors
  • The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
  • (Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)

Specifications

100W POLYCRYSTALLINE PHOTOVOLTAIC SOLAR PANEL
PART # SOL-100P-01
MAX POWER 100 WATTS
OPEN CIRCUIT VOLTAGE 21.60 VOLTS
SHORT CIRCUIT CURRENT 6.32 AMPS
MAX POWER VOLTAGE 17.40 VOLTS
MAX POWER CURRENT 5.75 AMPS
MAX SYSTEM VOLTAGE 1000 VDC (600 VDC UL)
MAX SERIES FUSE RATING 8 AMPS
NOM OPERATING CELL TEMP 45 C [+/- 2]
DIMENSIONS 40" x 26.4" x 1.2"
WEIGHT 17.6 LBS
100AH BATTAAX AGM BATTERY
DIMENSION (L x W x H) 62.8 LB
TERMINAL 5/16" THREAD OR SAE AUTOMOTIVE POST
CONTAINER MATERIAL ABS PLASTIC
NOMINAL OPERATING TEMPERATURE 77°F +/-5°F
DISCHARGE TEMPERATURE RANGE 5°F +/-122°F
CHARGE TEMPERATURE RANGE 32°F +/-104°F
STORAGE TEMPERATURE RANGE 5°F +/-104°F
NOMINAL VOLTAGE 12V (6 CELLS)
NOMINAL CAPACITY (20HR, 1.80V/CELL, 77°F) 106AH
NOMINAL CAPACITY (10HR, 1.80V/CELL, 77°F) 100AH
NOMINAL CAPACITY (1HR, 1.60V/CELL, 77°F) 60AH
MAX DISCHARGE CURRENT 1000A (5S)
INTERNAL RESISTANCE 6.0MΩ
CYCLE USE 14.2~14.4V (25°C) TEMP. COEFFICIENT - 30mV/°C
STANDBY USE 13.5~13.8V (25°C) TEMP. COEFFICIENT - 20mV/°C
CAPACITY @ 104°F 103%
CAPACITY @ 77°F 100%
CAPACITY @ 32°F 86%

Package Contents

(4 pcs) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel

(1 pc) 30 Amp P30L Solar Charge Controller with LCD Display

(4 Set) Solar Panel Mounting Bracket and Fastener Set

(4 pc) Batteries Totaling 400ah AMG

Solar Panel Cable and Solar Connectors

Solar Branch Connectors

Warranty

vendor logo
divider
authorized dealer

This product comes with a 1 year factory warranty.

Customer Reviews

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
0%
(0)
50%
(1)
0%
(0)
z
zac bohm
Nice!

I've installed two kits on homemade houseboats. Installing was straight forward and pretty much everything you need is included. Not sure of loads or anything but I can have the radio cranking and lights on (all 12v and led) for hours and hours and barely make a dent in the batteries. 2.5 years on the first and 2 years on the second, still going strong.

D
Donald Fitch
Not as much power as I would of expected

After purchase of this solar kit it takes a bit of time to recharge the four 100ah batteries and I am only using this to power a furnace in a Rv, After charging the batteries fully the batteries only lasted 12 hours well I would of thought that only running a 6.5 amp furnace on a 4-400ah batteries would of done better not impressed at all
