WindyNation MSPK-100W-15 Solar Panel Complete Kit 100W P30L LCD Controller with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
Manufacturer: WindyNation
SKU: MSPK-100W-15
QTY
or
(888) 999-1522
C
$519.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Extended Warranty
Factory Warranty
- This product comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 1 year factory warranty.
$71.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$107.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$143.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
WindyNation MSPK-100W-15 Solar Panel Complete Kit 100W P30L LCD Controller with 1500W VertaMax Power Inverter for 12 Volt Battery Systems New
Product Overview
The WindyNation 1500-Watt (3000-Watt surge) vertaMax DC to AC Power inverter includes 2 pieces of 3 ft. 2 Gauge Battery Cables. The WindyNation Battery is a 100-amp hour AGM Deep Cycle 12-Volt BattaMax Battery. The WindyNation 100-Watt Solar Panel Charging Kit is the ideal solution for providing backup power or off-grid power when you need it!
Brand new in box
1 year factory warranty
Fast shipping from CA
Authorized WindyNation dealer
Features
- 100-Watt solar charging kit provides up to 100-Watts of clean, free, renewable energy
- Designed for RV's, cabins, boats, backup power, remote and off-grid use
- PWM Solar Charge Controller has user-adjustable settings with an LCD Screen that shows system amperage, voltage, amp-hours, temperature, and DC load draw
Specifications
| 100W MONOCRYSTALLINE PHOTOVOLTAIC SOLAR PANEL | |
| MAX POWER | 100 WATTS |
| OPEN CIRCUIT VOLTAGE | 21.45 VOLTS |
| SHORT CIRCUIT CURRENT | 6.09 AMPS |
| MAX POWER VOLTAGE | 18.15 VOLTS |
| MAX POWER CURRENT | 5.51 AMPS |
| MAX SYSTEM VOLTAGE | 1000 VDC (600 VDC UL) |
| MAX SERIES FUSSSE RATING | 8 AMPS |
| NOM OPERATING CELL TEMP | 48 C [+/-2] |

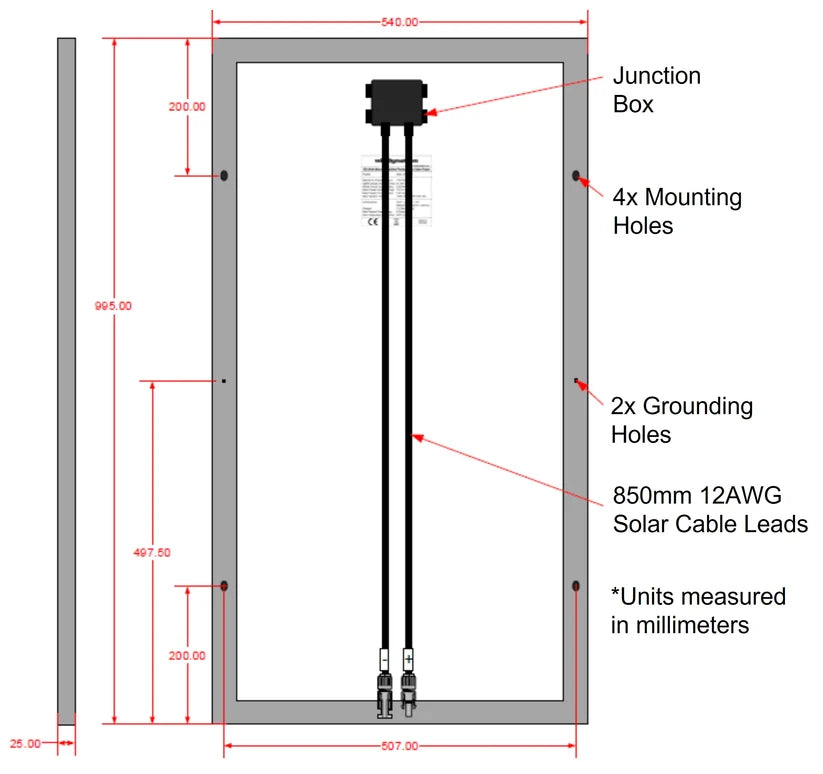

| DIMENSIONS | 39.2 x 21.3 x 1.0 in. |
| WEIGHT | 13.3 lbs. |
| 1500W VERTAMAX POWER INVERTER | |
| PARAMETER | PIN-1500-12M |
| CONTINUOUS RATED POWER | 1500W |
| PEAK SURGE POWER | 3000W |
| INPUT VOLTAGE (NOMINAL) | 12-13 VDC |
| INPUT VOLTAGE (MIN-MAX) | 11-15 VDC |
| OUTPUT VOLTAGE (NOMINAL) | 115 VAC |
| OUTPUT FREQUENCY (NOMINAL) | 60 HZ |
| OUTPUT WAVEFORM | MODIFIED SINE WAVE |
| STNDBY CURRENT | <0.80A |
| LOW BATTERY VOLTAGE ALARM | 10.5 VDC (+/-0.3VDC) |
| LOW BATTERY VOLTAGE SHUTDOWN | 10.0 VDC (+/-0.3VDC) |
| HIGH BATTERY VOLTAGE SHUTDOWN | 16 VDC (+/-0.5VDC) |
| EFFICIENCY | 85-90% |
| DIMENSIONS (L x W x H) | 13.0" x 8.7" x 3.0" |
| UNIT WEIGHT | 8.2 LBS |
| COOLING | AUTO POWERED FAN |
| OPERATING TEMPERATURE | 32°F - 140°F |
| STORAGE TEMPERATURE | -13°F - 158°F |
| OPERATING HUMIDITY | 20 TO 80% RELATIVE HUMIDITY (NONCONDENSING) |
| THERMAL PROTECTION | >149°F |

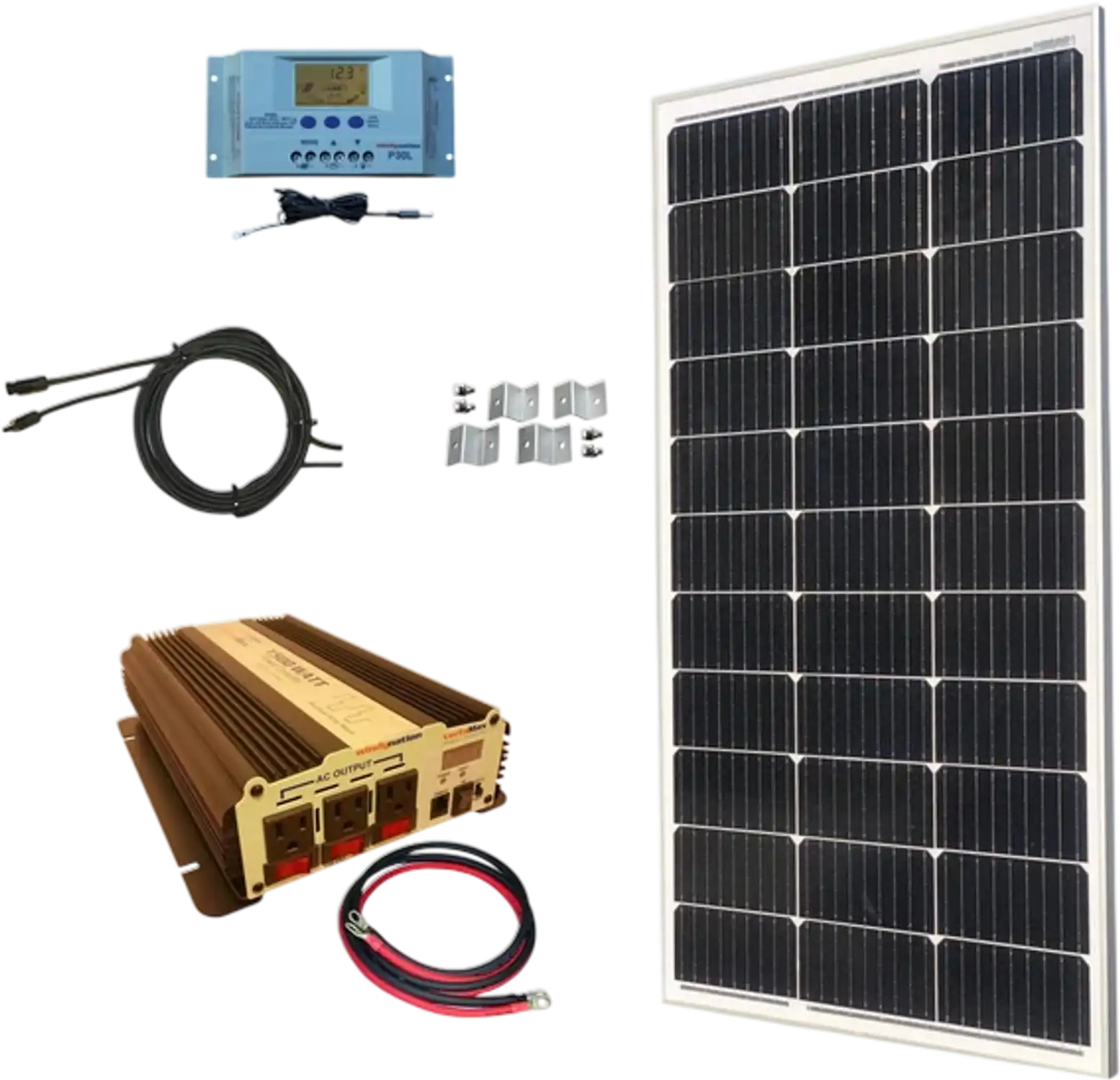

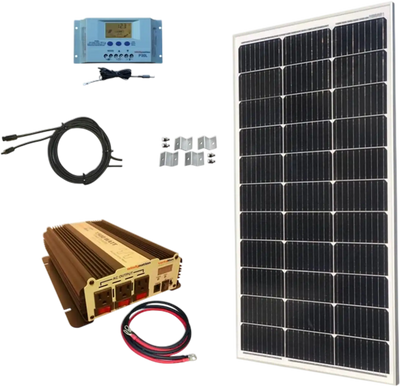

Package Contents
(1 pcs) 100 Watt WindyNation 12 volt Monocrystalline WindyNation Solar Panel
(1 pc) 30 Amp P30L Solar Charge Controller with LCD Display
(1 pc) 1500 Watt (3000 Watt Surge) VertaMax Power Inverter
(1) 40ft. 12AWG Solar Cable

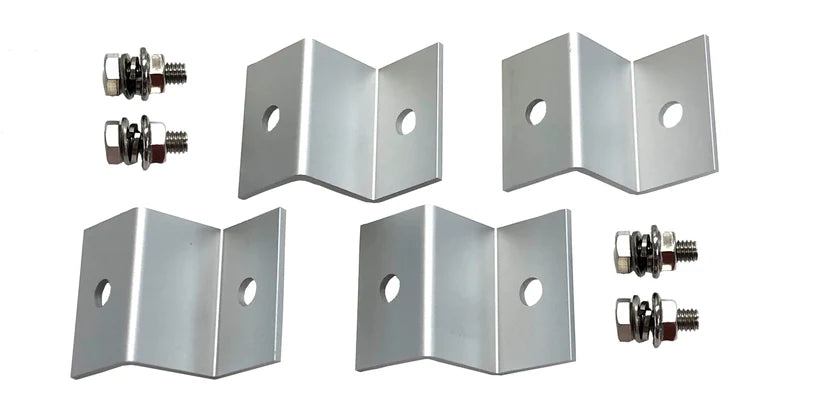

(1 Set) Solar Panel Mounting Bracket and Fastener Set
Warranty
This product comes with a 1 year factory warranty.
