Weldpro TIGACDC250GD AC/DC Welder with TIG20 Water Cooled Torch L12006-1 New
Product Overview
The WeldproTIGACDC250GD welder is an inverter based TIG welding machine that utilizes the most advanced inverter technology. IGBT circuits along with PWM technology, along with the greatly reduced size and weight, enable this welder to not only be more efficient by 30%, but also as a result of the electronic circuitry, enables this AC/DC TIG welding machine to afford the user far more and better range of settings for each specific weld. It is capable of both HF TIG and Stick welding.
NOTE: TIG20 Torch MUST be used with an approved water cooler or damage will result. Use of this torch without proper cooling will void torch warranty.
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- Weldpro’s flagship 250 amp version of our extremely popular AC/DC TIG welder that goes beyond simply welding steel and aluminum and is ready for the welding demands of thicker metals. Electrical plug configuration is NEMA 6-50.
- The model TIGACDC250GD is also a digital designed TIG welder equipped with full function TIG welding features. Start and end amps, upslope, downslope, fully adjustable pulse, AC balance, AC frequency. 2T-4T, and now on our 250 amp version a memory function as well as a rear electrical receptacle to accommodate our optional liquid cooler.
- Excellent Professional design “best in the business” SSC rocker style foot pedal. And now also available with fully customizable TIG torch options which include choices of the Weldpro #20 water cooled torch, the CK Worldwide superflex #26 Trimline Flex Head air/gas cooled torch, or with the CK Worldwide #20 liquid cooled torch assembly both with independent trigger switch. Both CK options now designed with 25 foot cables!
- Also fully capable MMA stick welding function in either AC or DC with stinger included.
Specifications
| WEIGHT | 91.5 lbs |
|---|---|
| DIMENSIONS | 32.1 × 13.2 × 25.4 in |
| RATED ELECTRICAL INPUT | 110v/240v 50/60 Hz |
| TIG AMPS RANGE | 5-250A |
| STICK AMPS RANGE (AC/DC) | 20-220A |
| PRE-FLOW (S) | 0.1-1 |
| UP SLOPE TIME RANGE (S) | 0-10 |
| DOWN SLOPE TIME RANGE(S) | 0-25 |
| POST FLOW (S) | 0-15 |
| PULSE PEAK ON TIME | 10-90% adjustable |
| PULSE FREQUENCY | 0.5-200 HZ |
| AC BALANCE | 30-70% |
| AC FREQUENCY | 40-200HZ |
| HOT START | Yes |
| HF START TIG | Yes |
| 2T/4T | Yes |
|---|---|
| FOOT PEDAL | Yes |

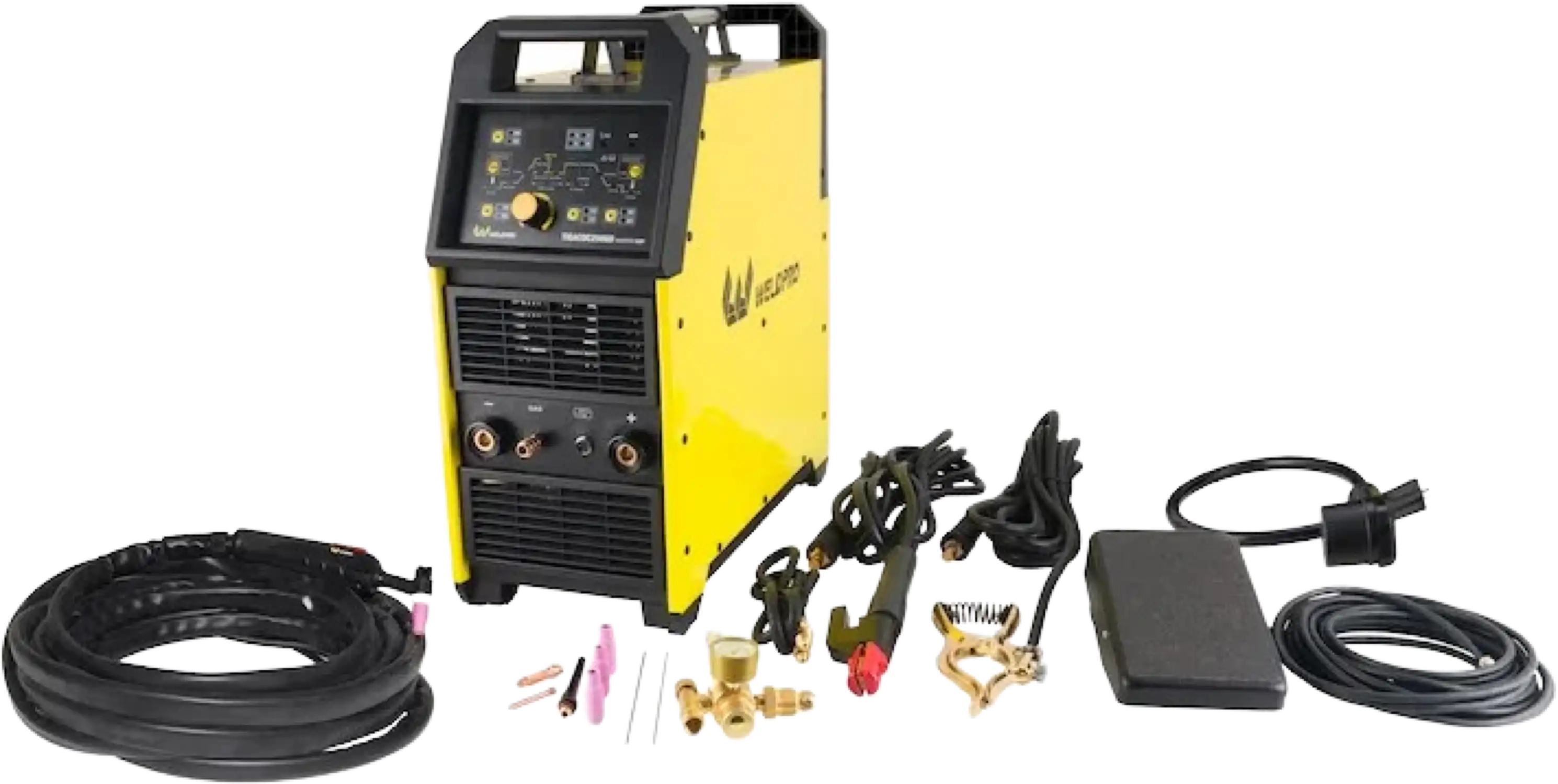

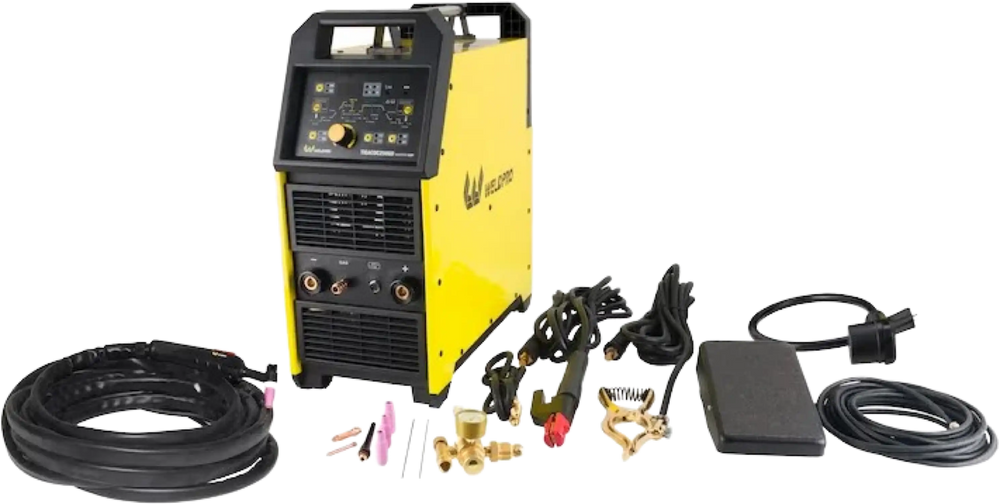

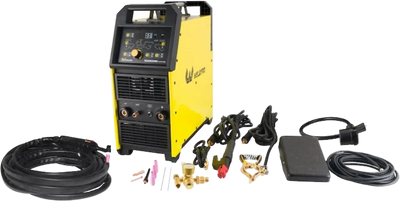

Package Contents
Weldpro TIGACDC250GD Welder
TIG20 Water Cooled Torch Set
SSC foot pedal
Electrode holder 20ft 200A 35-50 Dinse connector
Ground clamp 20ft 300A 35-50 Dinse connector
Flow meter
Gas hose
Power adapter 115/230V
Consumables kit
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
