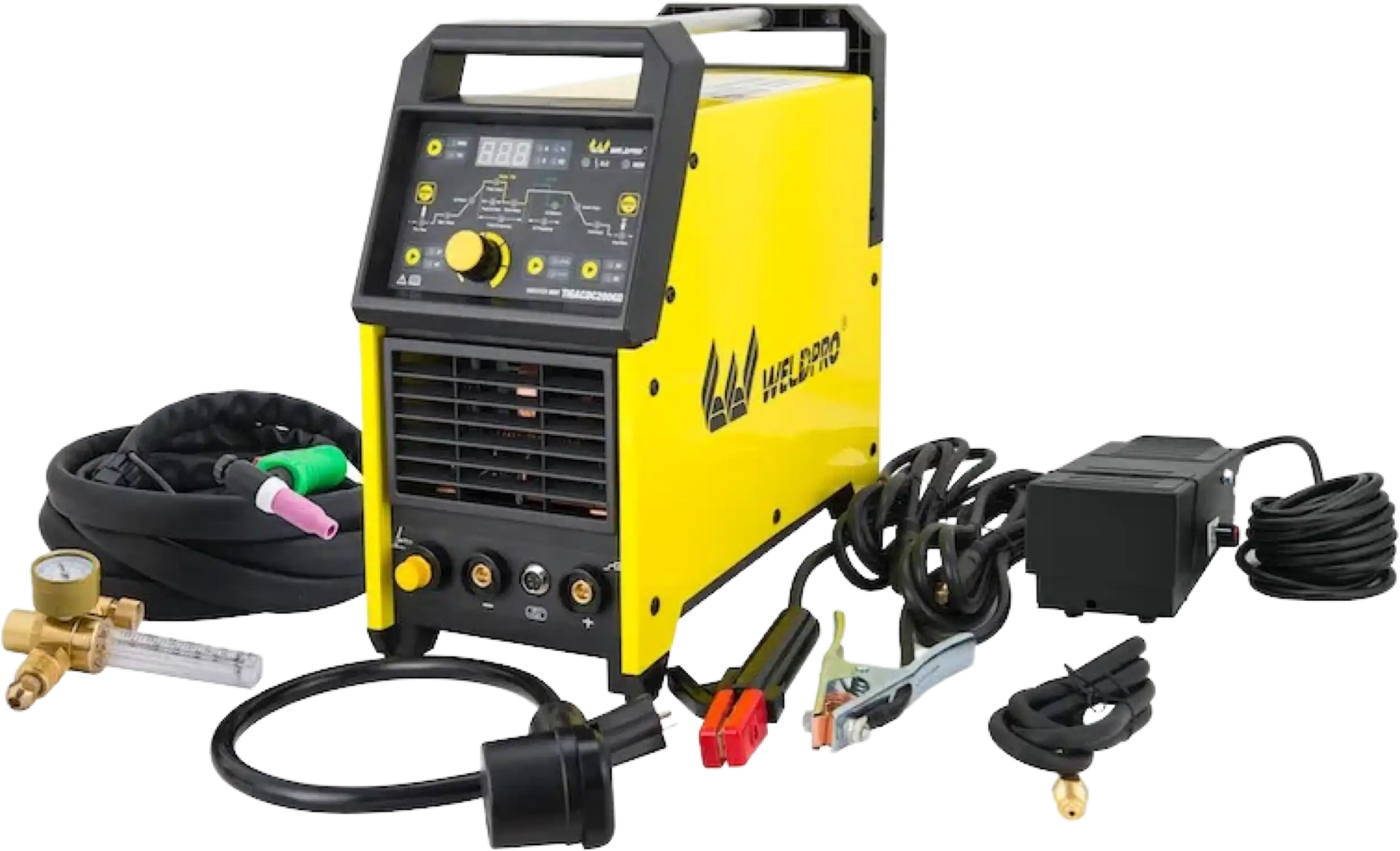

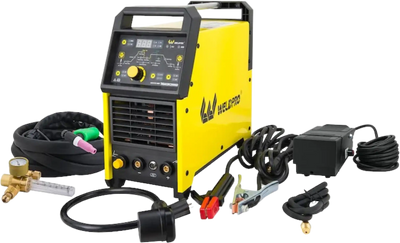

Weldpro TIGACDC200GD Digital TIG/Stick Welder With AC/DC Standard Euro Torch 200 Amp High-Frequency Pulse L12000 New
Manufacturer: Weldpro
SKU: L12000
QTY
(888) 999-1522
C
$1,286.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
USE THE FOLLOWING CODE FOR $10 OFF: 10off COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
$128.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$170.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$213.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Weldpro TIGACDC200GD Digital TIG/Stick Welder With AC/DC Standard Euro Torch 200 Amp High-Frequency Pulse L12000 New
Product Overview
This digitally designed TIG Welder with AC/DC utilizes the most advanced inverter technology. The IGBT circuits, coupled with PWM technology, enable this welder to be more efficient by 30%. The reduced size and weight of this TIG/Stick welder enable this welding machine to give you a better range of settings for each specific weld.
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- The TIGACDC200GD also has a 40% duty cycle at full amperage for DC TIG and a 60% duty cycle for AC TIG.
- This machine is capable of welding with either AC or DC. You can select DC welding for carbon steel, stainless steel, copper, and many other metals.
- Simultaneously, it can switch over to AC welding used in welding aluminum and aluminum alloys.
- This model utilizes advanced TIG welding functions and is a very good MMA/Stick welder.
- Our exclusive high-frequency technology includes a pure square wave output, excellent arc force, and a wide range of balance control for aluminum cleaning.
- This AC/DC TIG welder is a top choice because it’s many features that are not always found in this low price range.
- You’ll get 2T-4T touch control, start amps, end amps, upslope, downslope, pulse, AC Balance, and a completely dedicated foot control pedal with no current interim control on the foot pedal.
- With Weldpro’s TIGACDC200GD, we put you in full control by placing the amperage control settings in the front of the machine.
- Weldpro’s flagship 200 amp AC/DC TIG welder that goes beyond simply welding steel and aluminum.
- The model 200 is also a digital designed TIG welder equipped with full function TIG welding features found on machines priced much higher.
- Start and end amps, upslope, downslope, fully adjustable pulse, AC balance, AC frequency. 2T-4T
- Excellent Professional design rocker style foot pedal without annoying intermediate amperage control.
- Also fully capable MMA stick welding function with stinger included
Specifications
| WEIGHT | 60.6 lbs |
| DIMENSIONS | 33.3 × 12.8 × 20.9 in |
| OUTPUT POWER TYPE | DC/AC |
| RATED ELECTRICAL INPUT | 110v/240v, 60 Hz |
| TIG AMPS RANGE | 5-200A |
| STICK AMPS RANGE (AC/DC) | 20-180A |
| PRE-FLOW (S) | 0.1-1 |
| UP SLOPE TIME RANGE (S) | 0-10 |
| DOWN SLOPE TIME RANGE(S) | 0-25 |
| POST FLOW (S) | 0-15 |
| PULSE PEAK ON TIME | 10-90% adjustable |
| PULSE FREQUENCY | 0.5-200 HZ |
| AC BALANCE | 30-70% |
| AC FREQUENCY | 40-200HZ |
| HOT START ON MMA | Yes |
| HF START TIG | Yes |
| 2T/4T TORCH TRIGGER PANEL CONTROL | Yes |
| FOOT PEDAL | Yes |
| WEIGHT (LB) | 31.3 |
| DIMENSIONS (IN) | 17.6 × 7.9 × 16 |
Package Contents
Weldpro TIGACDC200GD Welder with Euro Torch
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
