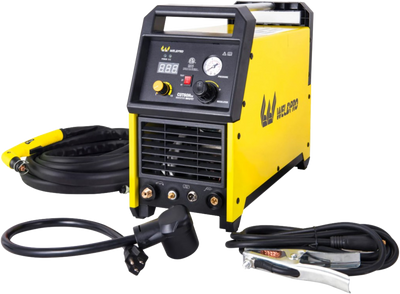

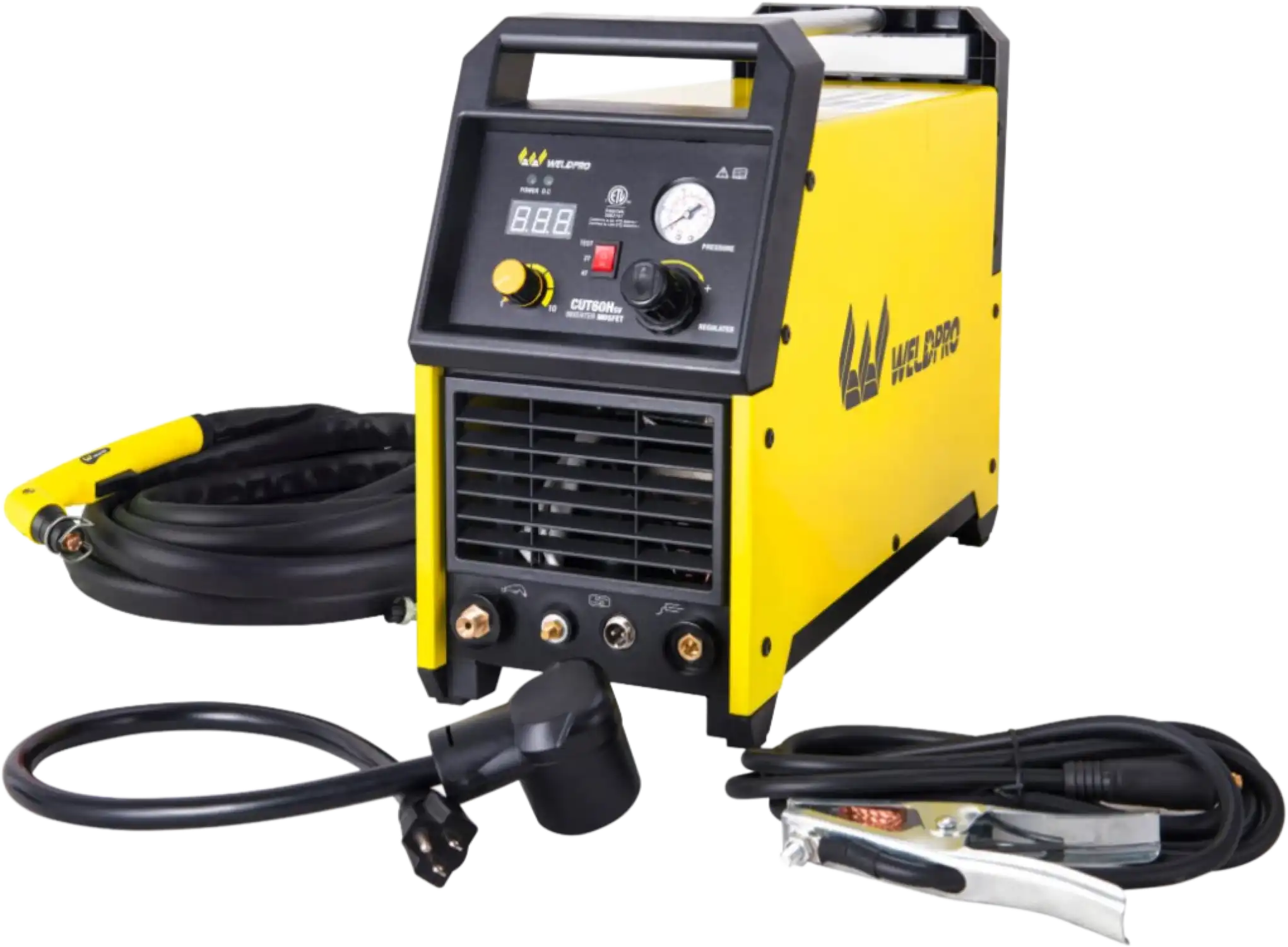

Weldpro CUT60HSV Plasma Cutter 60 Amp Inverter with High-Frequency Pilot Arc Dual Voltage 220V/110V L14006 New
Manufacturer: Weldpro
SKU: L14006
QTY
or
(888) 999-1522
C
$1,036.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Weldpro CUT60HSV Plasma Cutter 60 Amp Inverter with High-Frequency Pilot Arc Dual Voltage 220V/110V L14006 New
Product Overview
This 60 Amp Plasma Cutter features a High Frequency start with Pilot arc, for making clean, fast cuts through rusty, painted or expanded metal such as stainless steel, aluminum, copper, cast iron, carbon steel, and all kind of metal as thin as 24-gauge, or as thick as 0.787 in.
The dual voltage 115-Volt/230-Volt design allows it to be used almost anywhere there is power available (120-Volt restricts total amp output and cutting capacity).
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- 20 – 60 Amp output, with 60% at 60 Amp rated duty cycle
- It is an ideal choice for factory maintenance, fabrication work and farm work and auto body repairs
- Using any air compressor that puts out 50.7-65.3 psi, you will be able to cut all exotic metals fast, clean, and effectively
- High temp and overload protection with indication
- Dual voltage 115-Volt/230-Volt 10% design
- Cutting through stainless, aluminum, copper, cast iron, carbon steel and all kind of metal as thin as 24-gauge, or as thick as 0.787 in.
- The pilot arc is started by high frequency, which is known for producing more reliable, consistent and cleaner cuts without having to spend extra time on cleaning
Specifications
| Supply voltage (V) | 1 phase 115V±15% 1 phase 230V±15% |
| Frequency (Hz) | 60 |
| Rated input current (A) | 20/40 |
| Open circuit voltage (V) | 266 |
| Output current (A) | 20 20-50 |
| Output voltage (V) | 88-92 88-104 |
| Duty cycle (%) | 60 |
| Power factor | ≥0.73 |
| Efficiency (%) | ≥80 |
| Arc starting mode | HF |
| Pressure of the air compressor (psi) | 50.7-65.3 |
| Nozzle orifice - inside (in) | .047 |
| Cutting thickness (in) | 1/4 3/4 |
| Housing protection class | Ip21 |
| Insulation class | F |
| Cooling method | Forced Air Fan |
| Weight (lb) | 33.5 |
| Dimensions (in) | 20.3 x 7.9 x 15.2 |
Package Contents
Inverter Plasma Cutter
Cutting Torch
Earth Clamp
Power Adapter
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
