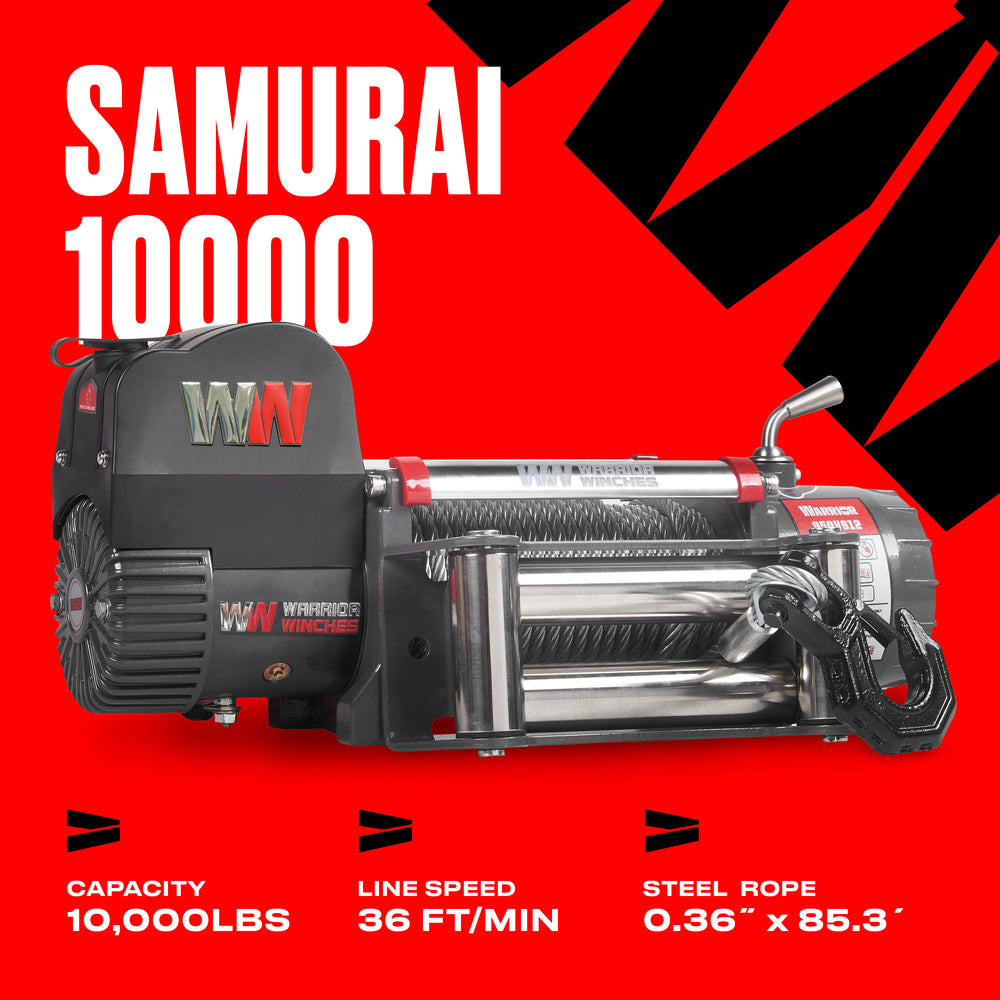

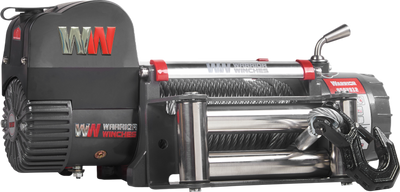

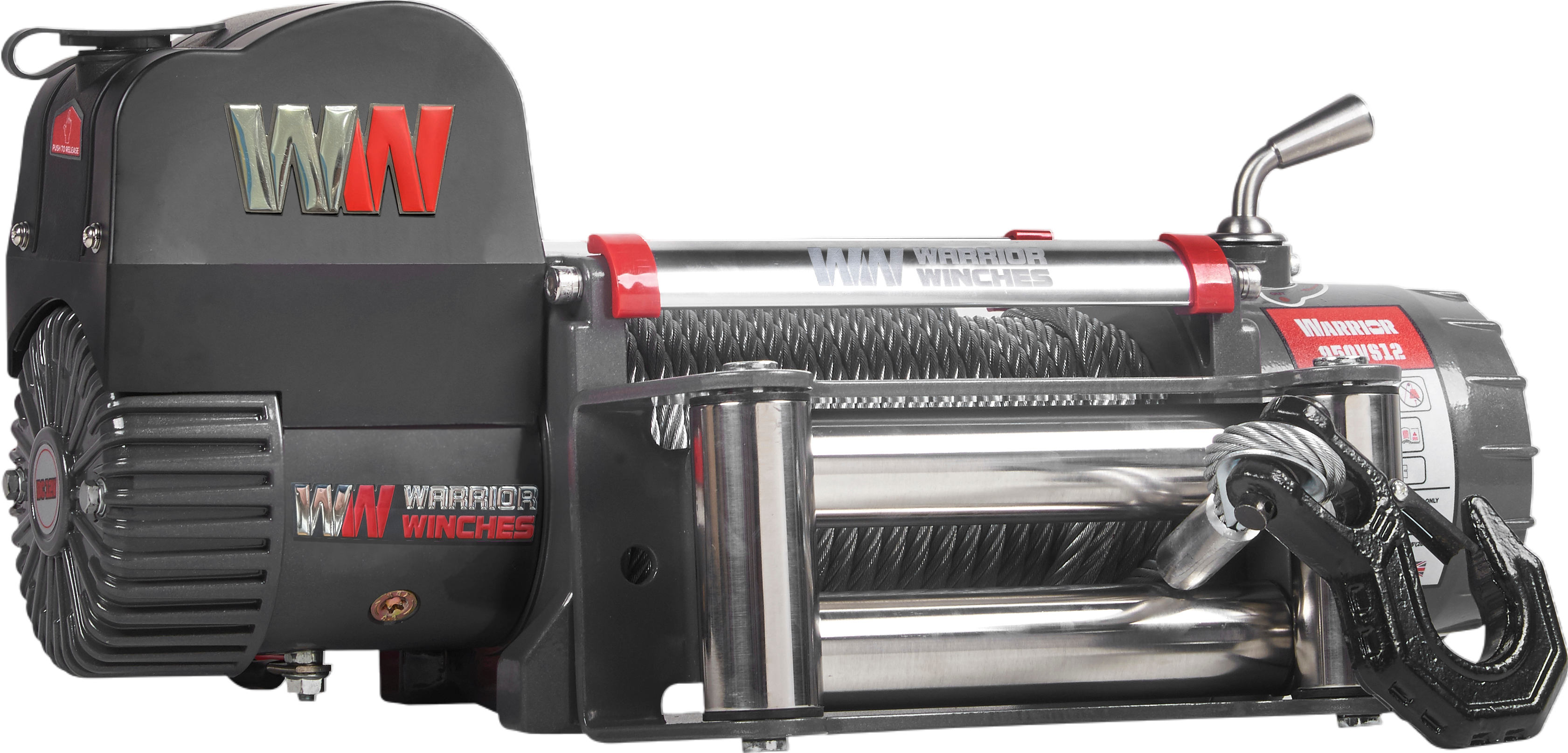

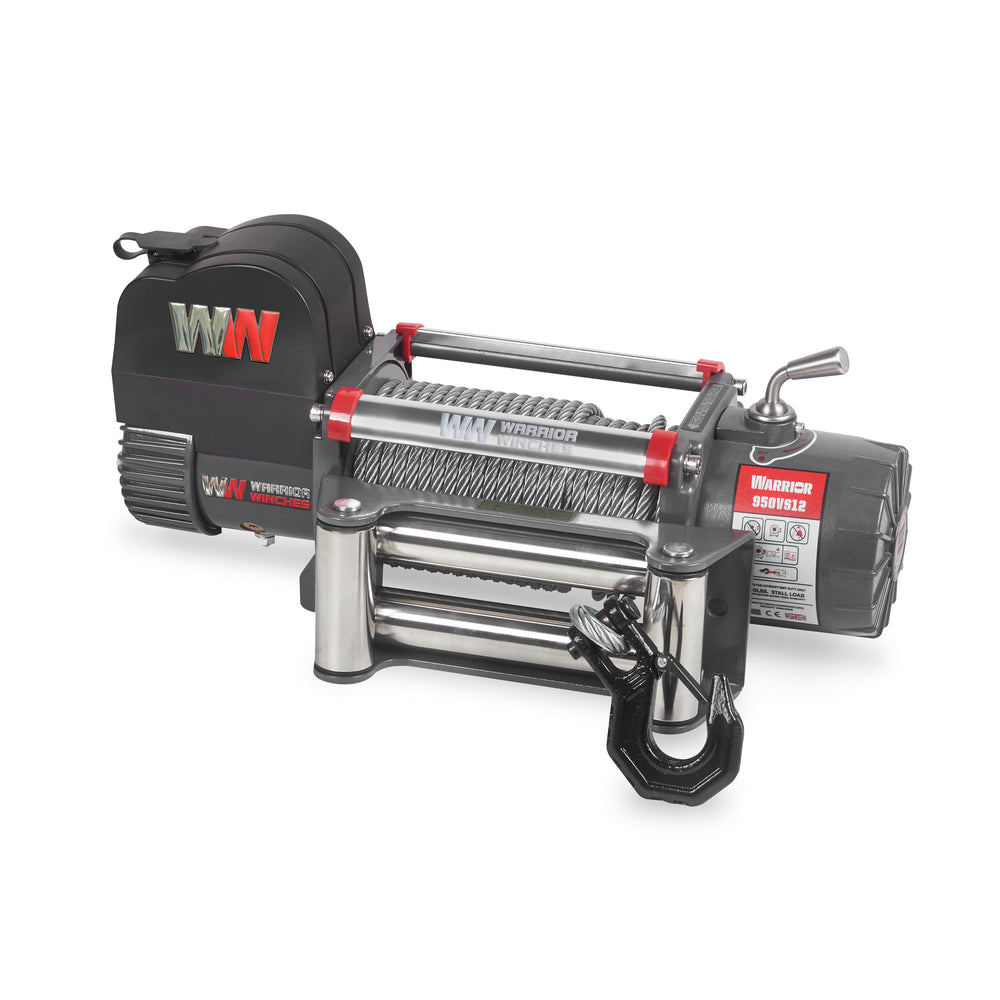

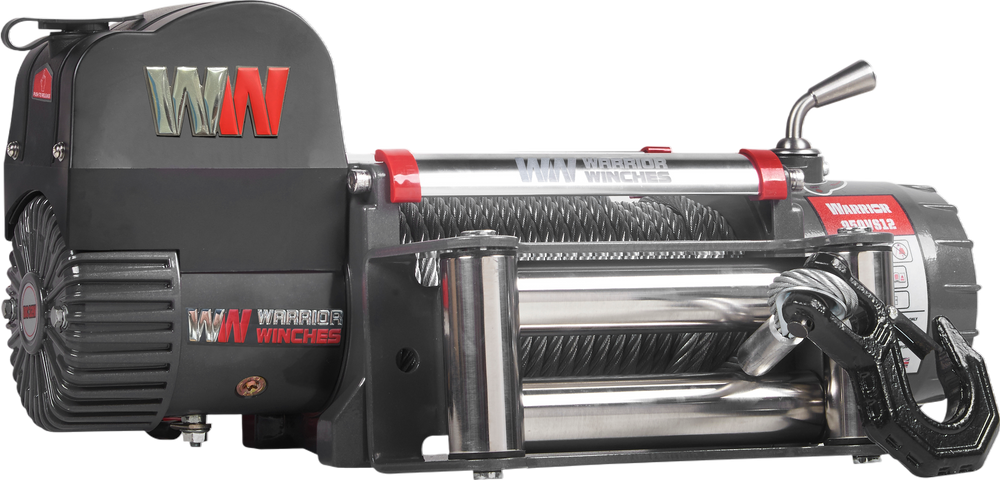

Warrior Winches Samurai Electric Winch 10,000 Lb 12-Volt Steel Rope New
Product Overview
The next generation Samurai winch is designed for maximum power, speed, and efficiency. It pulls faster, draws less current, and delivers unstoppable performance when it matters most. At its core is a revolutionary external brake system, giving you superior load holding and smooth, controlled pull while eliminating heat buildup in the drum. This winch comes fully equipped with a premium fairlead and fittings, and an integrated wireless remote. Ideal for recovery and 4x4 applications.
Brand new
5 year limited warranty
US orders ship from TX
CA orders ship from Ontario
Manufacturer direct shipping
Authorized Warrior Winches Dealer
Features
- Revolutionary Design External Brake: Enhances control and safety during heavy pulls.
- 600 Amp Silver Tip Contactor: Provides superior electrical performance for reliable operation.
- Silver Copper Motor with Copper Brush Holders: Offers improved durability and efficiency for extended motor life.
- IP67 Waterproof Sealing: Full protection against dust and water, ensuring reliable performance in extreme conditions.
- HRC50 Full Steel Gears: High-strength steel gears for maximum durability and long lasting service life.
Specifications
| Rated Lift | 10,000 LBS |
| Motor Type | 12V: Input: 4.6 kW / 6.1 HP; Output: 2.2 kW / 3.0 HP |
| Gearing | 196:1 |
| Gearing System | Planetary |
| Braking Action | External Brake |
| Drum Size (Diameter x Length) | 2.48" x 8.78" |
| Cable Material | Steel |
| Cable Size | 85.31 ft. x 0.36 in. |

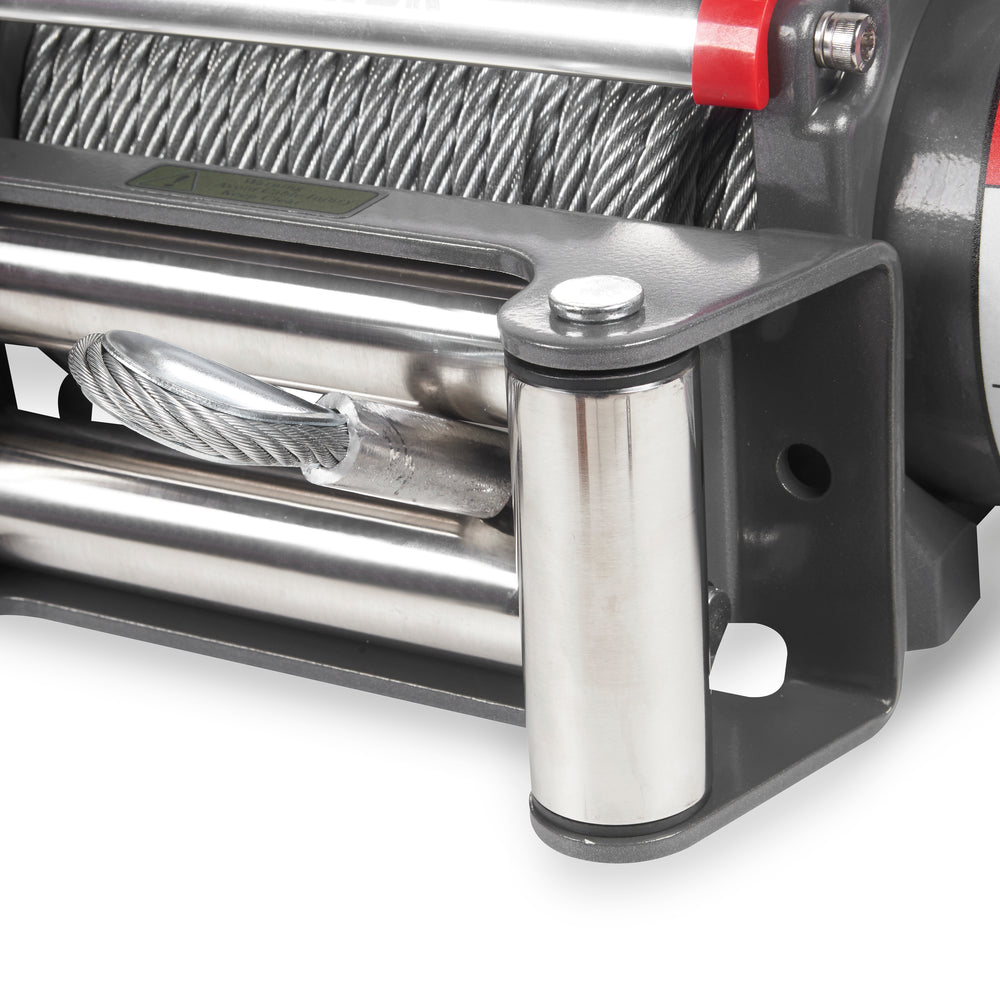

| Fairlead | Roller |
| Mounting Pattern | 10" x 4.4" |
| Dimensions | 22.01" x 6.3" x 9.76" |
| Weight | 88 lbs |

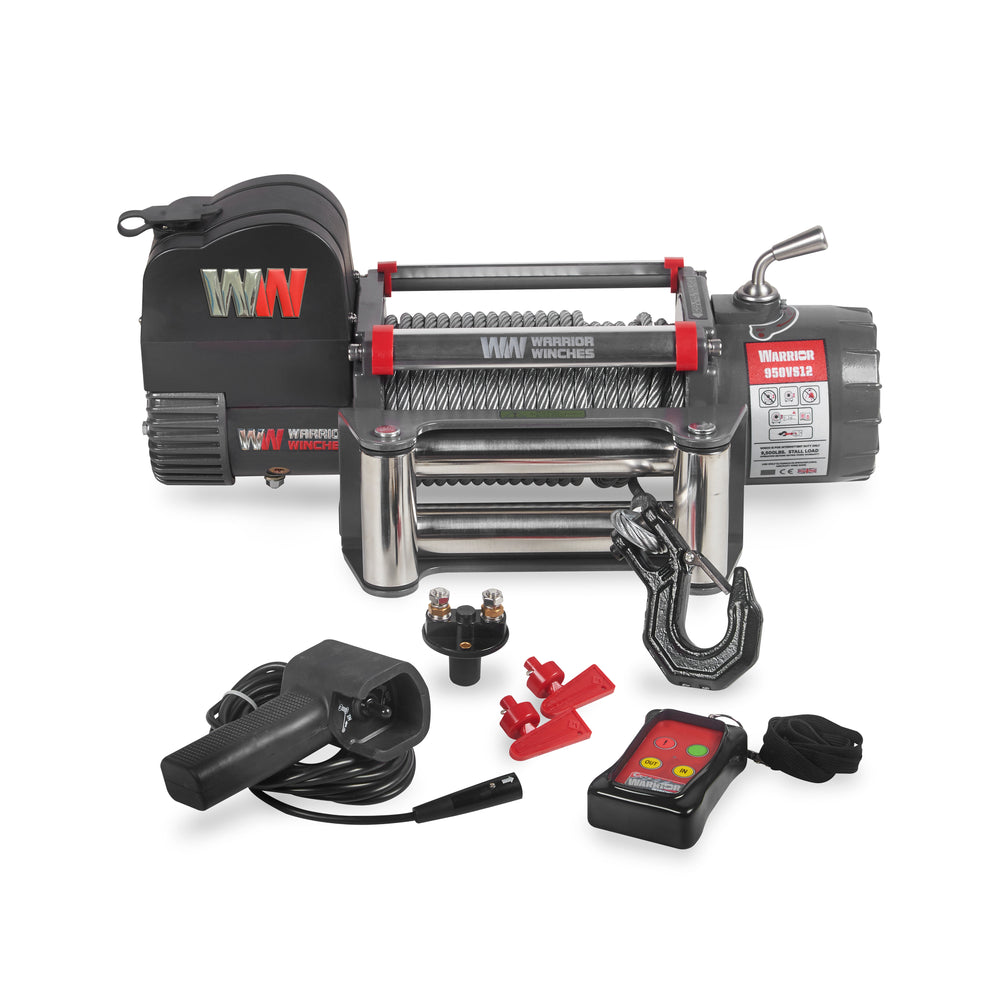

Package Contents
Samurai Winch
Fairlead

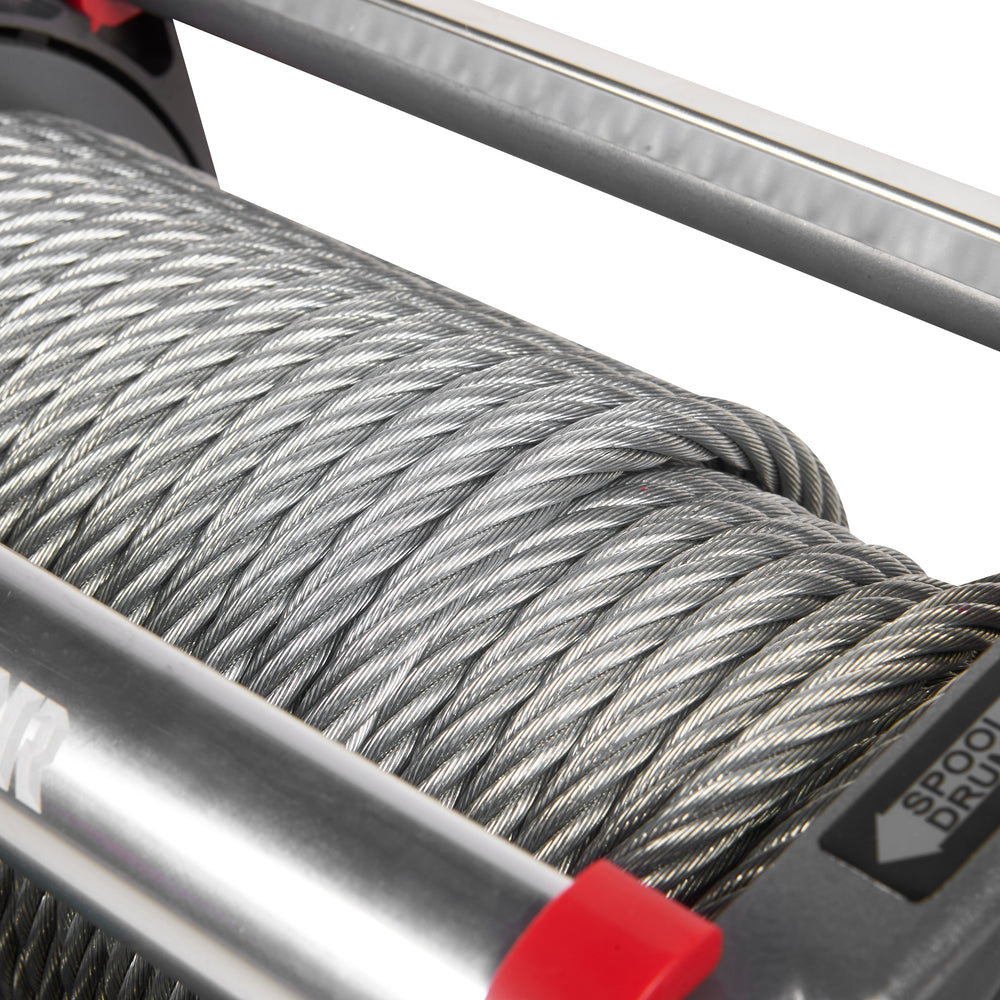

Steel Rope
HD Battery Leads
12.4FT Wired Remote Handset
Wireless 2.4G Remote

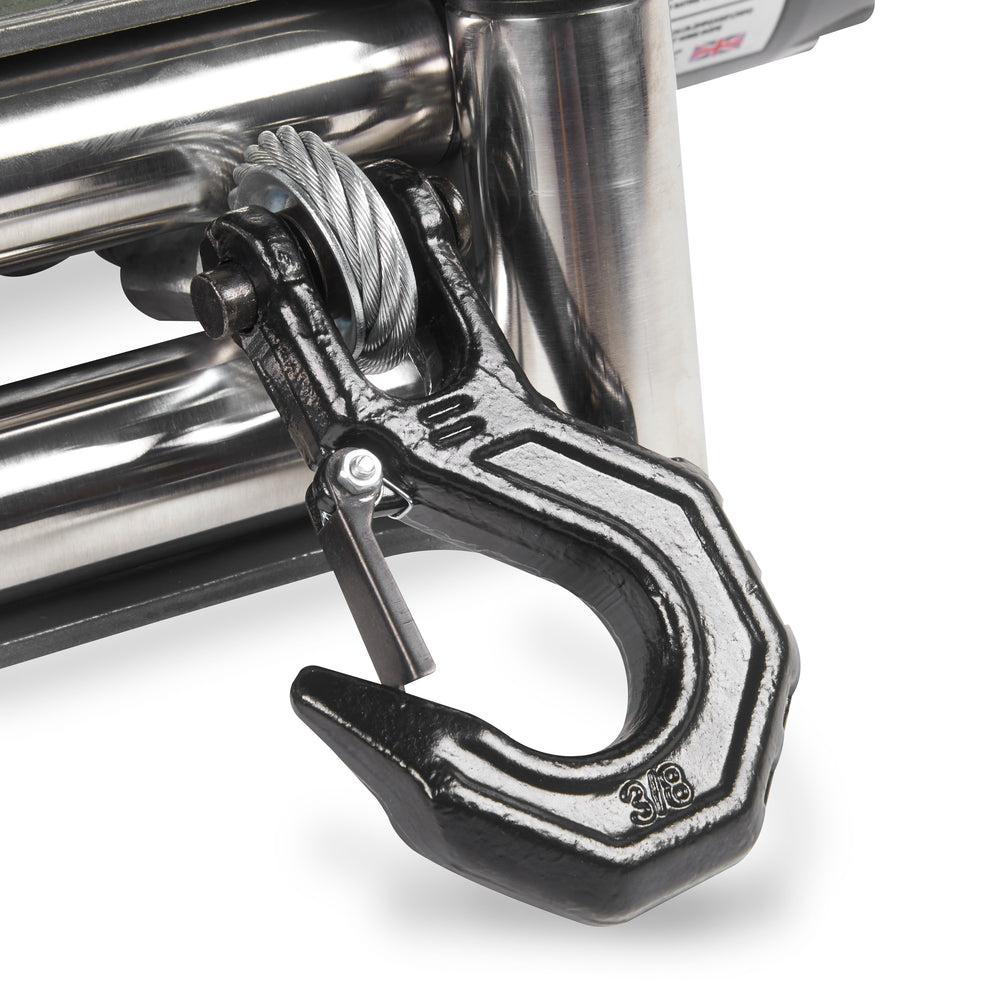

Removable Heavy Duty Hook
Isolation Switch
Stainless Steel Mounting Hardware
User Manual
Warranty
This item comes with a 5 year limited warranty.
