Victron QUA481030010 Quattro 48V/10000VA/140A-100/100 230V Inverter Charger New
No reviews
Share
Product Overview
Brand new in box
Manufacturer direct shipping From TX
5 year limited manufacturer's warranty
Authorized Victron dealer
Free shipping

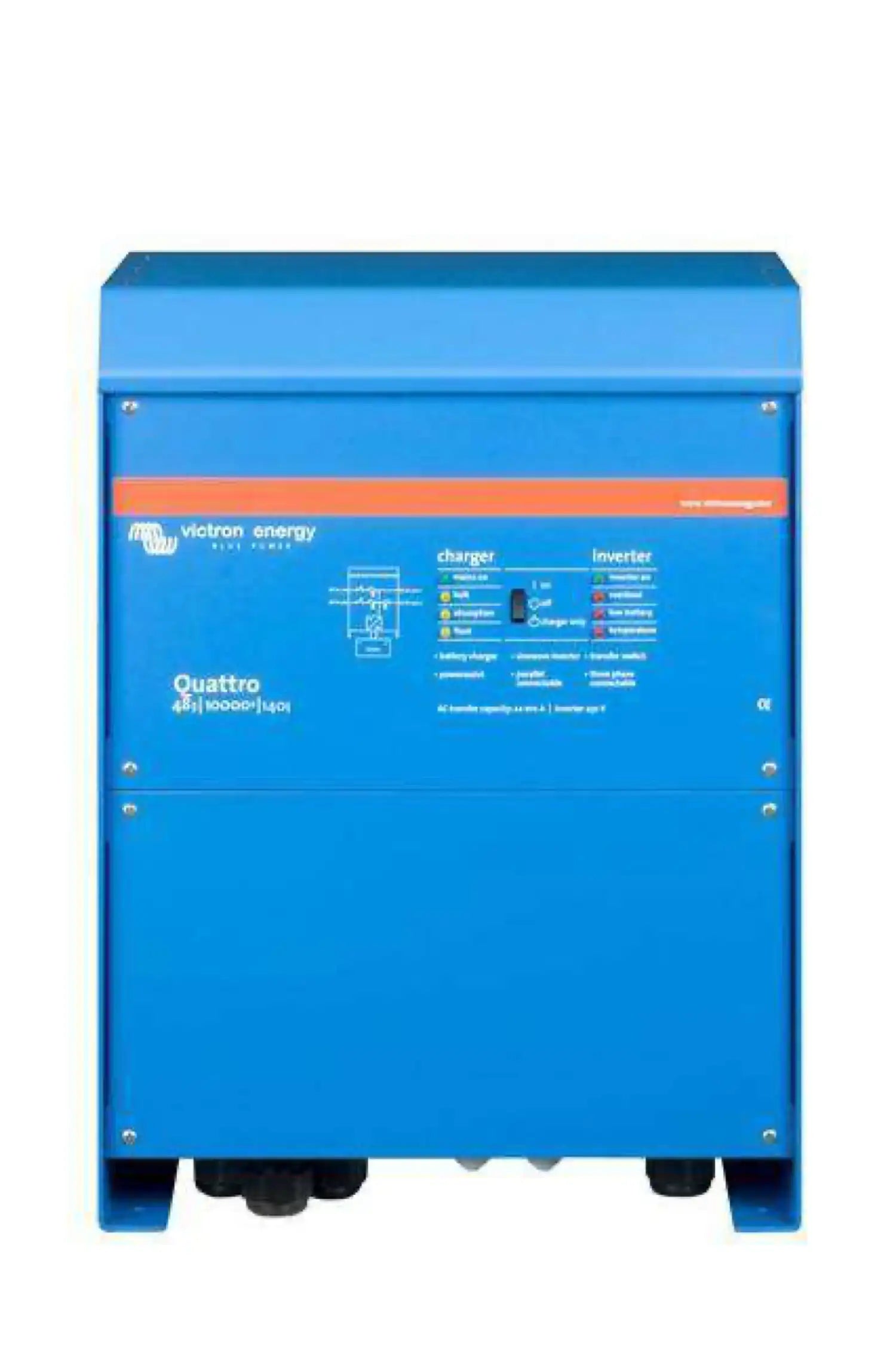

Victron QUA481030010 Quattro 48V/10000VA/140A-100/100 230V Inverter Charger
The Victron Energy Quattro Inverter/Charger has 2 AC inputs with integrated transfer switch, 2 AC Outputs, a unique PowerAssist feature and virtually unlimited power thanks to parallel operation. Models range from 3kVA to 15kVA per module.
Features:
Two AC inputs with integrated transfer switch The Victron Energy Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.
Two AC Outputs The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Victron Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
Unique PowerAssist feature The Victron Energy Quattro will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation Up to 6 Victron Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.
Features and Specifications:Specifications/Efficiency:
MULTIFUNCTIONAL
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.
TWO AC INPUTS & TWO AC OUTPUTS
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
UNIQUE POWERASSIST FEATURE
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
VIRTUALLY UNLIMITED POWER THANKS TO PARALLEL OPERATION
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
REMOTE MONITORING AND CONTROL
Monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more...
TECHNICAL SPECIFICATION
Country of Manufacture
India
Dimensions (mm)
470 x 350 x 280
IP Rating
IP21
Power (Watts)
10000
SKU
QUA481030010
Voltage
48V
Weight (kgs)
51
As a Victron authorized dealer, we offer a 5 year limited factory warranty on this item.
Victron Solar Charge Controllers have a 5 year warranty.
