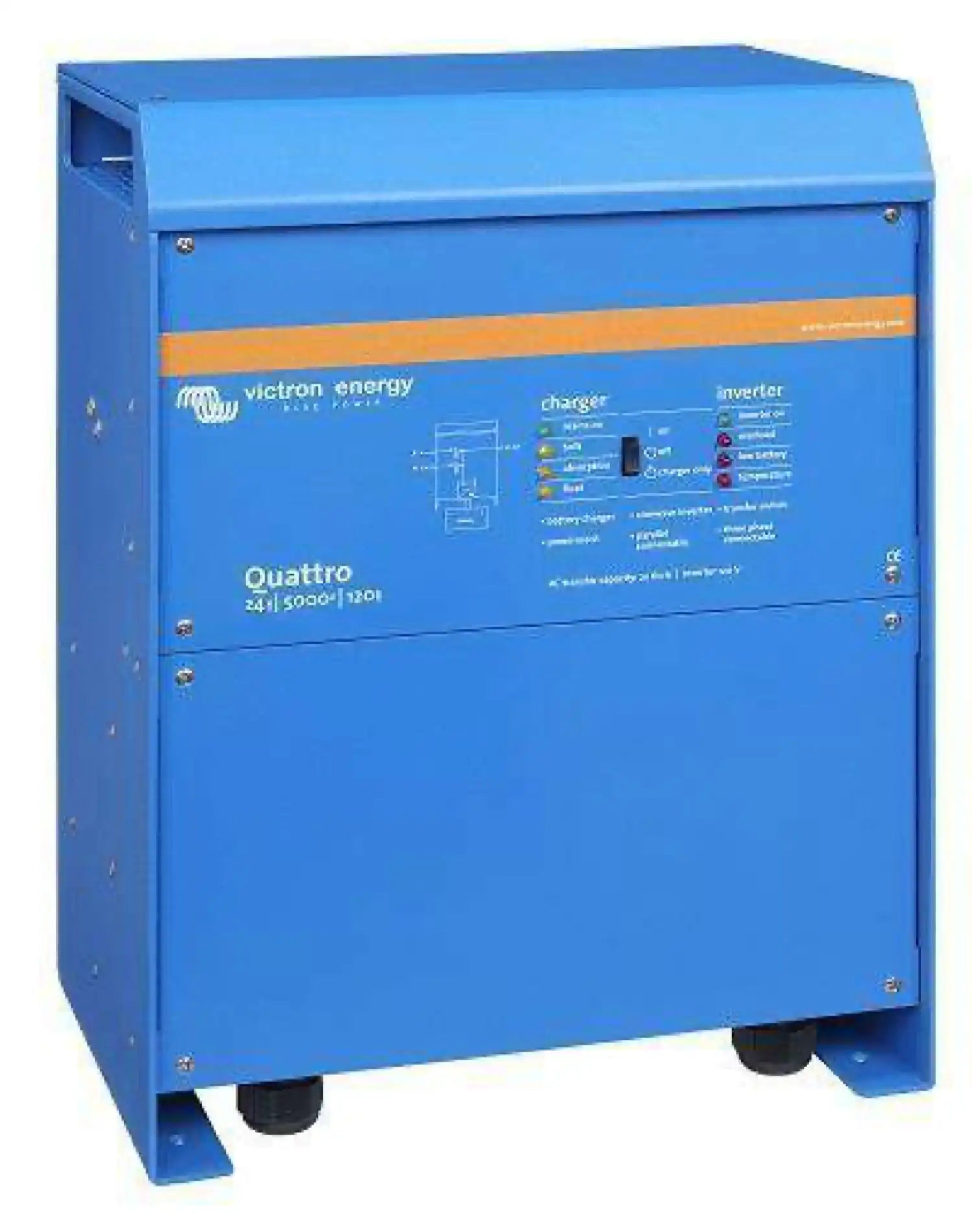

Victron QUA245021011 Quattro 24/5000/120-100/100 120V Inverter Charger New

• Multifunctional: Inverter, Adaptive Charger and Transfer Switch all in one unit
• Two AC Inputs
• Two AC Outputs
•  Up to (6) units can be connected in parallel for more power!
• Split-Phase capaility
• Three Phase capabillity
• Hybrid style technology called PowerAssist and PowerControl
• Four Sage adaptive charging
• Dual Battery Bank charging capability

Inverter Specifications:

• Continuous Power:  5000VA / 4000W
• Peak Power:  10,000W
• Input Voltage Range:  19V - 33 V
• Output Voltage:  120 VAC ± 2%
• Output Frequency:  Frequency: 60 Hz ± 0.1%
• Maximum Efficiency:  94%
• Zero Load Power:  30W
• Zero Load Power in AES Mode:  25W
• Zero Load Power in Search Mode:  10W

• Charging Current:  120A
• AC Input Voltage Range:  90VAC - 140VAC
• AC Input Frequency Range:  45 - 65Hz
• Charging Voltage (Absorption):  28.8V
• Charging Voltage (Float):  27.6V
• Storage Mode:  26.4V

• Dimensions:  17.5" x 13" x 9.6" (444mm x 328mm x 240mm)
• Unit Weight:  66 lbs (30 kg)
• AC Terminal Connection:  M6 Bolts
• Battery Connection:  (4) M8 Bolts
