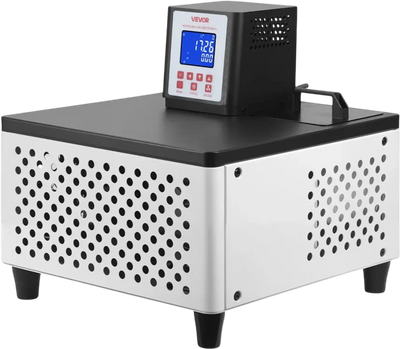

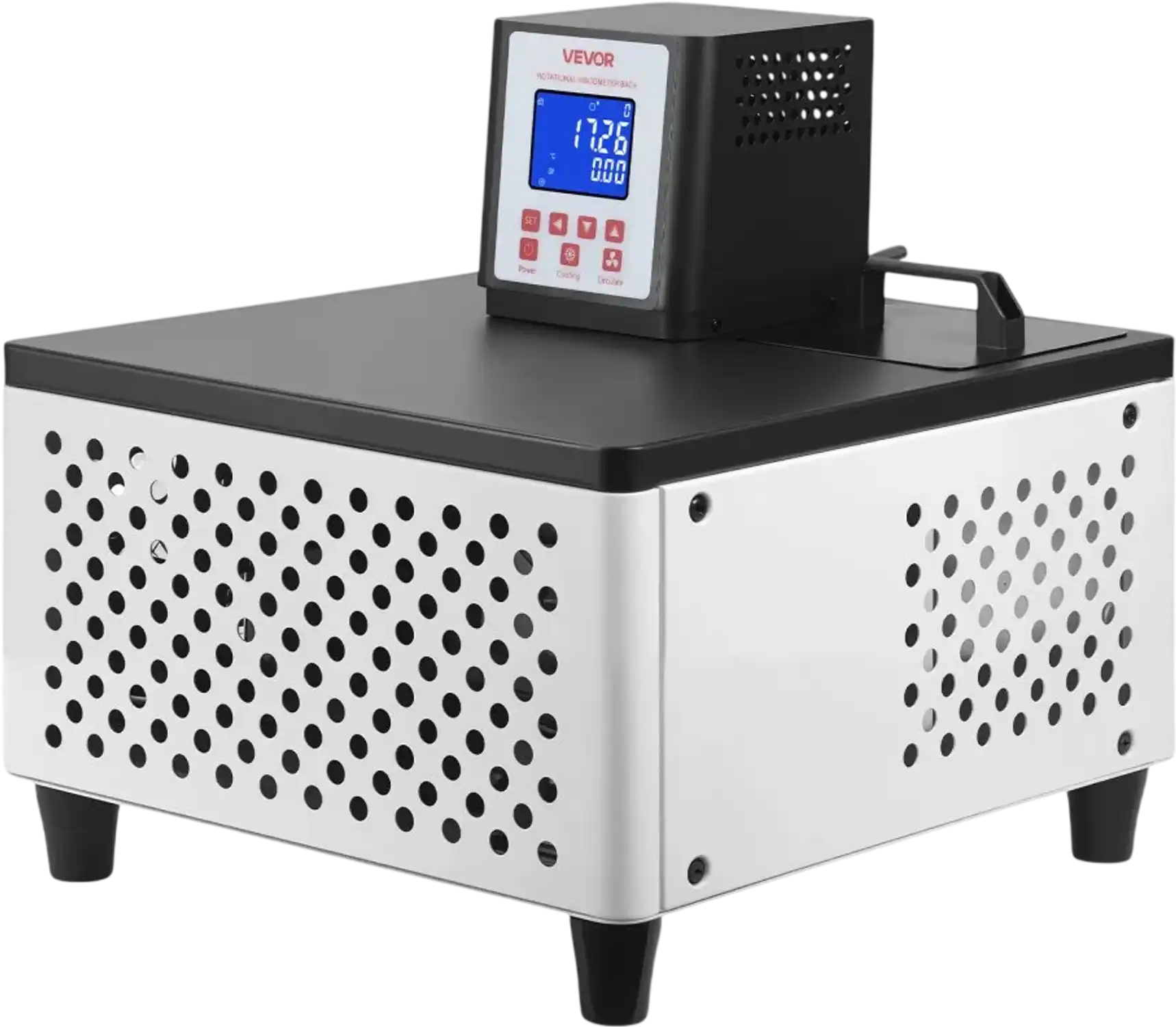

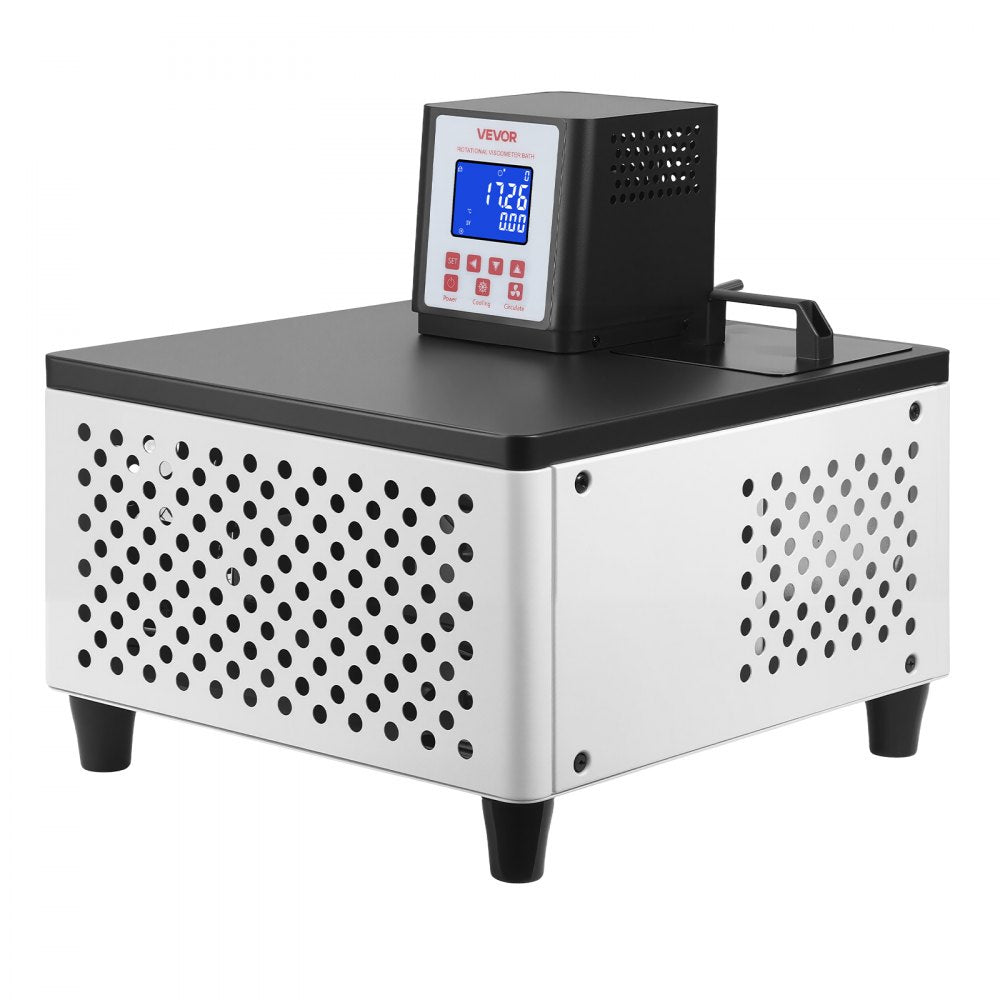

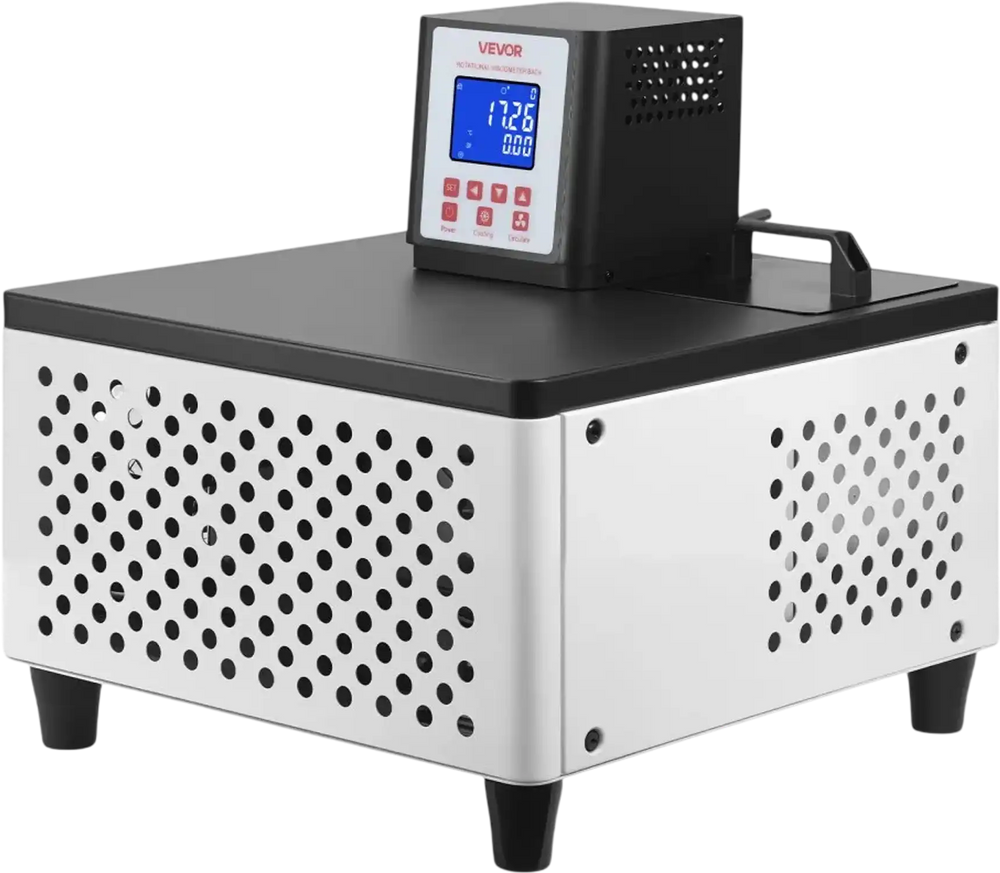

Vevor Water Bath Viscometer Thermostatic Circulating Lab Unit New
Product Overview
The Vevor viscometer water bath is designed for laboratory viscosity testing with stable PID temperature control and a wide 23 to 212°F operating range. It supports both internal and external circulation for flexible testing setups with various rotational viscometers. The square stainless steel tank features adjustable clamping slots and an LCD display for clear operation. Built with durable materials, it is suited for consistent temperature management in lab environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

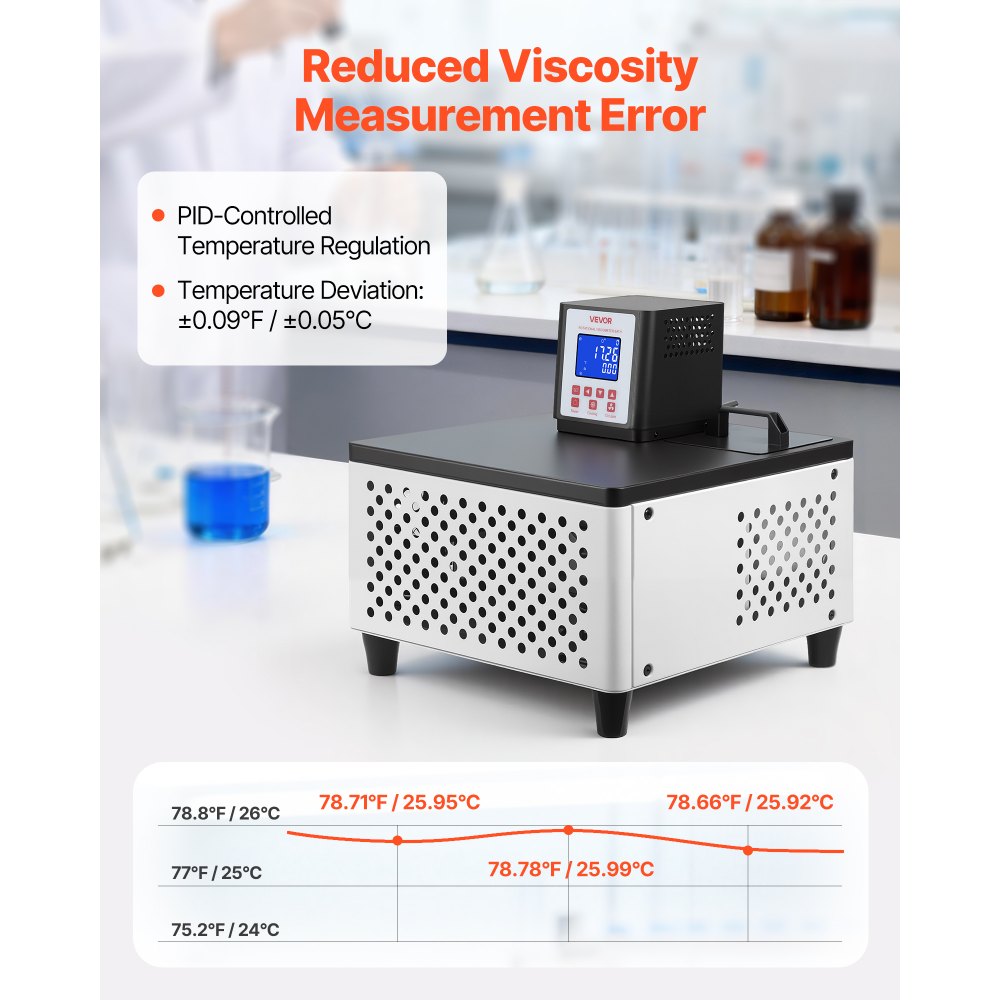

- Stable Temperature Control: This viscometer water bath uses a PID auto temperature control system with ±0.09°F accuracy. It keeps fluid temperature constant without stratification for more accurate viscosity testing

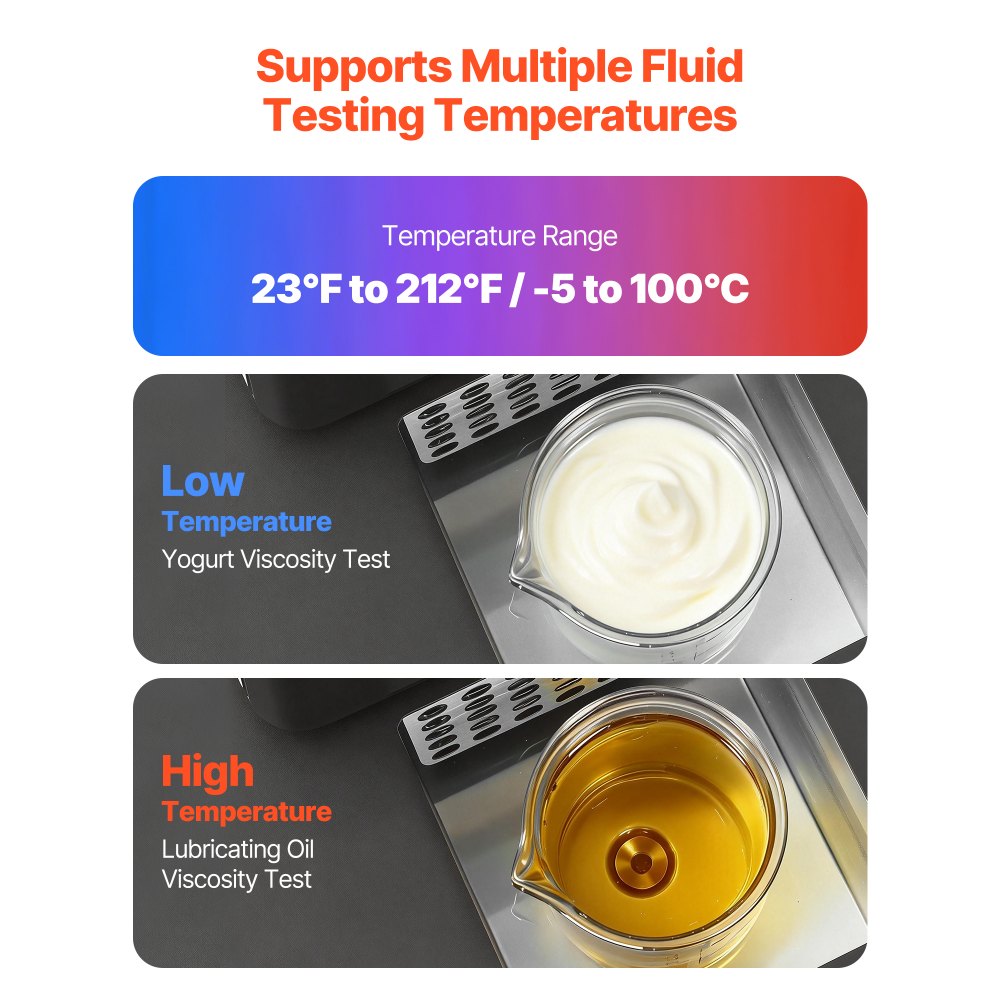

- Wide Temperature Range for Multiple Fluids: The temperature range of 23℉ to 212℉ supports viscosity testing requirements for different fluid types across a wide range of operating conditions

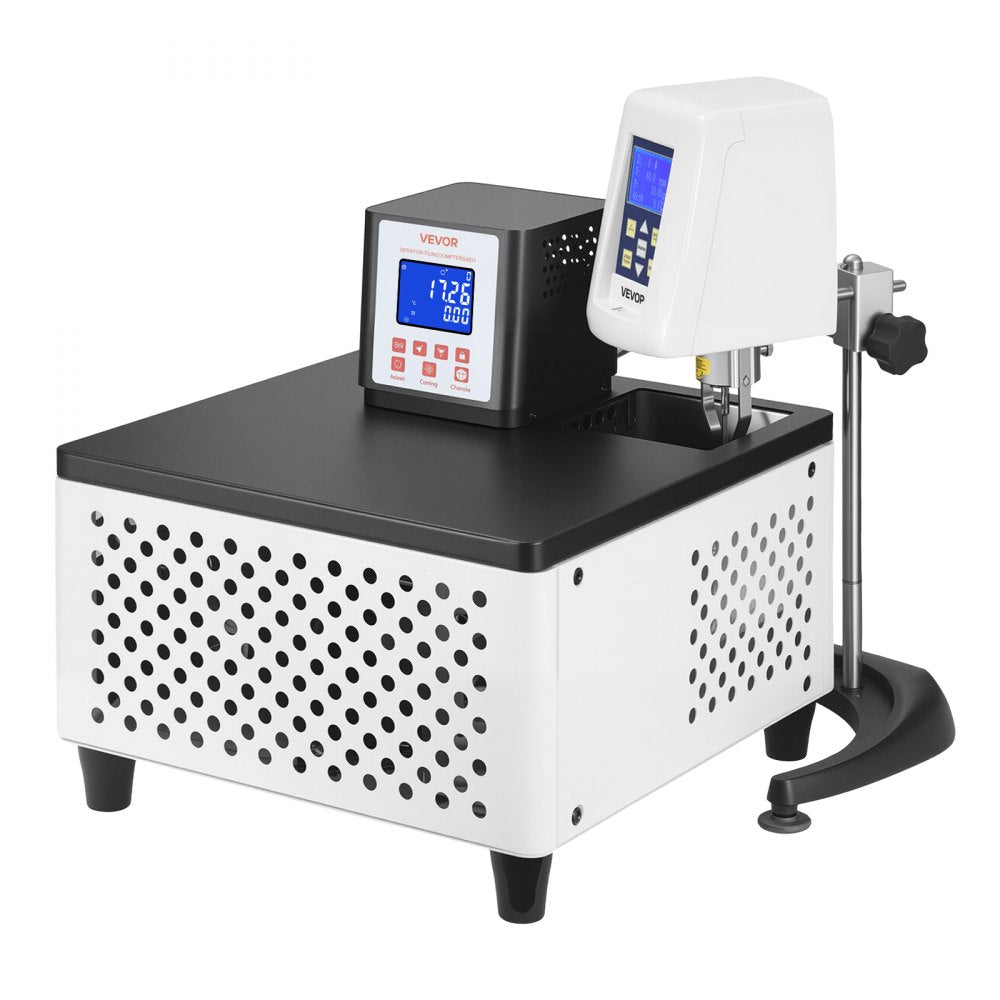

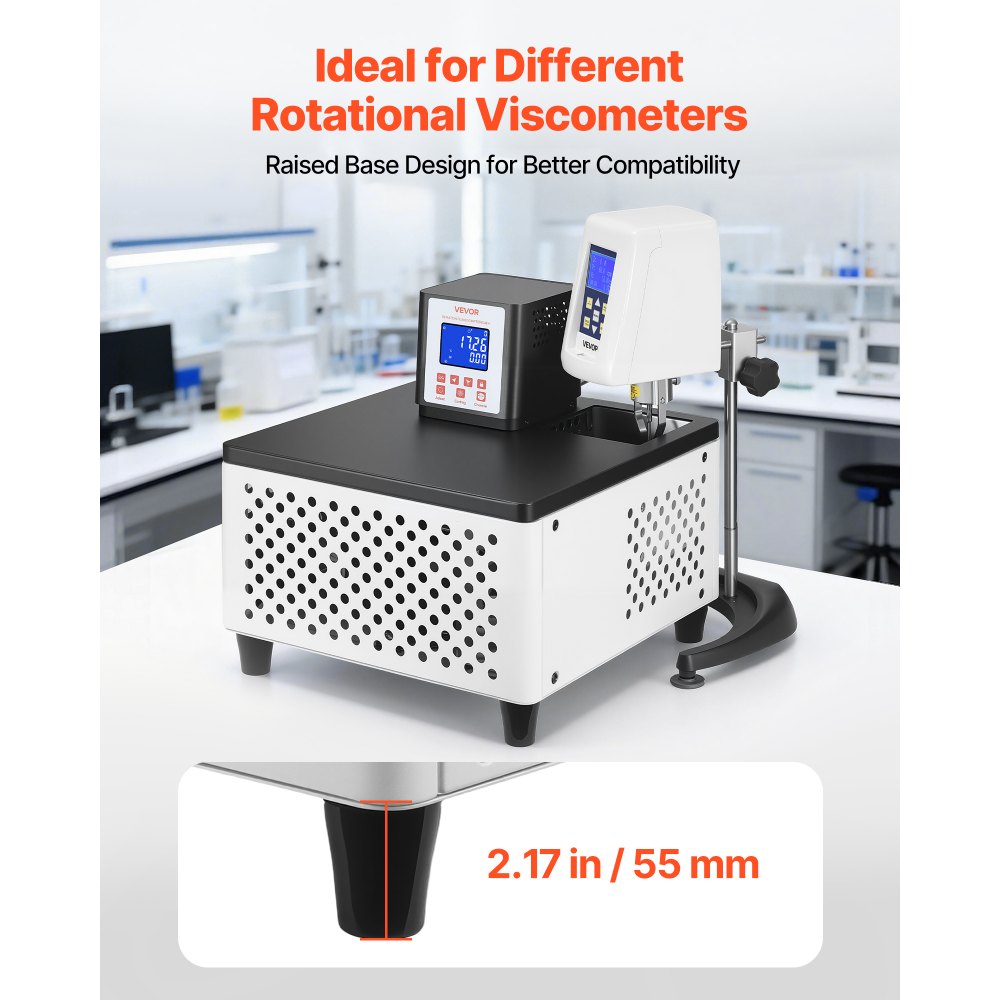

- Compatibility With Various Rotational Viscometers: The rotational viscometer bath base provides a bottom clearance height of 2.17 in to accommodate various rotational viscometers. It is suitable for bench-top placement during testing

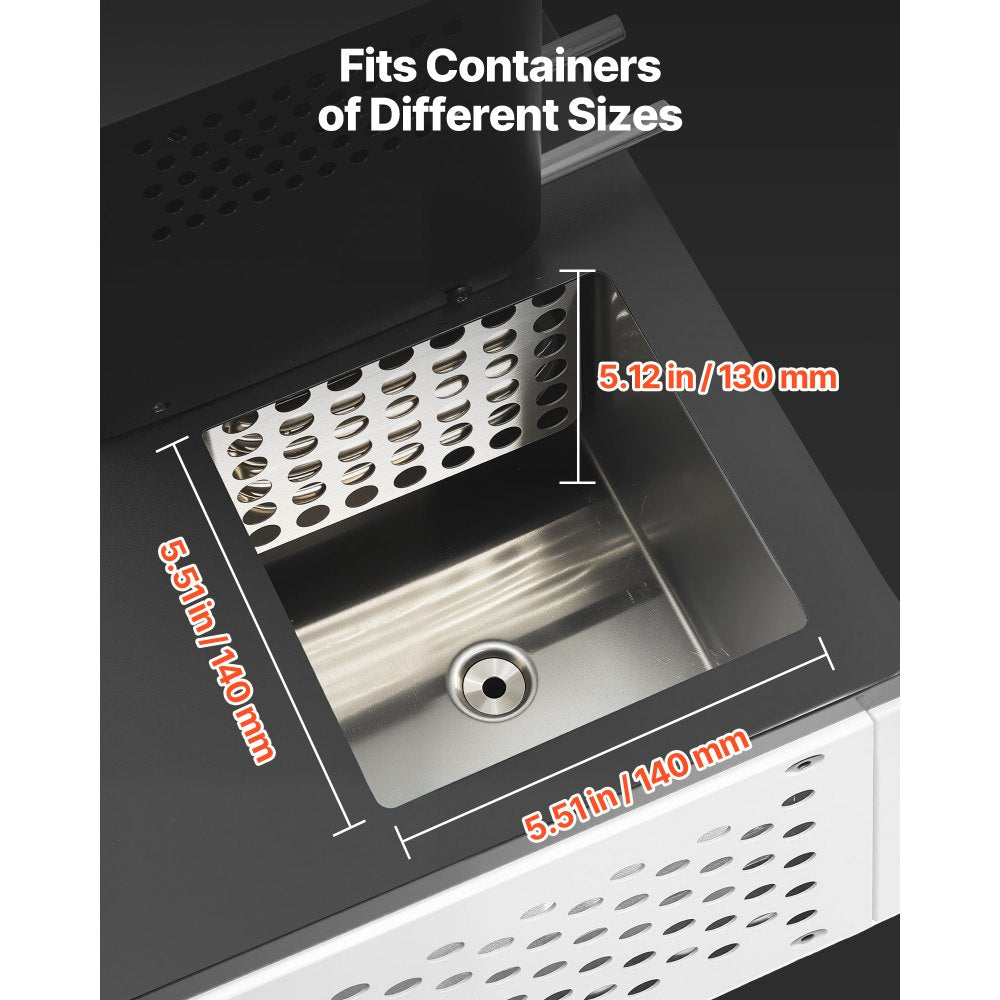

- Broad Compatibility & Built to Last: The square tank on this viscometer thermostatic bath measures 5.51 x 5.51 x 5.12 in. Adjustable clamping slots fit different containers. Made of 304 stainless steel, the tank supports long-term use and easy cleaning

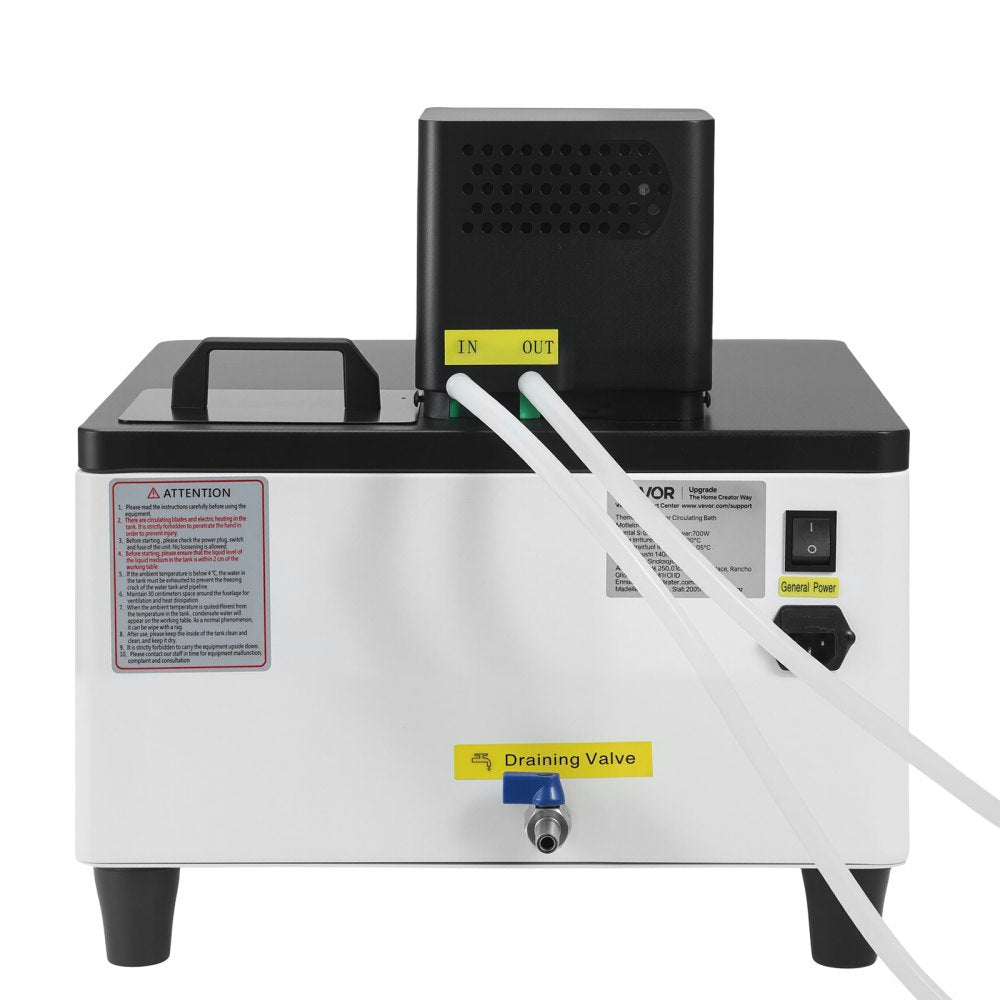

- Dual Modes: This water bath for viscometer supports internal and external circulation. The internal mode controls temperature with the container in the tank. The external mode connects to a double-layer glass cup or other vessel for temperature control

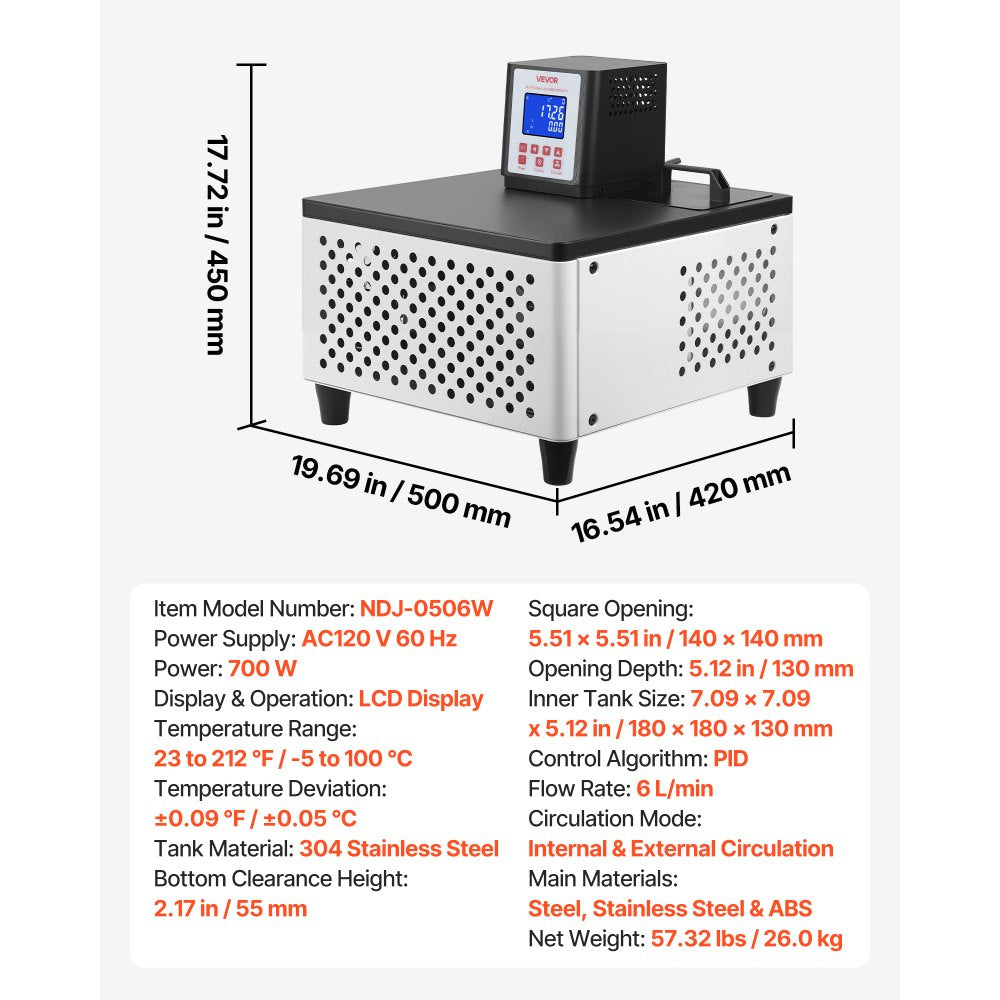

Specifications
| Item Model Number | NDJ-0506W |
| Power Supply | AC120V 60Hz |
| Power | 700 W |
| Display & Operation | LCD Display |
| Temperature Range | 23 to 212°F / -5 to 100°C |
| Temperature Deviation | ±0.09°F / ±0.05°C |
| Tank Material | 304 Stainless Steel |
| Bottom Clearance Height | 2.17" / 55 mm |
| Square Opening | 5.51" x 5.51" / 140 x 140 mm |
| Opening Depth | 5.12" / 130 mm |
| Inner Tank Size | 7.09" x 7.09" x 5.12" / 180 x 180 x 130 mm |
| Control Algorithm | PID |
| Flow Rate | 6 L/min |
| Circulation Mode | Internal & External Circulation |
| Main Materials | Steel, Stainless Steel & ABS |
| Net Weight | 57.32 lbs / 26.0 kg |

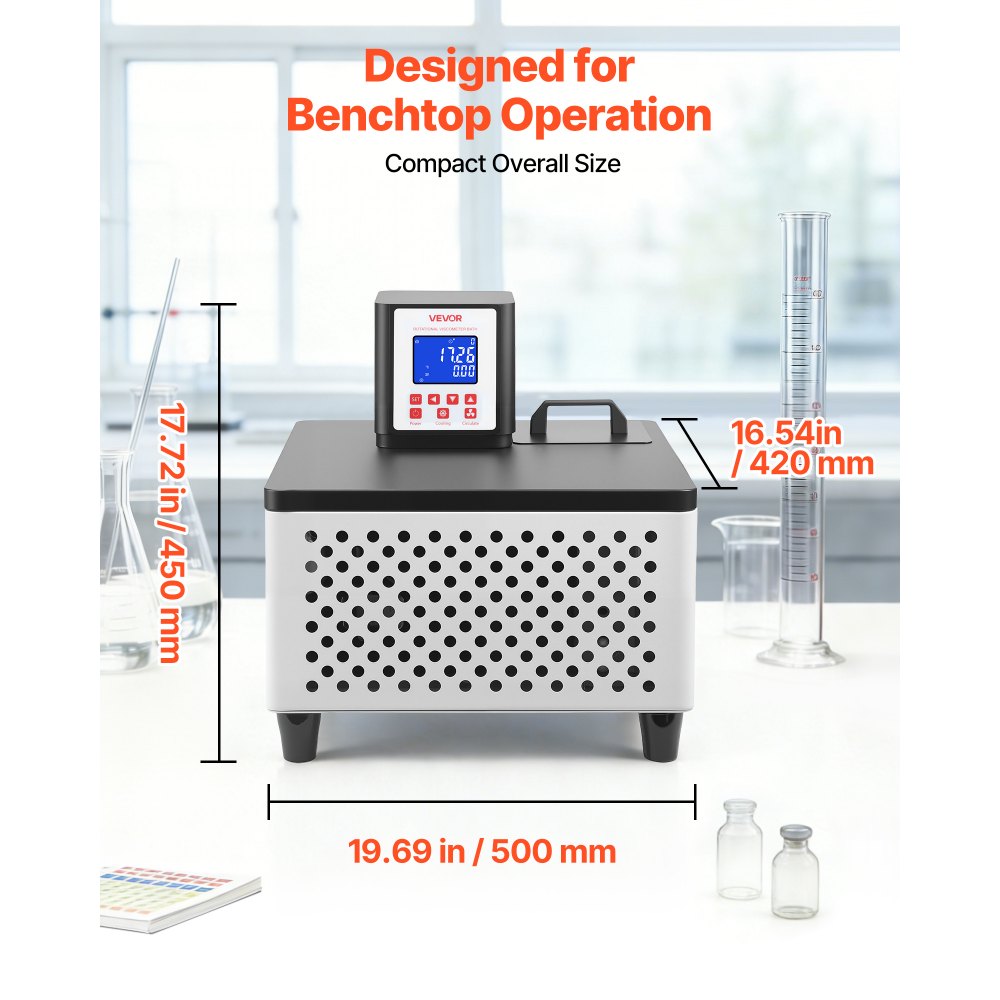

| Dimensions | 19.69" x 16.54" x 17.72" / 500 x 420 x 450 mm |

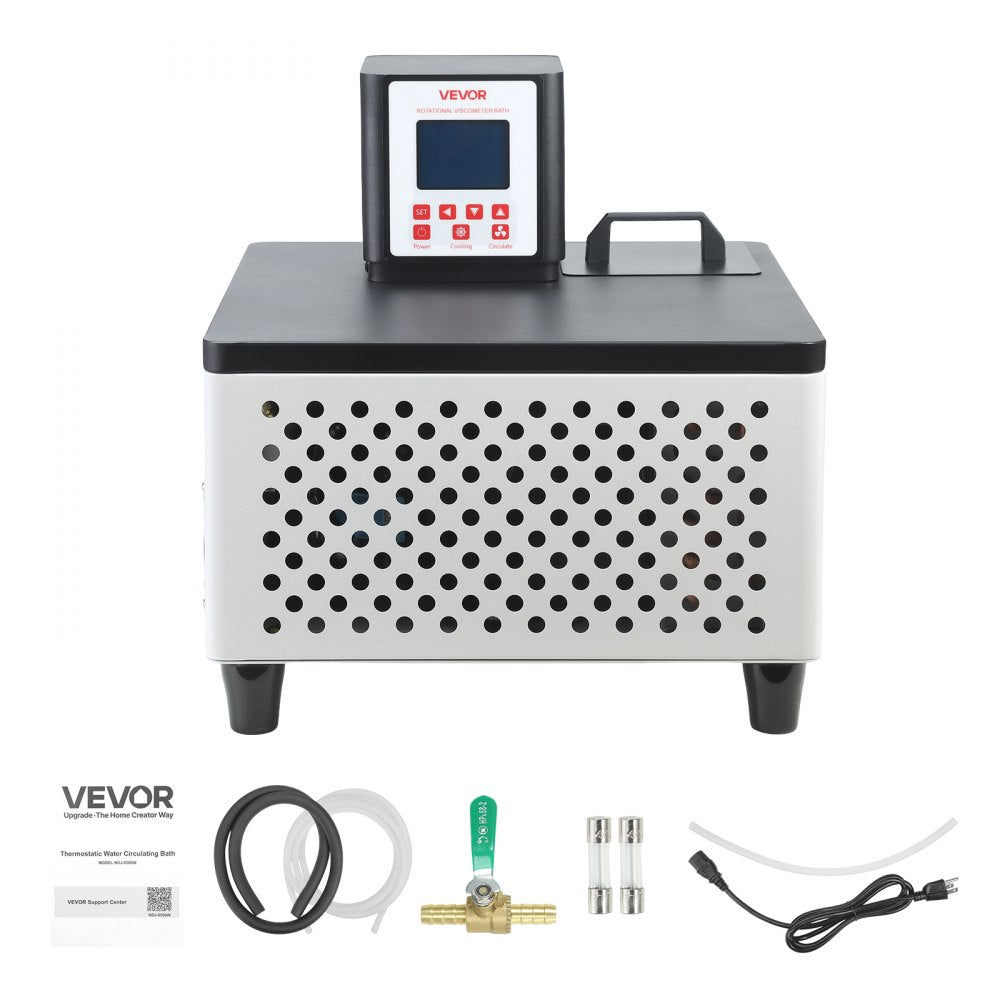

Package Contents
Viscometer water bath
Warranty
This item comes with a 1 year factory warranty.
