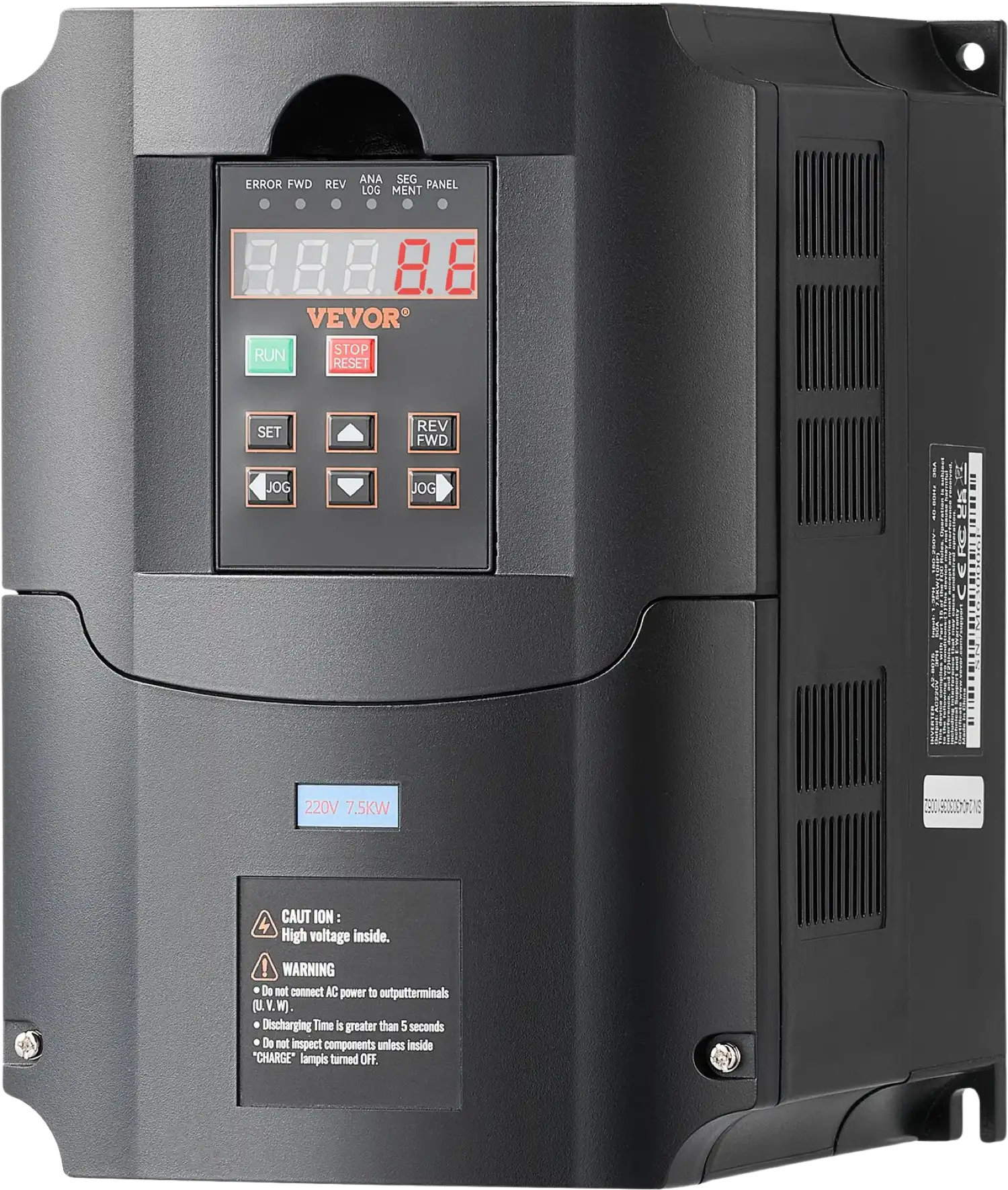

Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New

Manufacturer: Vevor

SKU: BPQDQ75KW220GF4DKV7

SMS
Messenger
WhatsApp
Featured image for product 7904926400701
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Featured image for product 7904926400701
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New

Power Options





QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$234.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Be the first to know when the product is back

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

Customers Also Purchased

VEVOR Voltage Converter Transformer, 5000W, Heavy Duty Step Up/Down Transformer, Convert from 110 Volt to 220 Volt and from 220 Volt to 110 Volt, with US Outlet EU Outlet 5V USB Port, CE Certified Vevor Voltage Converter 5000W Step Up/Down Transformer New

$123.00

VEVOR Temporary Power Outlet Panel, 20 30 50 Amp, RV EV Electrical Outlet Panel, with NEMA 50 Amp NEMA 30 Amp GFCI 20 Amp Receptacle Installed, Pre-Wired IP54 Weatherproof Box, for RV Camper Motorhome Vevor Temporary Power Outlet Panel 20/30/50 Amp RV EV Electrical Outlet Box New

$112.00

VEVOR 30 Amp RV Power Outlet Box, 125/250 Volt, Enclosed Lockable Outdoor RV Receptacle Box, NEMA TT-30R Weatherproof Electrical Panel, for RV Camper Trailer Motorhome Tested toStandards Vevor RV Power Outlet Box 30 Amp 125/250V Lockable Weatherproof Outdoor Receptacle New

$43.00

VEVOR Dual Battery Isolation Kit, 6m 12V, Auto Split Charge Relay System with 140AMP VSR, Fits RVs, Marine Crafts, Cars, Trucks, Caravans, Campers, Yachts, ATVs, UTVs, and Boats Workshop Vevor Battery Isolator Kit 12V 140A Dual Battery Isolation Kit New

$76.00

VEVOR 50 Amp Generator Cord and Power Inlet Box, 10FT, 125V/250V STW 6/3 + 8/1 AWG Extension Power Cord, NEMA 14-50P to SS2-50R, Twist Lock Connector, Inlet Box Kit, for Generator to House, ETL Listed Vevor Extension Cable & Power Inlet Box 50 Amp 10' Generator Cord Kit New

$144.00

VEVOR Temporary Power Outlet Panel, 125/250V, RV Power Outlet Box with a 20/30/50 Amp Receptacle Installed, NEMA 14-50R / NEMA TT-30R / 15A GFCI for RV Camper Trailer Motorhome Vevor Temporary Power Outlet Panel RV Power Outlet Box 125/250V 20/30/50 Amp New

$139.00

VEVOR 30 Amp Generator Cord and Power Inlet Box Kit, 25 FT, NEMA L14-30P/L14-30R STW 10 AWG Generator Power Extension Cord with Twist Lock Connector, Pre-Drilled Inlet Box for RV Outdoor, ETL Listed Vevor Generator Cord and Power Inlet Box Kit 30 Amp 25' NEMA L14-30P/L14-30R New

$90.00

VEVOR Voltage Converter Transformer, 500VA, Heavy Duty Step Up/Down Power Transformer, Convert from 110V to 220V and 220V to 110V, with US Outlet, EU Outlet, Power Cord, Circuit Breaker Protection Vevor Voltage Converter Transformer 500VA Step Up/Down 110V to 220V and 220V to 110V New

$42.00

Featured image for product 8060432646333 Vevor Digital Phase Shifter Single to 3-Phase Converter 20HP 70A 220V Input/Output New

$469.00

VEVOR Dual Battery Isolator, 12V 140 Amp, Manual and Automatic VSR Voltage Sensitive Relay with LCD Screen, Smart Battery Isolator for Lithium & Lead-Acid Batteries, for Car Truck RV UTV ATV Boat Vevor Battery Isolator Smart Dual 12V 140A VSR Relay with LCD Screen New

$43.00

VEVOR 2000VA Auto Variable Voltage Transformer, 15.3 Amp, 110V Input 0-130V Output AC Voltage Regulator Power Supply, with 4 Extra Fuses Thermal Control Switch for Home Industrial Office Vevor Variable Transformer 2000VA 15.3 Amp 110V Input 0-130V Output Voltage Regulator New

$97.00

VEVOR Manual Transfer Switch, 50-Amp 10-Circuit, Prewired Generator Transfer Switch Kit with CS6375 Plug Power Inlet Box, Double-Throw Switch, NEMA 3R, Mechanical Watt Meter, for 12500W Generators Vevor Manual Transfer Switch 50A 10-Circuit Generator Transfer Switch Kit New

$262.00

Featured image for product 7924057637053 Vevor Lockout Tagout Electrical Kit 59 PCS Safety Station with Padlocks Hasps Tags and Lockouts New

$146.00

VEVOR Single Phase to 3-Phase Rotary Converter, 5HP 14A 208-240V Input/Output Rotary Phase Converter - Expandable to Higher Horsepower for Heavy-Load Equipment Vevor Rotary Phase Converter Single Phase to 3-Phase 5HP 14A 208-240V New

$947.00

VEVOR Step Down Voltage Converter, 3000VA, Heavy Duty Voltage Power Converter, 220V to 110V Power Transformer, with 2 US Outlets, USB Output, LCD Display, Temperature Protection, for 110V Appliances Vevor Voltage Converter 220V to 110V 3000VA Step Down Power Transformer New

$125.00

VEVOR Voltage Converter Transformer, 2000W, Heavy Duty Step Up/Down Transformer, Convert from 110 Volt to 220 Volt and from 220 Volt to 110 Volt, with US Outlet EU Outlet 5V USB Port, CE Certified Vevor Voltage Converter Transformer 2000W Step Up Down with USB and Type-C New

$80.00

VEVOR Temporary Power Outlet Panel, 20 50 Amp, RV EV Electrical Outlet Panel with NEMA 50 Amp GFCI 20 Amp Receptacle Installed, Pre-Wired IP54 Weatherproof Box, for RV Camper Car Travel Motorhome Vevor Power Outlet Panel 20A & 50A RV EV Weatherproof Box New

$90.00

VEVOR 50 Amp RV Power Outlet Box, 125/250 Volt, Enclosed Lockable Outdoor RV Receptacle Box, NEMA 14-50R Weatherproof Electrical Panel, for RV Camper Trailer Motorhome Vevor RV Power Outlet Box 50A 125/250V Lockable Weatherproof NEMA 14-50R New

$37.00

Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New

Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New

SMS
Messenger
WhatsApp
Add To Wishlist
Remove From Wishlist

Product Overview

The input of the variable frequency drive is single-phase 220V or three-phase 220V, and the output is three-phase 220V. With easy wiring, intuitive display, and comprehensive protections, it simplifies operations, enhances energy efficiency, and minimizes machinery faults. This  VFD comes with an intelligent protection system, providing security against overcurrent, overload, overvoltage, and phase loss.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

  • Key Parameters: Power: 7.5KW, Horsepower: 10HP, Input Current: 35A. Input Phase: Single-phase 220V or Three-phase 220V ; Output Phase: Three-phase 220V. Input Frequency: 40-60Hz ; Output Frequency: 0-400Hz.
  • Intuitive Display and Button: Our variable frequency drive (VFD) features an intuitive display and easy-to-use buttons, allowing users to get started quickly. The detachable panel can be connected to the corresponding interface for remote control, providing added convenience and flexibility.
  • Safety & Durability Redefined: The VFD stands out with a comprehensive protection system, safeguarding against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and enhance the longevity of the VFD. It ensures rapid cooling during extended use with its multi-sided and multi-hole design.
  • Master of Versatility: Our VFD is ideal for driving three-phase motors in diverse machinery, including CNC routers, CNC machines, milling machines, drilling machines, compressors, pumps, grinders, elevators, centrifuges, and other speed control machines. For heavier motor loads, please choose a higher-powered VFD for best results.
  • Friendly Reminder: The motor power should not exceed that of the variable frequency drive, and having a lower power doesn't matter. Depending on the different load, power needs to be downgraded for optimal usage, especially under high-load situations.

Specifications

Item Model # A2-8075
Input Voltage 220V (Single Phase or 3 Phase)
Input Current 35A
Output Voltage 220V (3 Phase)
Power 7.5kW
Horsepower 10 HP
Input Frequency 40-60Hz
Output Frequency 0-400Hz
Main Material Flame-Retardant ABS
Product Dimensions 8.6" x 5.9" x 7"
Net Weight 5.6 lbs (2.56 kg)

Package Contents

Vevor Variable Frequency Drive

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
