Vevor Variable Frequency Drive 7.5HP 5.5KW 25A 220V 0-2000Hz Motor Speed Control New
Manufacturer: Vevor
SKU: BPQDQ55KW2208R10J001V7
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$222.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Variable Frequency Drive 7.5HP 5.5KW 25A 220V 0-2000Hz Motor Speed Control New
Product Overview
The Vevor variable frequency drive is designed for 5.5KW motors and delivers precise, stable motor speed control for demanding applications. It supports single- or 3-phase 220V input with 3-phase 220V output, making it suitable for a wide range of industrial and water supply uses. Built-in PID control enables constant-pressure water supply without requiring an external PLC. The unit also supports Modbus 485 communication, includes a built-in braking unit, and provides multiple protection functions for reliable operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Powerful Motor Control: Designed for 5.5KW motors, this 7.5HP 25A VFD supports single/3-phase 220V input and 3-phase 220V output, delivering flexible, stable, and reliable speed control for a wide range of motor applications

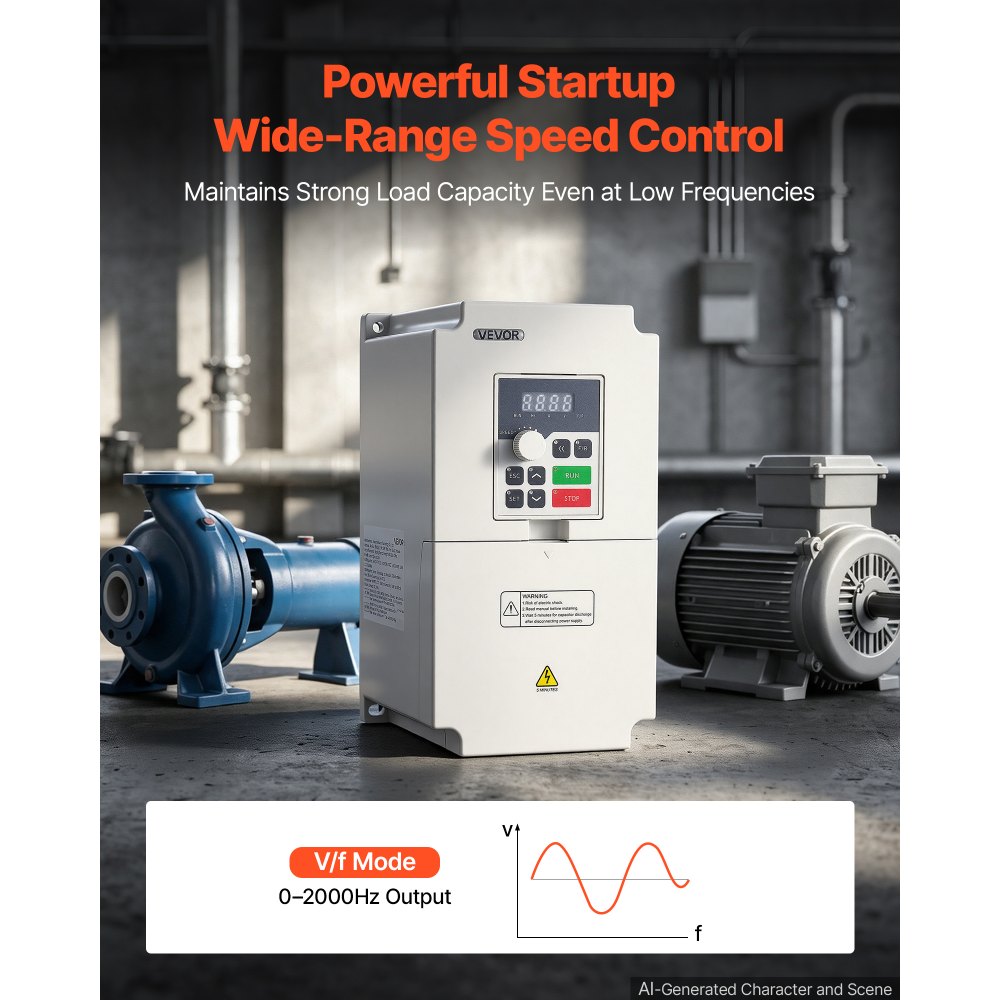

- Strong Low-Frequency Torque: Supports automatic torque compensation during low-frequency operation, maintaining strong load capacity even at low speeds. V/f mode supports a wide 0–2000 Hz frequency output range to meet more flexible speed control

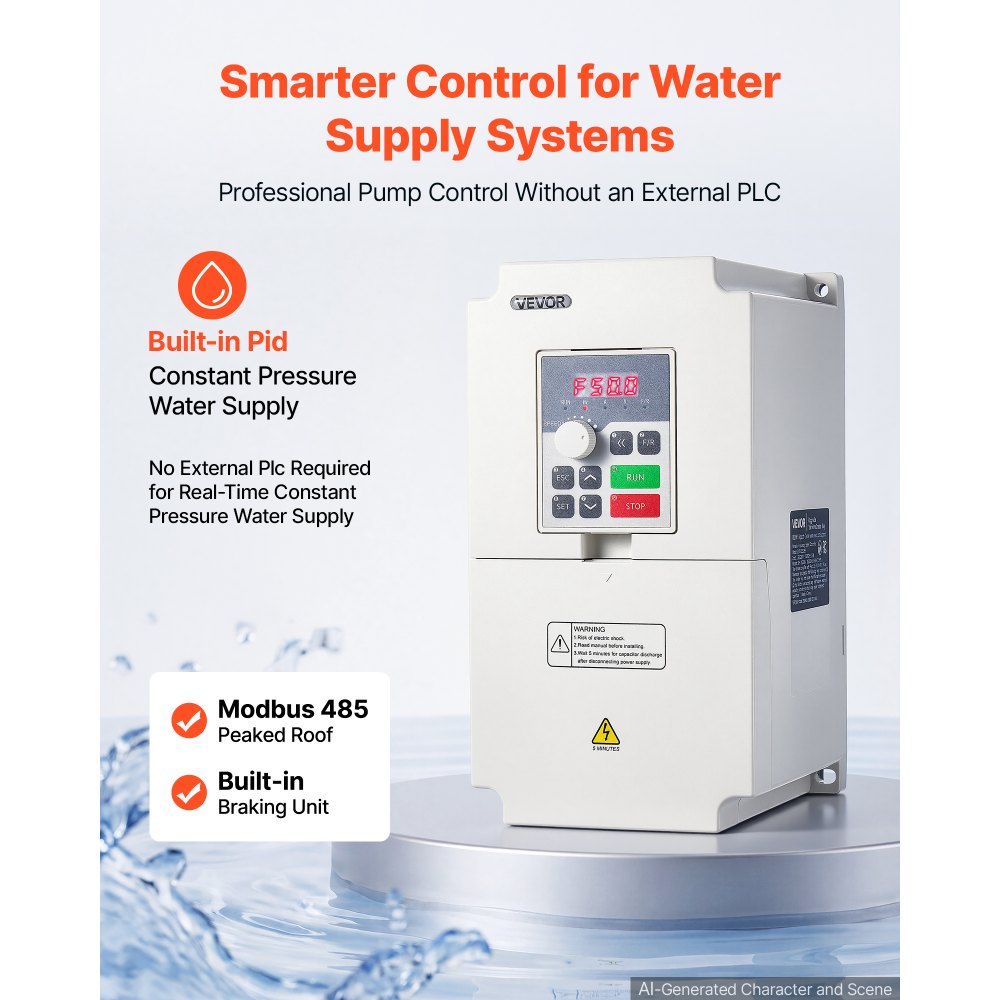

- Smarter Control: Features a built-in PID constant pressure water supply function, enabling real-time constant pressure water supply without the need for an external PLC. Supports Modbus 485 communication and features a built-in braking unit. Suitable for controlling three-phase asynchronous AC motors, spindle motors, and more
- Reliable 3-Phase Power: Delivers strong torque and powerful load performance. Suitable for automotive lifts, air compressors, water pumps, constant-pressure water supply systems, engraving machines, and more

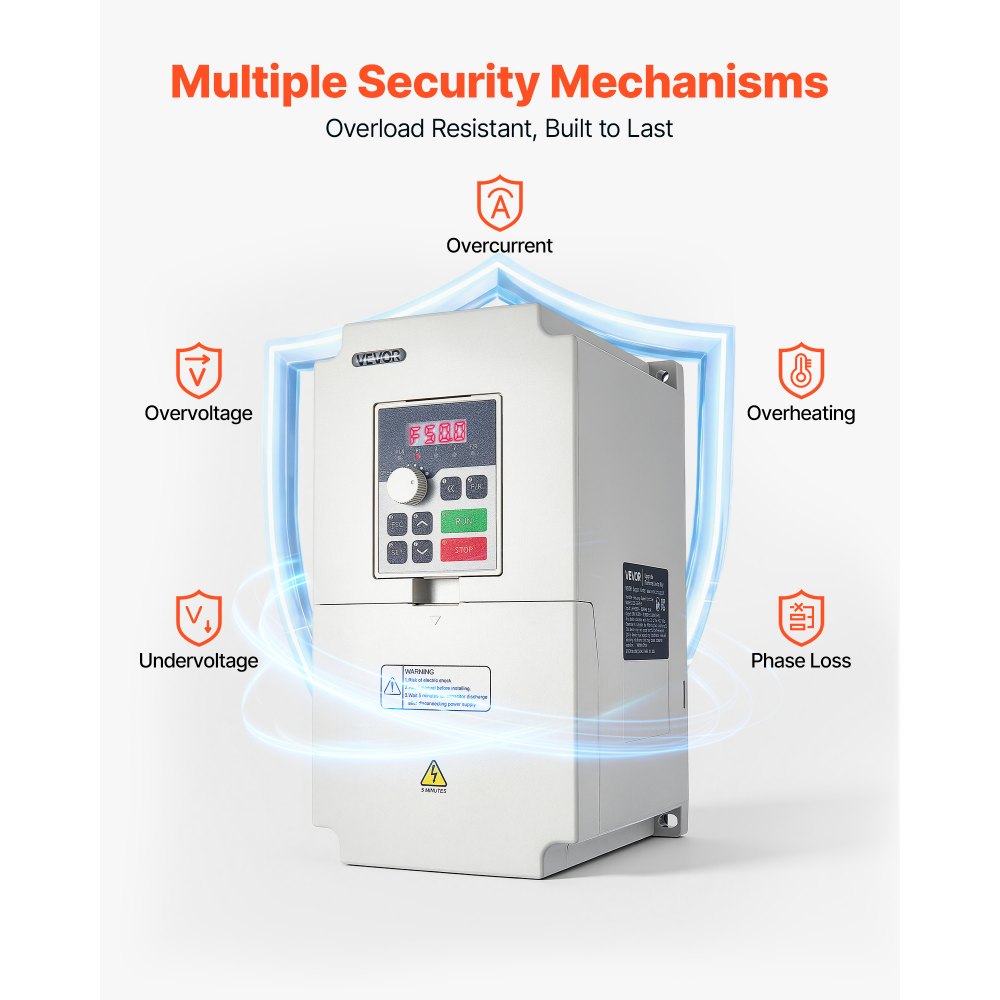

- Enhanced Security: Built-in protection against overcurrent, overvoltage, undervoltage, overheating, and phase loss. Combined with a flame-retardant housing and aluminum heat sink for enhanced heat dissipation and reliable operation

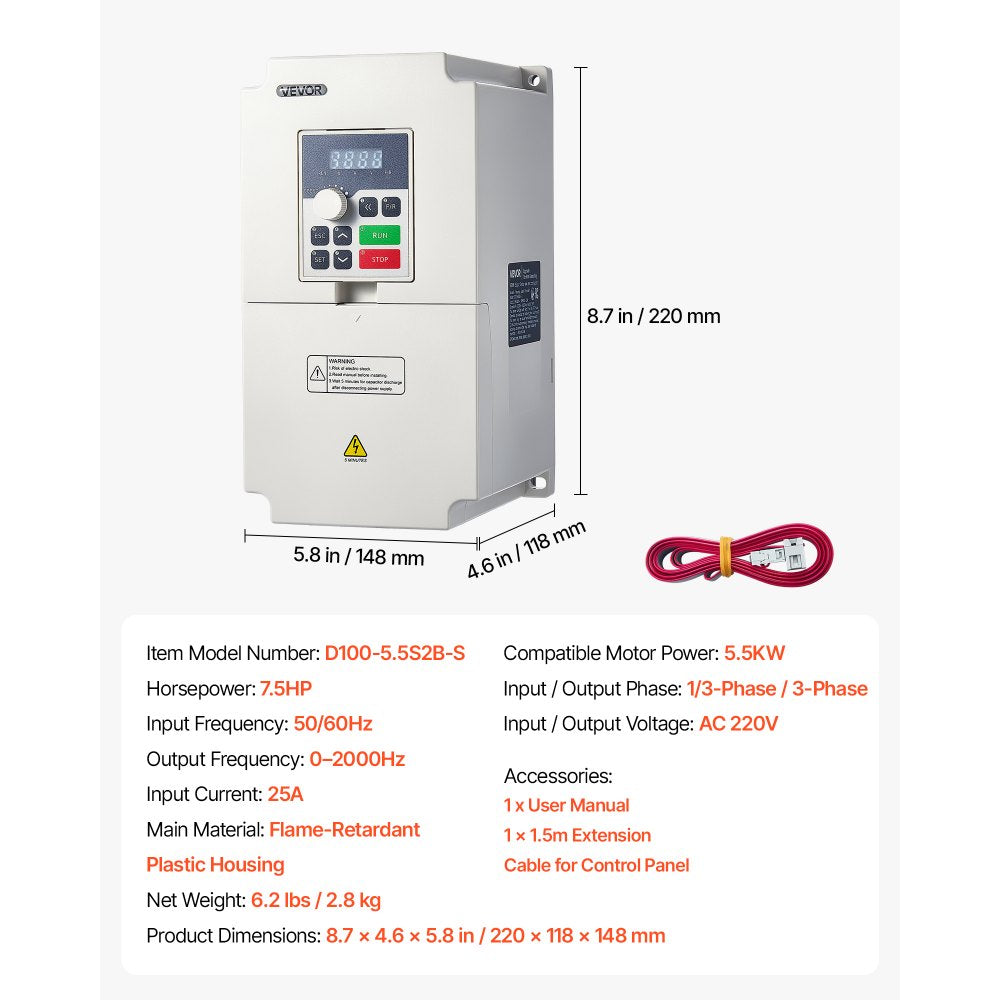

Specifications
| Item Model Number | D100-5.5S2B-S |
|---|---|
| Product Type | Variable Frequency Drive |
| Horsepower | 7.5HP |
| Compatible Motor Power | 5.5KW |
| Input / Output Phase | 1/3-Phase / 3-Phase |
| Input / Output Voltage | AC 220V |
| Input Frequency | 50/60Hz |
| Output Frequency | 0-2000Hz |
|---|---|
| Input Current | 25A |
| Main Material | Flame-Retardant Plastic Housing |
| Net Weight | 6.2 lbs / 2.8 kg |
Warranty
This item comes with a 1 year factory warranty.
