Vevor Variable Frequency Drive 4kW 220V 5.5 HP Motor Inverter Converter New
Product Overview

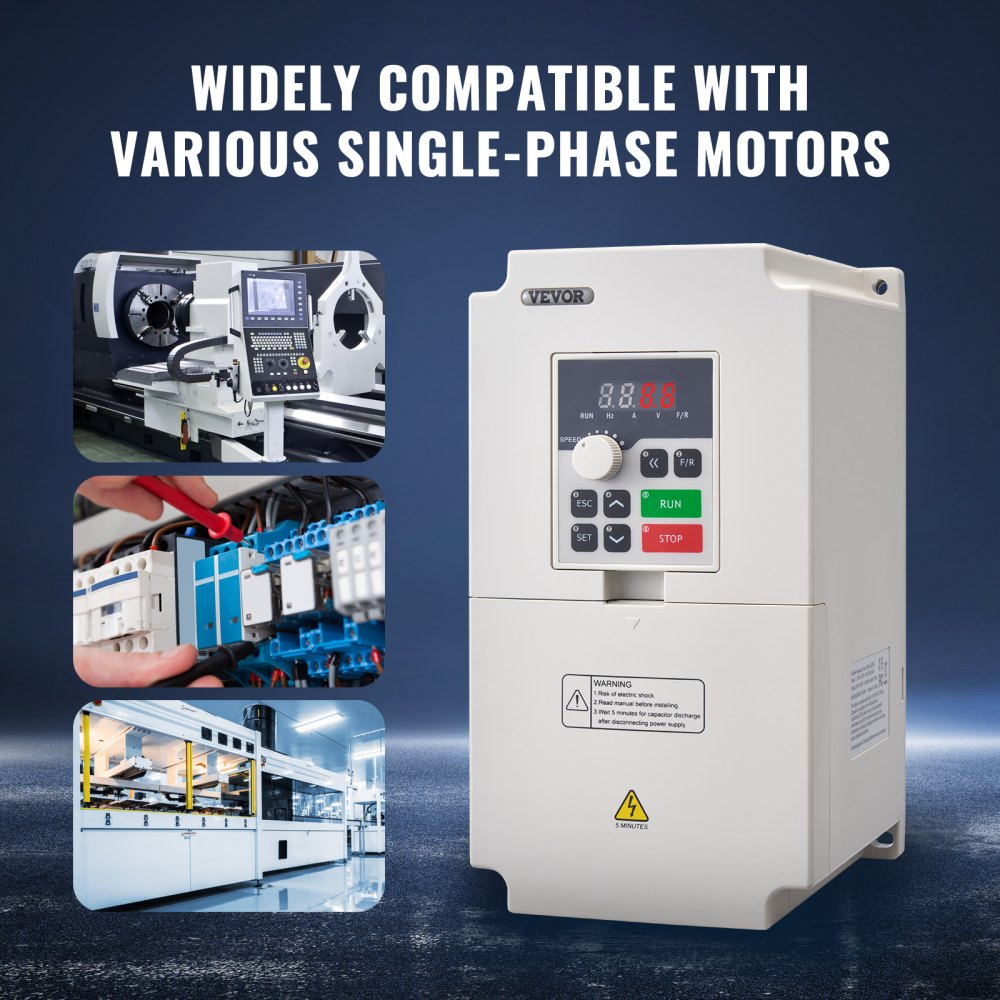

The Vevor variable frequency drive is designed for motor speed control with 1 or 3 phase 220V input and 3 phase output. It supports both V/F control and vector control for flexible performance across CNC and industrial applications. A smart digital display and detachable keypad make operation straightforward and convenient. Its low-noise design, porous heat dissipation shell, and multiple built-in protections help support stable, reliable operation. This drive is suited for equipment such as spindle motors, milling machines, pumps, compressors, conveyors, and other compatible machinery.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

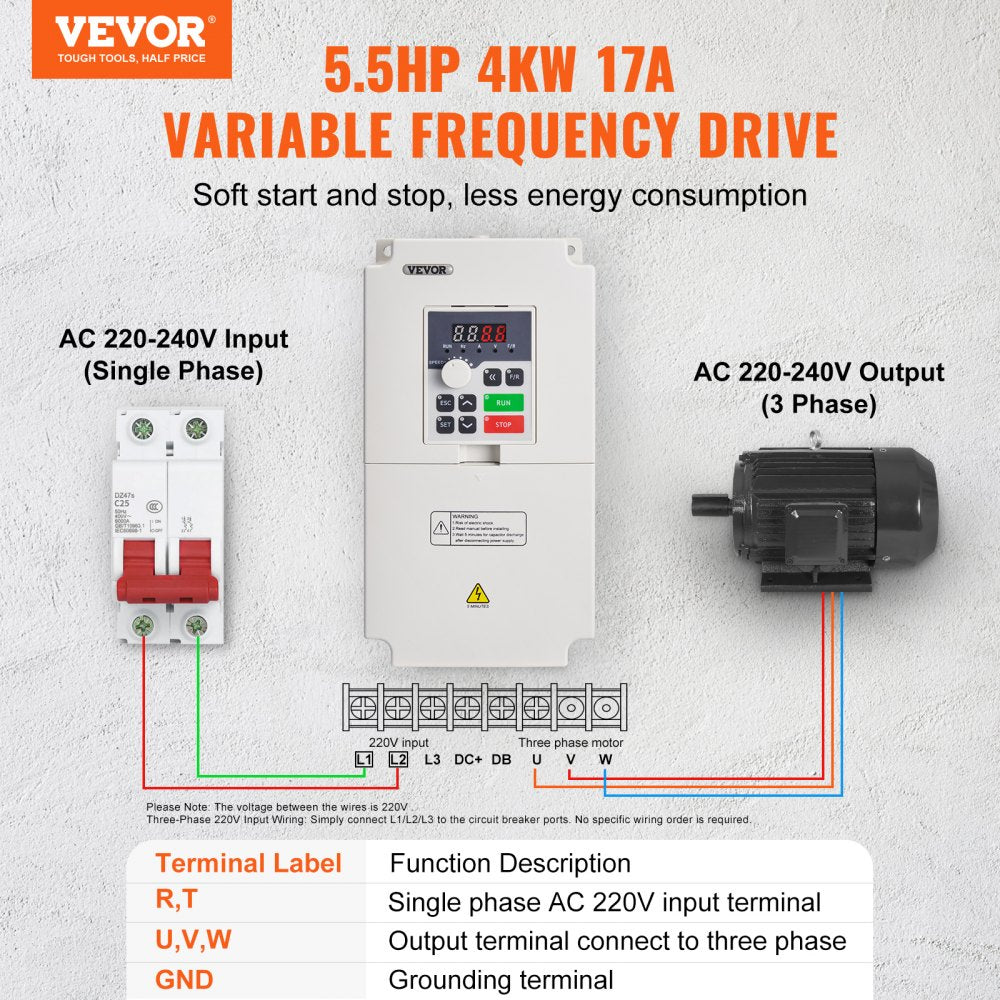

- Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.

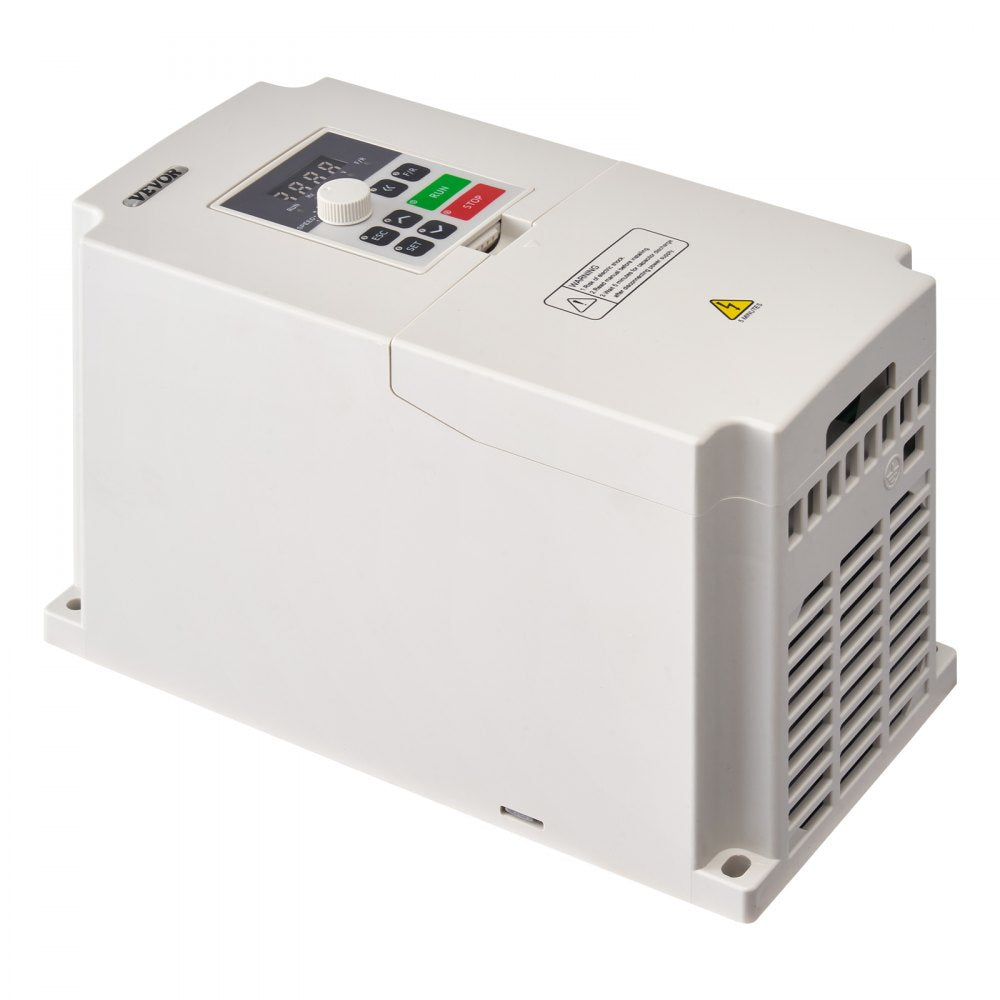

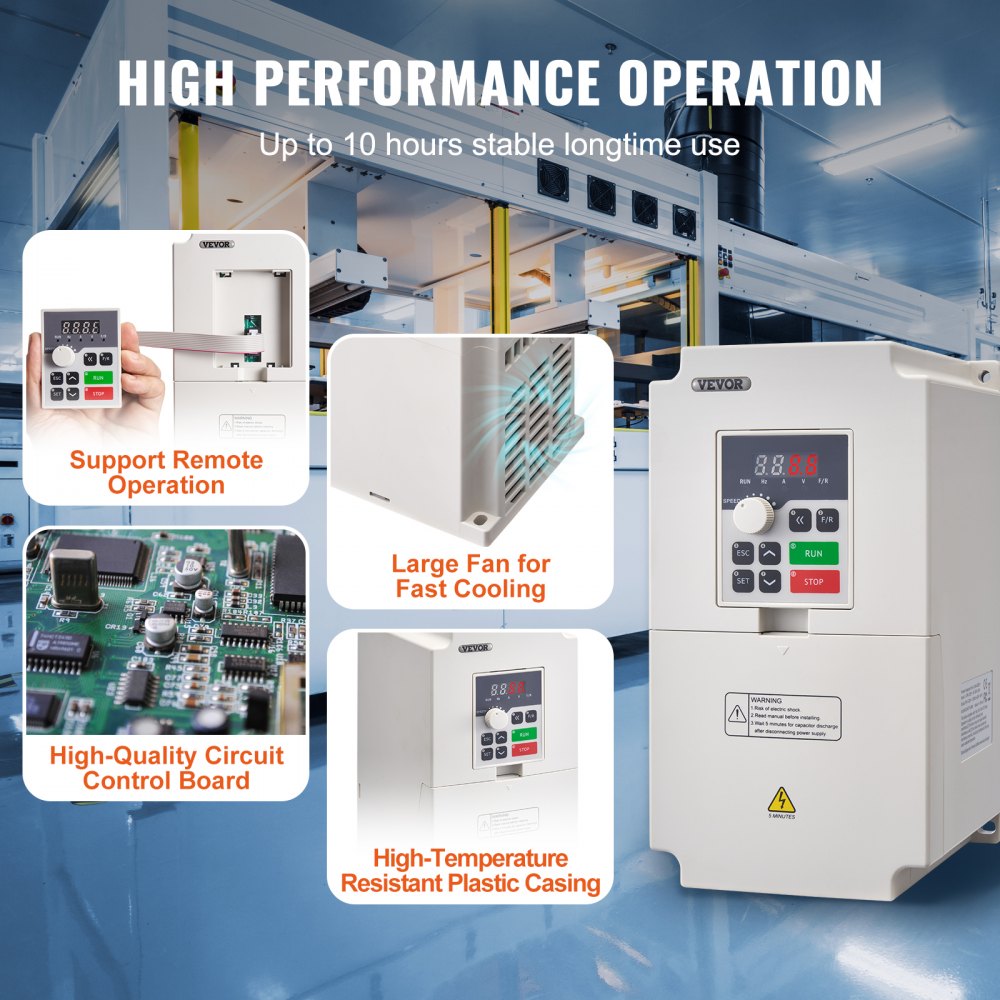

- Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.

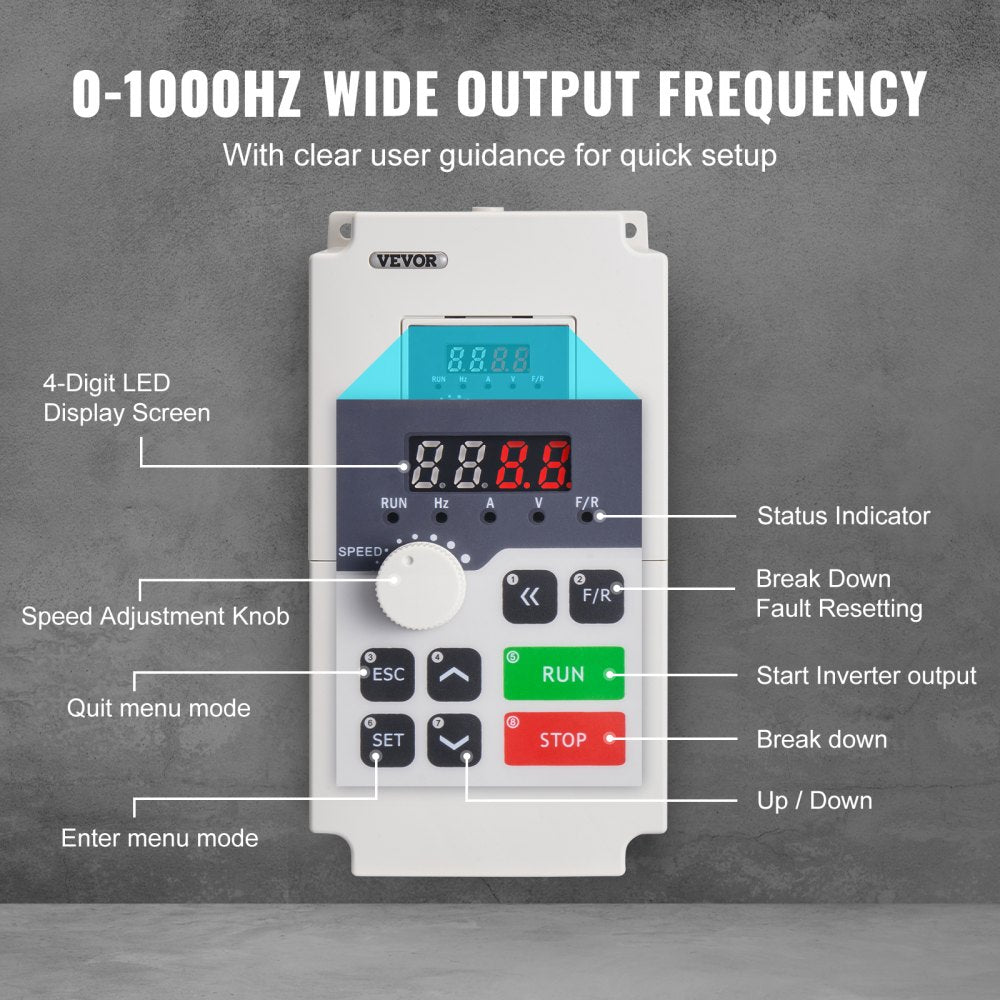

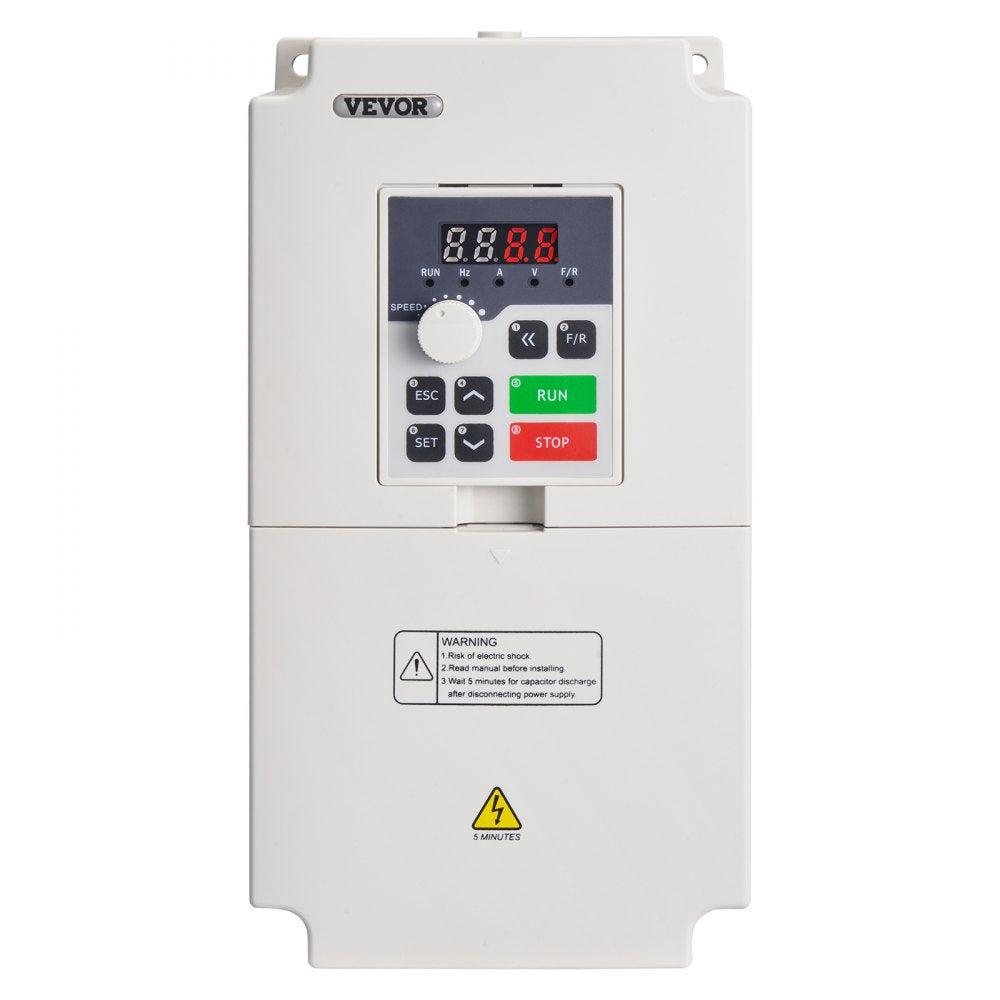

- Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.

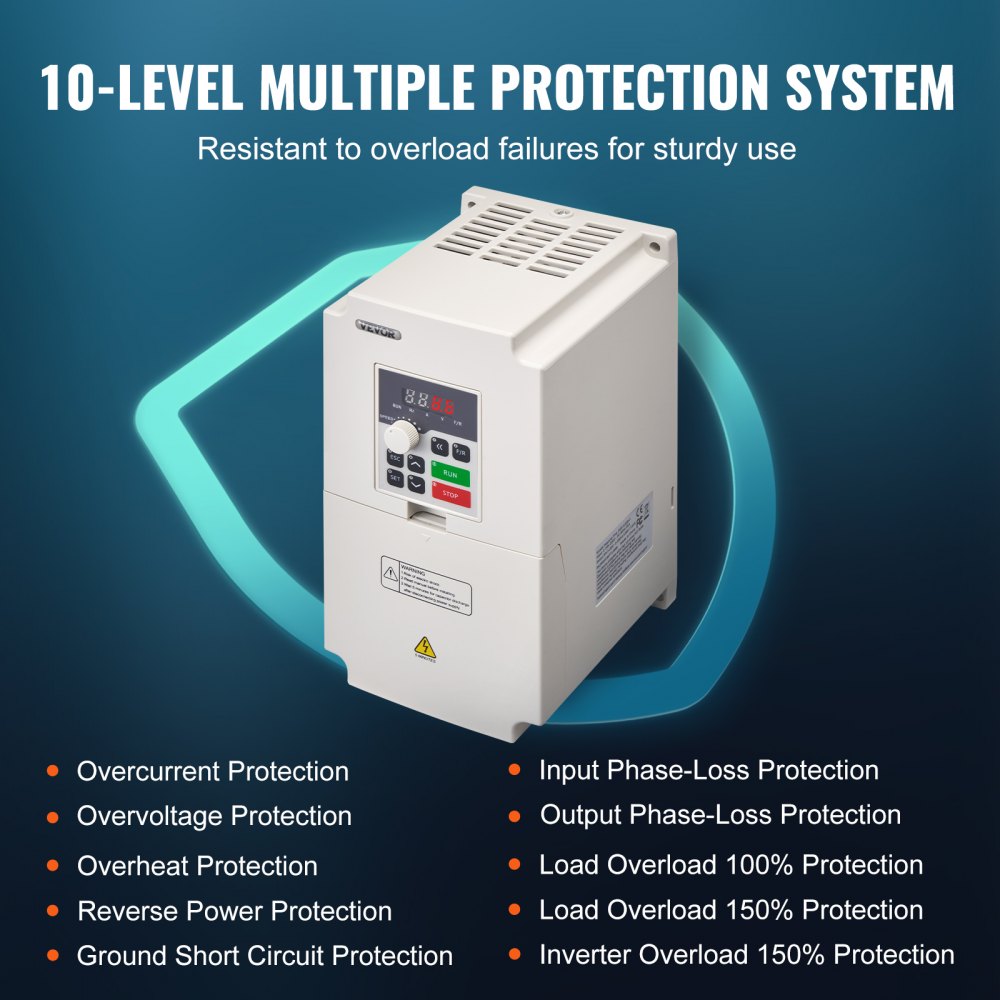

- Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
- Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.
Specifications

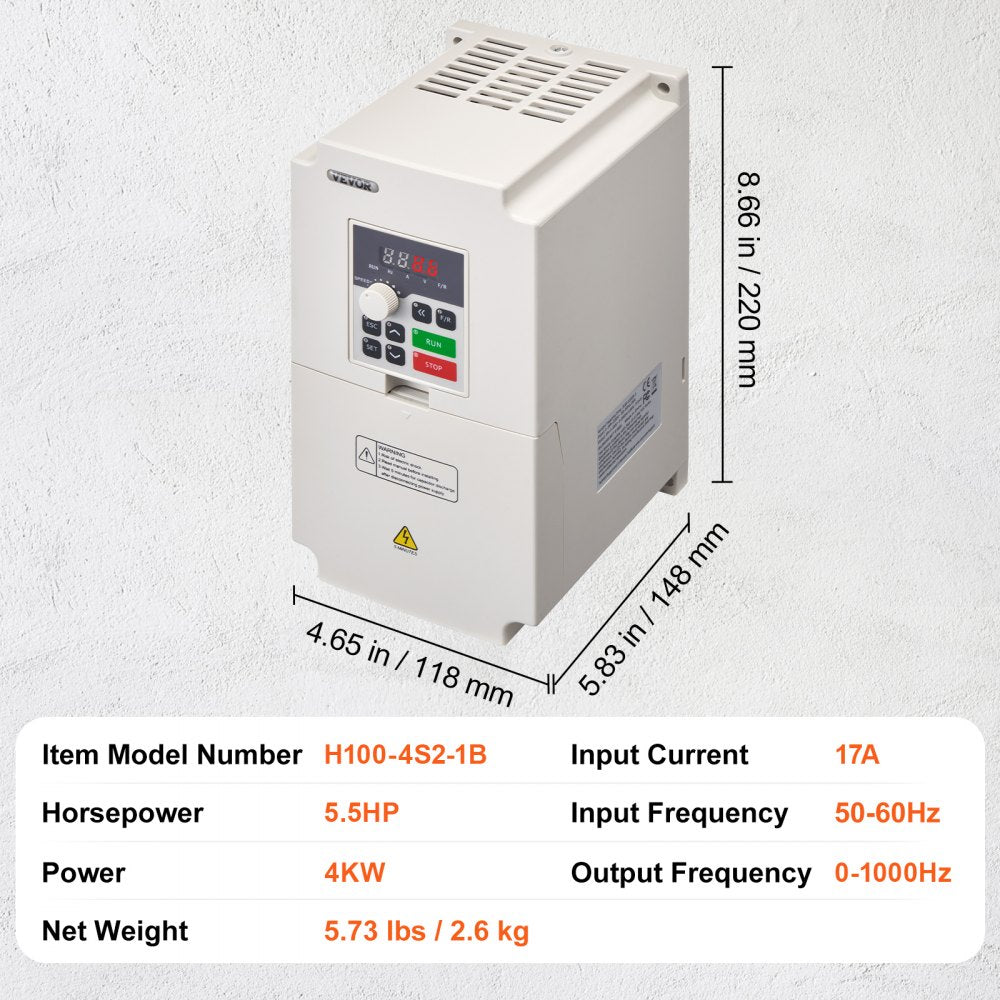

| Model | H100-4S2-1B |
| Power | 4 kW |
| Input Voltage | 220V |
| Output Voltage | 0-220V |
| Input Current | 0-17A |
| Output Current | 0-17A |
| Input Phase | 1 or 3 Phase |
| Output Phase | 3 Phase |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0-1000 Hz |
| Horsepower | 5.5 HP |
| Working Temperature | 23-104°F / -5 to 40°C |
| Humidity | 0-90% relative humidity without dew |
| Vibration | Below 0.5 G |
| Net Weight | 5.73 lbs |
| Dimensions | 8.7 x 4.6 x 5.8" |
Warranty
This item comes with a 1 year factory warranty.
