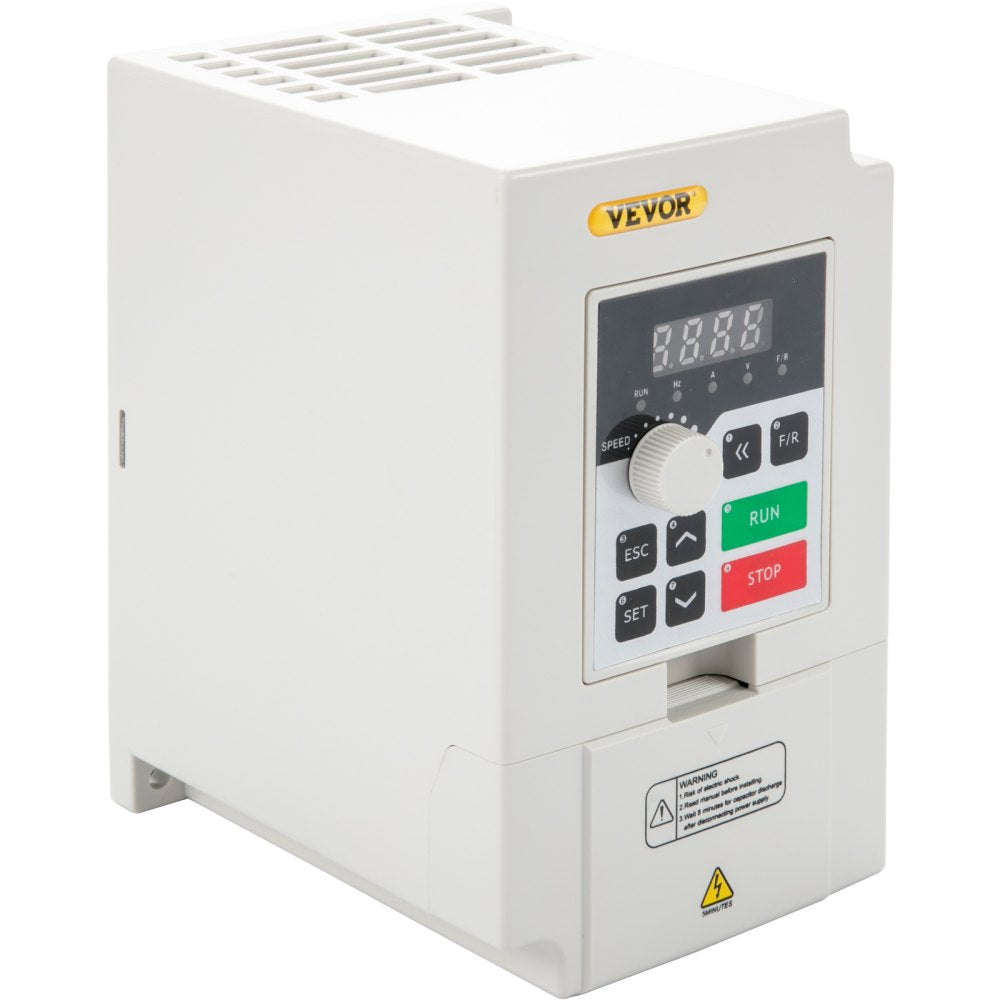

Vevor Variable Frequency Drive 3 kW 220V 4 HP CNC Motor Inverter Converter New
Product Overview
The Vevor variable frequency drive is designed for motor speed control with 1 or 3 phase 220V input and 3 phase output. It supports V/F control, vector control, RS485 communication, and PID closed-loop operation for flexible integration in CNC and industrial applications. A digital display and detachable keyboard make operation straightforward, while the optimized design helps reduce noise and electromagnetic interference. Built-in protections help support reliable performance against overload, over-voltage, under-voltage, overheating, short circuits, and more. This drive is suitable for use with spindle motors, milling machines, pumps, compressors, conveyors, and other speed-control equipment.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

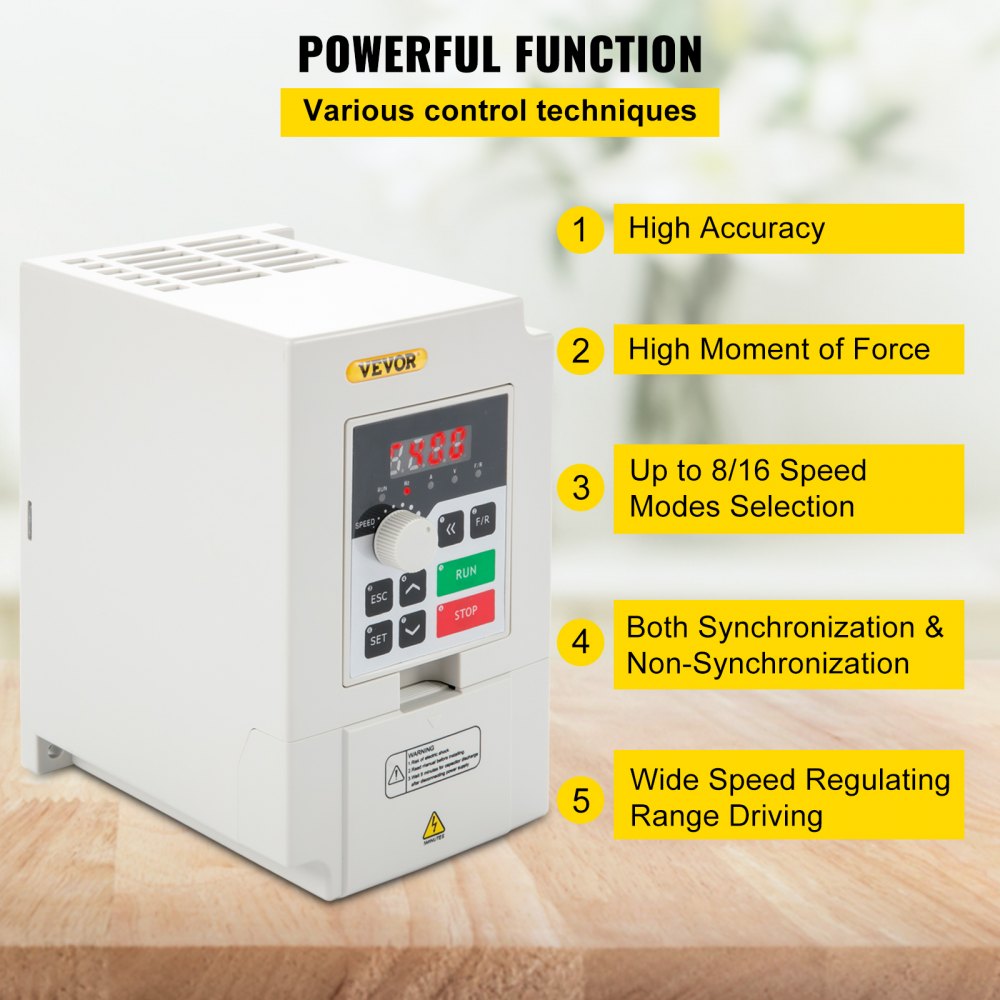

- Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.

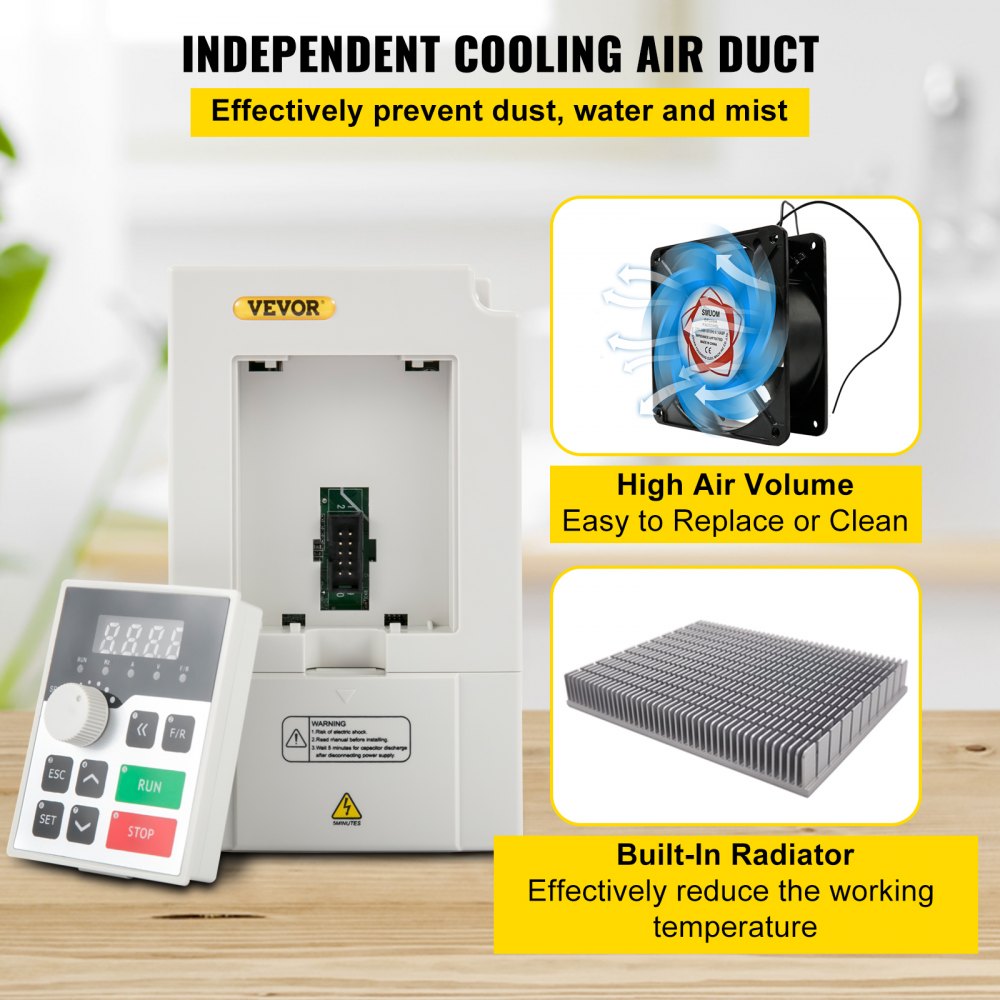

- Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.

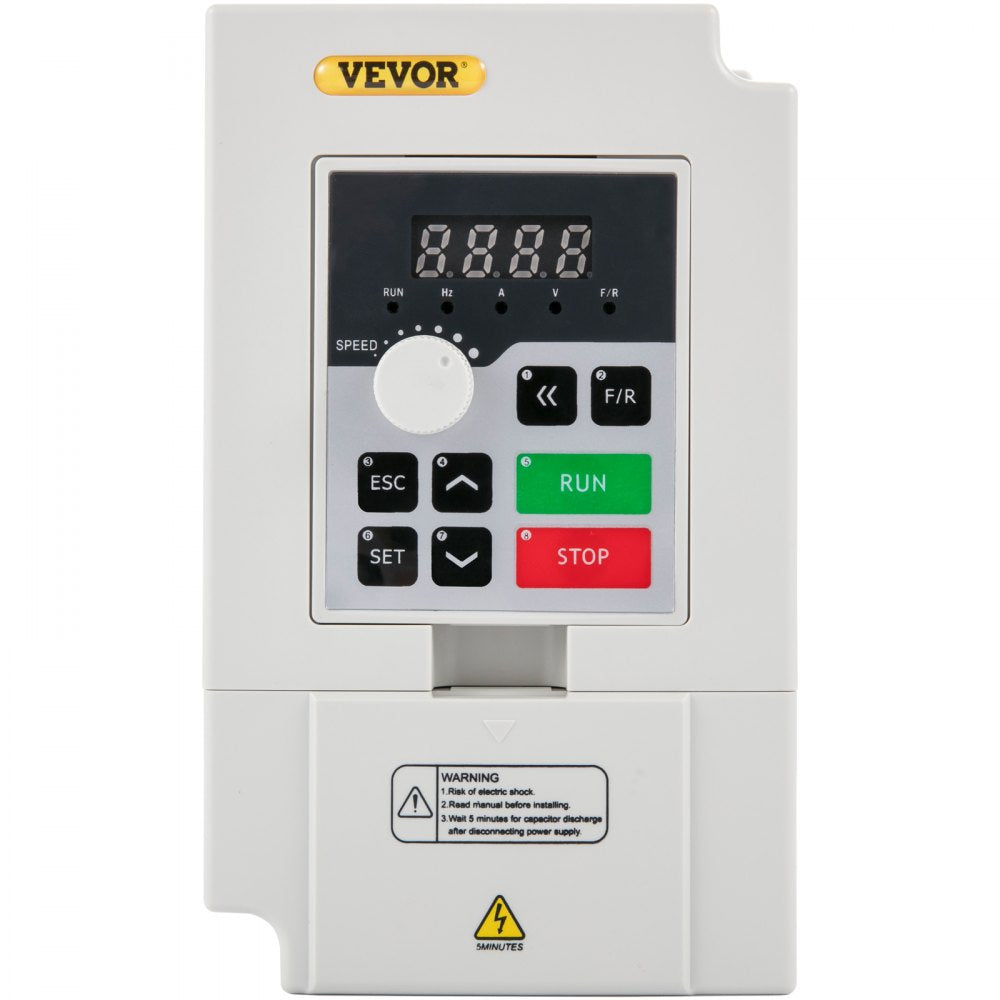

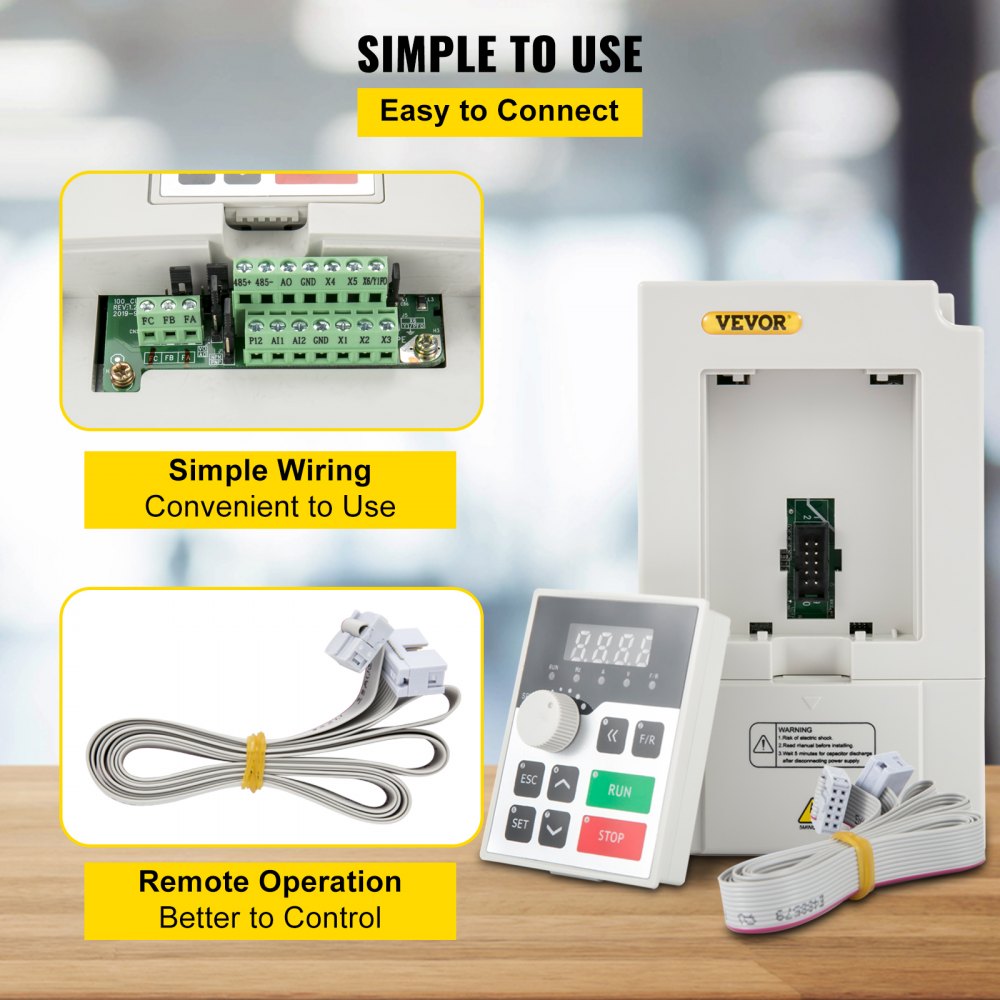

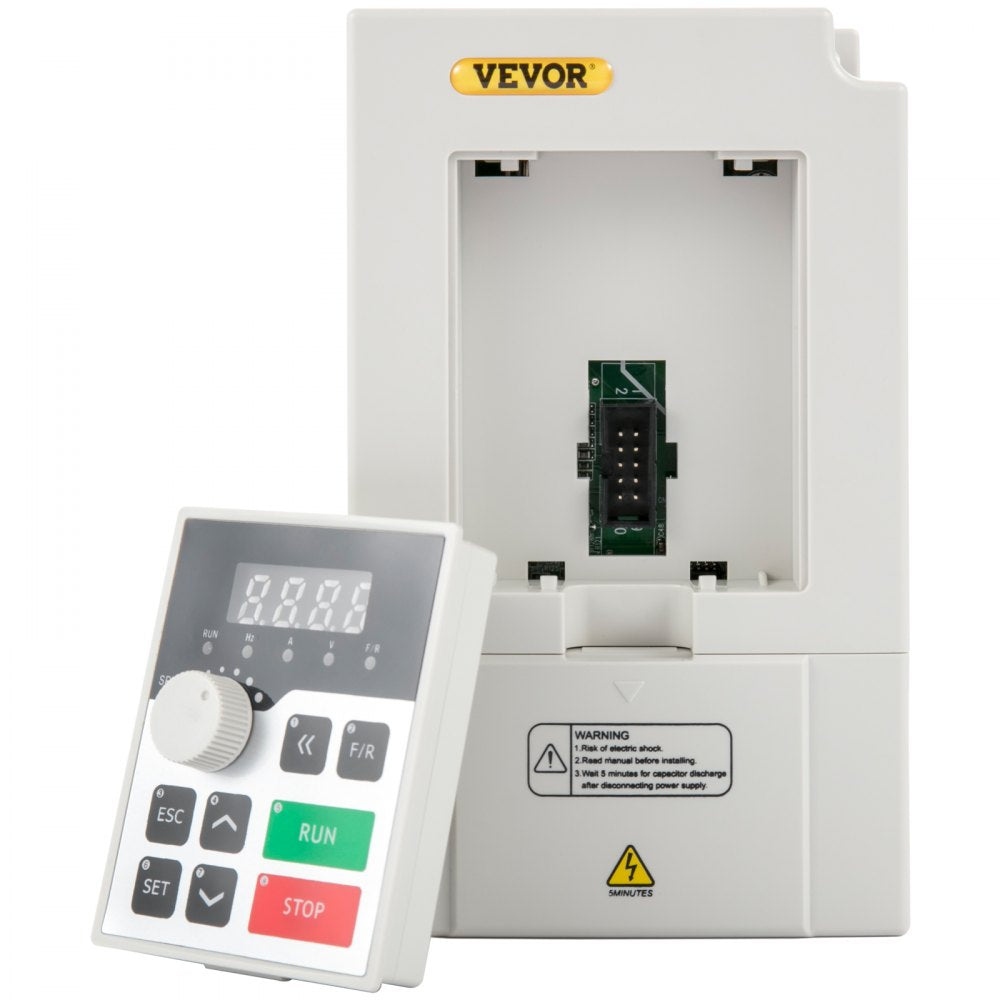

- Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.

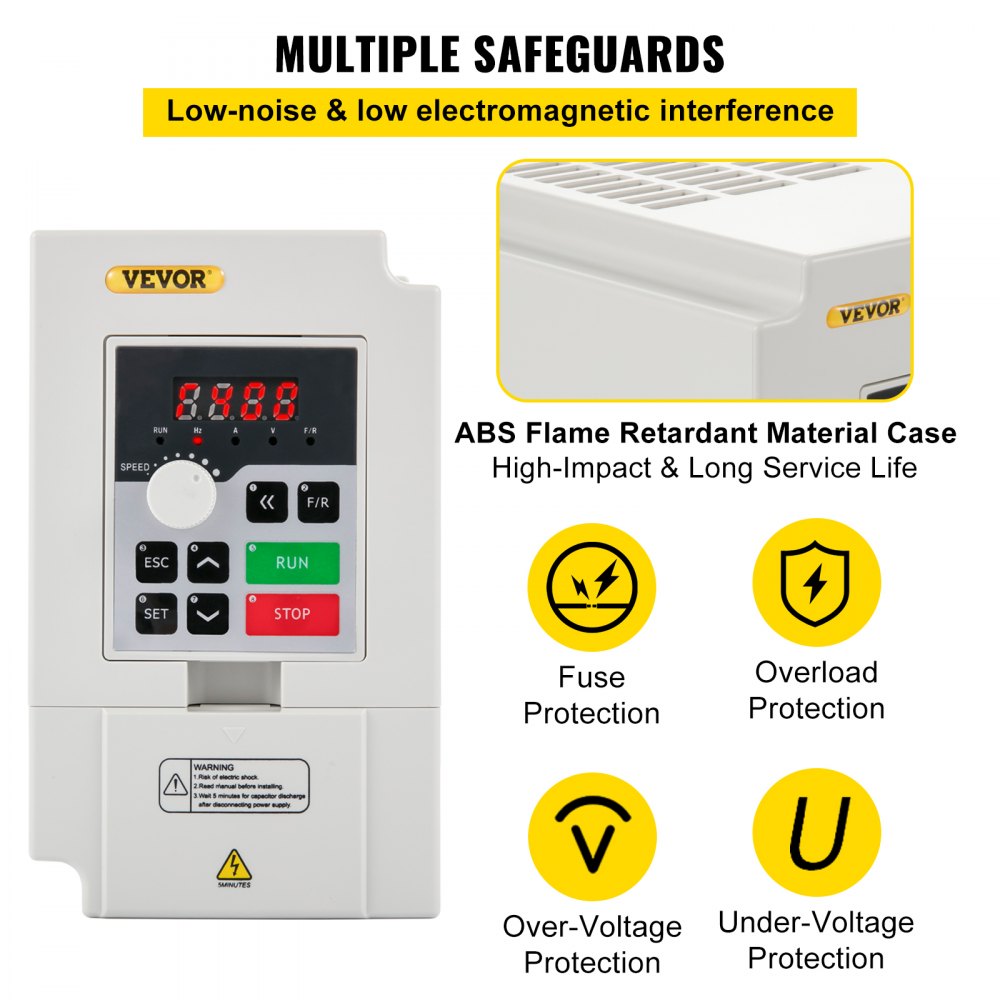

- Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.

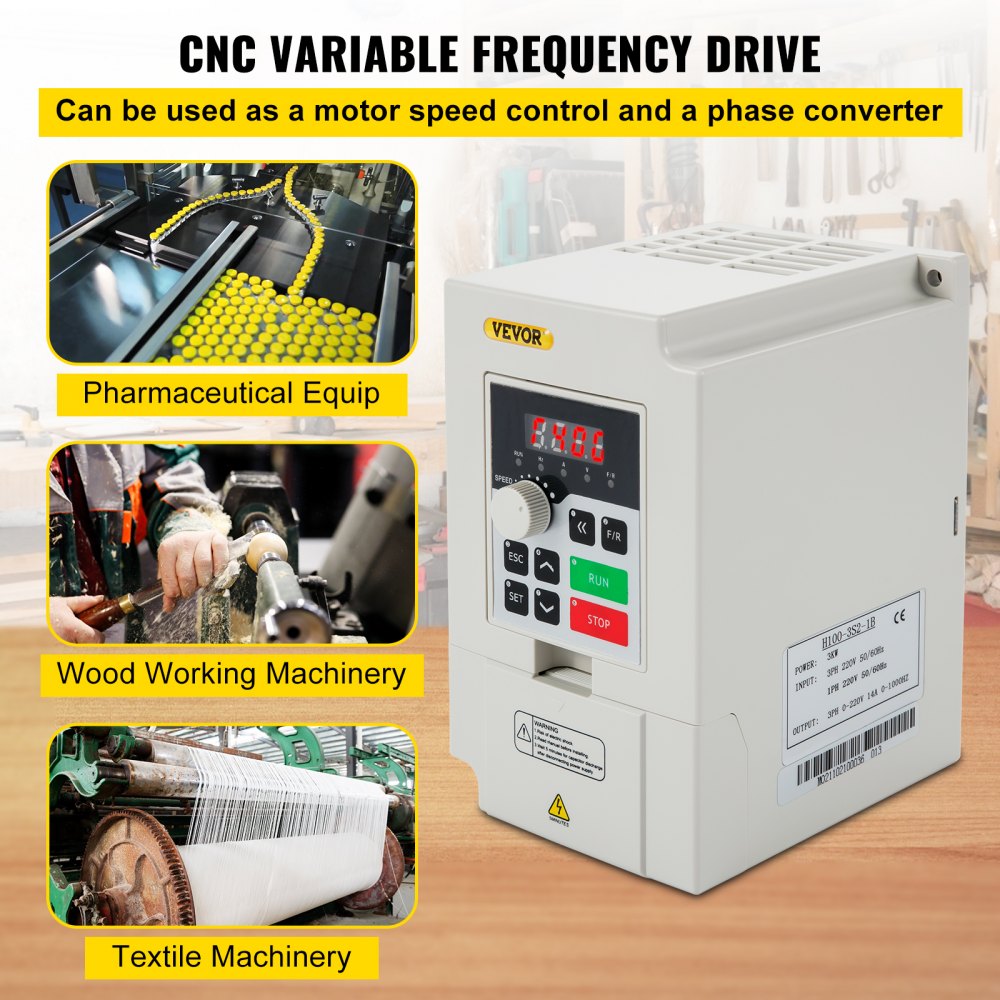

- Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.
Specifications

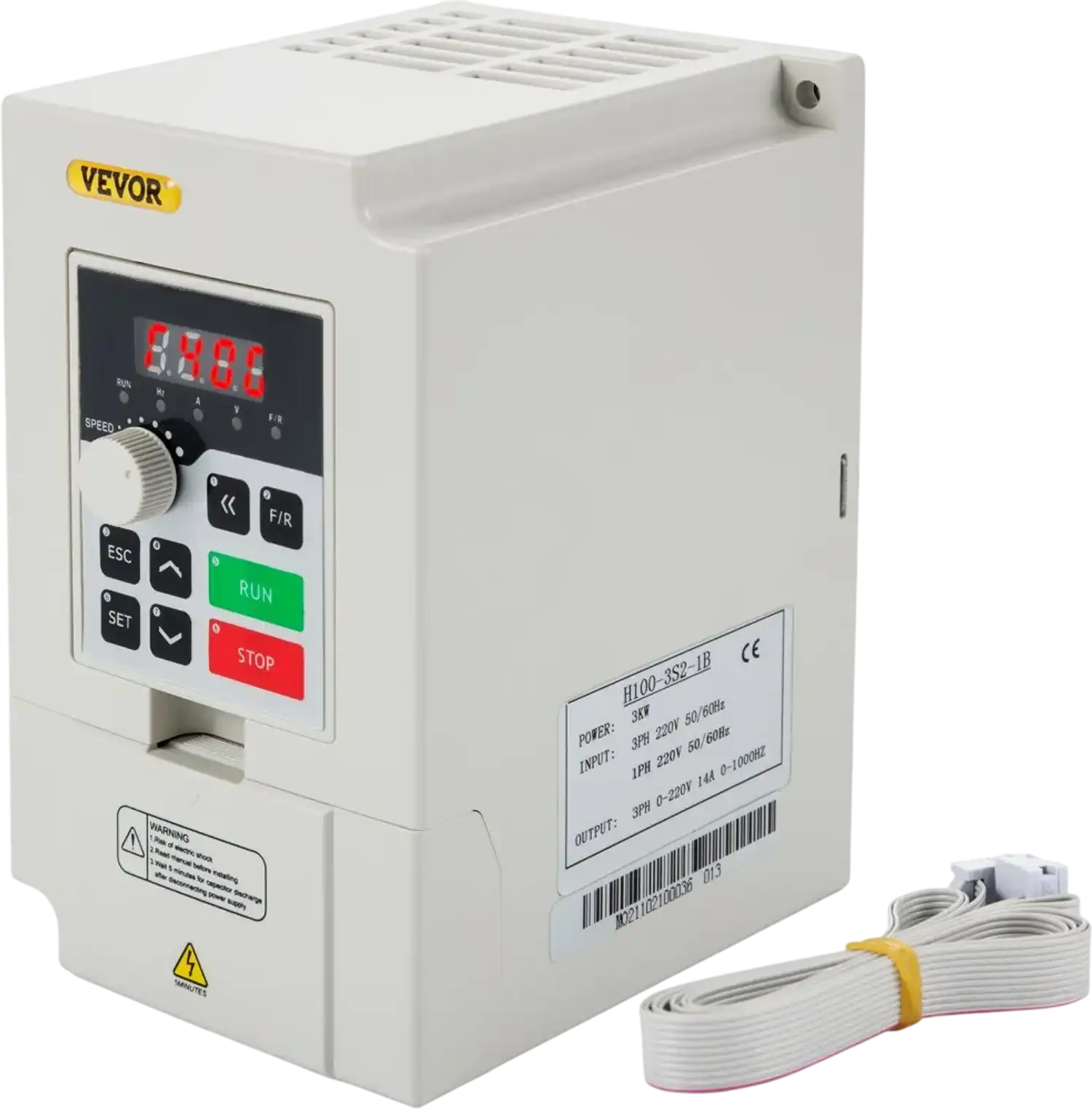

| Model | H100-3S2-1B |
|---|---|
| Power | 3 kW |
| Input Voltage | 220V |
| Output Voltage | 0-220V |
| Input Current | 0-14A |
| Output Current | 0-14A |
| Input Phase | 1 or 3 Phase |
| Output Phase | 3 Phase |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0-1000 Hz |
| Horsepower | 4 HP |
| Working Temperature | 23-104°F / -5-40°C |
|---|---|
| Humidity | 0-90% Relative Humidity without dew |
| Vibration | Below 0.5 G |
| Net Weight | 2.43 lbs / 1.1 kg |

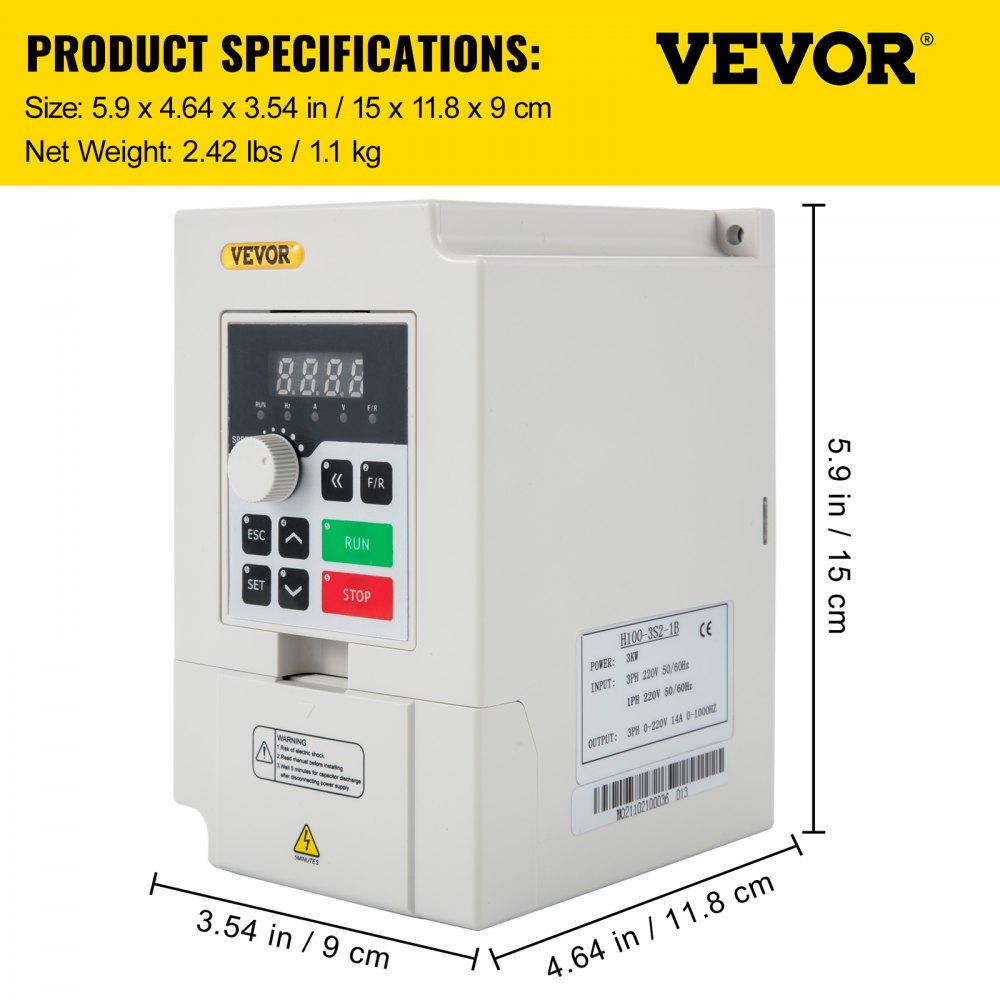

| Dimensions | 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm |
Package Contents
1 x 3 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire
Warranty
This item comes with a 1 year factory warranty.
