Product Overview

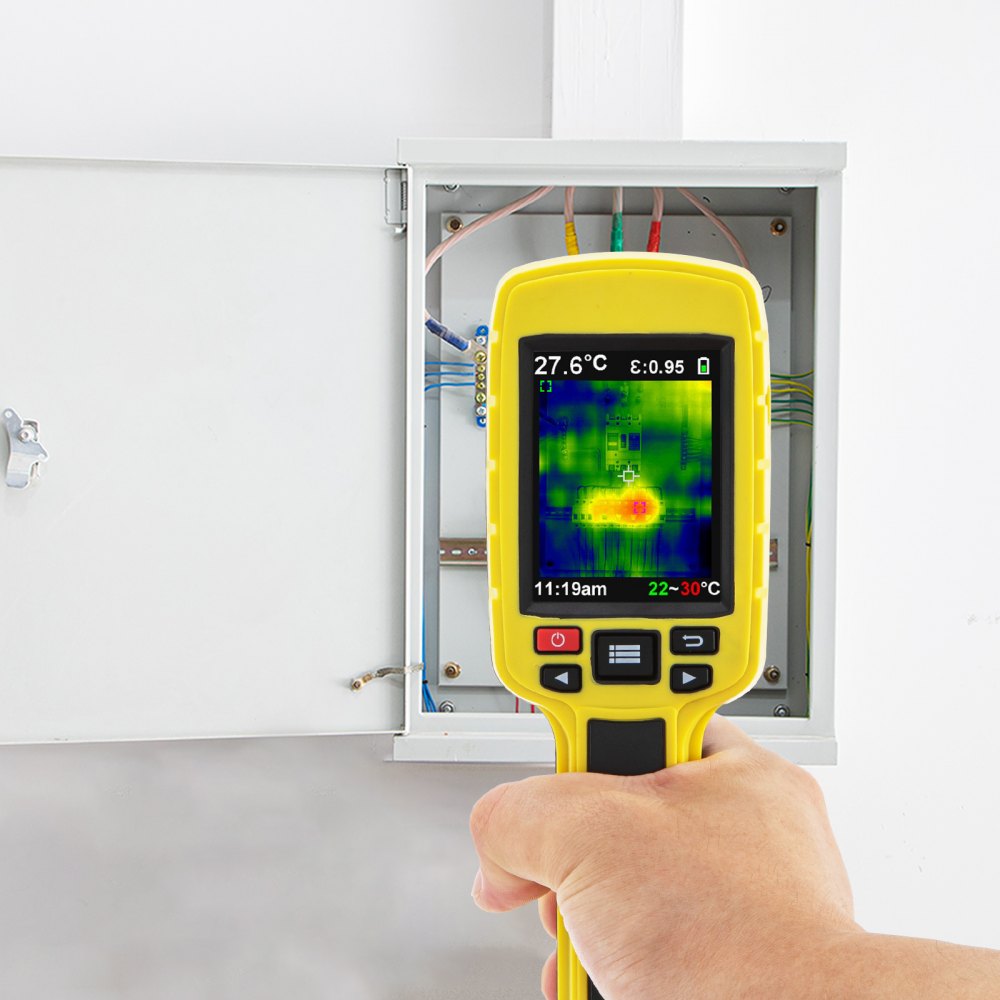

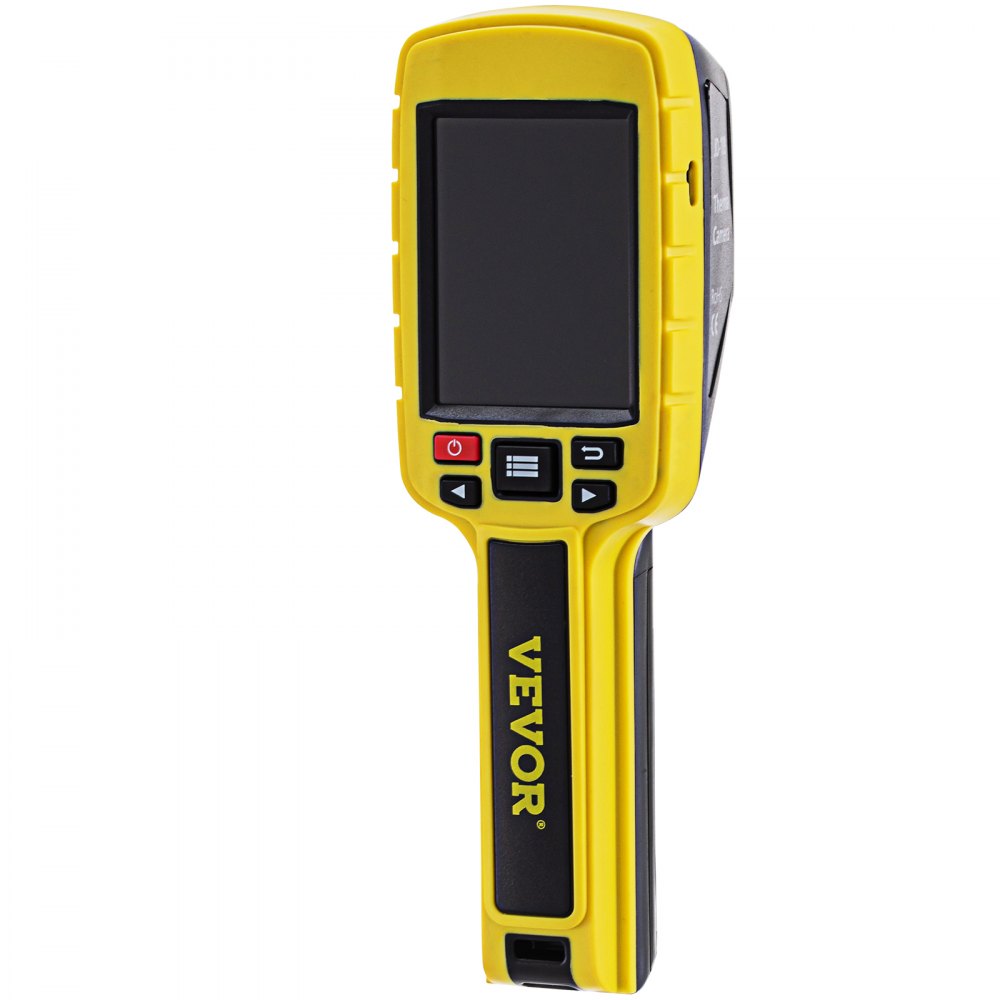

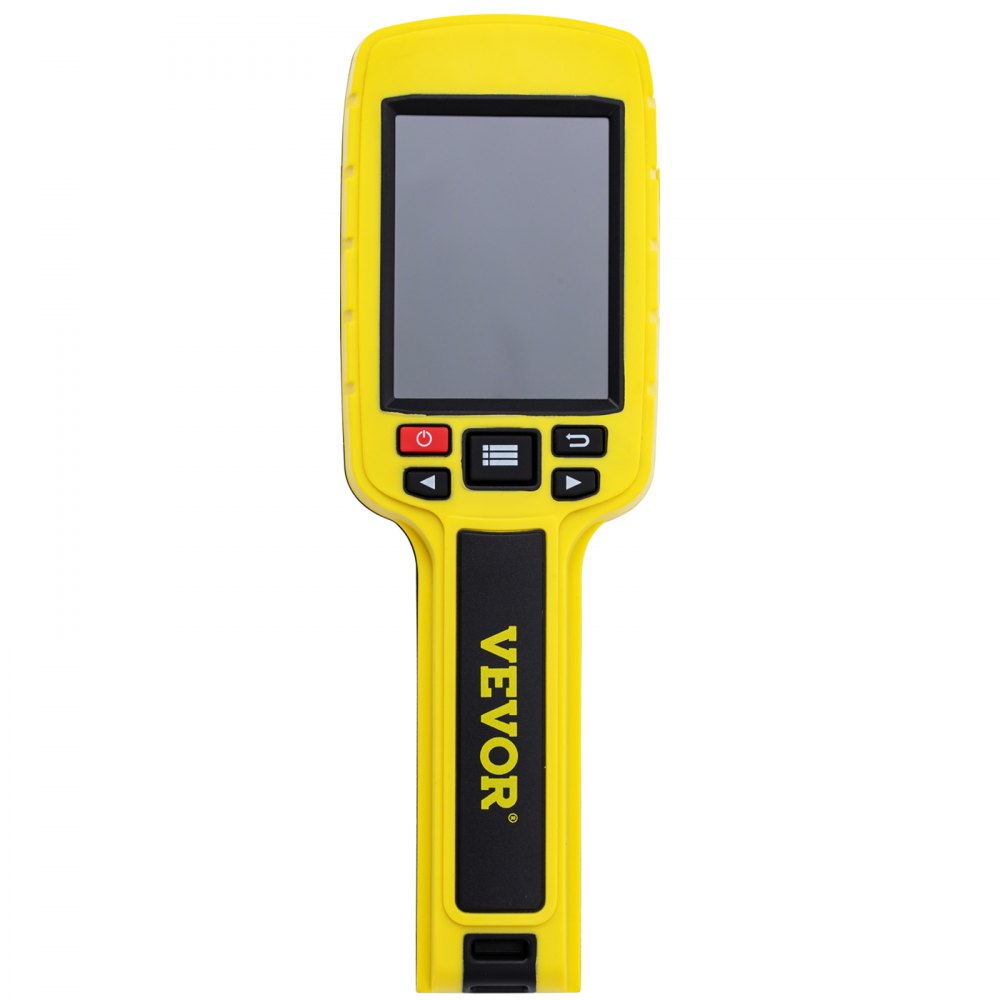

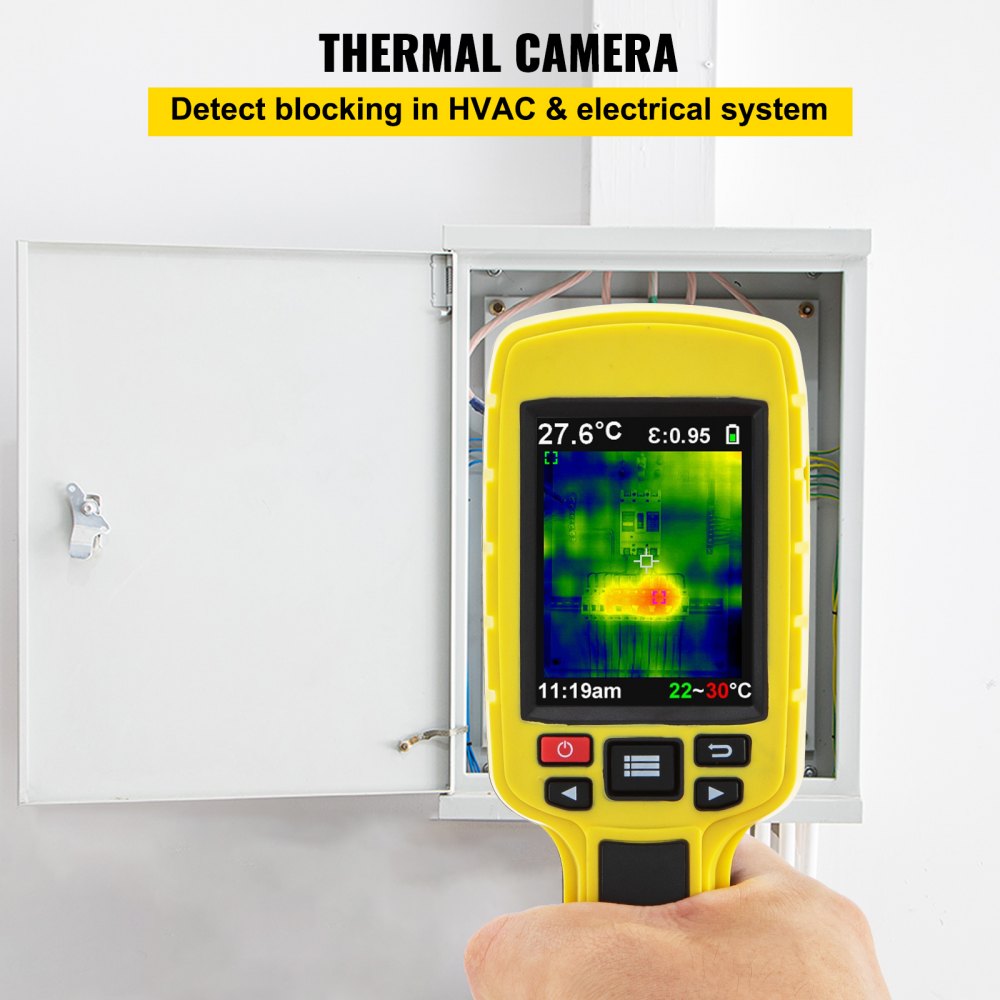

The Vevor thermal imaging camera is a handheld infrared thermal imager designed for HVAC, electrical, home inspection, and general troubleshooting work. It features 60x60 infrared resolution for 3600-pixel thermal imaging, a 2.8" color display, and 5 color imaging modes for easier temperature analysis. With a temperature range of -4°F to 932°F and 0.15°C thermal sensitivity, it helps reveal hidden heat-related issues quickly and clearly. The unit also connects to a computer by USB and includes a rechargeable Li-ion battery for extended operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

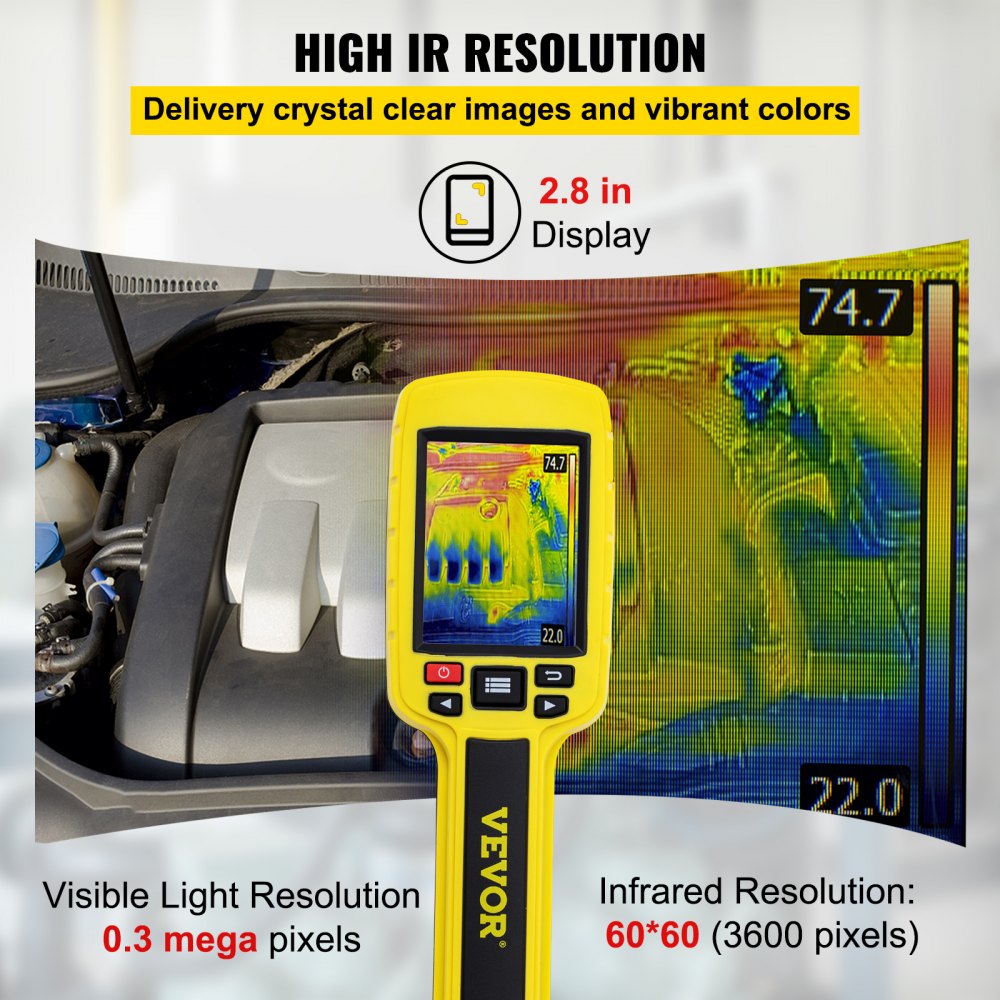

- High-Resolution Imager: Featuring 60x60 infrared resolution (3600 pixels), the thermal camera with a 2.8-inch screen delivers crystal clear images and vibrant colors. Don't miss a thing, and read your surroundings accurately. Image Capturing Frequency: 9Hz. Get our camera to convert infrared heat into visible images and analyze problems through the spatial distribution of temperature differences.

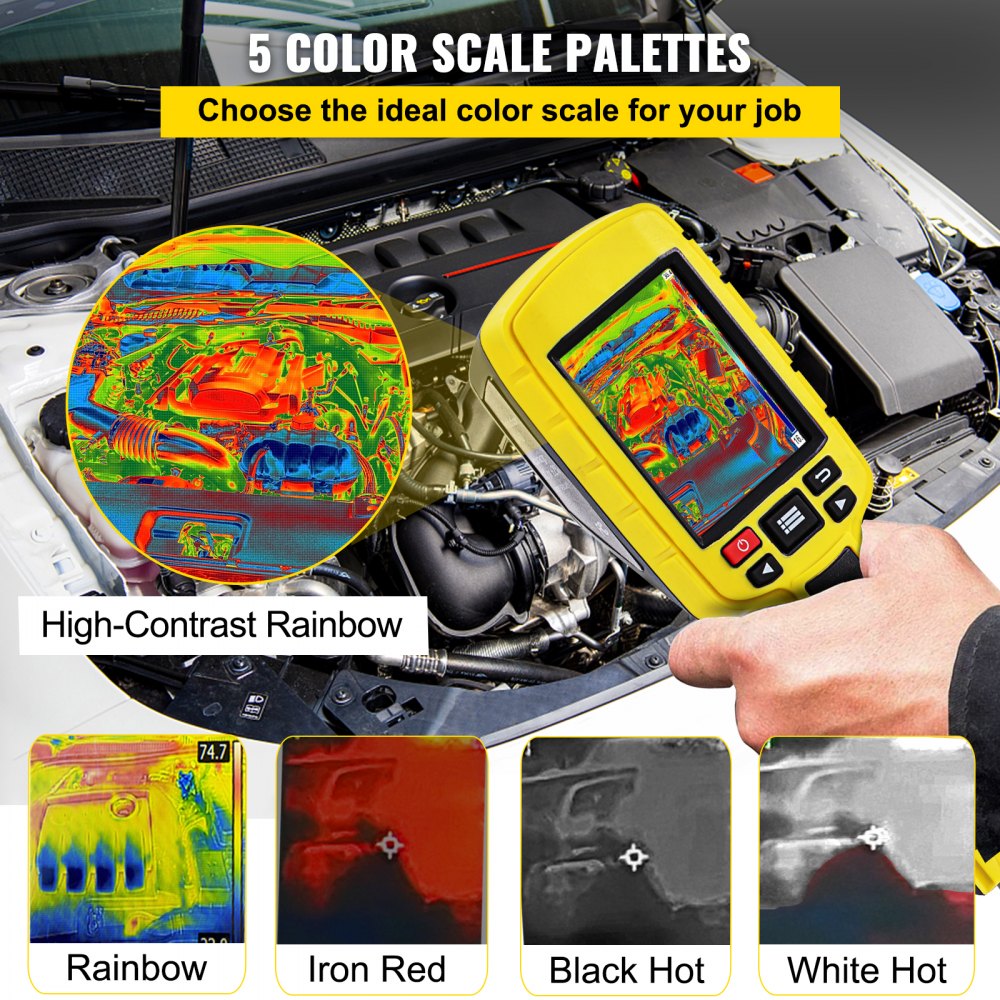

- 5 Color Imaging Modes: You can choose the ideal color palette to fit any condition. The palettes are rainbow, iron red, high-contrast rainbow, white-hot, and black hot. The infrared camera makes it easy to spot subtle differences with a monochrome palette and to spot obvious anomalies quickly with the high-contrast palette.

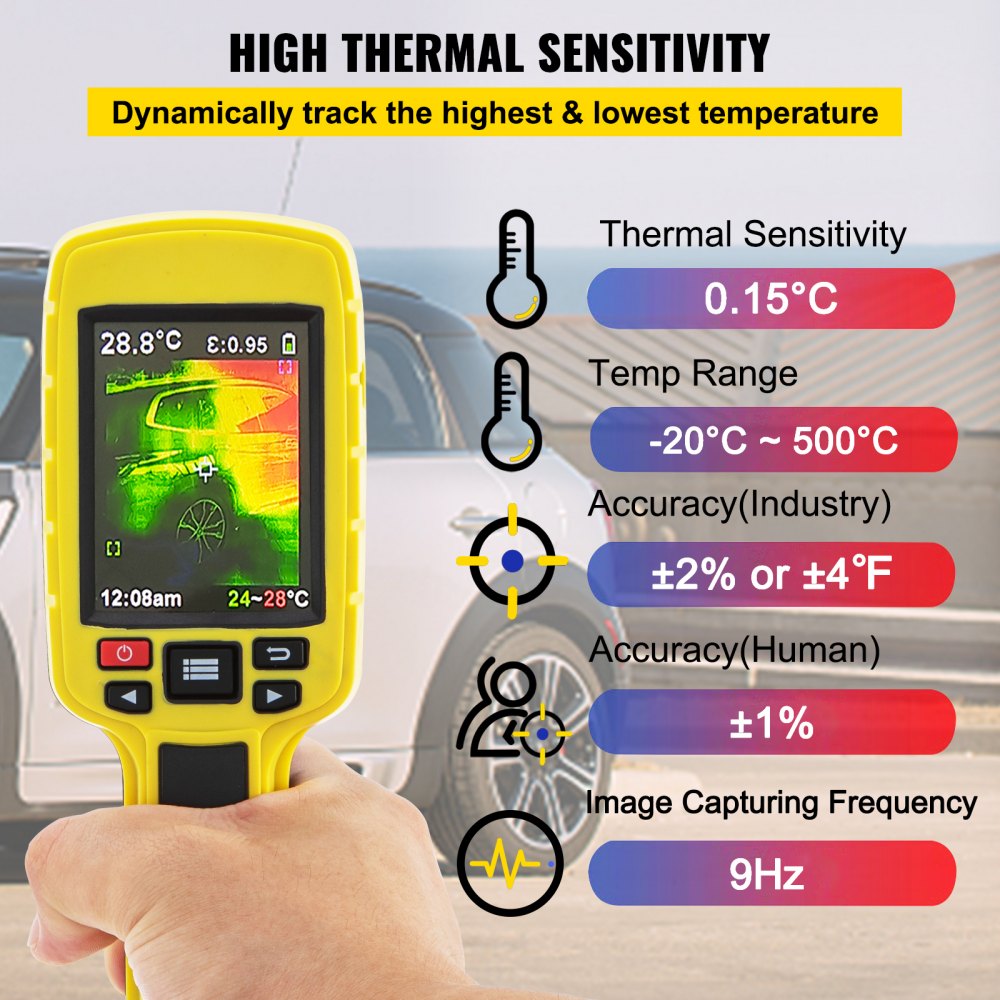

- Sensitivity and Accuracy: Broad temperature range: -20°C~500°C/-4 ℉~932 ℉, being enough to capture all of the temperatures in the objects or scenes you may typically encounter. 0.15°C thermal sensitivity and ±2% or ±4℉ in measuring accuracy for industry (±1% for humans) all ensure the precision of our infrared thermal imager.

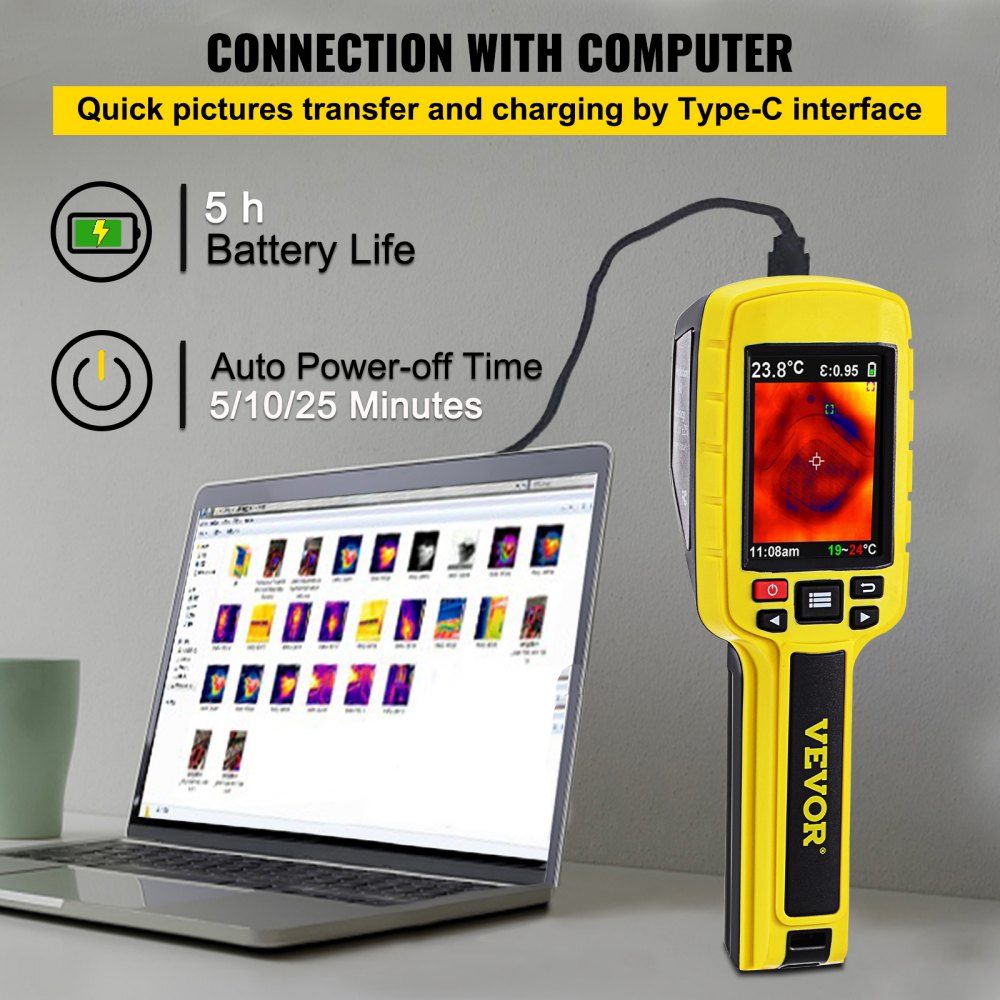

- Connect to the Computer: You can connect the thermal camera to the computer via a USB cable that we provided. The 2000mA lithium-ion battery can last more than 5 hours, allowing you to work for a long time. You can also set the switch-off time to 5 min, 10 min, and 25 min to save power while using it not frequently.
- Broad Scope of Application: Our thermal imaging camera is ideal for work in home inspection, firefighting, archaeology, traffic, farming, and electronic manufacturing fields, as well as any fields that require accurate temperature readings. No matter where you are, the thermal imager will be of assistance.

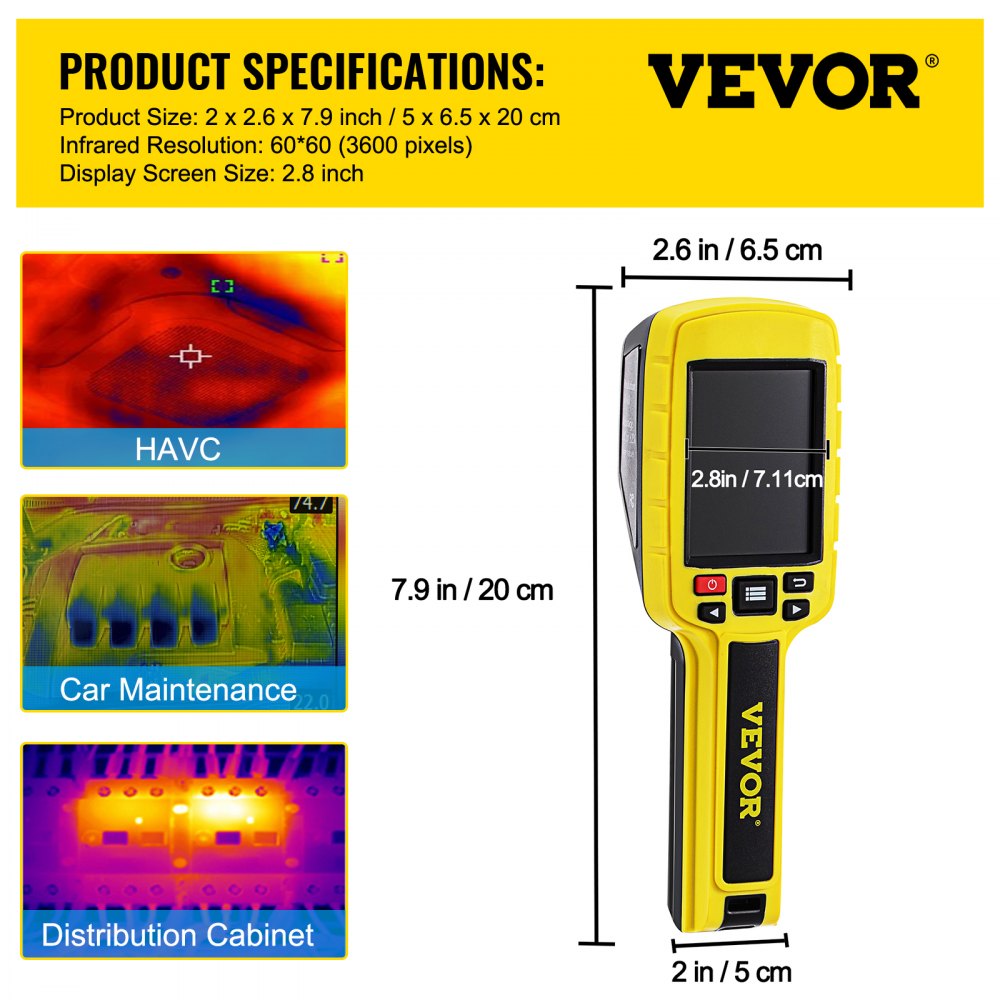

Specifications

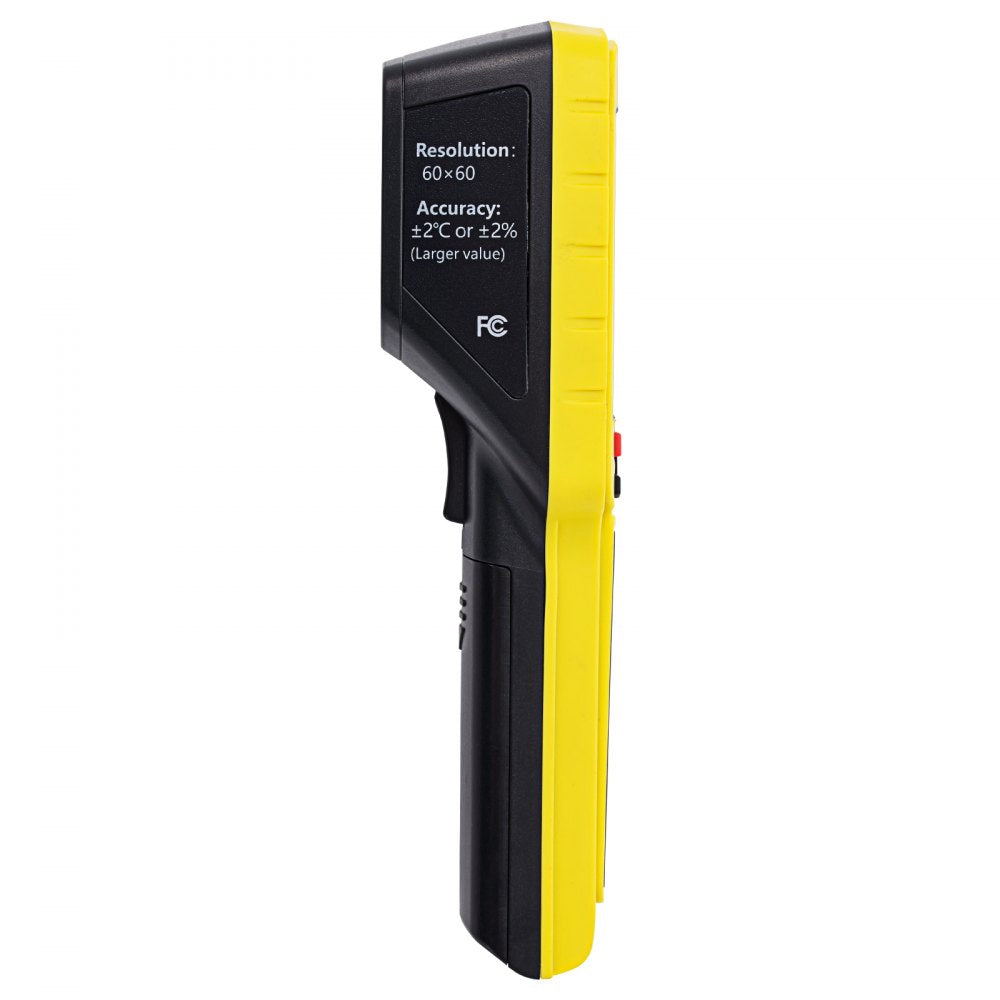

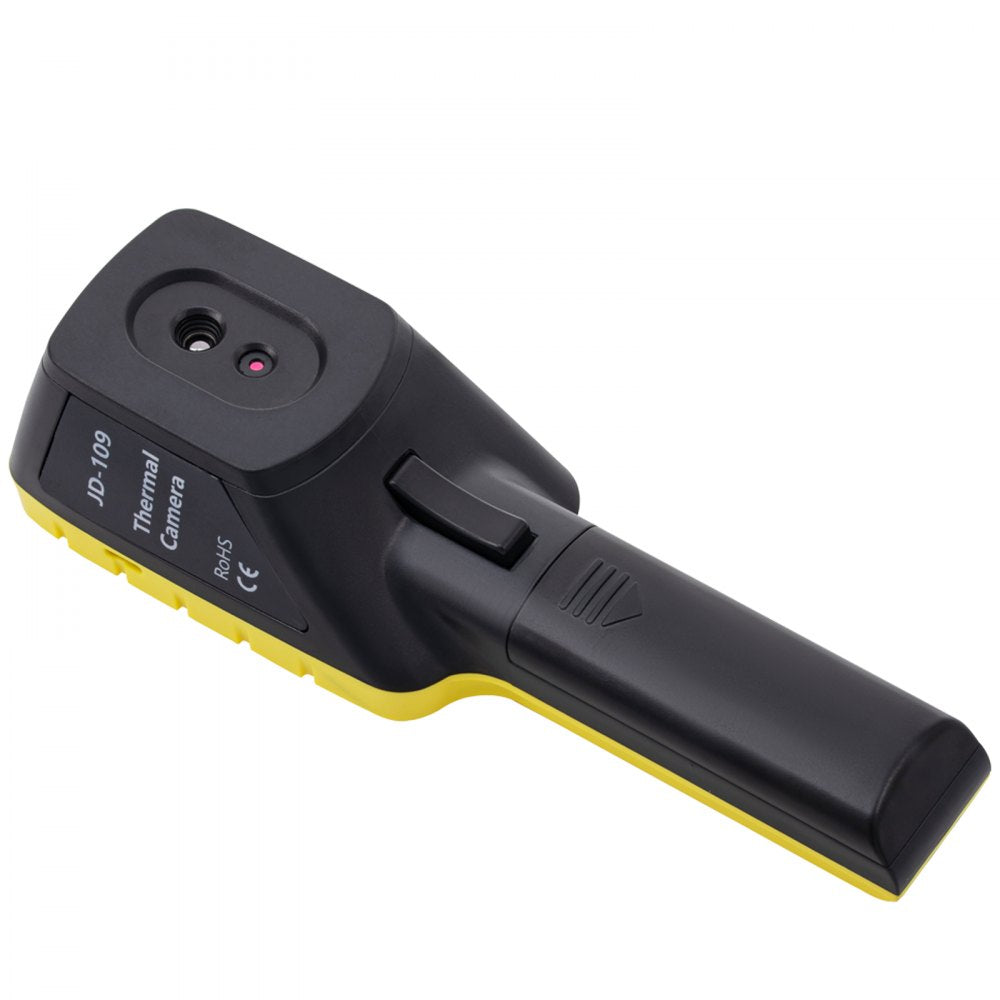

| Model | JD-109 |
| Infrared Resolution | 60x60 3600 pixels |
| Display Screen | 2.8" |
| Thermal Sensitivity | 0.15°C |
| Temperature Range | -20°C to 500°C / -4°F to 932°F |
| Image Capturing Frequency | 9Hz |
| Accuracy Industry | ±2% or ±4°F |
| Accuracy Human | ±1% |
| Visible Light Resolution | 0.3 megapixels |
| Li Battery | 3.7V, 2000mA |
| Auto Power-off Time | 5/10/25 minutes |
Package Contents
1x Infrared Thermal Camera
1x Li Battery
1x SD Card
1x USB Cable
1x User Manual
1x Carry Bag
Warranty
This item comes with a 1 year factory warranty.
