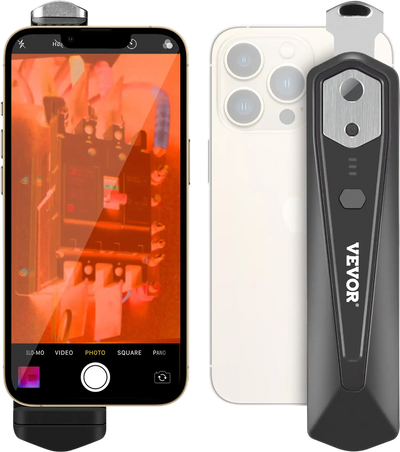

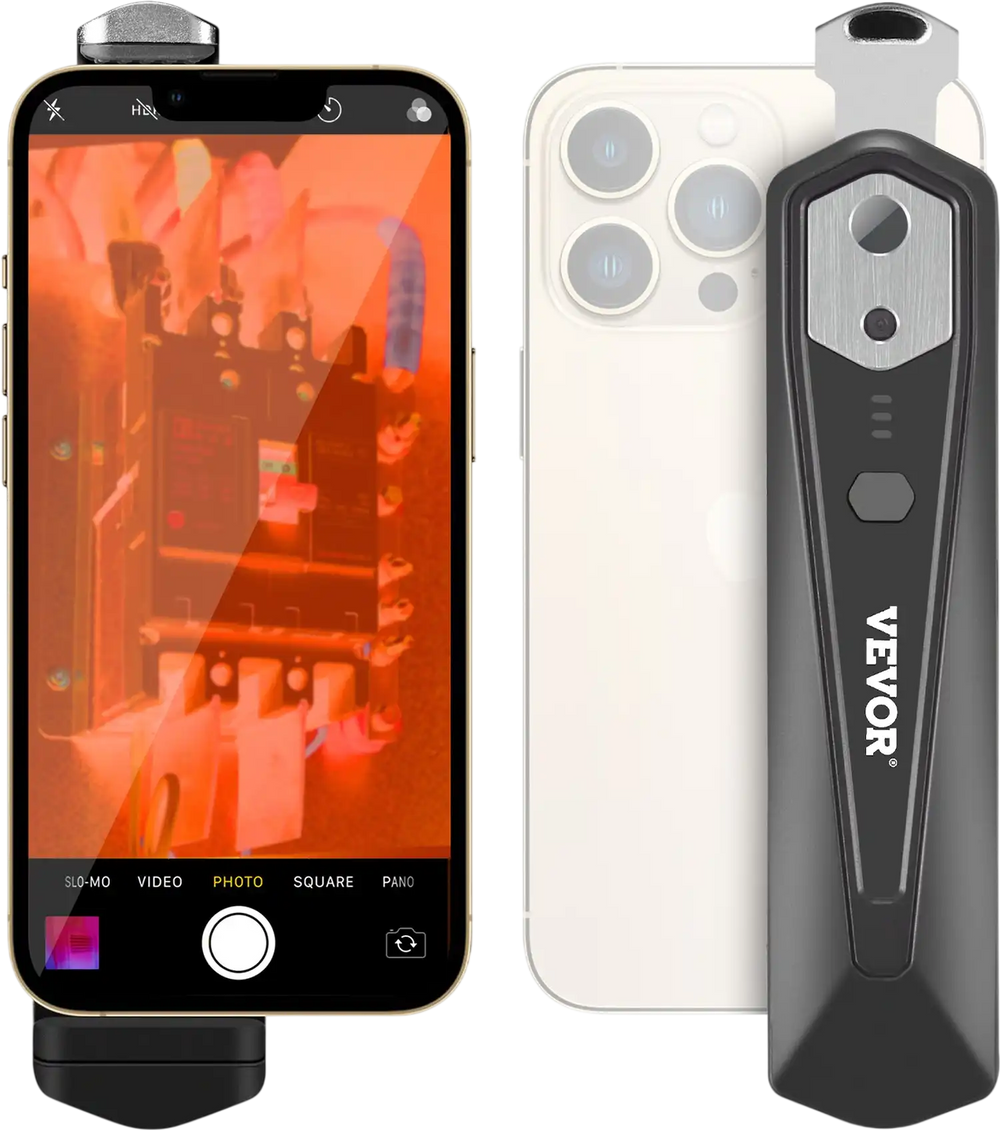

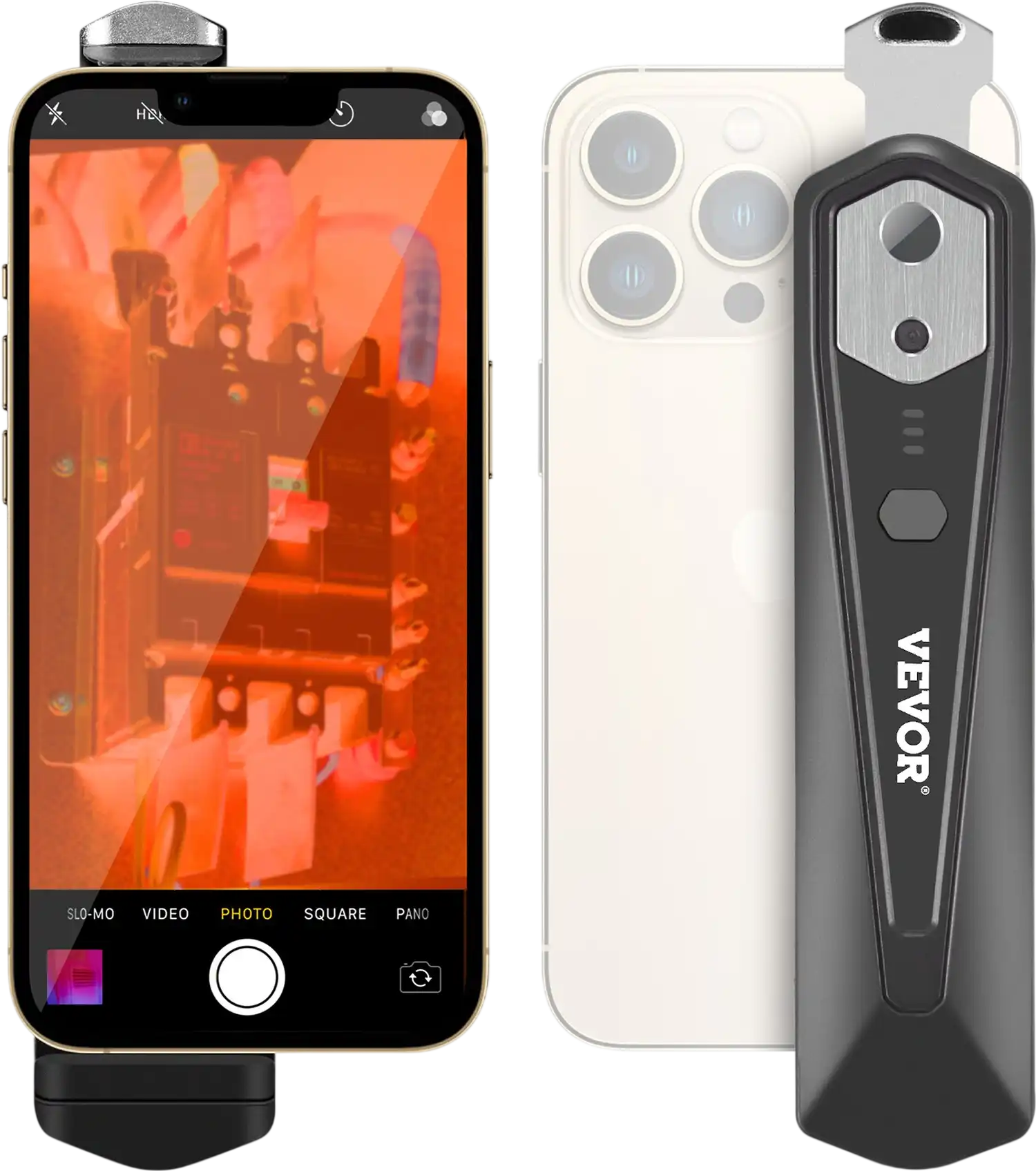

Vevor Thermal Imaging Camera 256 x 192 IR High Resolution for Smartphone Android iOS New
Product Overview
This wireless thermal imaging camera is designed to work with Android and iOS smartphones for flexible inspections and diagnostics. It features a 256 x 192 thermal resolution and a visible-light camera to help you interpret heat patterns with better context. With a fast 25Hz refresh rate, it delivers smooth real-time thermal viewing for tasks like home maintenance, electrical troubleshooting, and building inspections. The wide temperature detection range and thermal sensitivity provide more accurate readings across different materials. Built for field use, it also includes IP54-rated protection and user-friendly operation with no manual focusing.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

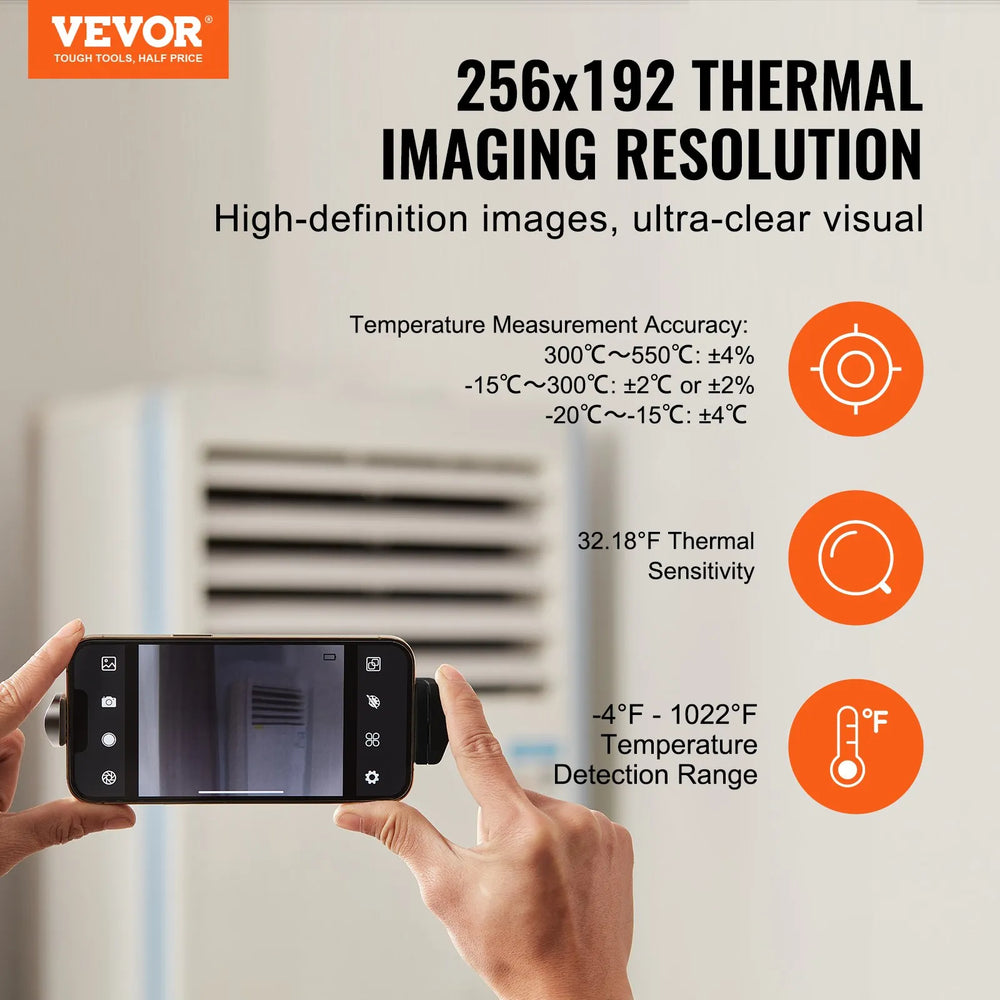

- High-Definition Thermal Imaging: Experience crystal clear imaging with VEVOR thermal camera for Android & IOS, featuring 256 x 192 high IR resolution. It offers -4°F to 1112°F wide temperature range and 32.18°F / 0.1°C thermal sensitivity, allowing for precise temperature measurement and capturing even the subtlest temperature variations.

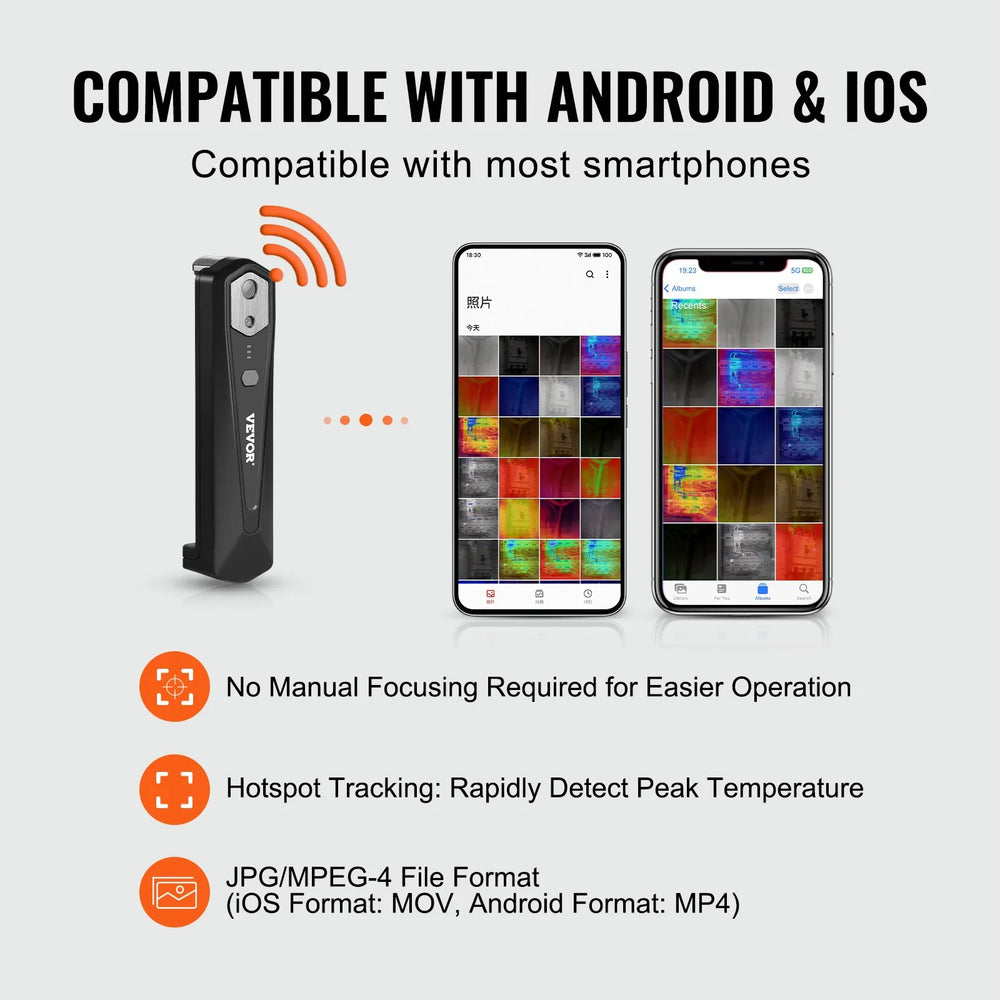

- Android & IOS Compatibility: This thermal imaging camera can connect wirelessly to Android and IOS smartphone, allowing you to inspect around obstacles and measure targets from a safe distance. Its portability and flexibility make it ideal for home repairs, circuit diagnostics, building inspections, security monitoring, and more.

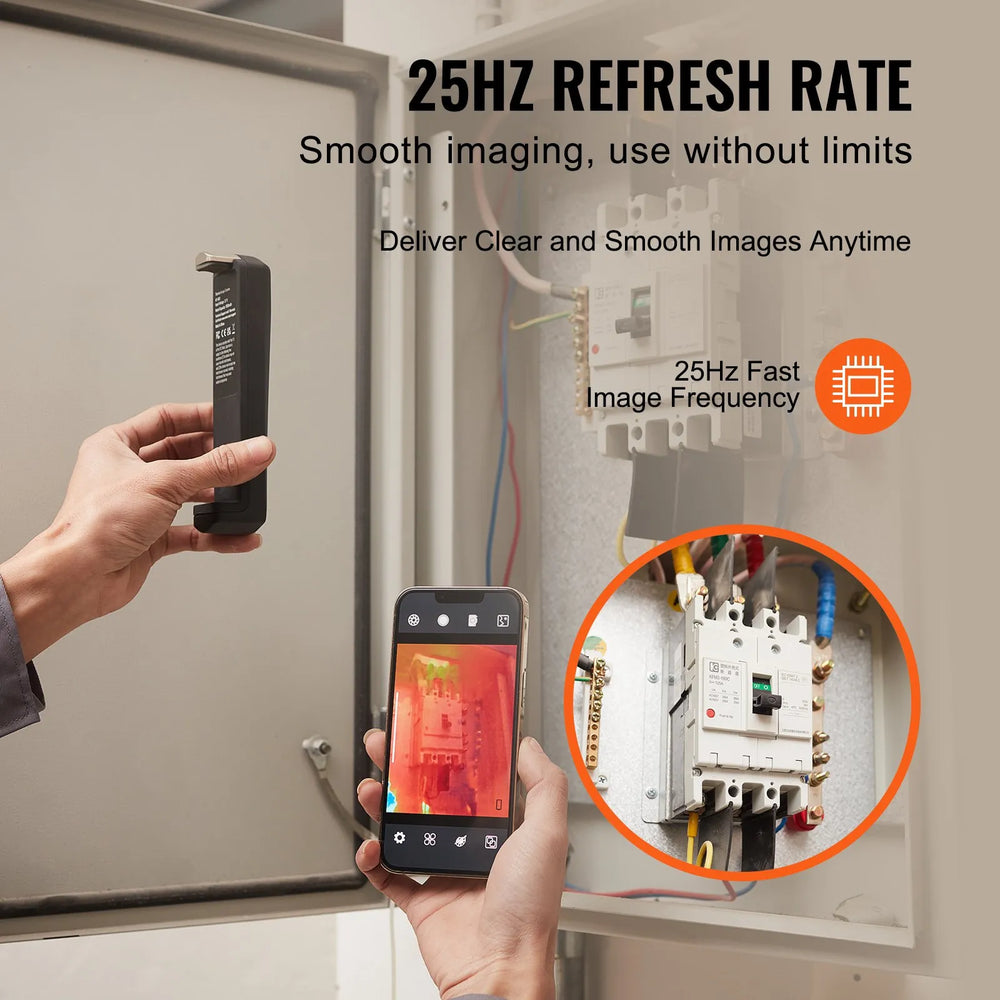

- Real-Time Insights: The 25Hz refresh rate ensures smooth image streaming and lag-free thermal imaging, providing real-time insights into temperature changes and thermal patterns. No crucial details are missed, even during fast movements or transient events.

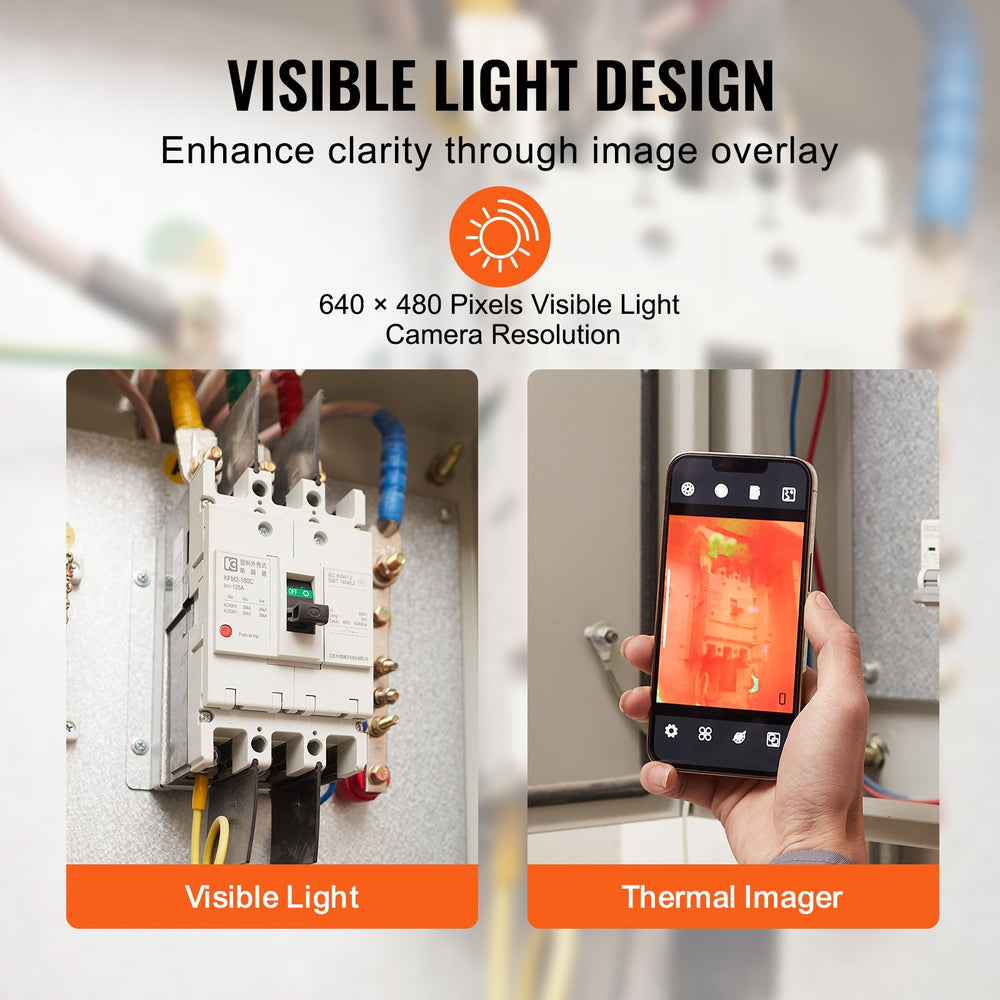

- Convenient Visible Light: Our infrared thermal imager combines 256 x 192 IR thermal imaging with 640×480 pixels visible light. Easily overlay thermal and visible light images to better understand temperature distribution and target appearances for better target differentiation.

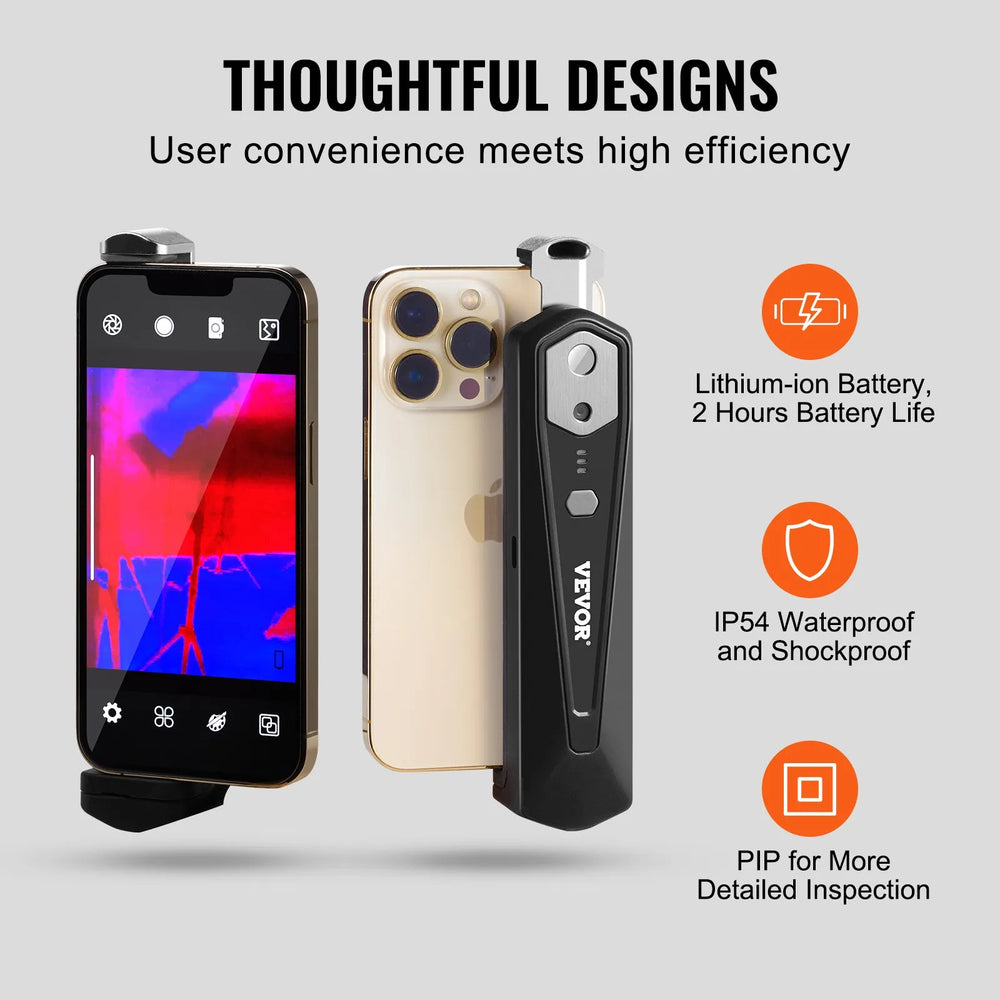

- Thoughtful Details Refined: This thermal imager for Android & IOS is optimized with numerous user-friendly features: wireless data transfer, hotspot tracking support, high-capacity lithium-ion battery, PIP mode, IP54 rated protection, and no need for manual focusing.

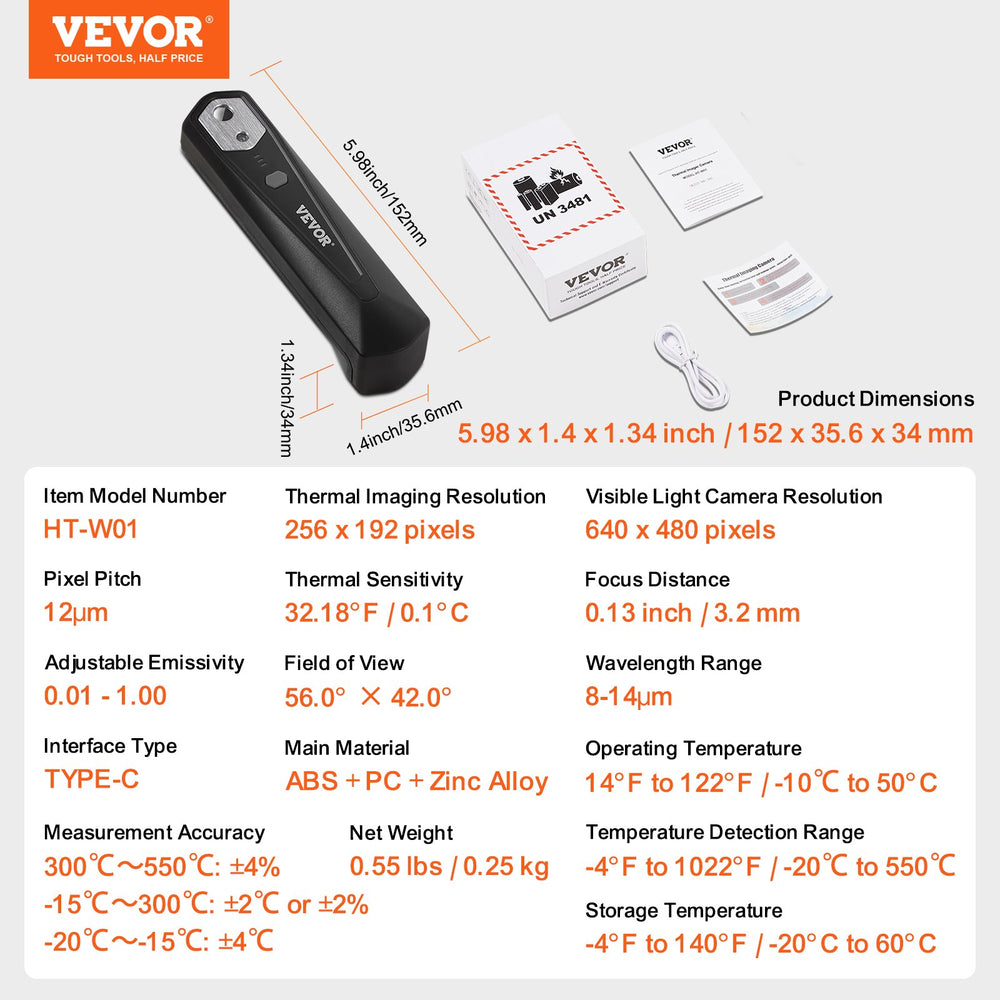

Specifications
| Item Model Number | HT-W01 |
| Thermal Imaging Resolution | 256 x 192 pixels |
| Visible Light Camera Resolution | 640 x 480 pixels |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity | 0.1°C |
| Focus Distance | 0.13 inch / 3.2 mm |
| Adjustable Emissivity | 0.01 - 1.00 |
| Field of View | 56.0° × 42.0° |
| Wavelength Range | 8-14 μm |
| Interface Type | Type-C |
| Temperature Detection Range | -4°F to 1022°F |
| Operating Temperature | 14°F to 122°F |
| Storage Temperature | -4°F to 140°F |
| Main Material | ABS + PC + Zinc Alloy |
| Net Weight | 0.55 lbs / 0.25 kg |
| Dimensions (L x W x H) | 5.98 x 1.4 x 1.34 in |
Package Contents
Vevor Thermal Imaging Camera for Smartphone
Charging Cable
User Manual
Warranty
This item comes with a 1 year factory warranty.
