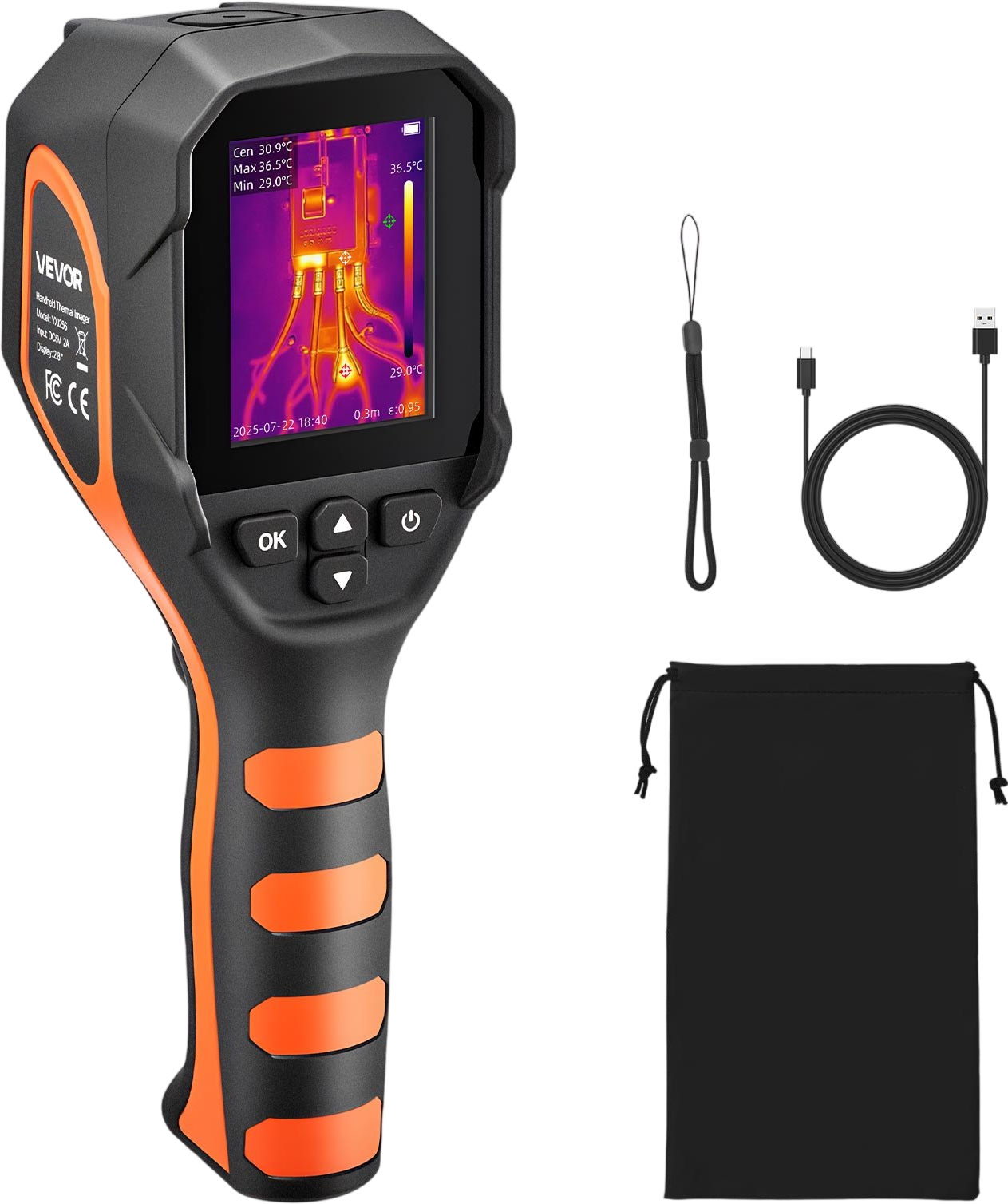

Vevor Thermal Imaging Camera 160 x 120 IR Resolution with 2.8" LCD Screen New
Manufacturer: Vevor
SKU: FWIFIYHWRXY2ZWCTO002V9
resolution Options
Touch Screen Options
Screen Size Options
QTY
(888) 999-1522
C
$276.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Automatic Wire Stripping Machine 0.06"-0.98" Motorized Cable Peeler 60W New
-
Vevor Fish Tape 125' x 3/16" PET Wire Puller New
-
Vevor PVC Conduit Heater 1/2" to 4" 2200W Pipe Bending Tool New
-
Vevor Wire Stripper Portable Manual Copper Stripping Machine 0.06-1" Hand Crank or Drill Powered New
-
Vevor Multimeter 6000-Count TRMS Digital Voltmeter Current Tester New
-
Vevor Wire Stripper Blades 4-Pack Replacement Blades New
-
Vevor Fish Tape Puller Fiberglass Wire Cable Runner 5/16" 656 ft. with Reel Stand New
-
Vevor Blacksmith Tongs 18" 4-Pc Carbon Steel Forge Tong Set New
-
Vevor Cable Dispenser Floor or Stud Mounted Portable Wire Spool Rack New
-
Vevor Anemometer Portable Split Design Digital Air Speed & Temperature Meter New
-
Vevor Fish Tape Fiberglass 492' x 5/16" Duct Rodder Wire Puller with Steel Reel Stand New
-
Vevor EMF Meter 3-in-1 Handheld Radiation Detector New
-
Vevor Outlet Tester GFCI Trip Tester with LCD Display New
-
Vevor Automatic Wire Stripping Machine 0.06"-0.98" Cable Peeler 60 ft/min 180W New
-
Vevor Fish Tape 100' x 3/16" Fiberglass Wire Puller New
Vevor Thermal Imaging Camera 160 x 120 IR Resolution with 2.8" LCD Screen New
Product Overview
This VEVOR thermal camera is a handheld thermal imaging device designed for inspections, diagnostics, and troubleshooting across electrical, HVAC, automotive, and building applications. It features 160 x 120 infrared resolution enhanced to 320 x 240 super resolution, a 2MP visual camera, and a 25Hz refresh rate for clear thermal analysis. The camera measures temperatures from -4°F to 1022°F and displays center, hot, and cold spot readings. It also includes 16GB internal storage, up to 6 hours of runtime from its 3200 mAh battery, and IP54 protection for dependable use in demanding environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

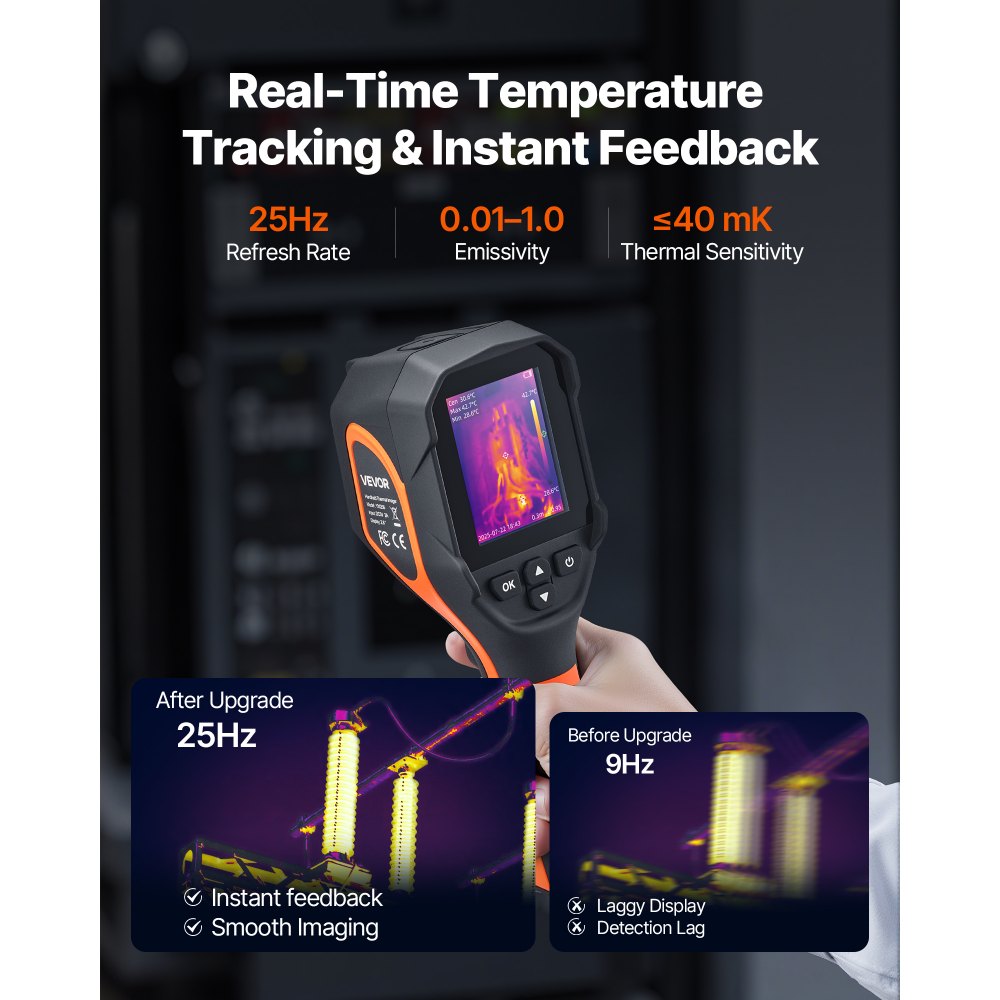

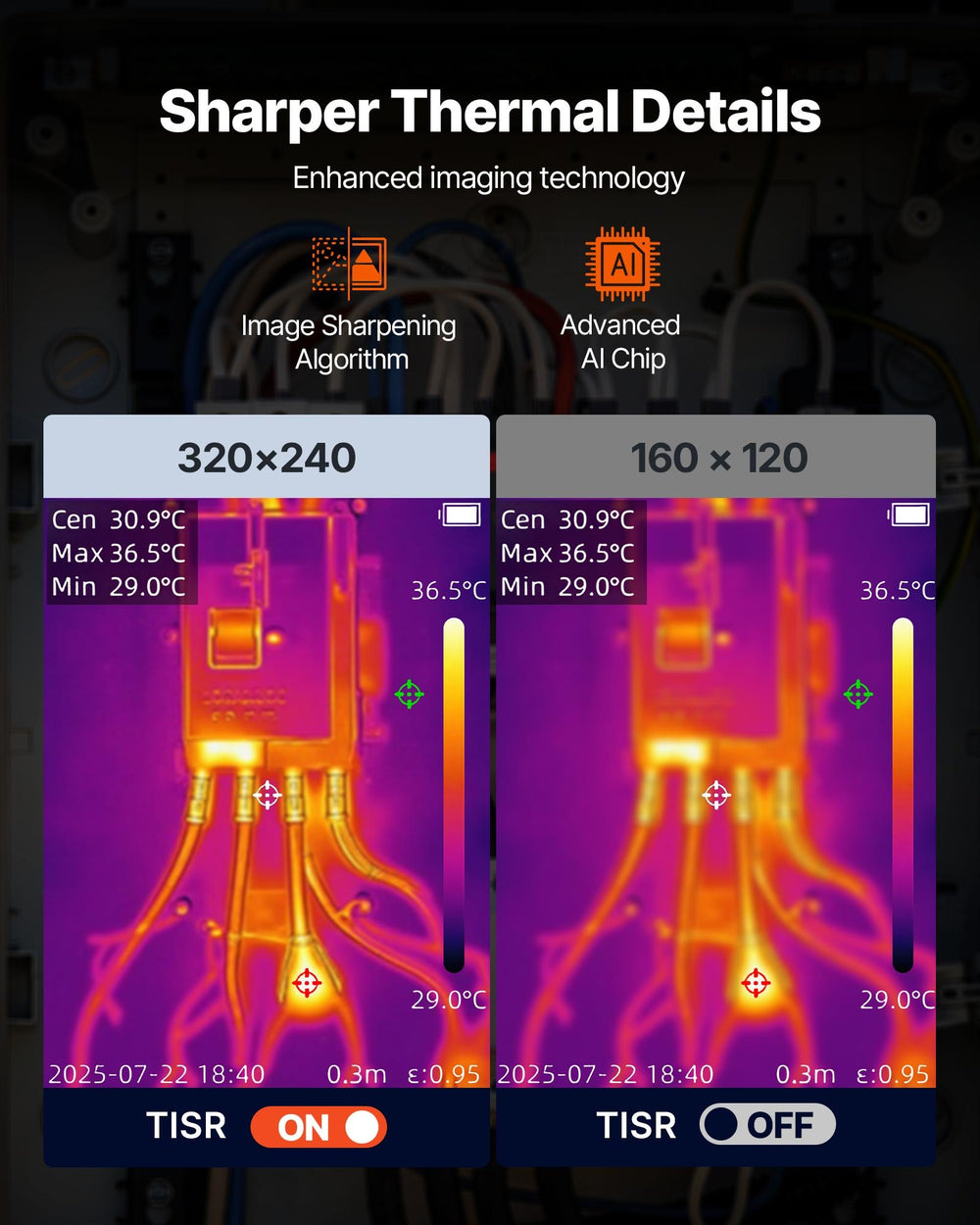

- Image Enhancement Technology: The VEVOR thermal imager adopts TISR enhancement technology, upgrading the original IR resolution of 160x120 to a super resolution of 320x240. With a 25Hz refresh rate, ≤40 mK thermal sensitivity, and a wide 50°x37.2° field of view, combined with image sharpening algorithms and a high-performance AI chip, its 2.8-inch LCD screen captures and displays heat details with greater clarity

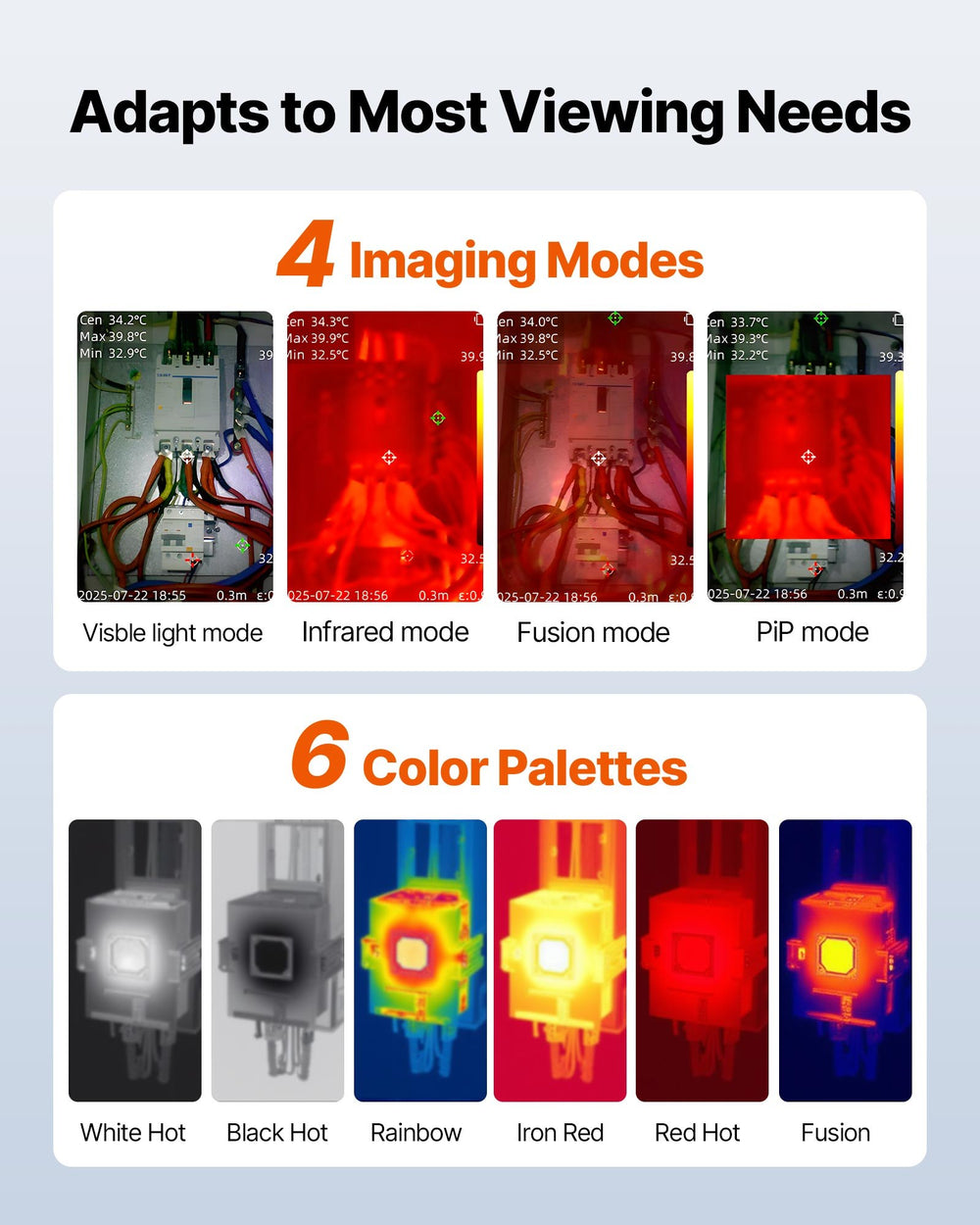

- Accurate Temperature Measurement: This infrared camera supports a wide temperature range of -20℃ to 550℃ / -4°F to 1022°F. It automatically tracks hot and cold spots and displays center, maximum, and minimum temperature data. With 4 thermal color modes and 6 palette options, it adapts to different working needs, delivering more intuitive and clearer imaging

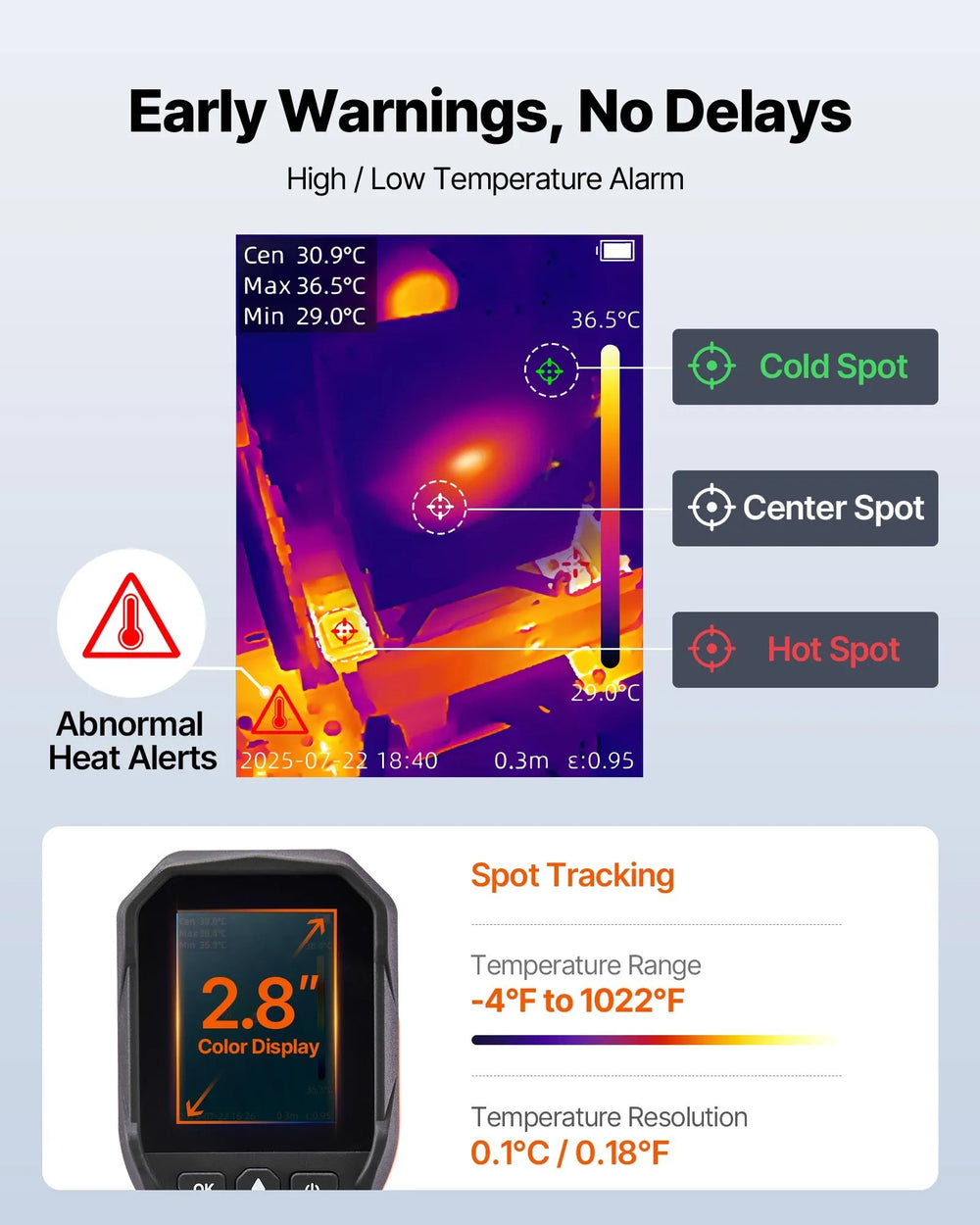

- Quick Fault Detection: Our infrared thermal imager features built-in high/low-temperature alarms to automatically monitor deviations and issue alerts instantly. It helps you quickly identify overheating or low-temperature zones, precisely locate faults, and detect hidden heat risks, making potential problems clearly visible for early action

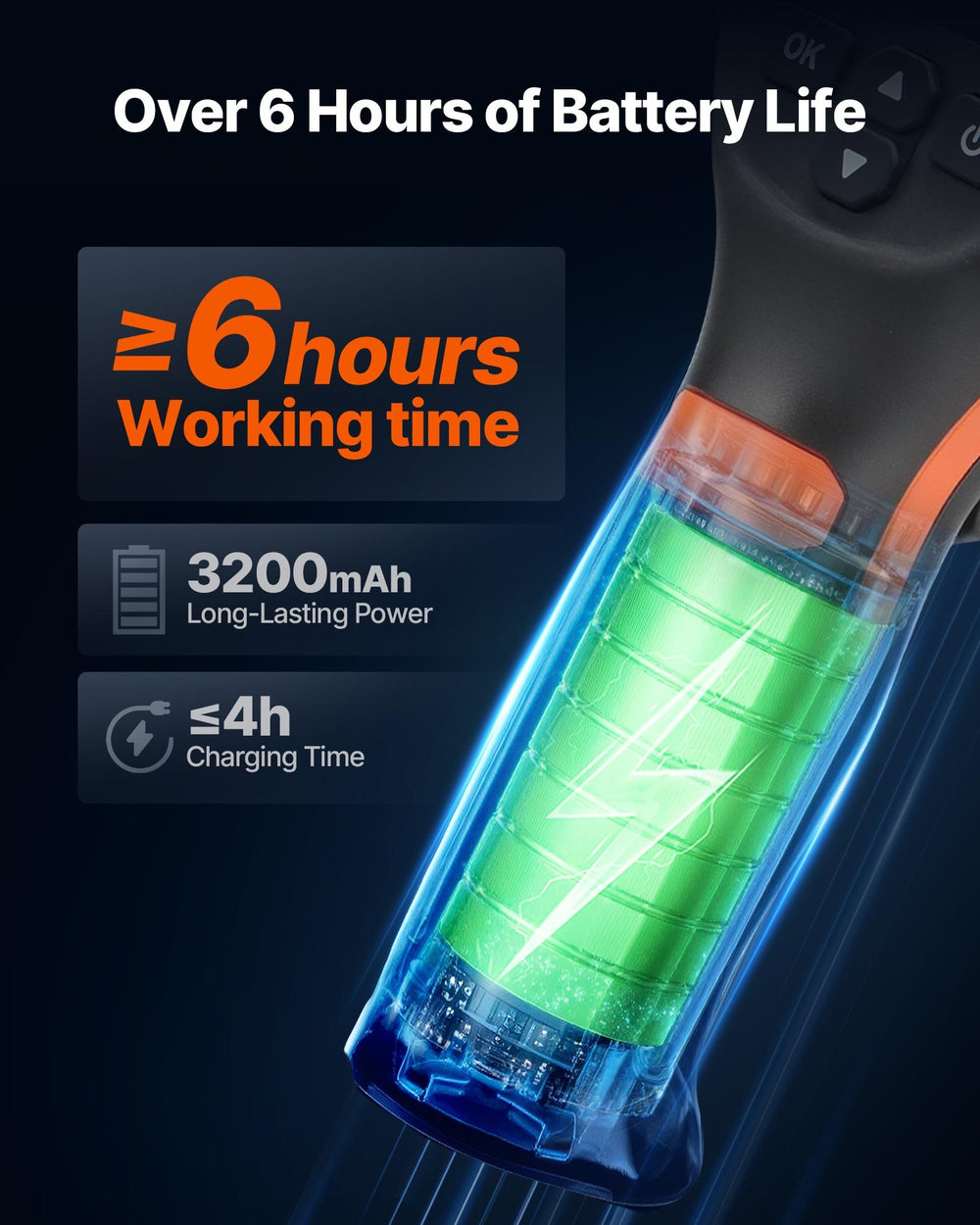

- Multiple Upgrades: This thermal camera is equipped with a 3200mAh high-capacity battery that provides up to 6 hours of runtime. It supports auto power-off, photo and video recording, and LED lighting. The lightweight yet sturdy body withstands drops up to 2m and, with IP54 dust- and water-resistant protection, is ready for challenging environments
- Wide Applications: Our thermal imaging camera supports USB charging for convenience and comes with 16GB built-in storage, capable of saving over 60,000 images. It supports 10 language settings and is widely applicable for circuit board inspection, HVAC troubleshooting, electrical checks, building diagnostics, vehicle maintenance, and industrial detection
Specifications
| Item Model Number | YXI160 |
| Infrared Resolution | 160 x 120 pixels |
| Enhanced Resolution | 320 x 240 pixels |
| Display Size | 2.8 inch |
| Refresh Rate | 25Hz |
| Thermal Sensitivity | ≤ 40 mK |
| Focus Mode | Fixed Focus |
| Visible Light Resolution | 1600 x 1200 pixels 2MP |
| Emissivity | 0.01 - 1.0 |
| Measuring Distance | 0.3 - 3 m |
| Temperature Measurement Range | -4°F to 1022°F / -20°C to 550°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±2°C |
| Temperature Display | Center / Hot / Cold Spot |
| Battery Capacity | 3200 mAh |
| Internal Storage | 16 GB |
| Drop Resistance | 2 m drop resistance |
| Waterproof Rating | IP54 |
| Language Options | 10 languages |
| Operating Temperature | -10°C to 50°C / 14°F to 122°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Tripod Support | Supported standard 1/4 inch hole |
| Net Weight | 1.0 lbs / 0.44 kg |

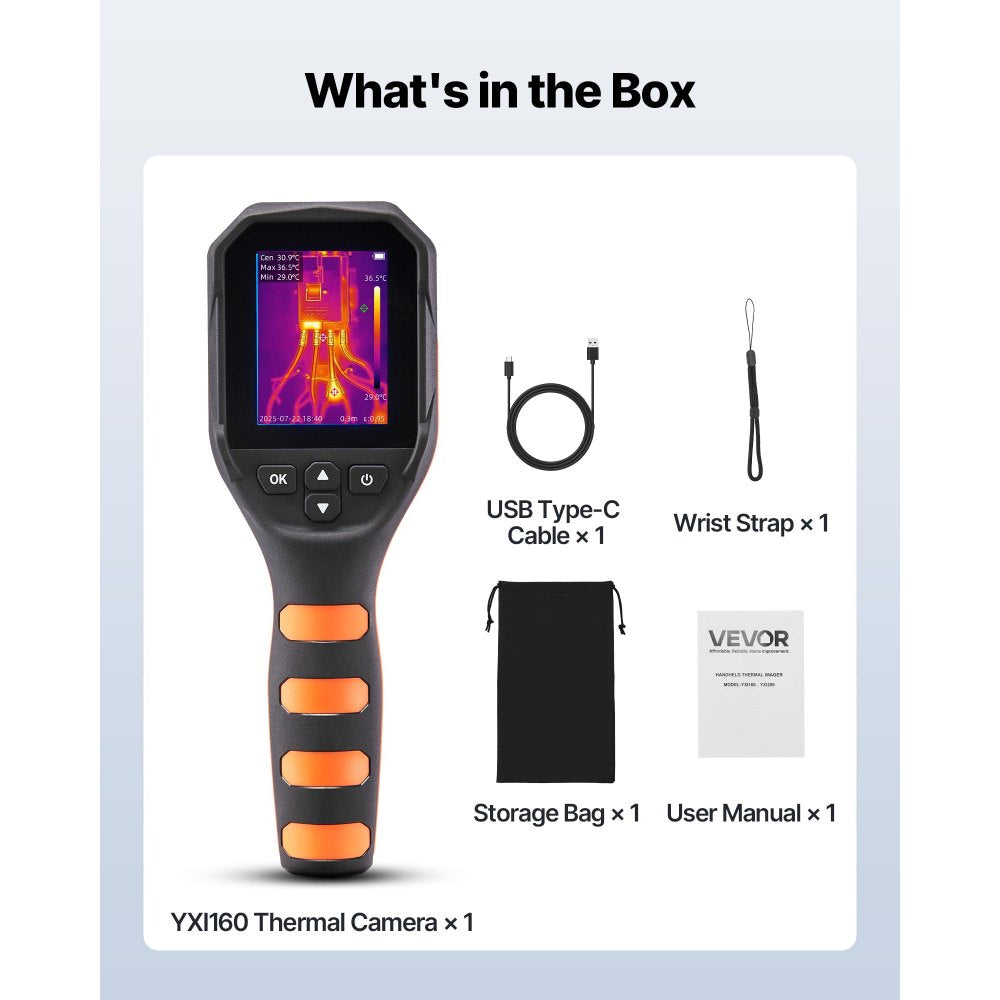

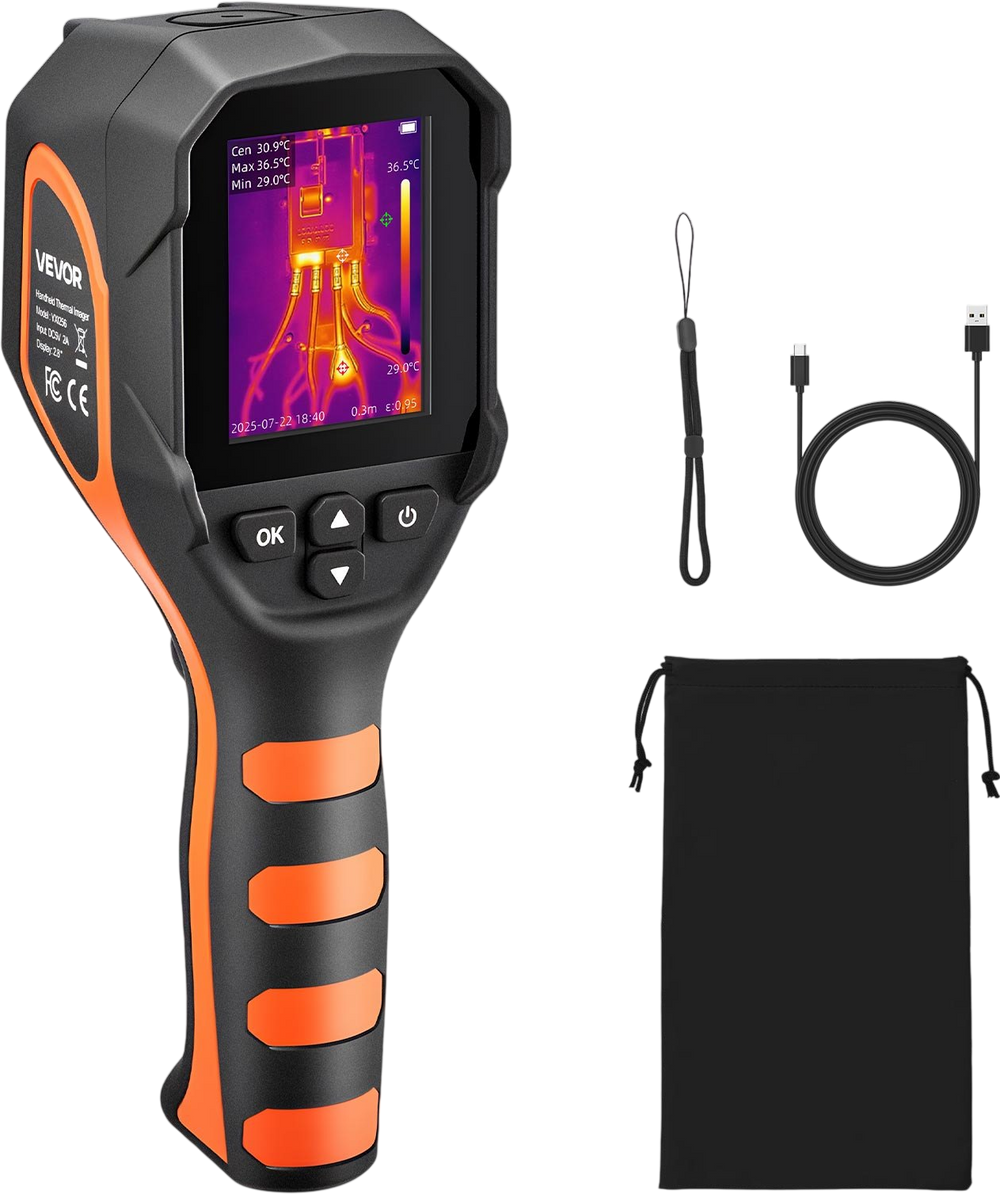

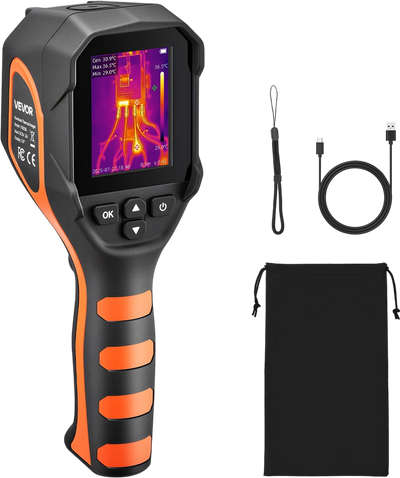

Package Contents
Thermal Imaging Camera
USB Cable
Wrist Strap
Carry Bag
User Manual
Warranty
This item comes with a 1 year warranty.
