Vevor Slip Clutch 1-3/8" 6-Spline Adjustable PTO Friction Clutch Yellow New
Product Overview

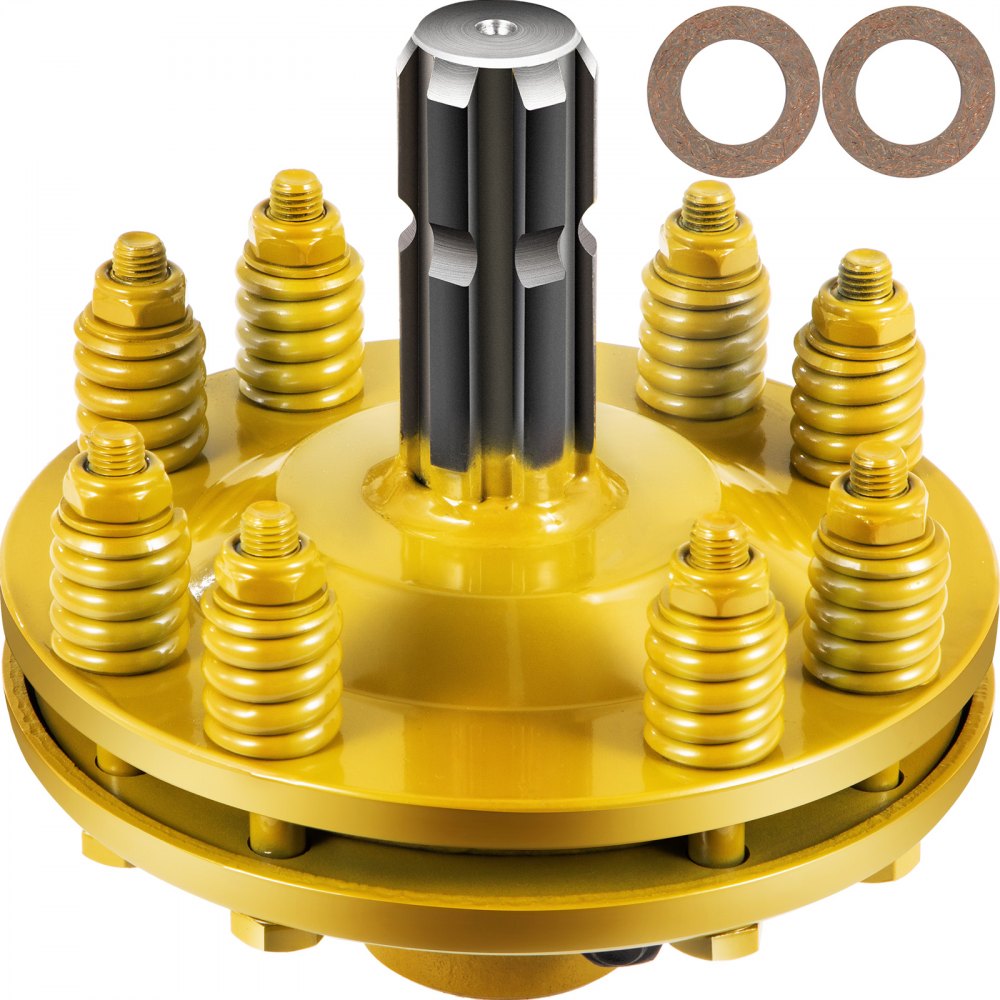

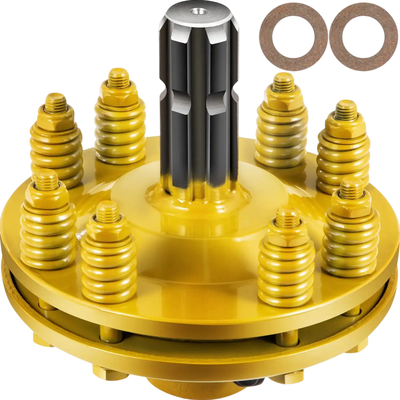

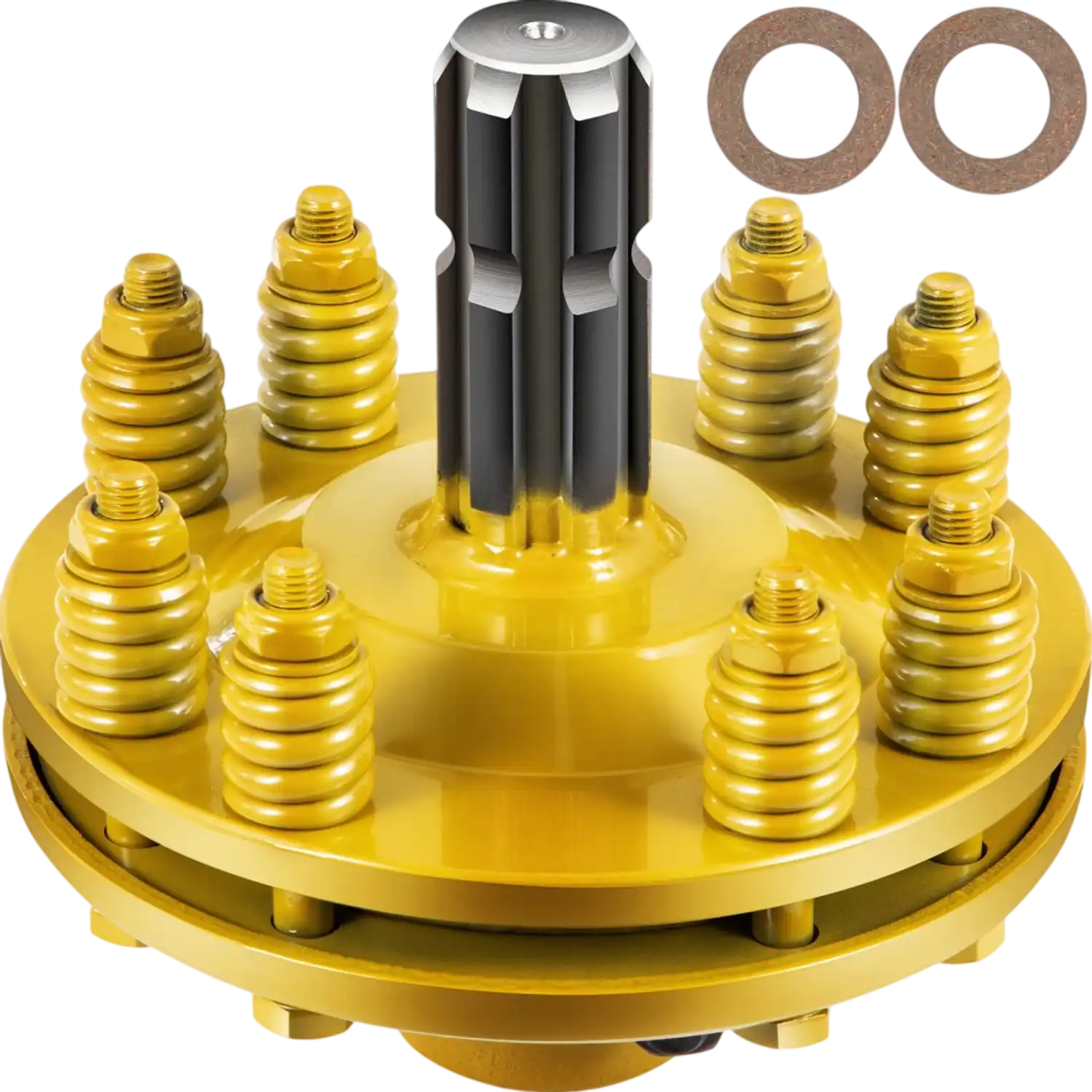

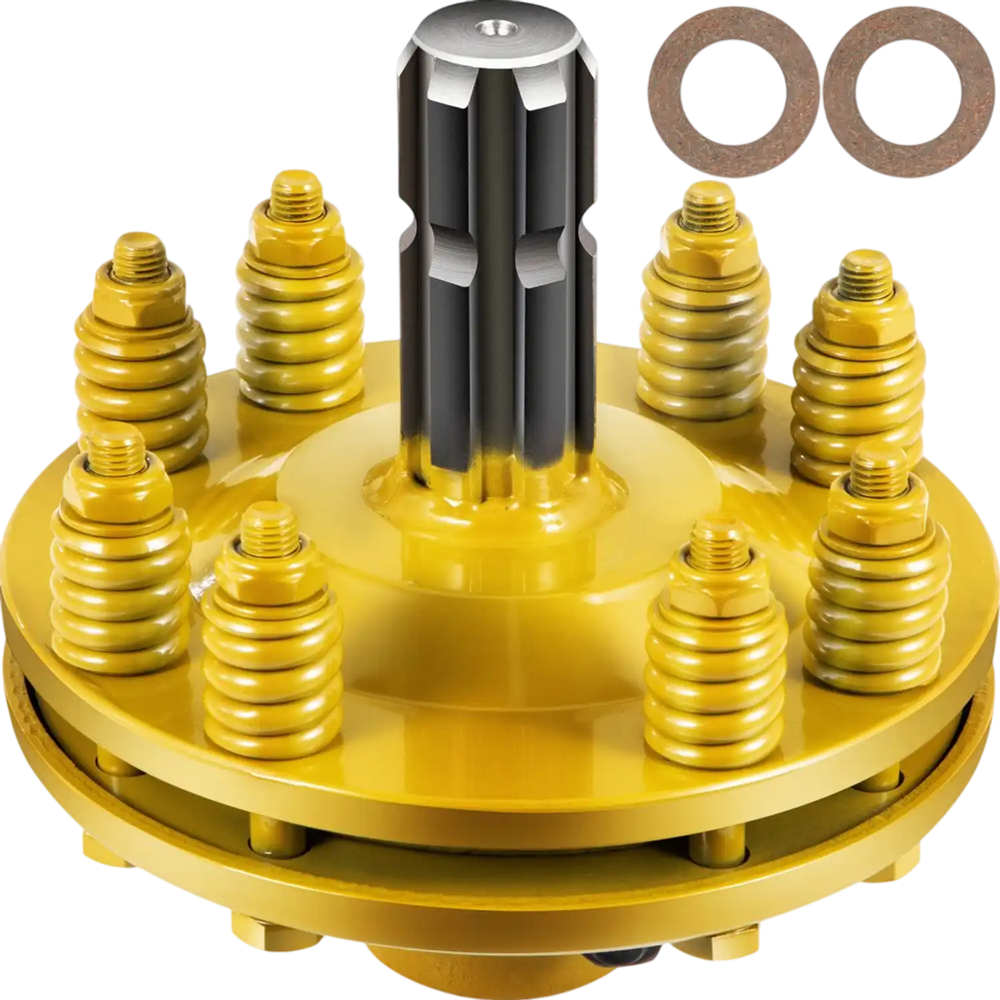

The Vevor PTO slip clutch is designed to protect PTO-driven equipment by limiting transmitted torque and allowing controlled slip between connected components. Built from 20CrMnTi carburized steel with a painted finish, it is made for durability and impact resistance. This adjustable clutch features 1-3/8" 6-spline male and female ends for compatibility with standard PTO shafts. It includes replaceable friction discs and is suited for use with rotary cutters, brush cutters, rotary mowers, and similar attachments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Allow Two Speeds: Our PTO slip clutch limits the amount of torque being transferred from the tractor to the implement. This is accomplished by slipping or spinning free, which allows the two sides of the PTO shaft to spin at different speeds

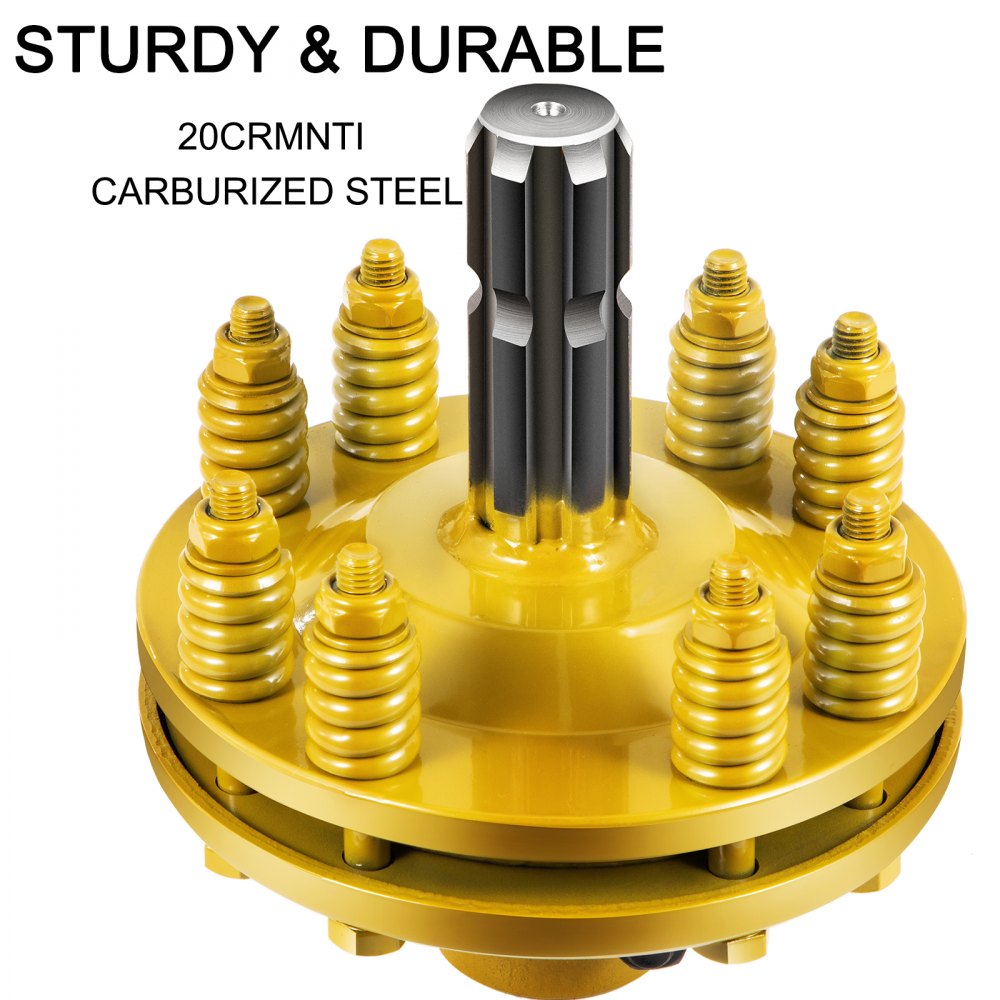

- Quality PTO Slip Clutch: The 20CrMnTi carburized steel which built this tractor PTO slip clutch has been reinforced to resist impact. The black-painted surface is smooth and anti-weary. So, it can withstand higher torque and speed to gain better protection for your PTO shaft.

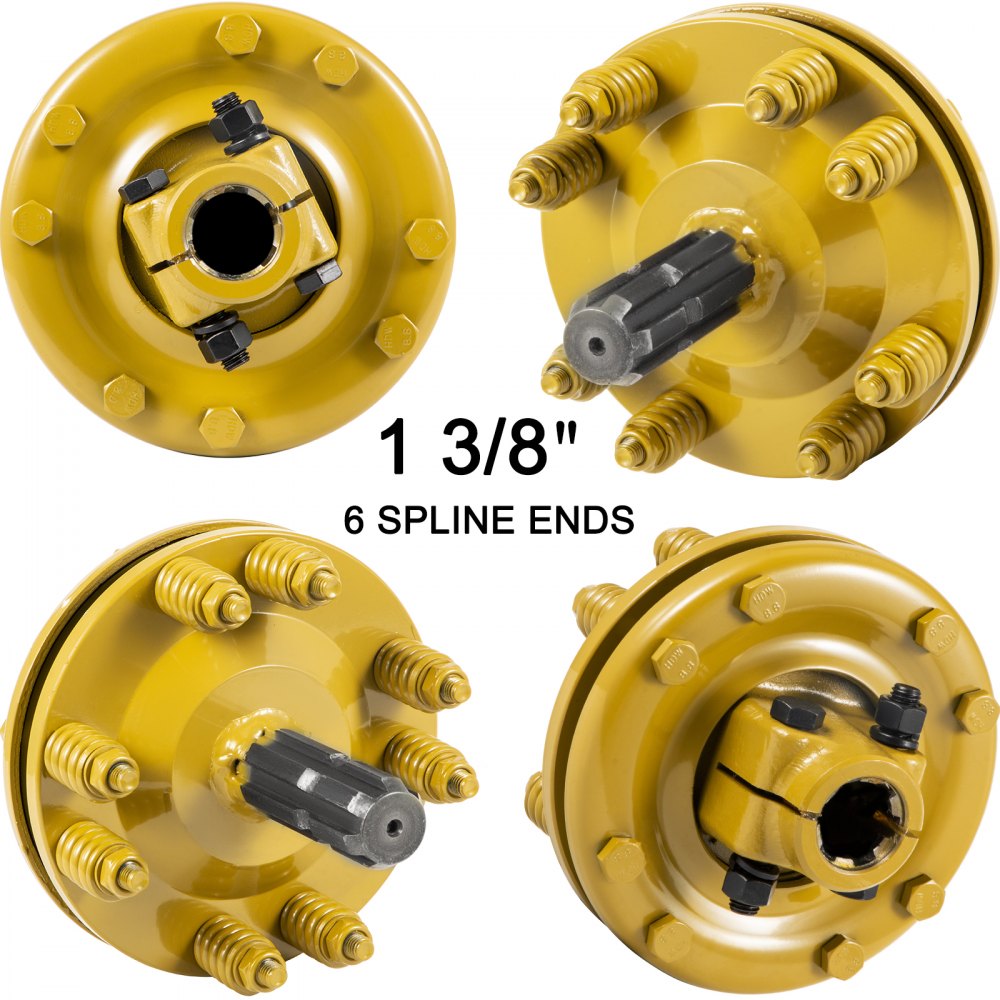

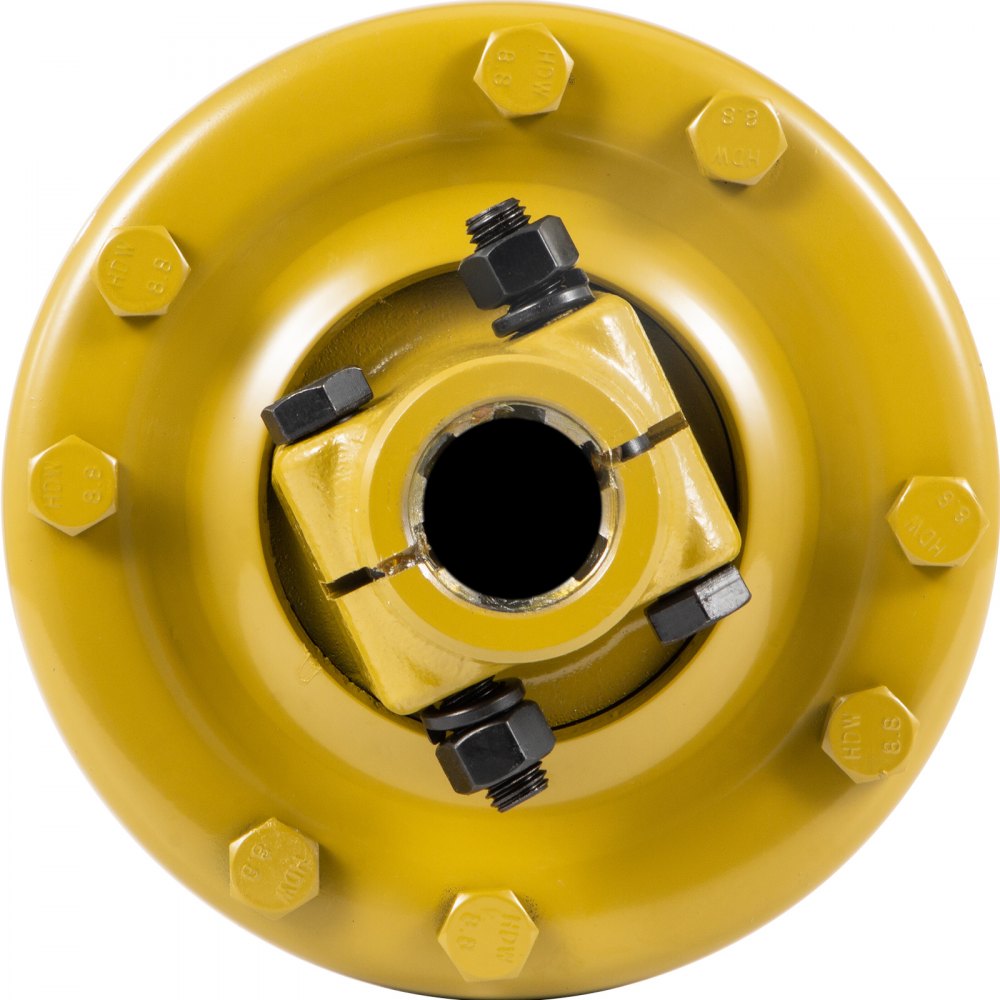

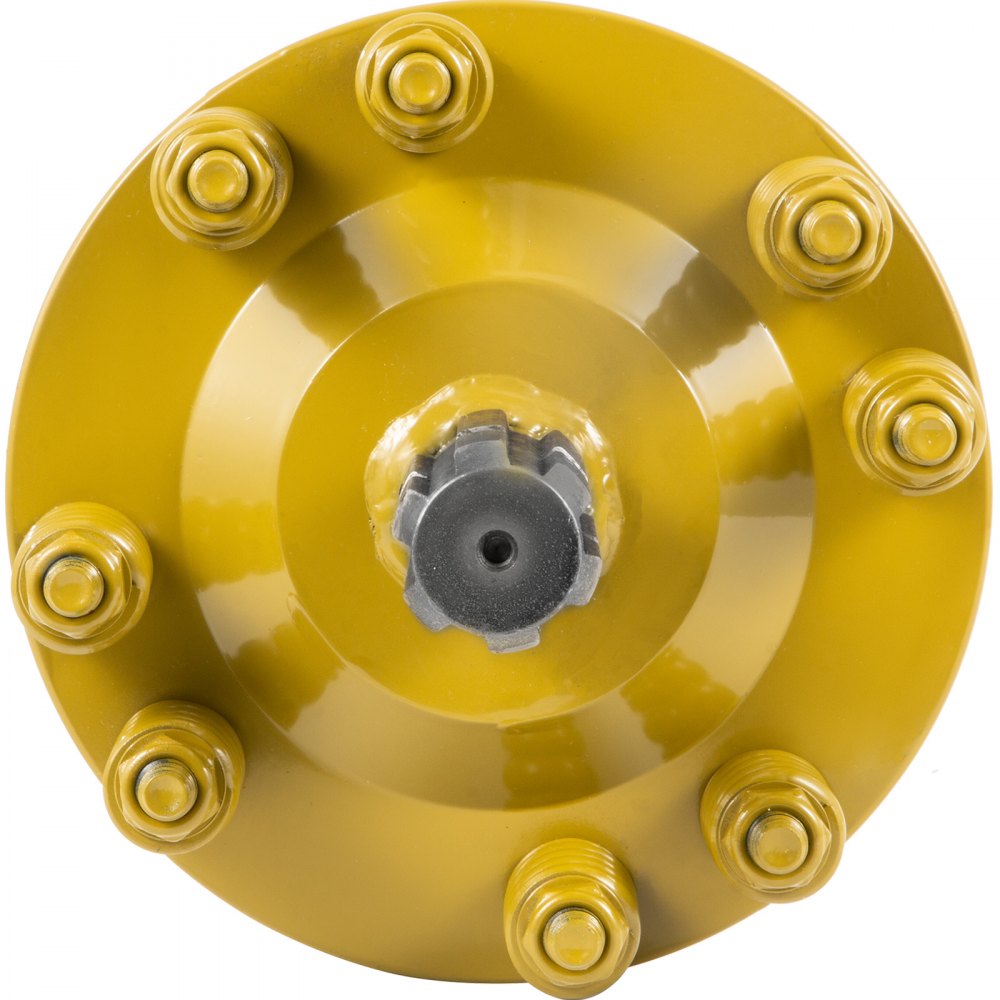

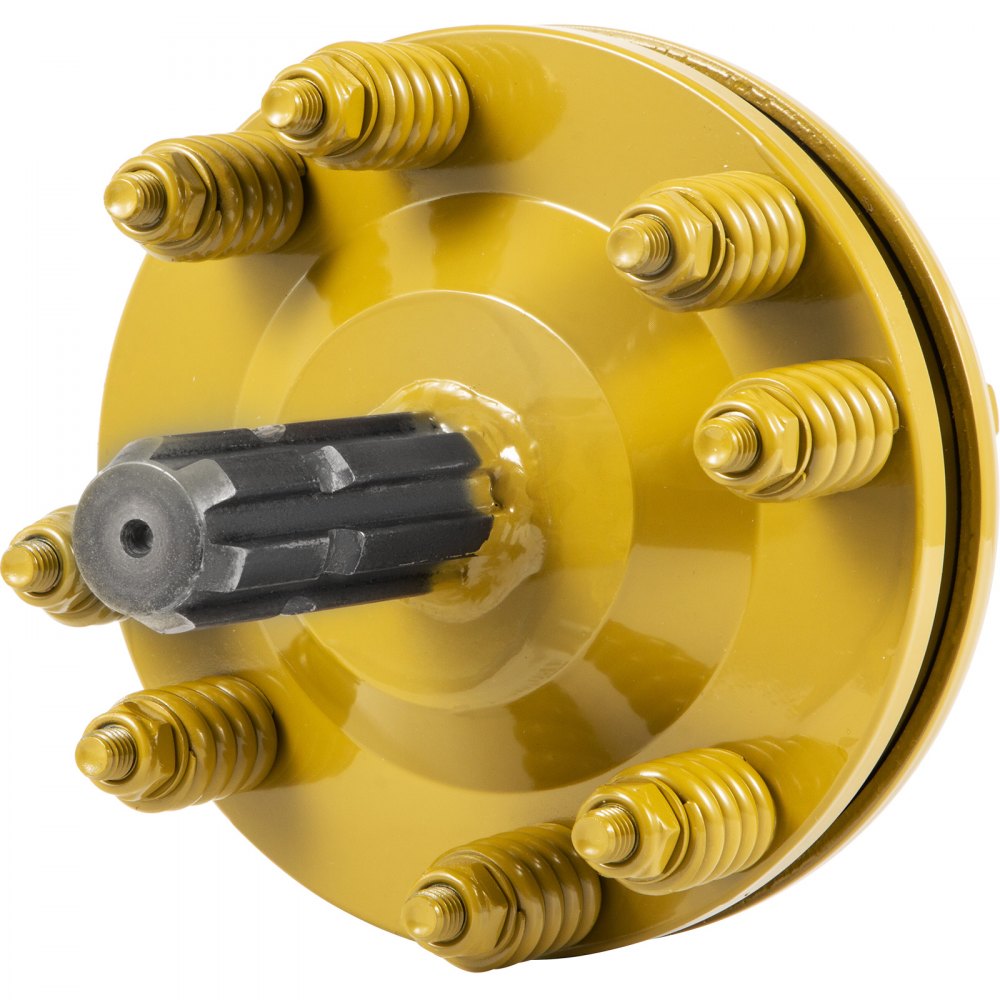

- 1-3/8" x 6 Spline Ends: Constructed with 6-spline ends, this PTO clutch has a standard size of 1-3/8" for both male and female ends. It perfectly matches the same diameter of implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts.

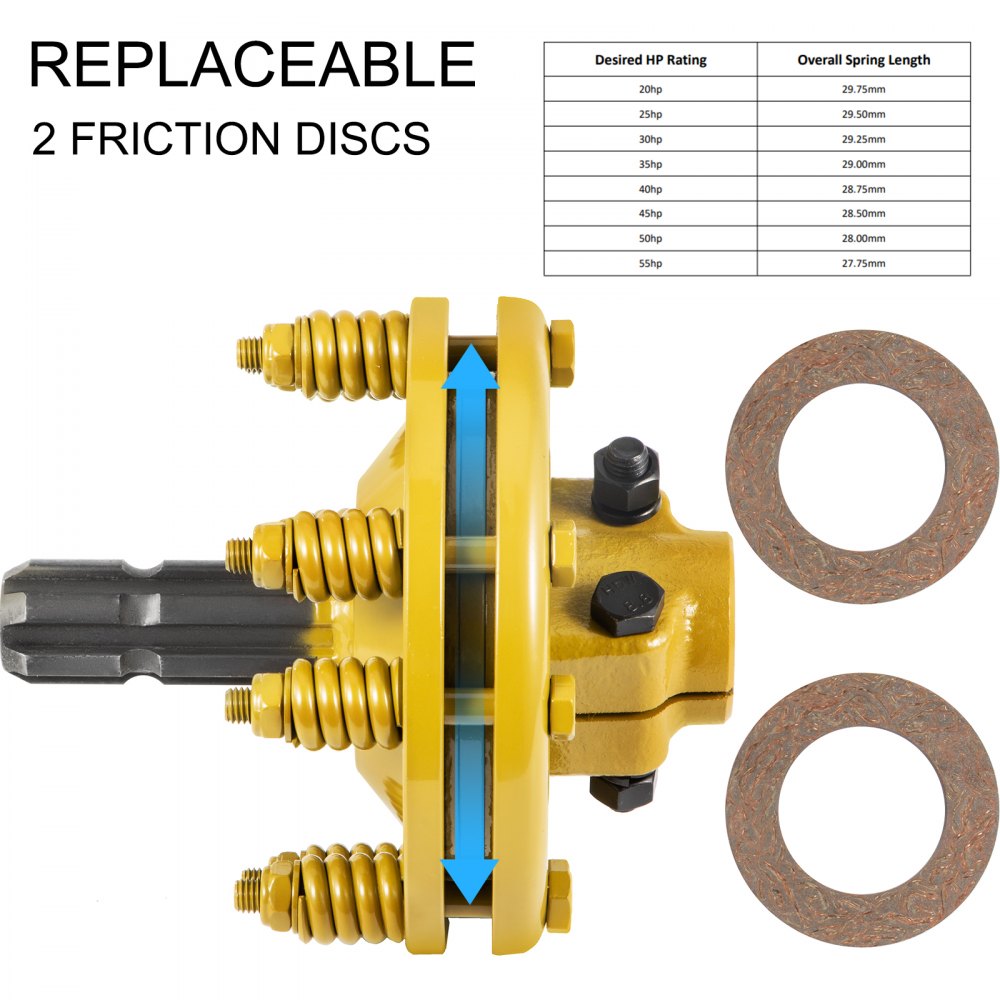

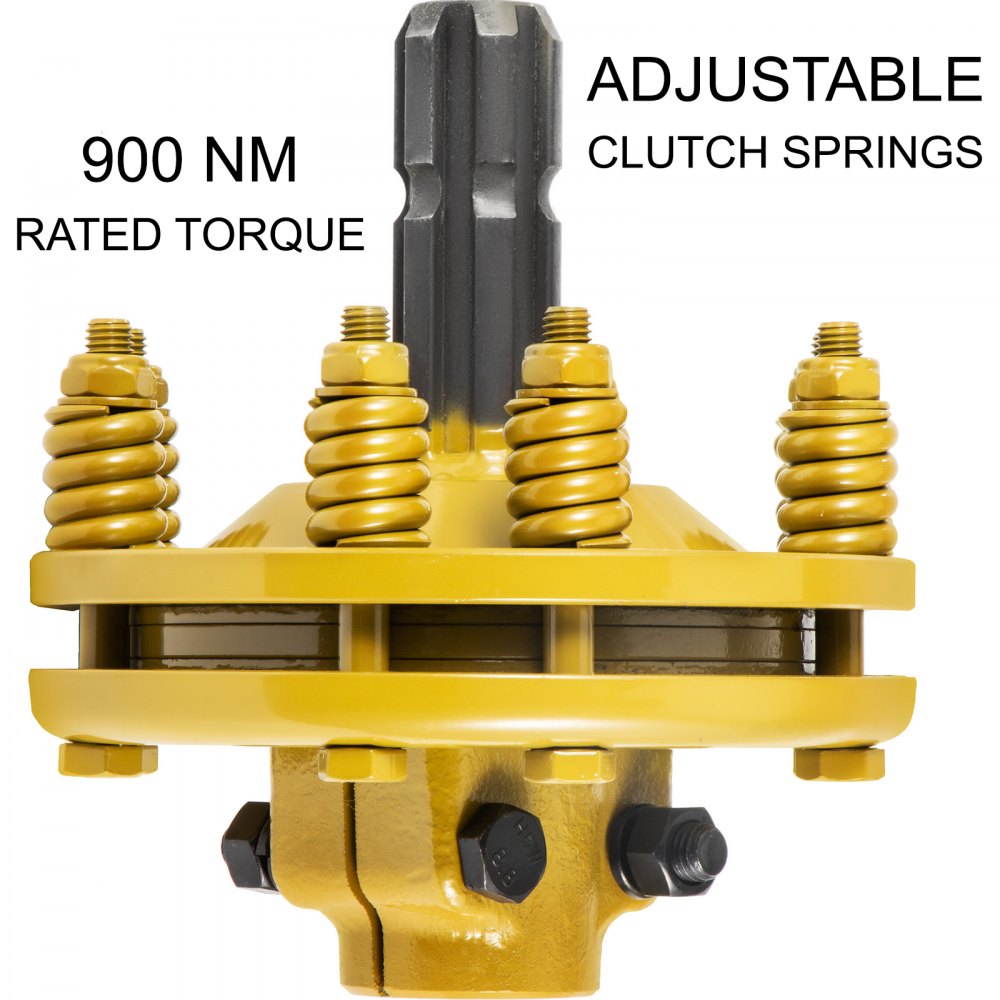

- Easy Torque Adjustments: Rated torque: 900 nm, adjustment range: 20 - 55 hp. You can adjust the length of the tension springs to acquire an appropriate torque for your rotary cutter slip clutch. Just tight / loose the eight nuts by 1/4 of a turn and check its tightness for correct operation.

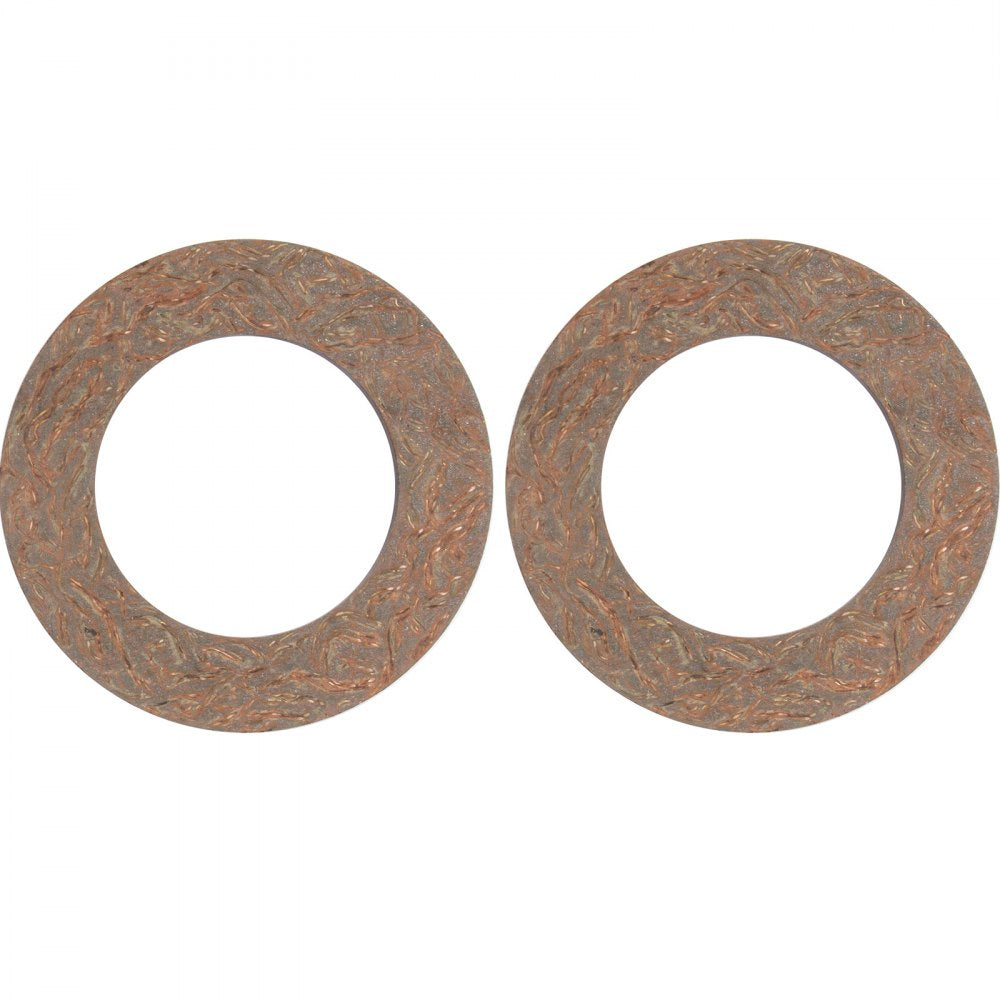

- Replaceable Friction Discs: The PTO slip clutch adopts an essential spring and disc set-up. It is assembled with fiction discs inside to help transmit forces. It is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors.

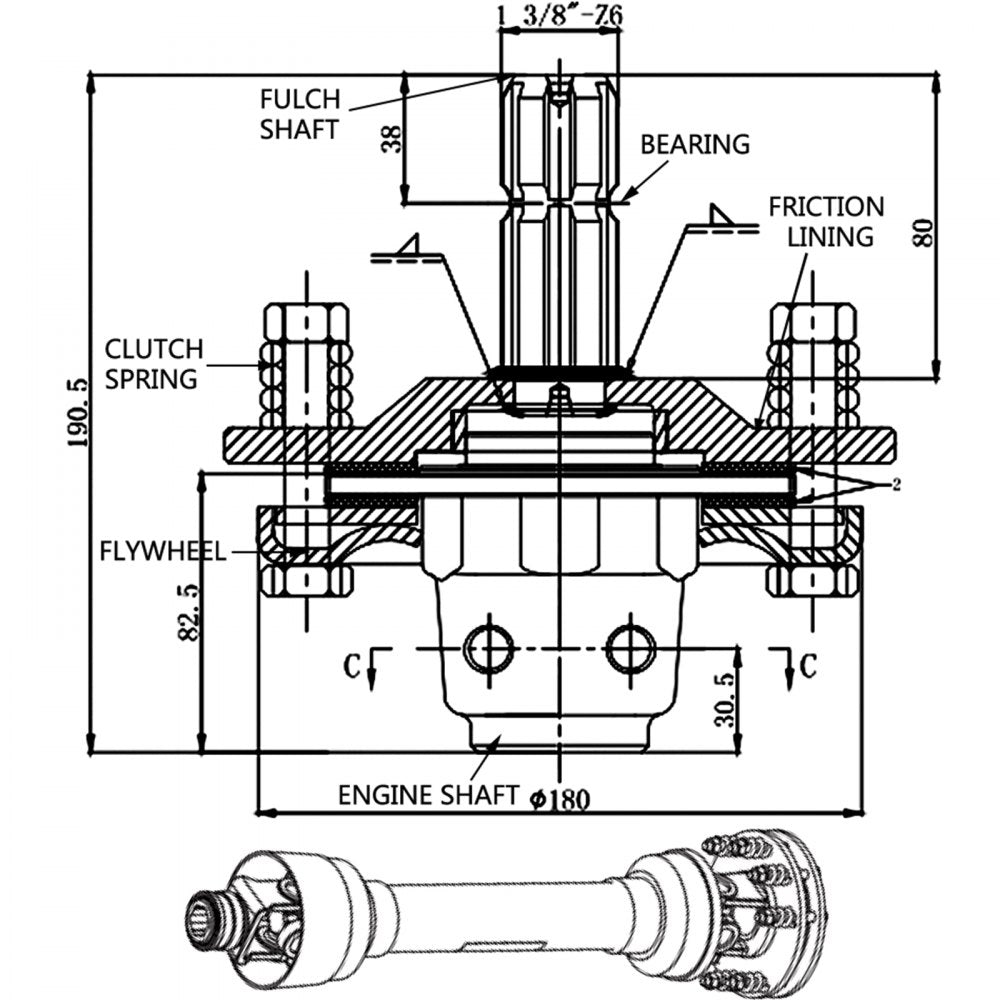

Specifications
| Material | 20CrMnTi Carburized Steel |
| Color | Yellow |
| Surface Finishing | Painted |
| Female & Male End Size | 1-3/8" 6 Spline |
| Tension Springs | Adjustable |
| Friction Discs | Replaceable |
| Rated Torque | 900 nm |
| Adjustment Range | 20 - 55 Horse Power |
| Dimensions | 1-3/8" 6-spline ends |
Package Contents
1 x PTO Split Clutch
Warranty
This item comes with a 1 year factory warranty.
