Vevor Shower Curb Kit 48" x 72" Watertight Overlay with 4" PVC Central Flange New
Product Overview
This waterproofing shower kit is the ideal choice for your DIY bathroom renovations. All the necessary accessories of a water-impermeable kit are provided to you to create an environment where you don't have to worry about water leakage. The central drain tray is only 0.8" in thickness, effortlessly fitting under floor tiles and can be cut to size according to your needs.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Premium Shower Tray: Vevor's shower curb kit provides you a shower tray made of EPS high-pressure foam board. Overall size: 48" x 72". The drainage hole is set in the middle with a 4" diameter for effective water draining. The shower tray is equipped with a gray water-impermeable membrane with fluffy texture on the surface, convenient for mortar brushing. The tray forms a 5° incline from four sides to the middle for drainage.
- Drainage Accessories: The shower curb overlay includes a durable PVC flange and auxiliary drainage device (fit for 2" pipes) to ensure smooth water flowing. With a gravity automatic seal grate, pipes won't be blocked. In addition, Vevor provides two shower curbs measuring 48" x 4.5" x 6". Adopting XPS plastic extruded board, 2 shower curbs are easy to cut and can be adjusted according your length needs.
- Water Impermeable: 2 rolls of HDPE material water-impermeable membrane are included in the shower base kit. Small roll size: 5" x 32.8'; Large roll size: 3.3' x 32.8'. You can choose the membrane for different areas of the wall or floor. 4 inside corners and 2 outside corners of the membrane are provided for added convenience and time-saving.
- Stainless Steel Trowel: A square-toothed stainless steel trowel is included for mortar application. The trowel blade features square serrations to keep the mortar on the surface uneven, enhancing the adhesion between the membrane and the wall or floor.
- Effortless Installation: Installing this shower bed kit is not difficult and won't take a long time. It contains all the water-proofing components, including the shower tray, flange, stainless steel drain, membrane, and shower curb for a watertight shower assembly.
Specifications
| Model | VV-LYDZ-PVC4872Z |
| Flange Material | PVC |
| Grate Material | 304 Stainless Steel |
| Grate Size | 4" x 4" |
| Membrane Size | 121.3 sq. ft. |
| Shower Curb Size | 48" x 4.5" x 6" |
| Shower Tray Size | 48" x 72" |
| Gross Weight | 28 lbs (12.7 kg) |

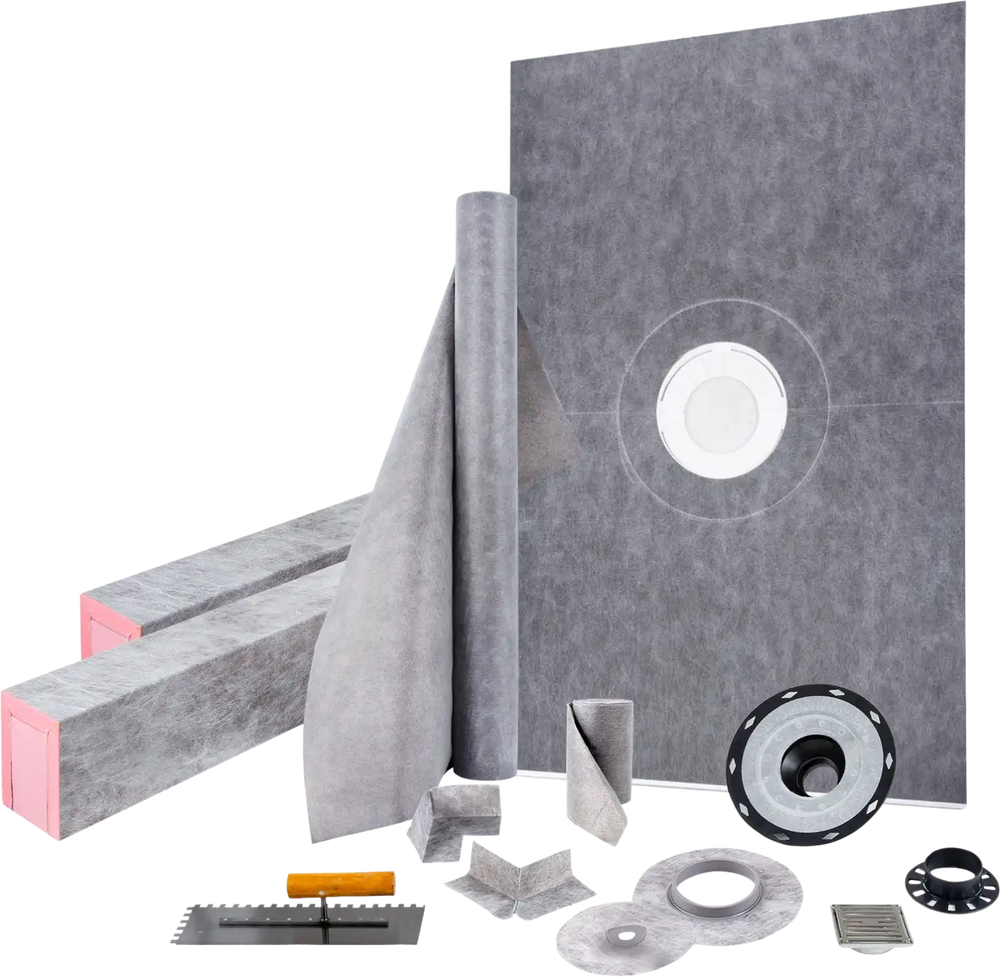

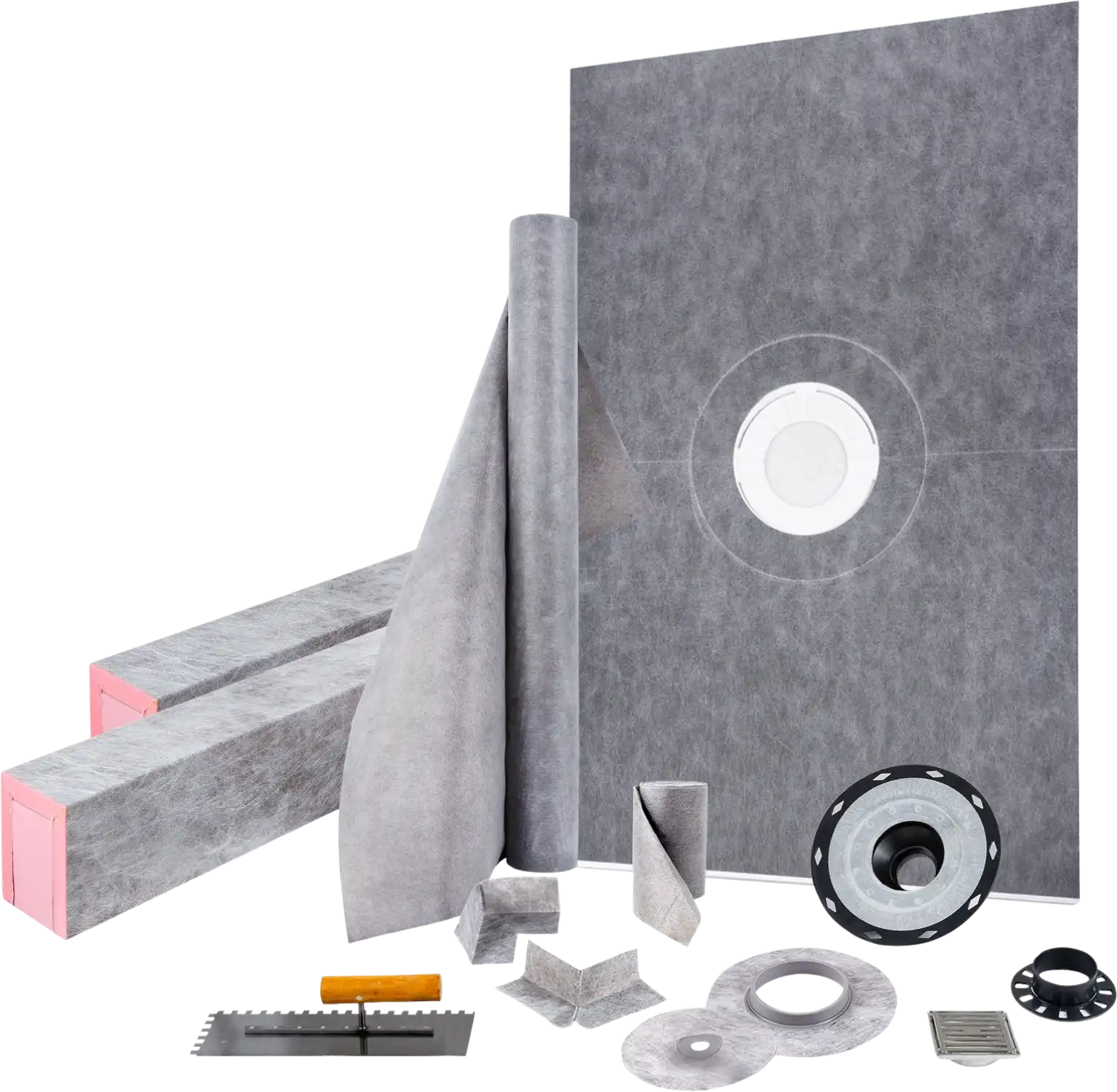

Package Contents
Vevor Shower Curb Kit 48" x 72"
(2) Shower Curb
Shower Tray
PVC Flange
Flange Collar
Drainage Assistant
Stainless Steel Grate
Trowel
(4) Inside Corners
(2) Outside Corners
(2) Water Impermeable Membrane
Valve & Pipe Seal
User Manual
Warranty
This item comes with a 1 year factory warranty.
