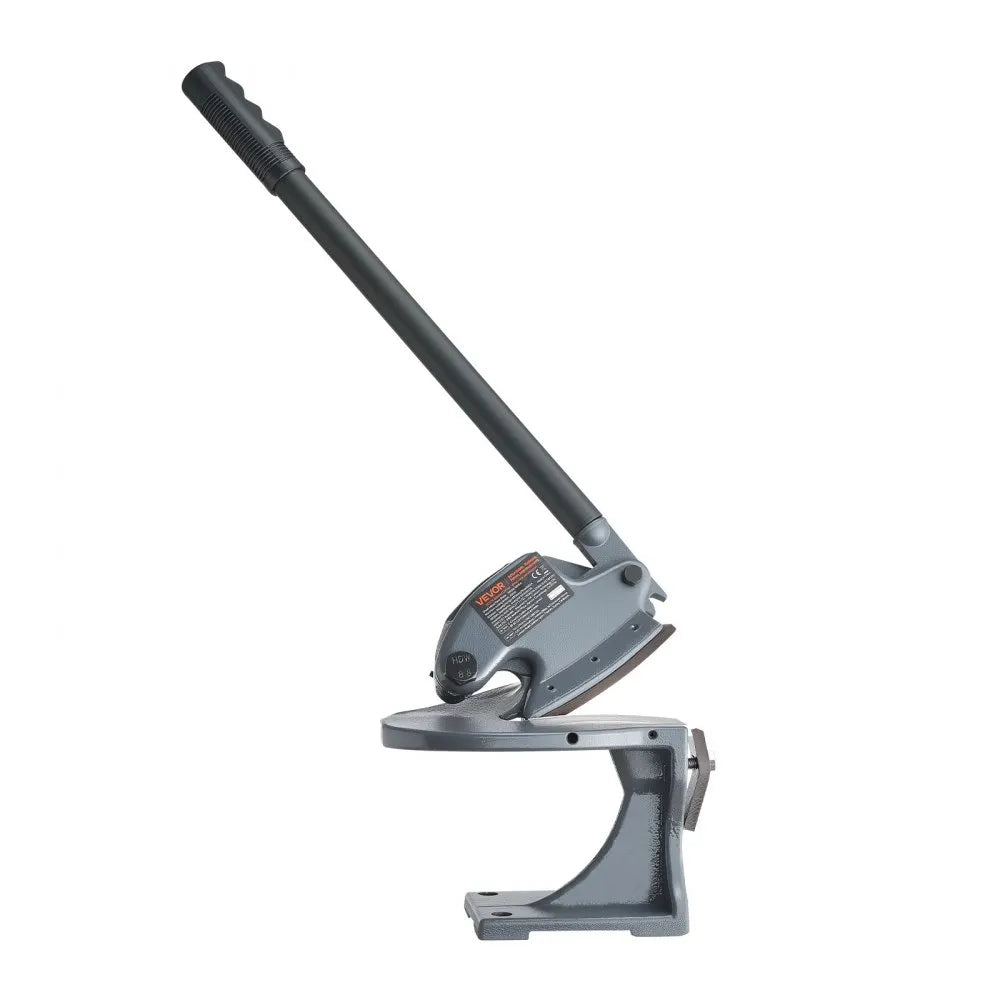

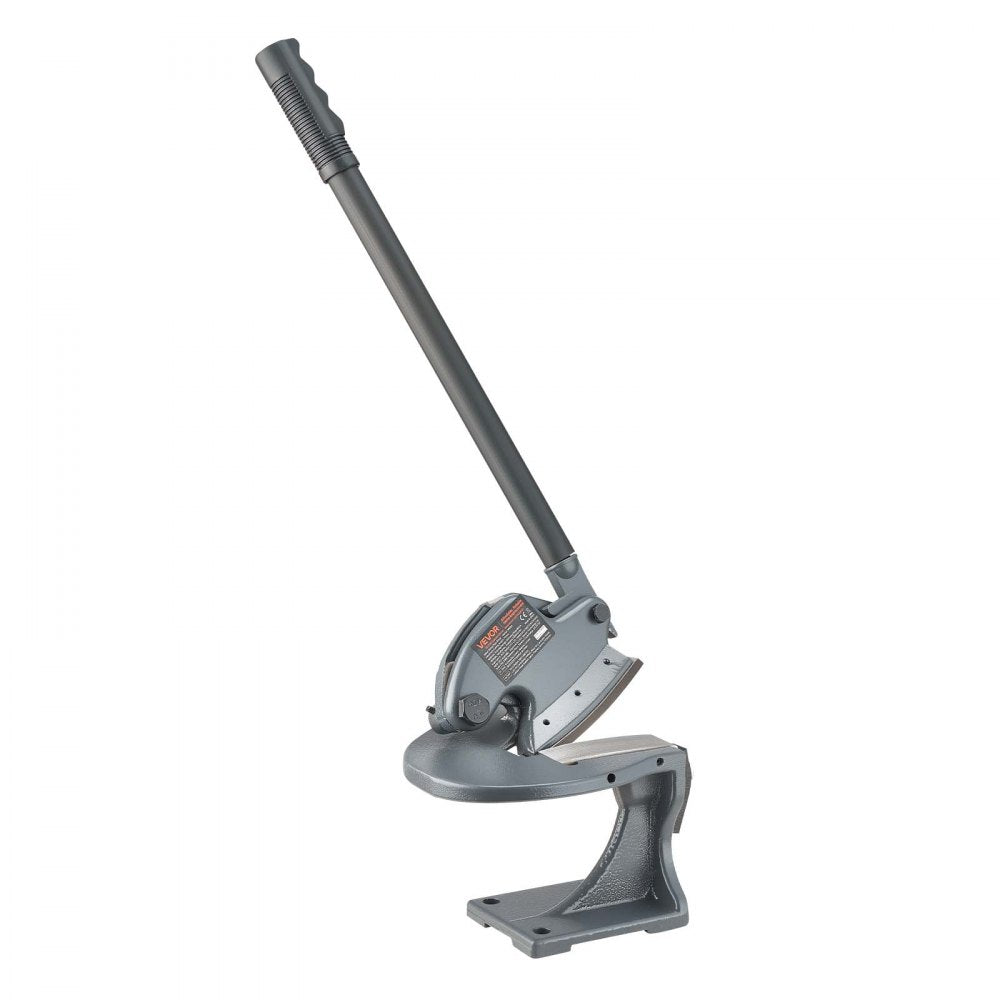

Vevor Sheet Metal Shear Multi-Purpose Throatless Benchtop Manual Hand Cutter New
Product Overview

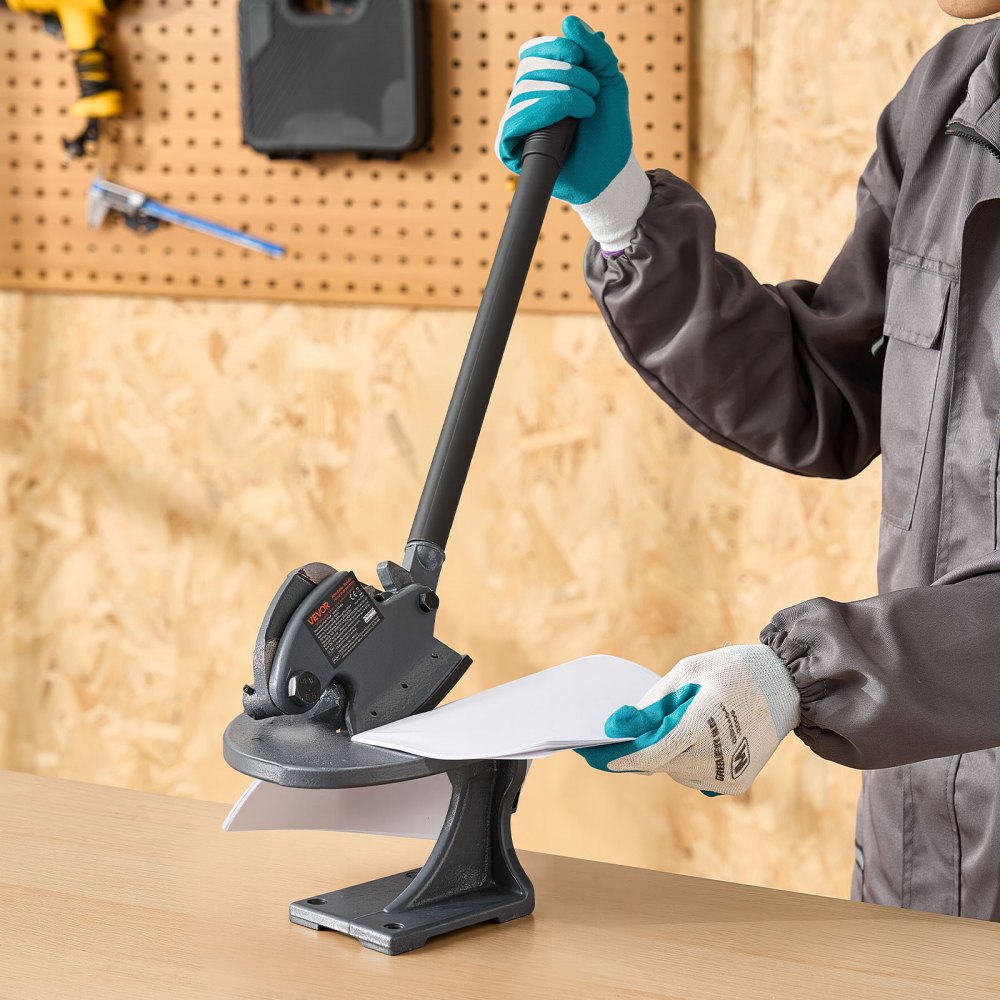

The Vevor sheet metal shear is a throatless benchtop cutter designed for straight cuts, curves, and more complex shapes in metalworking applications. It features heat-treated 42CrMo blades and a Q235 steel frame for durable, stable performance. With a maximum cutting thickness of 0.07 in and a maximum cutting length of 2.76 in, it is suitable for materials such as steel, copper, rebar, aluminum, stainless steel, and low-carbon steel. The precision blade gap helps reduce burrs for cleaner cuts, while the extended handle is designed to lower cutting effort and user fatigue.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

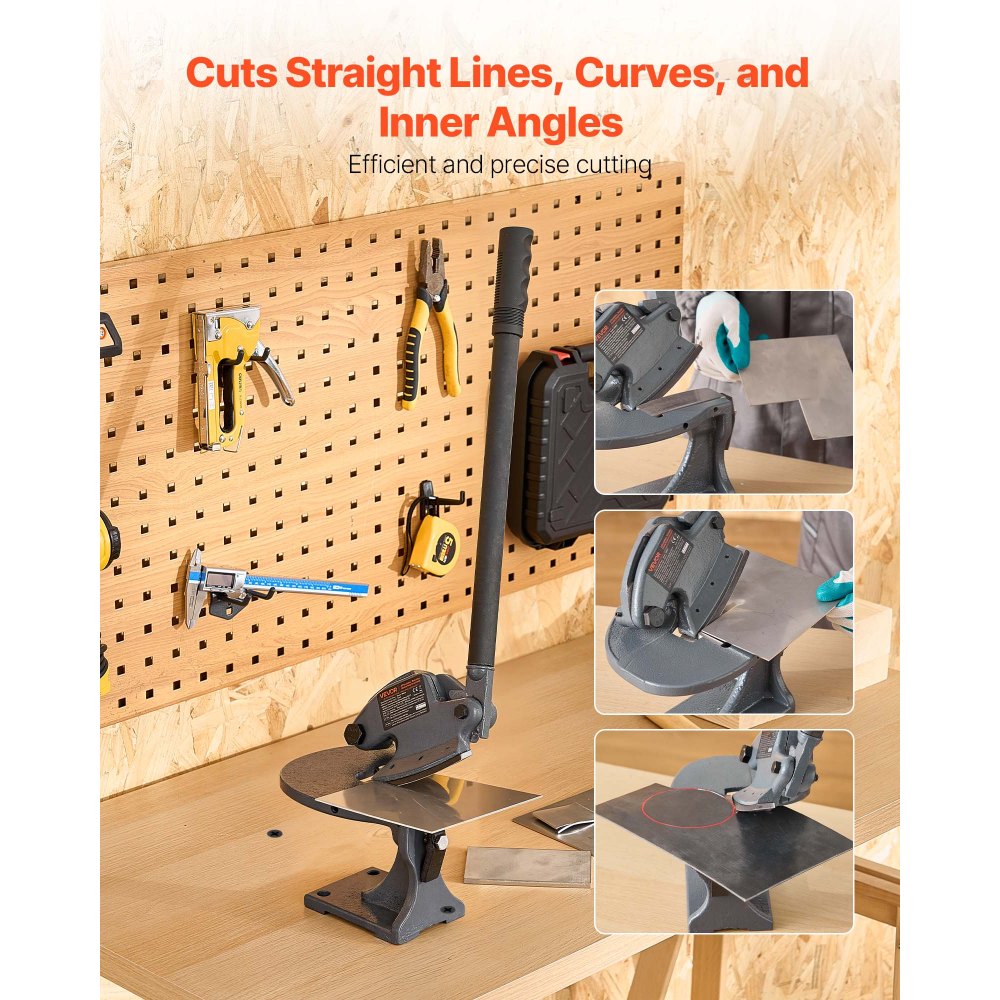

- Versatile Cutting: This sheet metal shear easily cuts straight lines, curves, and more complex shapes. With a max cutting length of 2.76 in, a thickness of 0.07 in, and round steel cutting diameter of 0.08 in, it's ideal for various materials

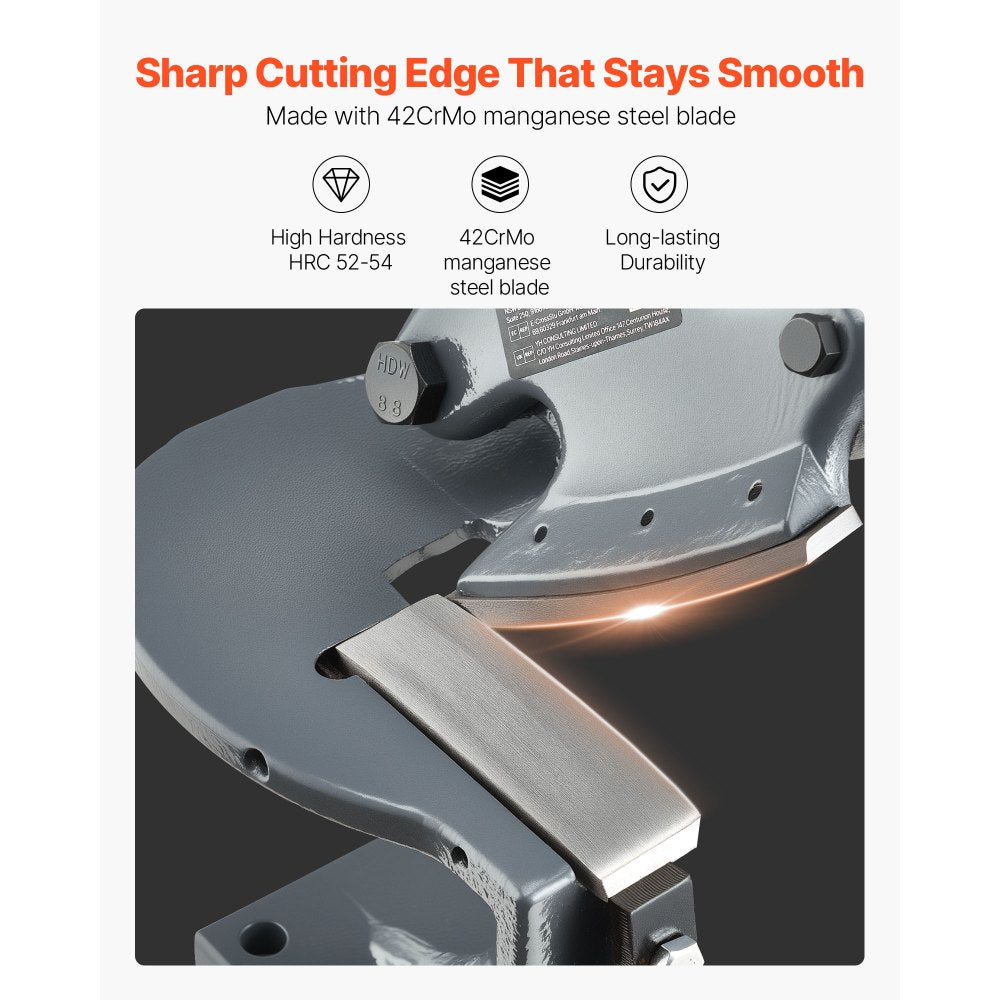

- Durable Materials: Our shear features 42CrMo upper and lower blades, all heat-treated to HRC52-54 for sharp, precise cuts that resist edge rolling. Its Q235 steel frame ensures a strong, stable structure, effectively reducing vibrations for reliable, long-lasting performance

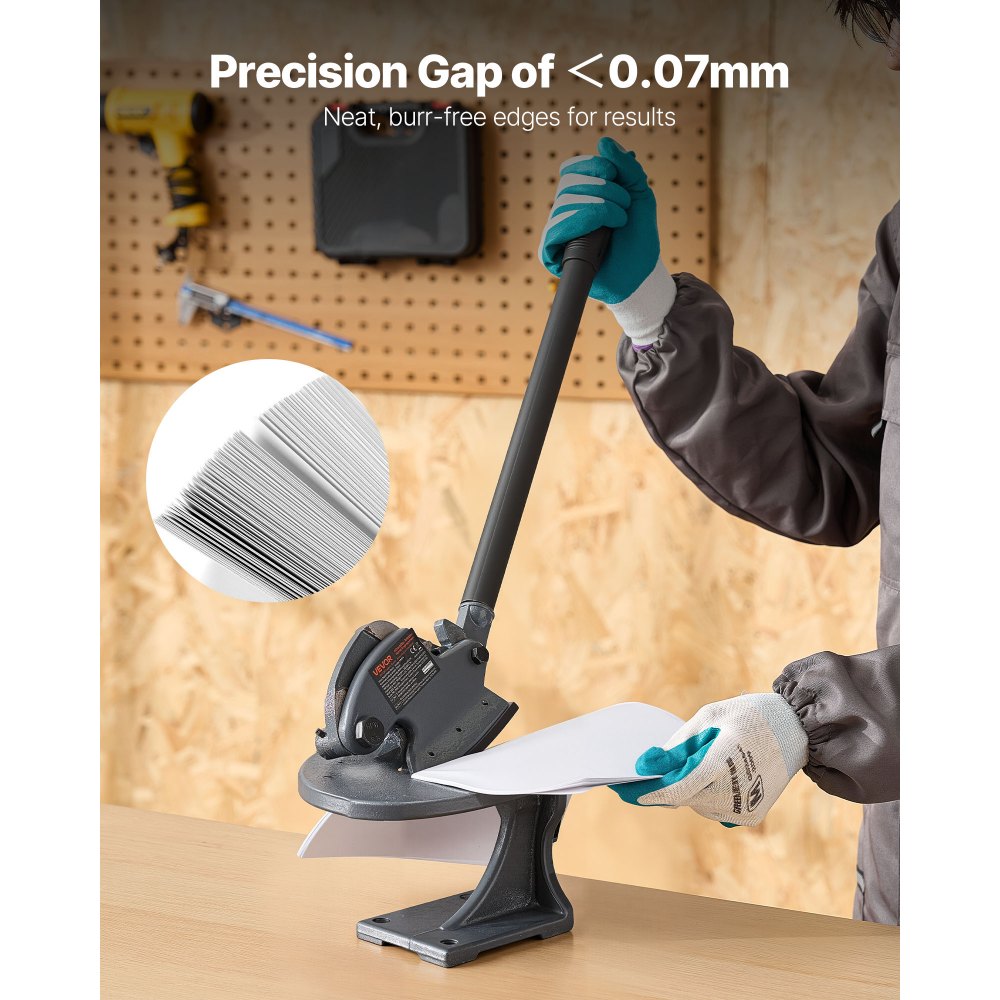

- Exact Blade Gap Control: With a precision gap of ＜0.07 mm, this metal shear easily passes paper test, ensuring ideal blade alignment and reducing burrs. Its upgraded reamed-hole screws maintain tight tolerances over time, ensuring long-term accuracy

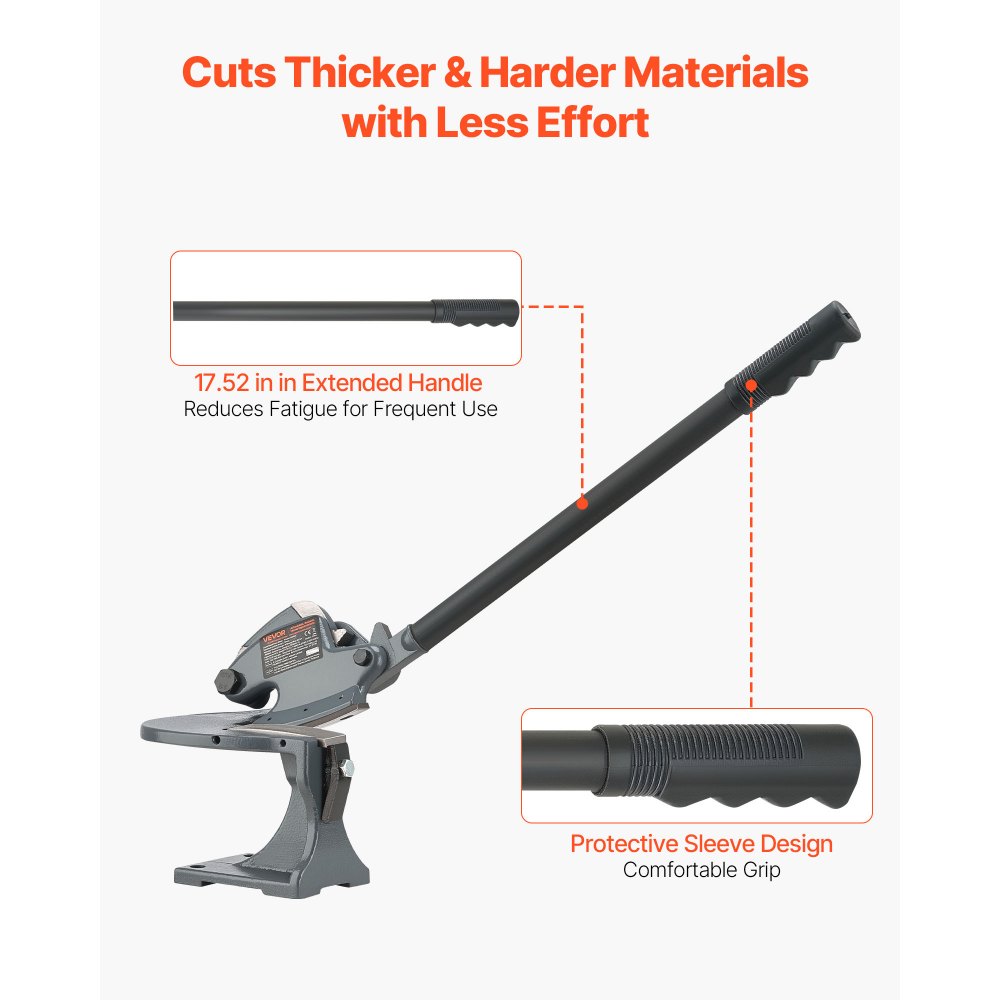

- Low-Effort Cutting Handle: The extended handle design, based on ergonomic and lever arm principles, makes cutting hard materials easier. Our shear helps reduce hand fatigue during extended use, allowing for continuous work while boosting productivity

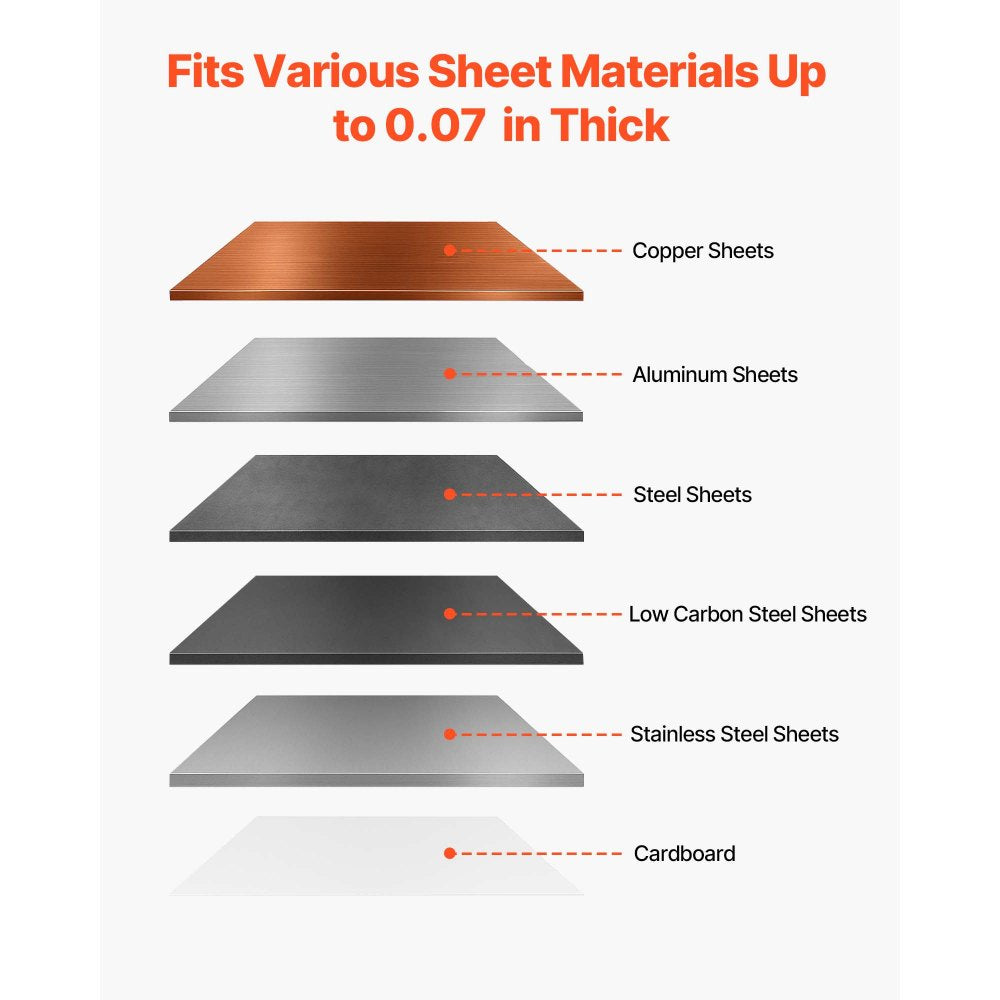

- Wide Applications: Our shear machine features sharp, durable blades for various materials, including steel, copper, rebar, and aluminum. Great for home workshops, studios, and everyday personal use, it's a reliable choice for all your cutting needs

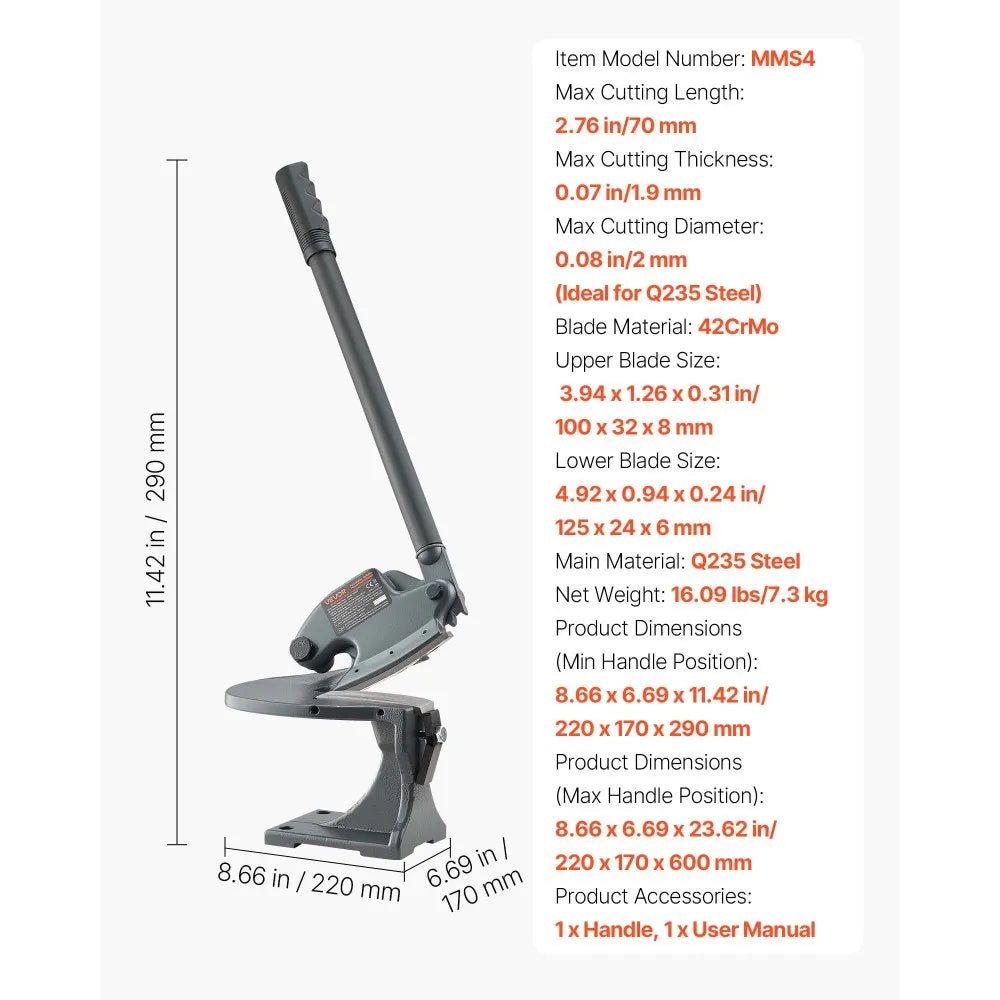

Specifications
| Item Model Number | MMS4 |
| Shear Type | Throatless Shear |
| Max Cutting Width | Unlimited |
| Max Cutting Length | 2.76 in / 70 mm |
| Max Cutting Thickness | 0.07 in / 1.9 mm |
| Max Cutting Diameter | 0.08 in / 2 mm ideal for Q235 steel |
| Blade Material | 42CrMo |
| Upper Blade Size | 3.94 x 1.26 x 0.31 in / 100 x 32 x 8 mm |
| Lower Blade Size | 4.92 x 0.94 x 0.24 in / 125 x 24 x 6 mm |
| Main Material | Q235 Steel |
| Net Weight | 16.09 lbs / 7.3 kg |
| Product Dimensions Min Handle Position | 8.66 x 6.69 x 11.42 in / 220 x 170 x 290 mm |
| Product Dimensions Max Handle Position | 8.66 x 6.69 x 23.62 in / 220 x 170 x 600 mm |
Warranty
This item comes with a 1 year factory warranty.
