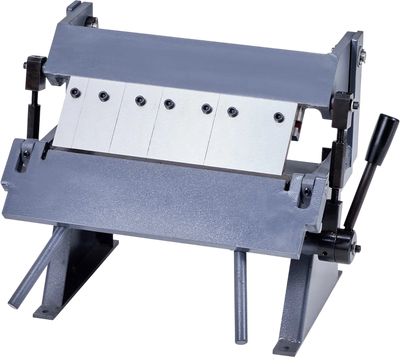

Vevor Sheet Metal Bending Brake 12 in. 20-Gauge Capacity 0-135° with 5 Fingers New
Manufacturer: Vevor
SKU: FDSWQZDQFDSWK6NDU001V0
Bending Width Options
Bending Capacity Options
QTY
(888) 999-1522
C
$243.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Sheet Metal 12" 3-In-1 Shear Brake Roll Machine 20-GA Capacity 90° Max Bend New
-
Vevor Sheet Metal Shear 52" Manual Foot Stomp with Adjustable Blade Gap New
-
Vevor Sheet Metal Shear 6" Manual Hand Plate Cutter New
-
Vevor Work Table 35 x 24 x 33" Stainless Steel Food Prep Table with 4 Wheels New
-
Vevor Shrinker Stretcher 2-in-1 18 Ga Sheet Metal Manual Machine New
-
Vevor Milling Working Table 17.7" x 6.7" 2-Axis Cross Slide New
-
Vevor Square Tubing Bender 1-1/2" Manual Roller New
-
Vevor Slip Roll Machine 24" Forming Width 16 Gauge Capacity for Sheet Metal New
-
Vevor Sheet Metal Shear Multi-Purpose Throatless Benchtop Manual Hand Cutter New
-
Vevor Sheet Metal Shear Throatless Rotary Hand Shear 16 Gauge 0.06" Capacity New
-
Vevor Guillotine Metal Shear 20 in. Manual Benchtop Cutter with Stand New
-
Vevor Plate Shear 12" Manual Guillotine Sheet Metal Shear New
-
Vevor Box and Pan Brake 24" Sheet Metal Bender with 5 Fingers 0-135° Adjustable New
Vevor Sheet Metal Bending Brake 12 in. 20-Gauge Capacity 0-135° with 5 Fingers New
Product Overview

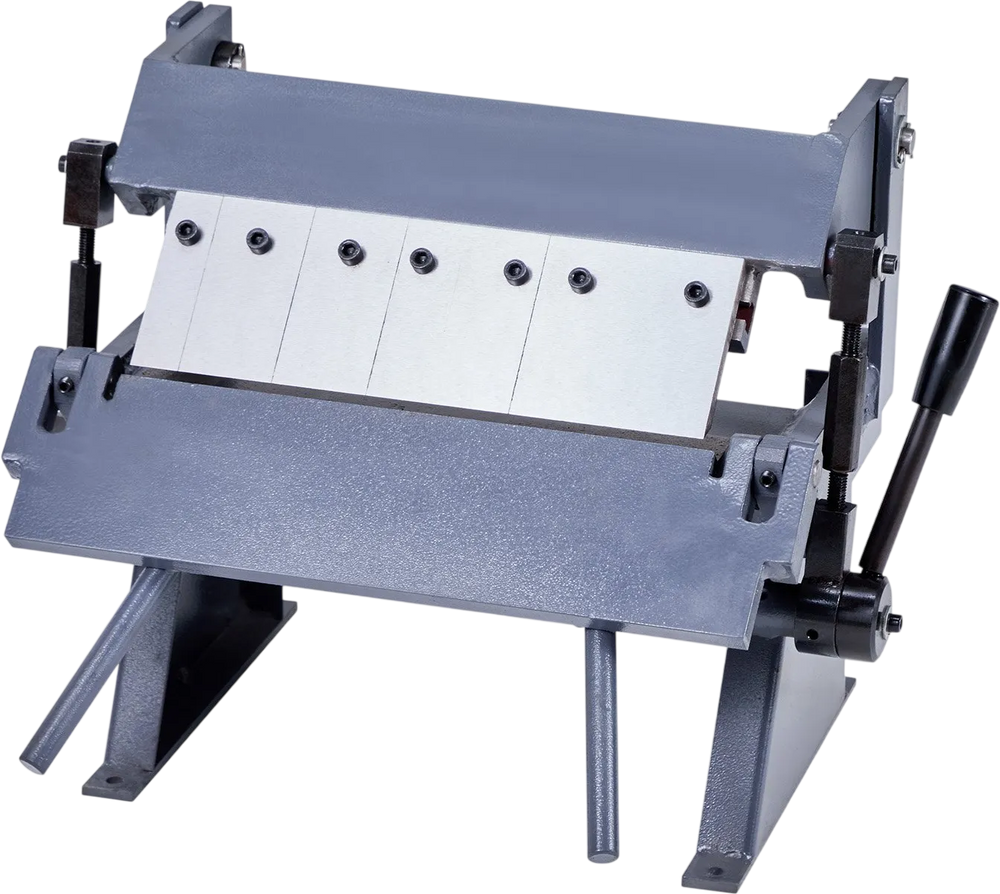

This 12-inch box and pan brake is designed for precise manual bending of sheet metal in workshops, garages, and DIY settings. It handles up to 20-gauge low carbon steel and supports bending angles from 0° to 135°. The unit features five segmented fingers for forming boxes, flanges, panels, and other custom shapes. Its desktop-mountable design helps provide stable, repeatable bends during use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

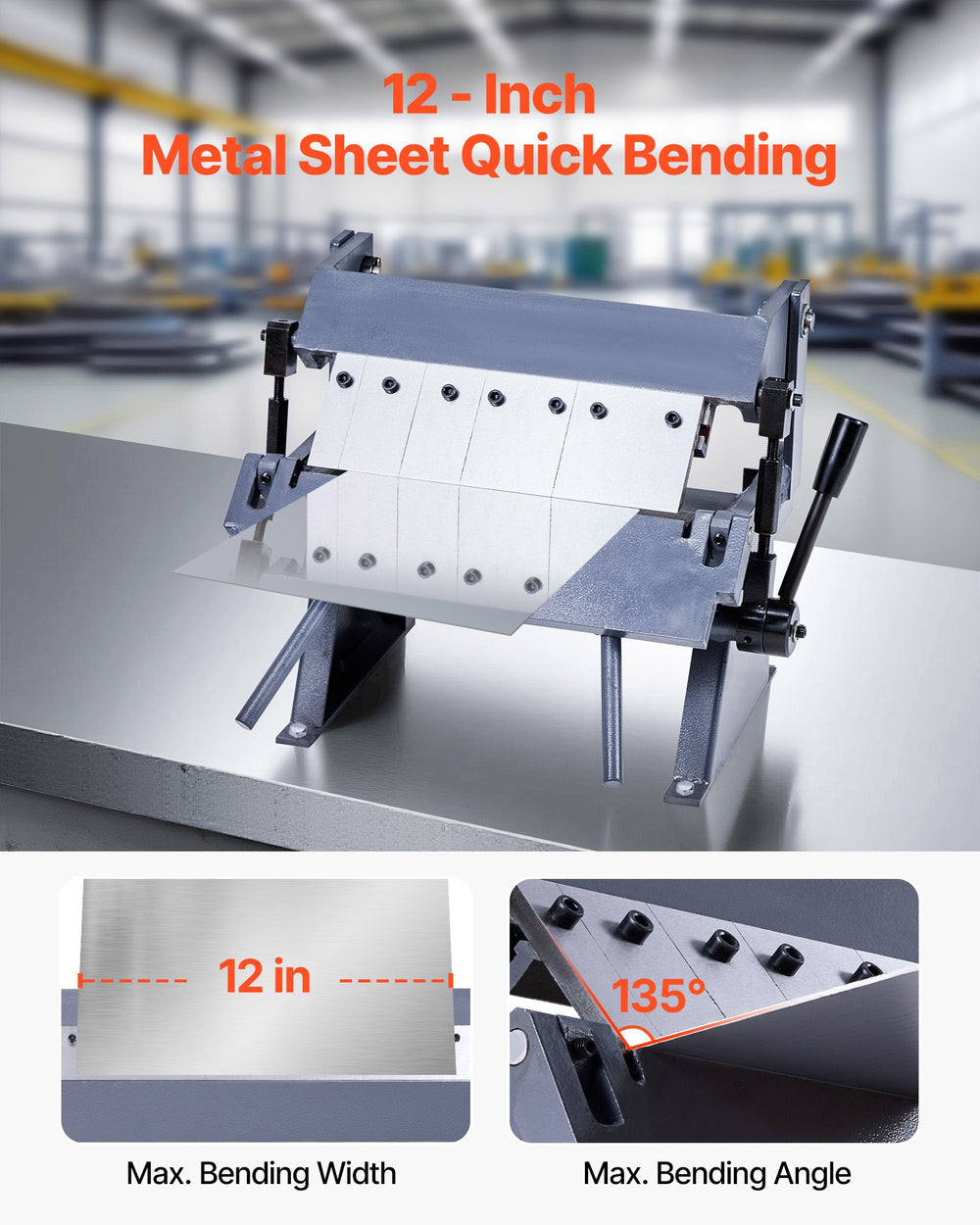

- 12-Inch Bending Capacity: This compact sheet metal brake bends metal sheets up to 12 in wide at angles from 0° to 135°, making it ideal for small-scale DIY jobs and workshop use.
- Versatile Material Compatibility: Our box and pan brake supports a variety of materials, including mild steel, stainless steel, copper, and aluminum. It can efficiently bend 20-gauge (1.0 mm) mild steel sheets.

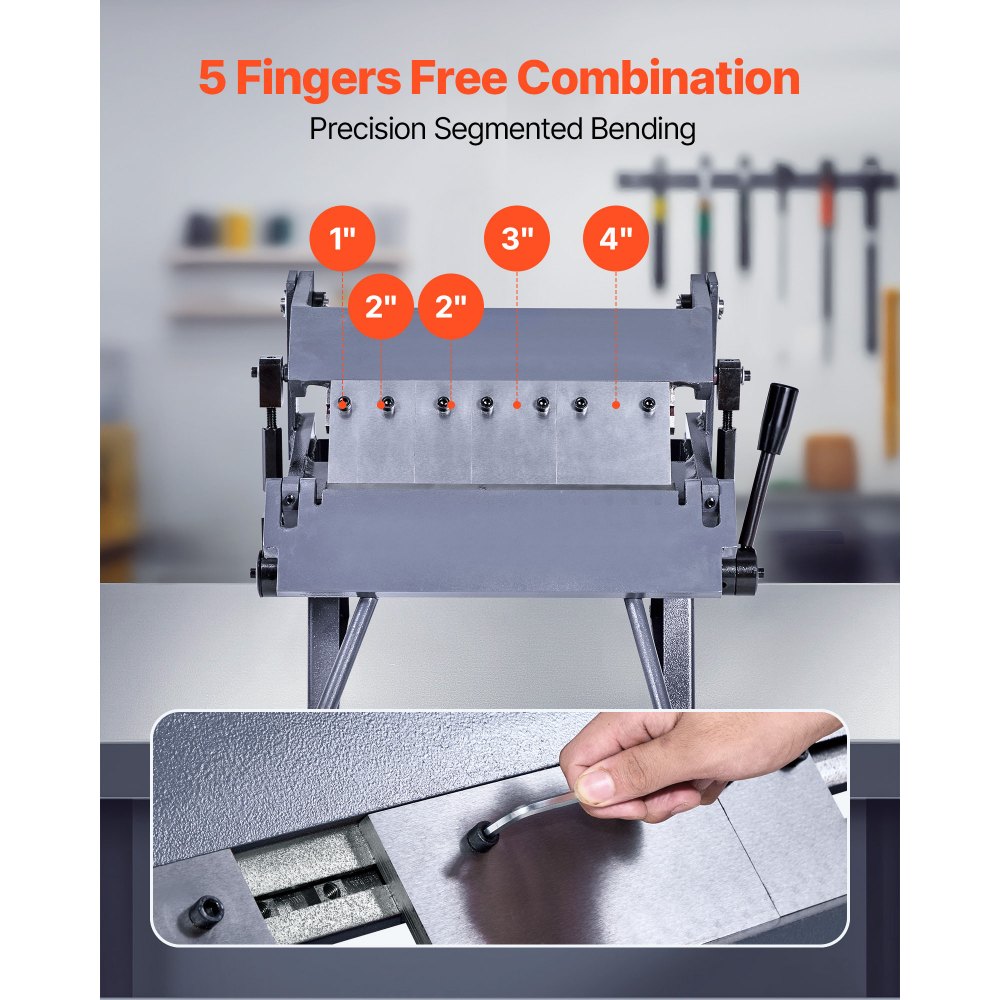

- Segmented finger Design: The sheet metal bender comes with five segmented fingers (1", 2", 2", 3", 4") that can be arranged freely for flexible bending. Great for forming side panels, flanges, and box structures for electrical cabinets, housings, and ductwork.

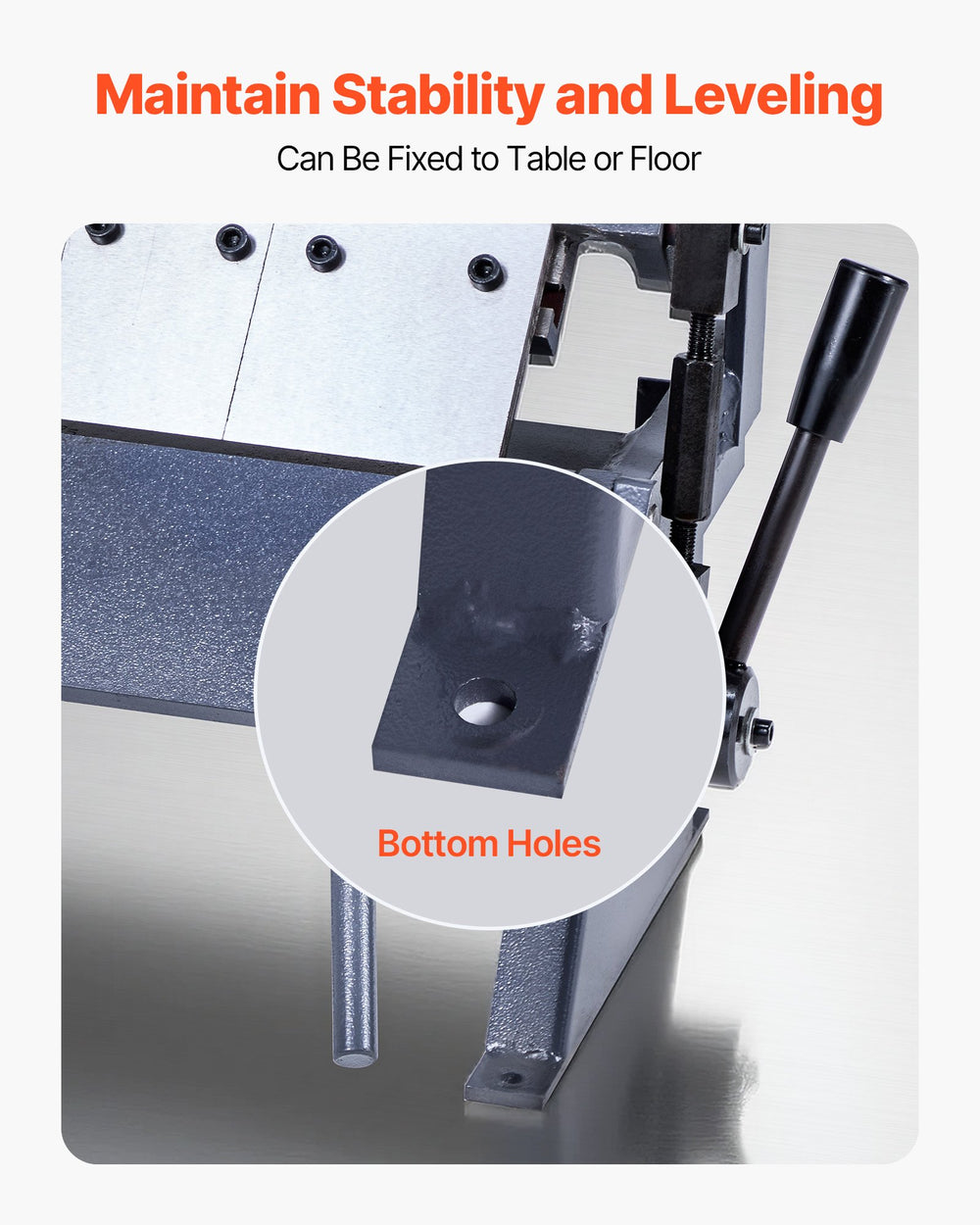

- Secures Firmly in Place: The metal bending machine features pre-drilled mounting holes at the base that allows you to anchor the brake to your workbench or floor using screws. Prevents shifting during use for more accurate, hands-free bending.

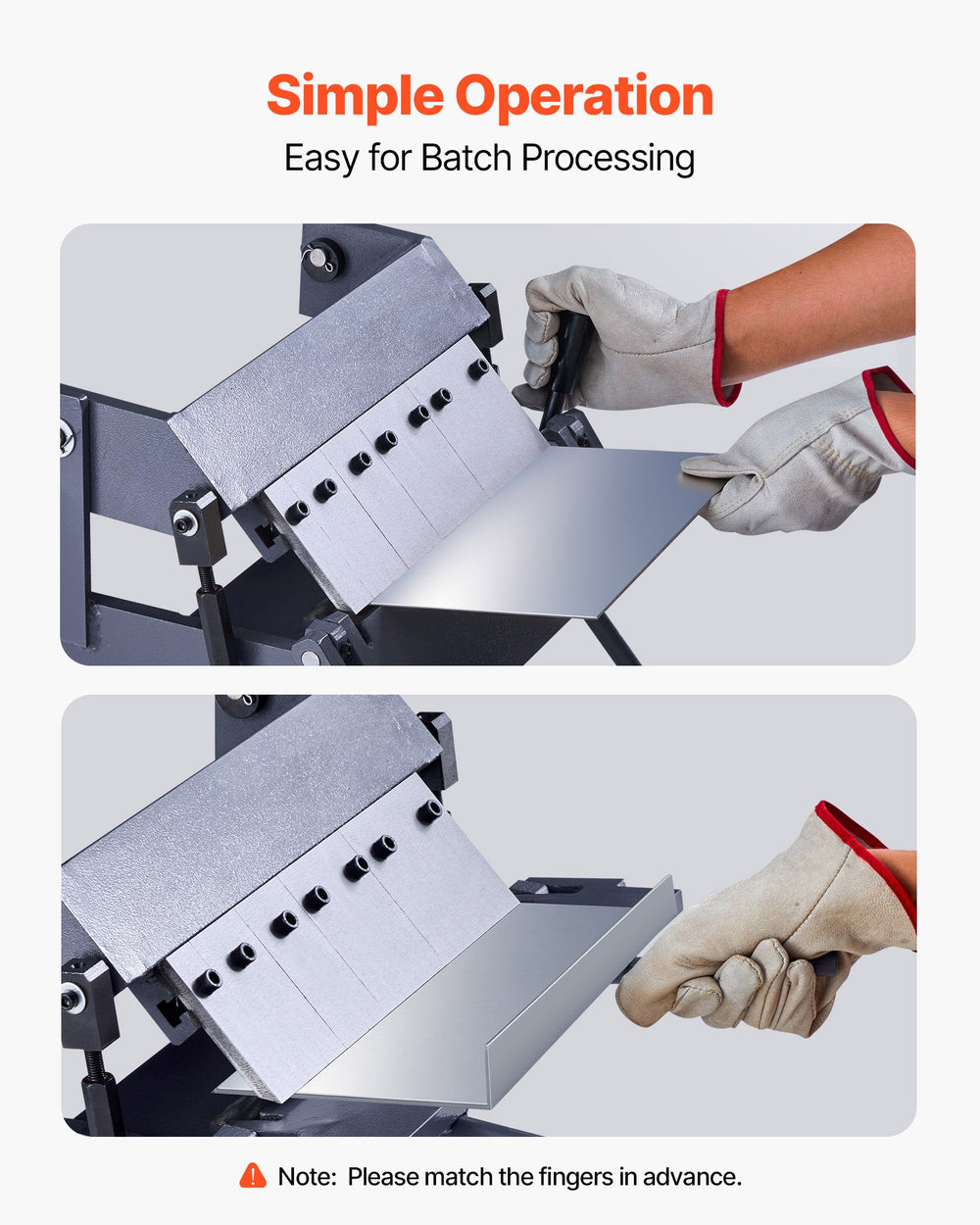

- Easy Operation: It is easy to operate the aluminum brake bender. Simply lift the clamping handle, place the sheet metal, and lower the handle to secure it. Then, slowly raise the lever to the desired angle. Angle adjustments are manual, and keep in mind that all metal bending will experience springback (e.g., for a 90° bend, set the angle to 92°).

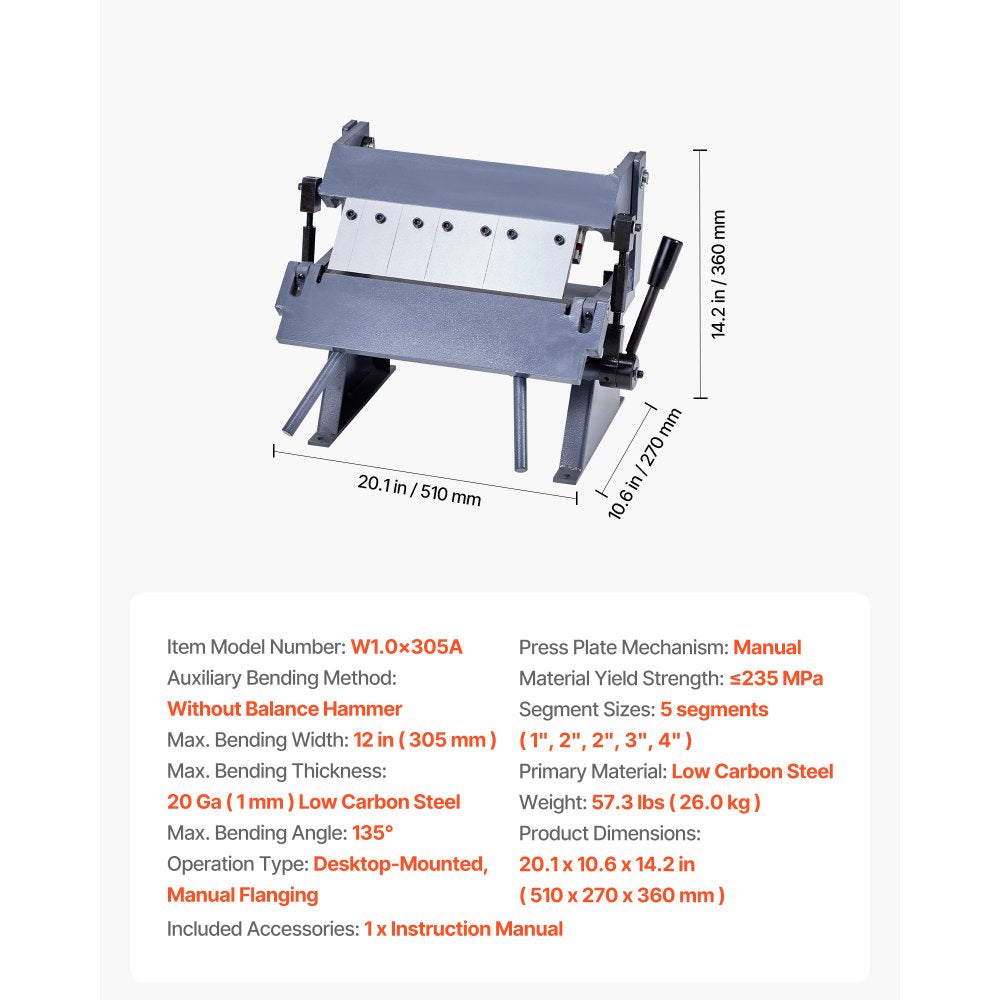

Specifications
| Item Model Number | W1.0×305A |
| Auxiliary Bending Method | Without Balance Hammer |
| Max. Bending Width | 12 in (305 mm) |
| Max. Bending Thickness | 20 Ga (1 mm) Low Carbon Steel |
| Max. Bending Angle | 135° |
| Mounting Type | Desktop-Mounted, Manual Flanging |
| Press Plate Mechanism | Manual |
| Segments | 5 (1 in, 2 in, 2 in, 3 in, 4 in) |
| Material | Low Carbon Steel |
| Weight | 57.3 lbs (26.0 kg) |
| Dimensions | 20.1 x 10.6 x 14.2 in (510 x 270 x 360 mm) |
Package Contents
Sheet Metal Bending Brake 12 in.
User Manual
Warranty
This item comes with a 1 year warranty.
