Product Overview

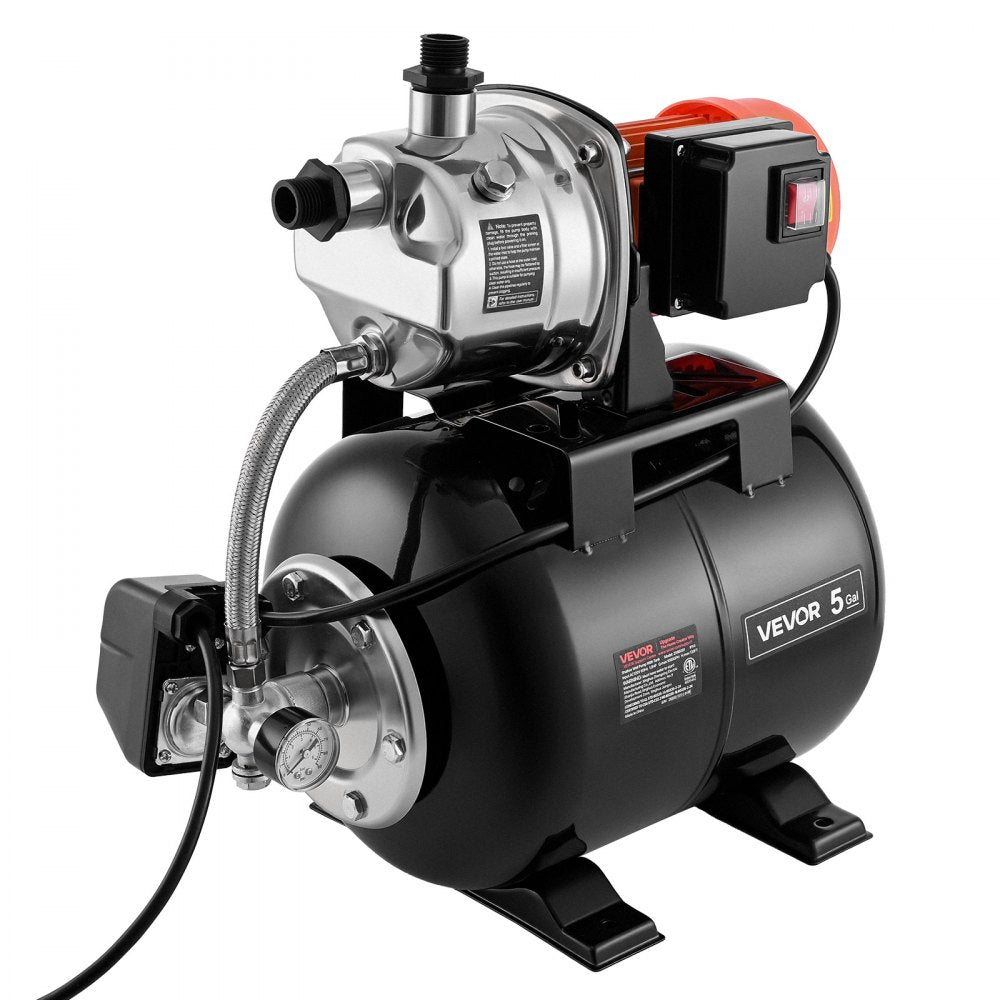

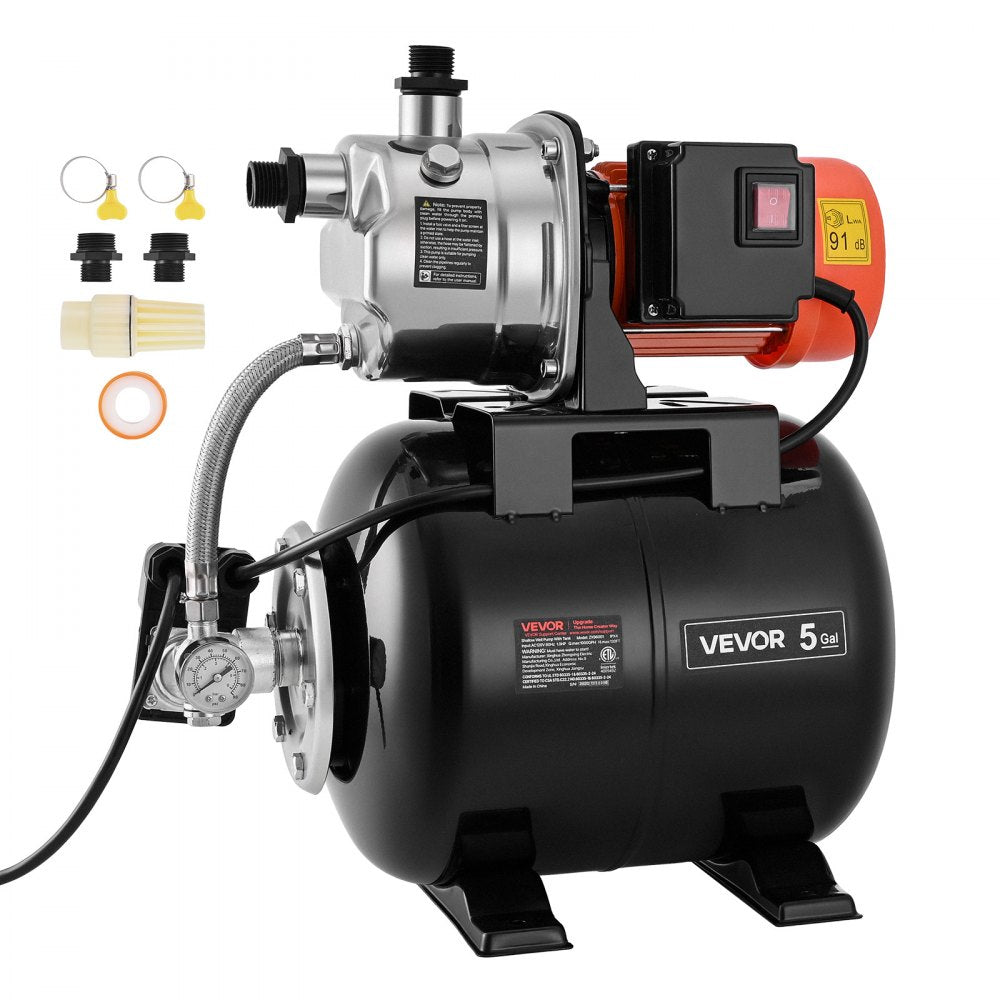

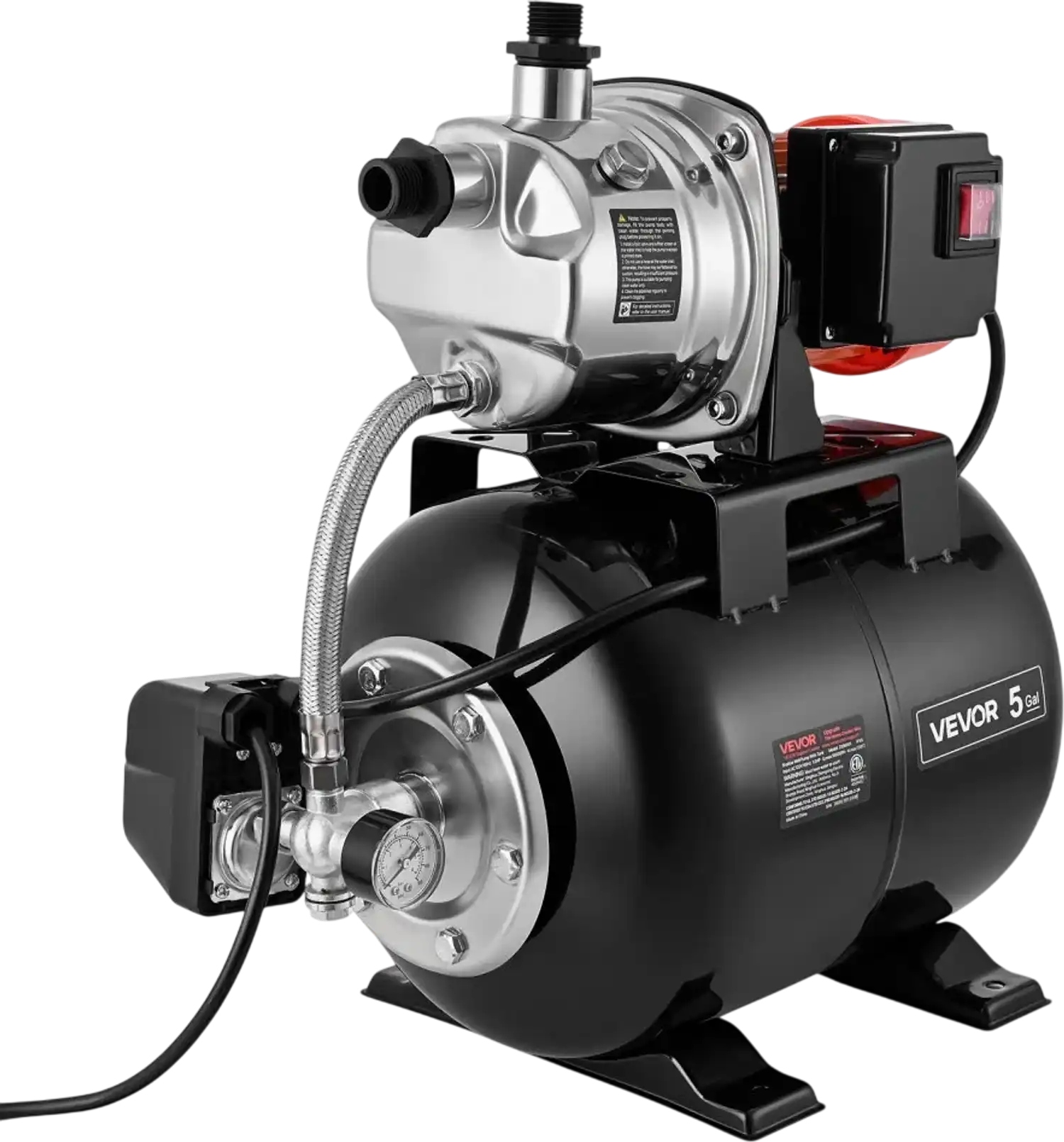

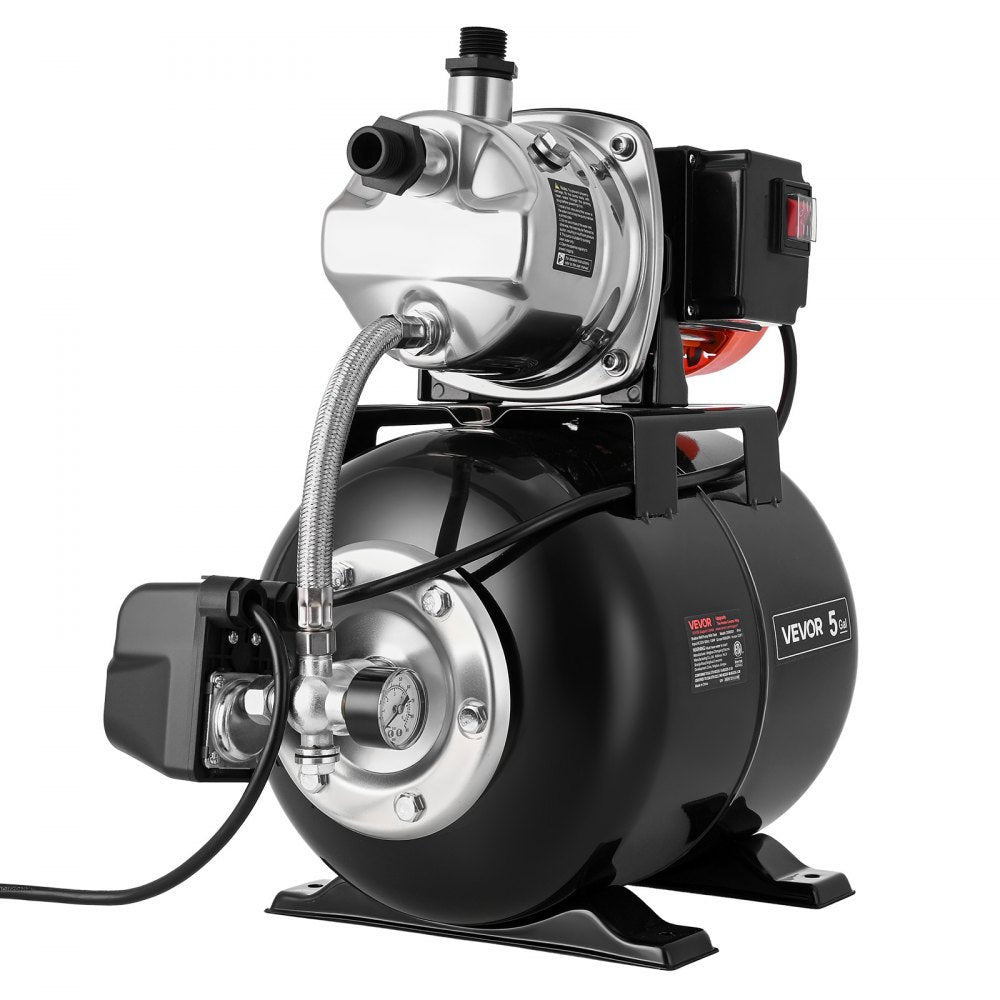

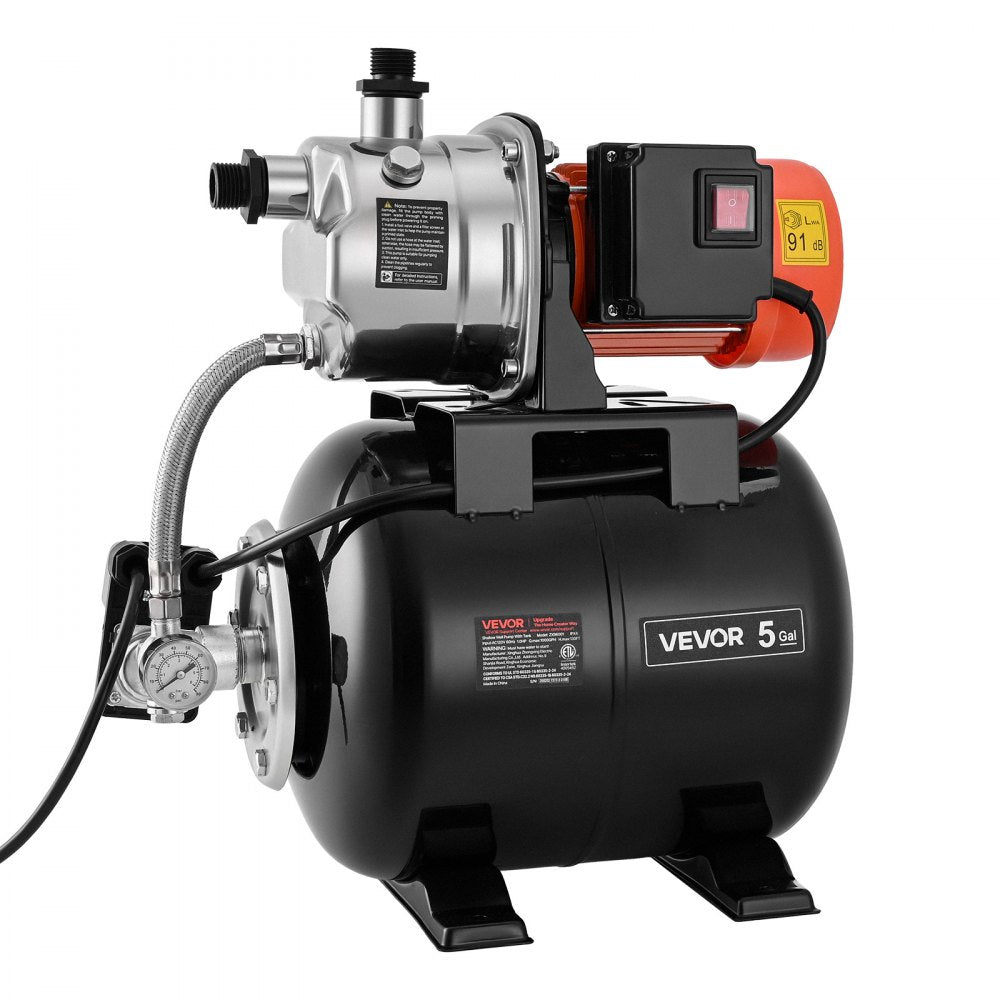

This shallow well pump with pressure tank is designed to provide stable water pressure for home water supply, garden irrigation, lawn watering, and small farm use. It delivers up to 1000 GPH flow with a maximum head of 130' for dependable performance across a range of non-potable water applications. The automatic pressure system uses a 5 gal tank with a 20-40 PSI pressure switch to reduce cycling and support consistent operation. A 304 stainless steel pump head helps resist corrosion and wear for longer service life. Built-in thermal overload protection helps safeguard the motor during abnormal high-temperature conditions.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

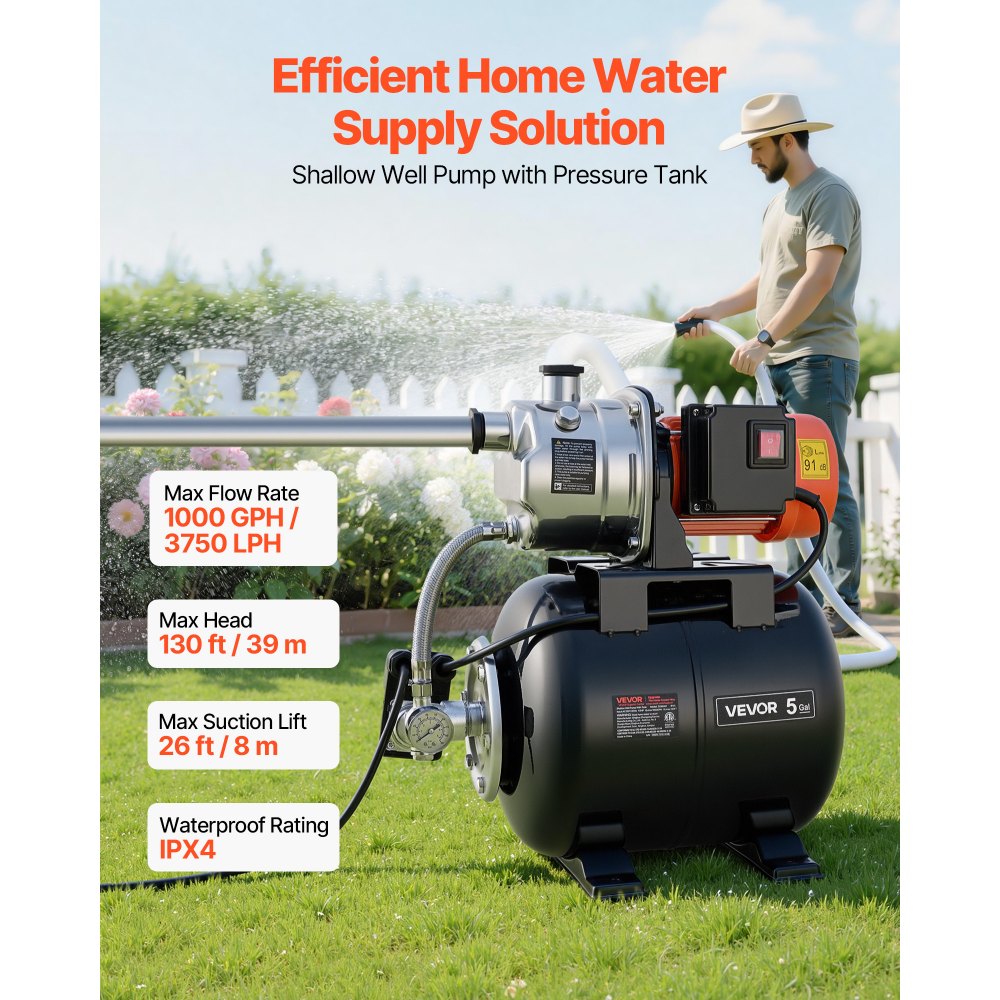

- Powerful Performance: This shallow well pump with tank delivers up to 1000 GPH / 3750 LPH and 130 ft / 39 m max head, easily handling large-scale garden irrigation and lawn watering while providing ample pressure-boosted water supply for residential use

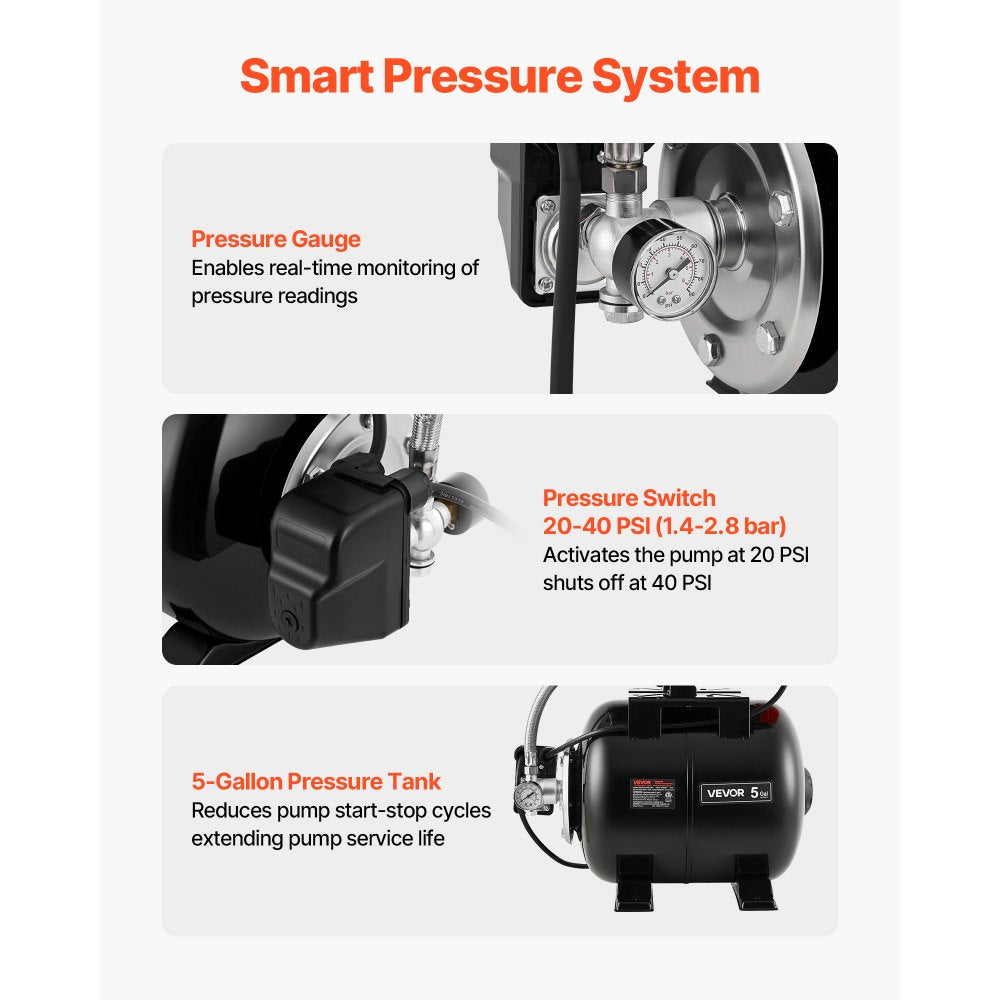

- Automatic Pressure System: Equipped with a 5-gallon pressure tank, this shallow well pump reduces cycling to extend pump life. The pressure switch auto starts at 20 PSI and shuts off at 40 psi to avoid overload, and the pressure gauge allows easy monitoring

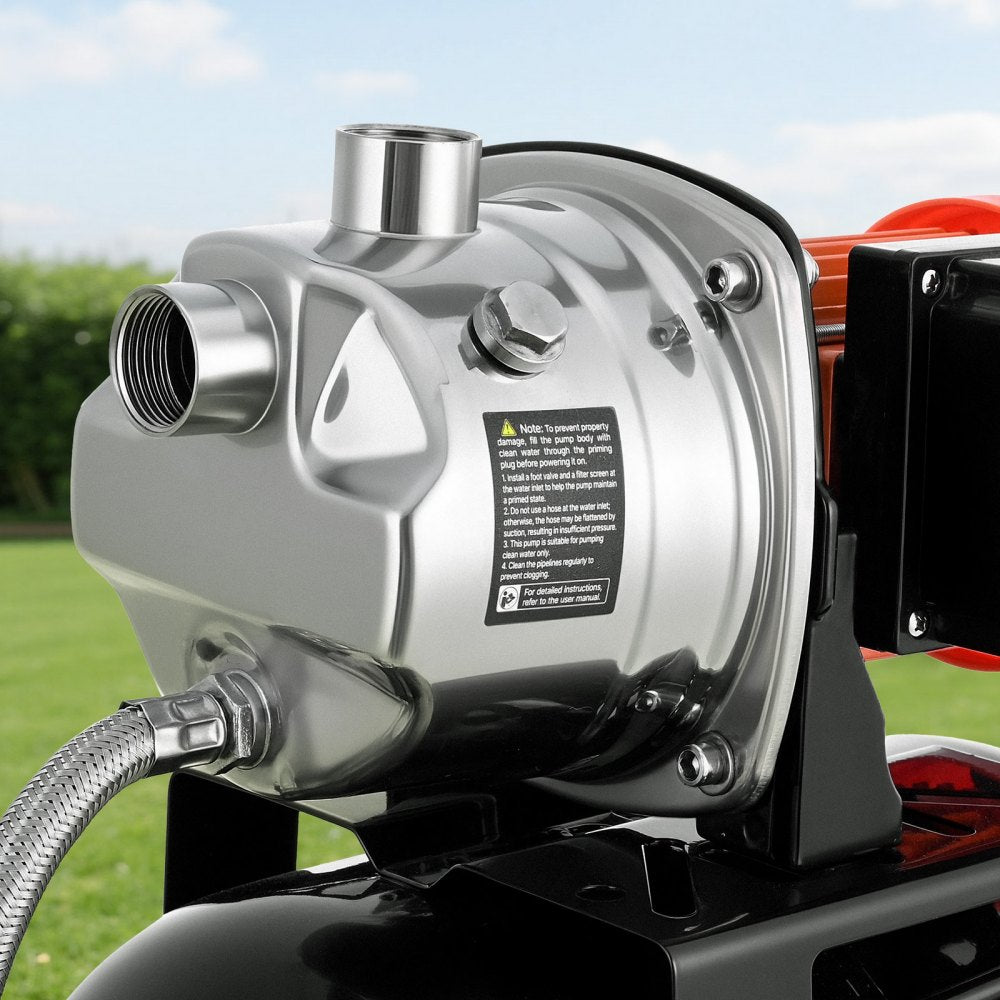

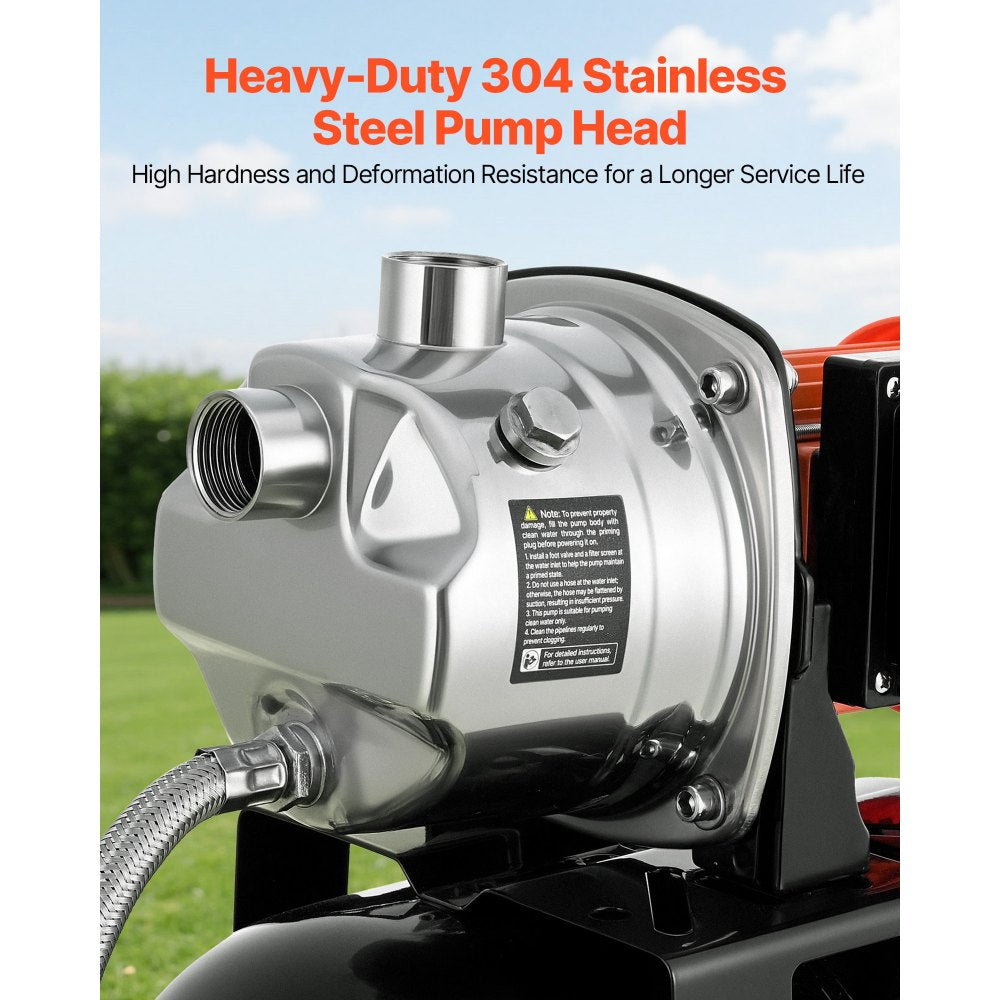

- Stainless Steel Pump Head: Featuring a thick 304 stainless steel pump head, this water pressure booster pump provides excellent corrosion and wear resistance and avoids rust contamination. It delivers longer service life than ordinary cast iron or plastic heads
- Overload Protection: This shallow well irrigation pump includes automatic thermal overload protection. If abnormal high temperature occurs due to water shortage, the temperature sensor will trigger a signal to stop operation, helping safeguard the motor
- Versatile Applications:Â Whether boosting household water pressure, powering automatic garden irrigation, or supporting small farm and lawn maintenance, this shallow well pump with pressure tank provides a reliable and efficient water supply solution

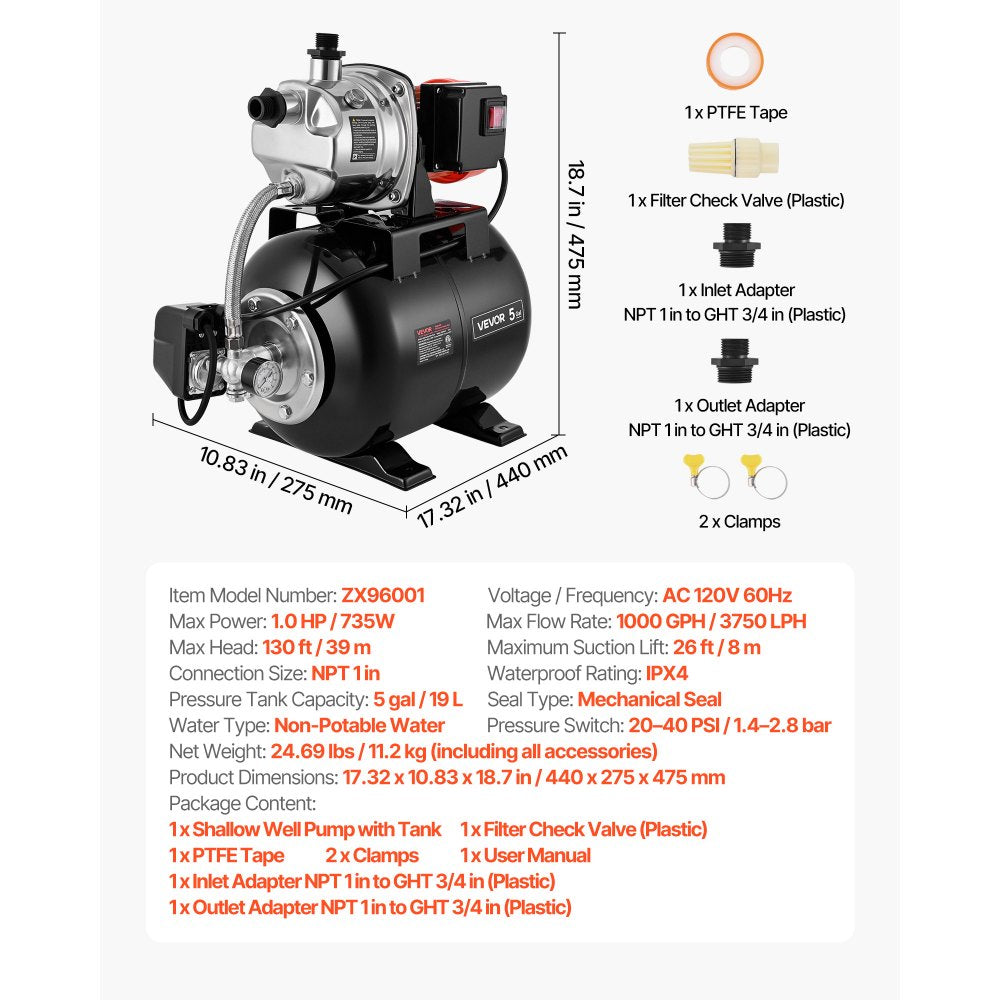

Specifications
| Item Model Number | ZX96001 |
| Product Type | Shallow Well Pump with Pressure Tank |
| Voltage / Frequency | AC 120V 60Hz |
| Max Power | 1.0 HP / 735W |
| Max Flow Rate | 1000 GPH / 3750 LPH |
| Max Head | 130' / 39 m |
| Max Suction Lift | 26' / 8 m |
| Connection Size | NPT 1" |
| Waterproof Rating | IPX4 |
| Pressure Tank Capacity | 5 gal / 19 L |
| Seal Type | Mechanical Seal |
| Water Type | Non-Potable Water |
| Pressure Switch | 20-40 PSI / 1.4-2.8 bar |
Warranty
This item comes with a 1 year factory warranty.
