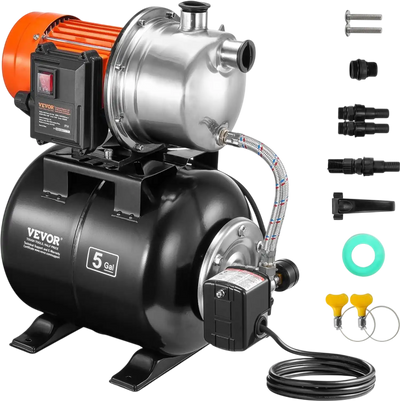

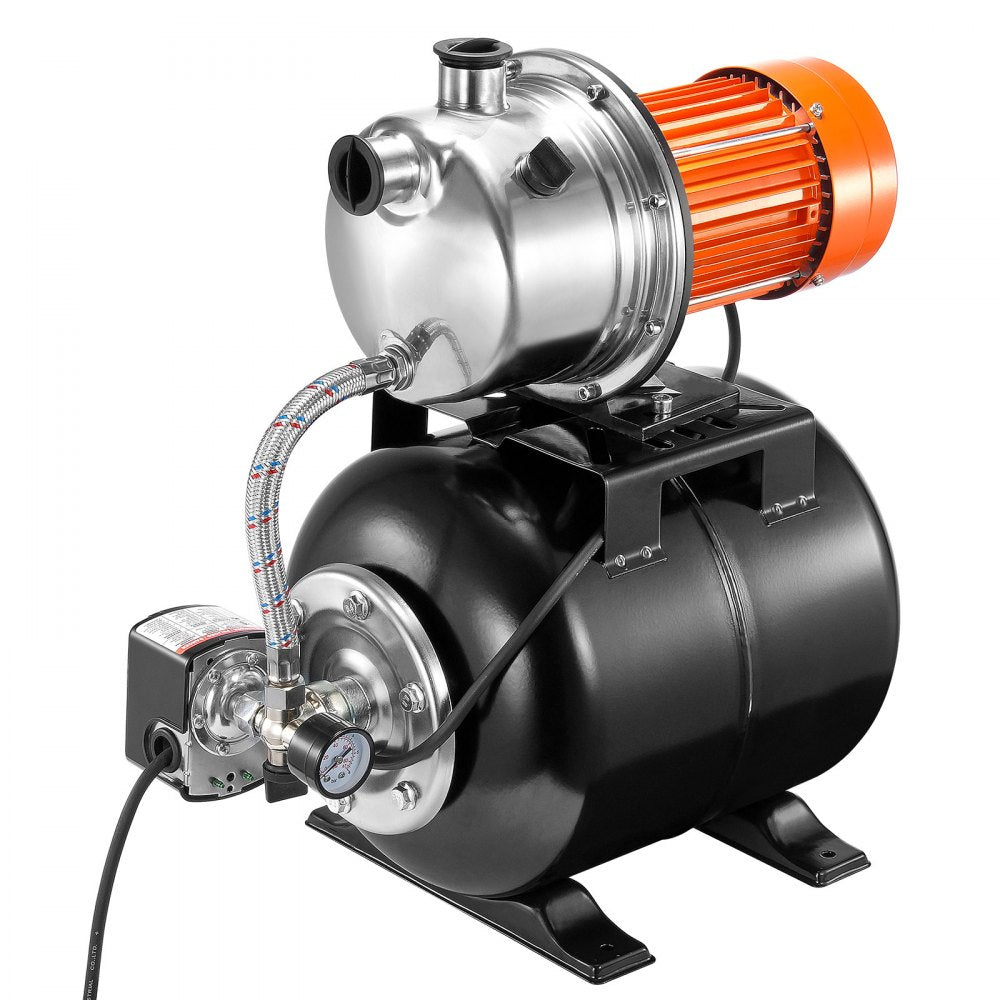

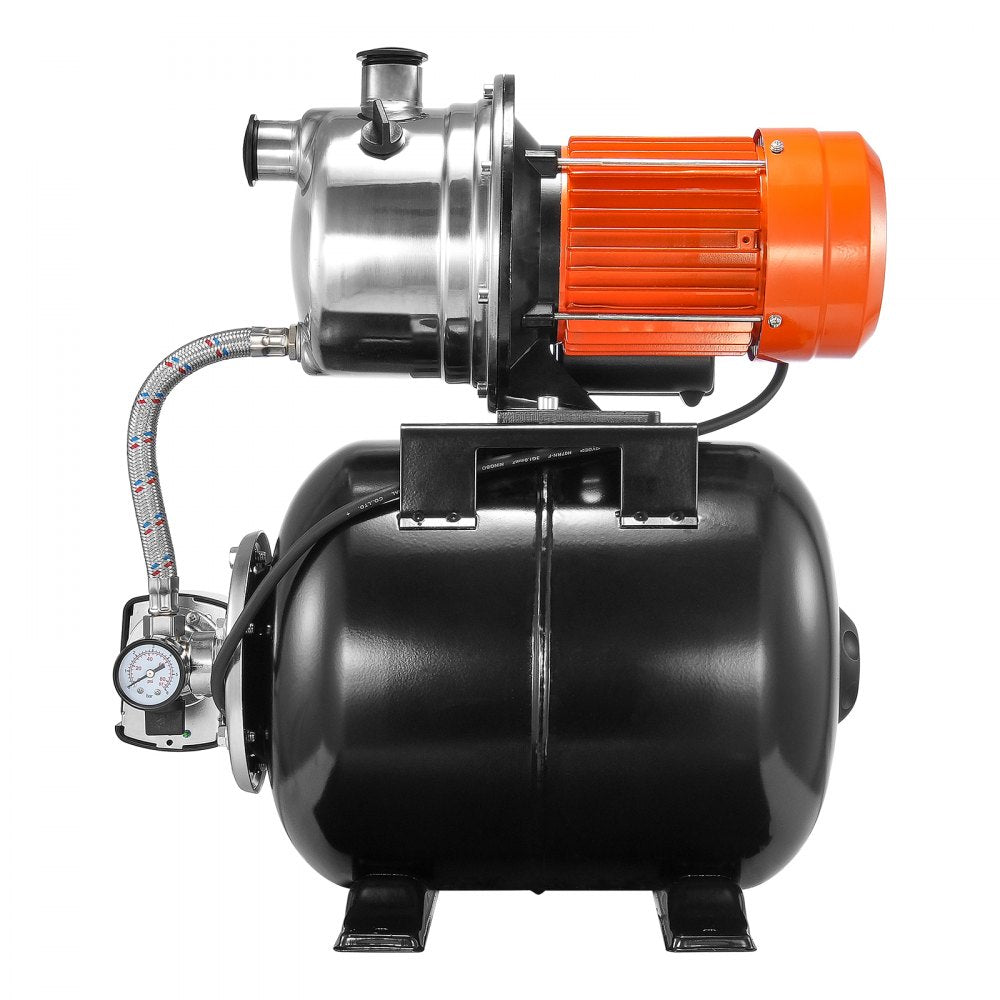

Vevor Shallow Well Pump 1.6 HP 1320 GPH with Pressure Tank New
Product Overview

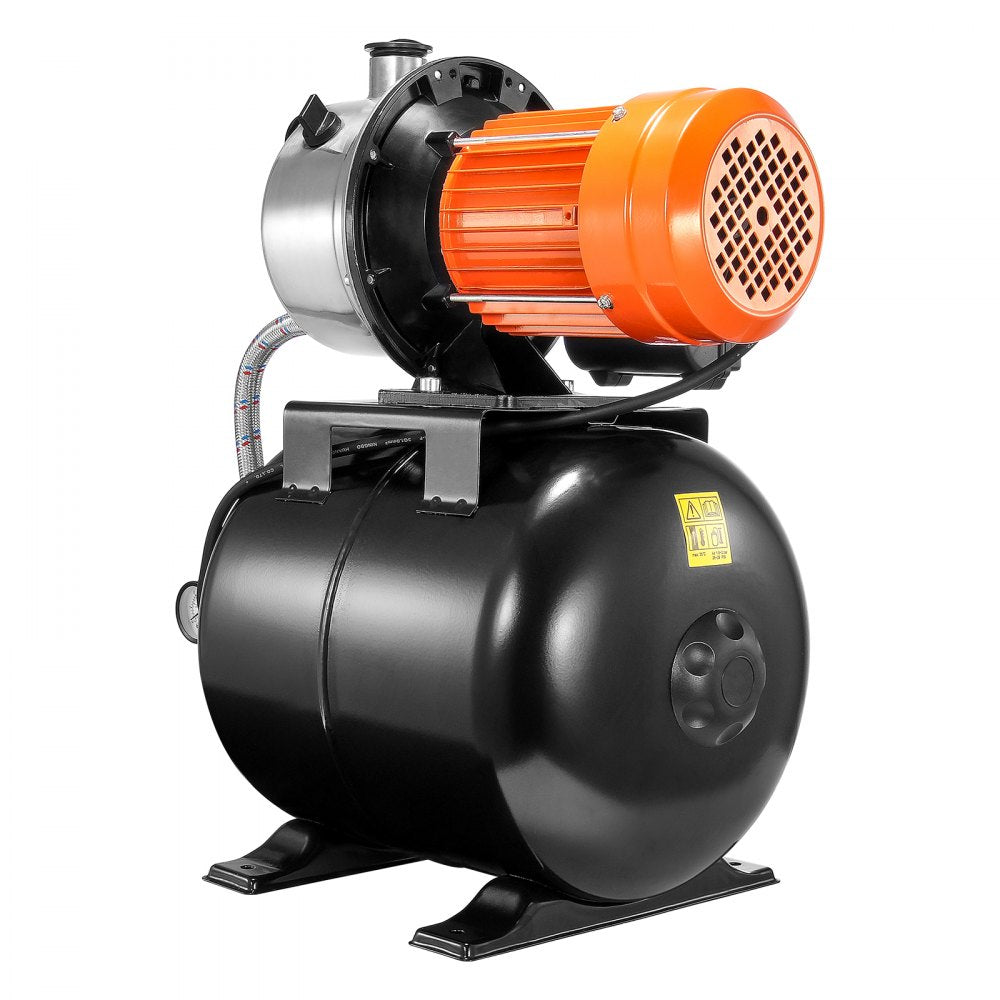

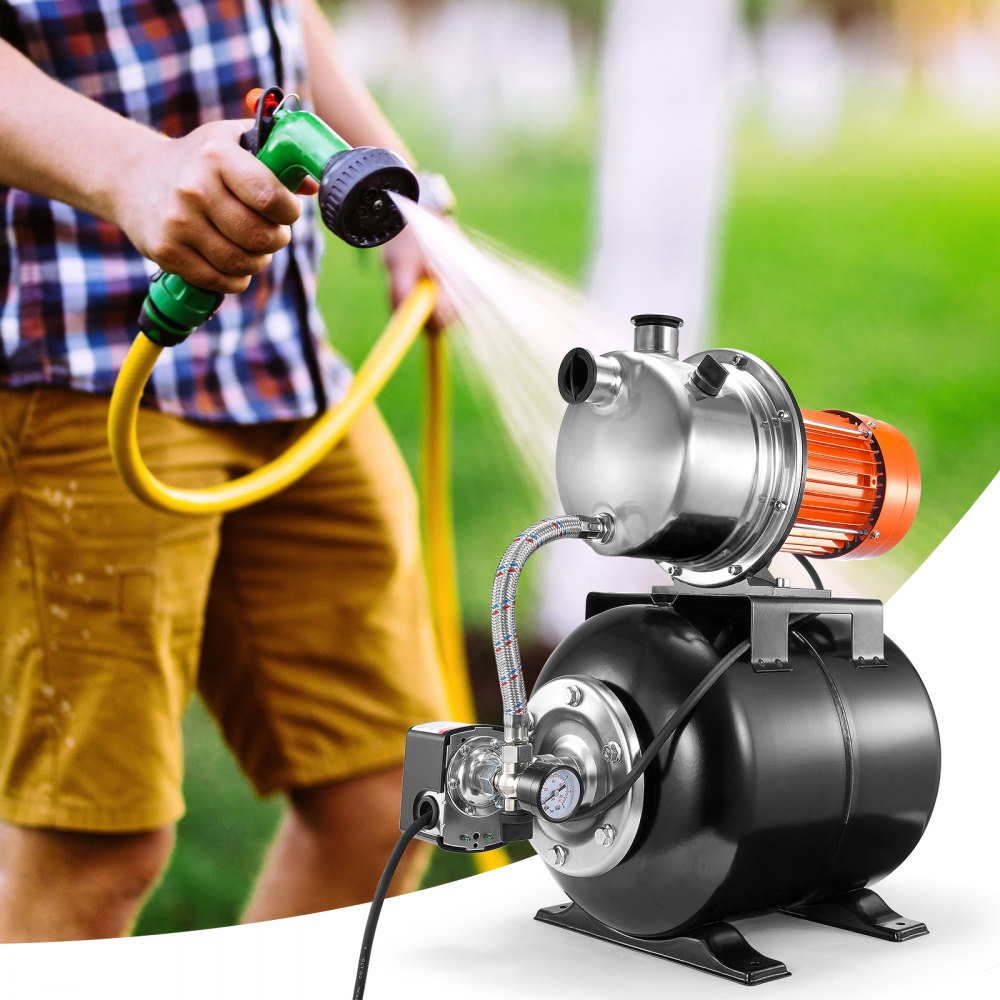

The Vevor shallow well pump with pressure tank is designed for reliable home, garden, lawn, and light farm water transfer applications. It features a 1.6 HP motor, a maximum flow rate of 1320 GPH, and a maximum head lift of 164'. The integrated 5-gallon pressure tank and 30/50 PSI pressure switch help provide steady water pressure while reducing frequent pump cycling. A stainless steel pump head, built-in thermal overload protection, and included check valve support long-lasting and dependable performance. It is suitable for irrigation, household water boosting, and long-distance water delivery.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorize Vevor Dealer
Features

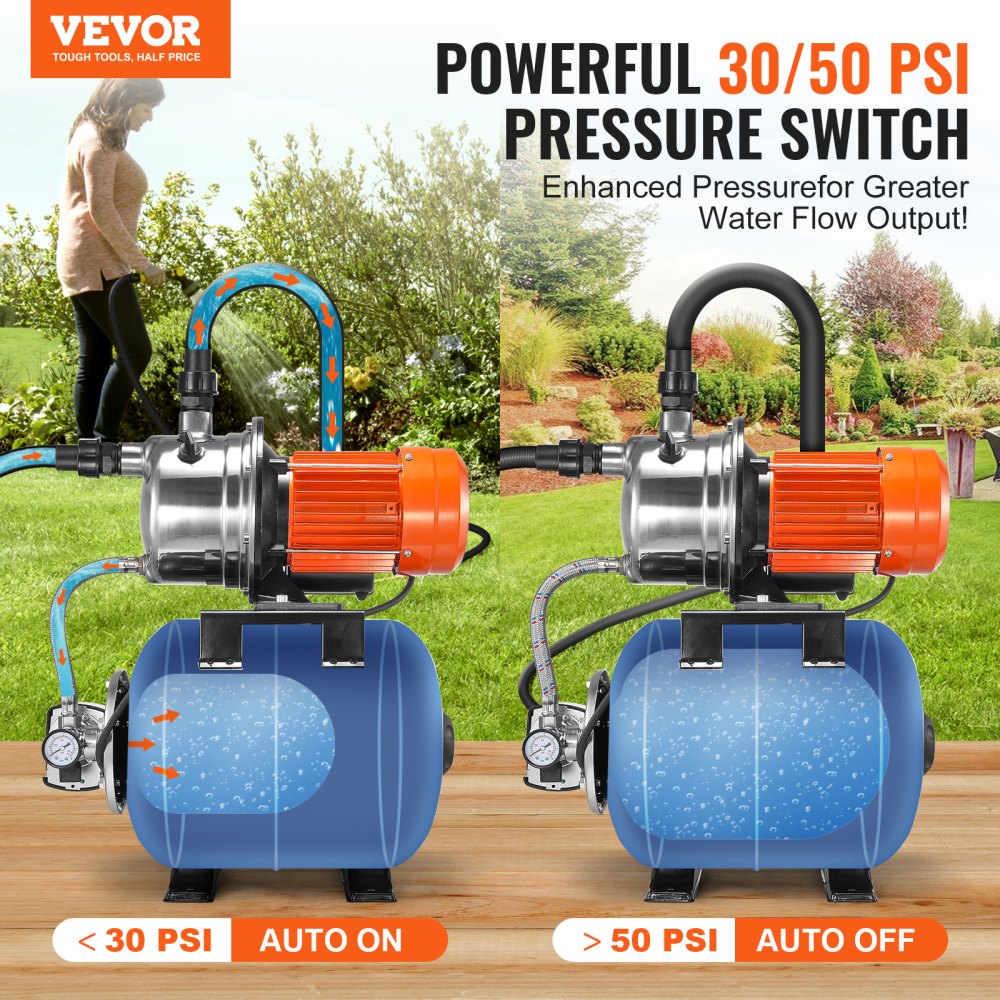

- 30/50 PSI Pressure Switch: Experience robust water flow with our advanced 30/50 PSI pressure switch. This high-pressure range ensures stronger water flow for demanding applications while reducing pump cycling. Less frequent starts mean extended shallow well pump life and efficient performance for your high-pressure needs.
- High-Efficiency Water Transfer: Equipped with a 1.6HP (1176W) motor, our shallow well pump with pressure tank delivers a maximum flow rate of 1320 GPH (5600 L/H), a head lift of up to 164 FT (50 M), and a suction depth of 26.3 FT (8 M). Ideal for long-distance water delivery with impressive efficiency.

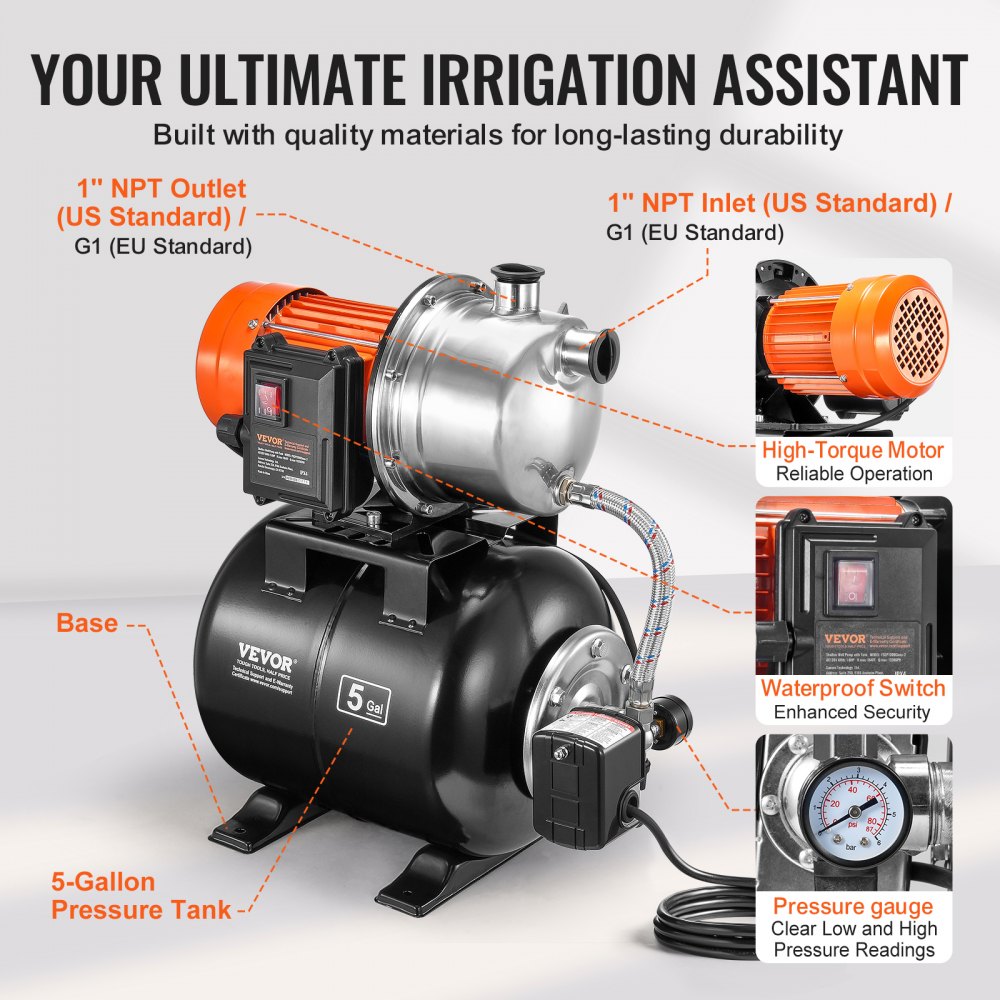

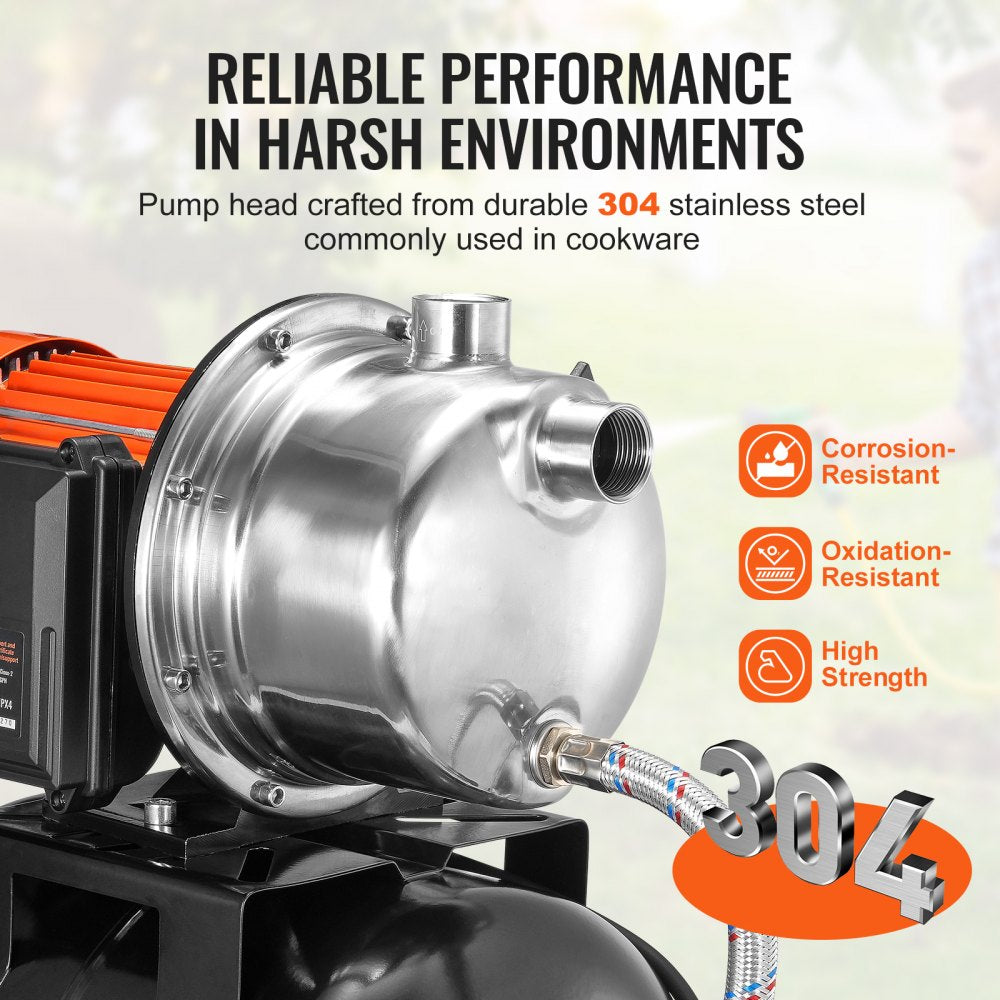

- Built to Last, Reliable Performance: The water pressure booster pump head is crafted from 304 stainless steel, renowned for its corrosion resistance and lack of water contamination, ensuring a clean water source. The 5-gallon (19-liter) steel pressure tank features a smooth, electrostatic finish for enhanced durability and resistance to corrosion and stains.
- Enhanced Protection for Peace of Mind: Our pump includes built-in thermal overload protection that automatically shuts down the motor if temperatures exceed safe levels, preventing damage from overheating. Additionally, a rear-mounted fan and large cooling vents provide effective heat dissipation to keep the pump running smoothly.

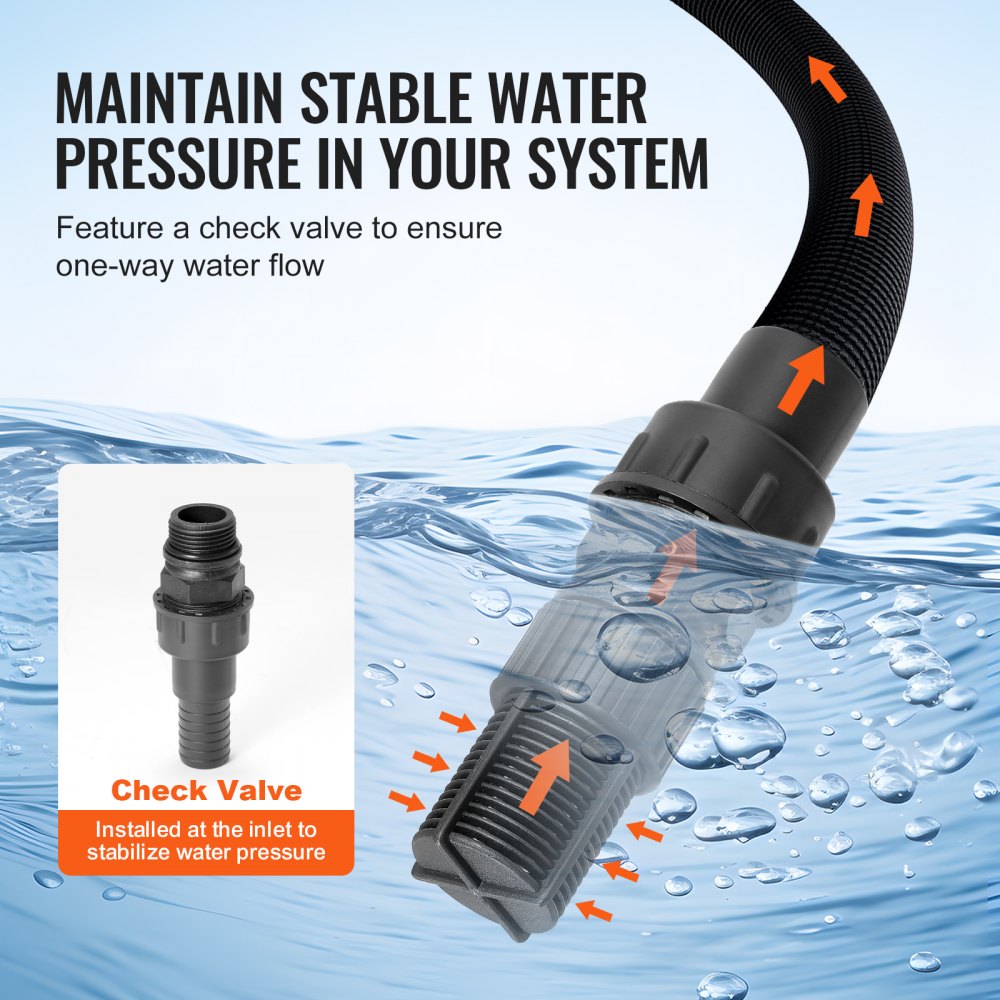

- Thoughtful Designed Accessories: To avoid backflow and maintain stable water pressure, we include a check valve with your shallow well pump. This ensures a hassle-free setup—simply connect your hoses and start using your pump right away. Note: For first-time use, make sure to fill the pump with water through the discharge port to avoid damage from running dry.

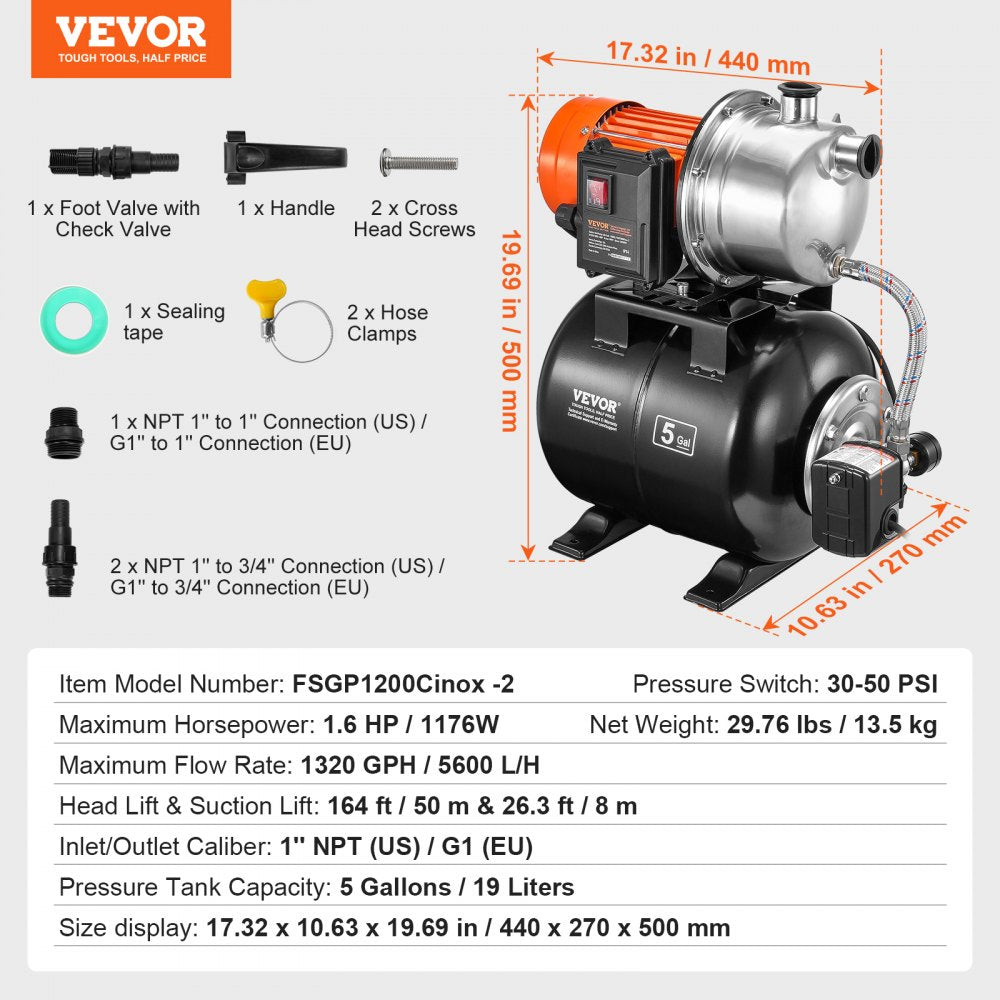

Specifications
| Item Model Number | FSGP1200Cinox-2 |
| Maximum Horsepower | 1.6 HP / 1176W |
| Maximum Flow Rate | 1320 GPH / 5600 L/H |
| Maximum Head Lift | 164' / 50 m |
| Maximum Suction Lift | 26.3' / 8 m |
| Inlet/Outlet Size | 1" NPT |
| Pressure Tank Capacity | 5 gal / 19 L |
| Pressure Switch | 30-50 PSI |
| Net Weight | 29.76 lbs / 13.5 kg |
| Voltage | 110V |
| Motor Type | Single-phase induction motor |

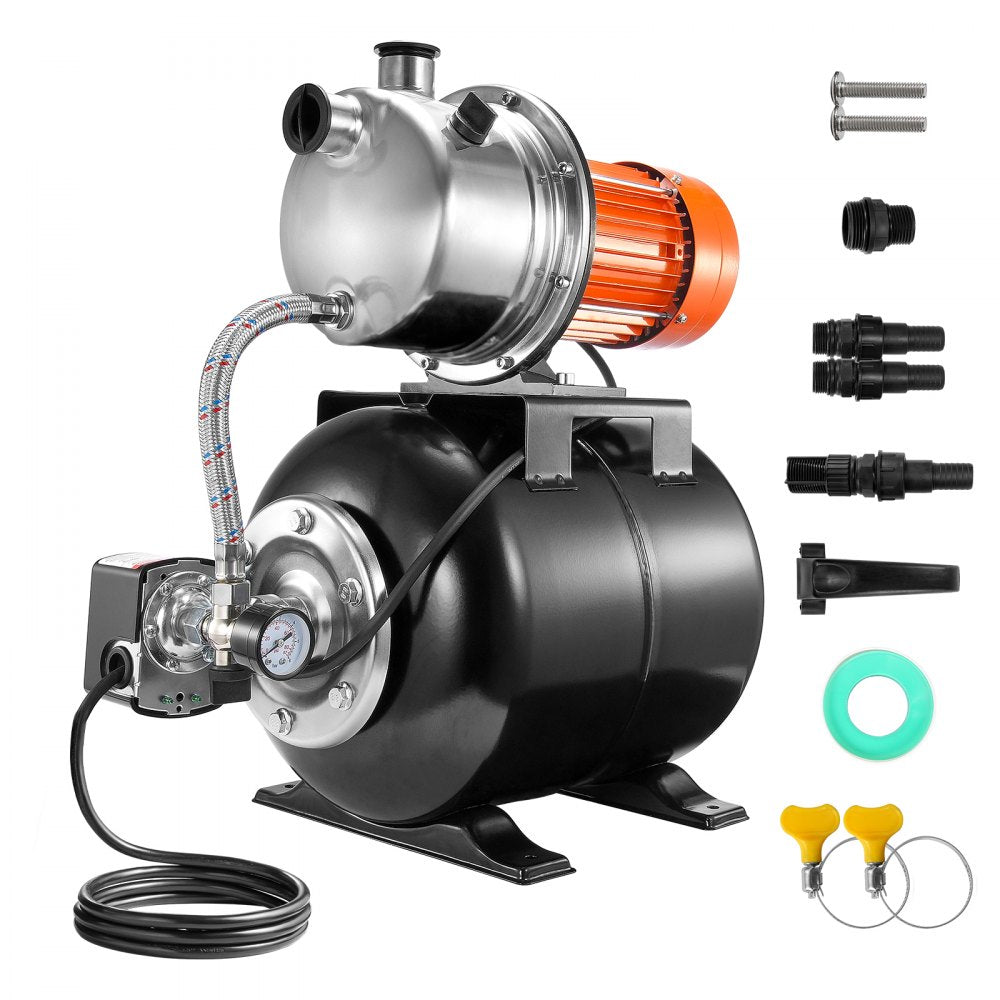

Package Contents

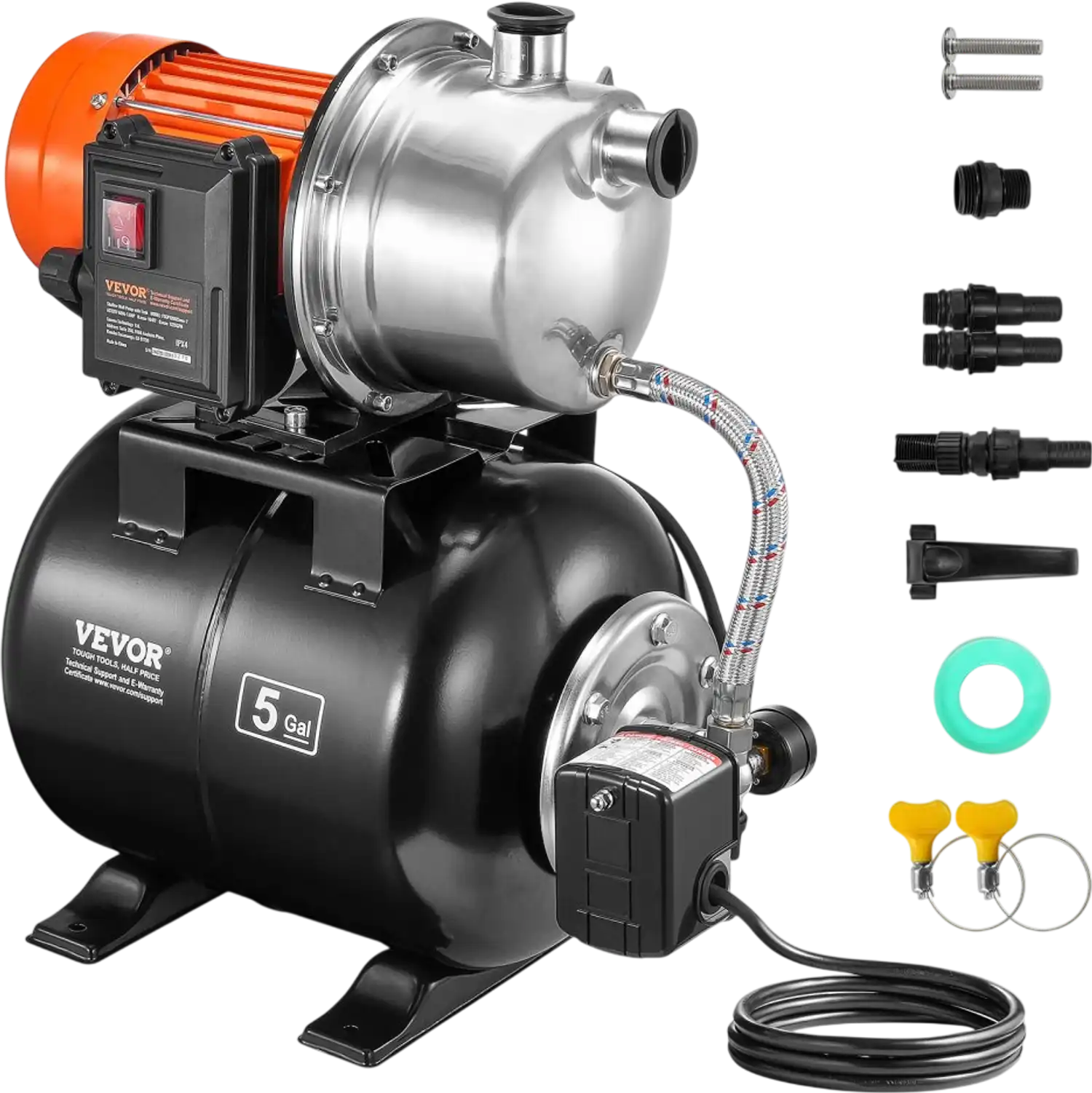

Shallow well pump with pressure tank
Check valve
Garden hose connection kit
Warranty
This item comes with a 1 year factory warranty.
