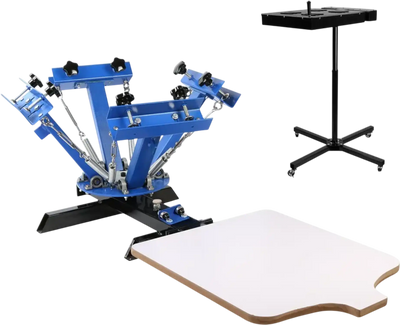

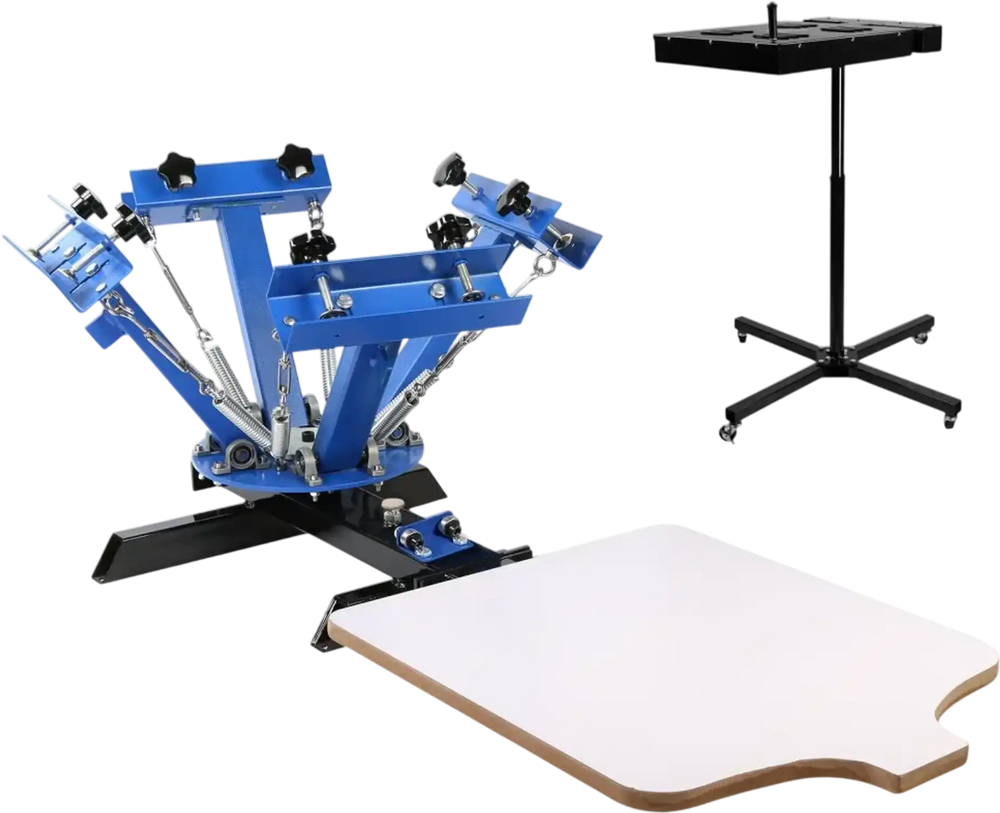

Vevor Screen Printing Machine 4 Color 1 Station Silk Screen Press with 18" x 18" Flash Dryer New
Manufacturer: Vevor
SKU: 401SYJ+18X18DXHGJV1
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$350.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Screen Printing Machine 4 Color 1 Station Silk Screen Press with 18" x 18" Flash Dryer New
Product Overview

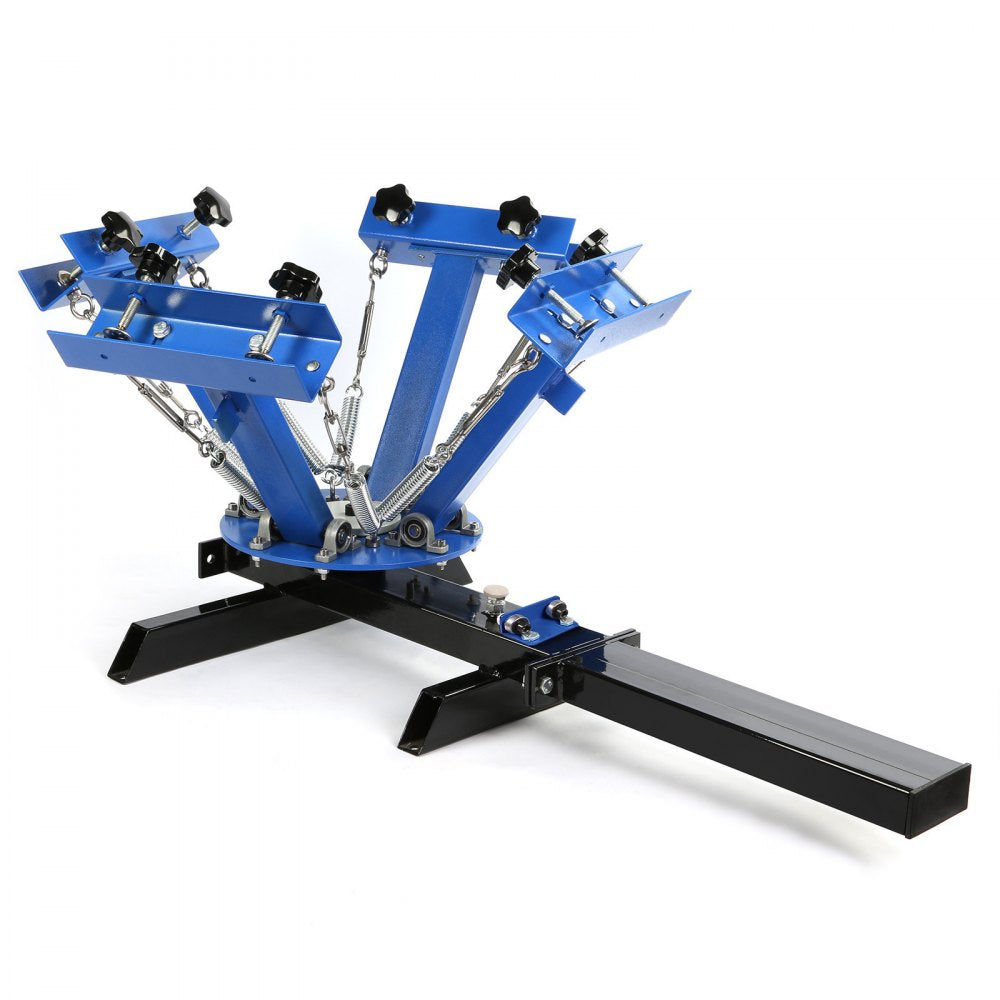

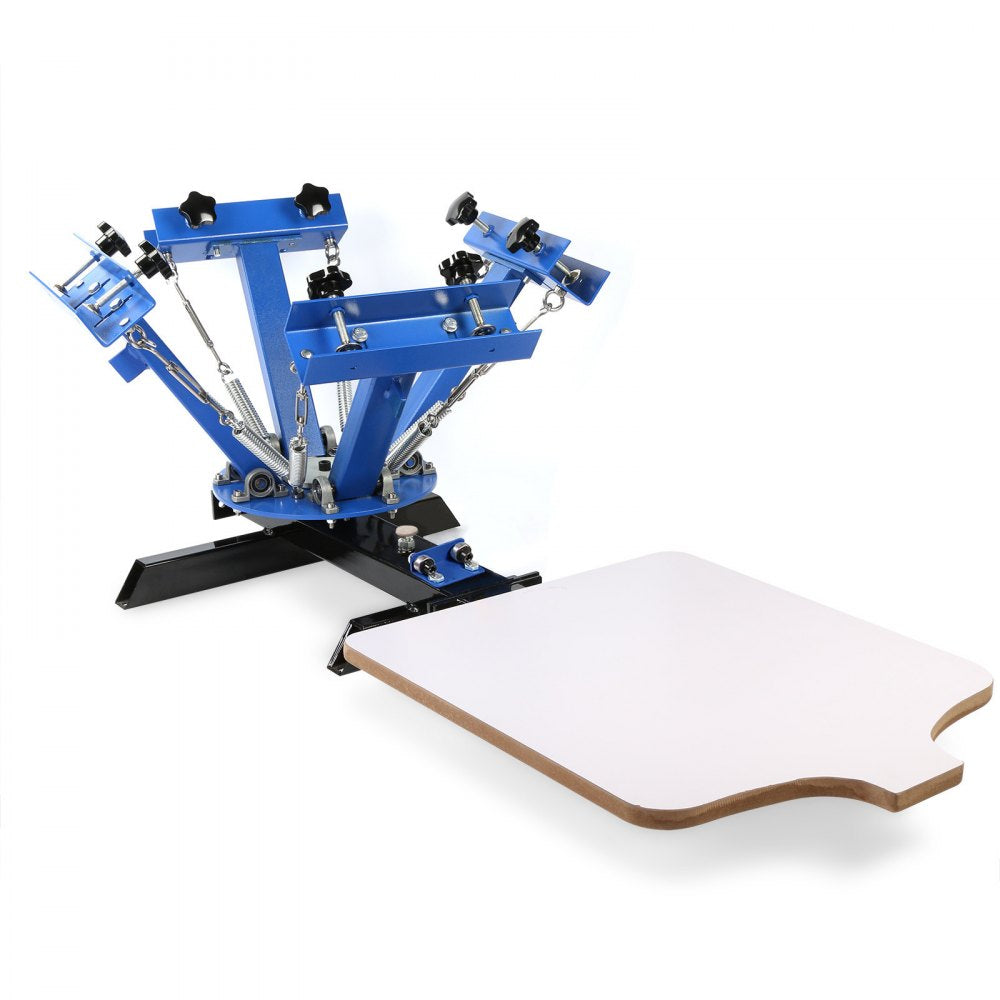

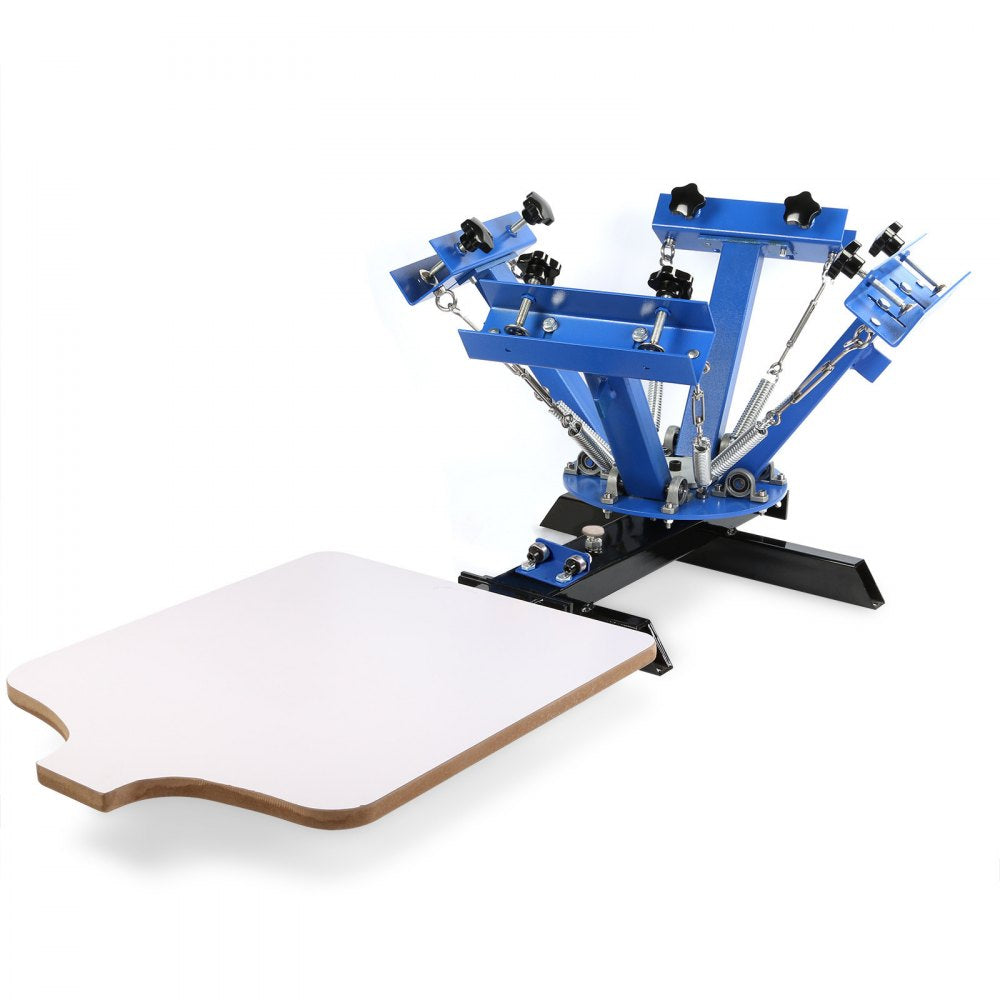

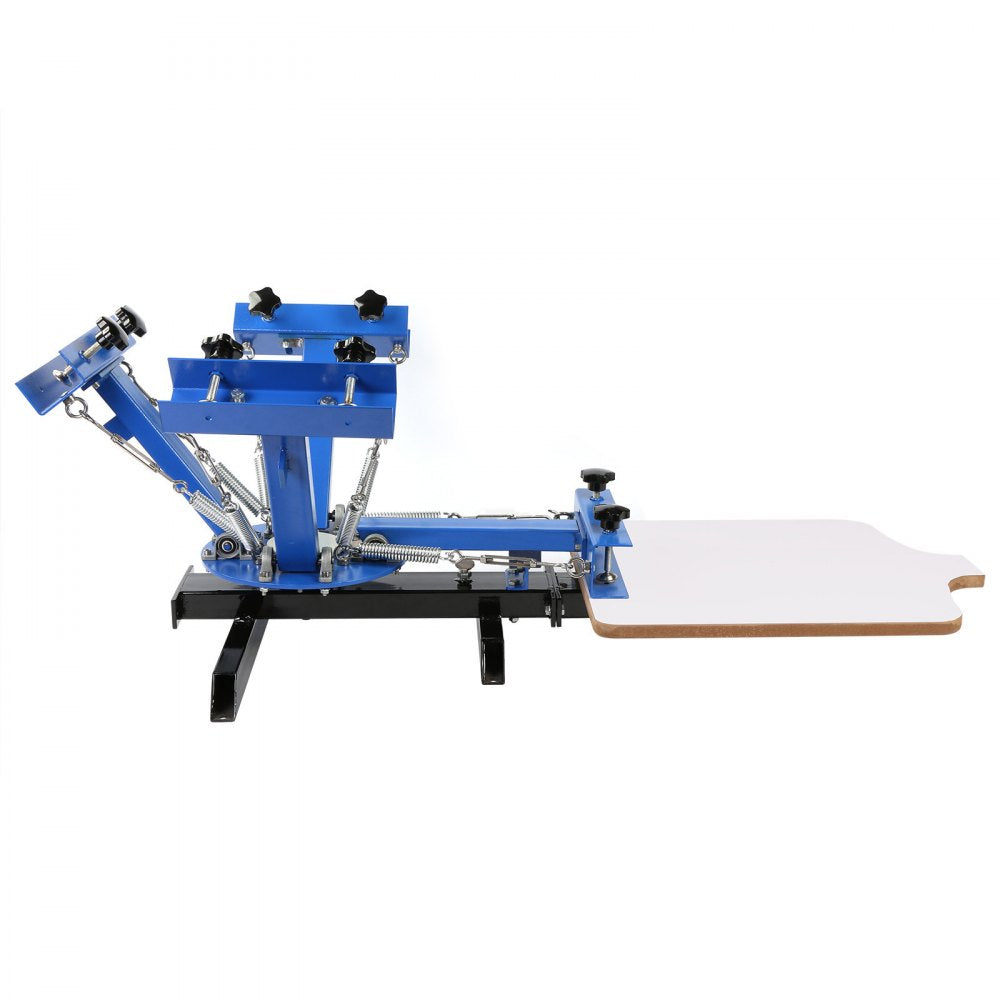

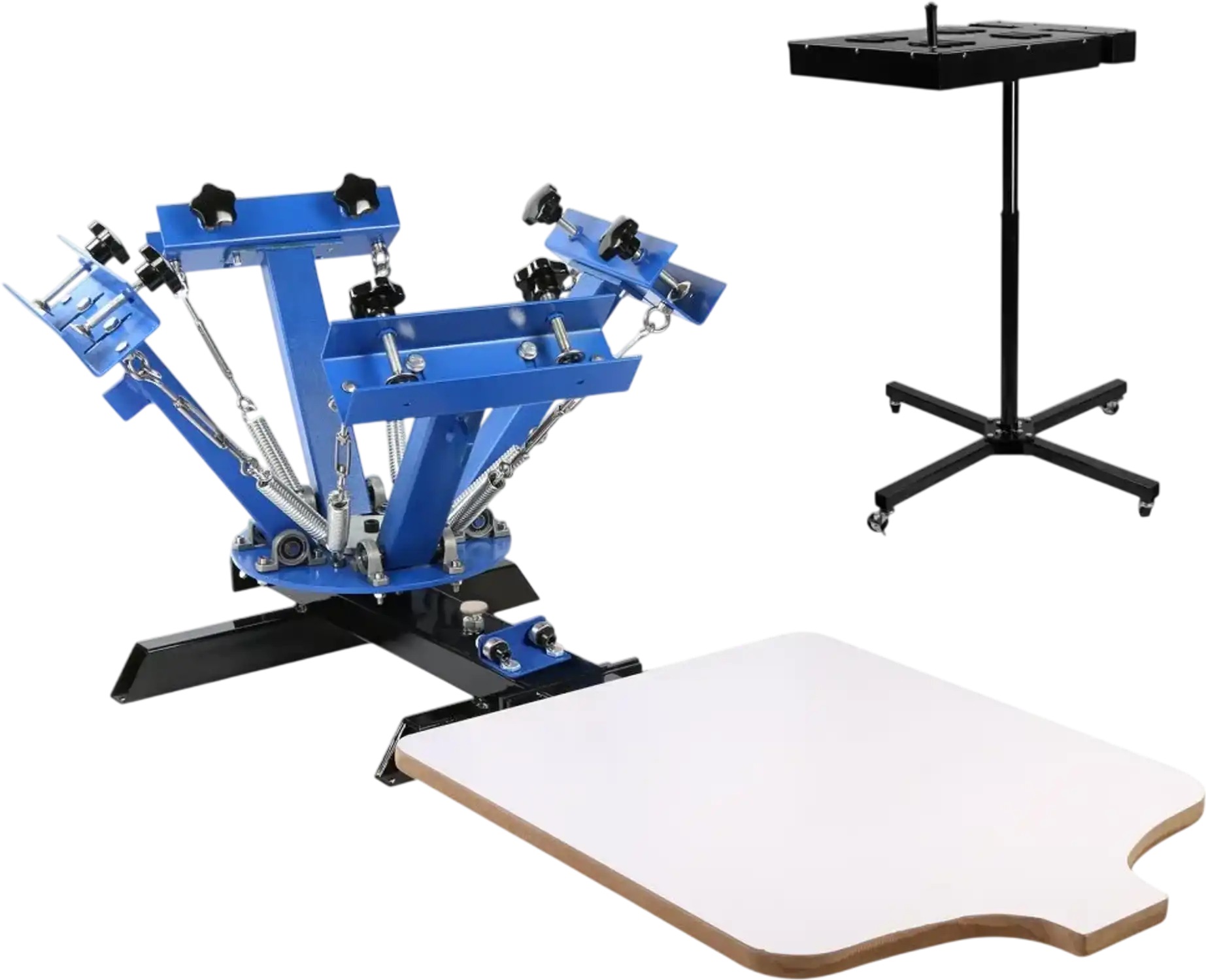

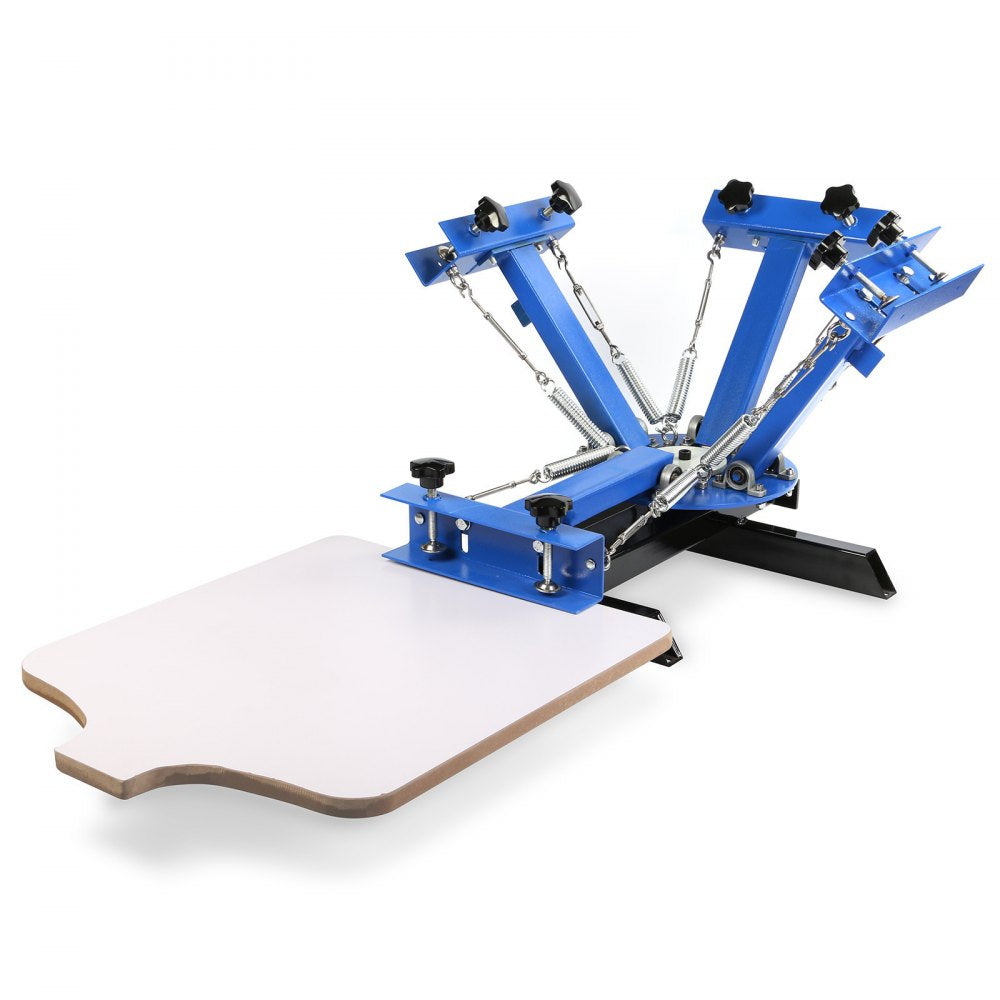

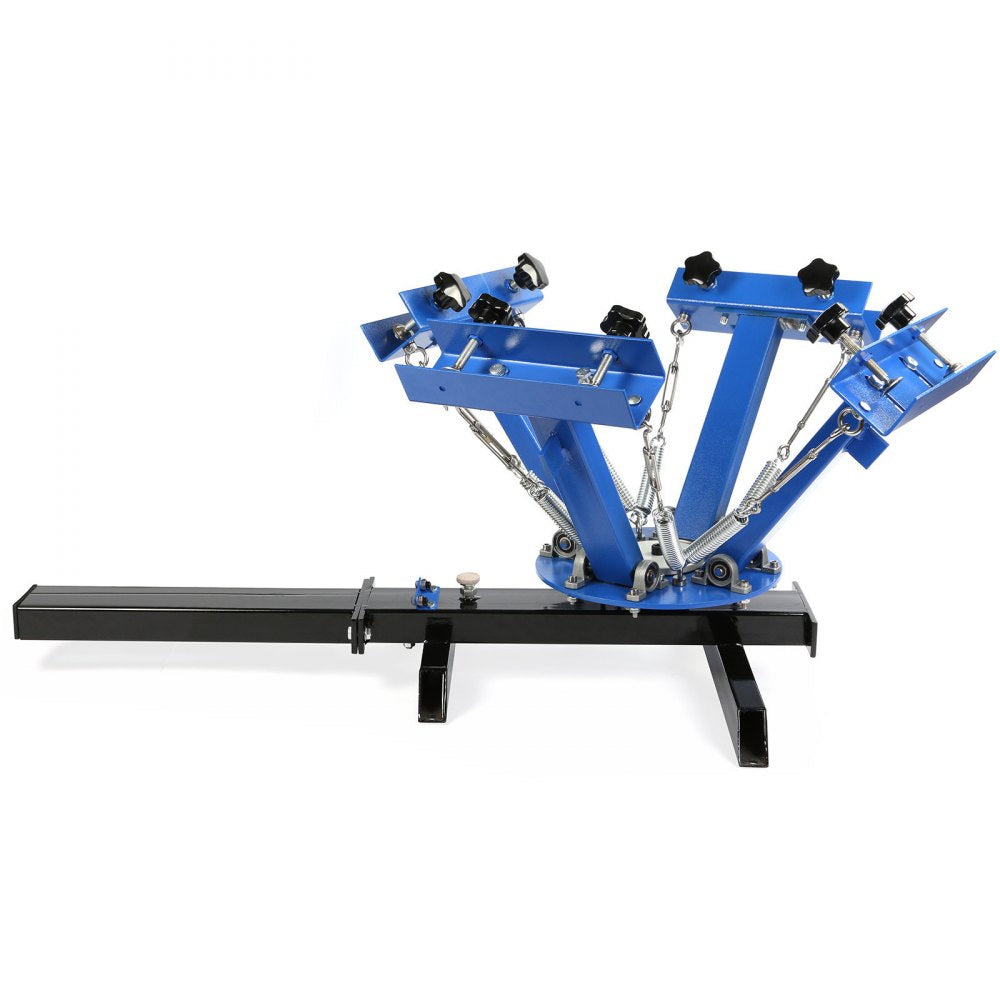

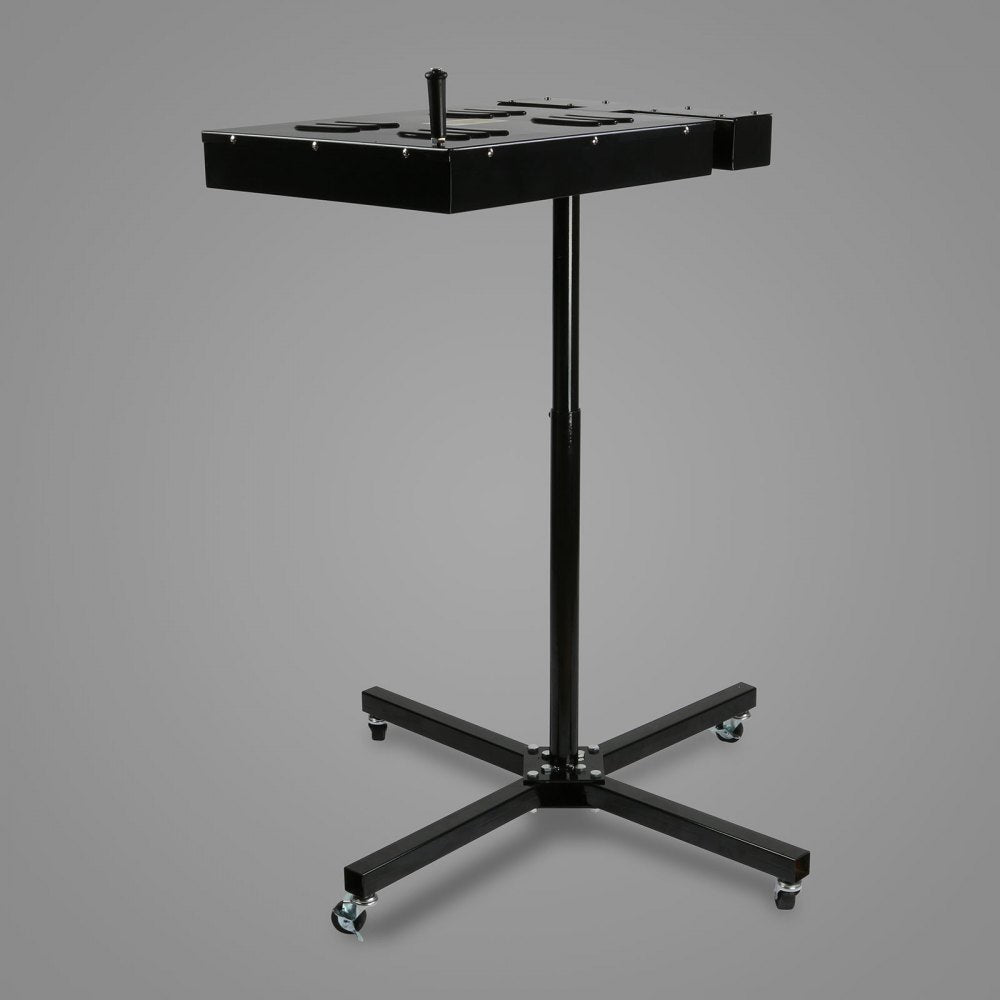

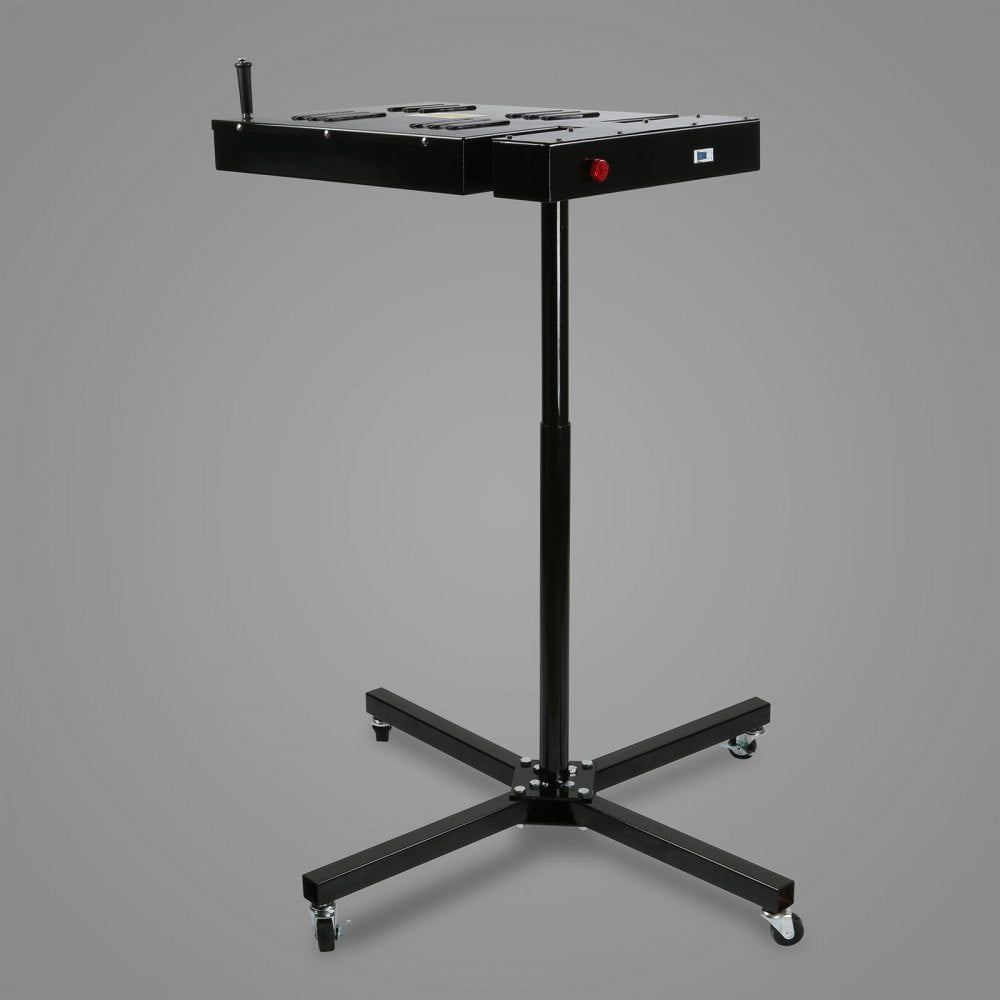

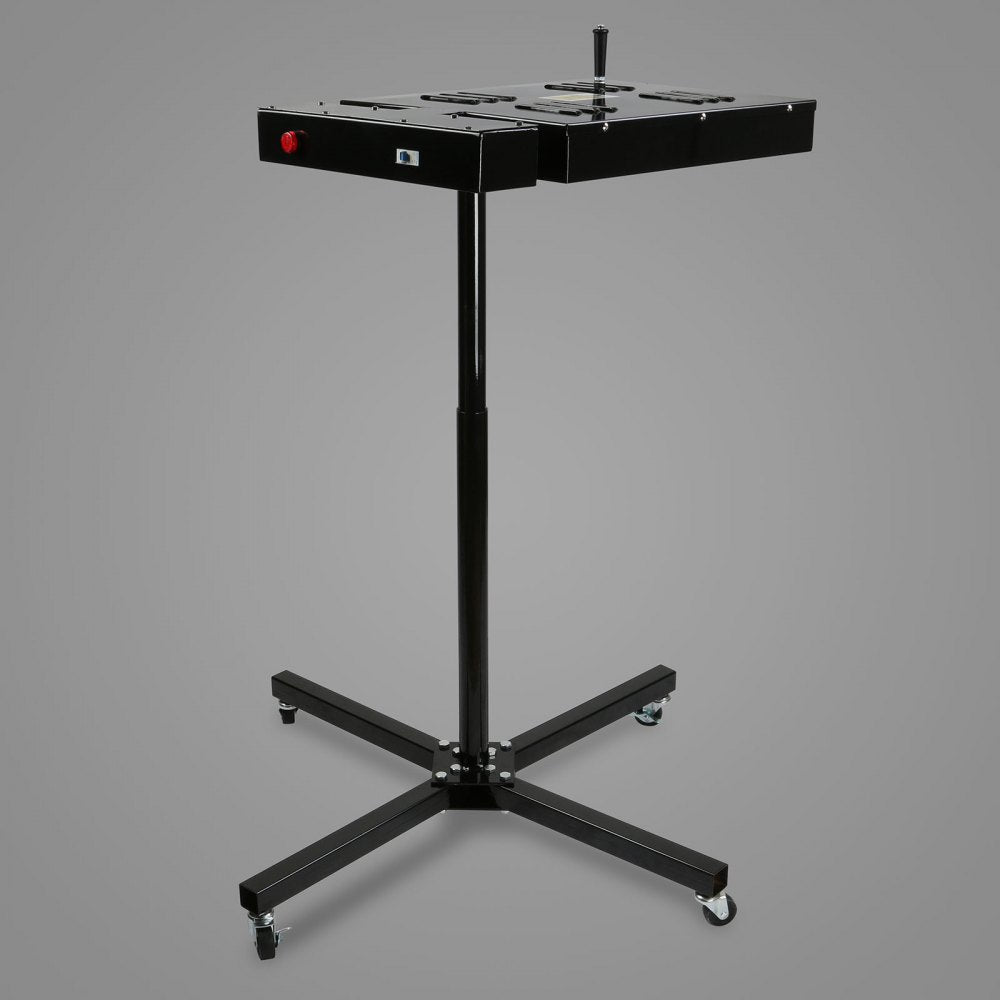

This screen printing machine and flash dryer combo is designed for small printing shops, startups, and individual users handling multi-color or volume printing. The 4 color 1 station press allows independent rotation of the screen platen layer for overprinting and progressive proofs. An included 18" x 18" flash dryer features a standard 110V plug, rolling casters, and adjustable height from 30" to 48" for convenient curing. Durable all-metal construction helps provide stable operation and easy cleaning.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Table type and combinatorial design saves space and convenient for transportation.
- Screen printing platen layer can rotate independently which is easy operated with higher efficiency.
- Adjustable double-spring devices are available for screen frames of different weight.
- Supporting device keeps the machine stable and in balance.
- All-metal construction, advanced electrostatic spraying and electroplating, durable and easy to clean.
- Equipped with full set of installation tools, for installation and operation.
- Adjustable height floor stand from 30" to 48"
- Double Boxed for secure and rigid packaging
- Basic assembly tools included
- Shrink wrapped parts in shipping box for safety in transit
- Styrofoam padded on all sides and internally secured
- On/Off Switch, No Timer
- Heavy Duty Steel Bearing Castors
- Black Powder Coated Steel Welded Frame
- Secure Handle for Moving the Dryer in production
Specifications
| Model | 401SYJ+18X18DXHGJV1 |
| Color Stations | 4 |
| Print Stations | 1 |

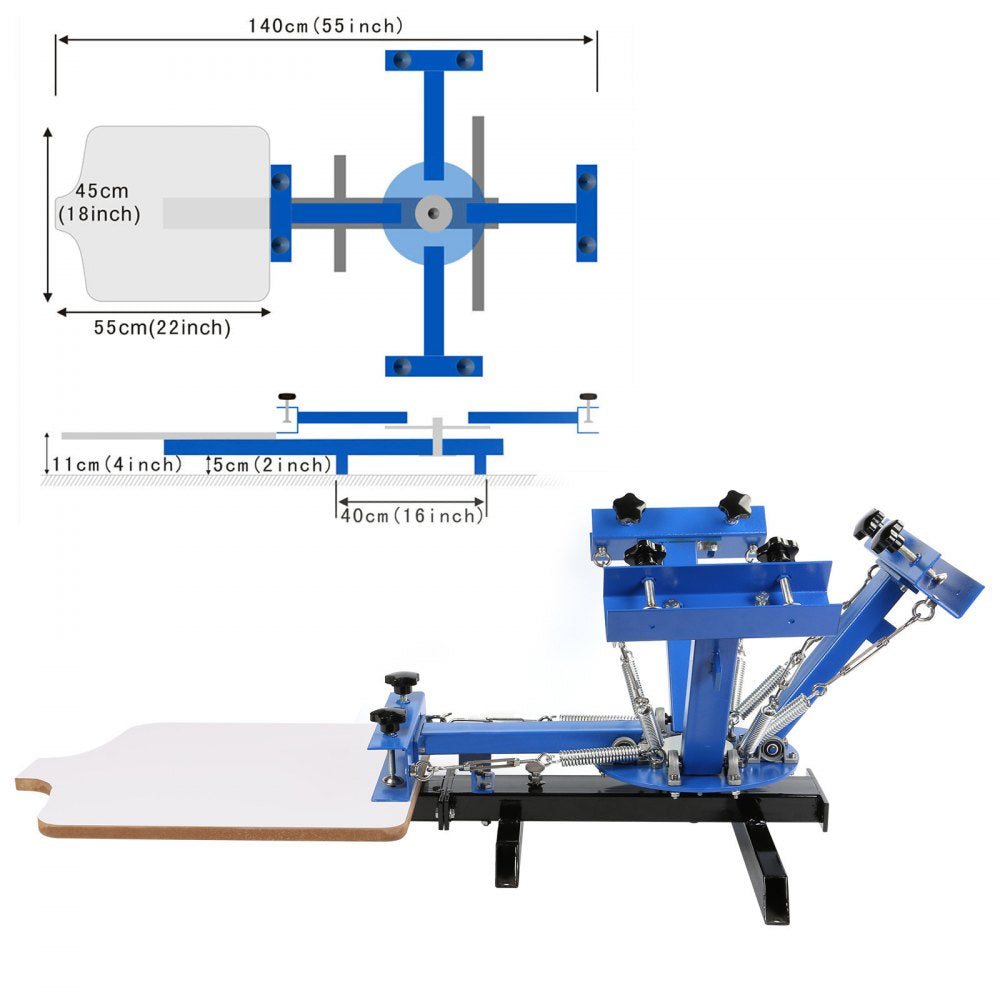

| Machine Size | 32" x 7.9" x 55" |
| Platen Size | 21.7" x 17.7" |
| Arm Length | 13.25" |
| Arm Width | 10" |
| T-shirt Board | 18" W x 21.5" L |
| Max Screen Thickness | 2" |
| Heating Area | 18" x 18" |
| Base Dimensions | 38" x 38" |
| Top Dimensions | 29" x 19" |
| Input Power | 110V/60Hz |
| Max Temperature | 660°F 350°C |
| Suggested Temperature Range | 140-180°C |
| Average Current Draw | 13 Amps |
| Maximum Current Draw | 16.5 Amps |
| Average Power Usage | 1350 Watts |
| Maximum Power Usage | 2000 Watts |
| Minimum Height | 30" |
| Maximum Height | 48" |
| Shipped Weight | 53 lbs |
| Assembled Dimensions | 38" x 38" x 48" |

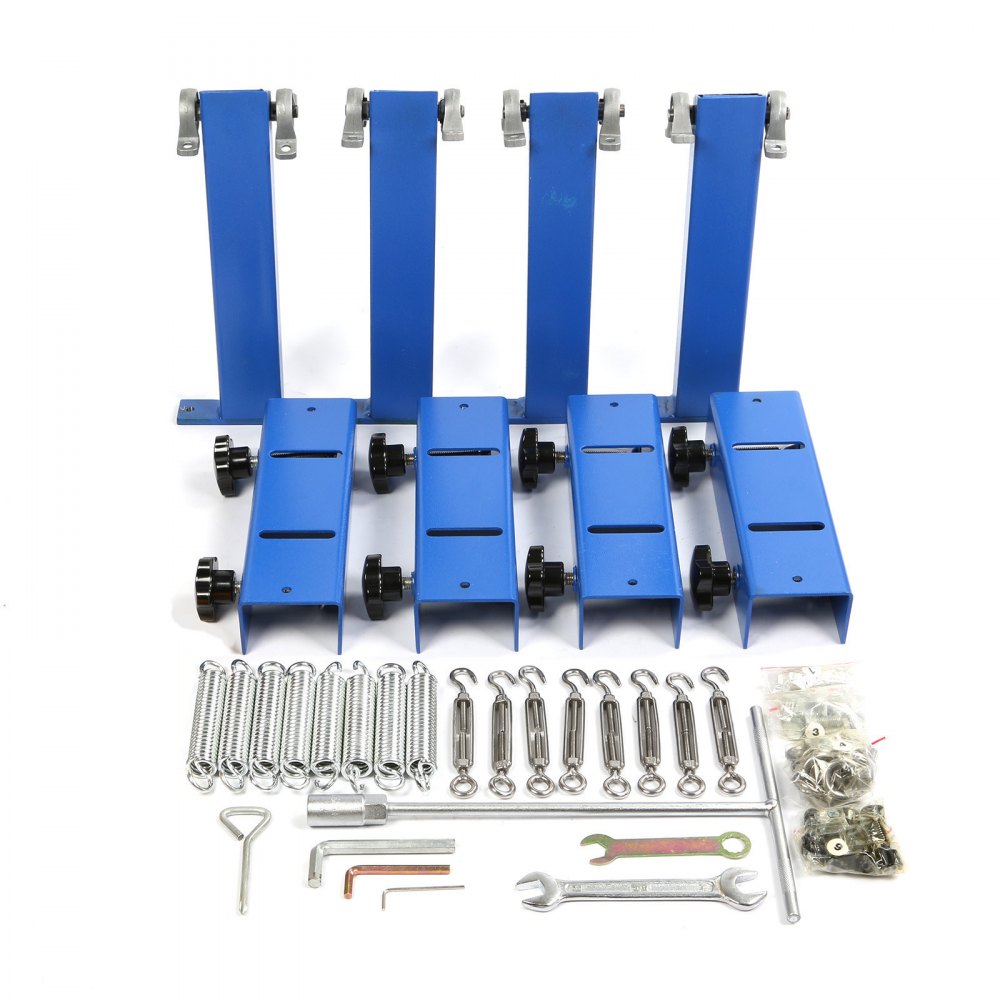

Package Contents
1 set of 4 color 1 station screen press
1 X Head of Flash Dryer
4 X Base Leg of Flash Dryer
1 X Below Support Bar
1 X Top Support Bar
4 X Caster
2 X Handle
8 X Screw For Base Legs
1 X Base Leg Support Plate
Hardwares for installtion
Warranty
This item comes with a 1 year factory warranty.
