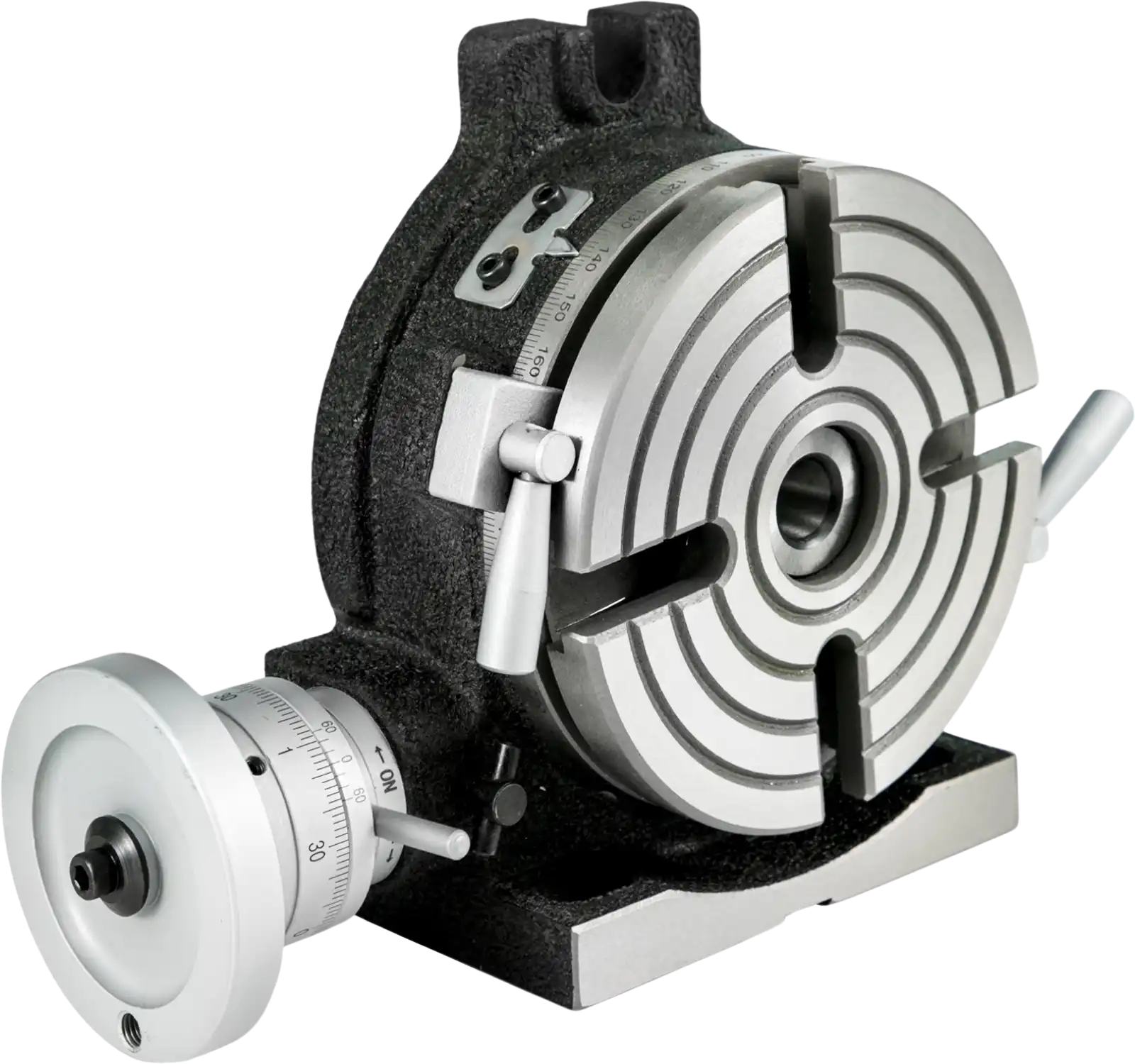

Vevor Rotary Table 6" (150 mm) 4-Slot Horizontal Vertical Dividing Plates for Milling Machine New
Manufacturer: Vevor
SKU: GZT6CSCTJFCB00001V0
QTY
(888) 999-1522
C
$272.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Rotary Table 6" (150 mm) 4-Slot Horizontal Vertical Dividing Plates for Milling Machine New
Product Overview
This 6" rotary table guarantees accurate cuts and facilitates effortless cleaning and maintenance. As a precision work positioning device, it can be mounted both horizontally and vertically for drilling, milling, boring, and more. A set of three dividing plates are included for your installation.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Vertical & Horizontal: The Vevor rotary table 6 inch is versatile and can be mounted both horizontally and vertically. This versatility allows for various milling operations. For small and large projects, switching between horizontal positions adds flexibility. You can achieve precise angles and cuts.
- Remarkable Quality: Cast iron mainly used to cast parts subjected to pressure and vibration on mechanical equipment, offering rotary table for milling durability, shock absorption and heat-resistance.
- Excellent Precision: The precision rotary table indexing plate can be graduated 360 degrees. Resetting dial and hand wheel can be graduated in seconds.
- Convenient to Adjust: The dial is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently.
- Multiple Applications: With a wrench and set of screws, the power milling machines are widely used in milling machine like index boring, milling, circle cutting, spot facing and boring hole and so on. Practical design can meet a variety of workshop work needs.
Specifications
| Material | Cast Iron |
| Centre Bore | MT-2 |
| T-Slot Diameter | 1/2" (14 mm) |
| Table Dimension | 6" |
| Plate A | 15, 16, 17, 18, 19, 20 |
| Plate B | 21, 23, 27, 29, 31, 33 |
| Plate C | 37, 39, 41, 43, 47, 49 |
| Setting Position | Horizontal/Vertical |
| Item Dimensions | 9.5" x 3.1" x 7.7" |
| Weight | 40 lbs (18.2 kg) |
Package Contents
Vevor 6" Rotary Table 4-Slot
(3) Dividing Plates
Set of Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
