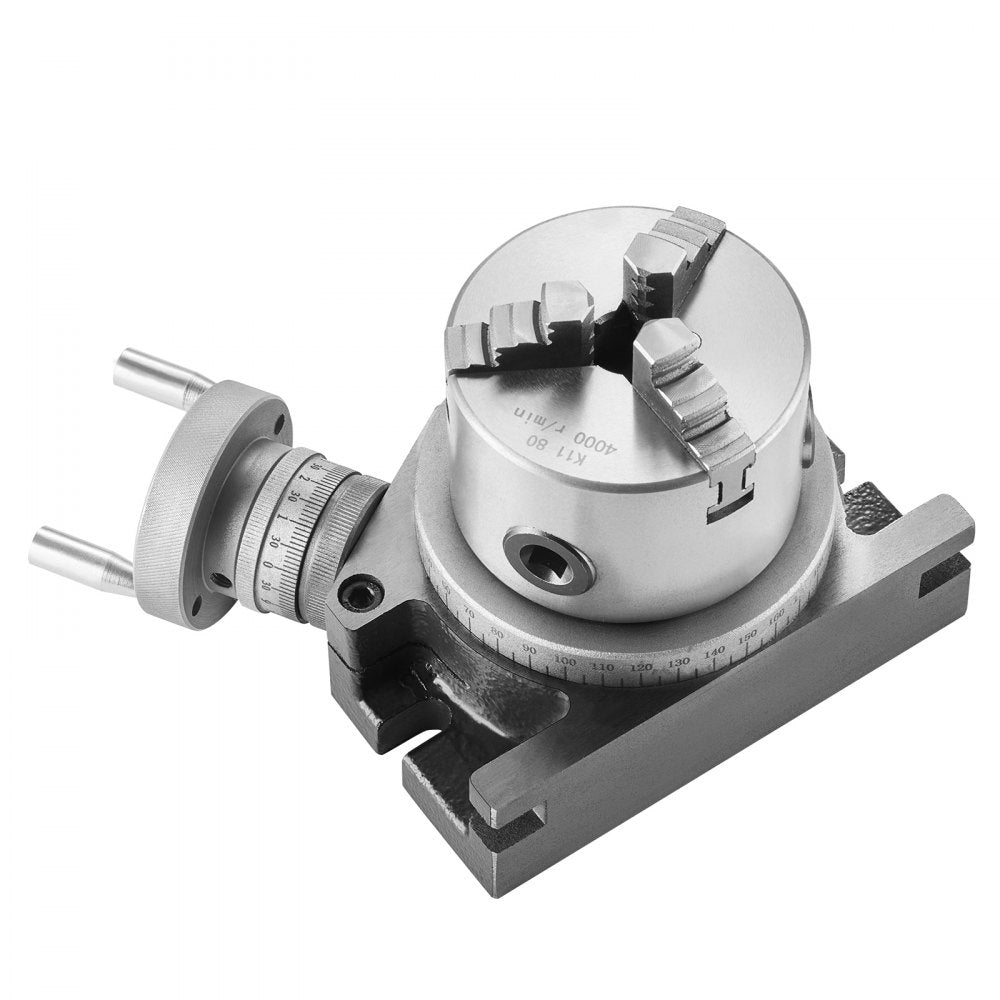

Vevor Rotary Table 4" Horizontal Vertical Milling Machine Rotary Table with 3.1" 3-Jaw Chuck New
Manufacturer: Vevor
SKU: YXZTLS4C100MYBJD9V0
Slots Number Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$188.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Most orders ship out the same or next business day
If ordered by 12 PM ET
Extended Warranty
×
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$57.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$86.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$129.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Milling Working Table 17.7" x 6.7" 2-Axis Cross Slide New
-
Vevor Dividing Head BS-0 5-Inch 3 Jaw Chuck for Milling Machine Rotary Table New
-
Vevor Dividing Head K11-100mm 3-Jaw Chuck CNC Router Indexing Head 2.6" Center Height New
-
Vevor Tilting Milling Table 10" x 7" Adjustable Angle Plate New
-
Vevor Milling Vise 5" ACCU Lock Down Bench Clamp with Swivel Base New
-
Vevor Tilting Milling Table 7" x 5" Adjustable Swivel Angle Plate New
-
Vevor Lathe Chuck 4-Jaw 3.75" Self-Centering with 5 Jaw Sets New
-
Vevor Drill Bit Dispenser Cabinet Three-Piece Organizer New
-
Vevor CAT40 Collet Holder and ER 16/32 Collet Chuck Set with Pull Studs New
-
Vevor Linear Guide Rail Set 86.6" w/ 4 Slide Blocks New
-
Vevor Lathe Chuck 8" 3-Jaw Self-Centering New
-
Vevor 3-Jaw Lathe Chuck 10" Self-Centering 6-250mm Clamping Range New
-
Vevor Lathe Chuck 6" 3-Jaw Self-Centering New
-
Vevor Bench Vise 5" Super-Lock Lock-Down Fixed High Precision New
-
Vevor Milling Vise 3" Heavy Duty Bench Clamp with 360° Swivel Base New
-
Vevor Milling Vise 4" Precision Lockdown Fixed Bench Clamp New
-
Vevor Tool Post Quick Change 8-Pc Lathe Holder Set for 6"-12" Swing New
-
Vevor Quick Change Tool Post Set 8 Pieces for 10-15 in. Lathes New
-
Vevor Lathe Chuck 3-Jaw Self-Centering 3" New
-
Vevor Milling Vise 6" ACCU Lock Precision Bench Clamp New
Vevor Rotary Table 4" Horizontal Vertical Milling Machine Rotary Table with 3.1" 3-Jaw Chuck New
Product Overview

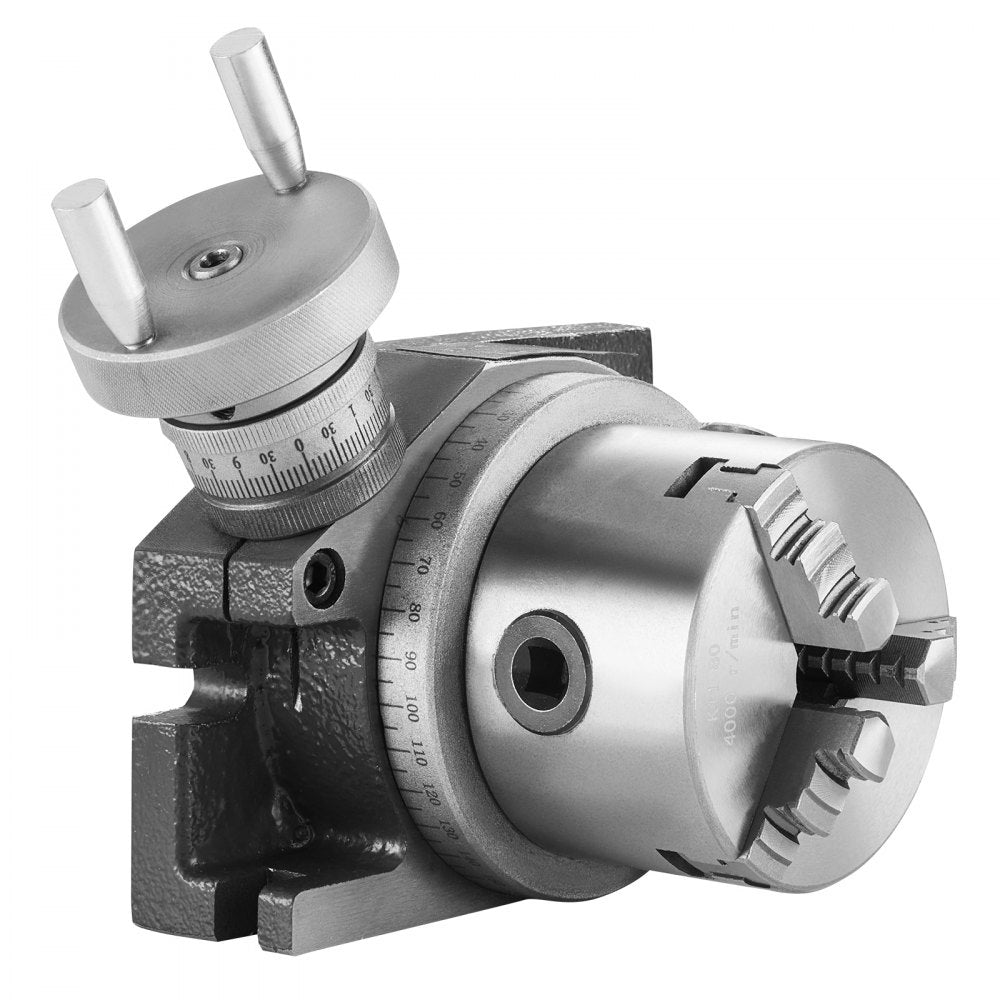

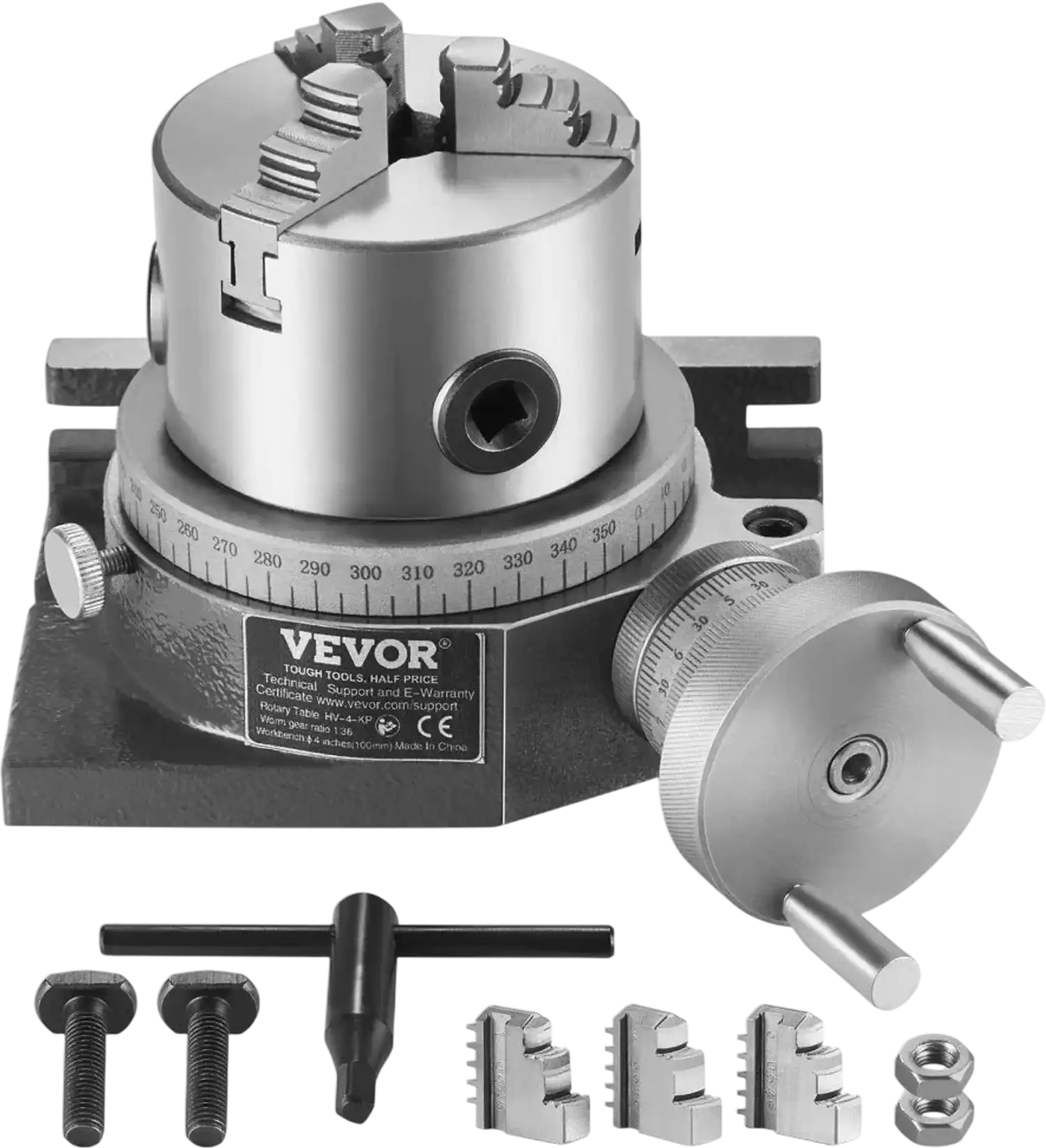

The Vevor 4" rotary table is designed for small milling machines and precision machining tasks including positioning, rotation, indexing, and clamping. It supports both horizontal and vertical installation for added versatility in the workshop. This model includes a 3.1" 3-jaw chuck with internal and external jaws for secure holding of small workpieces. Built from HT250 cast iron, it offers durable performance, wear resistance, and precise handwheel-controlled operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

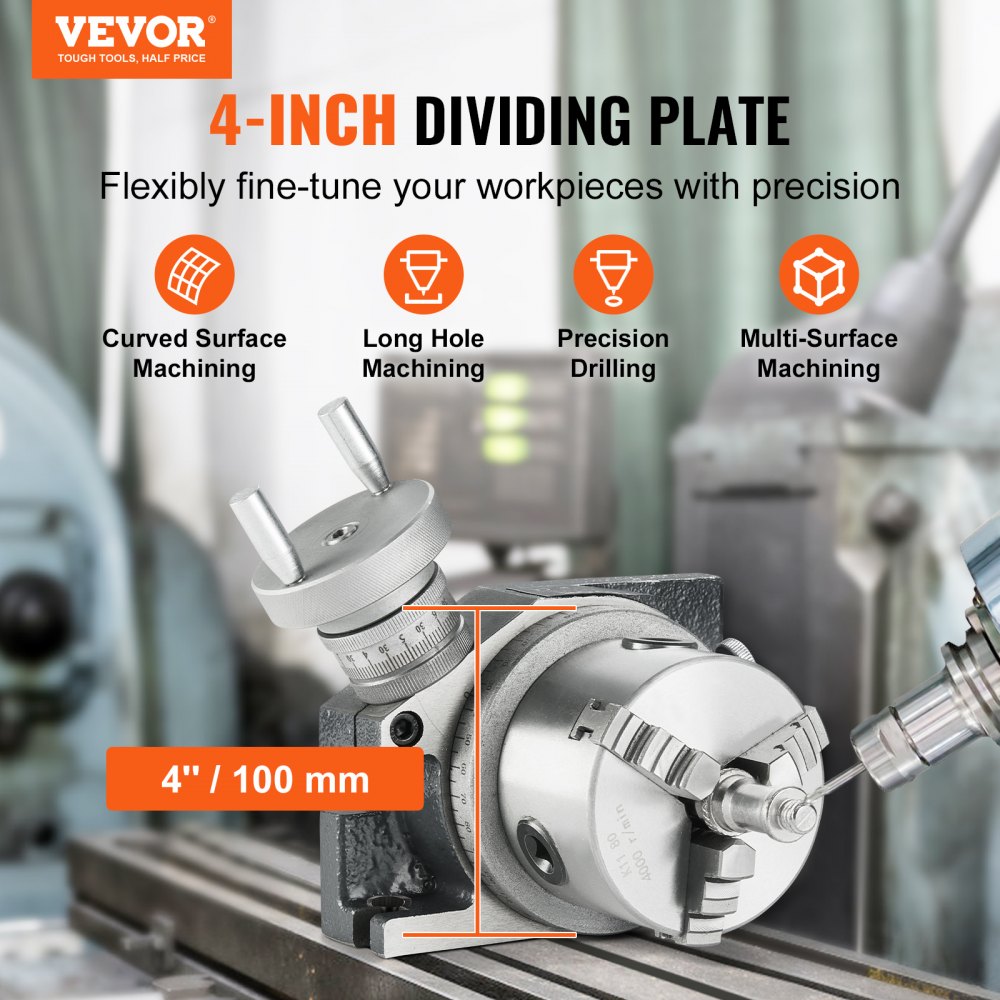

- 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our φ4'' / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.

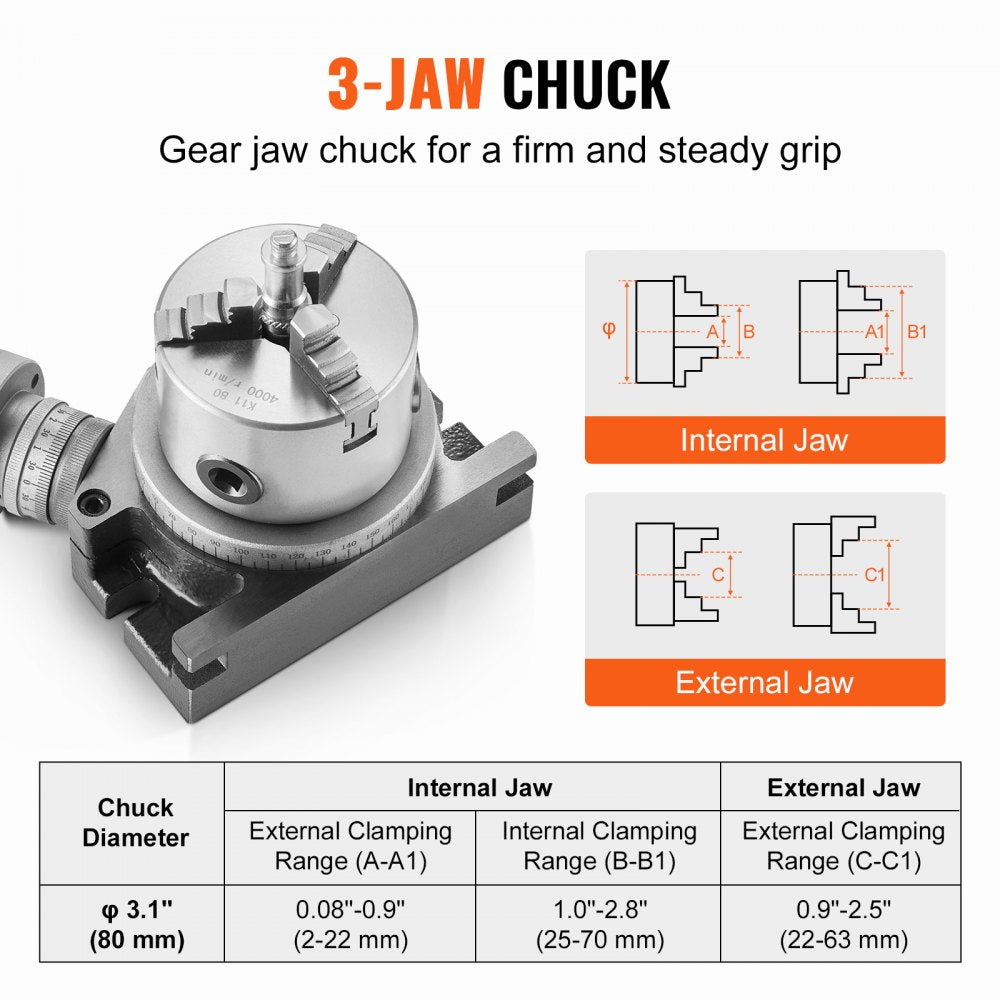

- Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter: φ 3.1'' / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm. It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm. Enjoy the precise and secure machining of small components!

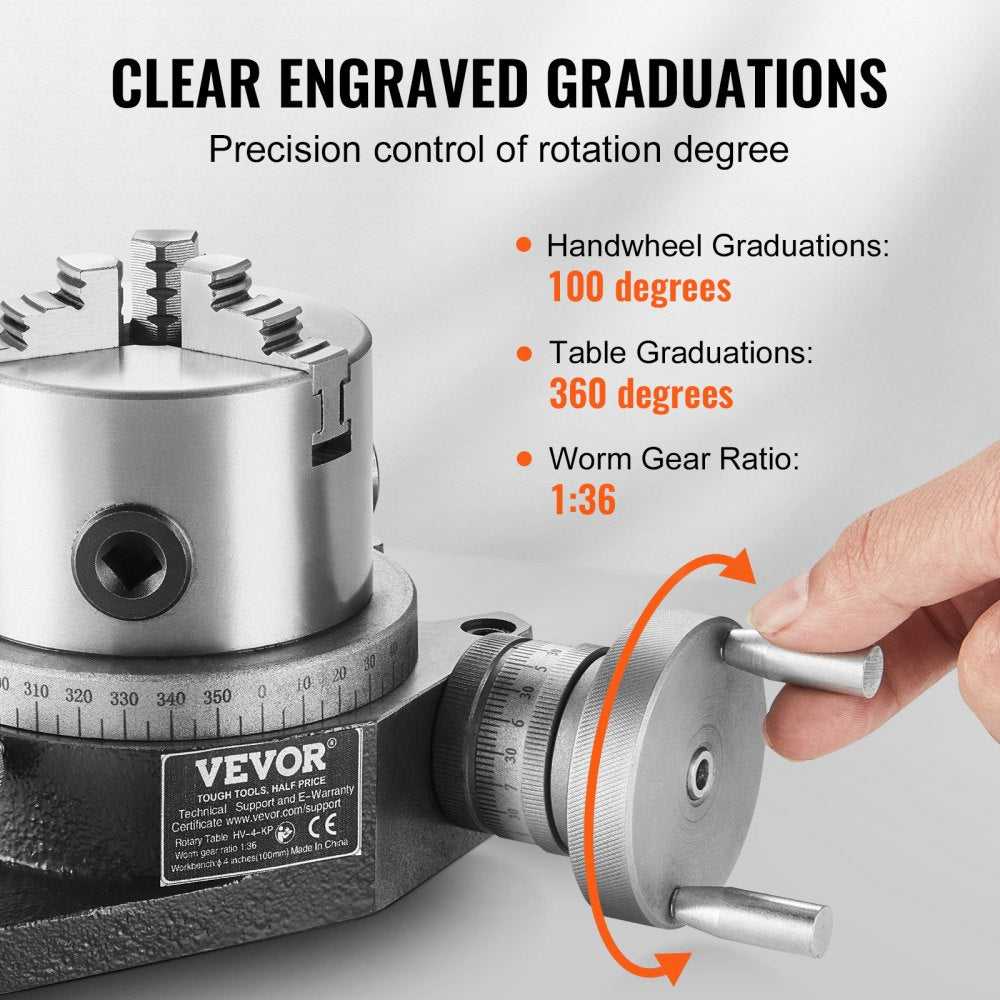

- High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale number is 100, while the table itself is marked with 360 degrees. With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation.

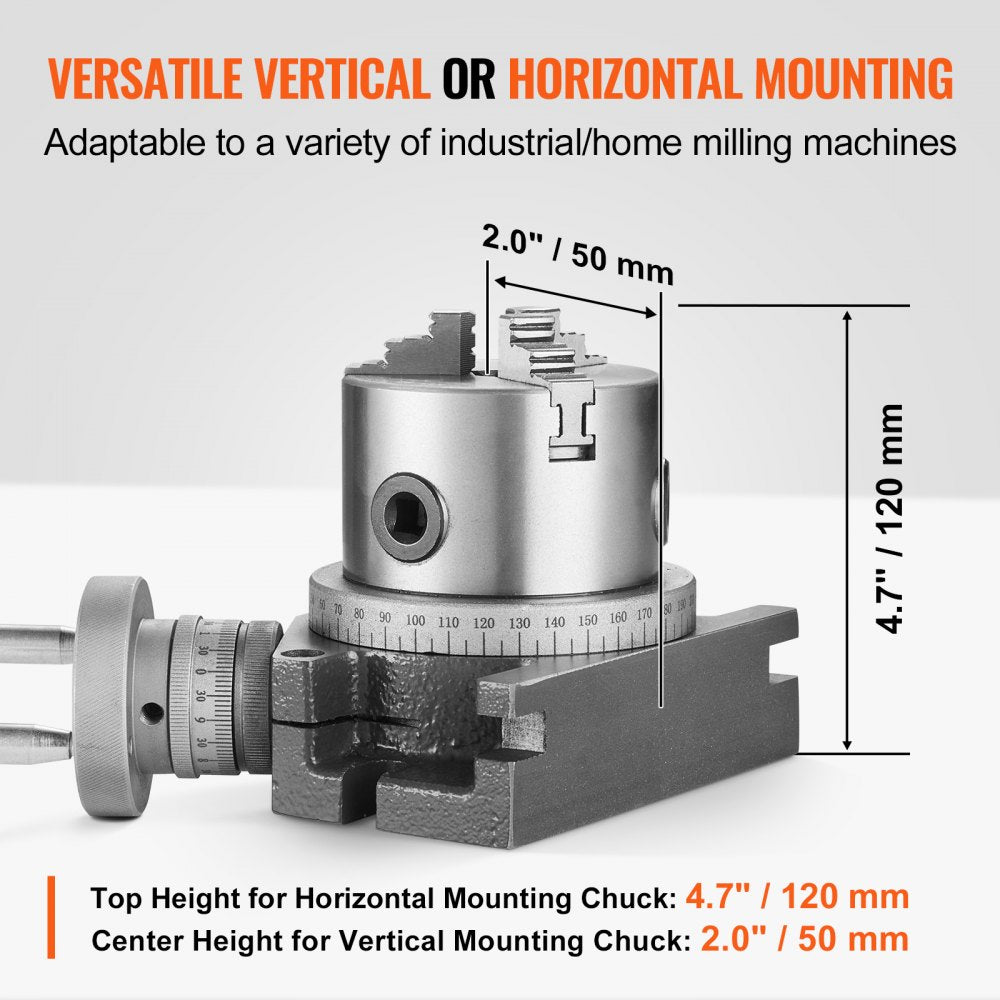

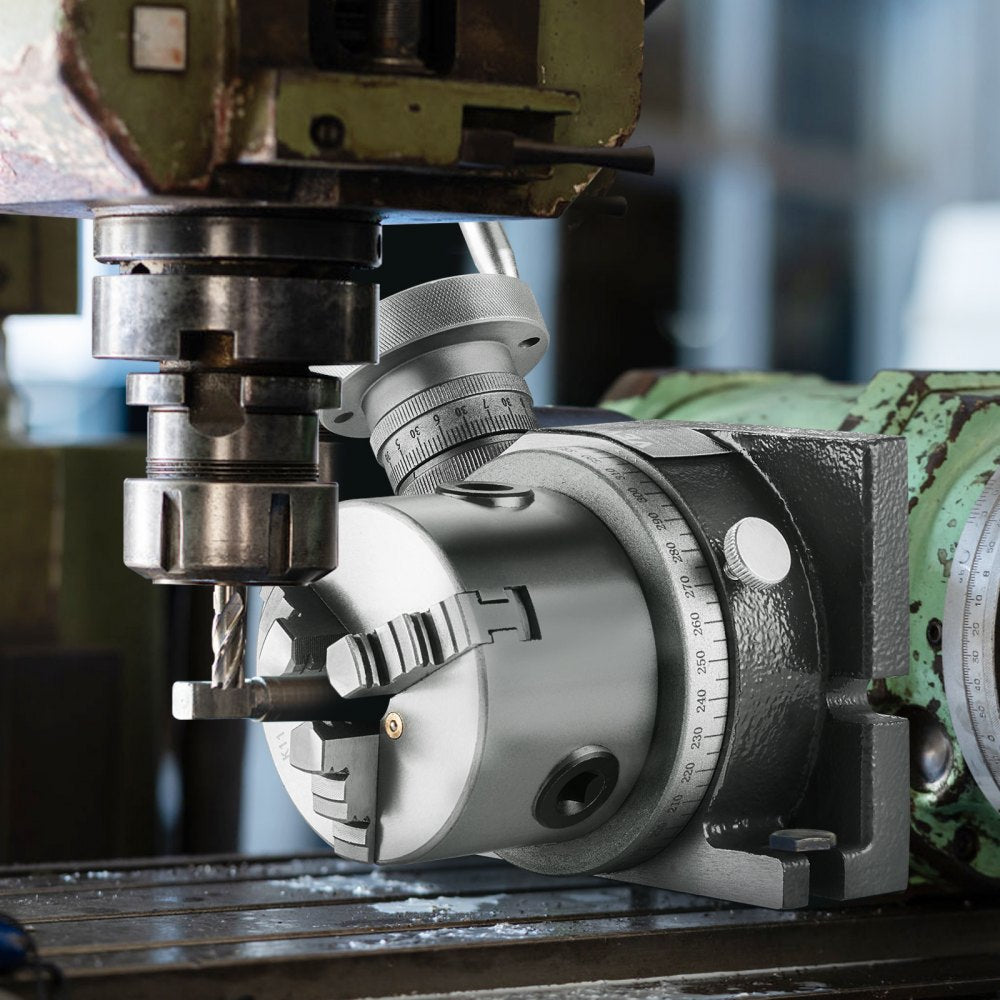

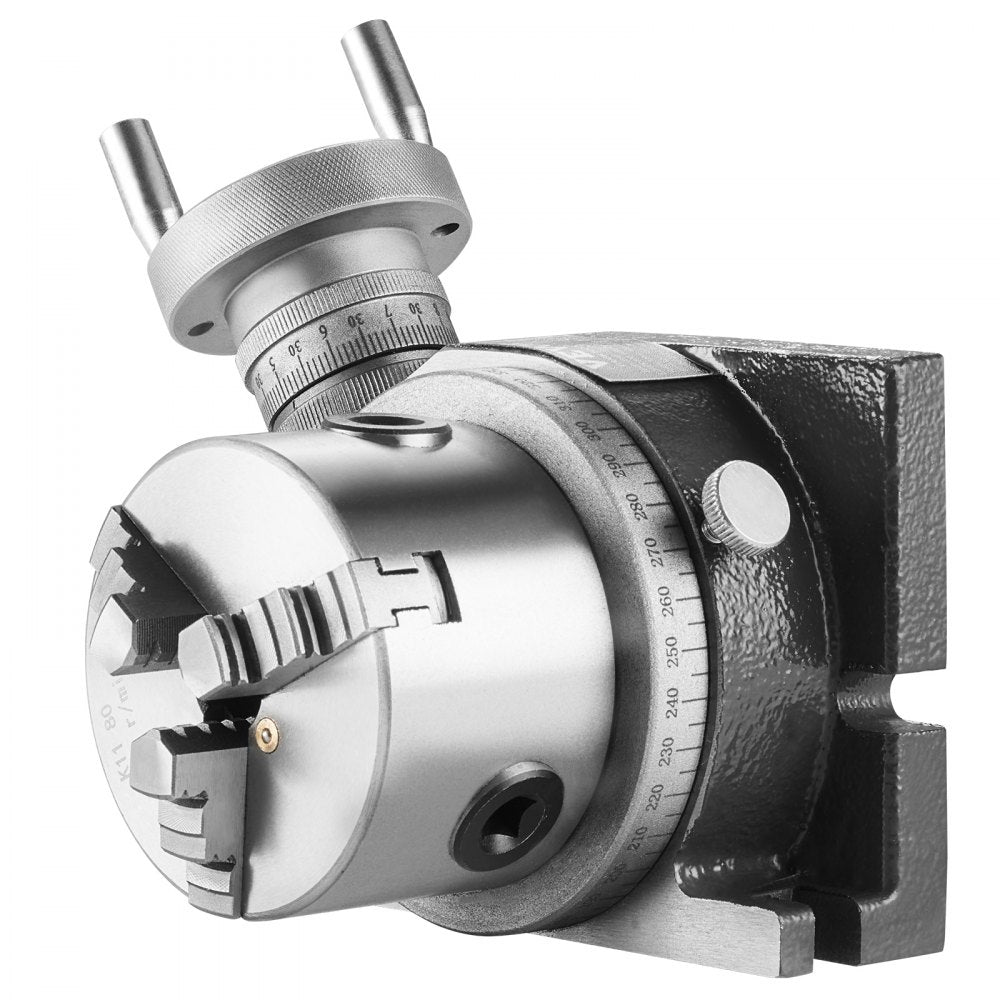

- Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7'' / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 2'' / 50 mm. Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights. Additionally, the table's bottom features positioning slots for easy and secure attachment to your milling machine.

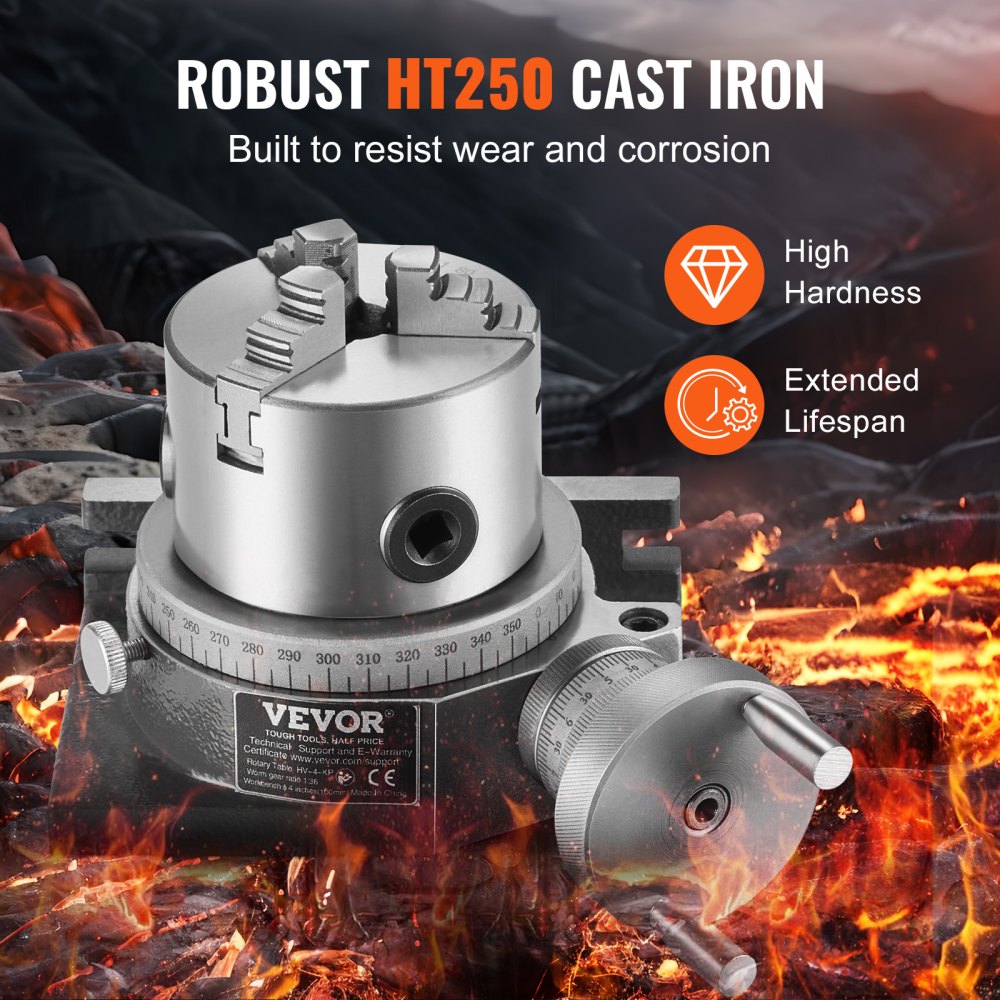

- Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan. Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability. Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.

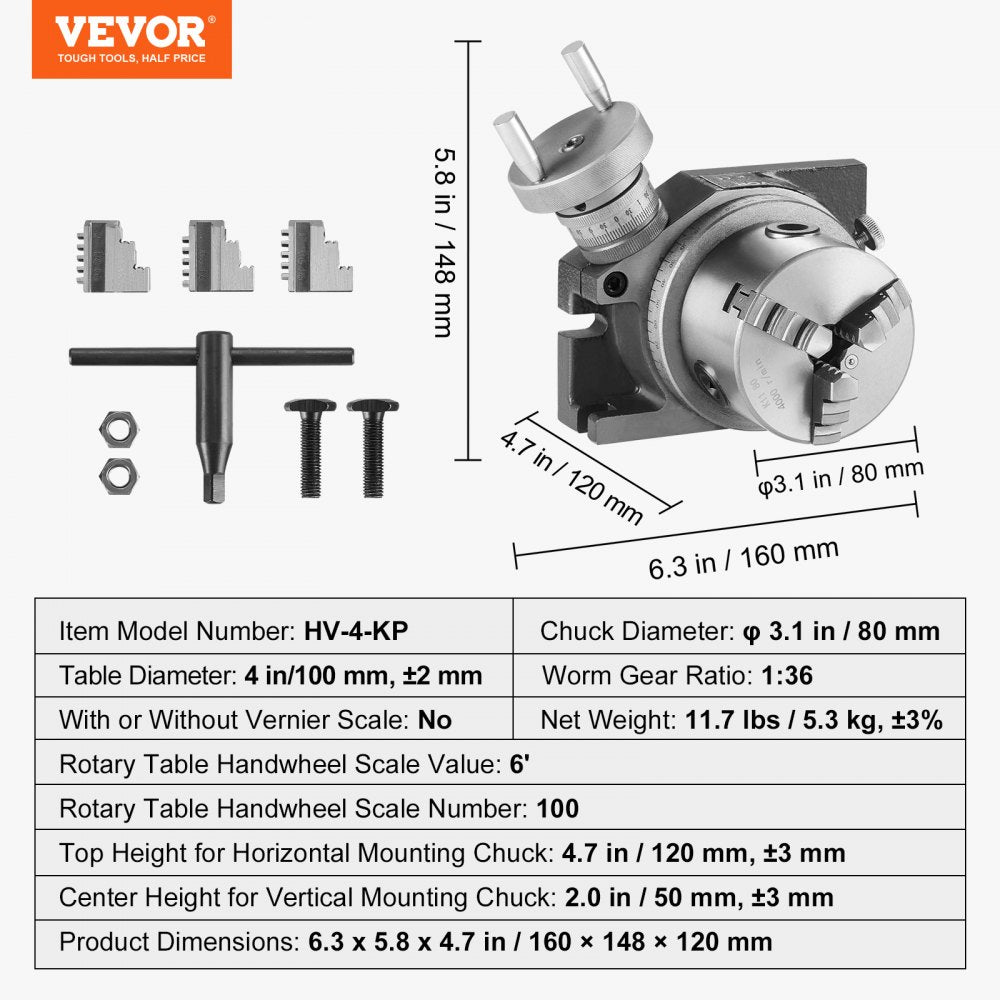

Specifications
| Item Model Number | HV-4-KP |
| Table Diameter | 4 in / 100 mm |
| Top Height for Horizontal Mounting Chuck | 4.7 in / 120 mm |
| Center Height for Vertical Mounting Chuck | 2 in / 50 mm |
| Rotary Table Handwheel Scale Value | 6' |
| Rotary Table Handwheel Scale Number | 100 |
| Vernier Scale | No |
| Worm Gear Ratio | 1:36 |
| Chuck Diameter | 3.1 in / 80 mm |
| External Clamping Range | 0.08"-0.9" / 2-22 mm |
| Internal Clamping Range | 1.0"-2.8" / 25-70 mm |
| External Jaw Clamping Range | 0.9"-2.5" / 22-63 mm |
| Table Scale | 360 degrees |
| Net Weight | 11.7 lbs / 5.3 kg |
| Dimensions | 6.3 x 5.8 x 4.7 in / 160 x 148 x 120 mm |
| Material | HT250 cast iron |

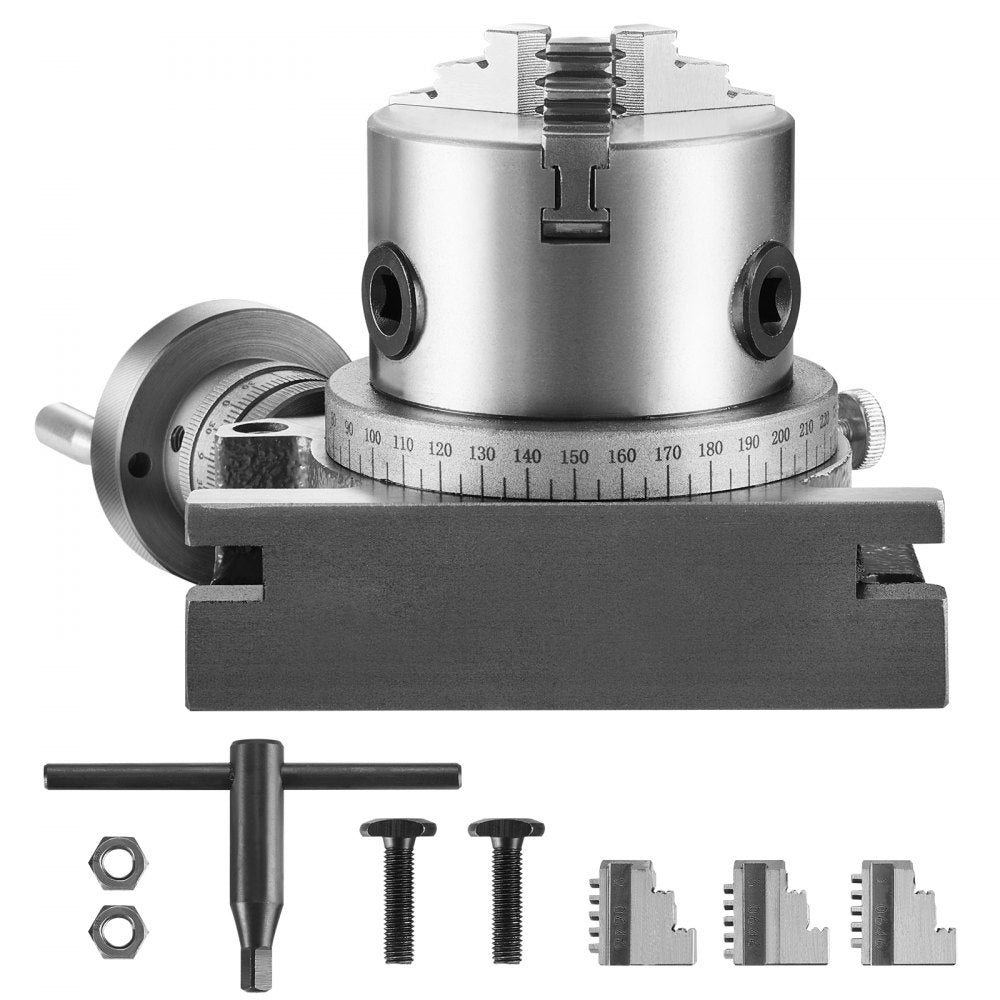

Package Contents
Rotary table
3-jaw chuck
Internal jaw set
External jaw set
T-shaped chuck wrench
M10 T-bolts
Nuts
