    Product Overview

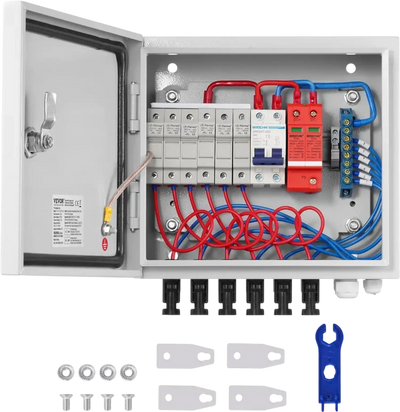

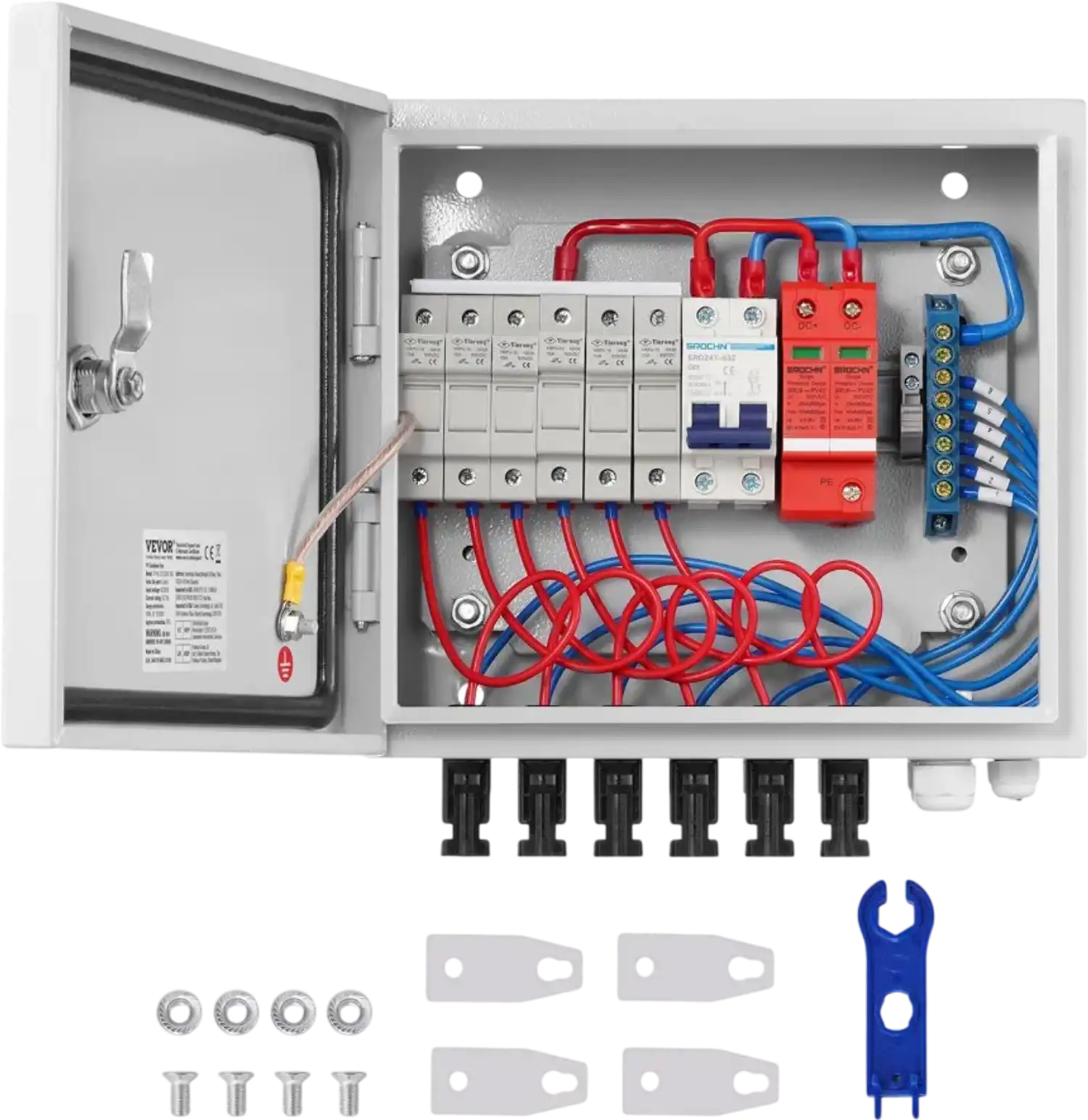

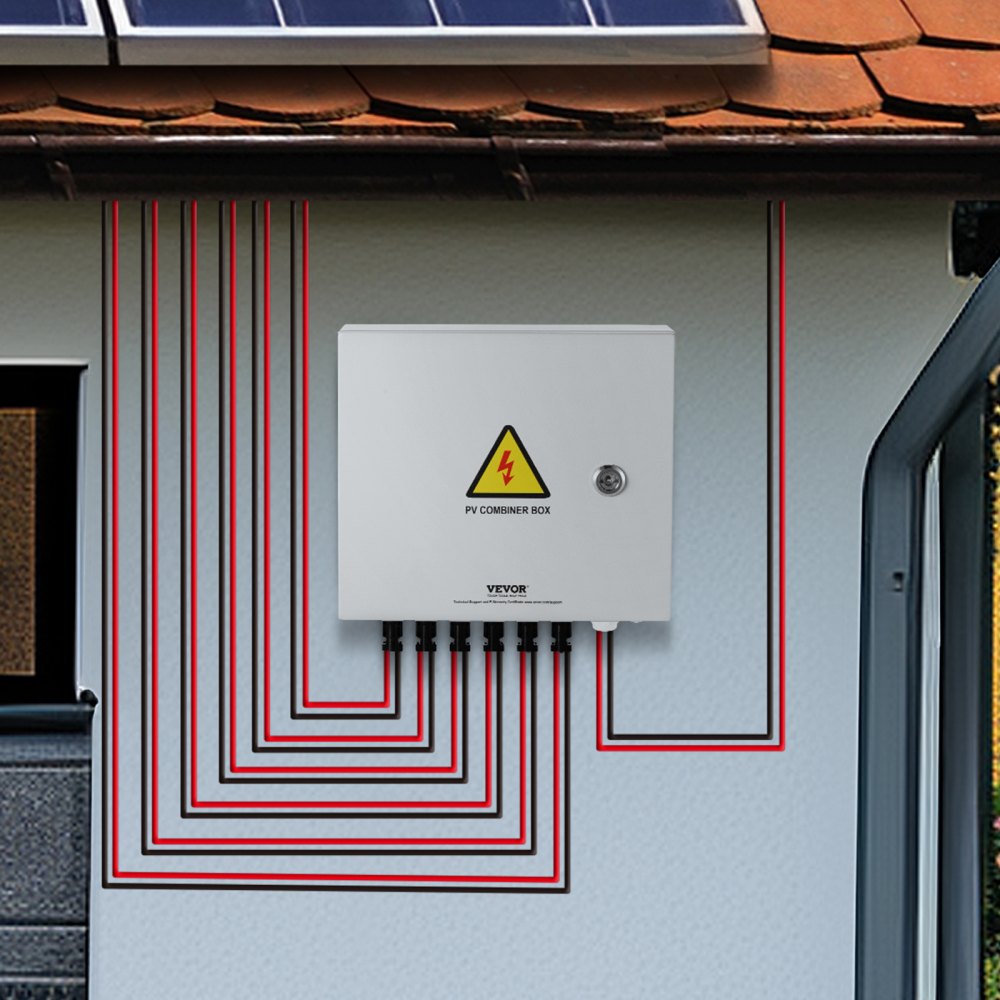

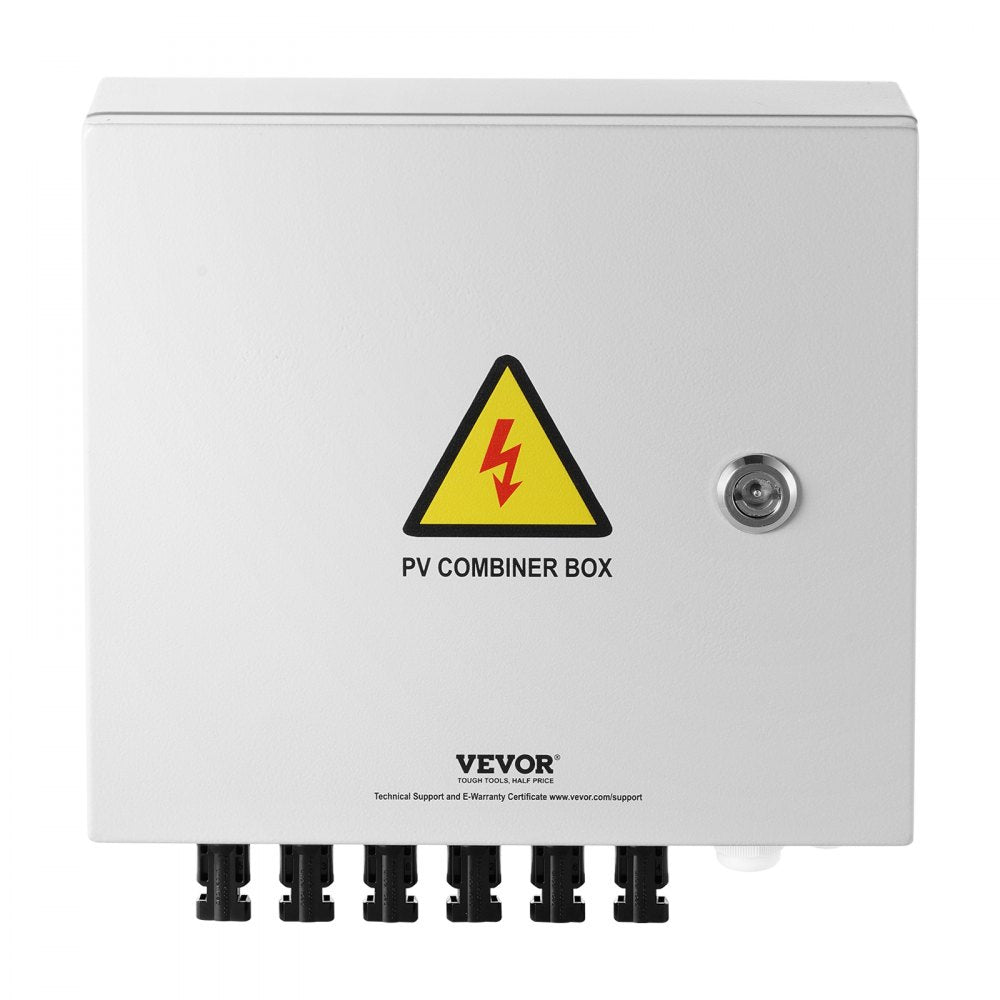

    The Vevor PV combiner box is designed to simplify connections between multiple solar panel strings and an inverter in grid-tied or off-grid systems. It features a rugged steel enclosure with IP65 protection for reliable outdoor performance. Built-in components include 6 DC fuses, a 63A main circuit breaker, and surge protection for added system safety. Its rotary lock door and detachable mounting plate help support secure installation and easier maintenance.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

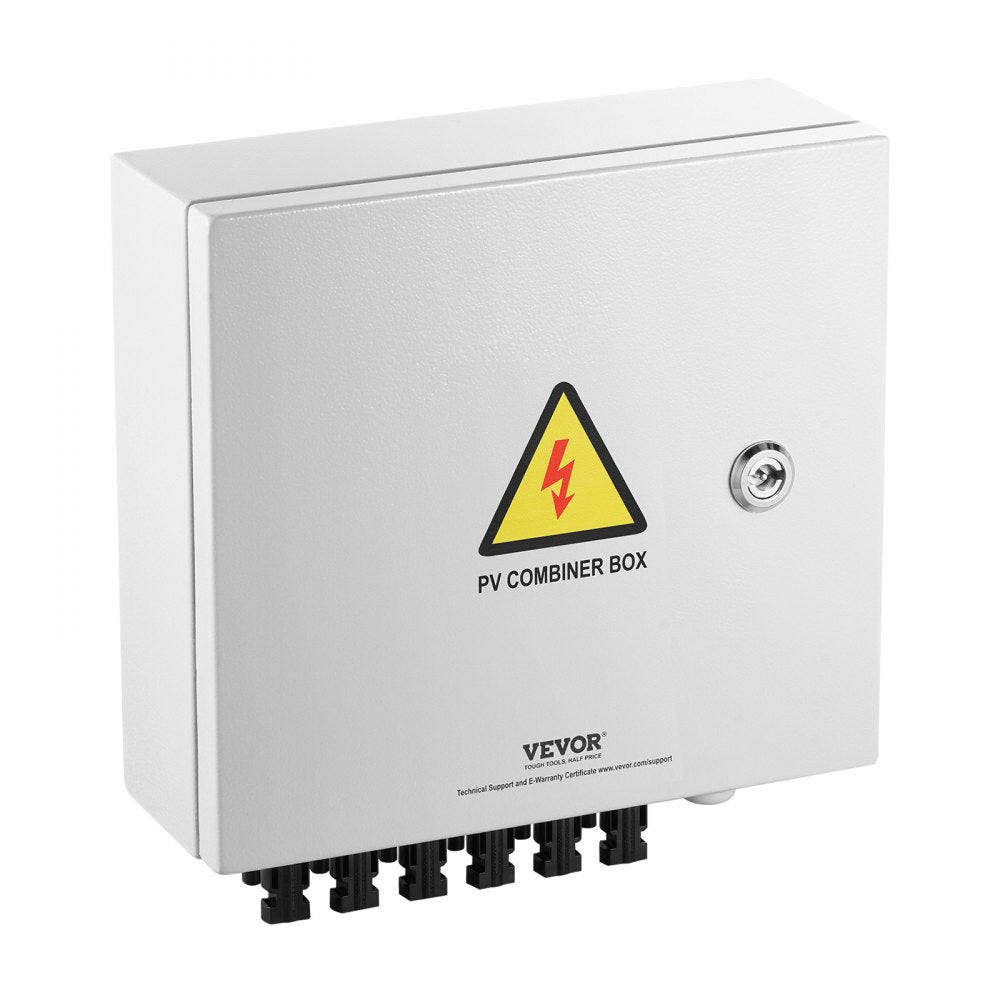

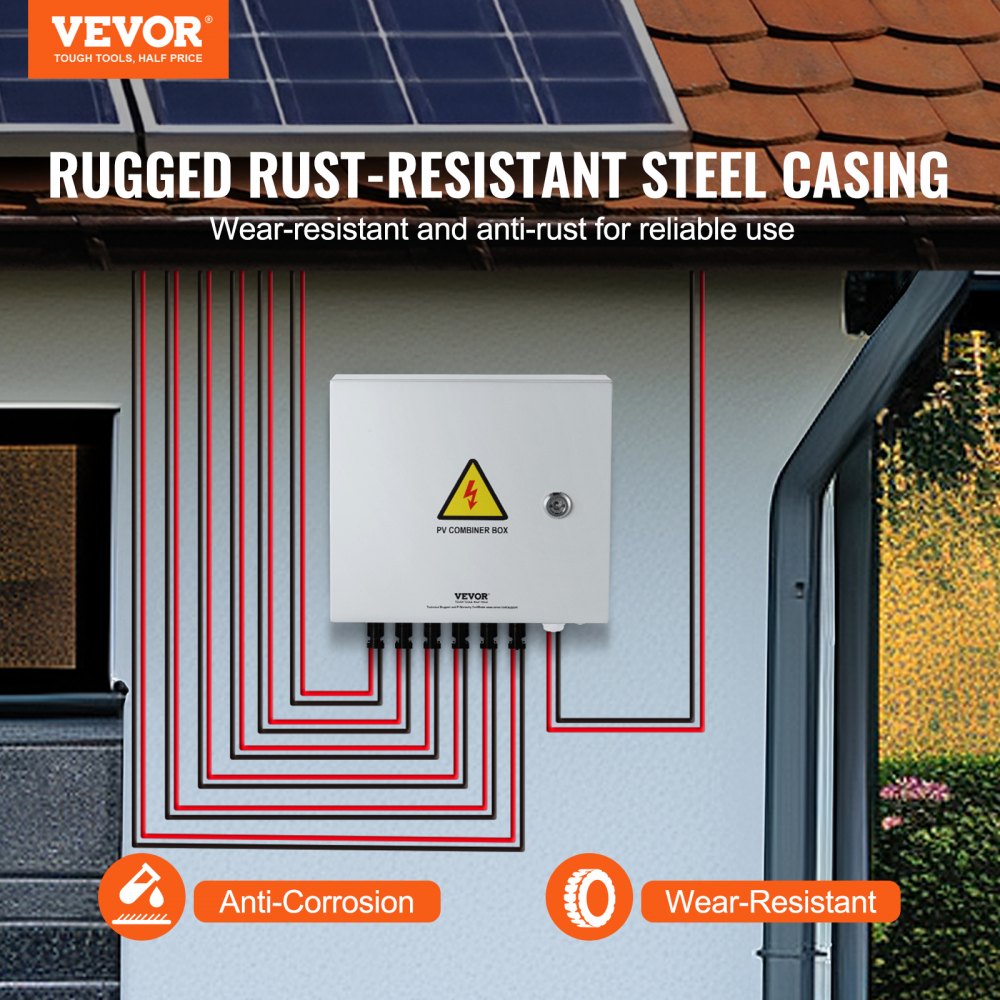

    • Durability Meets Reliability: Crafted from rugged steel, our PV combiner box exterior ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, its exceptional impact resistance and high fracture toughness offer optimal performance even in challenging environments. Elevate your solar setup with our solar combiner box!

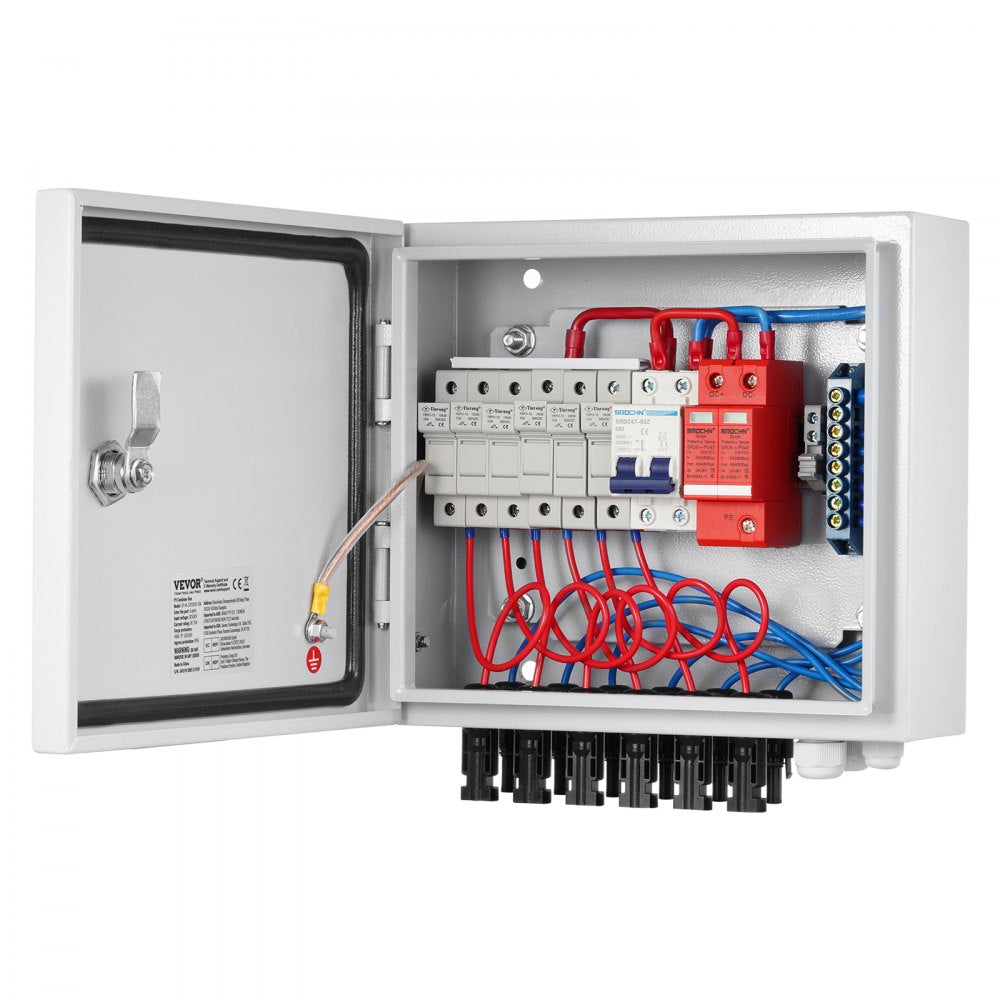

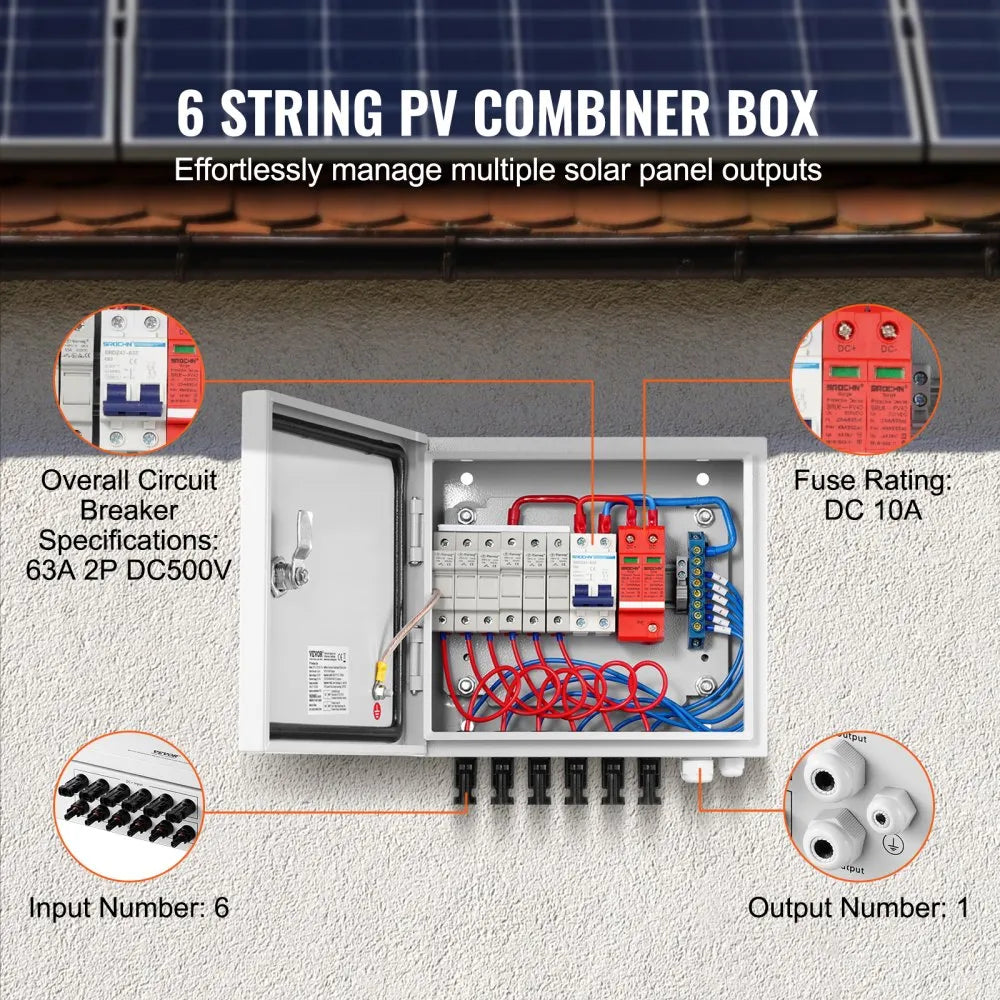

    • Professional PV Combiner Box: Featuring 6 10A DC fuses and a 63A circuit breaker, our 6 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.
    • IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!

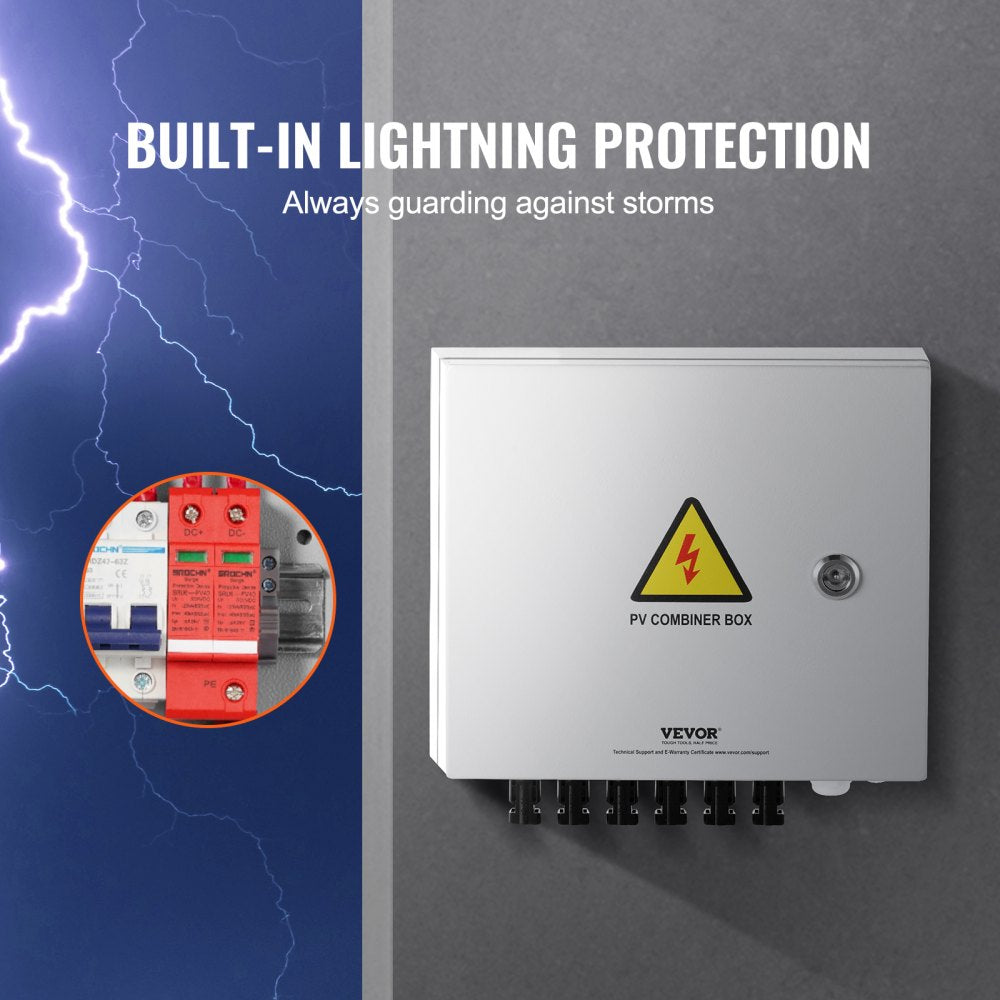

    • 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.

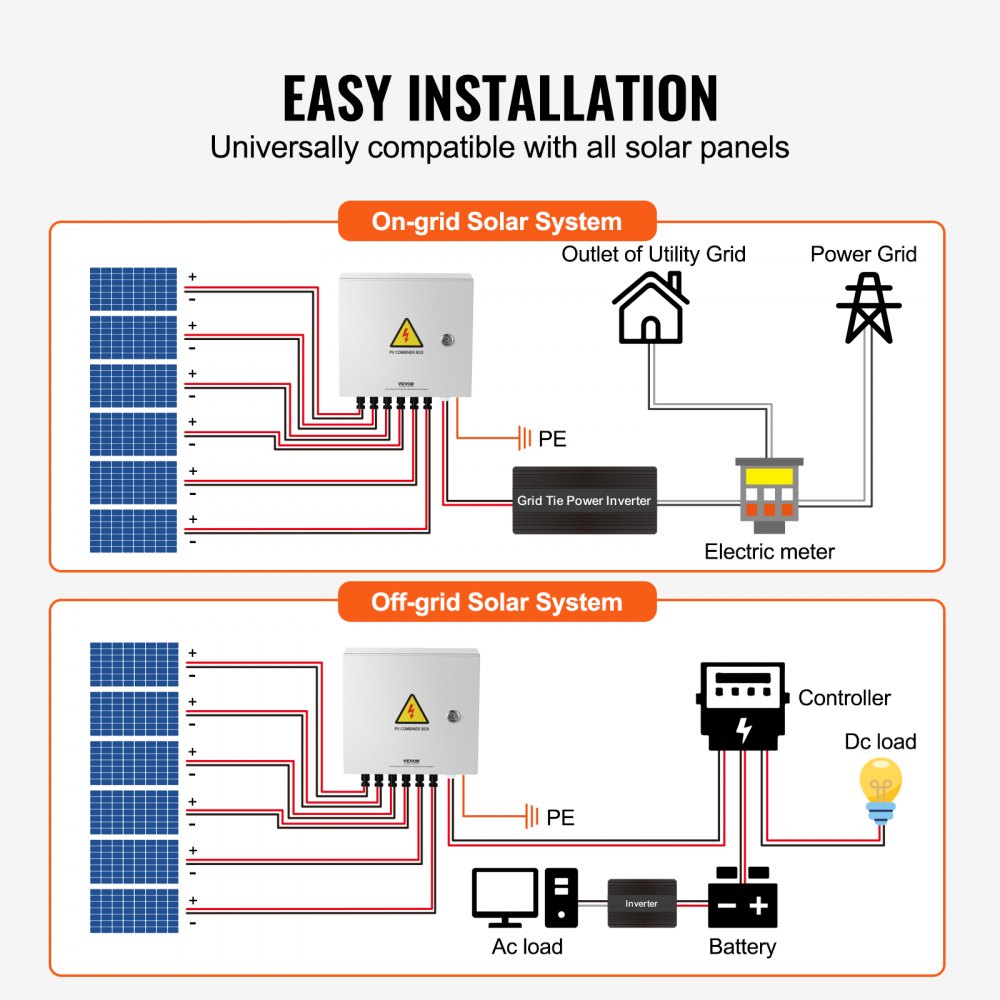

    • Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!

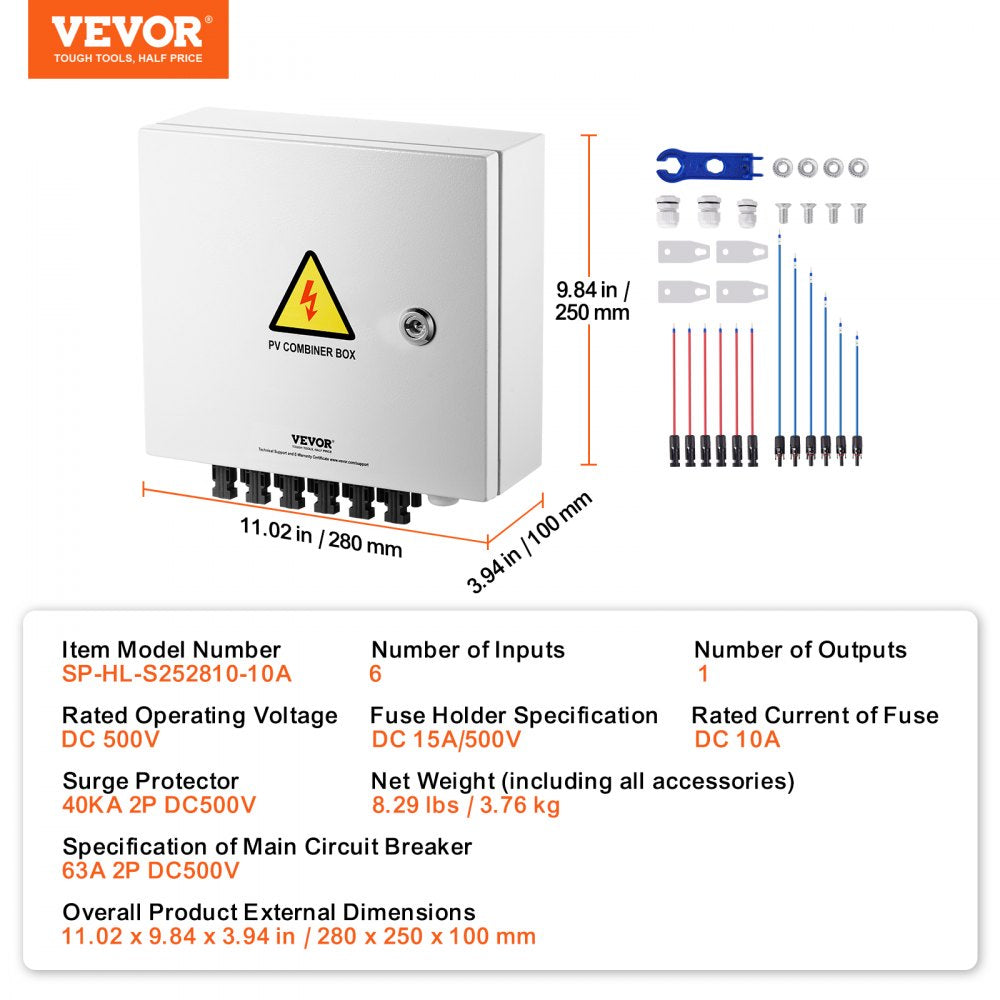

    Specifications

    Item Model Number SP-HL-S252810-10A
    Number of Inputs 6
    Number of Outputs 1
    Rated Operating Voltage DC 500V
    Fuse Holder Specification DC 15A/500V
    Rated Current of Fuse DC 10A
    Main Circuit Breaker Specification 63A 2P DC500V
    Surge Protector 40KA 2P DC500V
    Protection Rating IP65
    Door Opening Method Rotary lock opening
    Mounting Plate Detachable mounting plate
    Sealing Strip PU polyurethane foam material black
    Main Material 0.8 mm cold rolled steel with RAL7035 grey-white coating
    Net Weight 8.29 lbs
    Dimensions 11.02 x 9.84 x 3.94 in

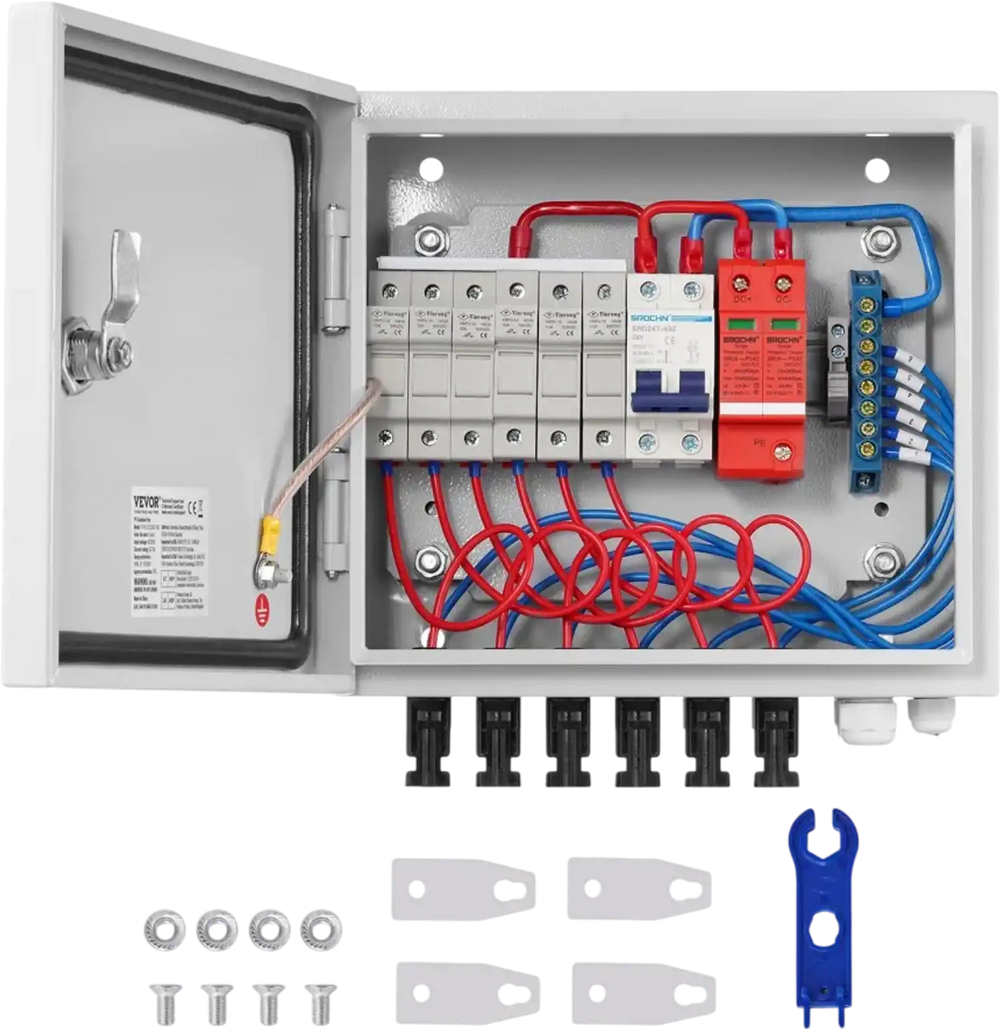

    Package Contents

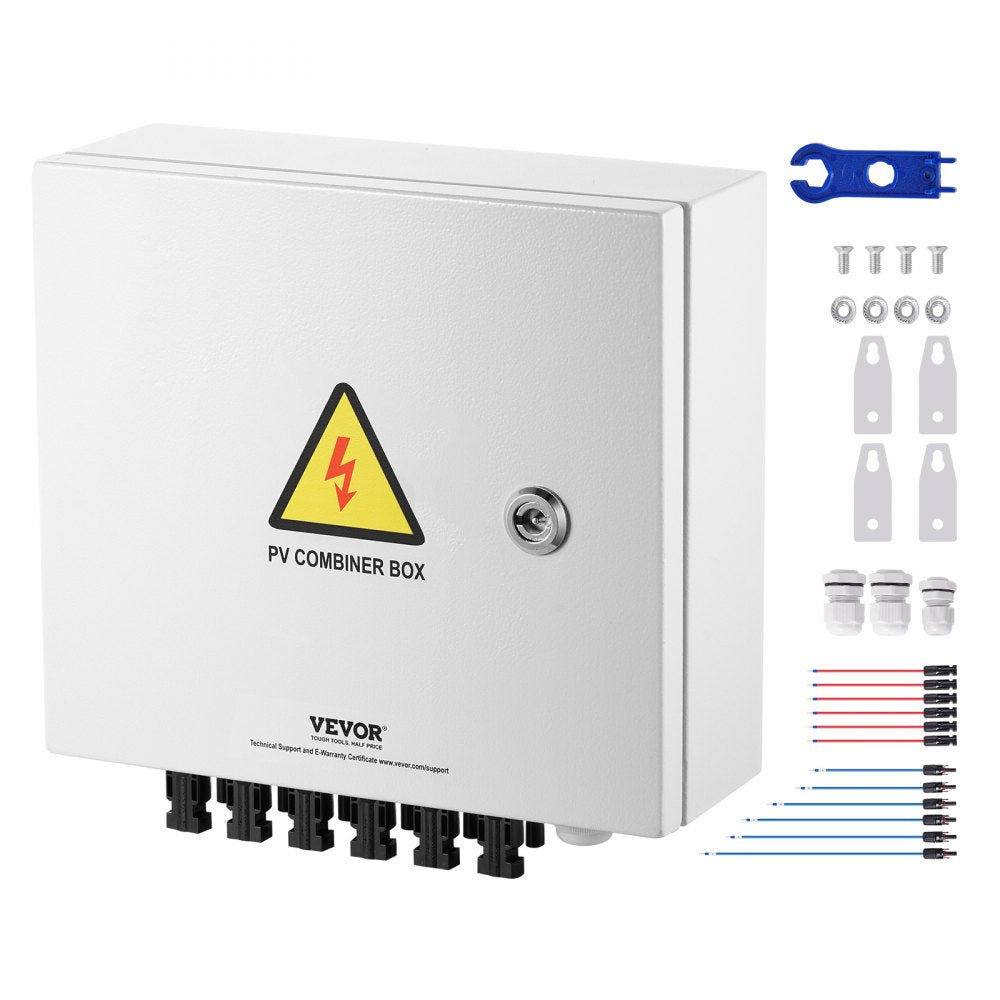

    PV combiner box

    Installation accessories

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
