Product Overview

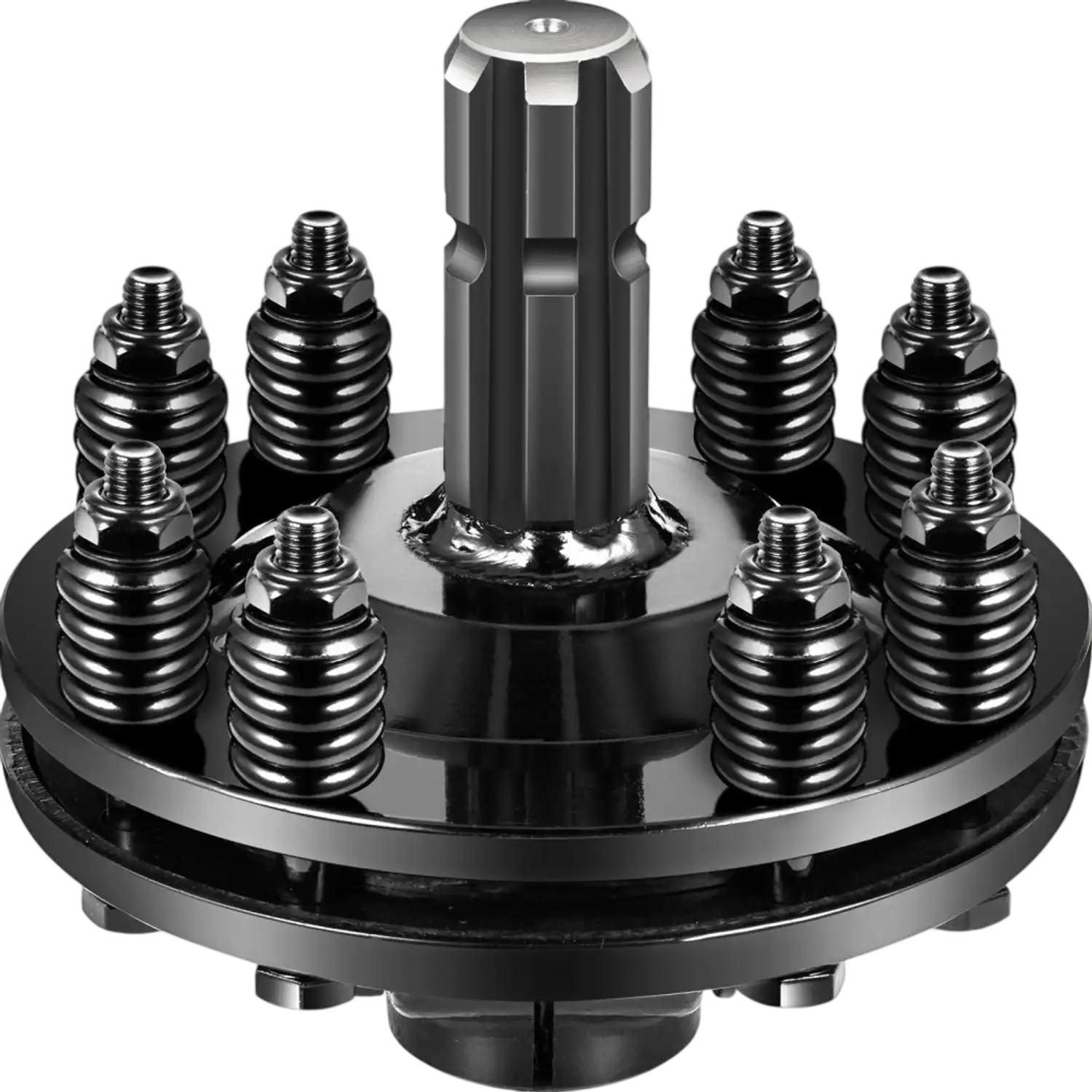

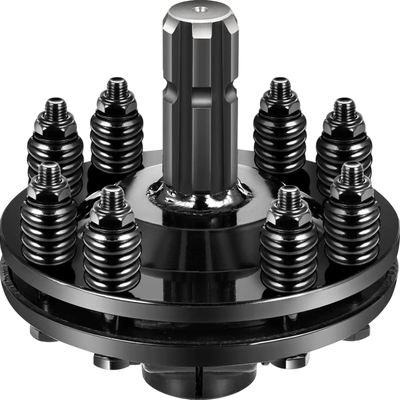

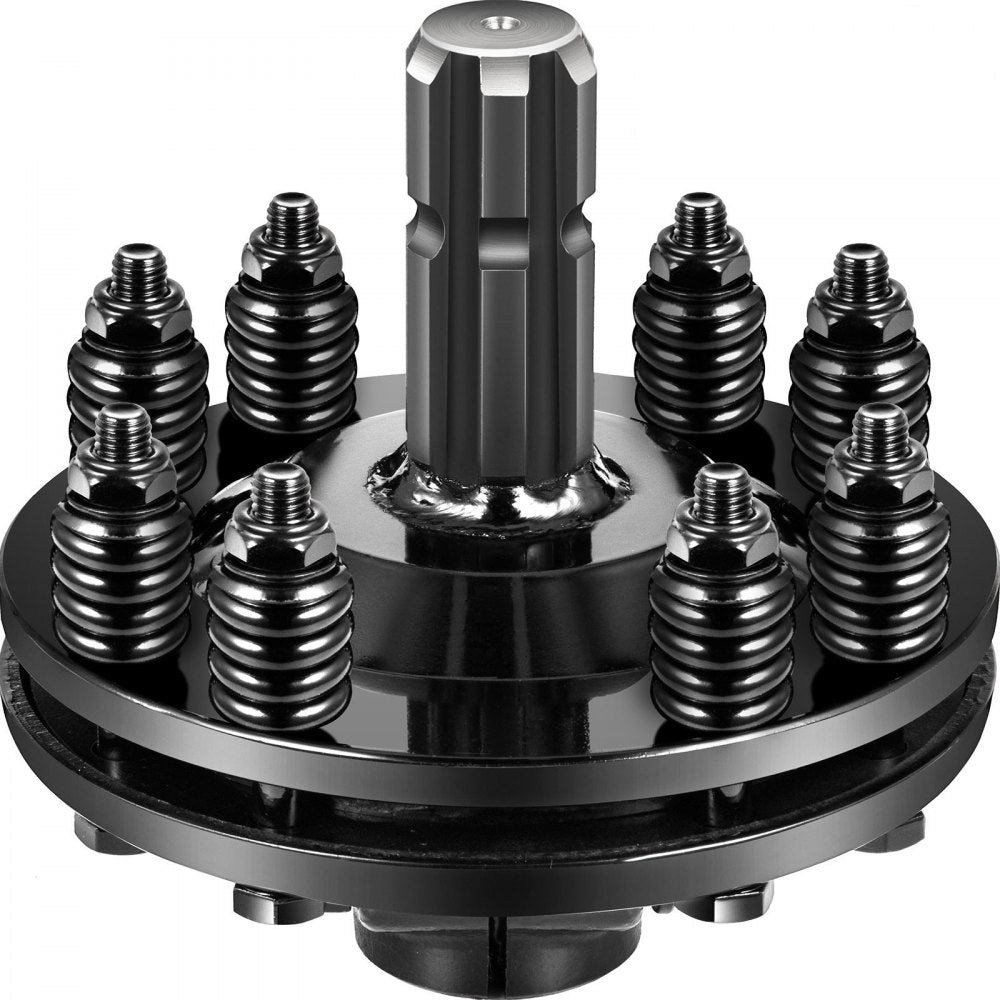

The Vevor PTO slip clutch is designed to protect your tractor and implement drivetrain by limiting torque transfer and allowing the two sides of the PTO shaft to rotate at different speeds when needed. Made from 20CrMnTi carburized steel with a painted black finish, it is built for durability and resistance to impact and wear. Its 1-3/8" 6-spline male and female ends fit standard PTO shaft connections, while the adjustable spring tension supports a 20-55 horsepower range. The clutch uses replaceable friction discs for easier maintenance and long-term use. It is suitable for rotary cutters, brush cutters, rotary mowers, and similar tilling attachments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Allow Two Speeds: Our PTO slip clutch limits the amount of torque being transferred from the tractor to the implement. This is accomplished by slipping or spinning free, which allows the two sides of the PTO shaft to spin at different speeds

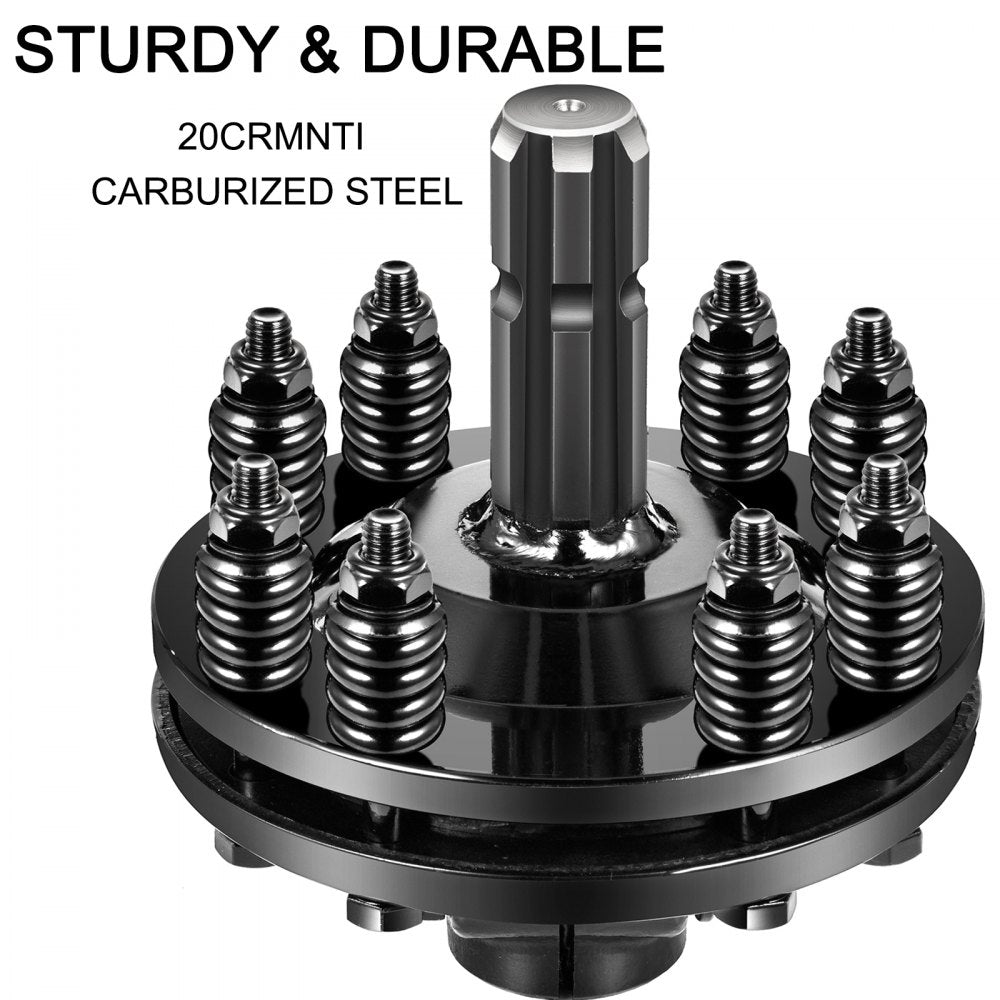

- Quality PTO Slip Clutch: The 20CrMnTi carburized steel which built this tractor PTO slip clutch has been reinforced to resist impact. The black-painted surface is smooth and anti-weary. So, it can withstand higher torque and speed to gain better protection for your PTO shaft.

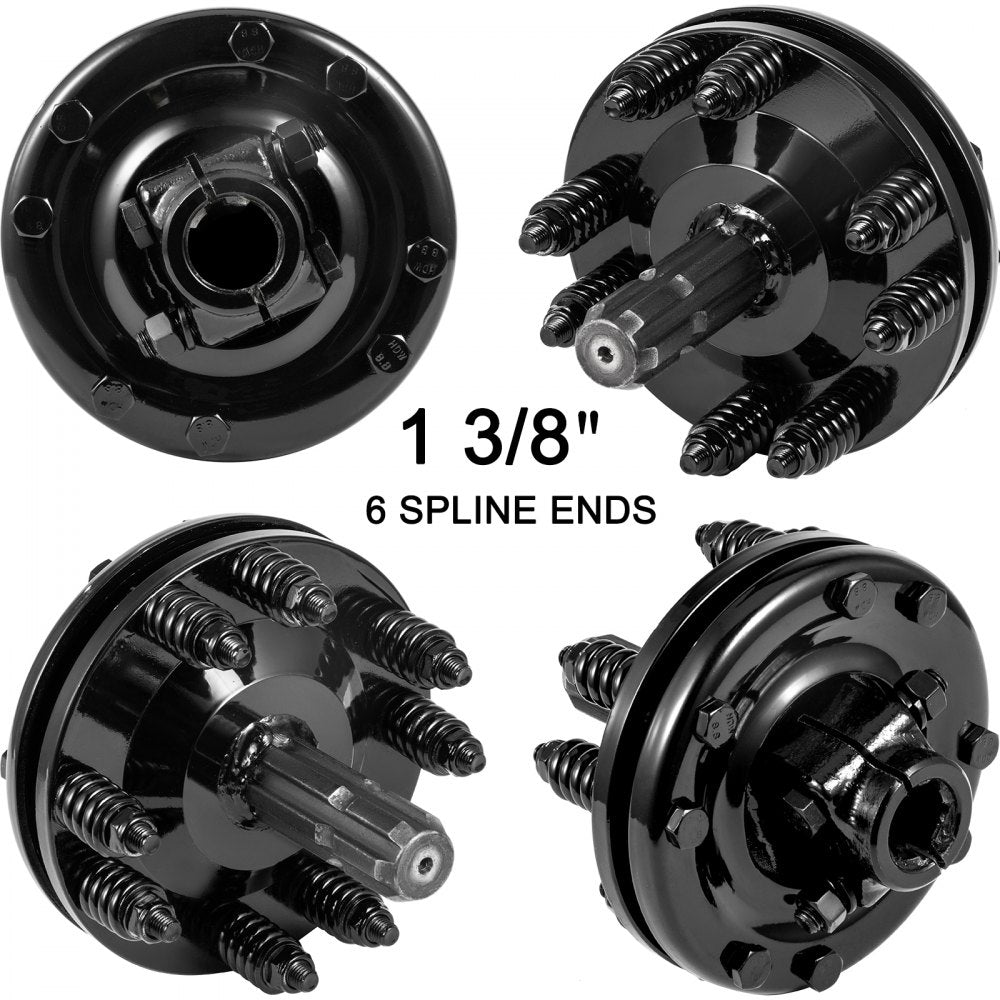

- 1-3/8" x 6 Spline Ends: Constructed with 6-spline ends, this PTO clutch has a standard size of 1-3/8" for both male and female ends. It perfectly matches the same diameter of implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts.

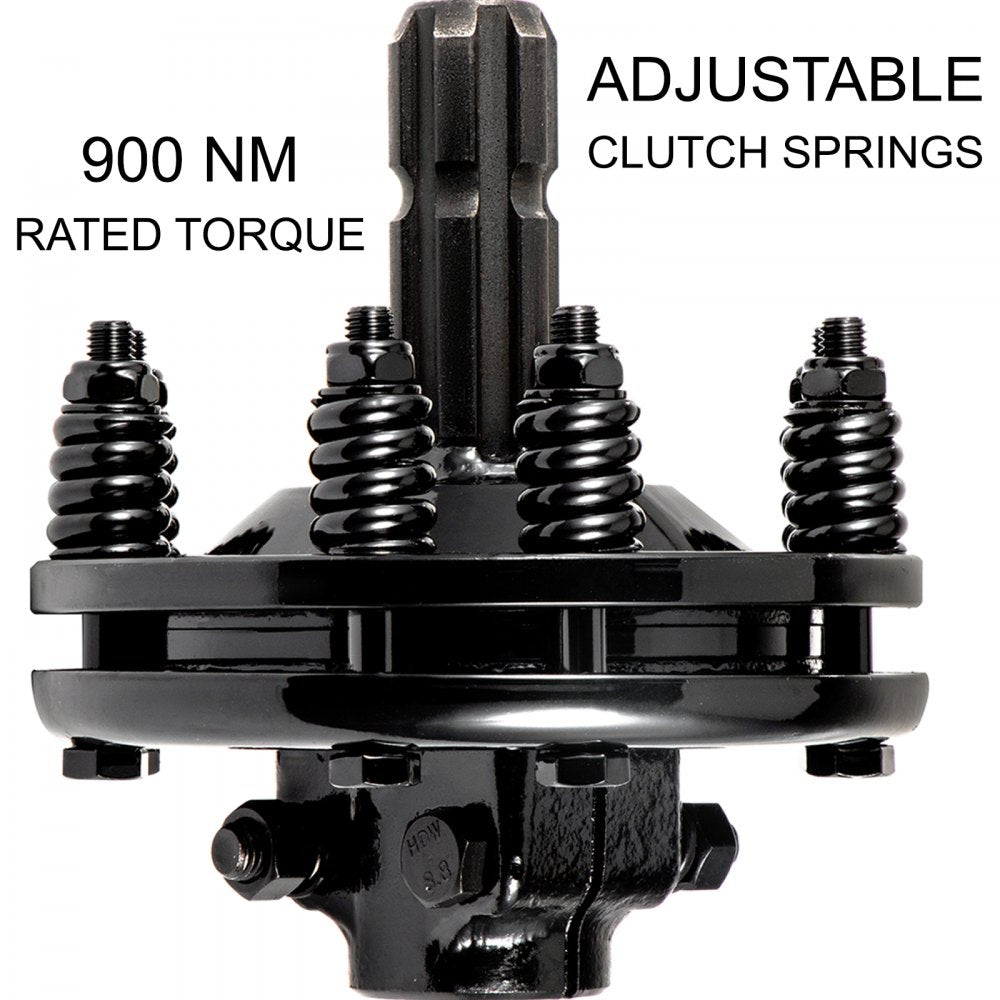

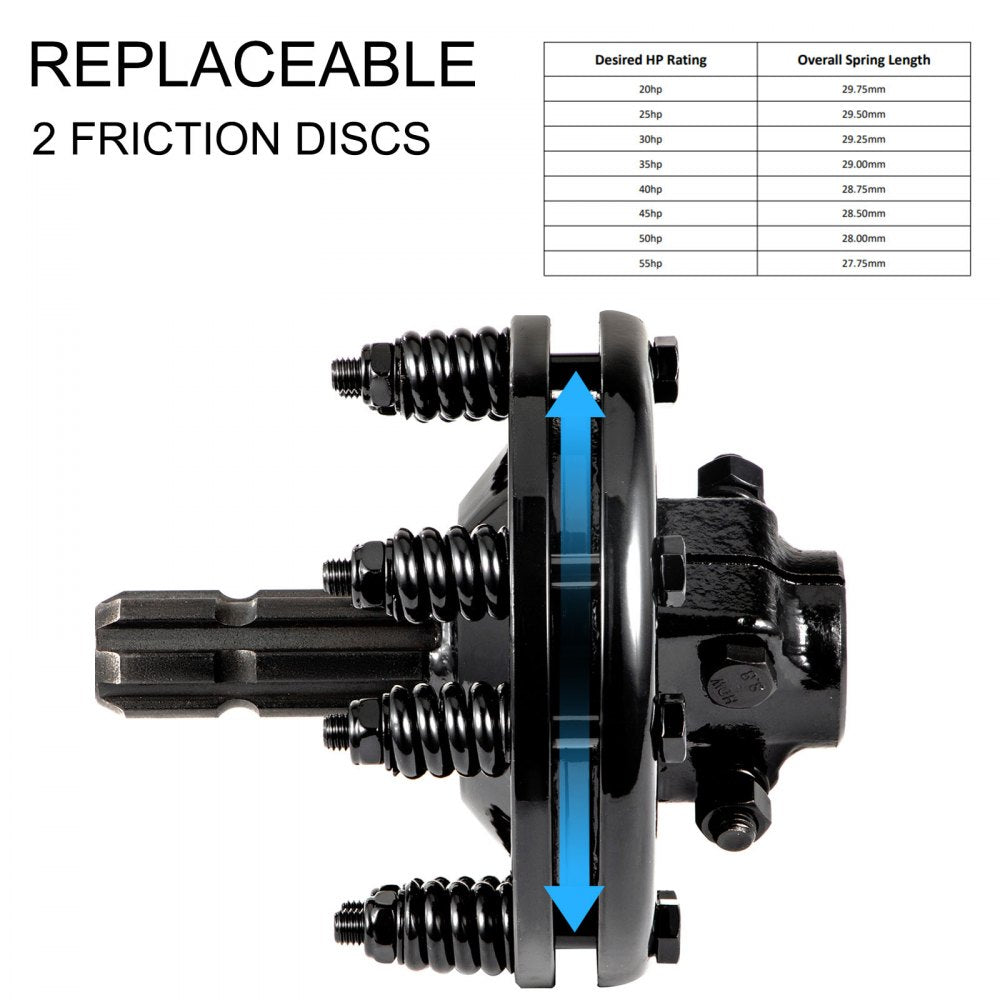

- Easy Torque Adjustments: Rated torque: 900 nm, adjustment range: 20 - 55 hp. You can adjust the length of the tension springs to acquire an appropriate torque for your rotary cutter slip clutch. Just tight / loose the eight nuts by 1/4 of a turn and check its tightness for correct operation.

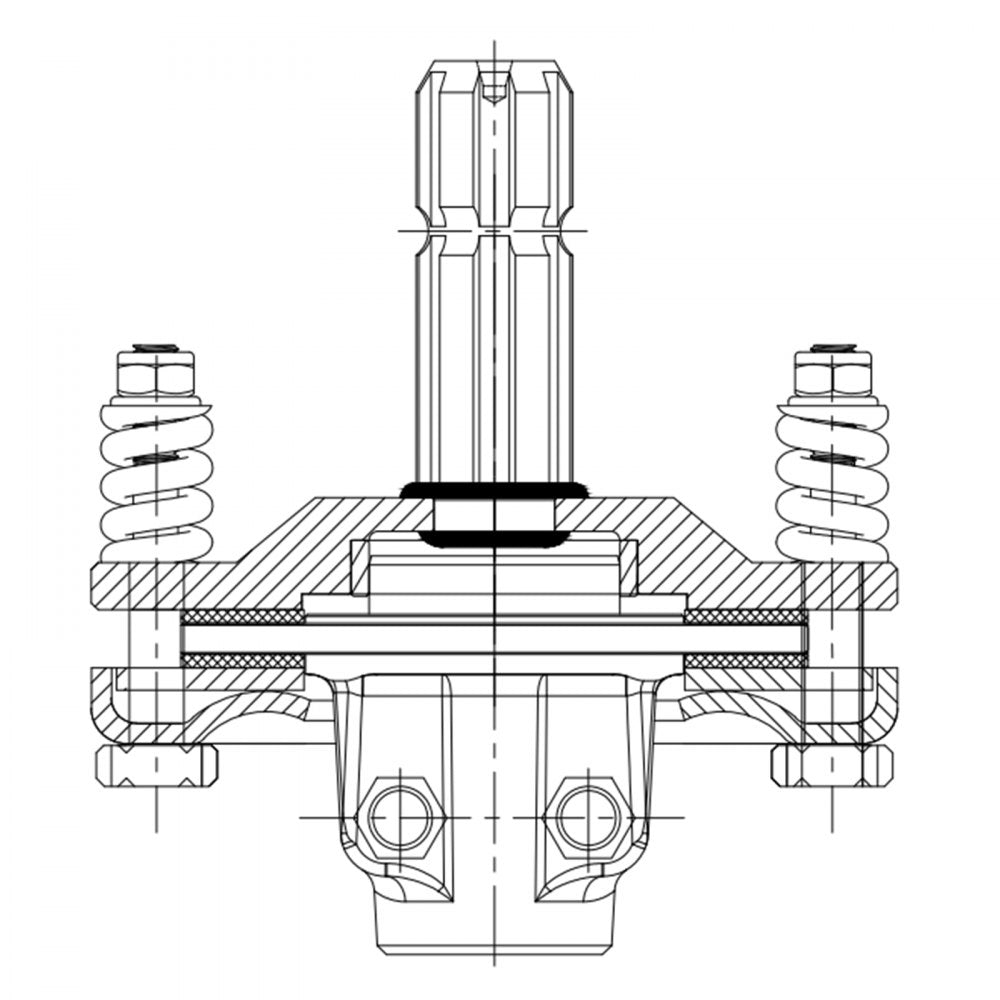

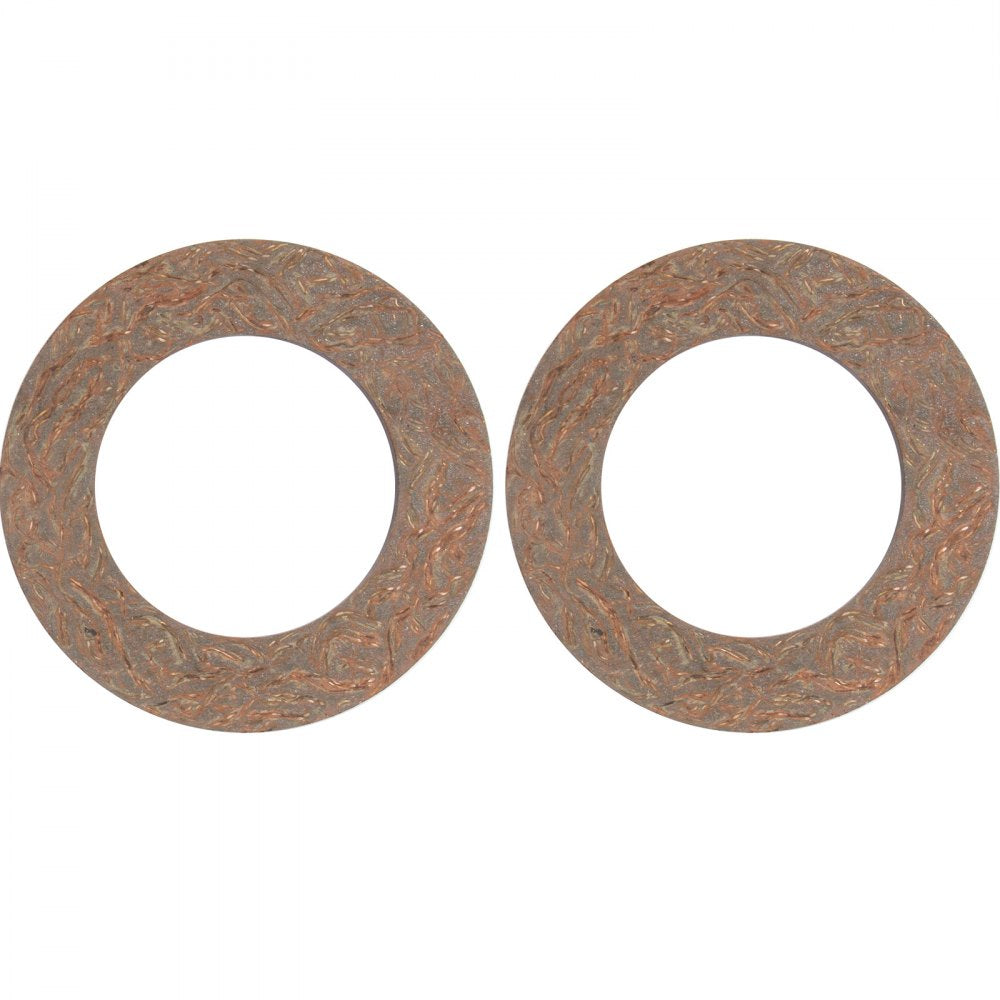

- Replaceable Friction Discs: The PTO slip clutch adopts an essential spring and disc set-up. It is assembled with fiction discs inside to help transmit forces. It is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors.
Specifications
| Material | 20CrMnTi Carburized Steel |
| Color | Black |
| Surface Finishing | Painted |
| Female & Male End Size | 1-3/8" 6 Spline |
| Tension Springs | Adjustable |
| Friction Discs | Replaceable |
| Rated Torque | 900 nm |
| Adjustment Range | 20 - 55 Horse Power |
| Dimensions | 7.5" H x 7" W |
Package Contents
1 x PTO Split Clutch
1 x Torque Setting Instruction
Warranty
This item comes with a 1 year factory warranty.
