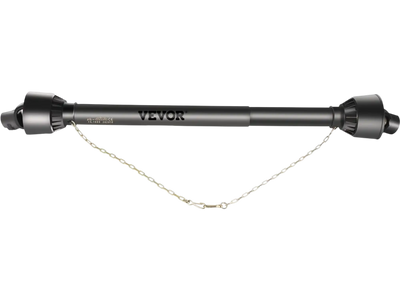

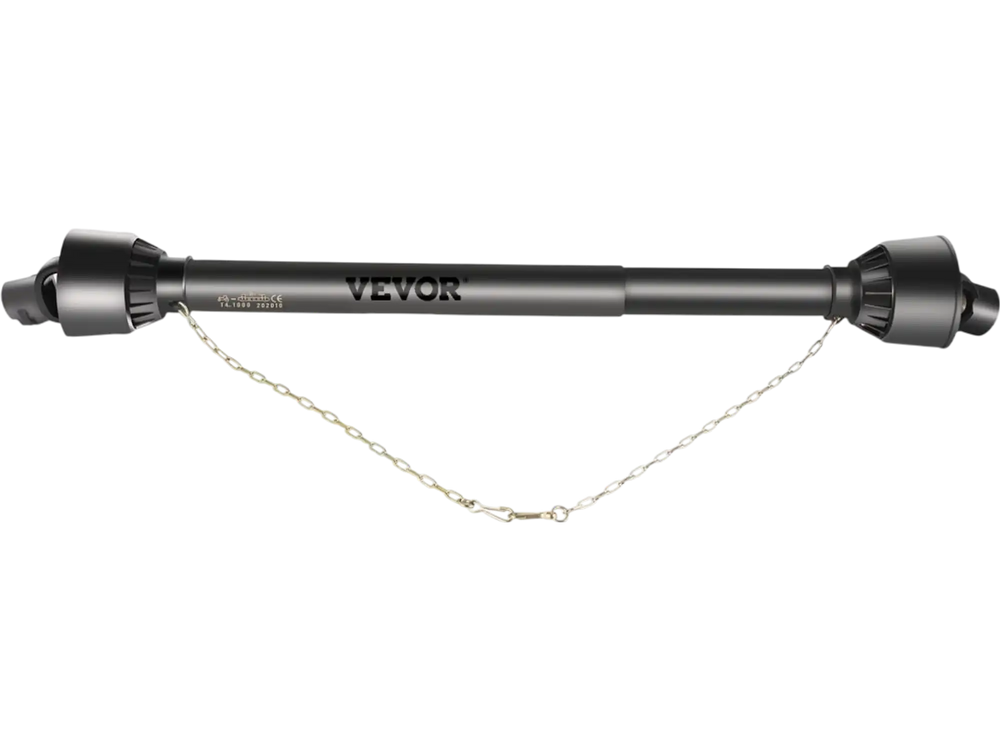

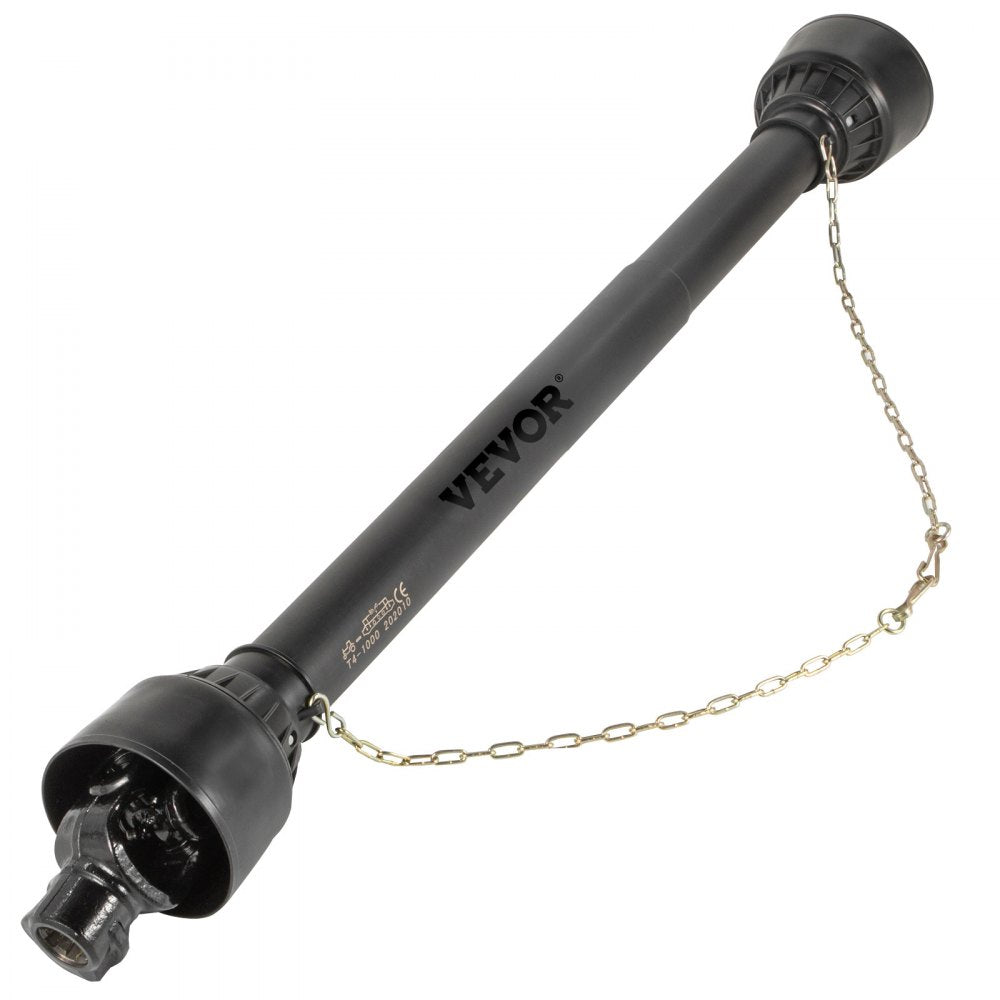

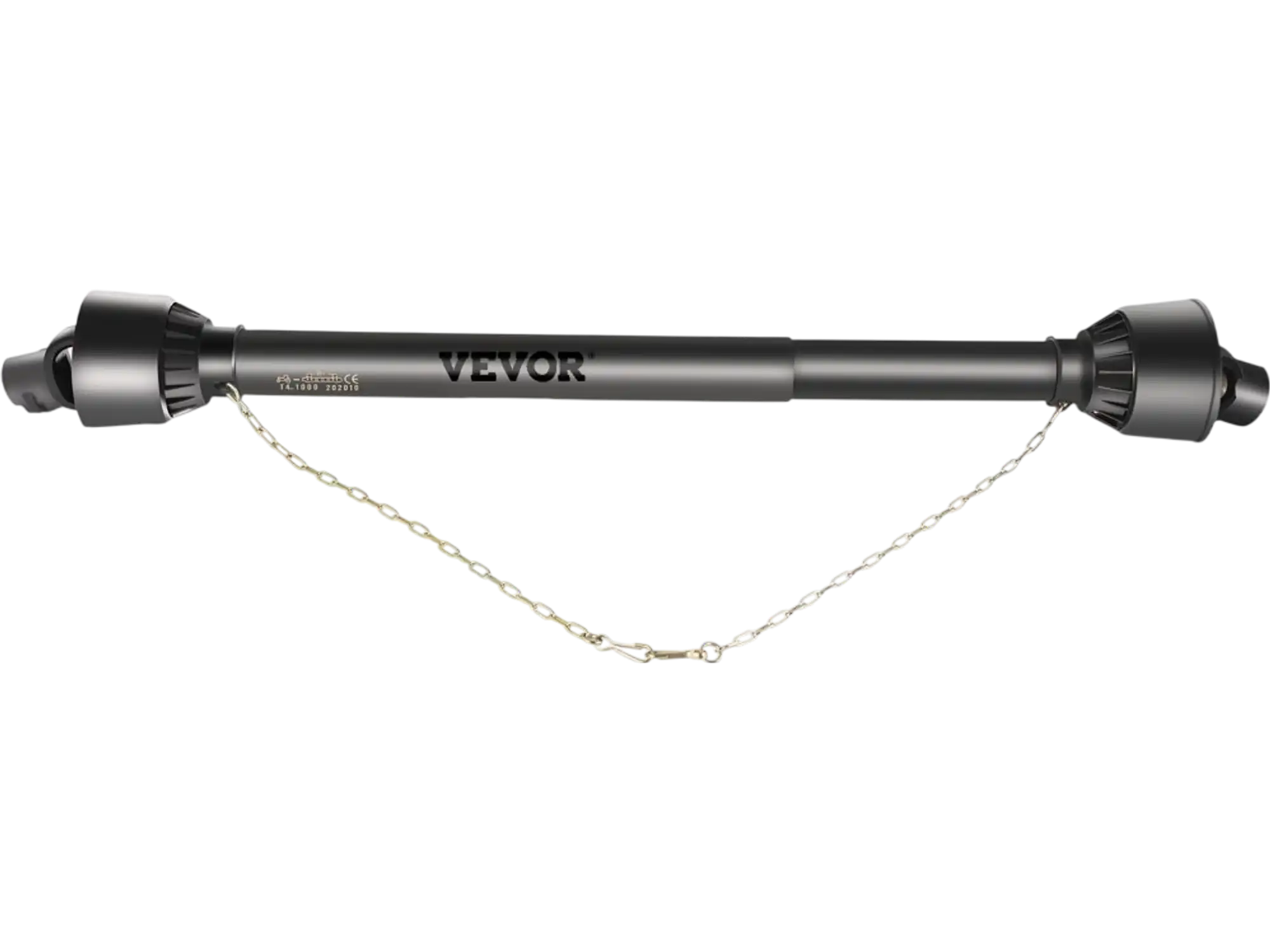

Vevor PTO Drive Shaft 39"-55" Series 4 Tractor Shaft New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

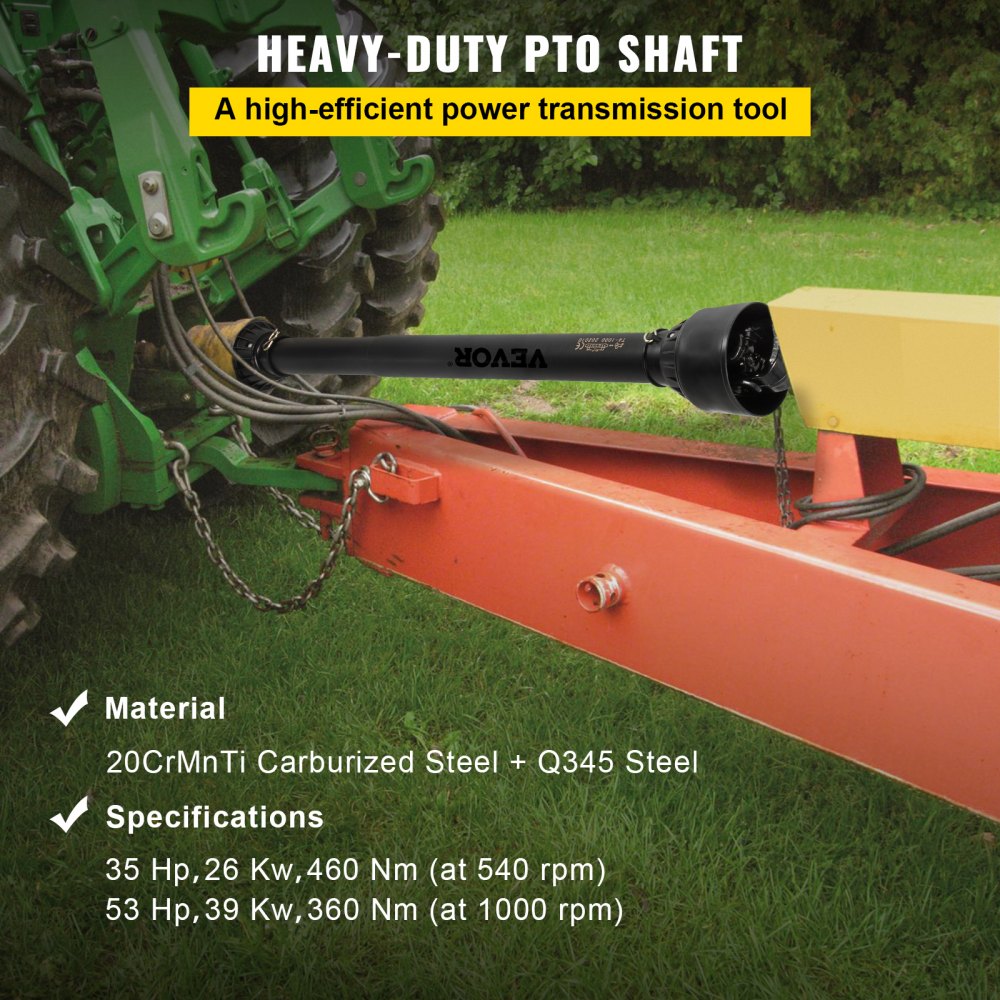

- Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

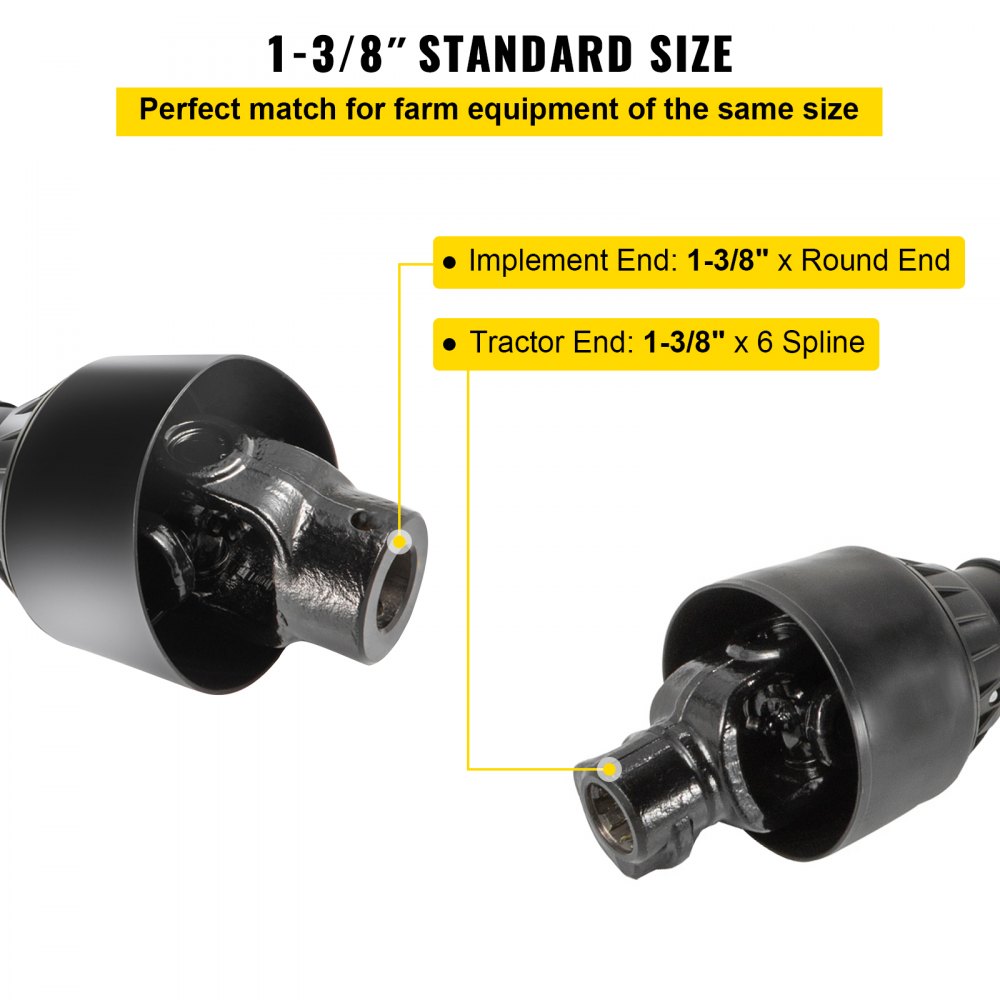

- 6 Spline ＆ Round Ends: Constructed with a 6-spline tractor end and a round implement end, our brush hog PTO shaft has a standard size of 1-3/8 inches. It can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

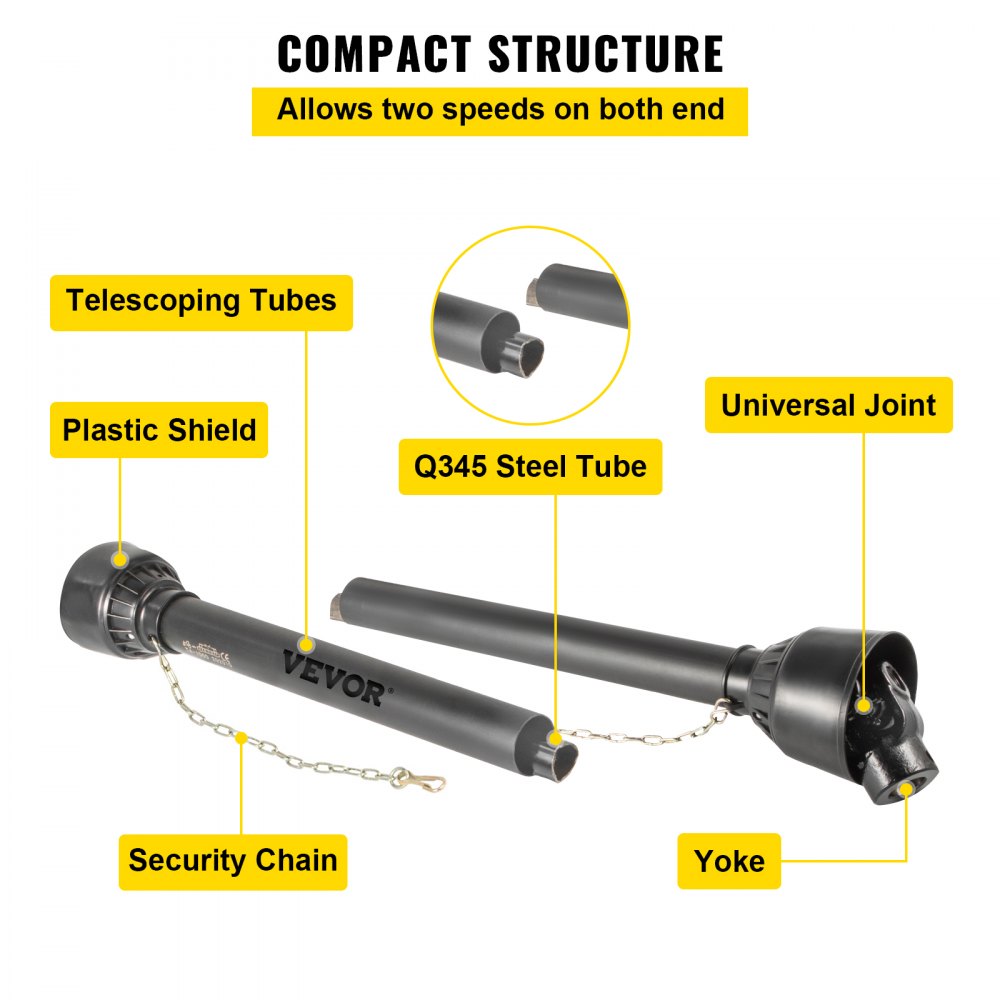

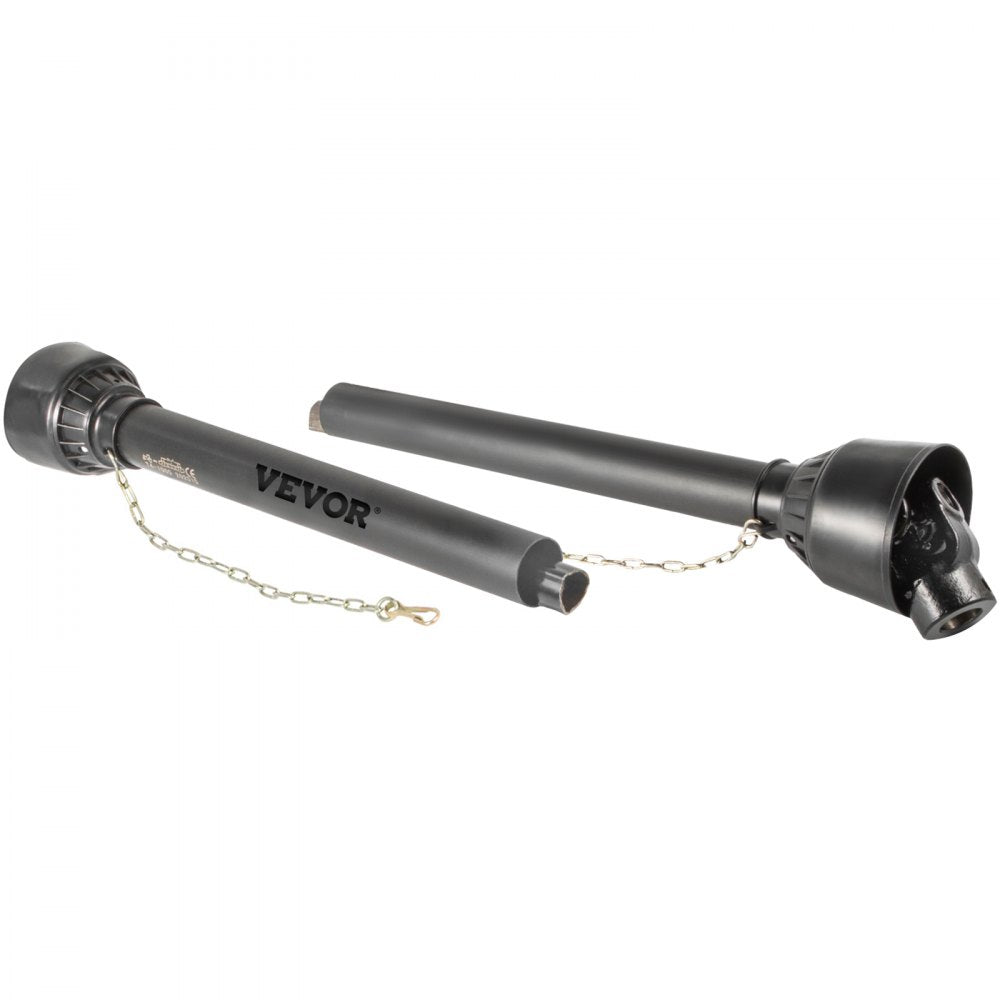

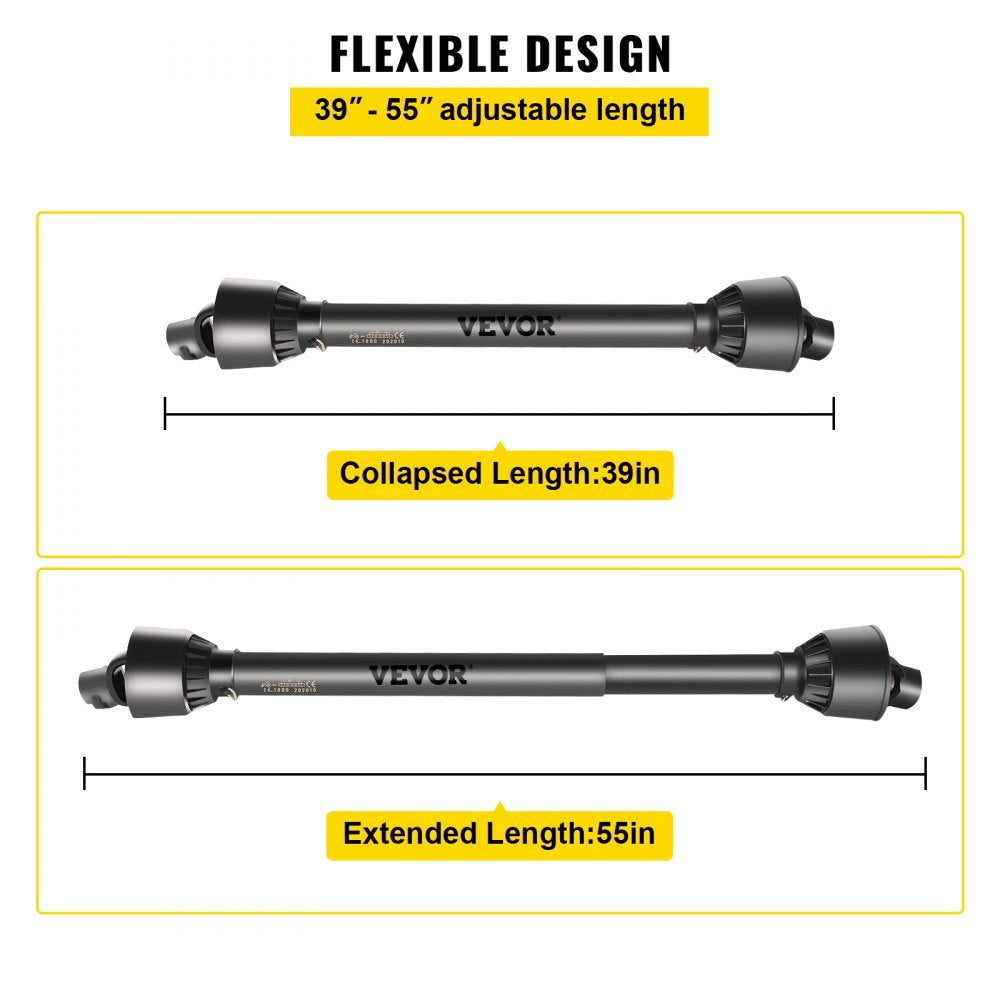

- Adjustable Length: Compressed Length: 39" / 1000 mm; Extended Overall Length: 55" / 1400 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.

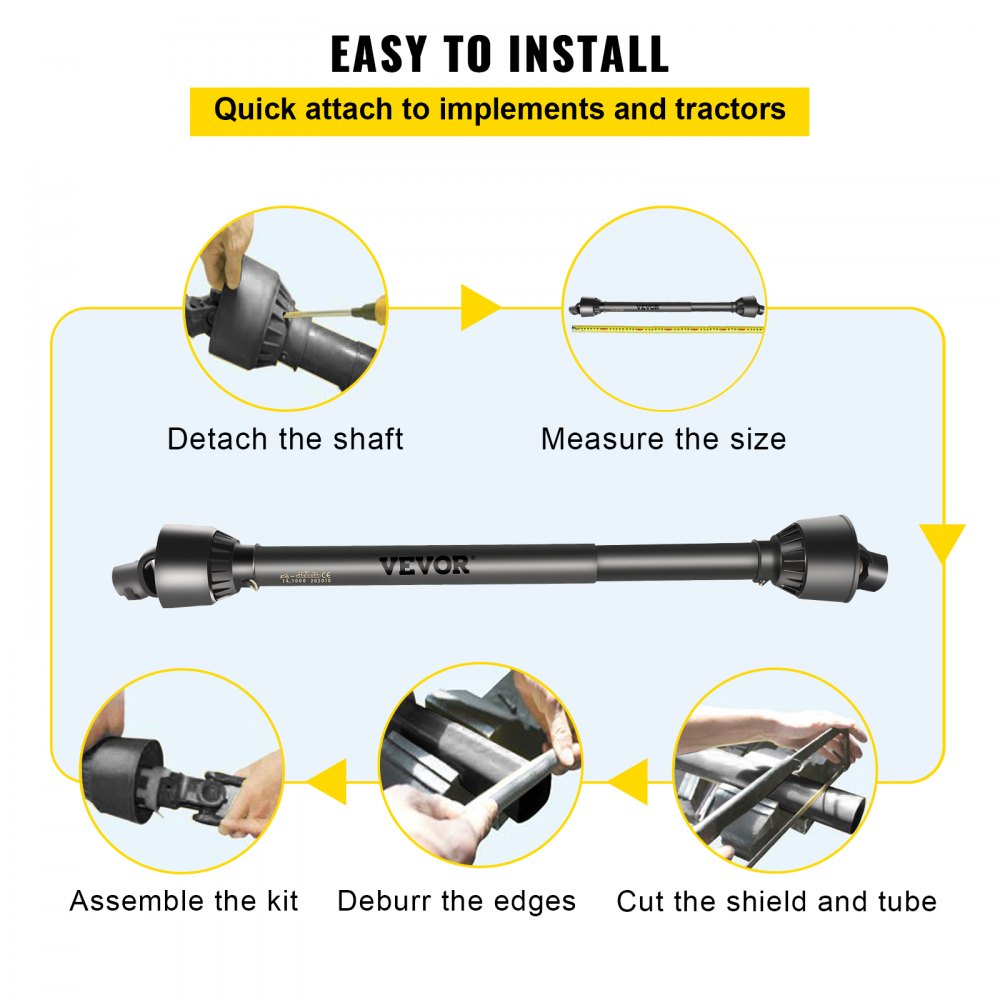

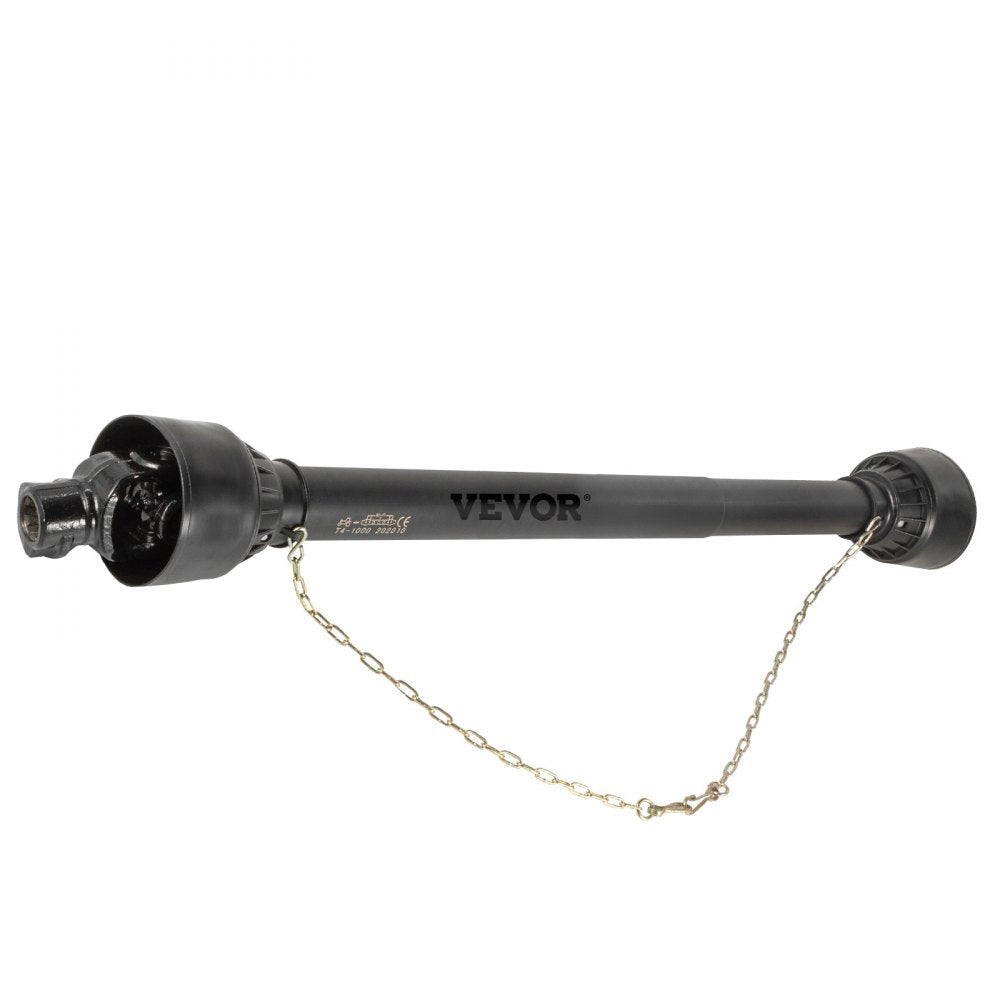

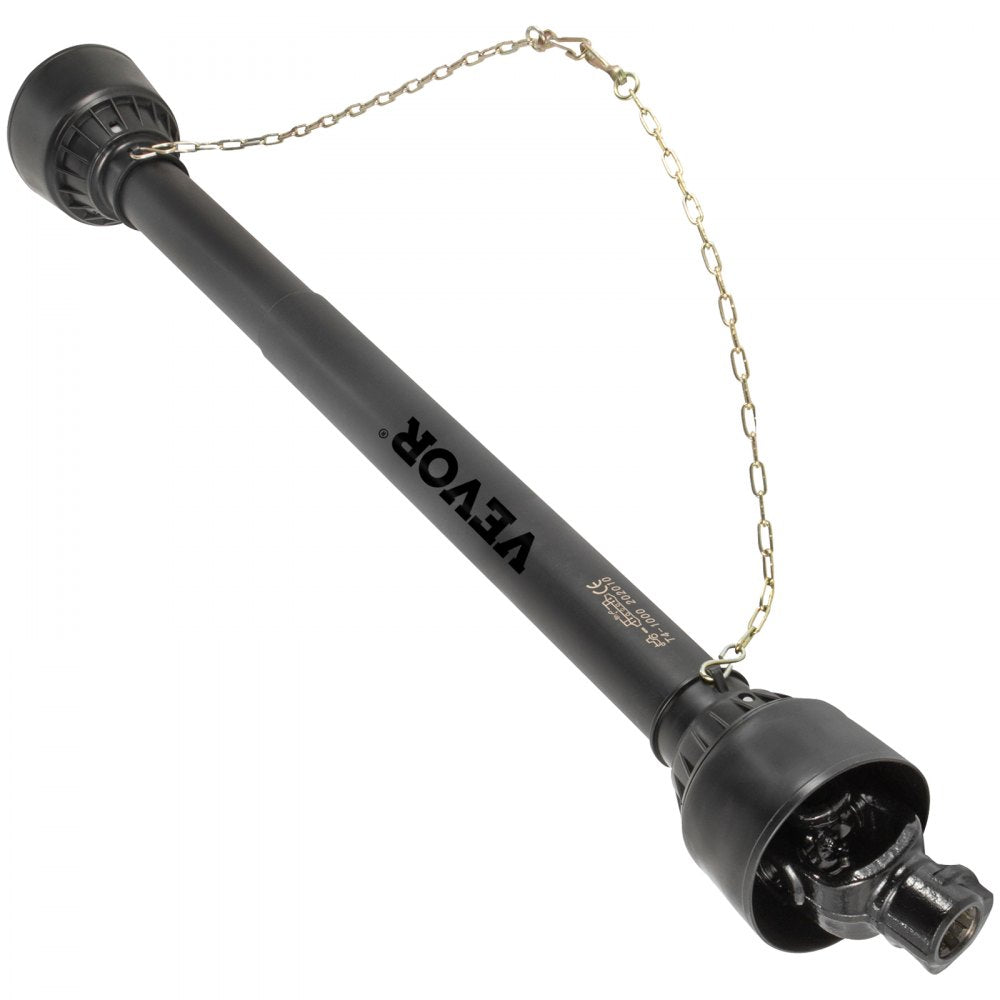

- Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.

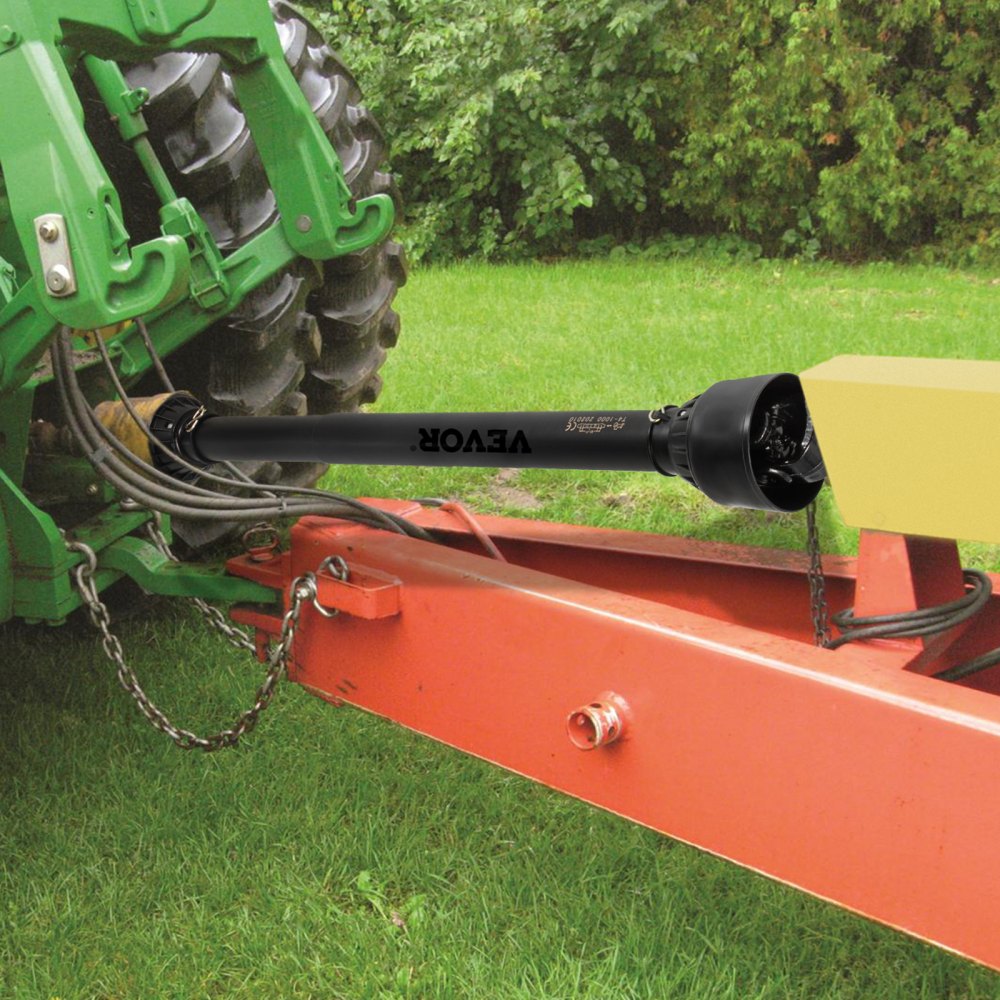

- Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.
Specifications
| Model | T4-Bâ…¢P*1000mm*4.05.05B*4.05.A35 |
| Part Type | PTO Drive Shaft |
| Series | 4 |
| Certificate | CE Certification |
| Material | 20CrMnTi Carburized Steel + Q345 Steel + Plastic |
| Tractor End | 1-3/8" x 6 Spline End |
| Implement End | 1-3/8" x Round End |

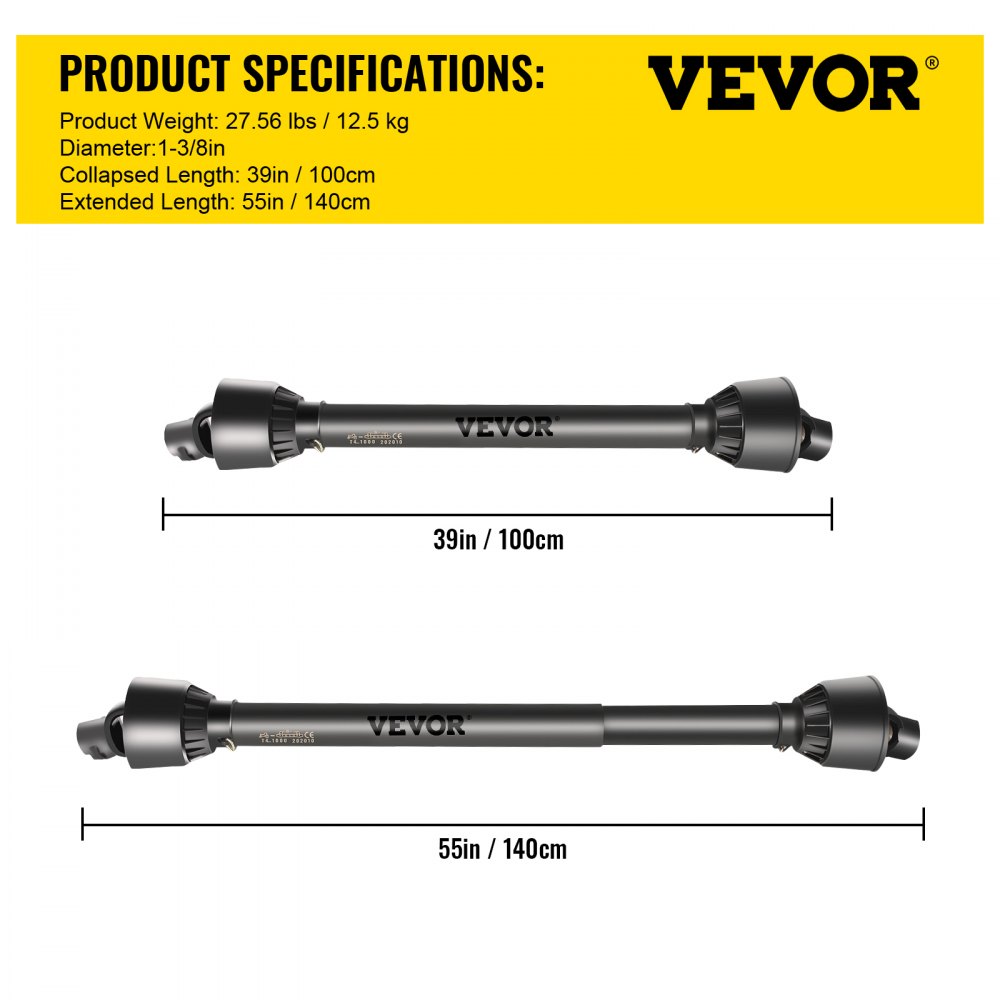

| Compressed Length | 39" / 1000 mm |
| Extended Overall Length | 55" / 1400 mm |
| At 540 RPM | 35 hp, 26 kW, 460 Nm |
| At 1000 RPM | 53 hp, 39 kW, 360 Nm |
| Color | Black |
| Dimensions | 39" compressed length; 55" extended overall length |
Package Contents
1 x PTO Shaft
1 x Locking Pin
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
