Vevor Pro Thermal Imaging Camera 512 x 384 Super Resolution with 3.45" LCD Screen New
Manufacturer: Vevor
SKU: FWIFIYHWRXY32CPHW002V9
resolution Options
Touch Screen Options
Screen Size Options
QTY
or
(888) 999-1522
C
$566.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Automatic Wire Stripping Machine 0.06"-0.98" Motorized Cable Peeler 60W New
-
Vevor Fish Tape 125' x 3/16" PET Wire Puller New
-
Vevor PVC Conduit Heater 1/2" to 4" 2200W Pipe Bending Tool New
-
Vevor Wire Stripper Portable Manual Copper Stripping Machine 0.06-1" Hand Crank or Drill Powered New
-
Vevor Multimeter 6000-Count TRMS Digital Voltmeter Current Tester New
-
Vevor Wire Stripper Blades 4-Pack Replacement Blades New
-
Vevor Fish Tape Puller Fiberglass Wire Cable Runner 5/16" 656 ft. with Reel Stand New
-
Vevor Blacksmith Tongs 18" 4-Pc Carbon Steel Forge Tong Set New
-
Vevor Cable Dispenser Floor or Stud Mounted Portable Wire Spool Rack New
-
Vevor Anemometer Portable Split Design Digital Air Speed & Temperature Meter New
-
Vevor Fish Tape Fiberglass 492' x 5/16" Duct Rodder Wire Puller with Steel Reel Stand New
-
Vevor EMF Meter 3-in-1 Handheld Radiation Detector New
-
Vevor Outlet Tester GFCI Trip Tester with LCD Display New
-
Vevor Automatic Wire Stripping Machine 0.06"-0.98" Cable Peeler 60 ft/min 180W New
-
Vevor Fish Tape 100' x 3/16" Fiberglass Wire Puller New
Vevor Pro Thermal Imaging Camera 512 x 384 Super Resolution with 3.45" LCD Screen New
Product Overview
This VEVOR PRO thermal imaging camera is a handheld infrared thermal imager designed for inspections, diagnostics, and fault detection. It features 256 x 192 infrared resolution with 512 x 384 super resolution enhancement, a 3.45-inch LCD display, and a 2MP visible light camera for clearer analysis. With a 25Hz refresh rate, 7 color palettes, and 4 imaging modes, it helps identify temperature differences quickly and accurately. The unit includes 32GB internal storage, WiFi file transfer, and a 5000mAh battery for extended use. Its rugged IP54-rated body and drop resistance make it suitable for demanding jobsite environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

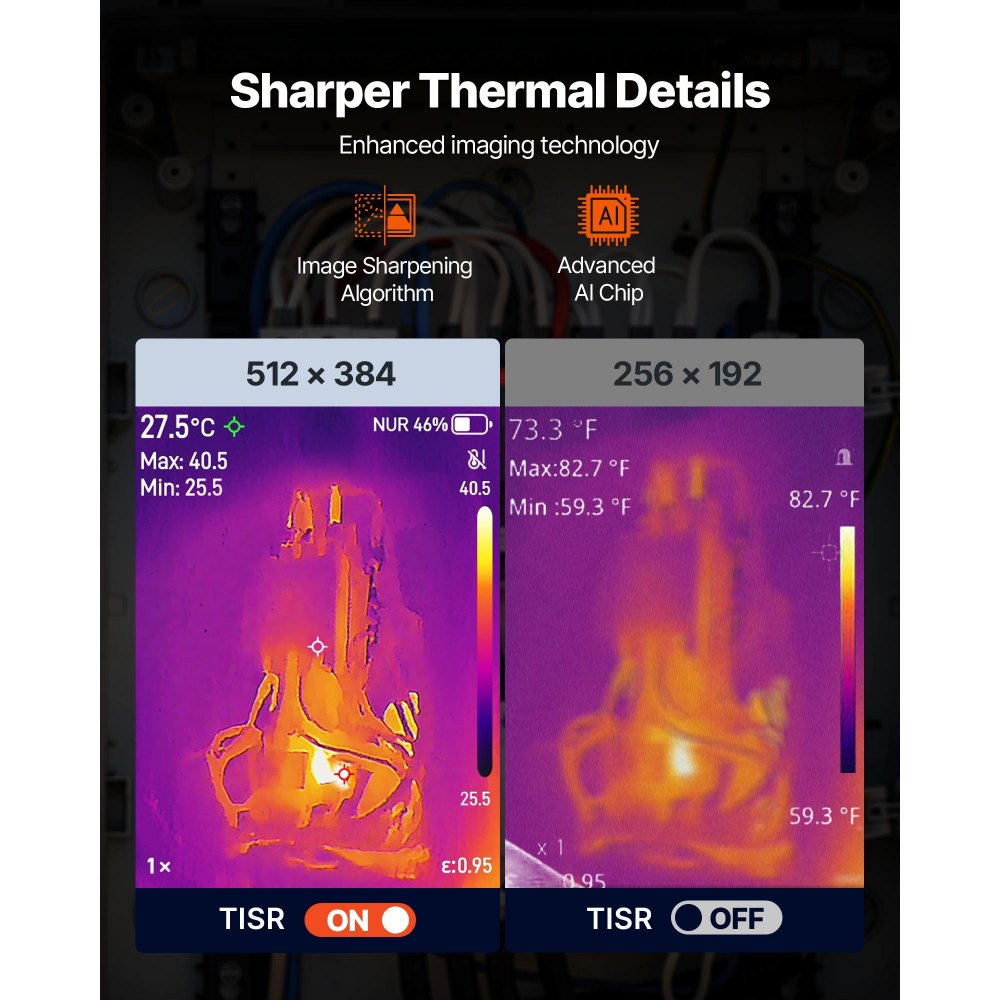

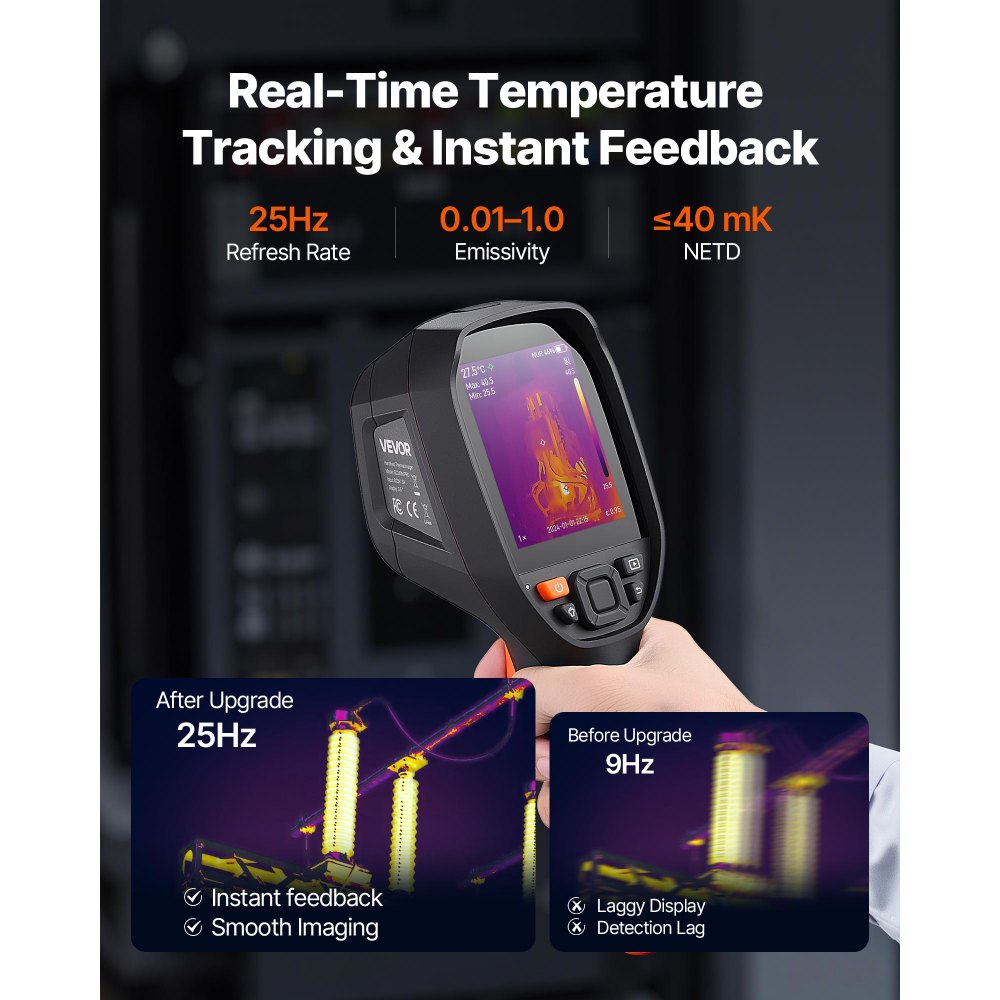

- Image Enhancement Technology: VEVOR pro thermal imager adopts TISR enhancement technology, upgrading the original infrared resolution of 256x192 to a 4x super resolution of 512x384. With a 25Hz refresh rate, ≤40 mK thermal sensitivity, and a wide 56° x 42° field of view, combined with image sharpening algorithms and a high-performance AI chip, its 3.45-inch LCD screen captures and displays heat source details with greater clarity

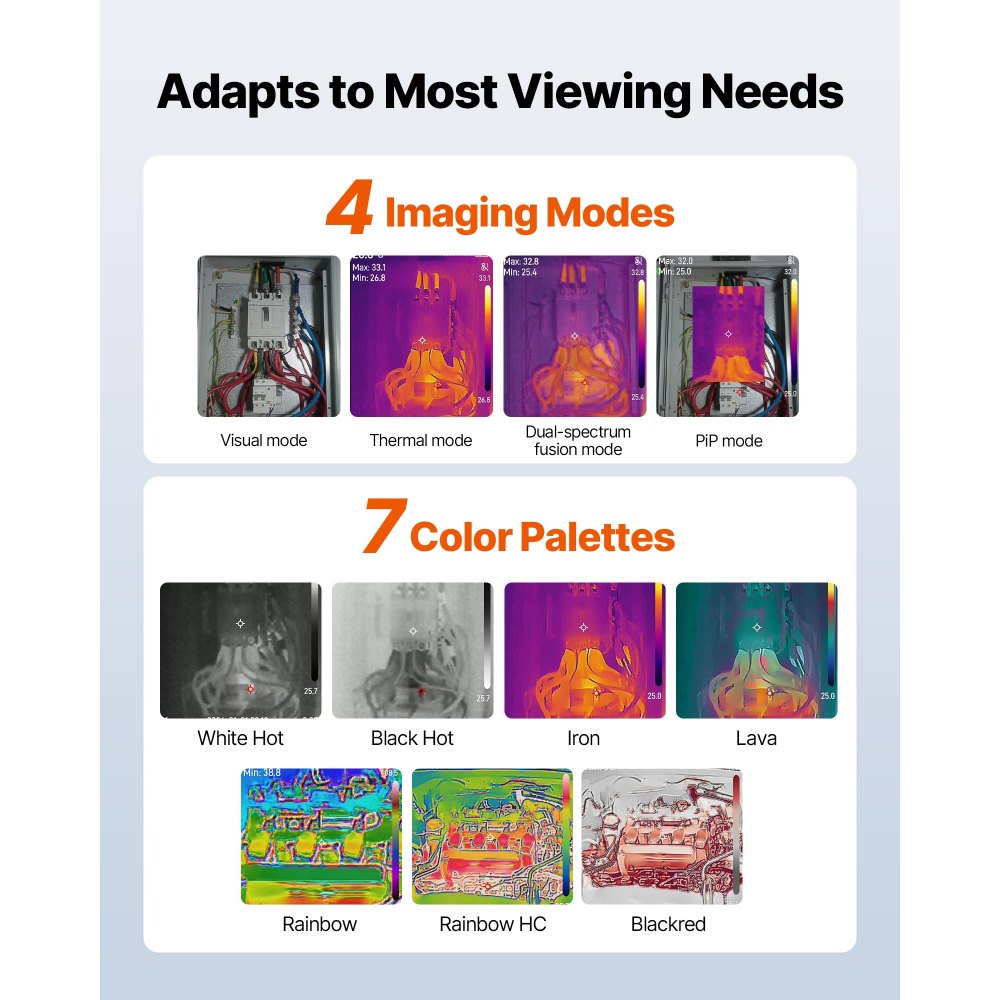

- Accurate Temperature Measurement: This infrared camera supports a temperature range from -4°F to 1022°F, automatically identifying and marking hot, cold, and central spots. It offers 4 thermal imaging modes and 7 color palettes for better adaptability to different tasks. The 2x and 4x digital zoom functions enhance observation, helping you capture more subtle details

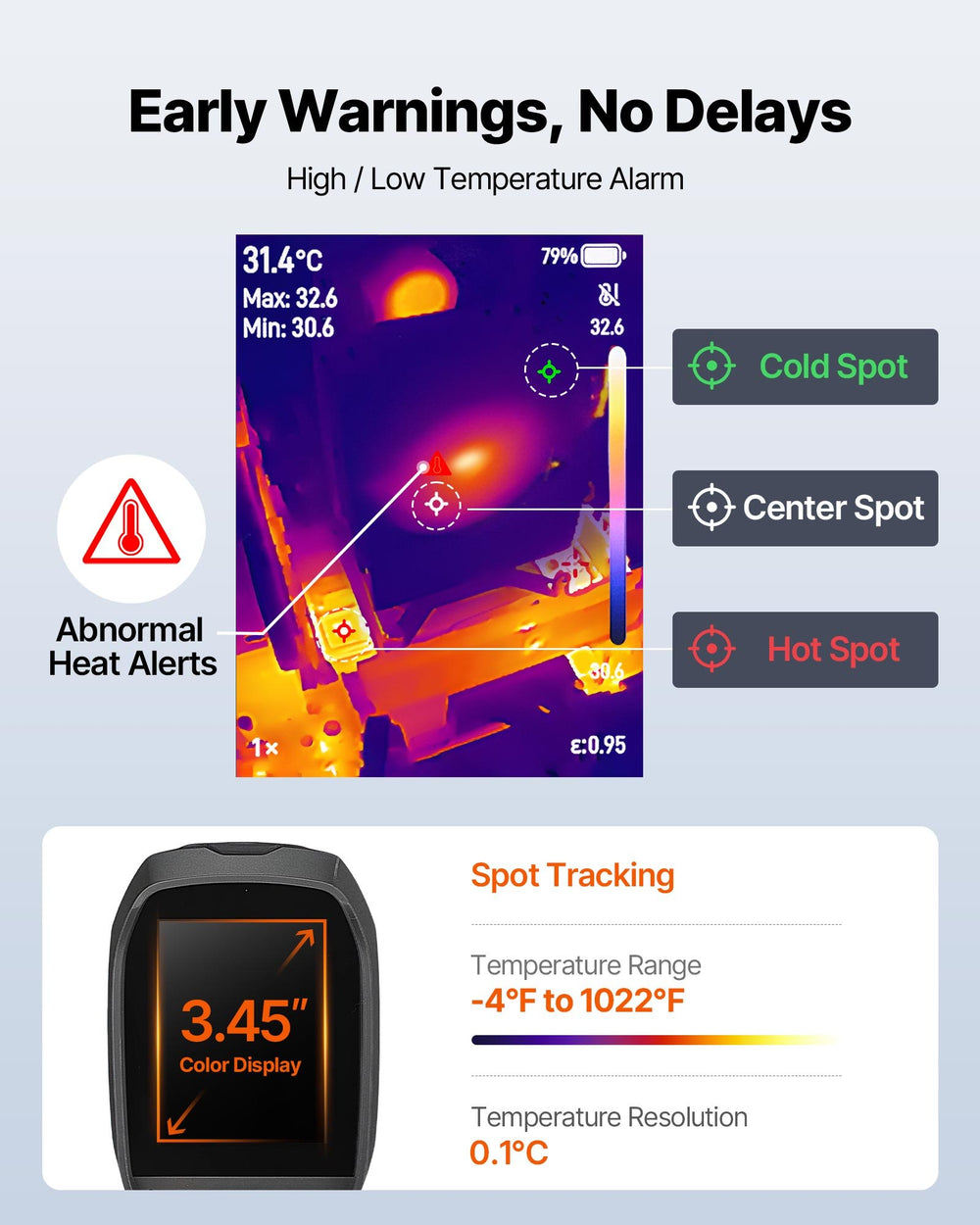

- Quick Fault Detection: Our infrared thermal imager features built-in high/low-temperature alarms to automatically monitor deviations and issue alerts in real time. Equipped with a laser pointer, it allows easy fault positioning and detection of hidden heat risks, making potential issues visible and manageable in advance

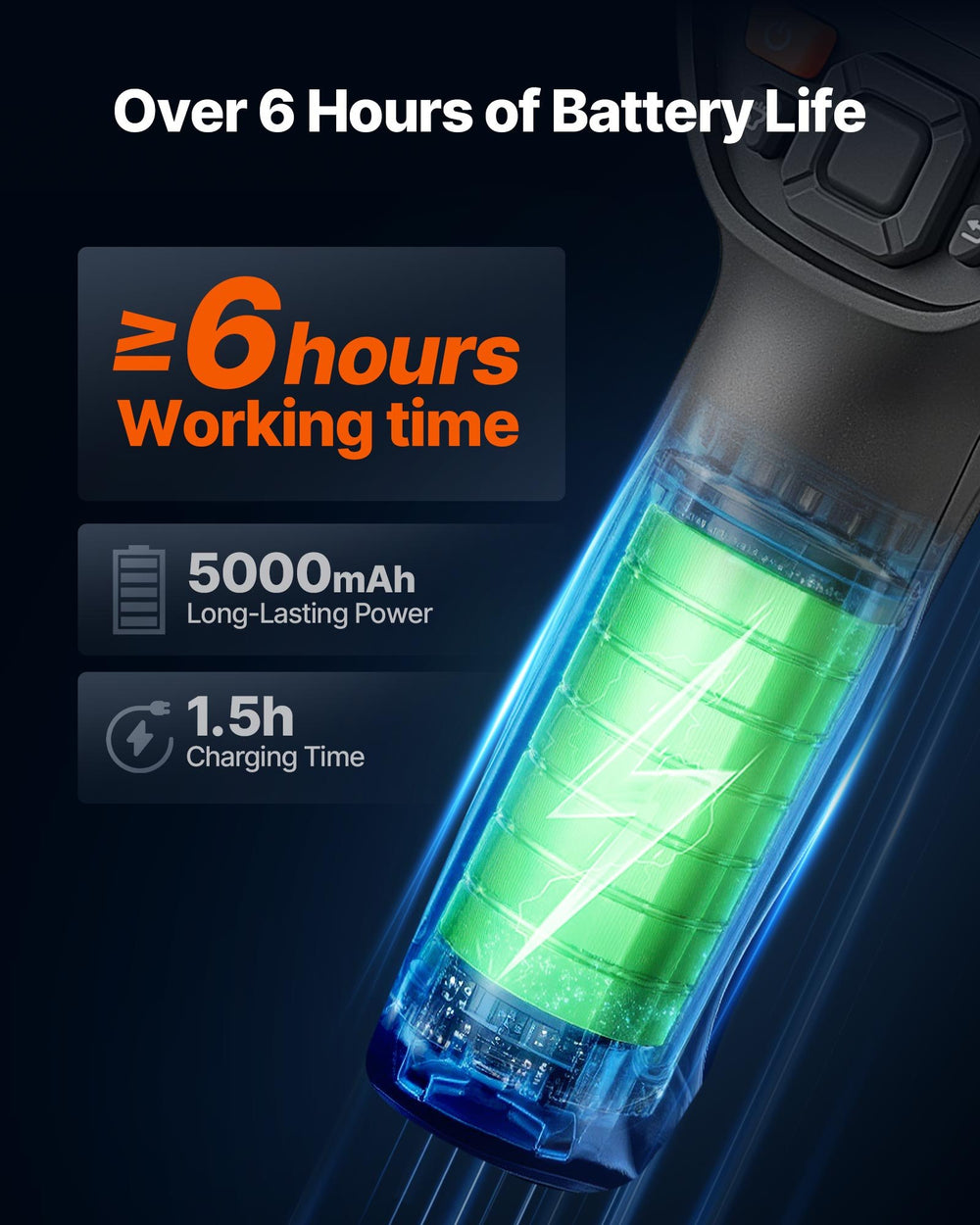

- Multiple Upgrades: This thermal camera comes with a 5000mAh large-capacity battery, offering up to 6 hours of runtime. It supports auto power-off, photo and video recording, and an LED work light. The compact and sturdy body withstands drops up to 2 m and, with IP54-rated dust and water resistance, performs reliably in demanding environments
- Portable and Reliable: Charging is made convenient with a USB cable. The built-in 32GB storage can hold over 120,000 images, and WiFi connectivity allows easy file transfer. Supporting 13 languages, this device is widely suitable for circuit board inspection, HVAC troubleshooting, electrical checks, building diagnostics, vehicle maintenance, and industrial detection
Specifications
| Item Model Number | SC240M PRO |
| Infrared Resolution | 256 x 192 pixels |
| Enhanced Resolution | 512 x 384 pixels (4x Super Resolution) |
| Display Size | 3.45 inch LCD |
| Refresh Rate | 25Hz |
| Thermal Sensitivity | ≤ 40 mK |
| Visible Light Resolution | 1600 x 1200 pixels |
| Emissivity | 0.01 - 1.0 |
| Measuring Distance | 0.5-4 m |
| Temperature Measurement Range | -4°F to 1022°F / -20°C to 550°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±2°C |
| Temperature Display | Center / Hot / Cold Spot |
| Battery Capacity | 5000 mAh |
| Internal Storage | 32 GB |
| Drop Resistance | 2 m |
| Waterproof Rating | IP54 |
| Language Options | 13 Languages |
| Net Weight | 1.5 lbs / 0.68 kg |

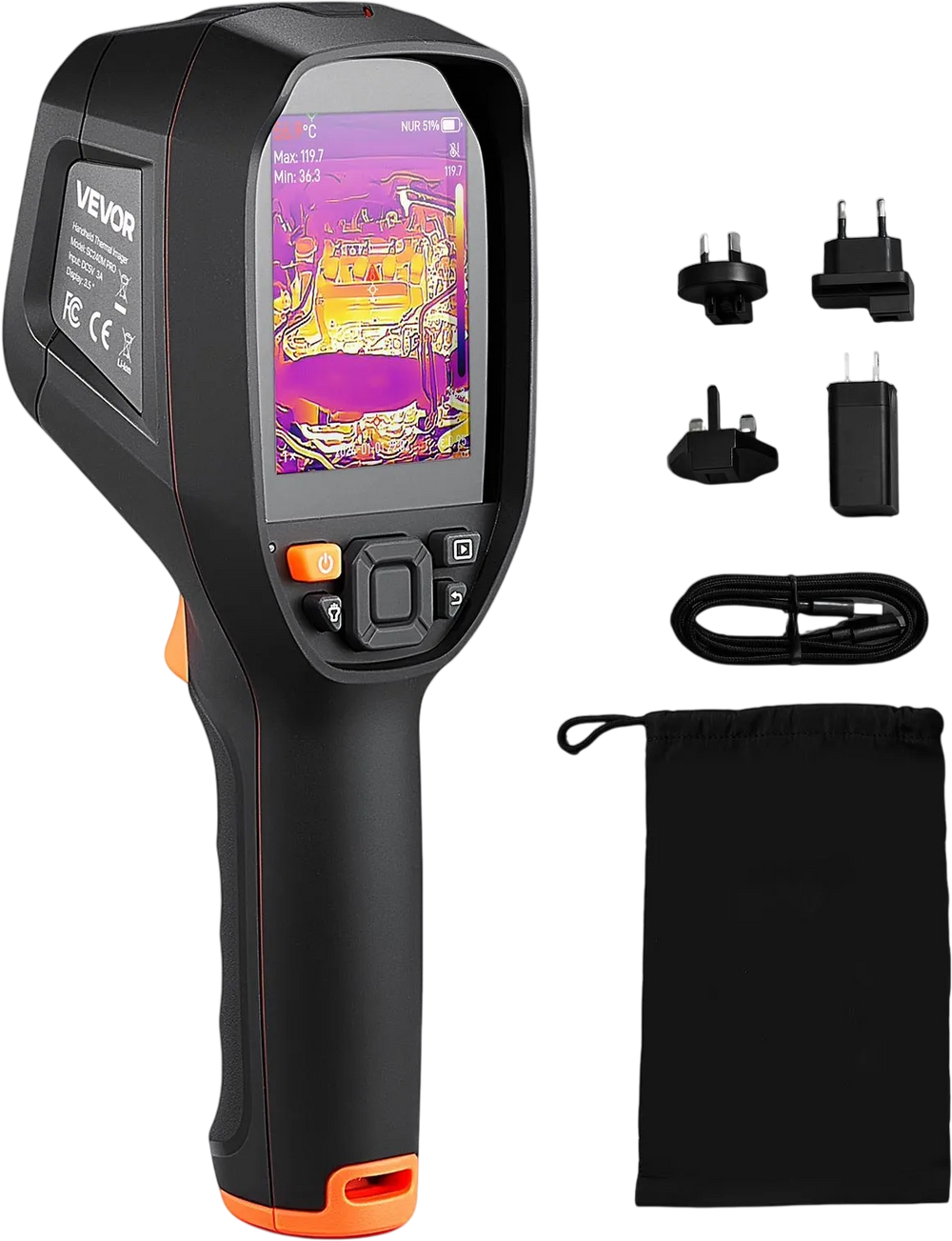

Package Contents
Thermal Imaging Camera
USB Cable
User Manual
Warranty
This item comes with a 1 year warranty.
