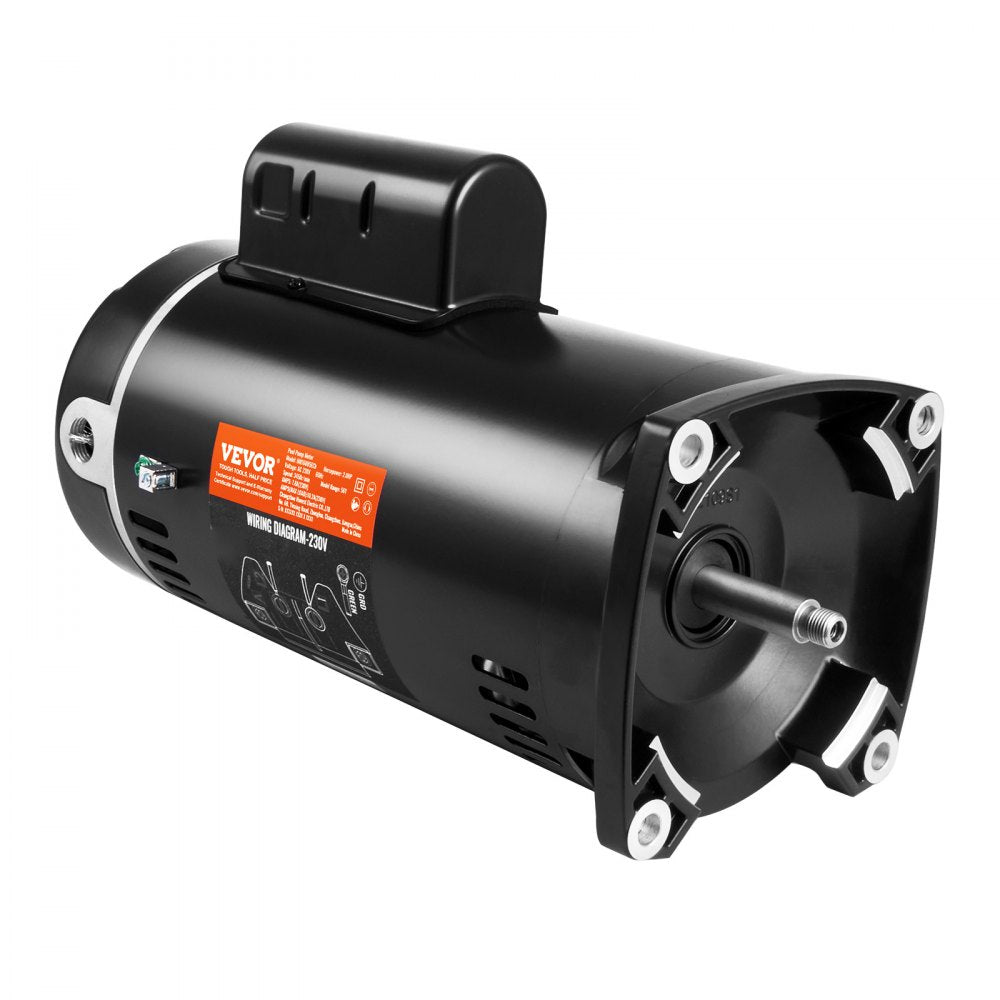

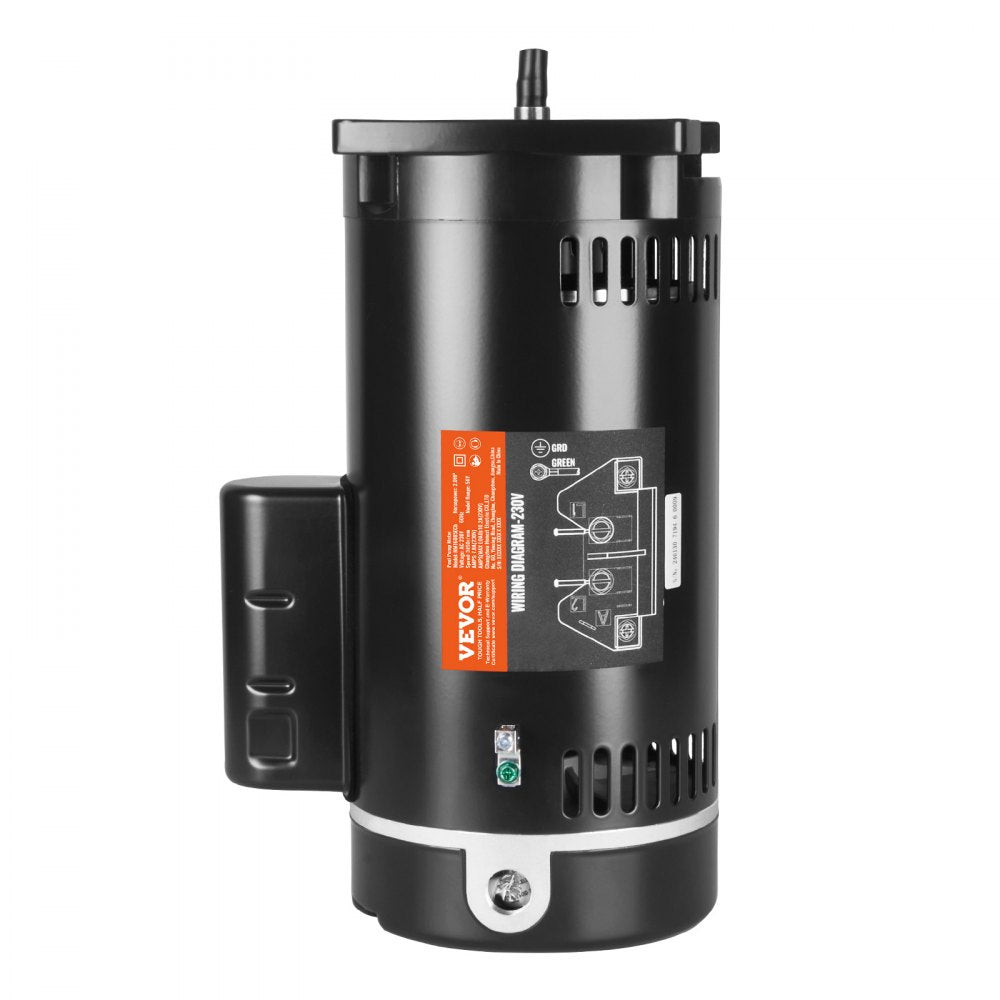

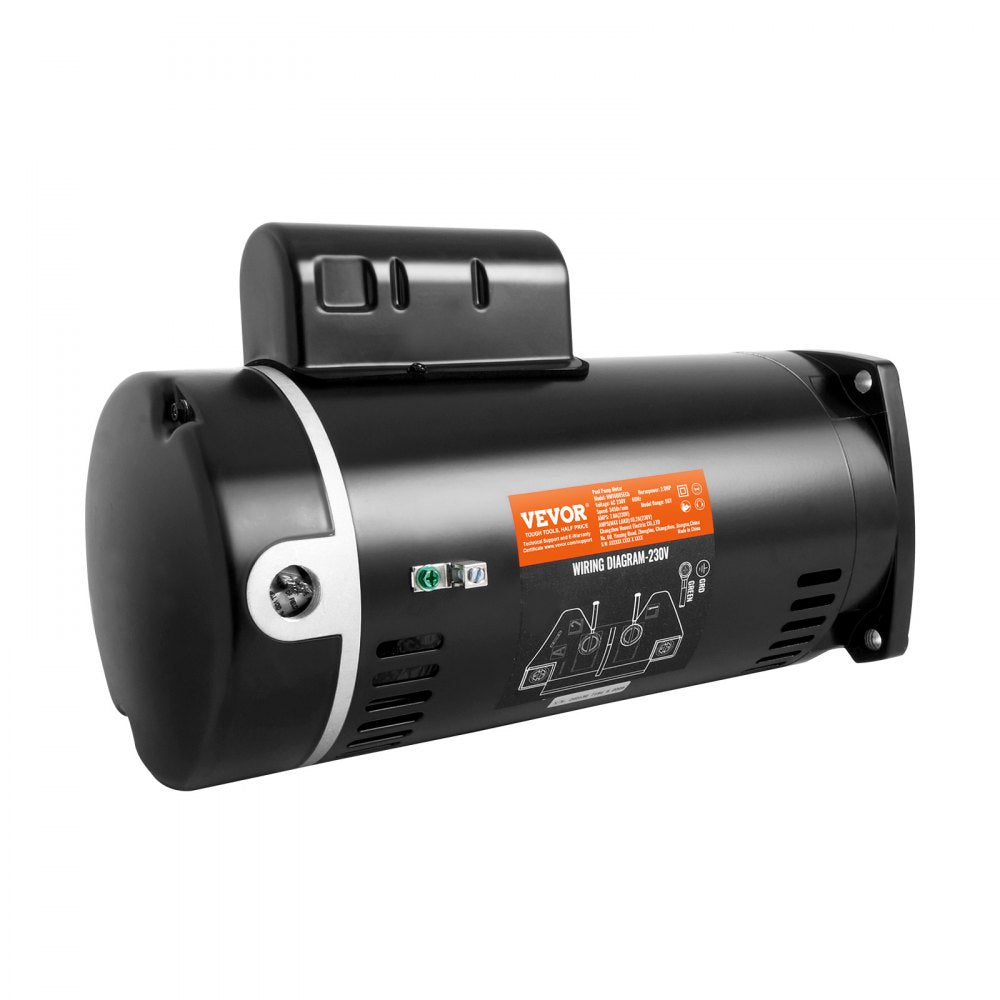

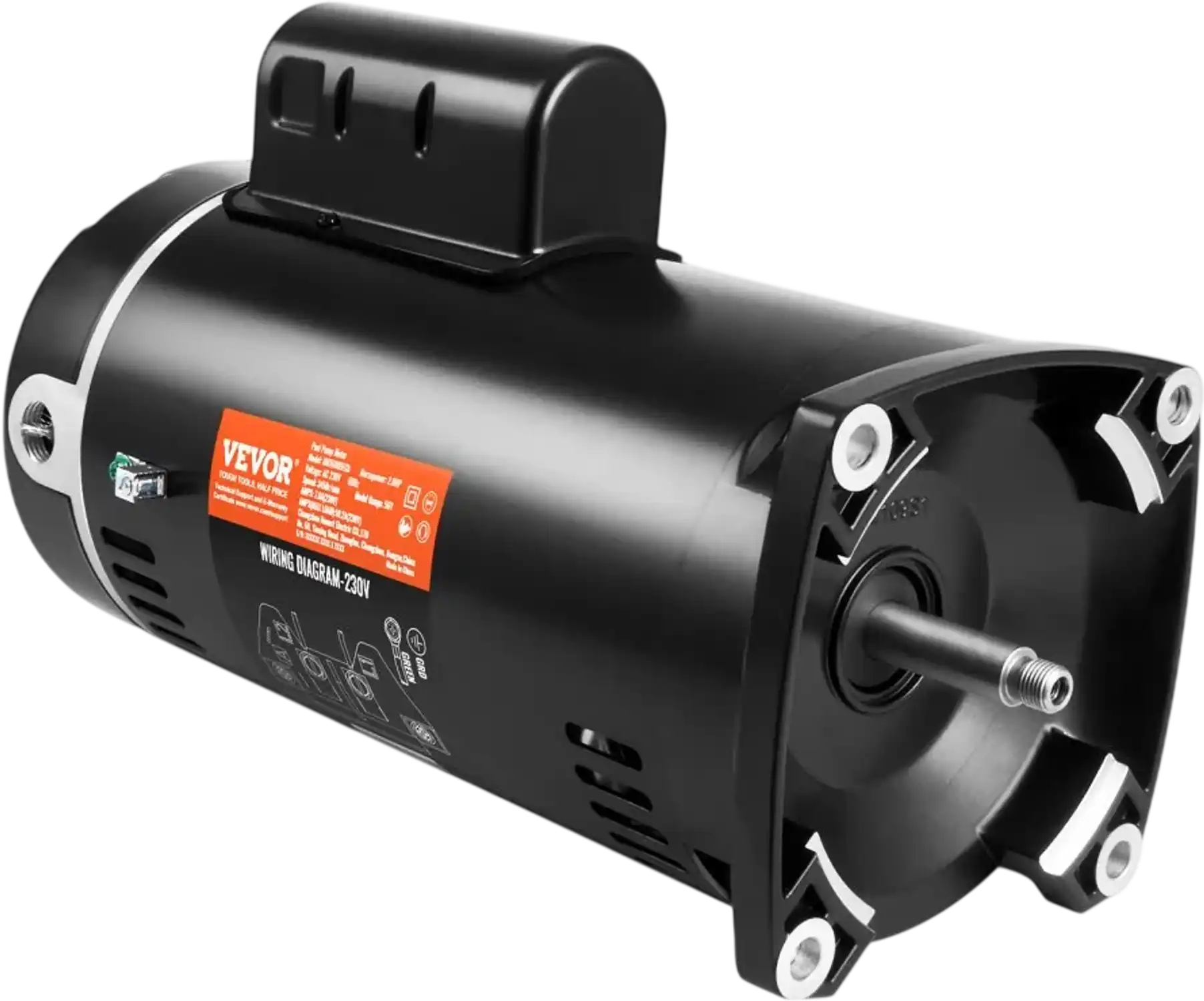

Vevor Pool Pump Motor 2 HP 56Y 230V Square Flange Replacement New
Product Overview
The Vevor 2 HP pool pump motor is built to restore dependable performance to compatible pool pump systems with high-speed 3450 RPM operation. It runs on AC 230V power and features a 56Y flange, 50μF/250V capacitor, and counterclockwise rotation for replacement applications. Its corrosion-resistant steel housing, ball-bearing construction, and overload protection support durable, reliable use. Designed for efficient water circulation with low noise operation, it is suitable for residential and commercial pool setups.
*Not for sale in California*
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

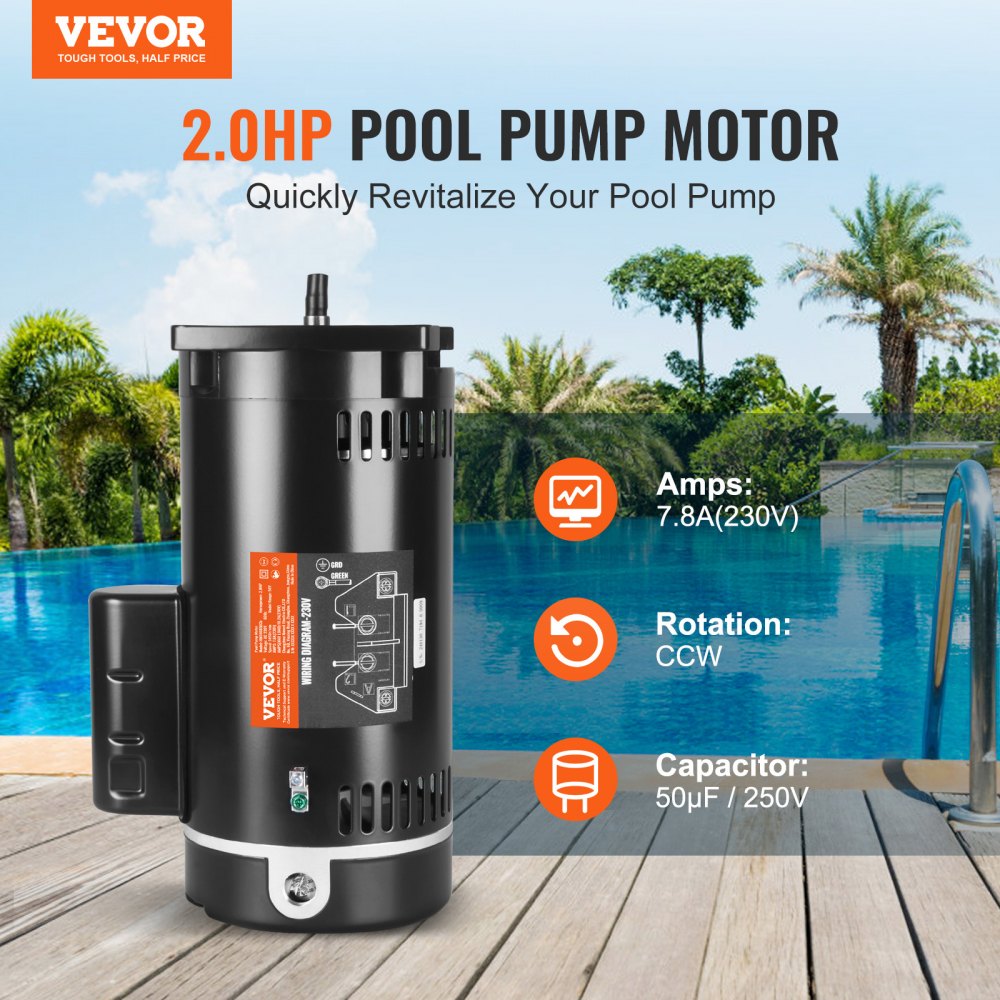

- Reliable Performance: VEVOR 2HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC230V; Amps: 7.8A ; Amps (Max Load): 10.2A ; SF: 1.3 ; Capacitor: 50μF/250V ; Model Flange: 56Y.

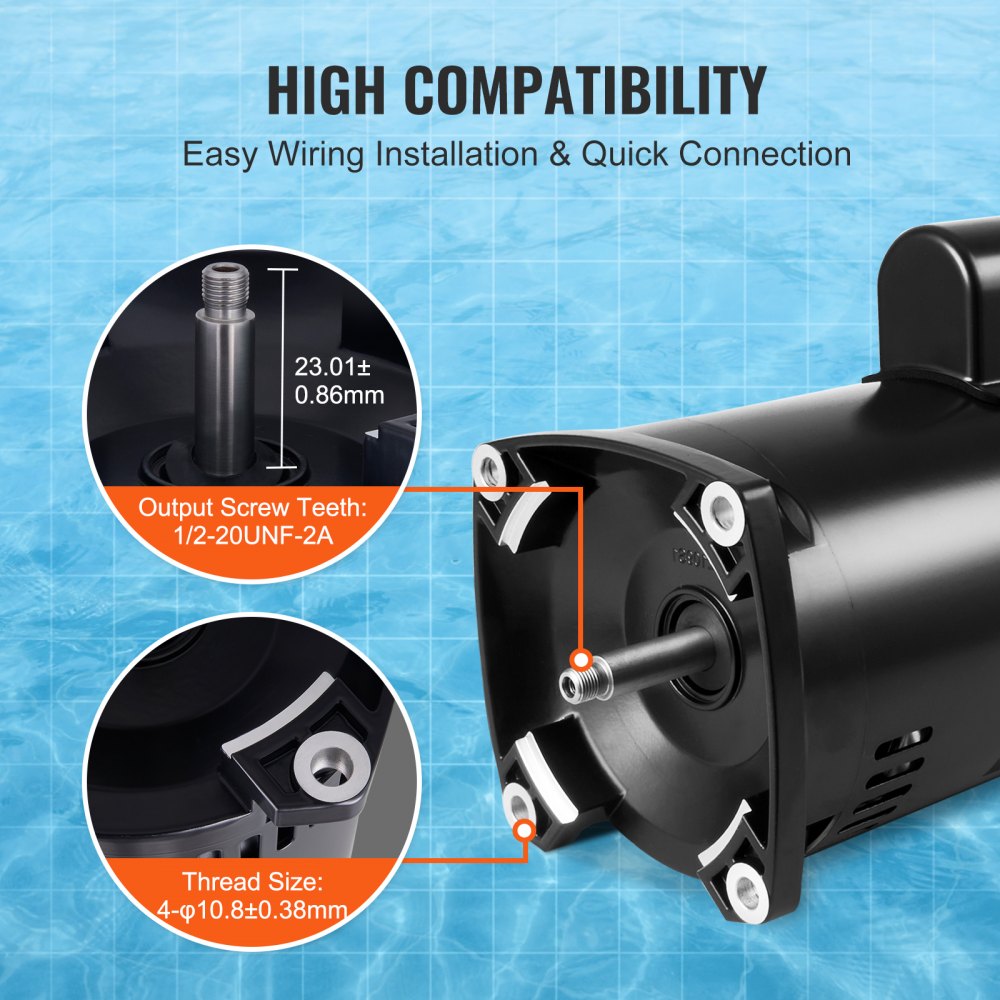

- Easy Installation: Installing our pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.
- Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.

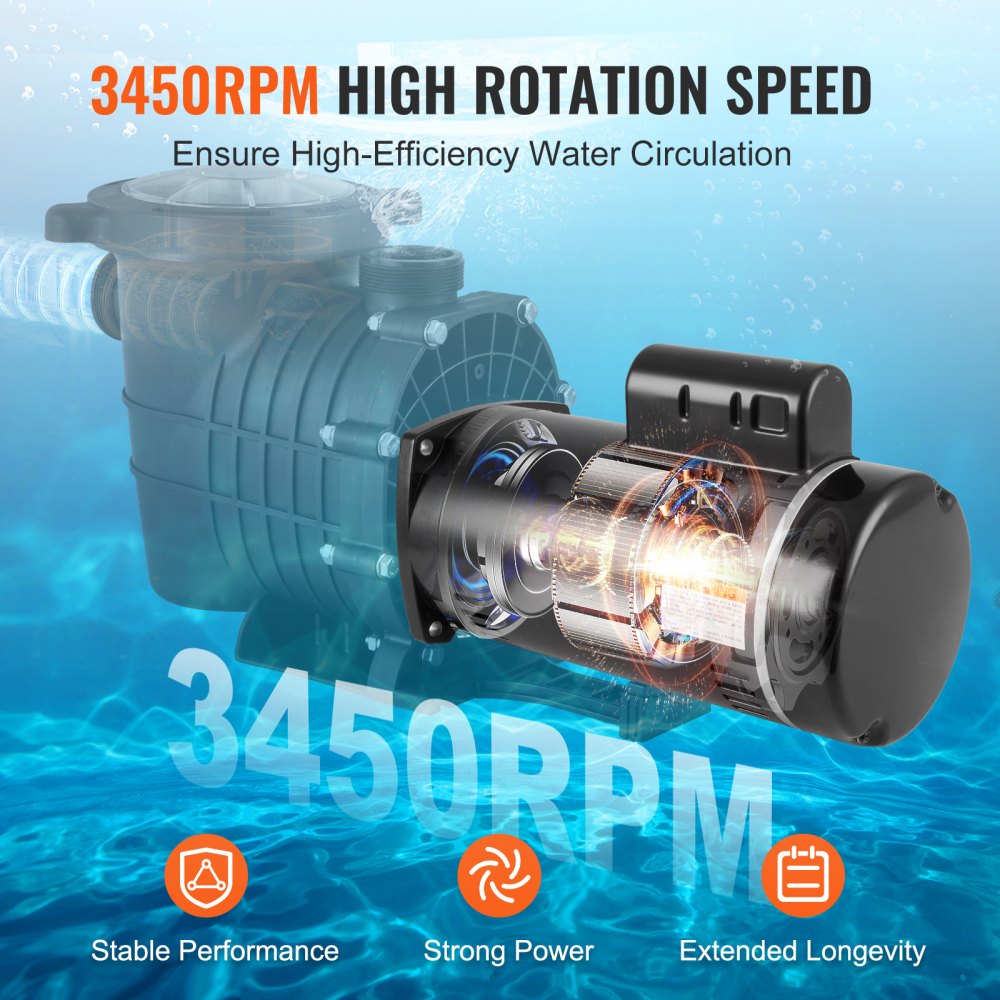

- High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
- Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

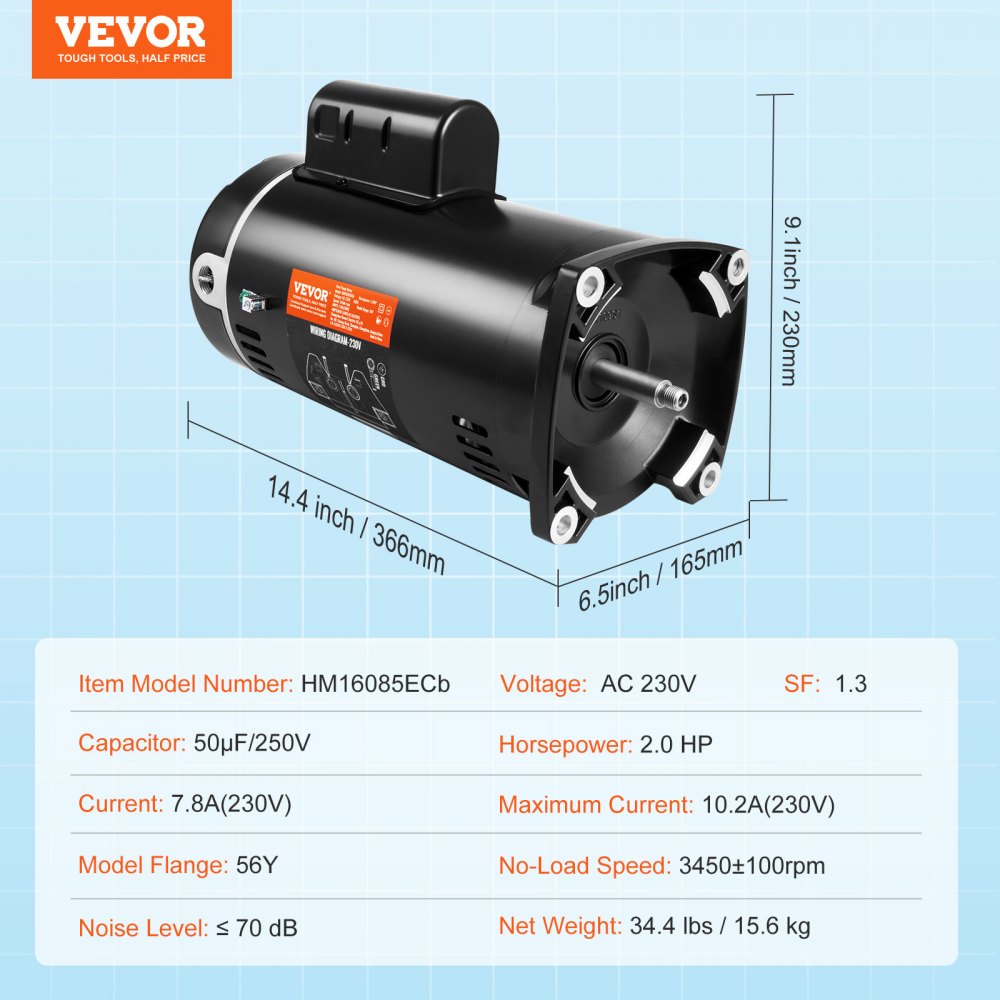

Specifications
| Item Model Number | HM16085ECb |
|---|---|
| Product Type | Pool Pump Motor |
| Voltage | AC 230V |
| Capacitor | 50μF/250V |
| Horsepower | 2 HP |
| Current | 7.8A (230V) |
| Current Max Load | 10.2A (230V) |
| Model Flange | 56Y |
| No-Load Speed | 3450 RPM |
| Frequency | 60Hz |
| Service Factor | 1.3 |
| Rotation | CCW |
| Noise Level | ≤ 70 dB |
|---|---|
| Thread Size | 4-φ10.8mm |
| Output Screw Teeth | 1/2-20UNF-2A |
| Shaft Extension | 0.9" |
| Product Dimensions | 14.4" x 6.5" x 9.1" |
| Net Weight | 34.4 lbs |
Package Contents
Pool pump motor
User manual
Warranty
This item comes with a 1 year factory warranty.
