Product Overview

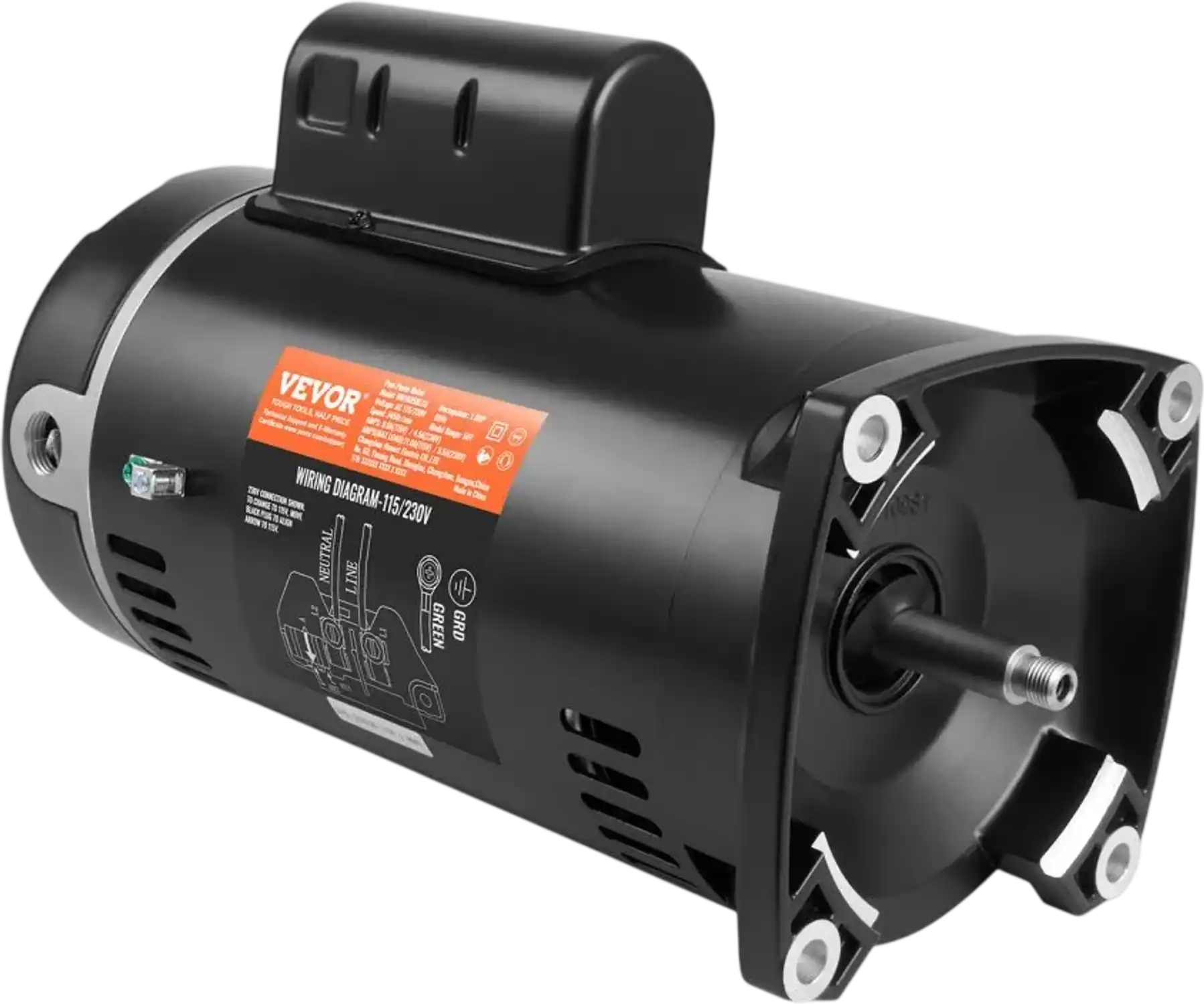

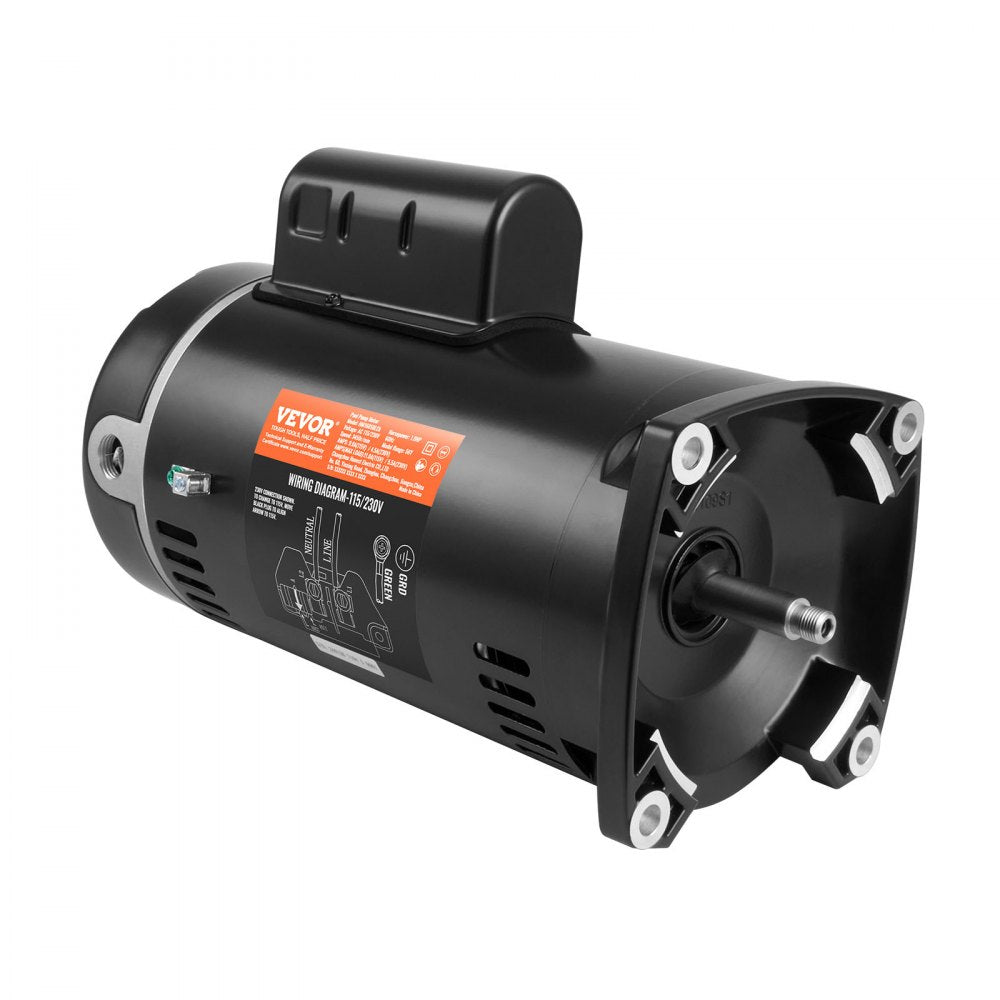

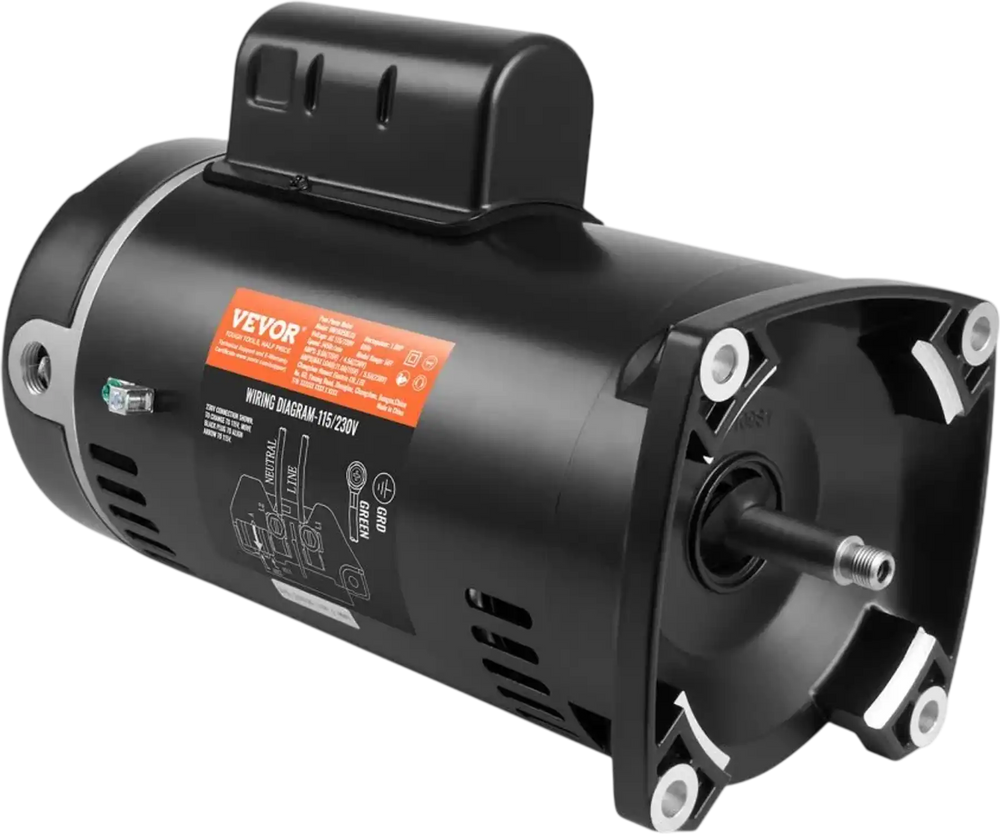

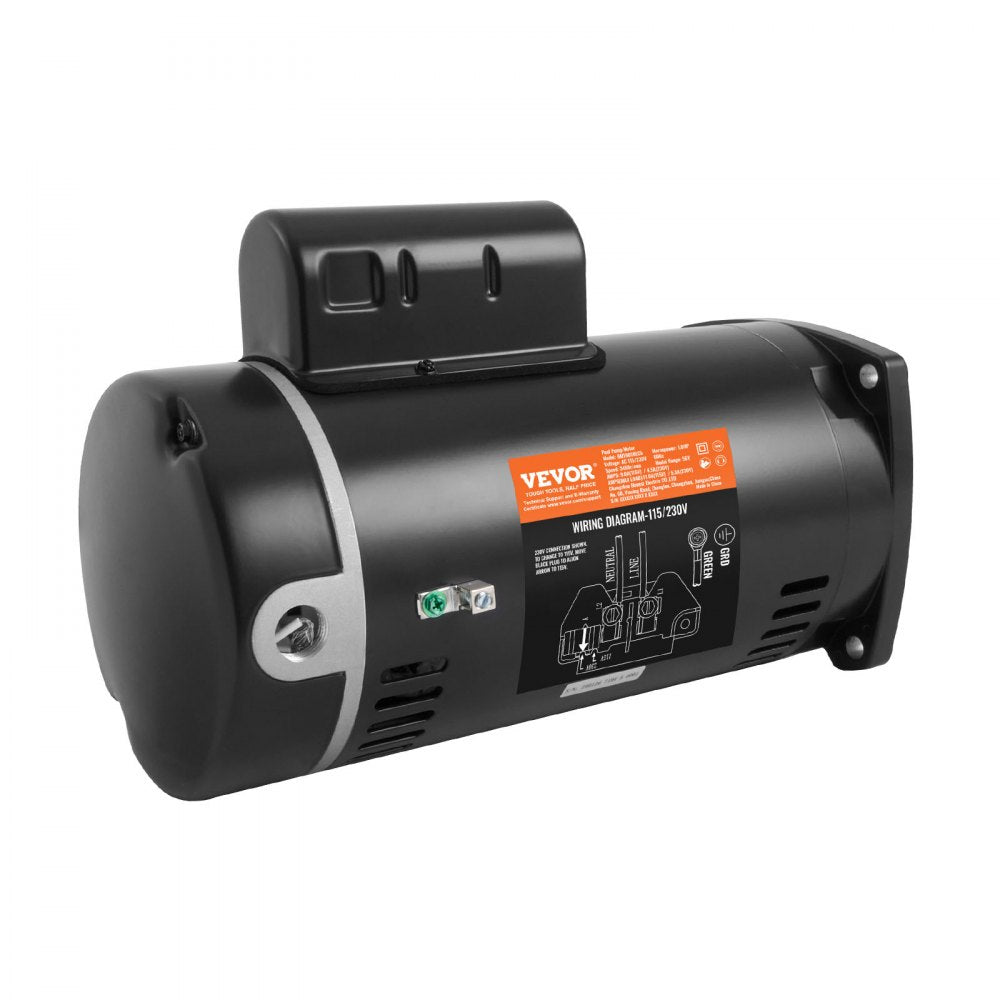

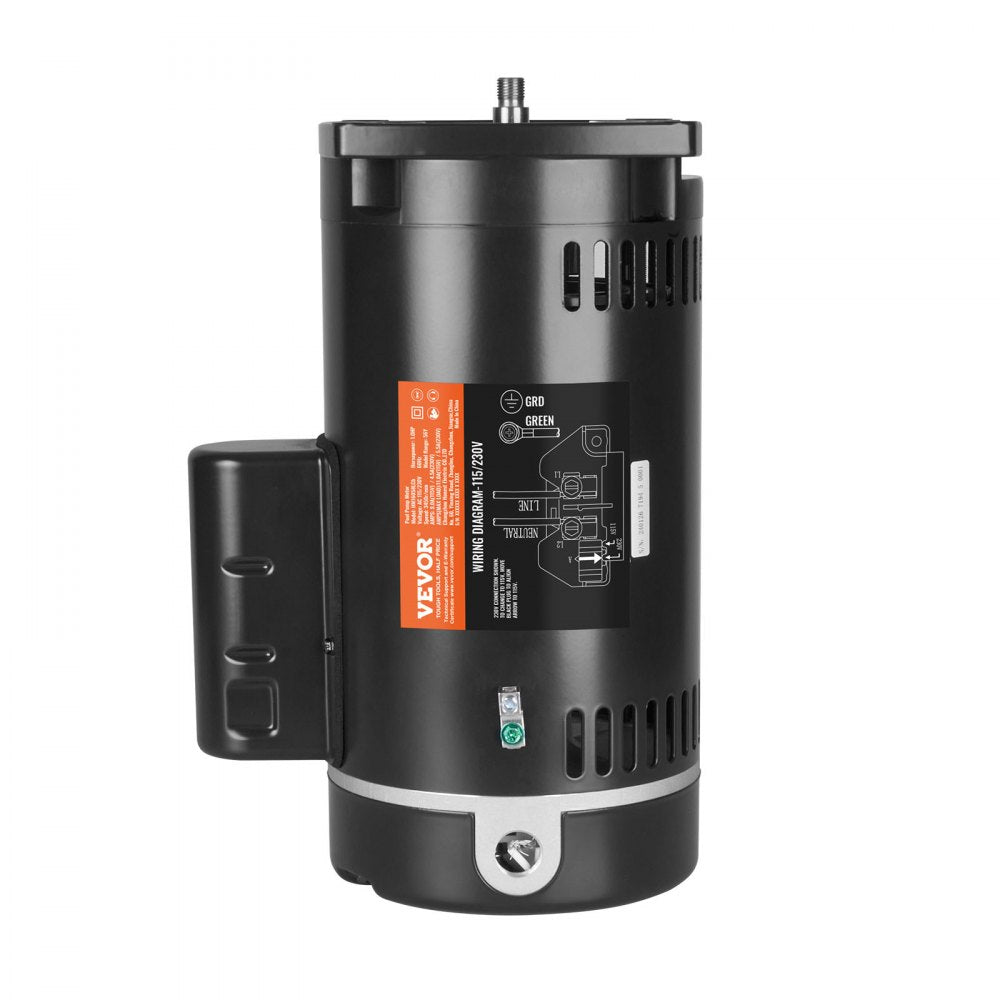

The Vevor 1 HP pool pump motor is designed to restore reliable water circulation for residential and commercial pool systems. It operates on AC 115/230V power with a 56Y frame, 3450 RPM no-load speed, and a 90μF/250V capacitor for dependable performance. Its corrosion-resistant steel housing, ball-bearing construction, and overload protection support long-term durability. This square flange replacement motor is built for efficient operation with low noise and straightforward installation.


*Not for sale in California*

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

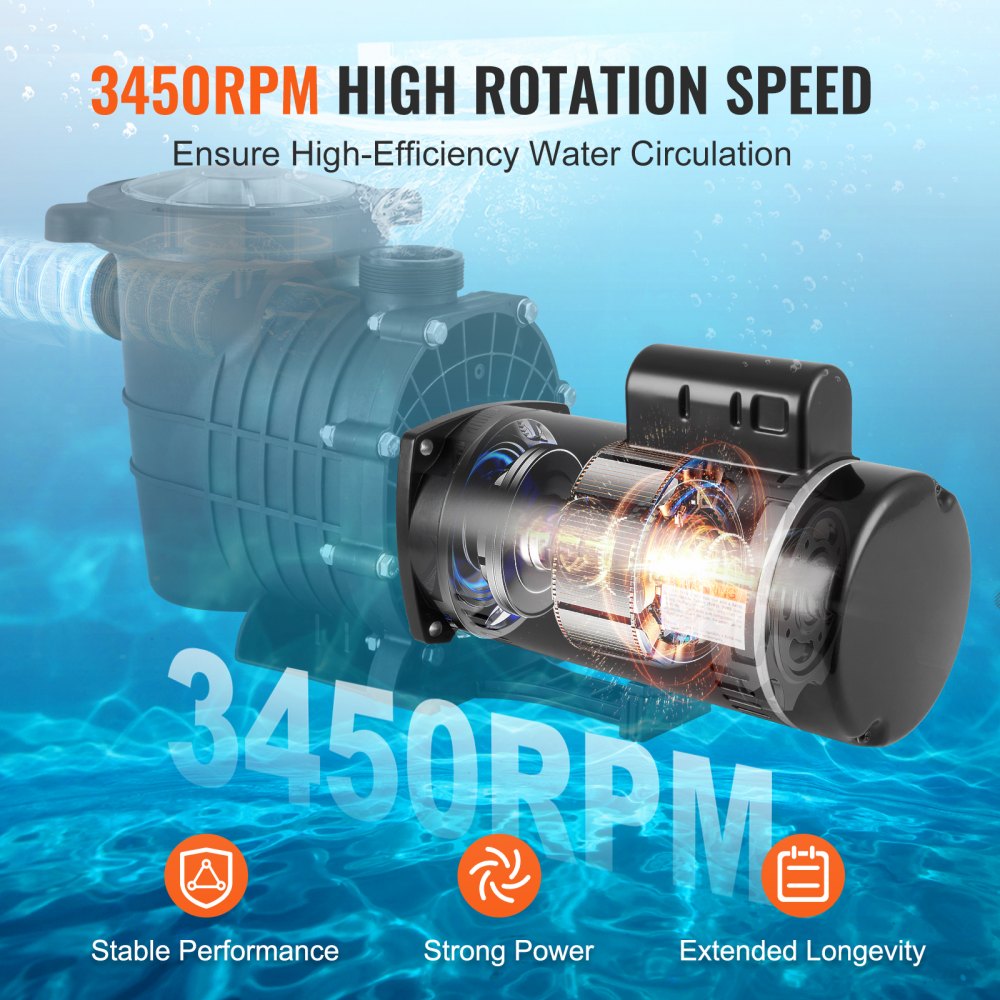

  • Reliable Performance: VEVOR 1HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 9/4.5A ; Amps (Max Load): 11/5.5A ; SF: 1.25 ; Capacitor: 90μF/250V ; Model Flange: 56Y.

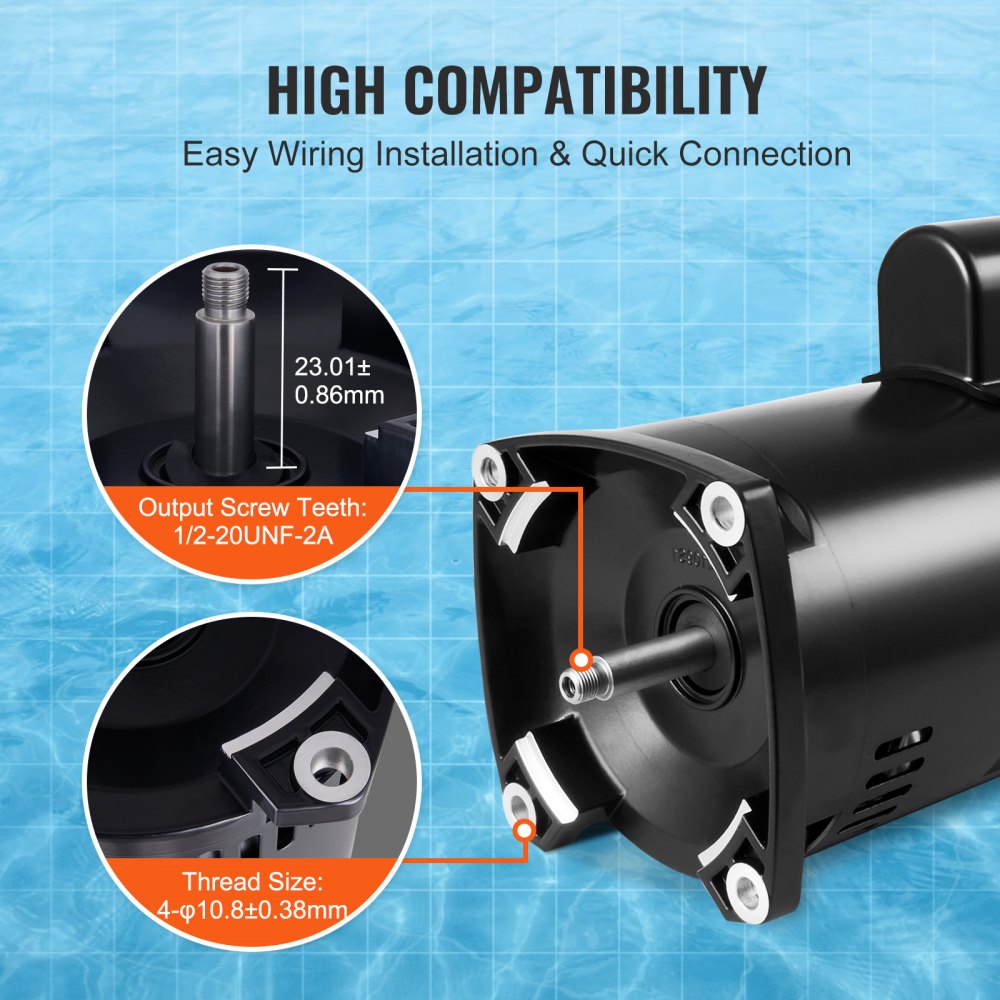

  • Easy Installation: Installing our pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.

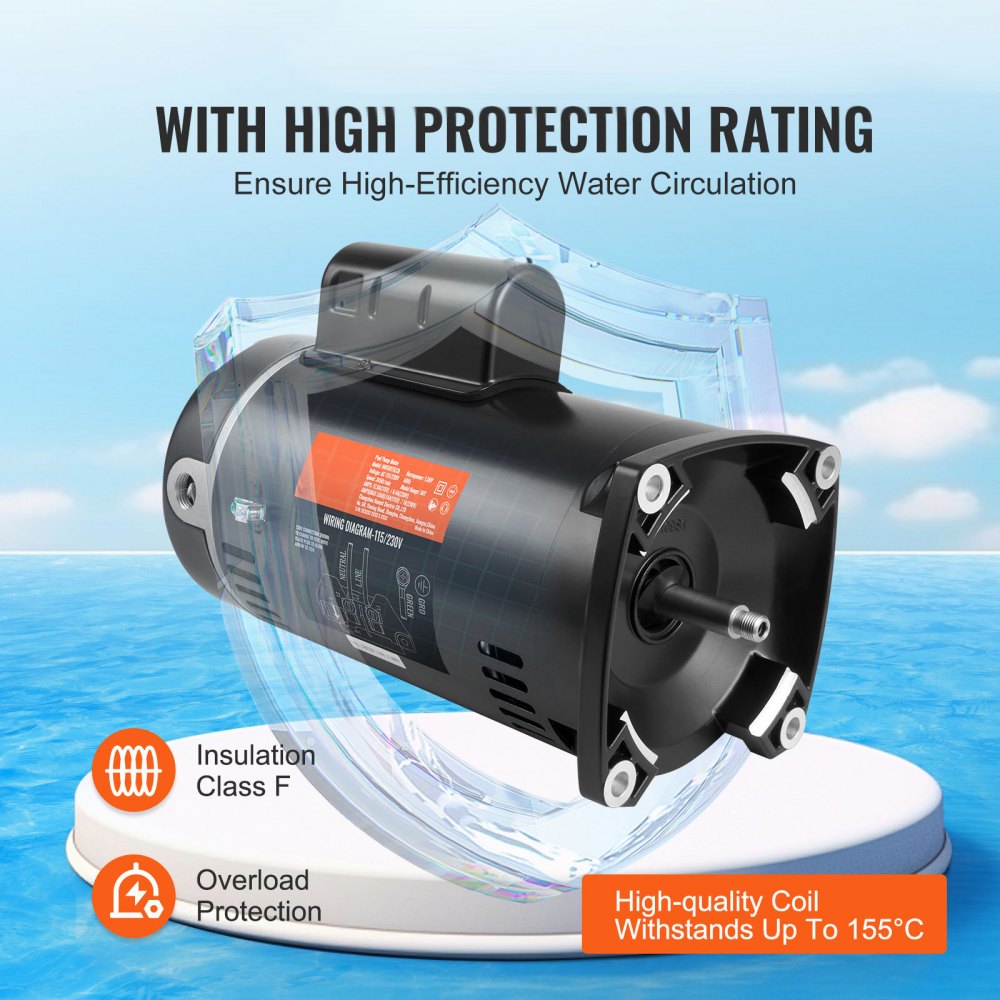

  • Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.
  • High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
  • Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

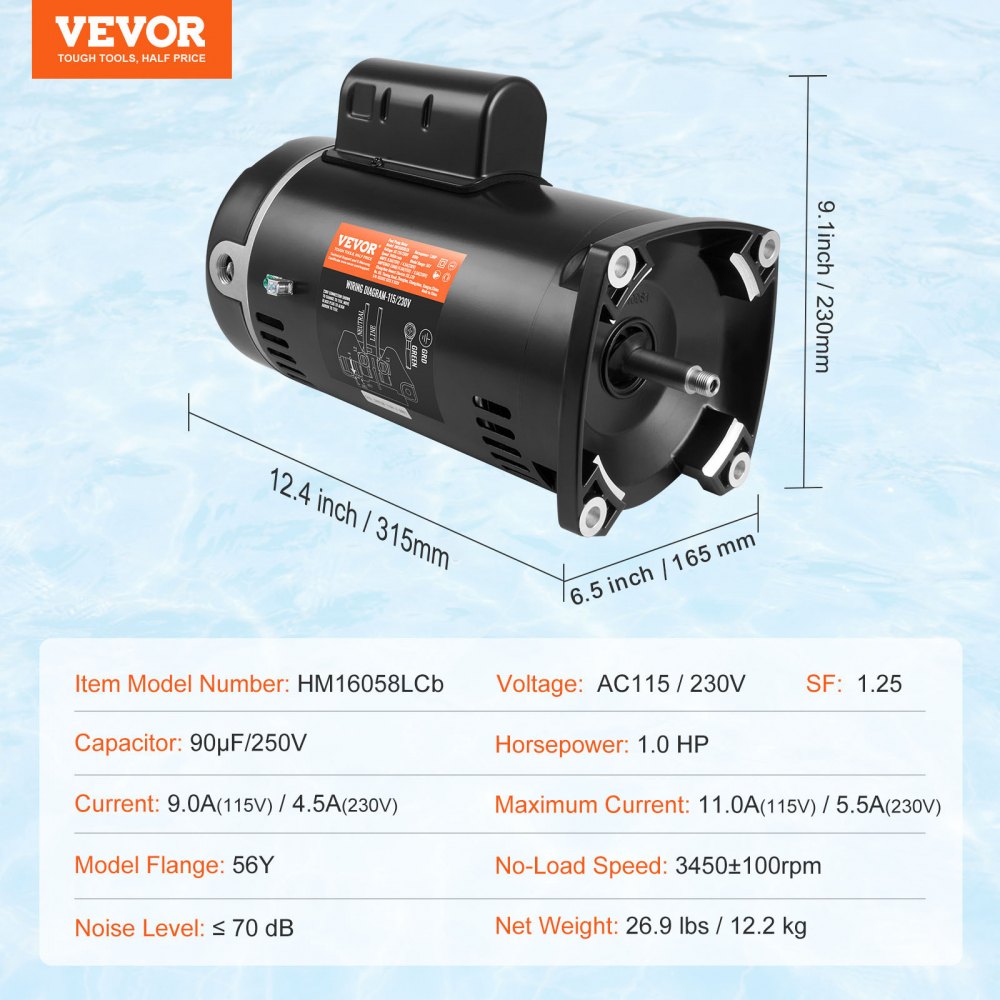

Specifications

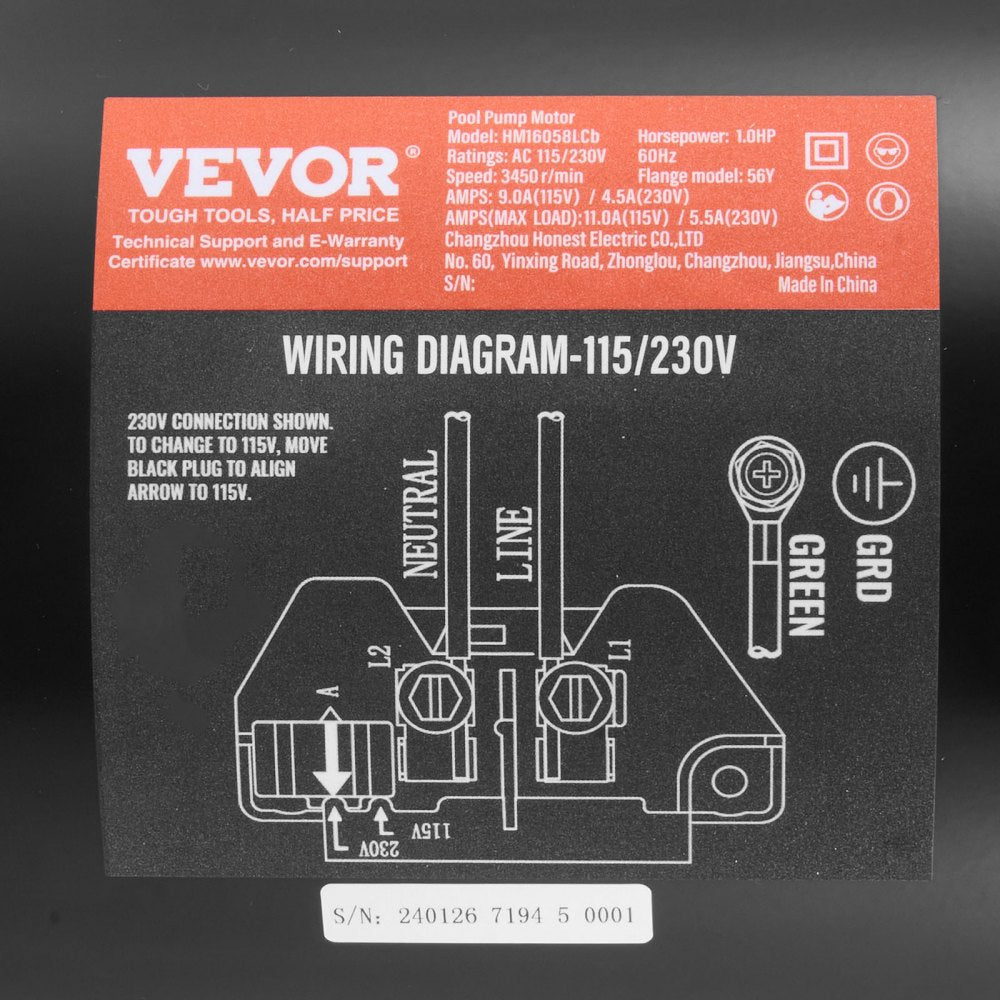

Item Model Number HM16058LCb
Voltage AC 115/230V
Capacitor 90μF/250V
Horsepower 1 HP
Current 9.0A 115V / 4.5A 230V
Current Max Load 11.0A 115V / 5.5A 230V
Model Flange 56Y
No-Load Speed 3450 RPM
Noise Level ≤ 70 dB
Product Dimensions 12.4 x 6.5 x 9.1"
Thread Size 4-φ10.8 mm
Output Screw Teeth 1/2-20UNF-2A
Shaft Extension 0.9"
Service Factor 1.25
Frequency 60 Hz
Rotation CCW
Flange Type Square Flange

Package Contents

Pool pump motor

User manual
