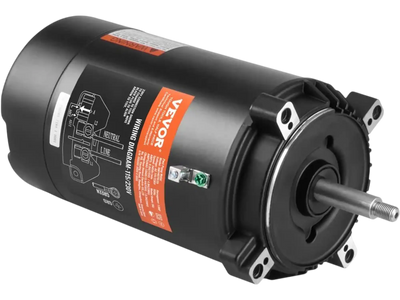

Vevor Pool Pump Motor 1 HP 56J Frame Round Flange Replacement New
Manufacturer: Vevor
SKU: YCBDJ1HP56J2MBX4WV9
Power Options
Structure Options
QTY
(888) 999-1522
C
$163.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Sand Filter Pump 16 in. 4400 GPH 3/4 HP with 6-Way Valve New
-

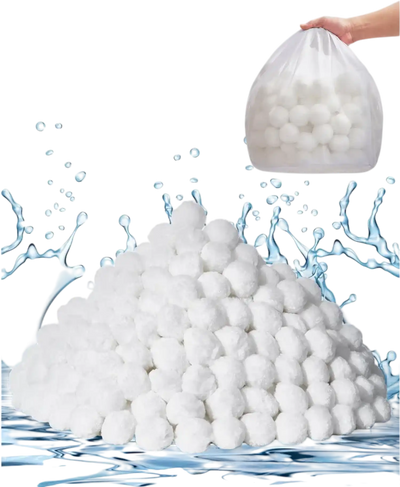

Vevor Pool Filter Balls 3.5 lbs Reusable Polyester Fiber Media New
-
Vevor Swimming Pool Pump 2HP Single Speed with Strainer Basket 5400 GPH Max Flow 1500W New
-
Vevor Pool Fence Removable Child Safety 4' x 12' Black Mesh for Inground Pools New
-

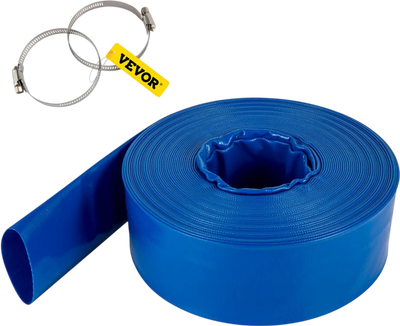

Vevor Discharge Hose 2" x 105' PVC Fabric Lay Flat Backwash Drain Hose with Clamps New
-
Vevor Pool Vacuum Cordless Handheld Cleaner for Above Ground Pools 8.5 GPM New
-
Vevor Solar Pool Cover 32 x 16 ft. Rectangle 16 Mil. Bubble Blanket Heat Retention New
-
Vevor Cartridge Pool Filter 425 Sq. Ft. Area for Inground and Above Ground Filtration System New
-
Vevor Pool Cleaner Automatic Suction Vacuum Sweeper with 12 Hoses for In-Ground and Above-Ground ...
-
Vevor 24' Round Unibead Pool Liner for 52" Wall Height Durable Vinyl New
-
Vevor Pool Liner 10' Round Overlap Above-Ground Crystal New
-
Vevor Solar Pool Cover 32 x 16' Rectangle Blue 12 mil New
-
Vevor Variable Speed Pool Pump 2 HP 145 GPM In/Above Ground with Filter Basket New
-
Vevor Pool Rail 55" x 32" Rustproof Handrail 250 Lbs Capacity with Blue Nylon Grip Cover New
Vevor Pool Pump Motor 1 HP 56J Frame Round Flange Replacement New
Product Overview

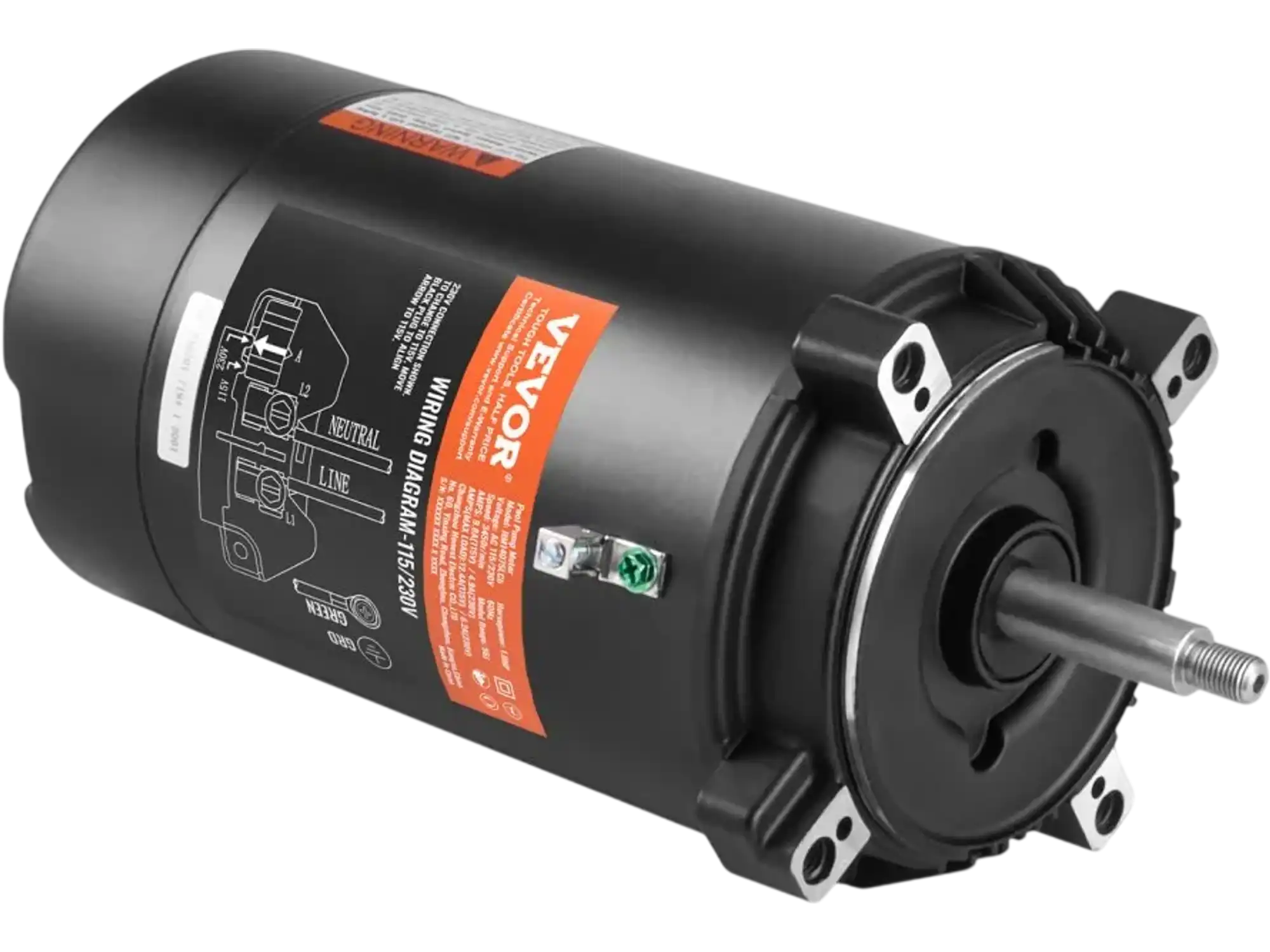

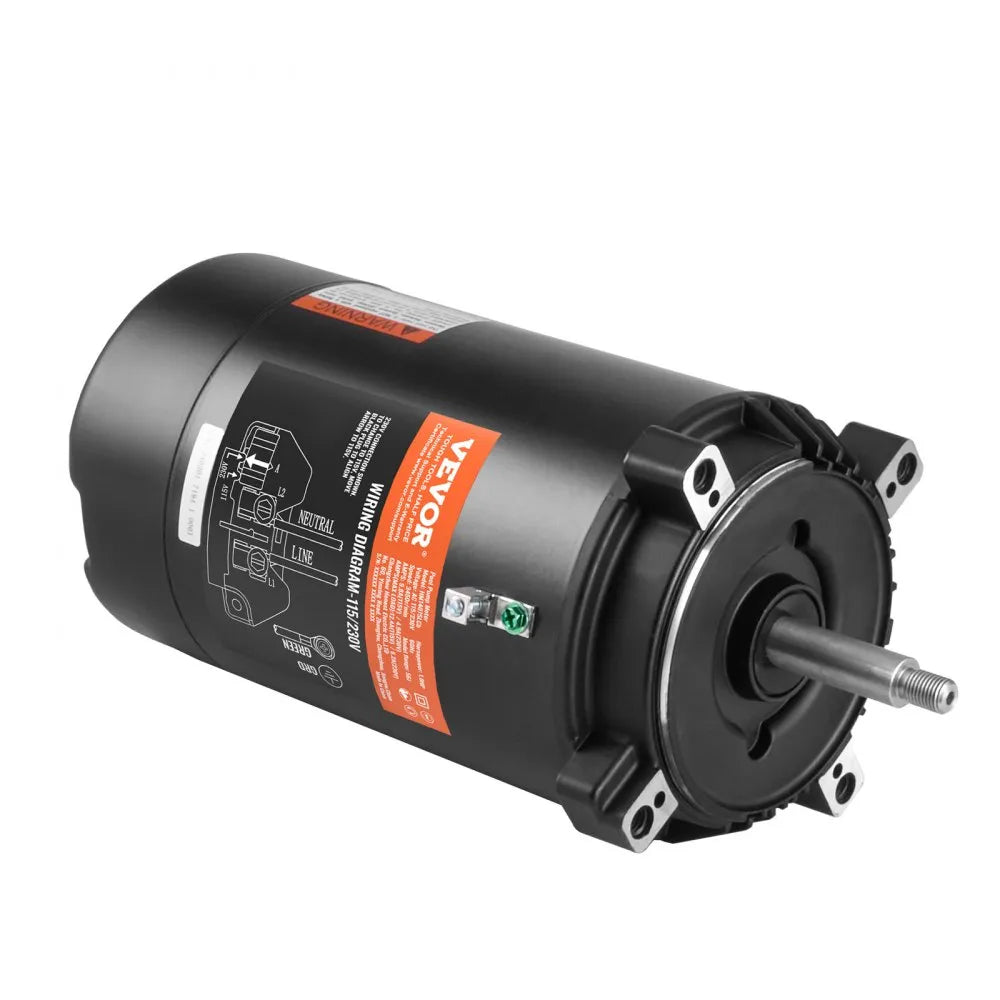

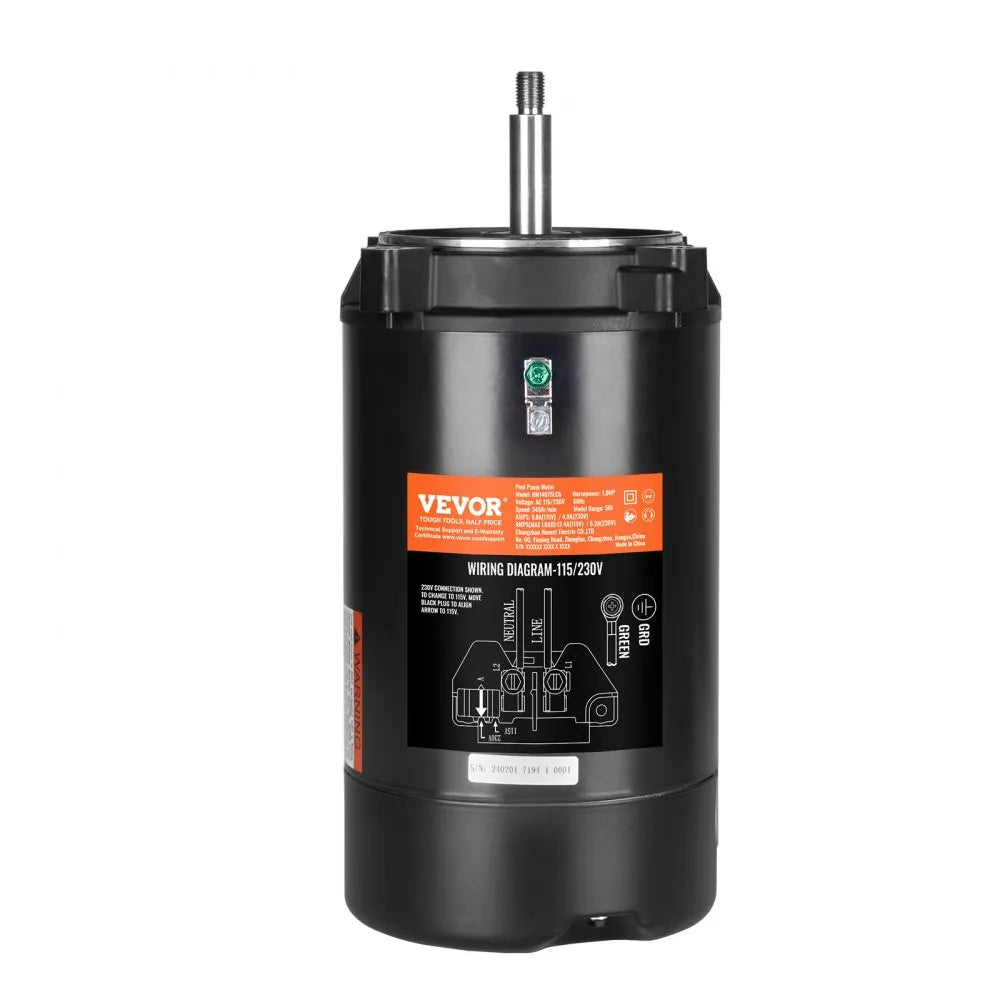

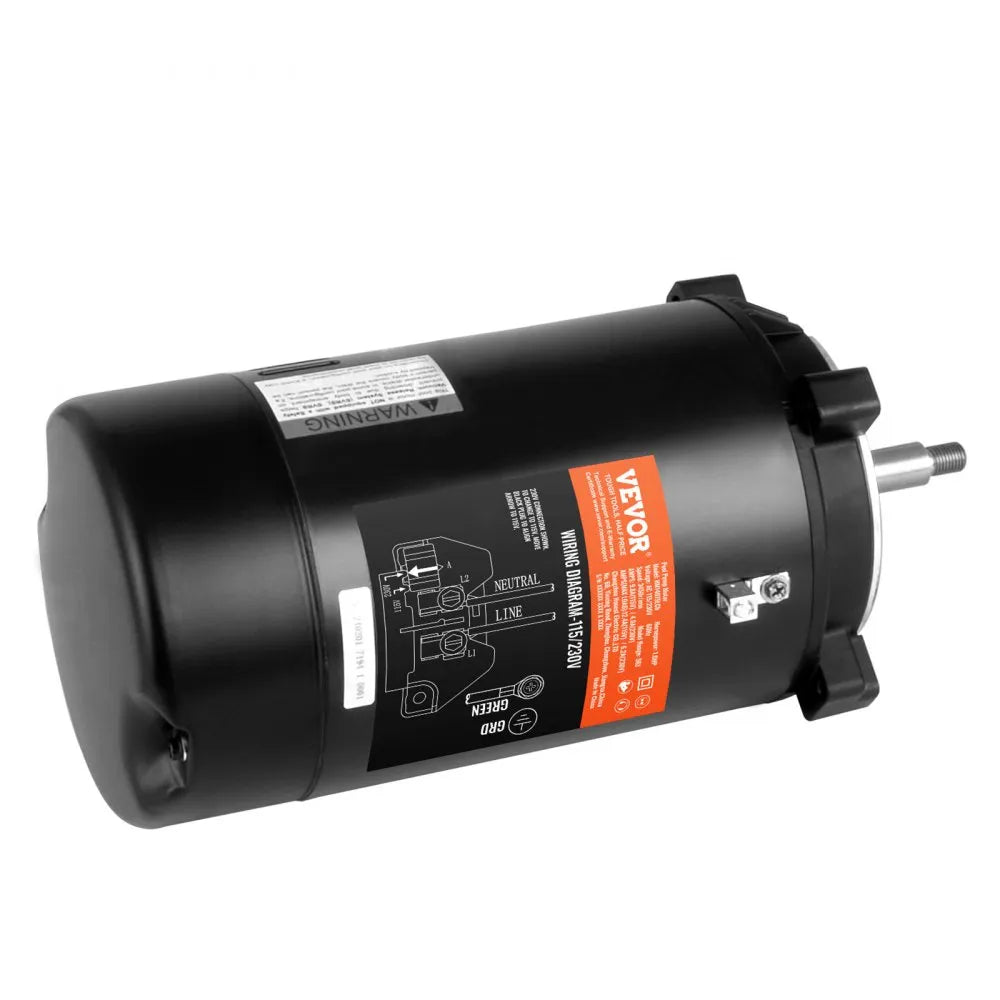

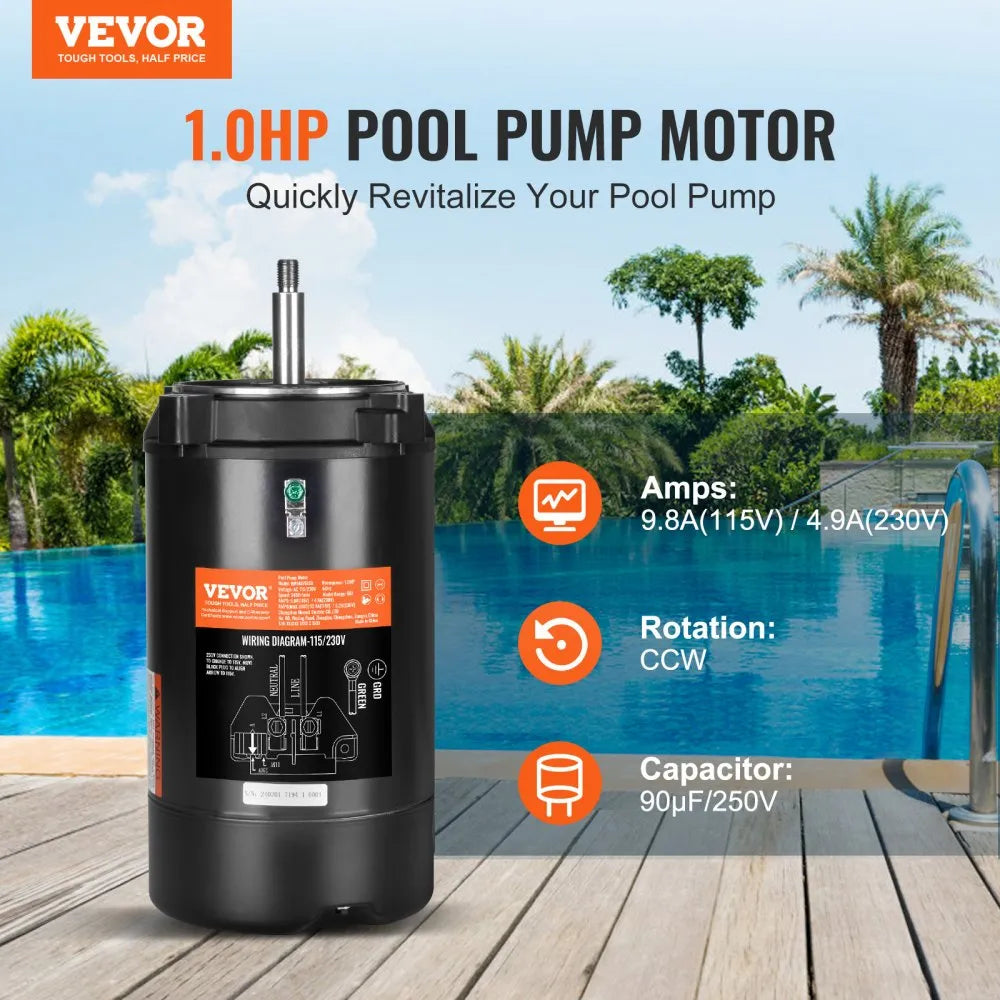

The Vevor pool pump motor is a 1 HP replacement motor designed to restore dependable performance to compatible pool pump systems. It operates on AC 115/230V power and delivers a no-load speed of 3450 RPM for efficient water circulation. Its corrosion-resistant steel housing, ball-bearing construction, and overload protection support durable operation. The motor features CCW rotation, a 56J flange, and a 90μF/250V capacitor for reliable starting and performance. A user manual is included to help with installation.
*Not for sale in California*
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

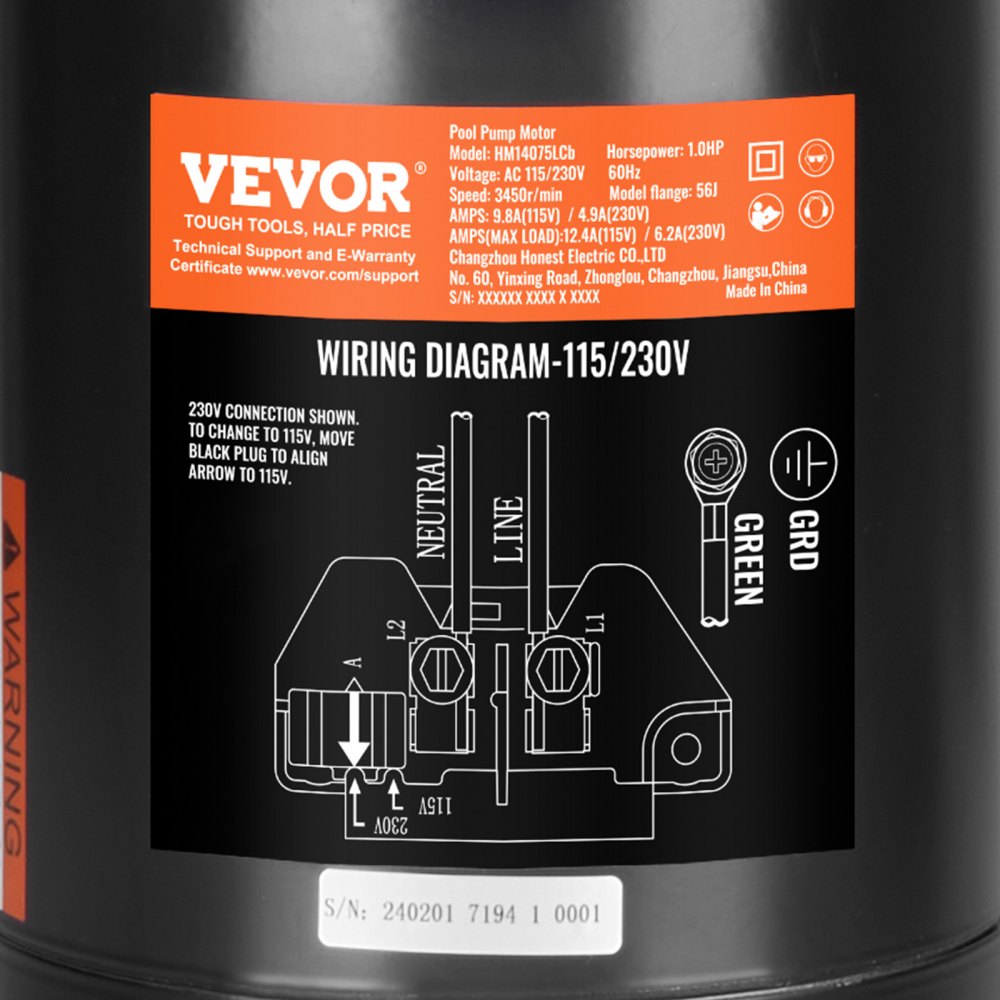

- Reliable Performance: VEVOR 1HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 9.8/4.9A ; Amps (Max Load): 12.4/6.2A ; SF: 1.4 ; Capacitor: 90μF/250V ; Model Flange: 56J.

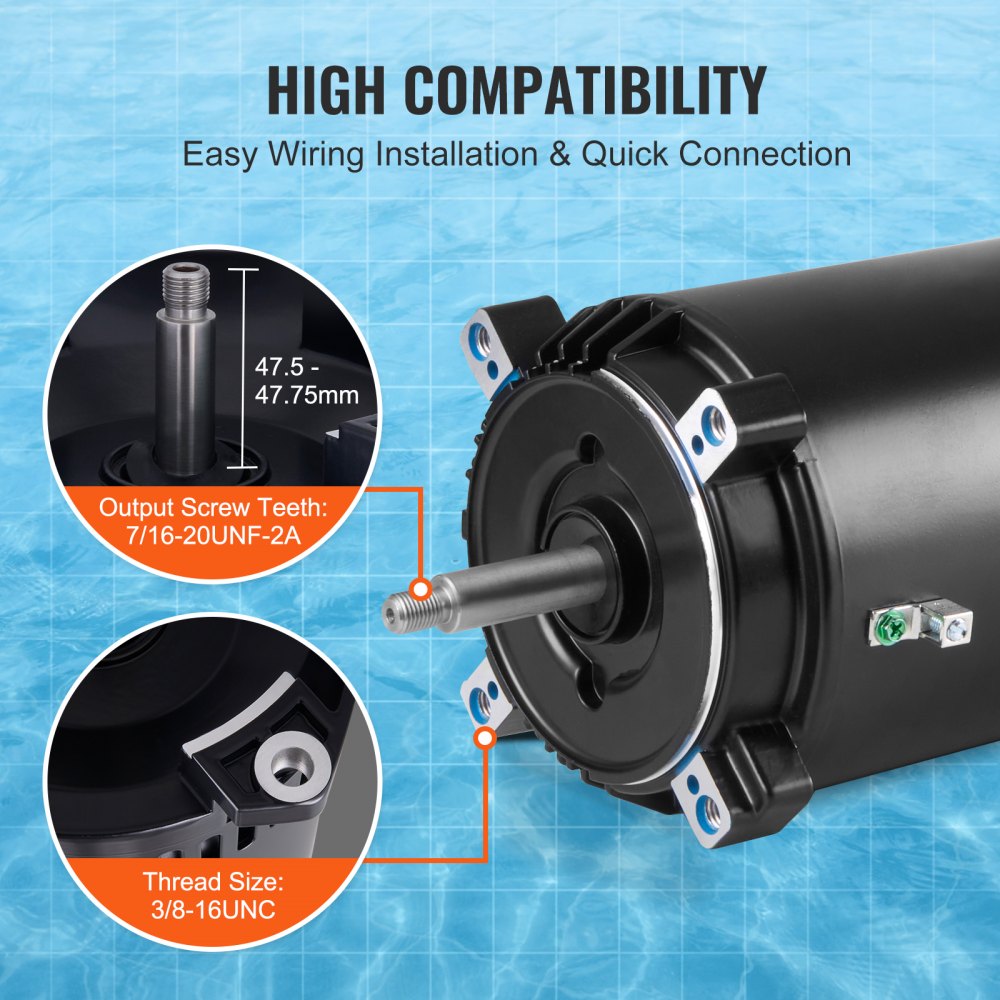

- Easy Installation: Installing our pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft extension. Get detailed installation instructions with the included user manual.

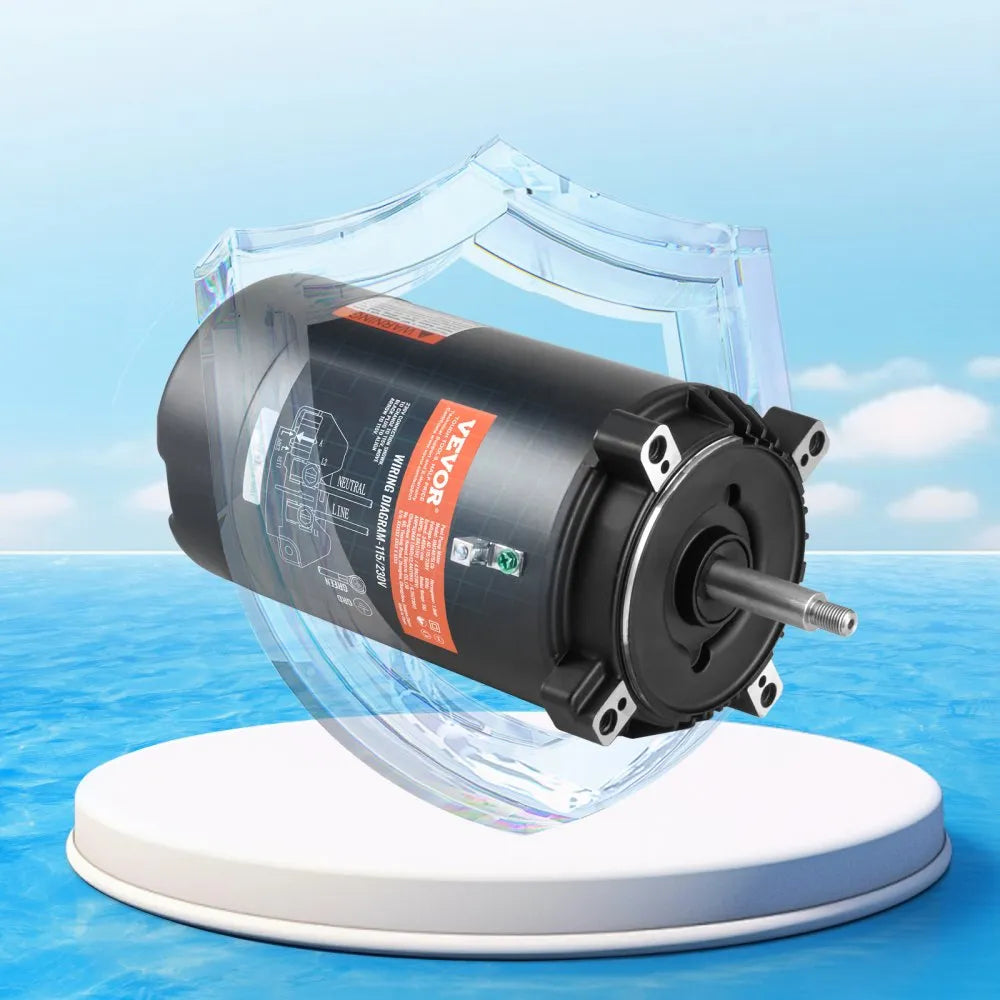

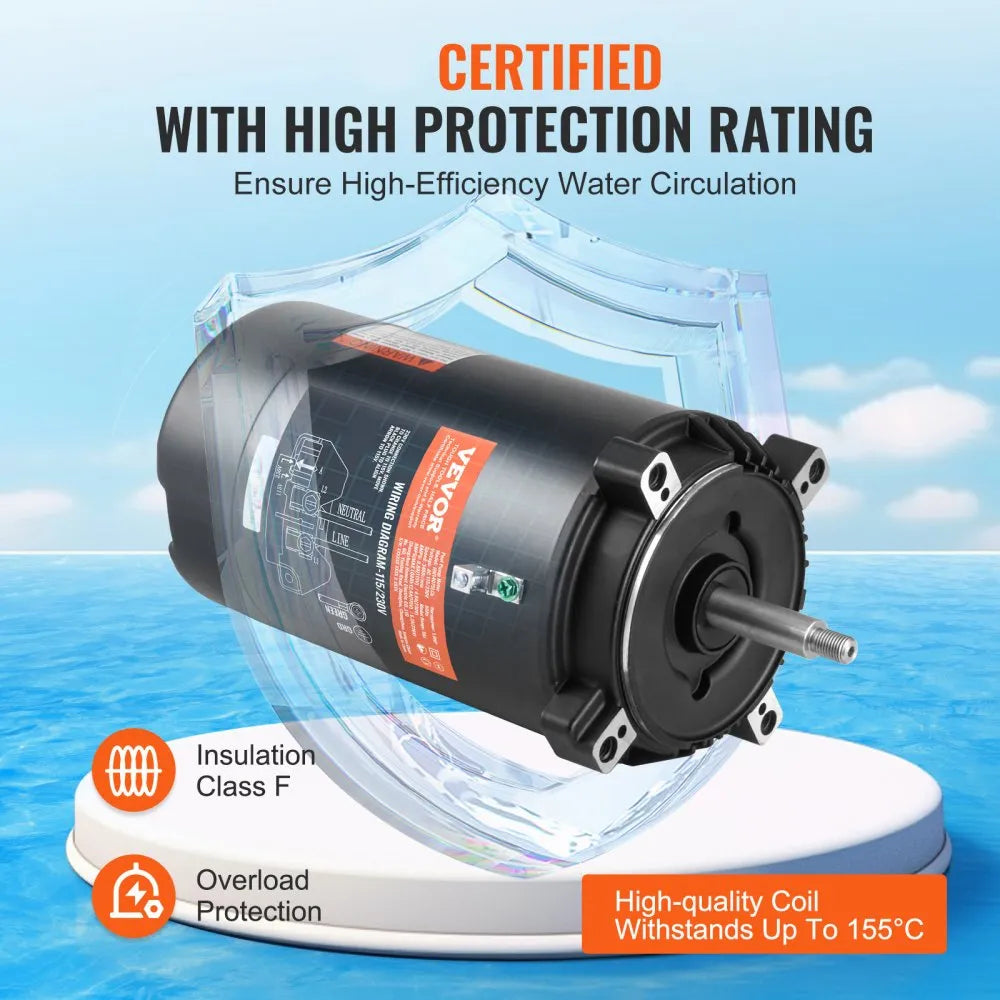

- Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.

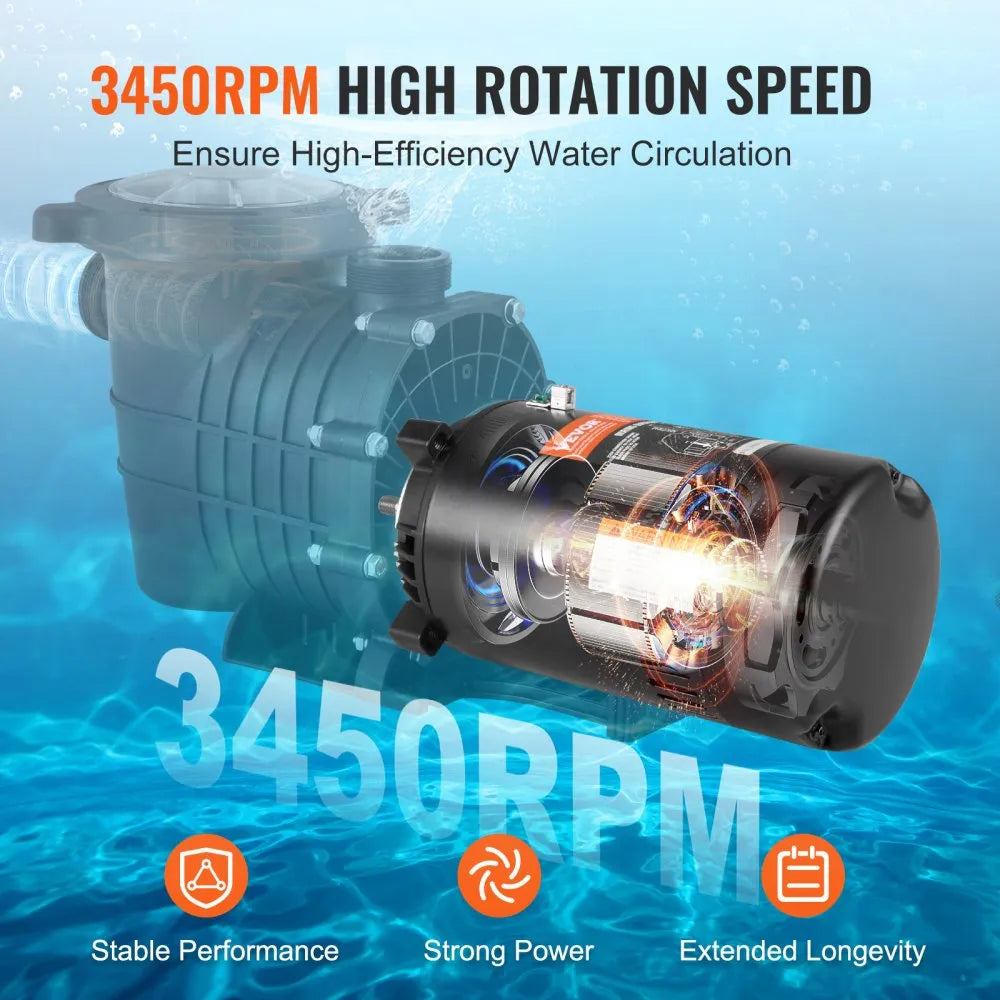

- High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 65db low noise level. Dive into a refreshing pool experience with reliability and tranquility.

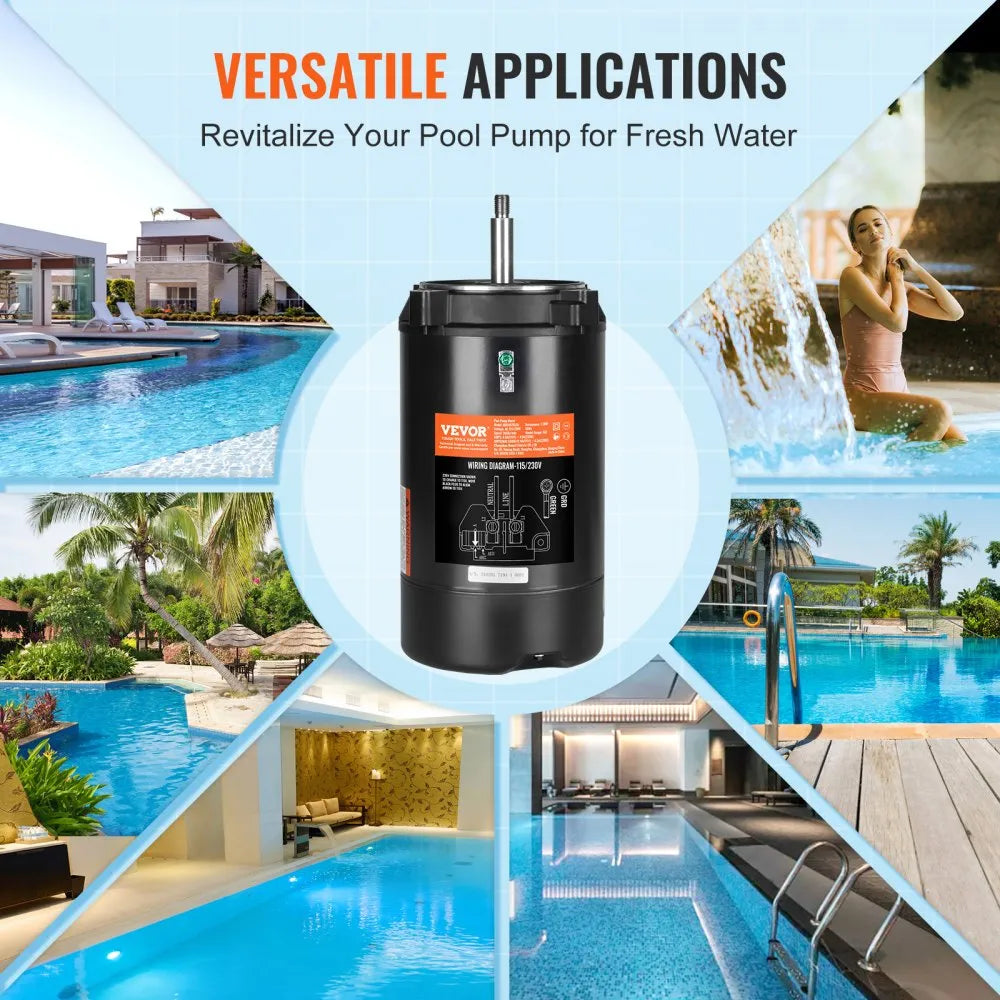

- Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

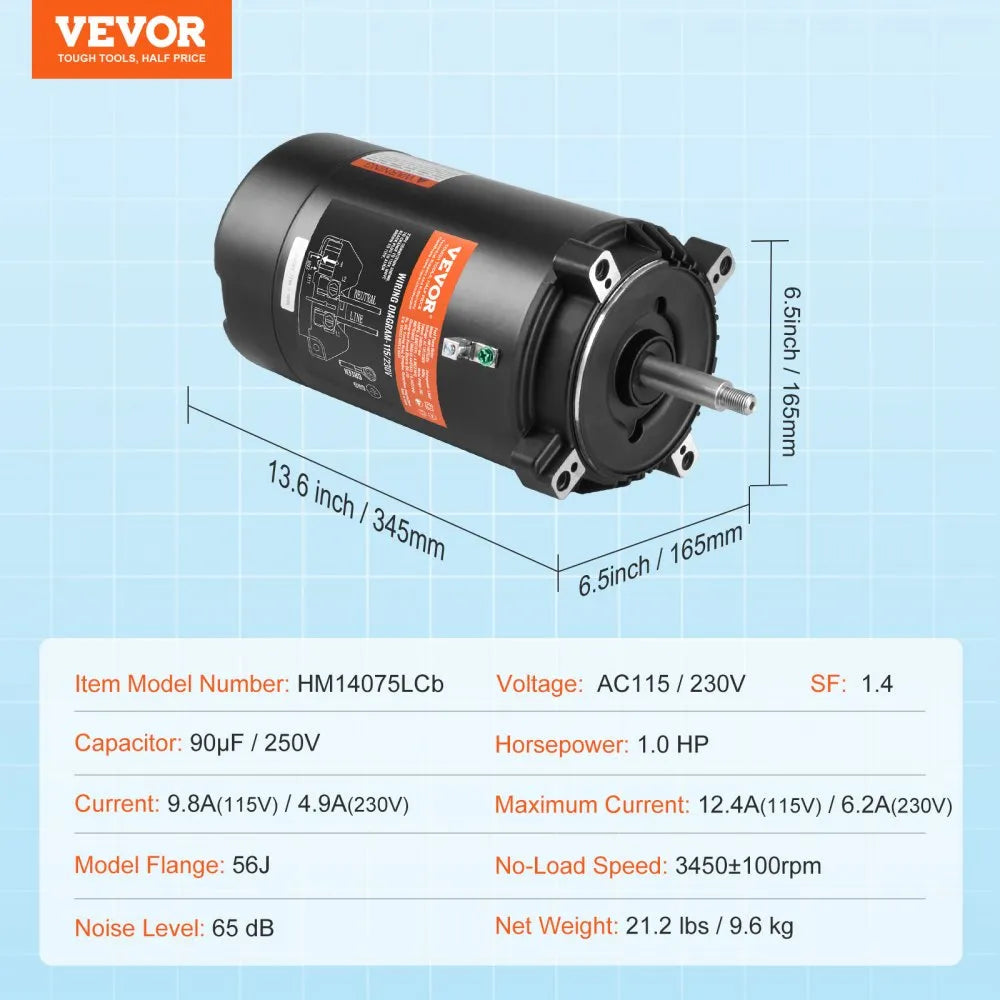

Specifications
| Item Model Number | HM14075LCb |
| Voltage | AC 115/230V |
| Capacitor | 90μF/250V |
| Horsepower | 1 HP |
| Current | 9.8A (115V) / 4.9A (230V) |
| Current Max Load | 12.4A (115V) / 6.2A (230V) |
| Service Factor | 1.4 |
| Model Flange | 56J |
| No-Load Speed | 3450 RPM |
| Frequency | 60Hz |
| Rotation | CCW |
| Noise Level | ≤ 65 dB |
| Product Dimensions | 13.6 x 6.5 x 6.5" |
| Net Weight | 21.2 lbs |
Package Contents
Pool pump motor
User manual
Warranty
This item comes with a 1 year factory warranty.
