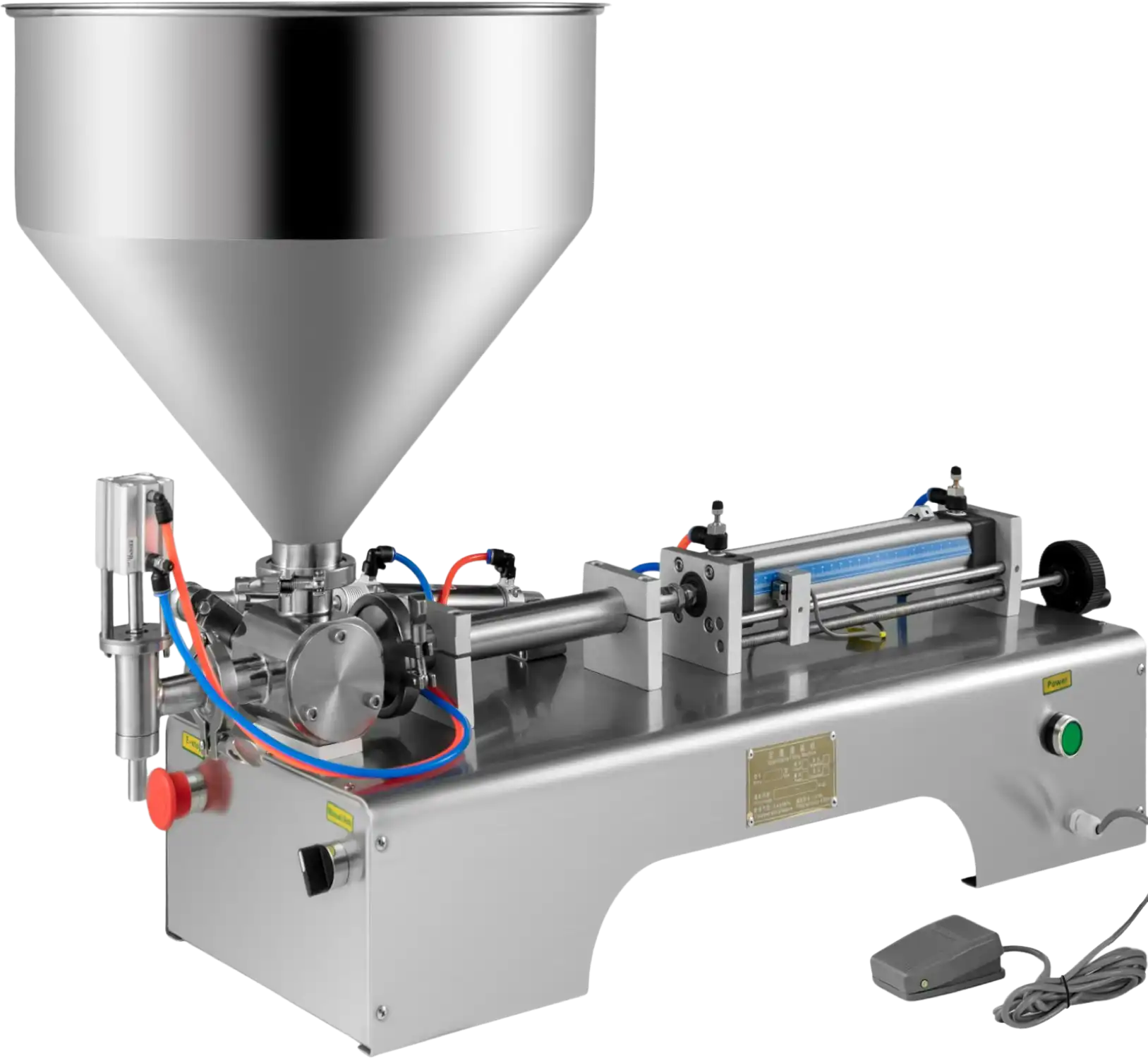

Vevor Pneumatic Liquid Filling Machine 10-300mL Bottle Filler with 30L Hopper and Pedal Horizontal New
Manufacturer: Vevor
SKU: GZJ10-300MLGTQDZHV1
QTY
or
(888) 999-1522
C
$604.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Vevor Pneumatic Liquid Filling Machine 10-300mL Bottle Filler with 30L Hopper and Pedal Horizontal New
Product Overview
This pneumatic filling machine is suitable for all liquids and paste without particles. The 30L large capacity hopper is crafted from food-grade stainless steel and features a no-drip design.
Note: This does not come with an air compressor. You need to provide your own 2000W air compressor and a gas storage capacity of more than 50L.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- NO DRIPPING PASTE FILLING DEVICE: - This paste filling machine has an efficient filling performance. Equipped with a 30L hopper with a large inlet volume at once. A rotary valve control the transfer of paste material to the outlet, no dripping.
- ARBITRARILY CONTROLLABLE PROCESS: - With large power air cylinder, the whole filling process is controllable, including the operating speed of air cylinder, filling speed, and filling volume, to meet different needs for accurate filling.
- STAINLESS STEEL CONSTRUCTION 10-300ML: - Large Capacity: 10-300ml. Pneumatic shampoo filling machine is made of stainless steel materials, resistant to corrosion, rust, acid and alkali. Easy and safe to operate, remove and clean switches for better operation of the machine.
- ADVANCED AIR PRESSURE GAUGE: - Adopt air pressure gauge to accurately monitor air pressure change. This cream filling machine needs to work with an air compressor(not offered).
- VARIOUS APPLICATION: - Pneumatic filling machine is suitable for all liquid and paste without particles, like cream, shampoo, oil, toothpaste. Perfect for usage in any fields. NOTE: It is suitable for liquid and paste with good fluidity, and is not suitable for filling overly viscous pastes.
Specifications
| Voltage | 110V/60Hz |
| Material | Stainless Steel |
| Head | Single Head |
| Filling Volume | 10-300ml |
| Filling Speed | 10-20 bottles/min |
| Filling Accuracy | ±1% |
| Air Pressure | 58 - 87 PSI (0.4-0.6 MP) |
| Hopper Volume | 30L (7 gal.) |
| Max. Working Temperature | 104℉ (40℃) |
| Assembly Required | Yes |
| Total Size | 36.2 x 14.6 x 26.4 in. (92 x 37 x 67 cm) |
| Item Weight | 66 lbs. |
Package Contents
Vevor Pneumatic Liquid Filling Machine
30L Hopper
Piezometer
(6) Screwdrivers
Foot Pedal
(5) Space Sheets
Power Cord
Kit of Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
