Product Overview

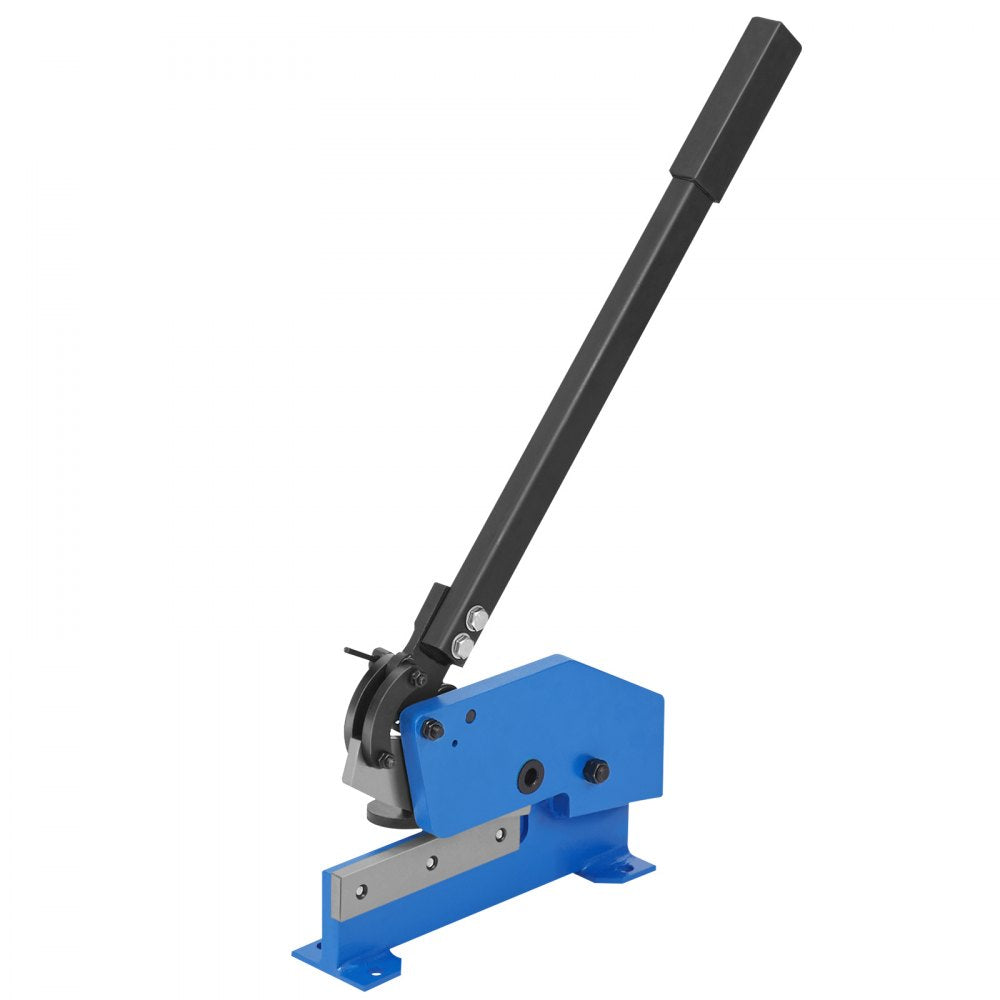

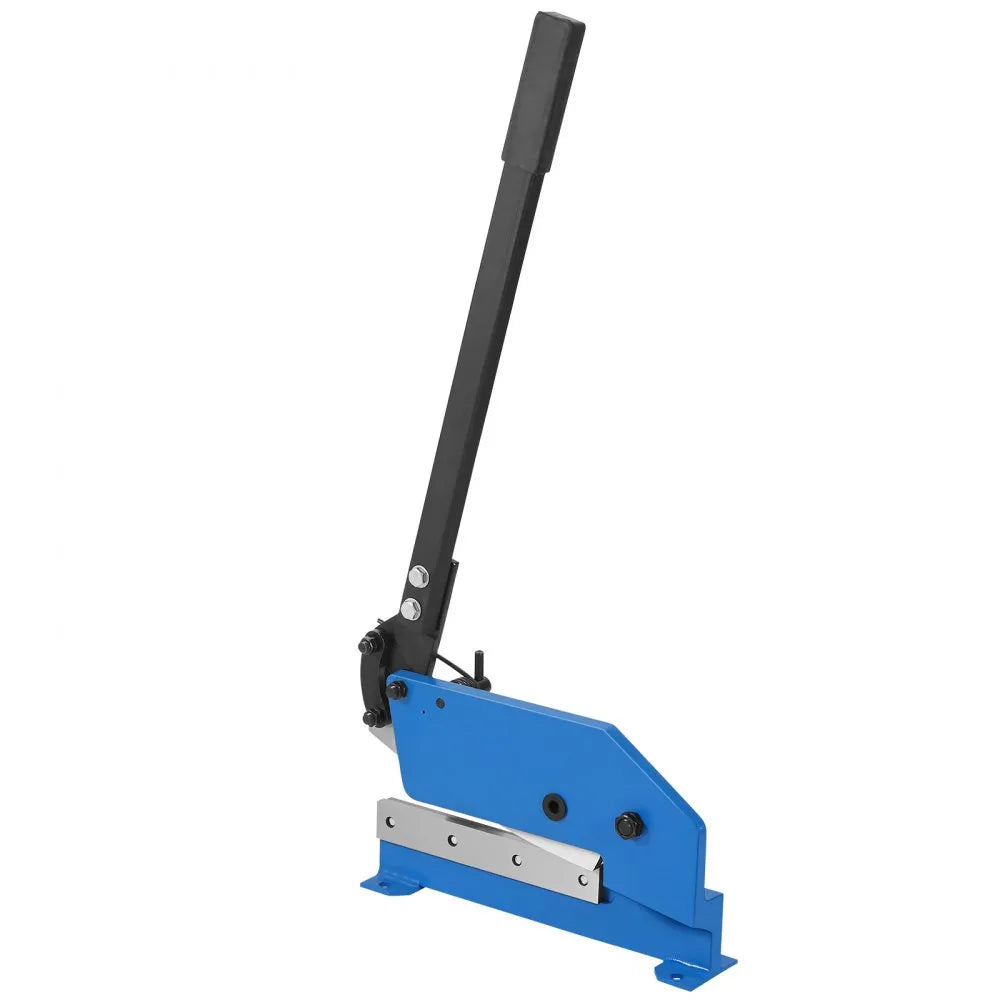

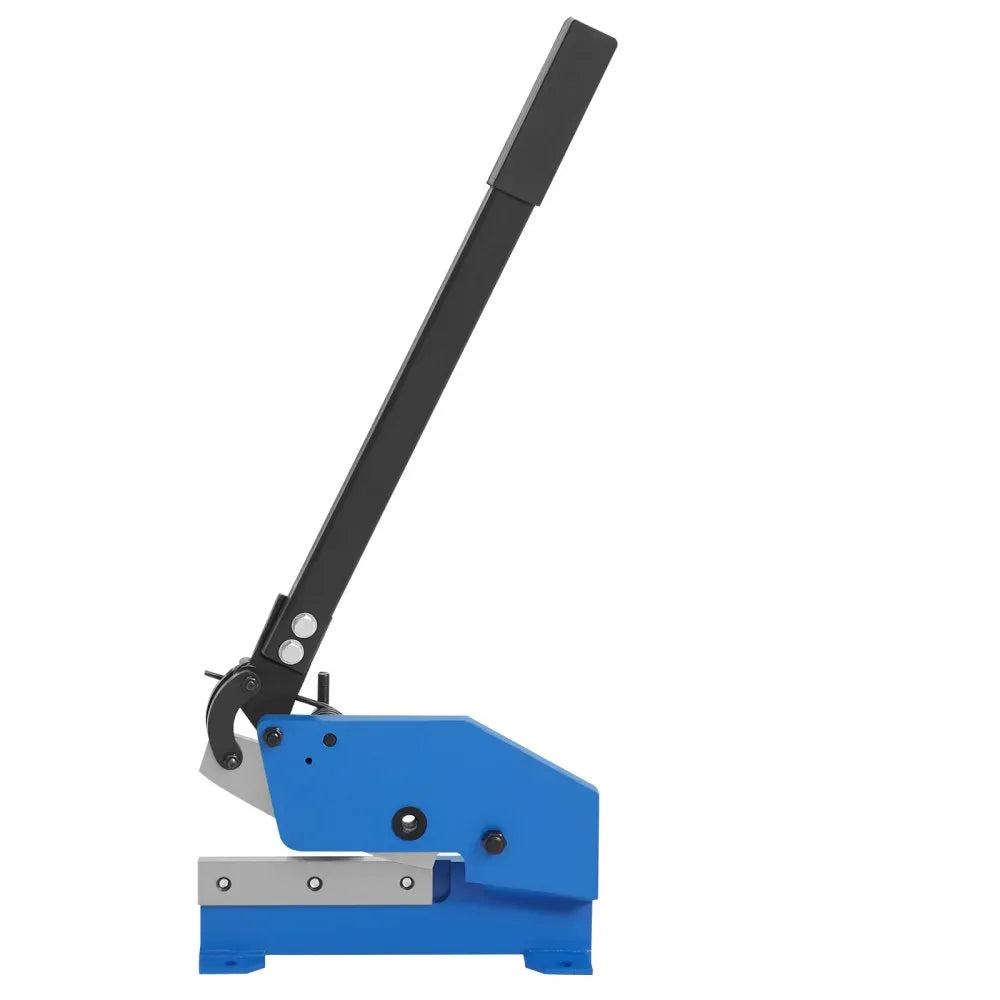

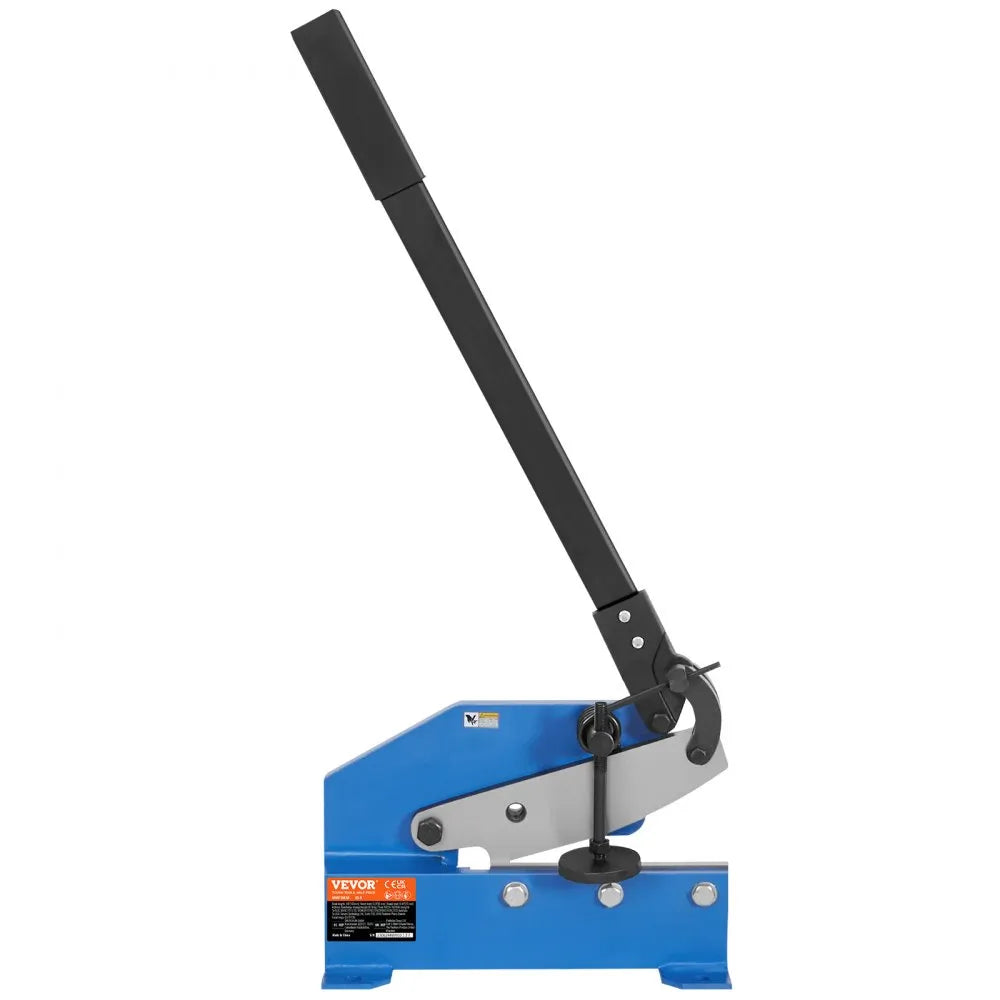

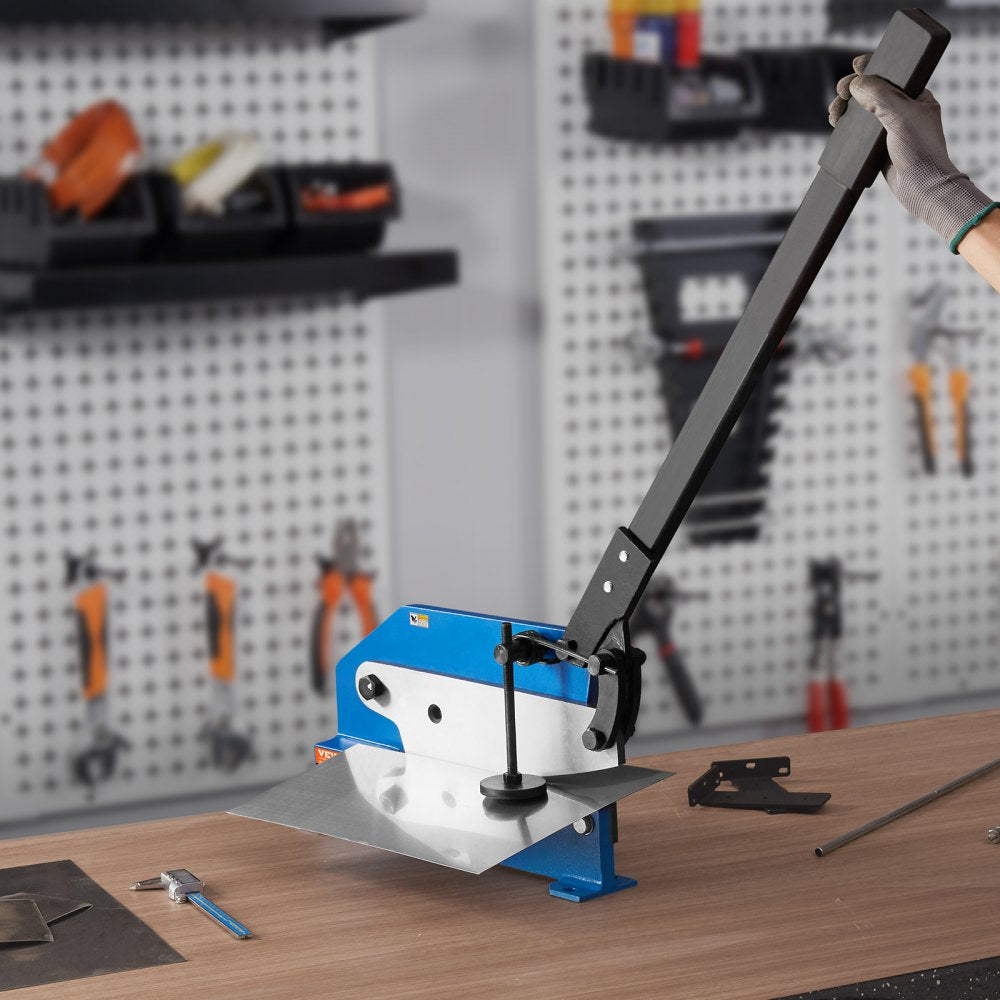

The Vevor manual hand plate shear is designed for precision metal sheet processing with clean, smooth cuts. Its long handle provides added leverage for easier operation and reduced fatigue during heavy-duty cutting tasks. Built with Q235 and T10 materials, it can handle steel plates, flat steel, steel rods, aluminum, and other metal sheets. The benchtop design offers stable tabletop bolt fixation for dependable use in workshops, craft projects, and DIY applications. Its sturdy construction and tight blade clearance help deliver burr-free results.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

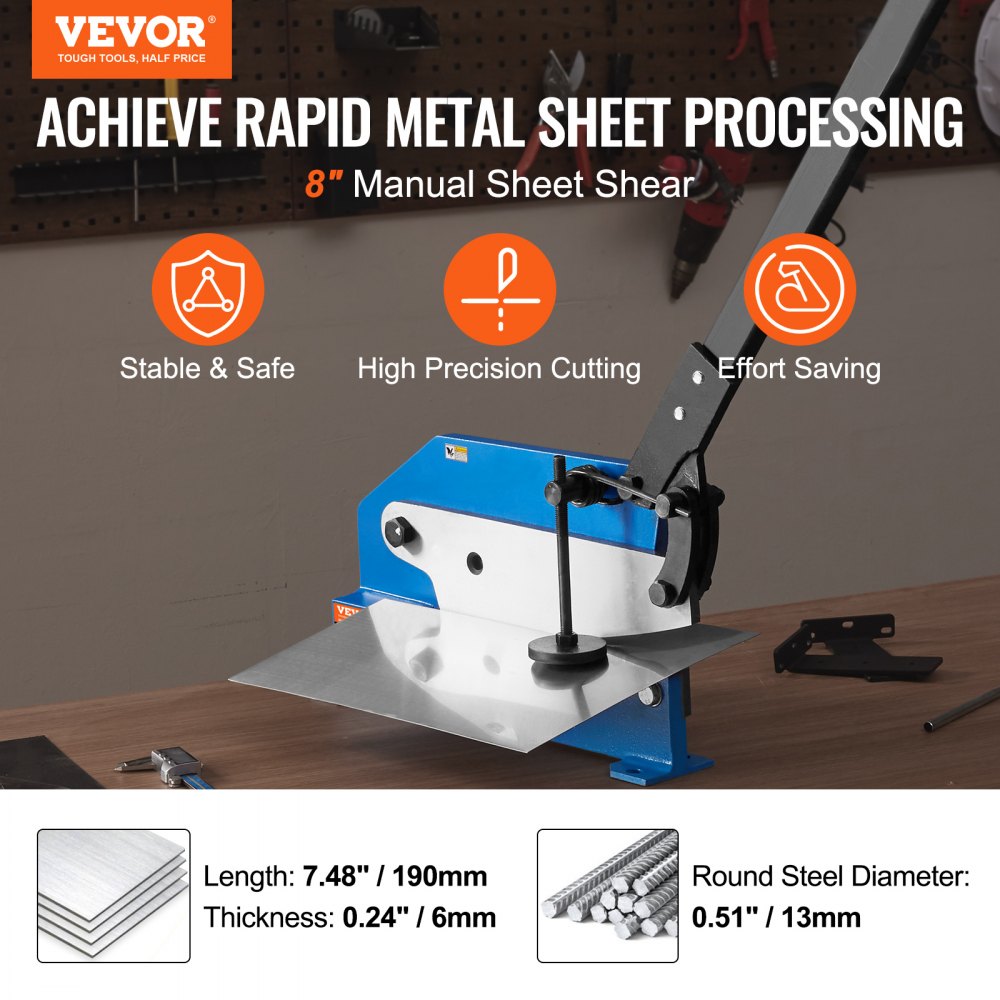

- Maximum material cutting size: Length: 7.48" / 190mm, Thickness: 0.24" / 6mm, Round steel diameter: 0.44" / 13mm. Steel plates, flat steel, and steel rods can all be easily cut. One machine for various cutting and opening tasks, saving you the burden of carrying multiple heavy tools.

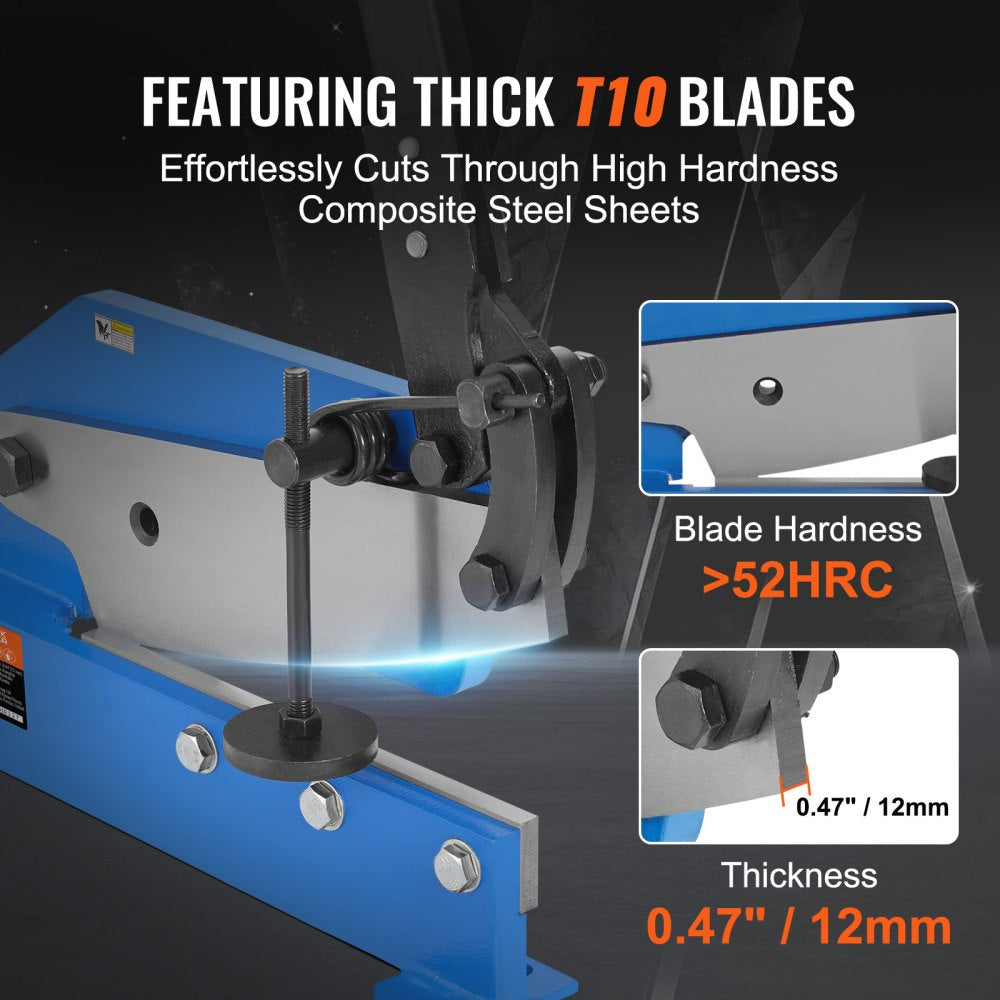

- Utilizes T10 steel blades: Blade hardness: >52HRC; Thickness: 0.47" / 12mm. It can easily handle various hard metal sheets, such as low-carbon steel, steel bars, aluminum plates, aluminum alloy plates, electro-galvanized plates, tin-plated plates, composite steel plates, color-coated steel plates. This versatility makes your work more convenient.

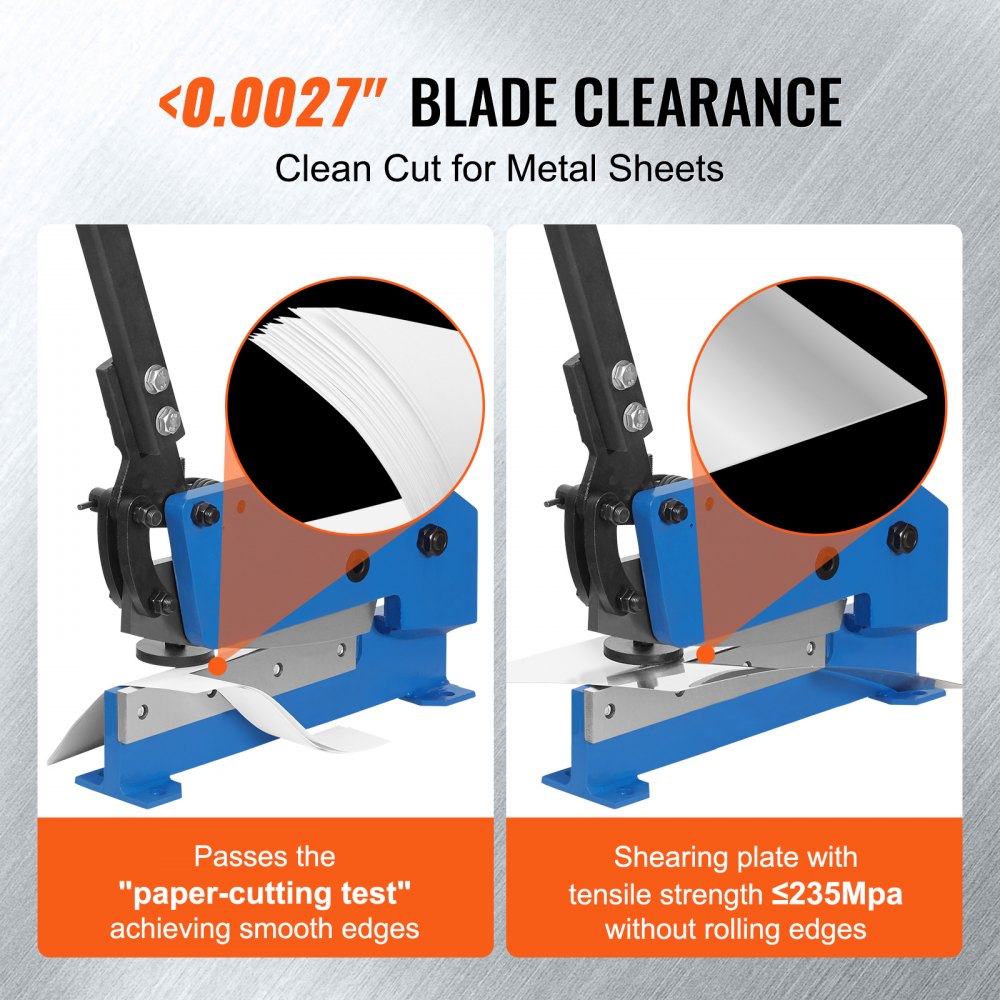

- Smooth cutting edges: <0.0027" blade gap. It passes the paper-cutting test, achieving smooth and complete paper edges. When cutting steel materials, it ensures smooth, burr-free edges, preventing material waste or damage.
- Long handle, effortless cutting: The design of the long handle allows you to exert greater force with less effort, significantly reducing the difficulty and fatigue of cutting. Whether you need to cut heavy or hard materials, this shearing machine makes it easy for you and greatly improves your work efficiency.

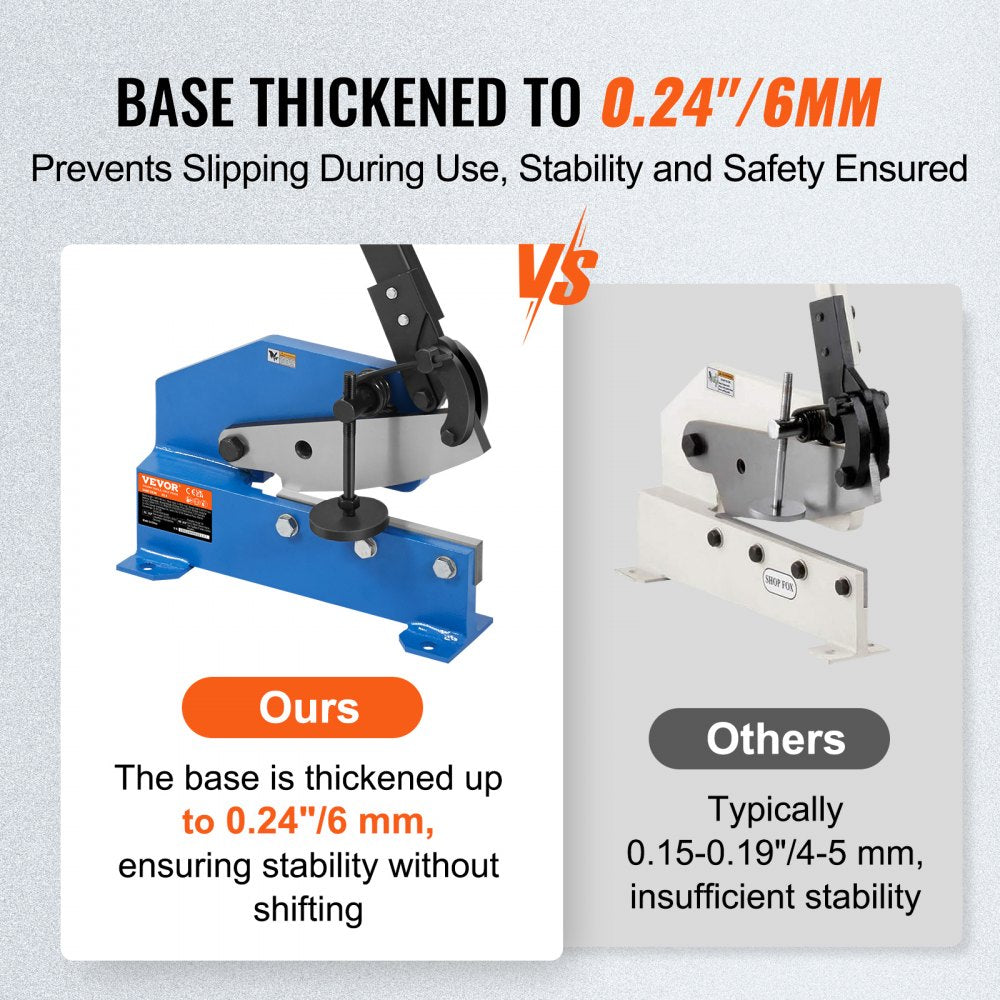

- Sturdy body: The base is thickened to 0.24" / 6mm, providing a stable and heavy base with excellent grip, ensuring stability and preventing shifting during material cutting. This gives you the confidence to work without worrying about the machine's instability affecting your actions.

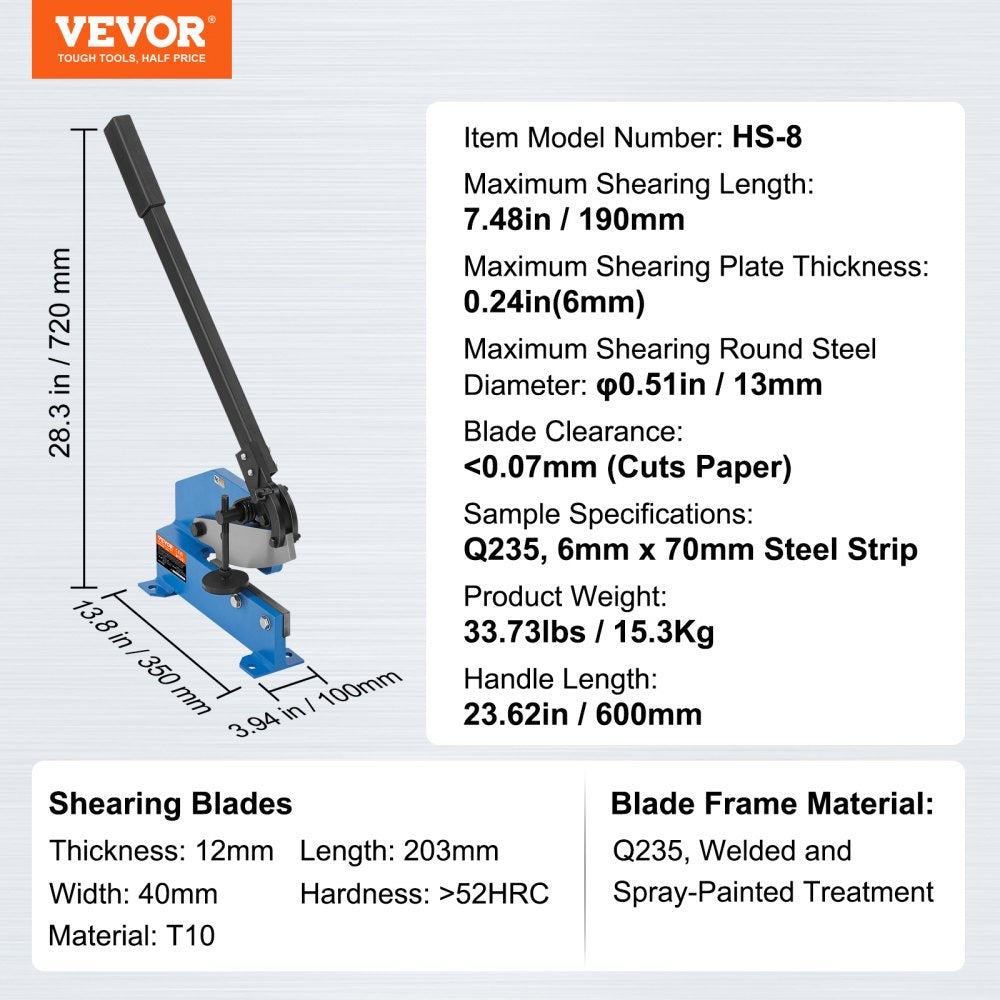

Specifications
| Product Type | Plate Shear |
| Product Size | 8" |
| Max. Shearing Length | 7.48" / 190 mm |
| Max. Shearing Plate Thickness | 0.24" / 6 mm |
| Max. Shearing Round Steel Diameter | 0.44" / 13 mm |
| Blade Clearance | <0.07 mm (cuts paper) |
| Sample Specifications | Q235, 6 mm x 70 mm steel strip |
| Shear Plate Tensile Strength | ≤235 MPa |
| Operating Method | Tabletop bolt fixation, manual edge folding |
| Surface Treatment & Color | Painted, blackened treatment, blue |
| Primary Material | Q235, T10 |
| Product Weight | 33.73 lbs / 15.3 kg |

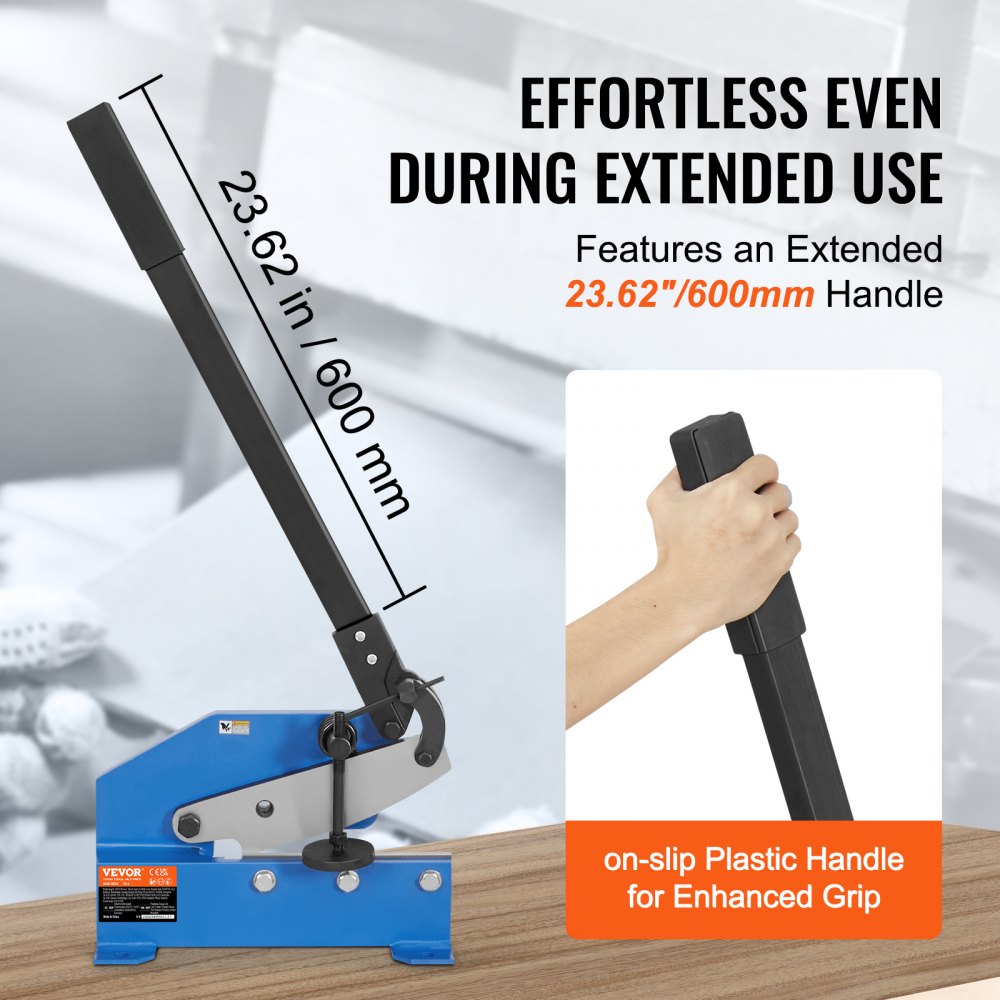

| Handle Length | 23.62" / 600 mm |
| Dimensions | 17.8 x 3.94 x 28.3" / 350 x 100 x 720 mm |

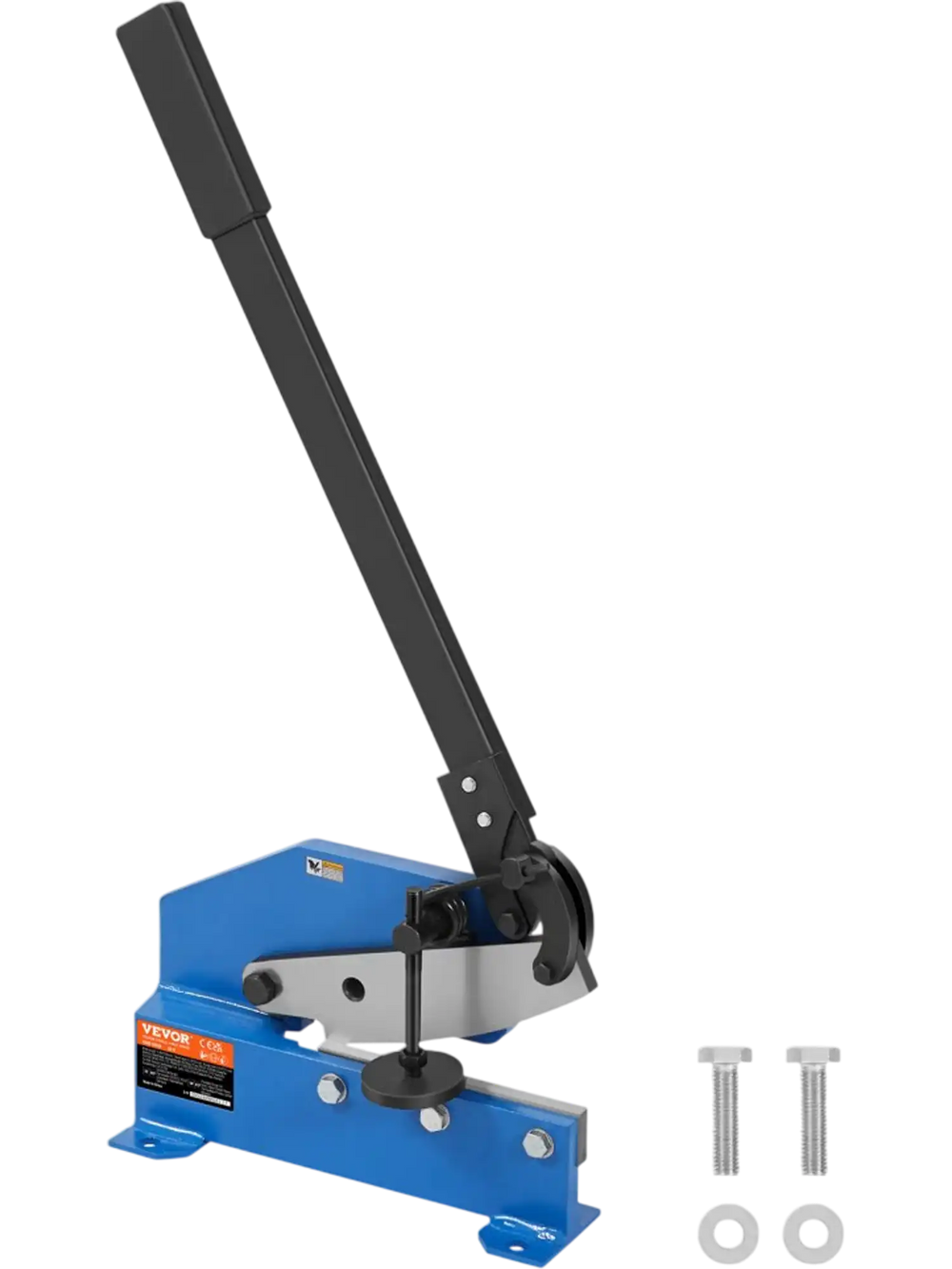

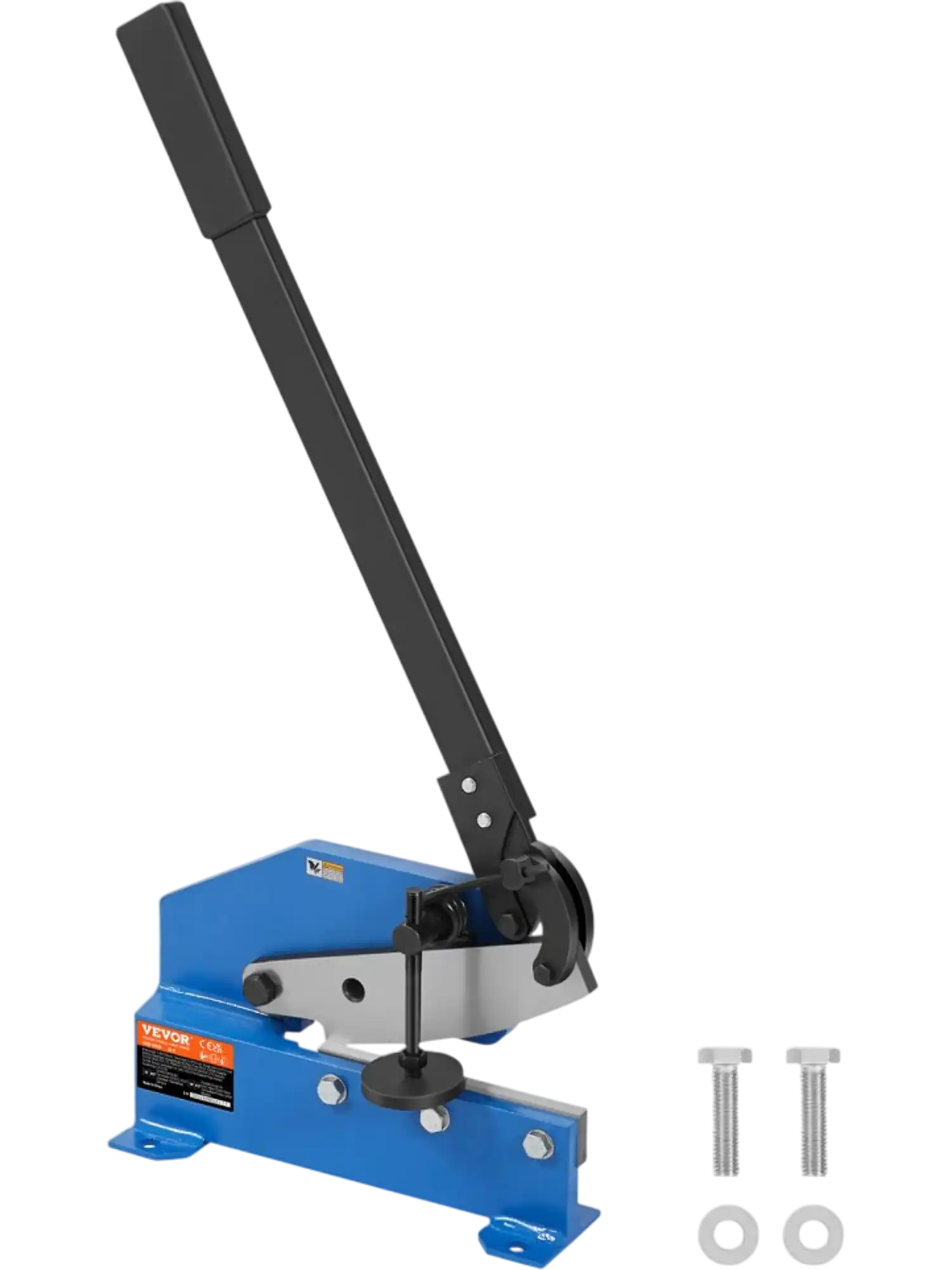

Package Contents

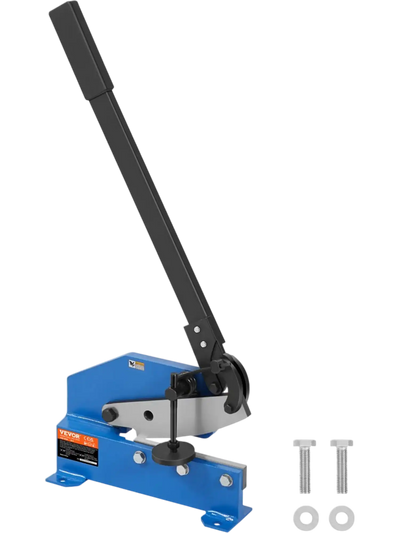

Manual hand plate shear
Mounting hardware
Warranty
This item comes with a 1 year factory warranty.
