Vevor Plate Shear 5" Manual Hand Benchtop Metal Sheet Cutter New
Product Overview

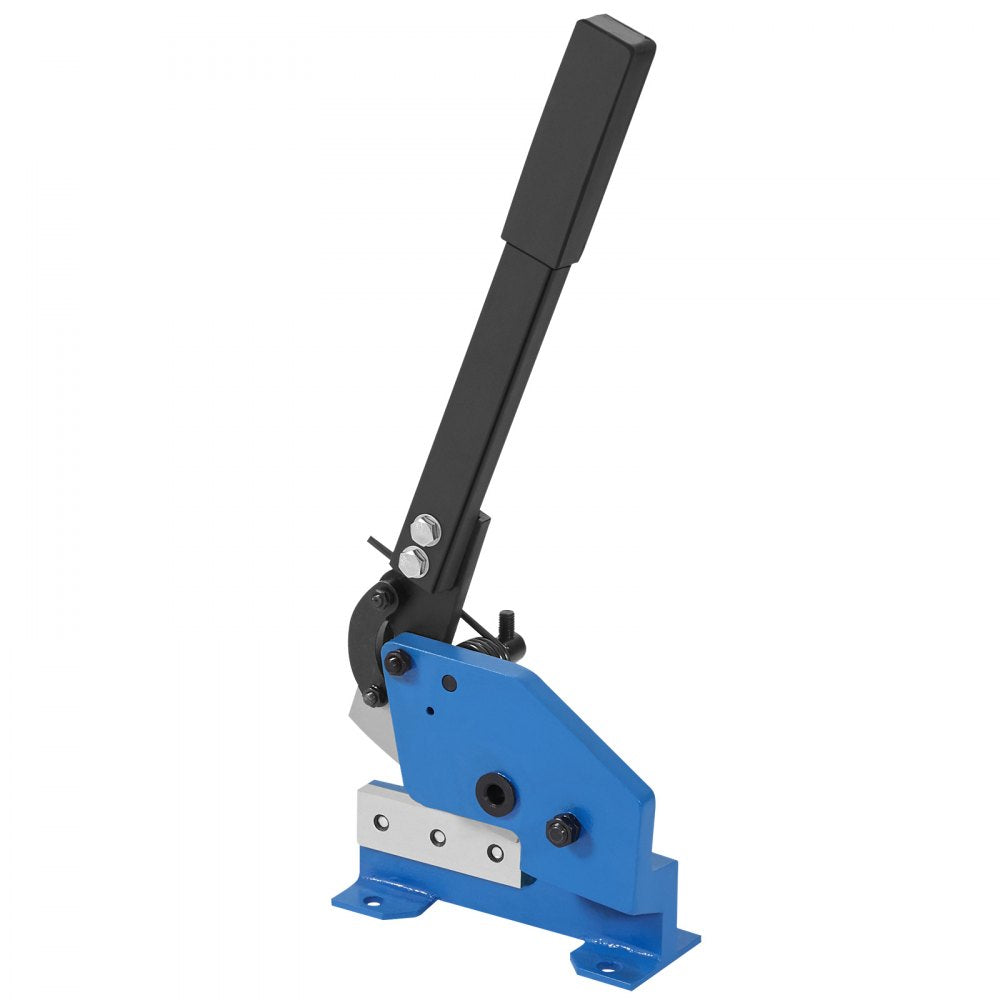

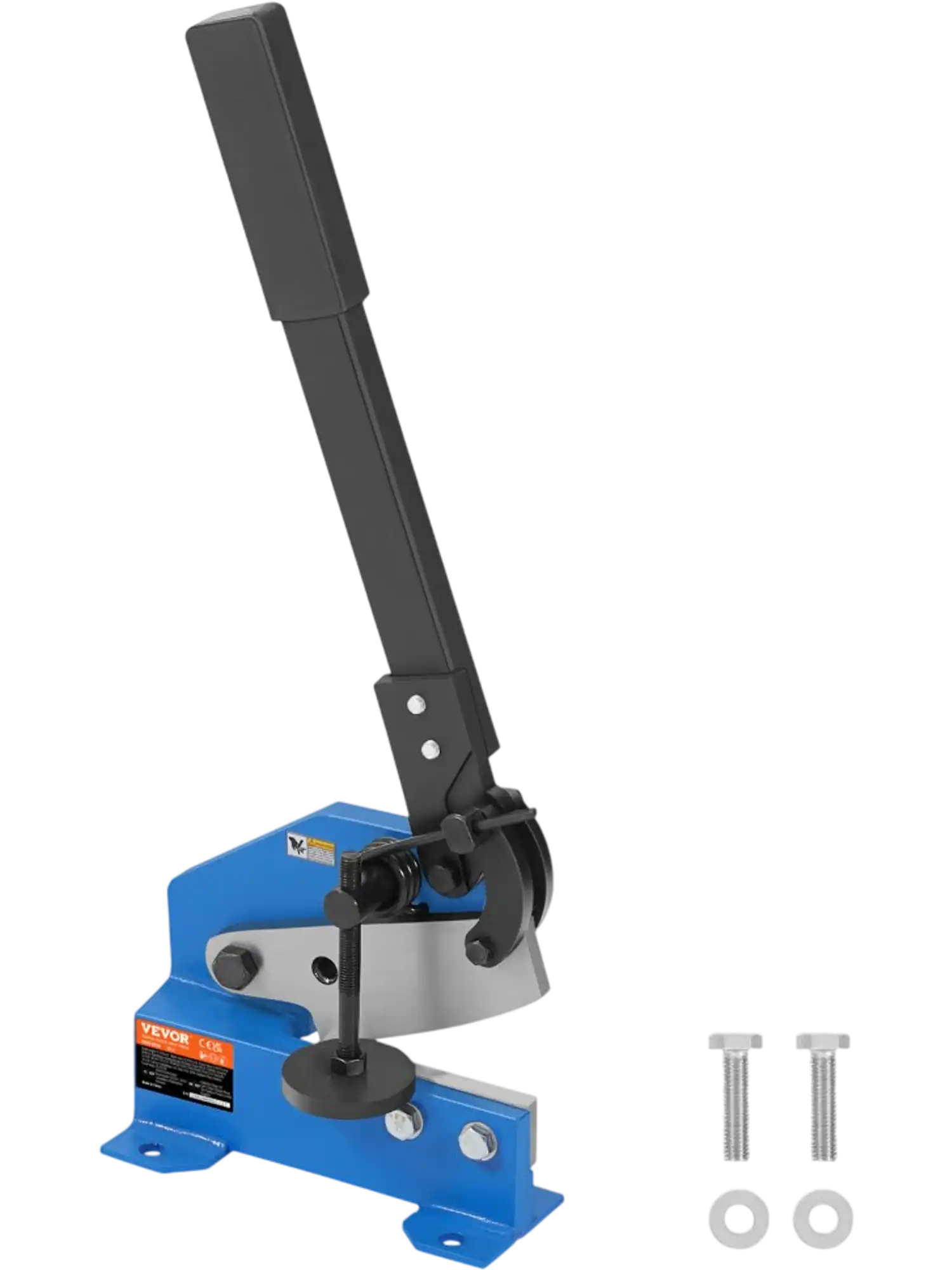

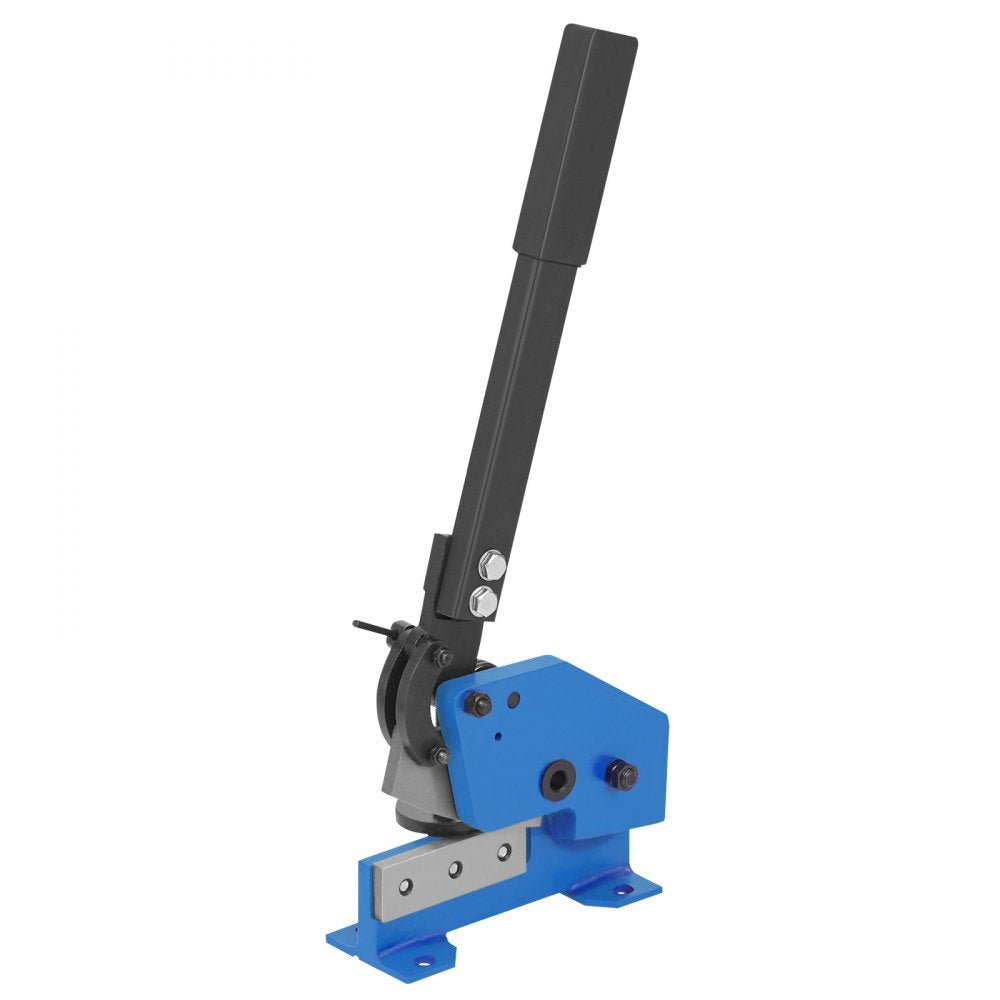

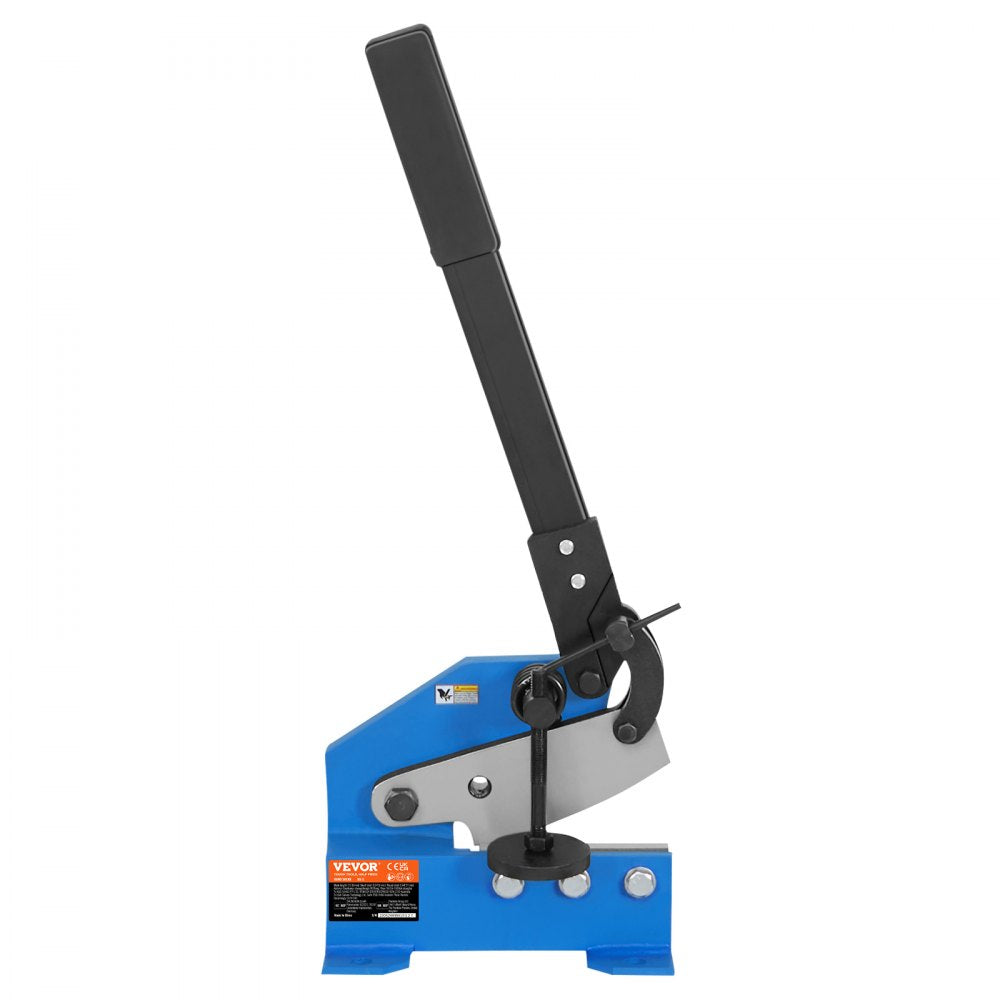

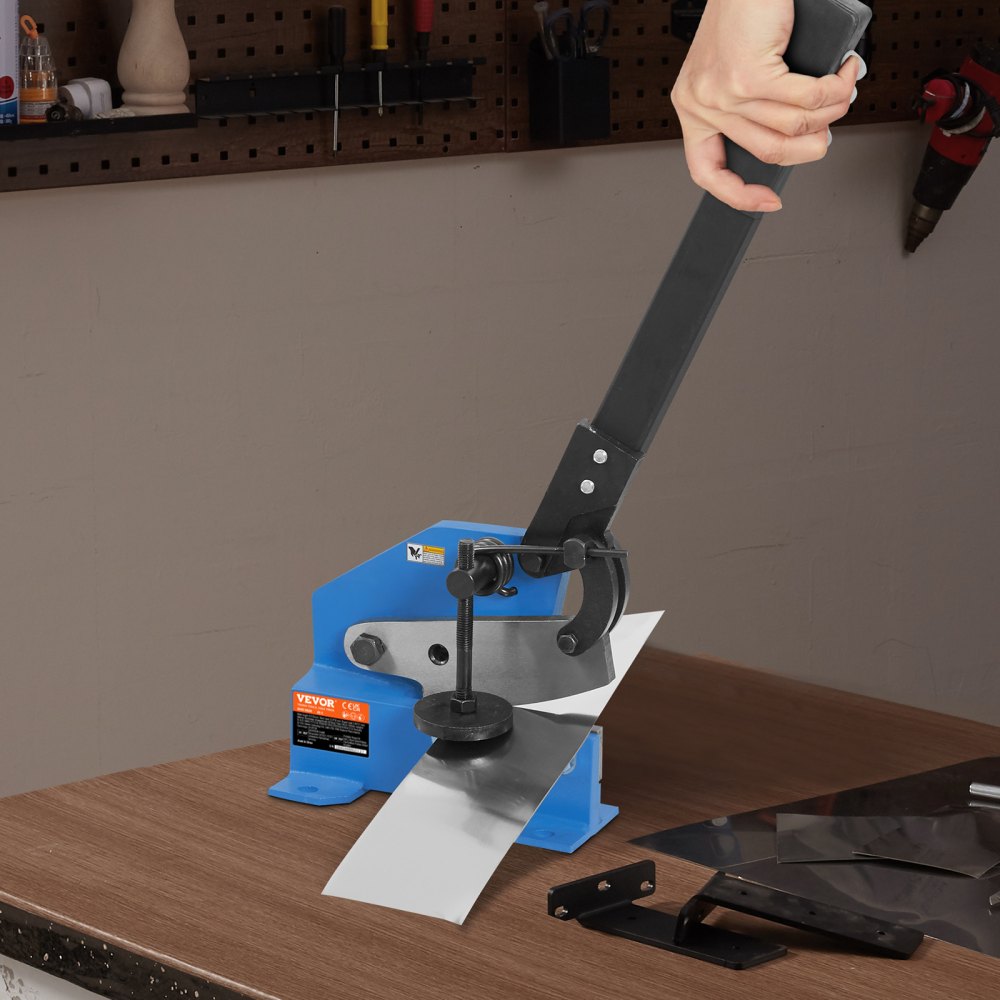

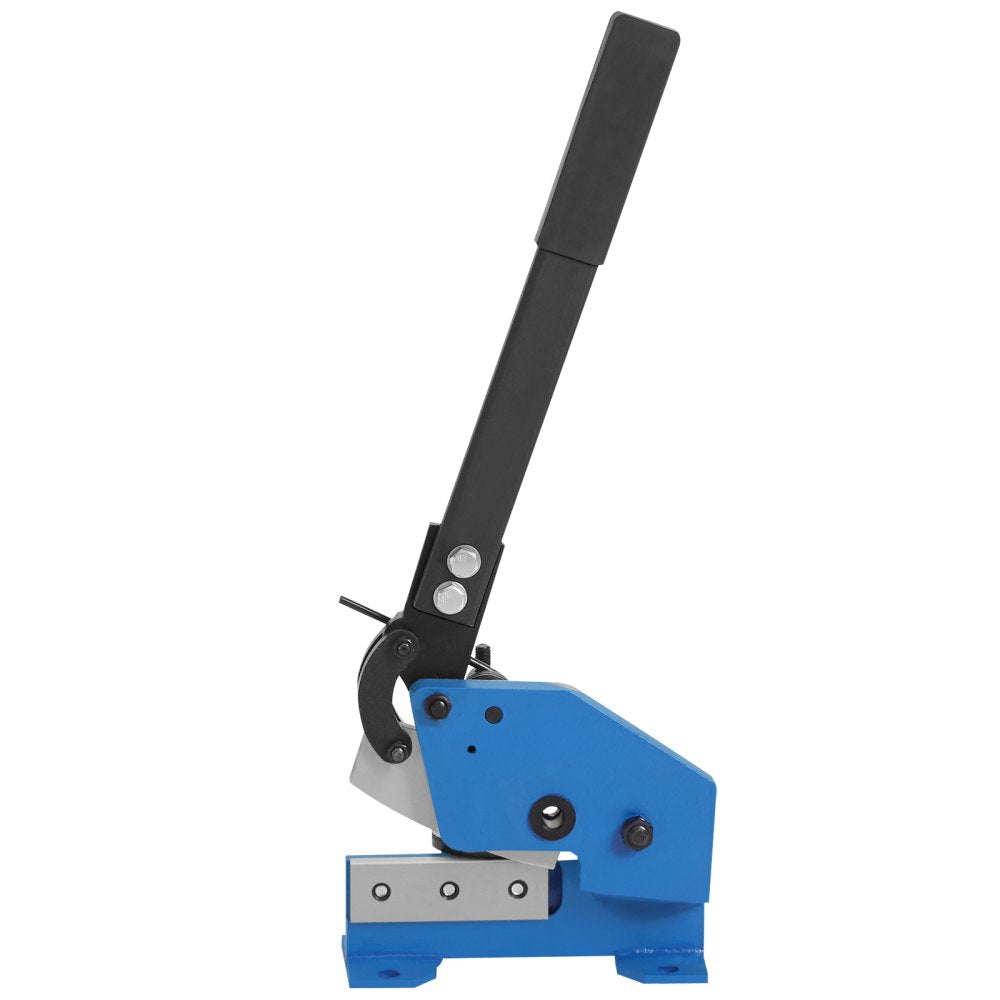

The Vevor manual hand plate shear is a benchtop metal cutting tool designed for precise sheet and rod processing. It cuts steel plates, flat steel, steel rods, aluminum, and other metal sheets with clean, burr-free results. Its long handle design reduces cutting effort, while the sturdy base helps keep the unit stable during operation. Built with Q235 and T10 materials, it is suited for both workshop and DIY metalworking tasks.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

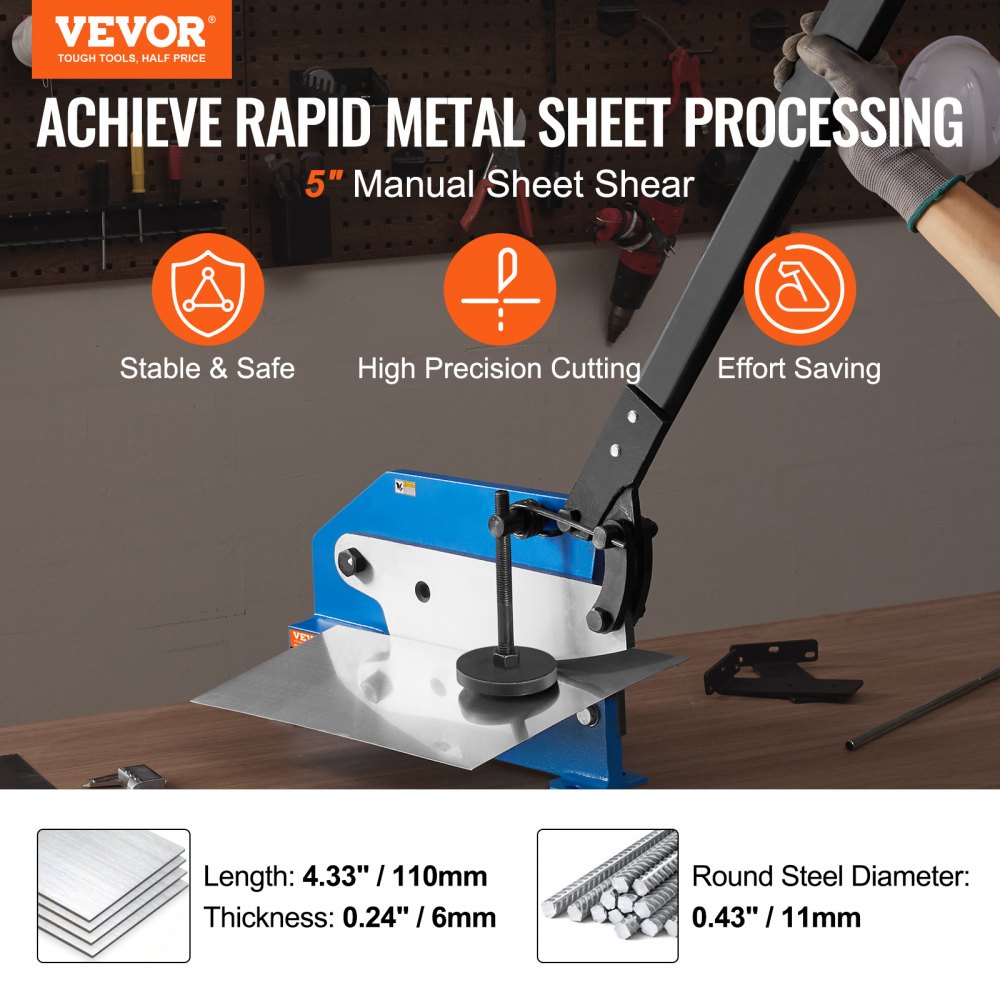

- Maximum Cutting Capacity: Length: 4.33 in / 110 mm, Thickness: 0.24 in / 6 mm, Round steel diameter: 0.43 in / 11 mm. Steel plates, flat steel, and steel rods can all be easily cut. One machine for various cutting and opening tasks

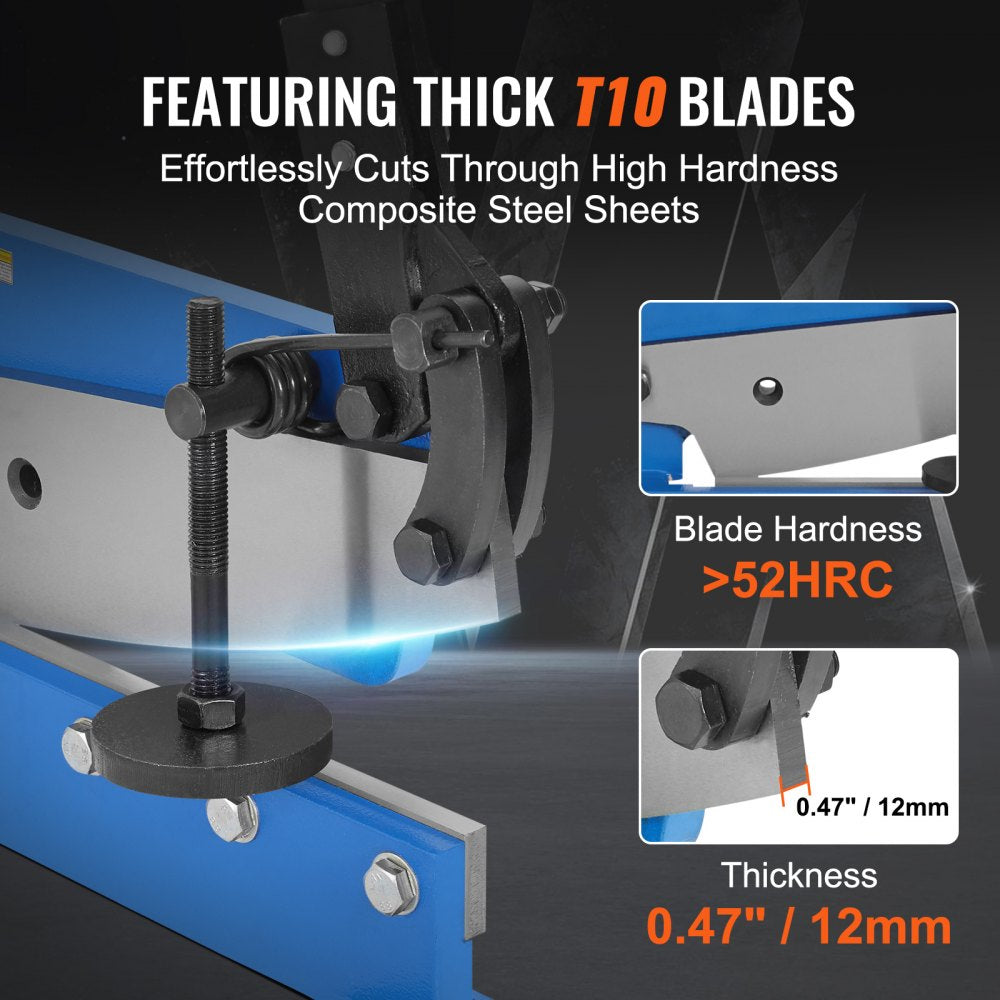

- T10 Steel Blades: Blade hardness: >52HRC, Thickness: 0.47 in / 12 mm. It can easily handle various hard metal sheets, such as low-carbon steel, steel bars, aluminum plates, aluminum alloy plates, composite steel plates, color-coated steel plates

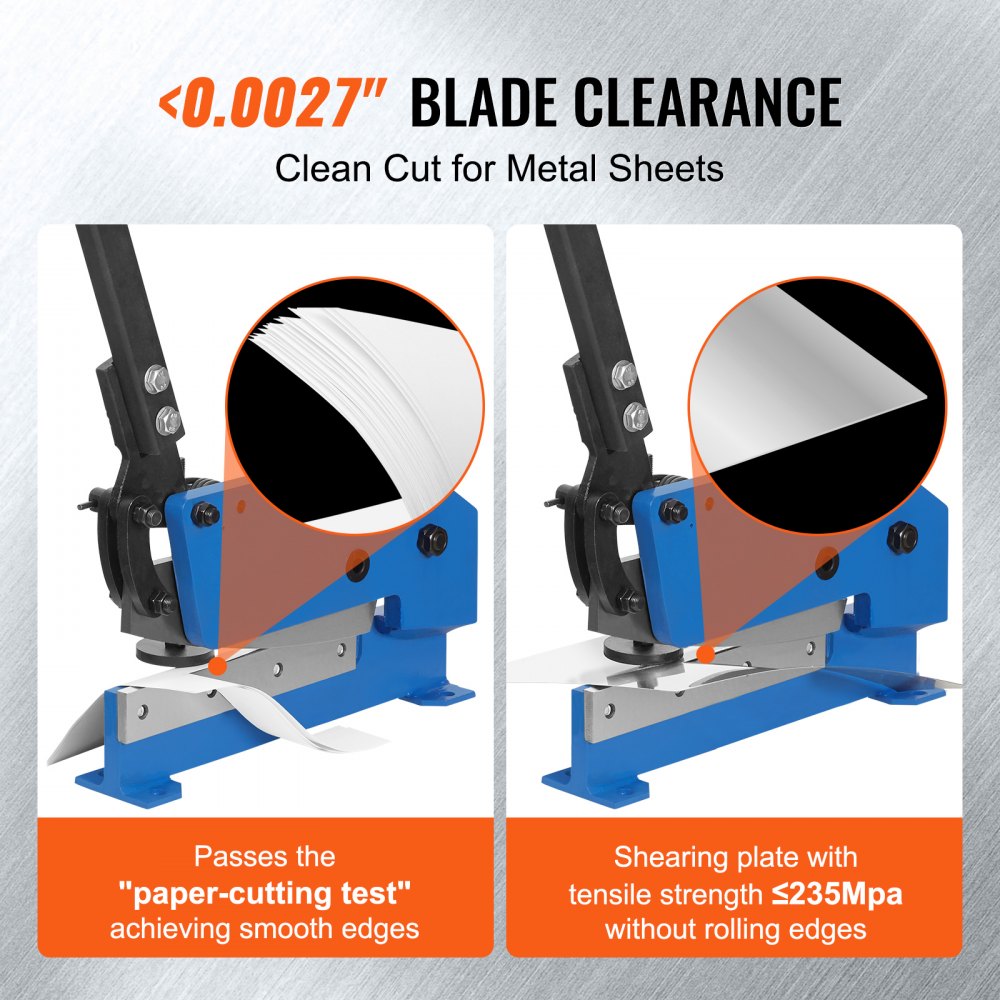

- Smooth Cutting Edges: <0.0027 in blade gap. It passes the paper-cutting test, achieving smooth and complete paper edges. When cutting steel materials, it ensures smooth, burr-free edges, preventing material waste or damage

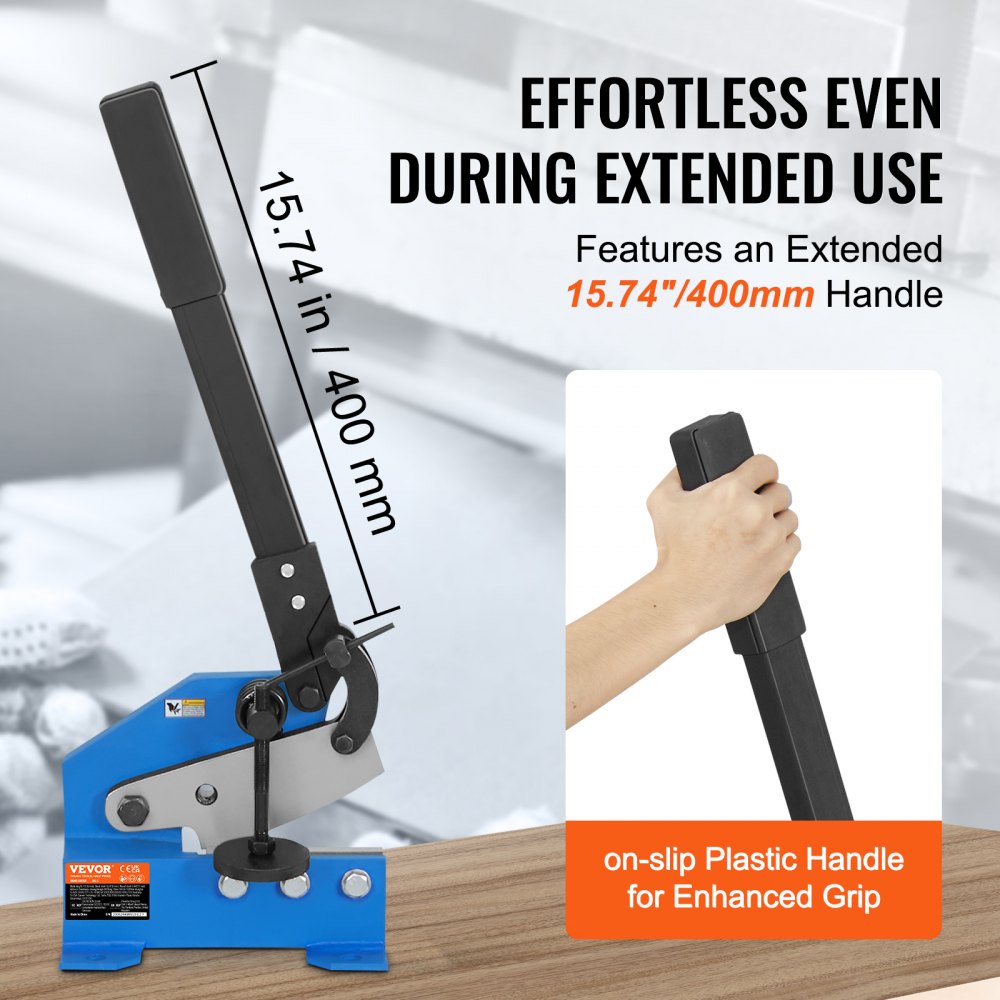

- Long Handle, Effortless Cutting: The long handle allows you to exert greater force with less effort, significantly reducing the fatigue of cutting. Whether you need to cut heavy or hard materials, this shearing machine makes it easy for you

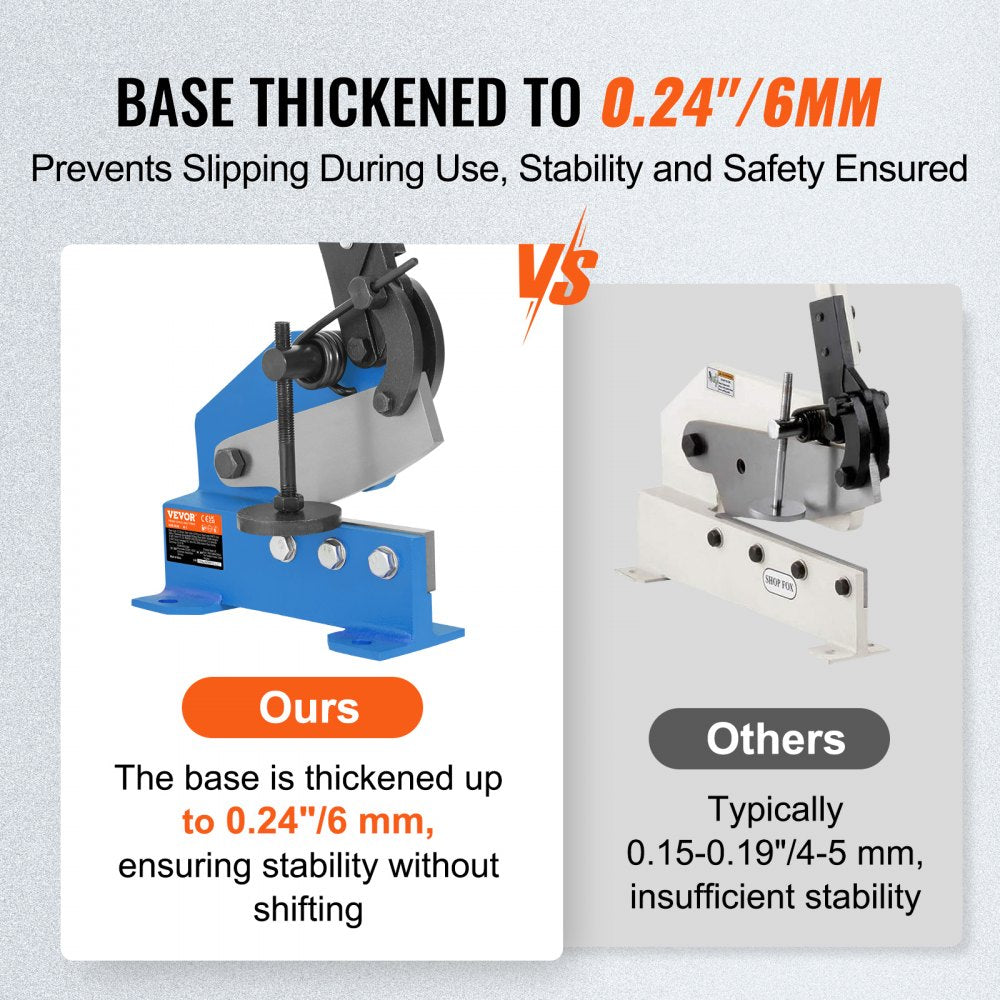

- Sturdy Construction: The base is thickened to 0.24 in / 6 mm, providing a stable support with excellent grip, avoiding shifting during material cutting. You can work with confidence without worrying about instability

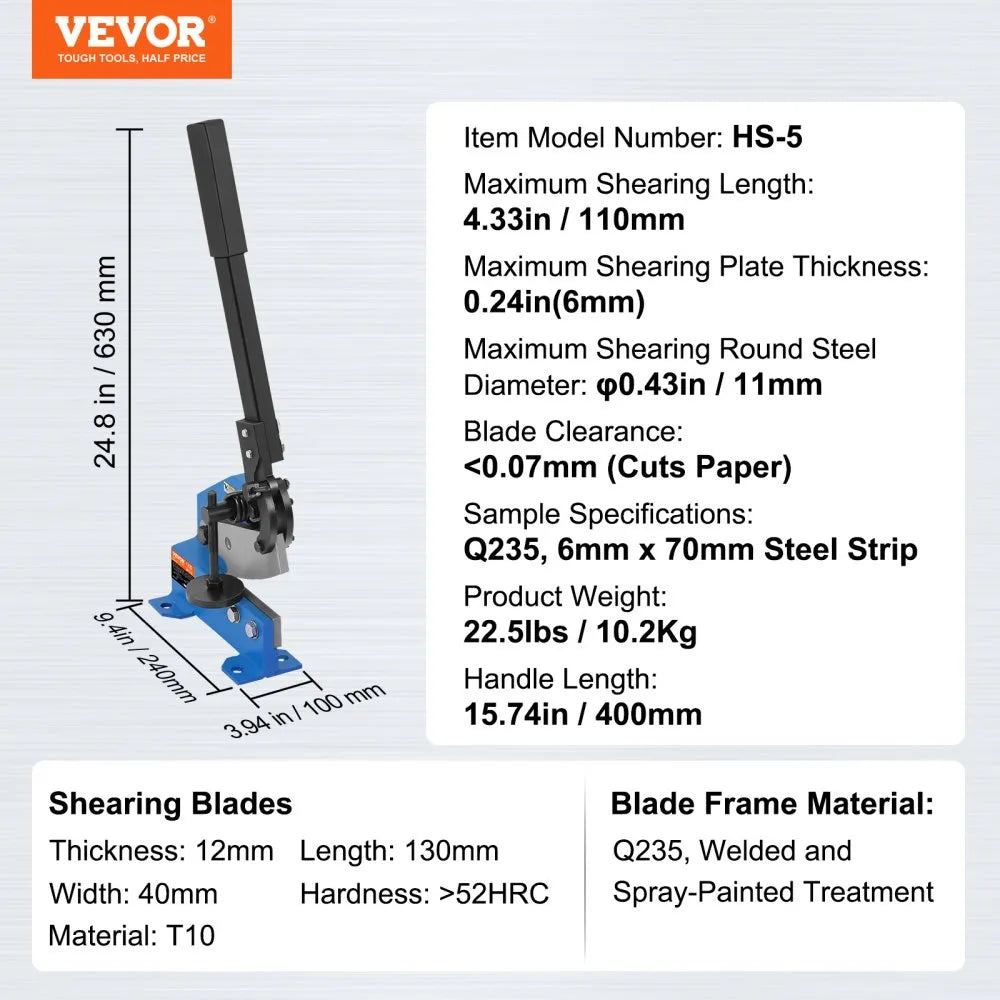

Specifications
| Max. Shearing Length | 4.33" / 110 mm |
|---|---|
| Max. Shearing Plate Thickness | 0.24" / 6 mm |
| Max. Shearing Round Steel Diameter | 0.43" / 11 mm |
| Blade Clearance | <0.07 mm |
| Sample Specifications | Q235, 6 mm x 70 mm steel strip |
| Shear Plate Tensile Strength | ≤235 MPa |
| Operating Method | Tabletop bolt fixation, manual edge folding |
| Surface Treatment & Color | Painted, blackened treatment, blue |
| Main Material | Q235, T10 |
|---|---|
| Product Weight | 22.5 lbs / 10.2 kg |
| Handle Length | 15.74" / 400 mm |
| Product Dimensions | 9.4 x 3.9 x 24.8" / 240 x 100 x 630 mm |
Warranty
This item comes with a 1 year factory warranty.
