Vevor Plate Heat Exchanger 5" x 12" 100 Plates Copper Brazed Stainless Steel Water to Water New
Manufacturer: Vevor
SKU: QHBSHRQ51210IH0Z3V0
Number of Plates
QTY
(888) 999-1522
C
$353.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Vevor Plate Heat Exchanger 5" x 12" 100 Plates Copper Brazed Stainless Steel Water to Water New
Product Overview
Vevor's plate heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation. It features a 1-1/4" MNPT interface with smooth threads for easy and convenient connection. This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

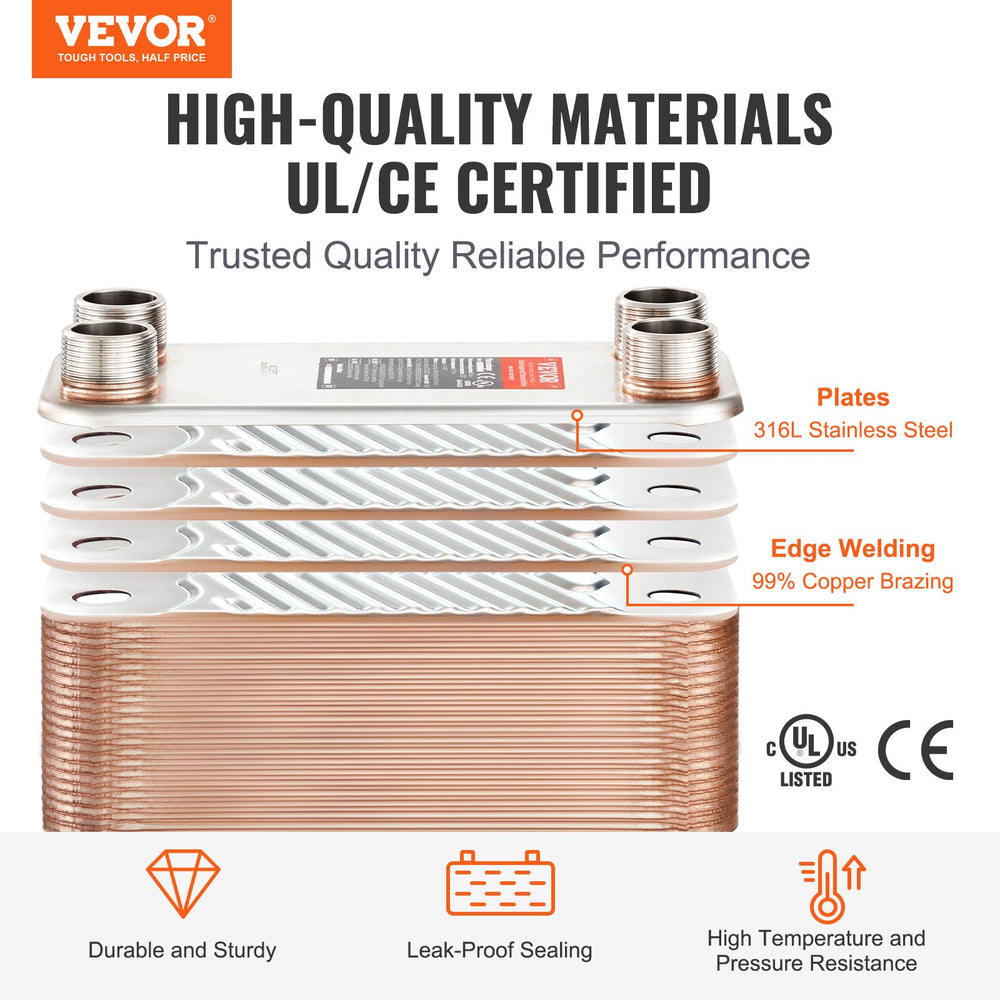

- High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. UL and CE certified for reliable quality.

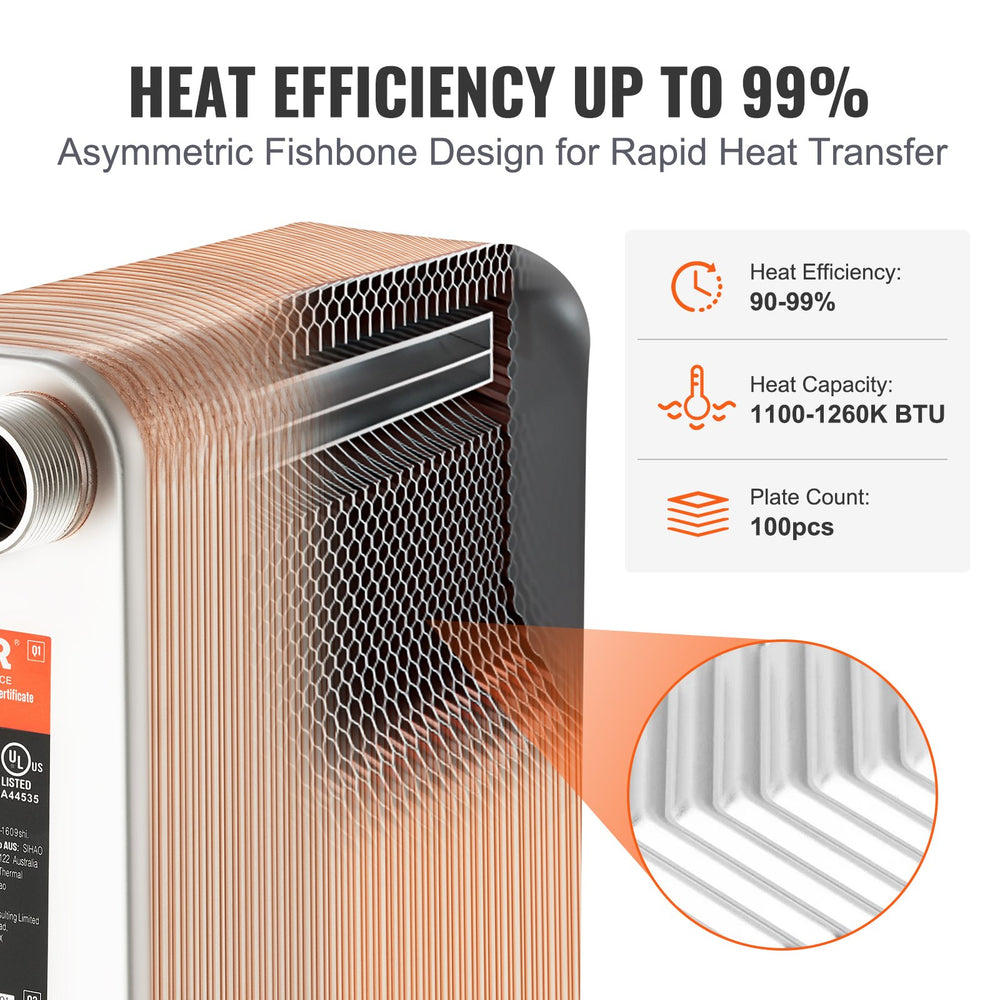

- Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 1100-1260K BTU per hour, saving pump power and electricity, reducing overall application costs.

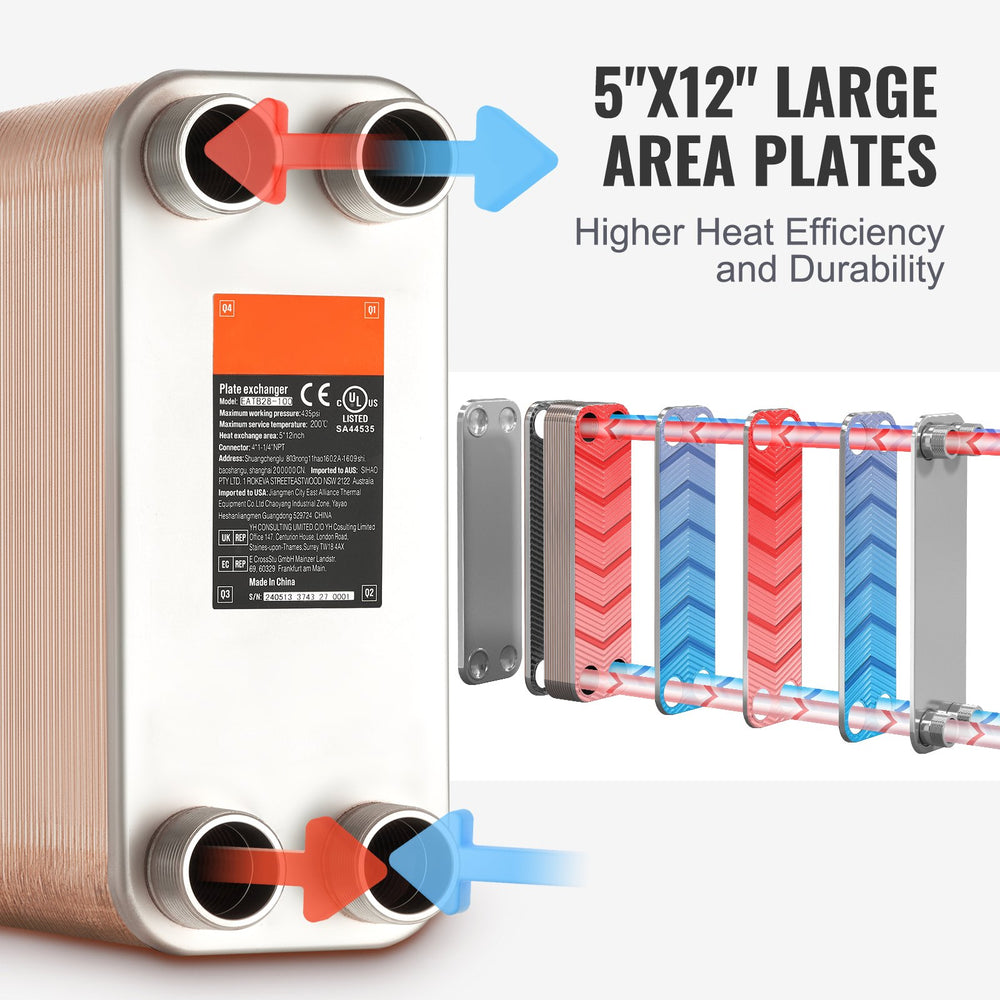

- Large Heat Exchange Area: The heat exchanger features 5" x 12" plates with up to 100 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292°F to 392°F.

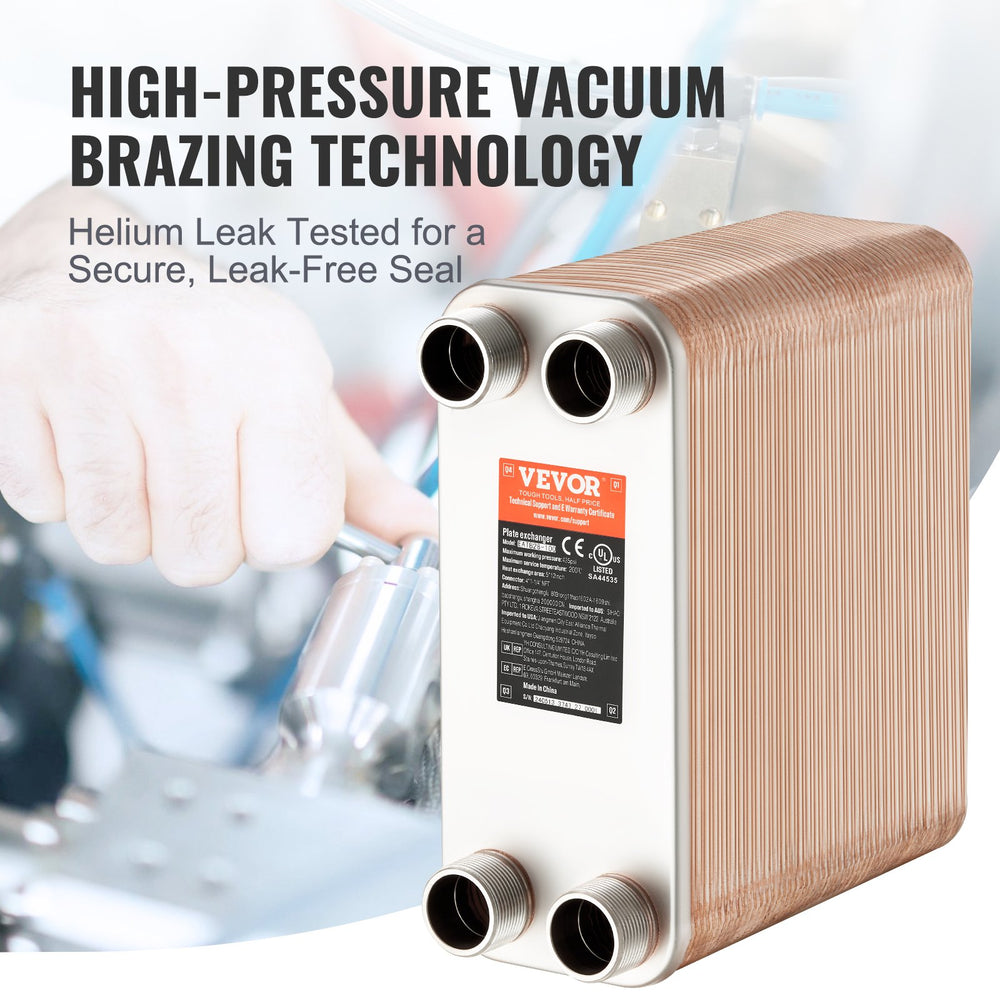

- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

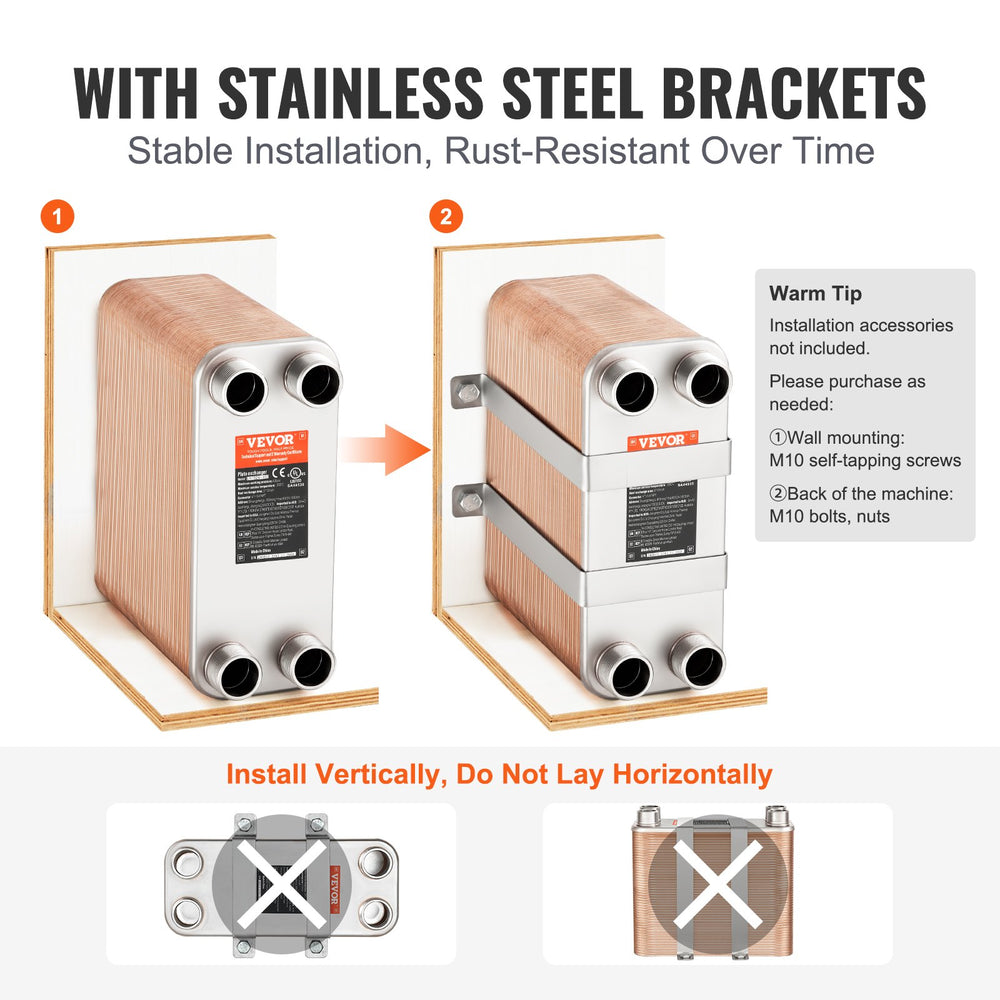

- Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

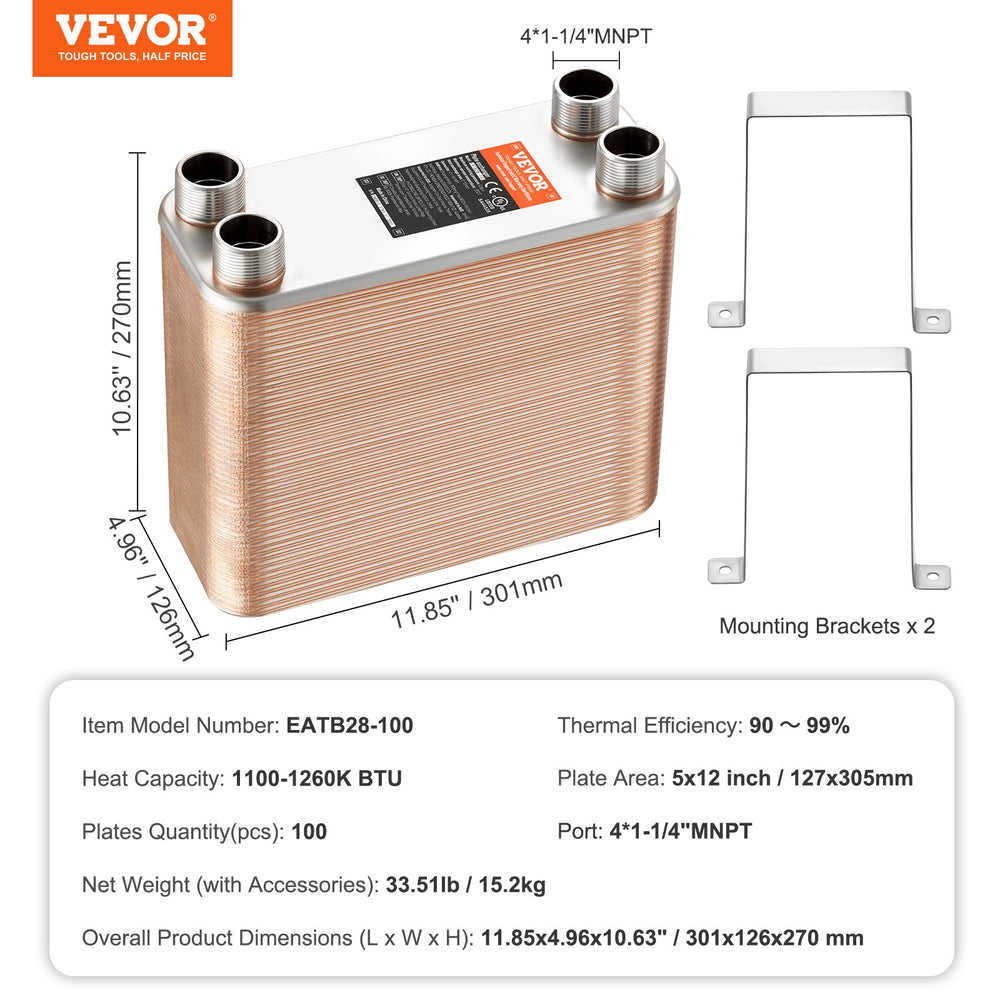

Specifications
| Item Model # | EATB28-100 |
| Material | 316 Stainless Steel, Copper |
| Thermal Efficiency | 90-99% |
| Heat Capacity | 1100-1260K BTU |
| Plate Area | 5" x 12" |
| Plates Quantity | 100 plates |
| Port | (4) 1-1/4" MNPT External Thread |
| Product Dimensions | 11.85" x 4.96" x 9.69" |
| Net Weight | 33.51 lbs (15.2 kg) |

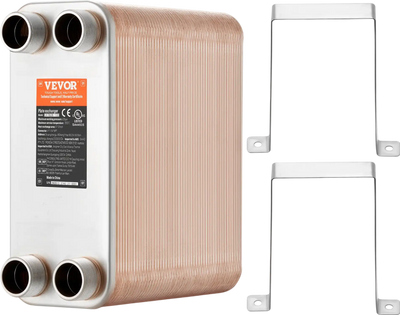

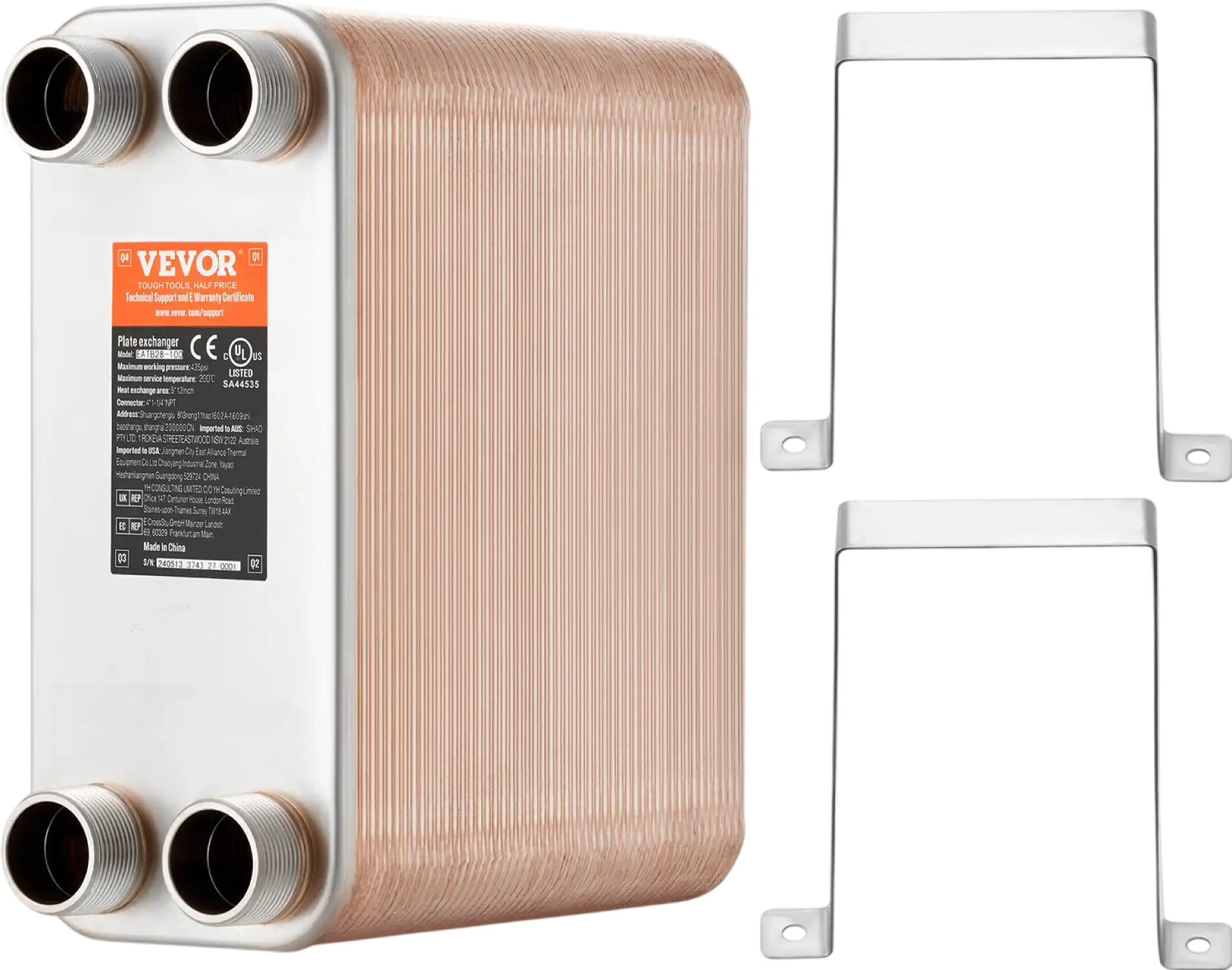

Package Contents

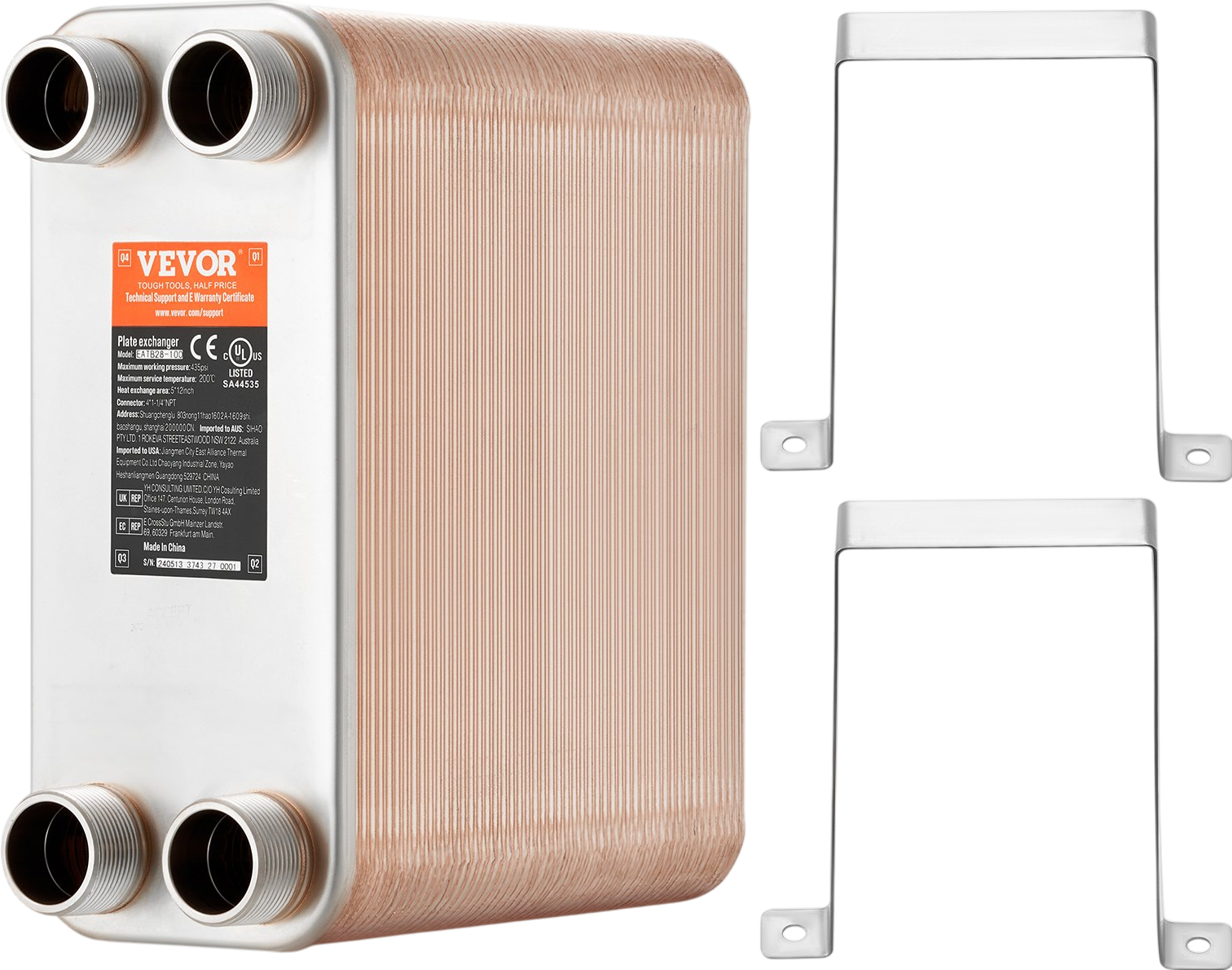

Vevor 100 Plate Heat Exchanger 5" x 12"
(2) Mounting Brackets
User Manual
Warranty
This item comes with a 1 year factory warranty.
