Vevor Plasma Cutter with Torch 50Amp Non-Touch Pilot Arc Dual Voltage 110V/220V New
Product Overview
Vevor's non-touch pilot arc plasma cutter delivers strong cutting performance in a compact body. The pilot arc is especially useful for continuous cutting on rough surfaces or dirty metals. An optimized IGBT transistor provides high-power output for thick metal cutting and steady output for thin metal cutting. This versatile plasma cutter is perfect for industrial/construction work and home/hobby use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Non-Touch Pilot Arc: Pilot arc technology allows you to cut without touching the tip of the metal. This plasma cutter pilot arc delivers a consistent and precise current to the cutting surface with better cutting quality and longer consumable life. Ideal Clean Cut: 1/2"(12 mm). Maximum Severance Cut: 5/8"(16 mm).
- All Safety No Heat: The unique air channel design increases the heat dissipation of the power device. The IGBT inverter will greatly improve the performance of the plasma cutting machine. The outstanding 30%@104 °F, 50A; 60%@104 °F, 33A; 100%@104 °F, 25A duty cycle can also ensure long-time cutting.
- 50AMP Premium Cutter: Use non-hazardous compressed air to cut aluminum, stainless steel, mild steel, copper, and other metals. Suitable for a wide range of applications, including sheet metal fabrication, light industrial, automotive repair, plumbing work, and other maintenance services. You'll be prepared to take on any challenge!
- Sharper than Sharp: The gastight air filter regulator allows you to quickly connect to your air compressor. It can lower or maintain air pressure to reach effective cutting. And you can cut through rough, painted, and rusty surfaces while producing minimal slag without any air leakage.
- More than You Expected: The extra long 16.4' plasma torch and 6.56' ground clamp with cable offers maximum convenience by extending your working area. Quit wasting time searching for an extension cord and adapter. The kit also includes an air regulator, air hose, 4 hose clamps, 2 cable racks, and some consumables.
Specifications
| Item Model # | VV-PC-CUT50P |
|---|---|
| Arc Striking | HF Pilot Arc |
| Input Voltage | AC 110V/220V |
| Output Current | 110V |
| Ideal Clean Cut | 1/2" (12 mm) |
| Max Severance Cut | 5/8" (16 mm) |
| Cutting Material | Aluminum, Stainless Steel, Copper, Mild Steel |
| Duty Cycle | 30% @ 104 °F, 50A；60% @ 104 °F, 33A；100% @ 104 °F, 25A |
| Power Factor | 0.8 |
| Efficiency | 0.86 |
| Operating Air Pressure | Less than 0.5MPa |
| Access Air Pressure | Less than 0.8MPa |
| Enclosure Protection Level | IP21S |
| Product Dimensions | 14.2" x 5.9" x 11.8" |
| Weight | 23 lbs (10.4 kg) |
|---|

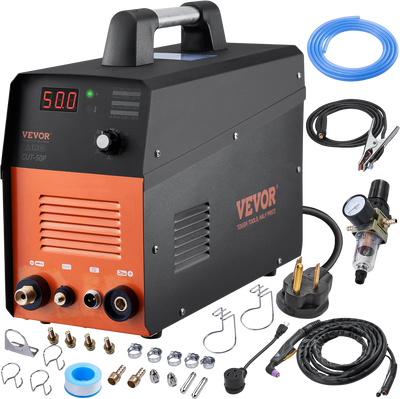

Package Contents
Vevor Plasma Cutter Non-Touch Pilot Arc
Cutting Torch
Ground Clamp
Relief Valve + 2 Connectors
Air Pipe
(4) Hose Clamps
Teflon Tape
(2) Cable Racks
User Manual
Warranty
This item comes with a 1 year factory warranty.
