Vevor Plasma Cutter with Torch 50Amp Dual Voltage 110V/220V New
Manufacturer: Vevor
SKU: DLZ50A110220V95JLV5
Striking Arc Way Options
QTY
(888) 999-1522
C
$272.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Vevor Plasma Cutter with Torch 50Amp Dual Voltage 110V/220V New
Product Overview
Vevor's air plasma cutter is an excellent choice for home DIY jobs and light-duty small business projects. An optimized IGBT transistor provides high-power output for thick metal cutting, as well as steady output for thin metal cutting. This plasma cutter has dual-voltage 110V/220V with an adapter. It's an ideal cutting machine that can be quickly and easily attached to generators.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Outstanding Cutting Capacity: Are you ready to cut like never before? The plasma cutter can cut different thicknesses under different voltages. It delivers a consistent and precise current to cutting surfaces. Cut 1/2" thick metal like soft butter. Ideal Clean Cut: 1/2"(12 mm). Maximum Severance Cut: 5/8"(16 mm).
- All Safety No Heat: The unique air channel design increases the heat dissipation of the power device. The IGBT inverter will greatly improve the performance of the plasma cutting machine. The outstanding 30%@104 °F, 50A; 60%@104 °F, 33A; 100%@104 °F, 25A duty cycle can also ensure long-time cutting.
- 50AMP Premium Cutter: Use non-hazardous compressed air to cut aluminum, stainless steel, mild steel, copper, and other metals. Suitable for a wide range of applications, including sheet metal fabrication, light industrial, automotive repair, plumbing work, and other maintenance services. You'll be prepared to take on any challenge!
- Sharper than Sharp: The gastight air filter regulator allows you to quickly connect to your air compressor. It can lower or maintain air pressure to reach effective cutting. And you can cut through rough, painted, and rusty surfaces while producing minimal slag without any air leakage.
- More than You Expected: The extra long 16.4' plasma torch and 6.56' ground clamp with cable offers maximum convenience by extending your working area. Quit wasting time searching for an extension cord and adapter. The kit also includes an air regulator, air hose, 4 hose clamps, 2 cable racks, and some consumables.
Specifications
| Item Model # | VV-PC-CUT50 |
| Arc Striking | Contact |
| Input Voltage | AC 110V/220V |
| Output Current | 110V |
| Ideal Clean Cut | 1/2" (12 mm) |
| Max Severance Cut | 5/8" (16 mm) |
| Cutting Material | Aluminum, Stainless Steel, Copper, Mild Steel |
| Duty Cycle | 30% @ 104 °F, 50A；60% @ 104 °F, 33A；100% @ 104 °F, 25A |
| Power Factor | 0.8 |
| Efficiency | 0.86 |
| Operating Air Pressure | Less than 0.5MPa |
| Access Air Pressure | Less than 0.8MPa |
| Enclosure Protection Level | IP21S |
| Product Dimensions | 14.2" x 5.9" x 11.8" |
| Weight | 22 lbs (9.98 kg) |

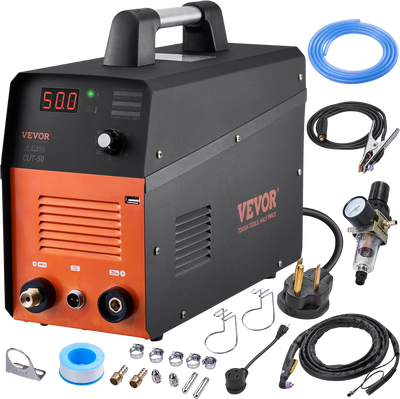

Package Contents
Vevor Plasma Cutter
SG55 Cutting Torch
Ground Clamp
Relief Valve + 2 Connectors
Air Pipe
(4) Hose Clamps
Teflon Tape
(2) Cable Racks
User Manual
Warranty
This item comes with a 1 year factory warranty.
