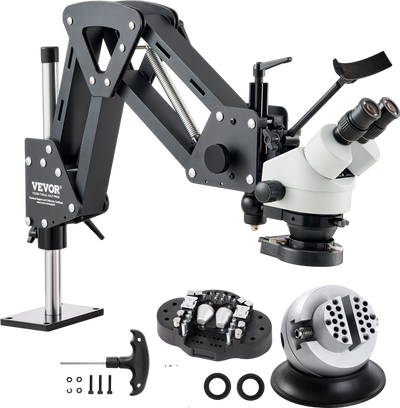

Vevor Multi-Directional Microscope with Ball Vise Spring Bracket Ring Light 7X-45X Magnification New
Product Overview
With 7X-45X continuous zoom, Vevor's jewelry microscope with spring bracket provides clear and stereoscopic microscopic effects. This micro inlaid mirror is widely used in jewelry inlay, engraving crafts, PCB repair, factory inspection, jewelry appraisal, watch repair, and more. With 144 LED lights providing ample lighting, a color temperature of 6500-7000K, and 18000-35000 lumens, the microscope jewelry inlaid stand supports 0-100% stepless dimming. The stereo microscope comes with an inlay ball vise featuring a hardened chrome plating process that is scratch-resistant, rust-resistant, and anti-glare, reducing eye fatigue.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- 7X-45X Continuous Zoom: This jewelry microscope with spring bracket provides high-definition clarity and a wide field of view for your work. With a working height of 3.7-11.8in / 95-300mm, a field of view range of 0.2-1.3 inches / 5.1-33mm, and a lens ring of 3 inches / 77mm, it provides high clarity and strong stereoscopic effect.
- Reinforced Multi-Angle Adjustable Stand: The reinforced stand of the jewelers microscope can be adjusted up, down, left, right, forward, and backward. The stable structure helps reduce vibrations for precise observations. The maximum working distance is 35.4 in / 900mm, and the minimum working distance is 7.9in / 200mm.
- Quick Release Stand Structure: The multi-directional microscope is designed with a quick release stand structure, allowing for quick loosening of the stand joints. Simply follow 3 steps—press the button, lift the handle, and twist to tighten, making observation work simpler.
- Integrated Ring LED Light: The integrated design ensures more even lighting and easier installation. With 144 LED lights providing ample illumination at 18000-35000 lumens, it clearly presents the details of the jewelry. The microscope jewelry inlaid stand uses a USB interface for more convenient installation.
- Support for Simultaneous Observation and Adjustment: The simple adjustment mechanism of the stereo microscope allows for quick and precise adjustments of diopter, magnification, and lens distance, making your work more efficient.
Specifications
| Item Model # | JH-1B |
|---|---|
| Material | Steel + Aluminum + Plastic |
| Eyepiece Magnification | 10X |
| Objective Lens Magnification | 0.7X-4.5X (adjustable) |
| Total Magnification | 7X-45X (adjustable) |
| Working Distance | 3.7" - 11.8" |
| Field of View | 0.2" - 1.3" |
| Binocular Distance | 2" - 3" |
| Stand Extension Length | 7.9" - 35.4" |
| Product Dimensions | 36.6" x 6.9" x 18.7" |
|---|---|
| Weight | 26.5 lbs (12 kg) |
Package Contents
Vevor Multi-Directional Microscope with Ring Light
Inlay Ball Vise
Set of Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
