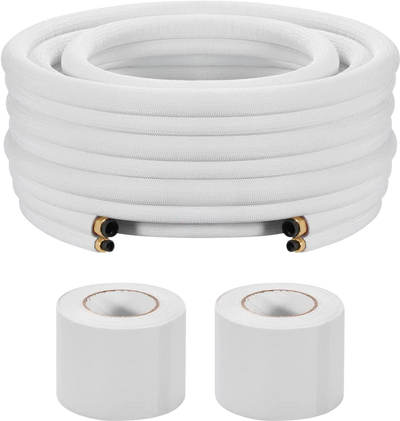

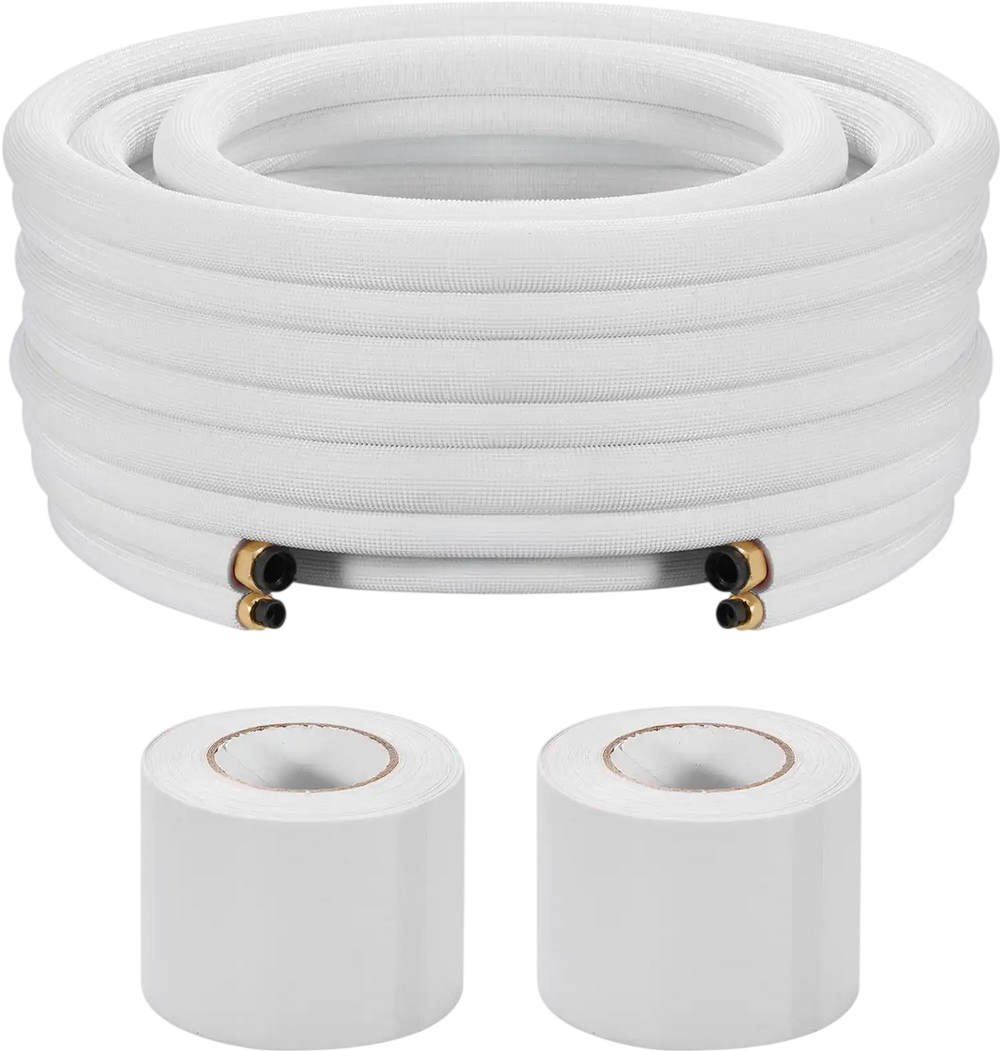

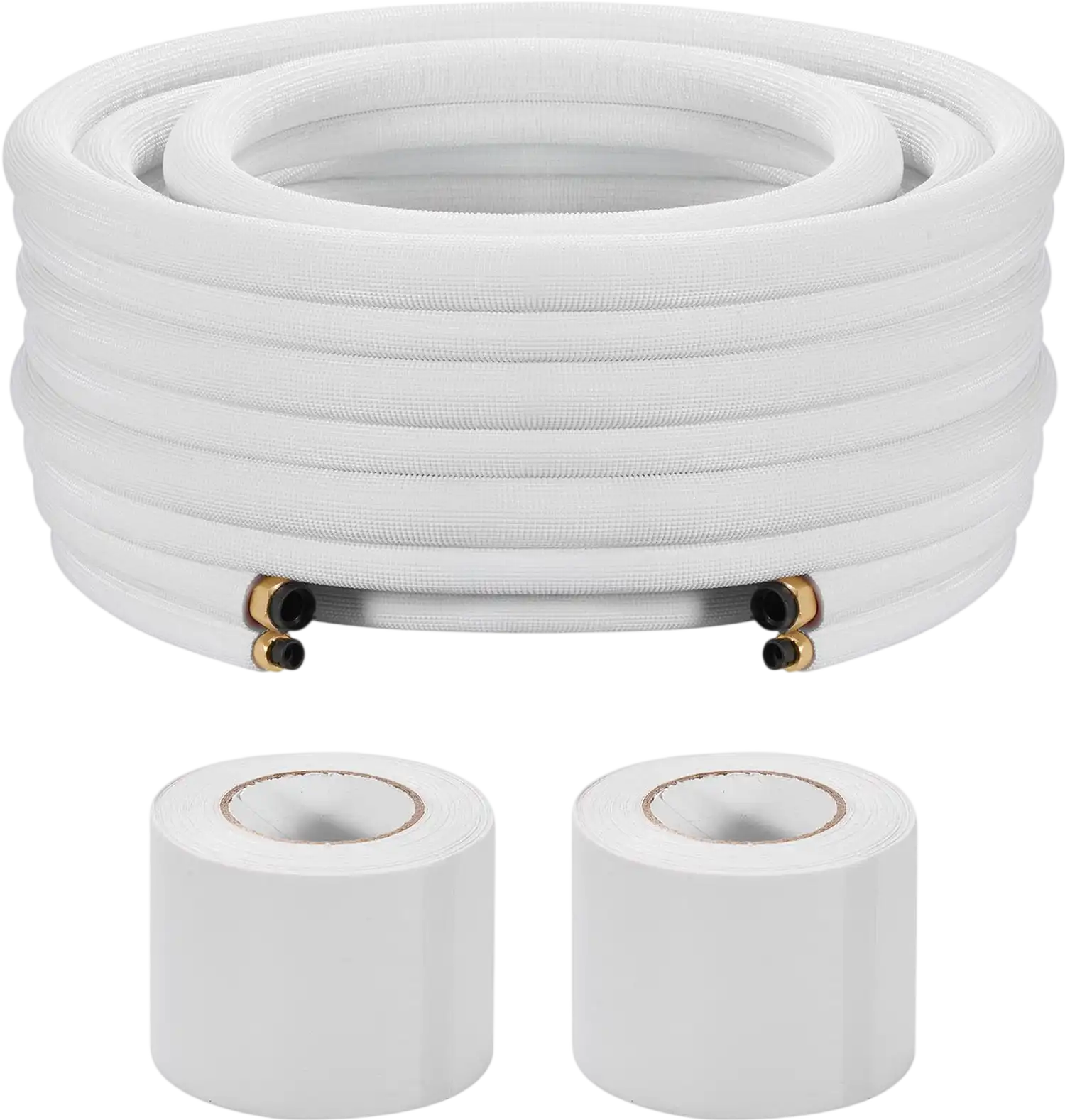

Vevor Mini Split Line Set 100 ft. 1/4" and 3/8" OD Copper Tubing Insulated with Flared Nuts New
Manufacturer: Vevor
SKU: KDLJTG100FT1NFSOW001V0
Length Options
Pipe Diameter Options
QTY
(888) 999-1522
C
$462.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor AC Manifold Gauge Set 4-Way Refrigerant Freon Charging Kit with 5' Hoses New
-
Vevor Mini Split Line Set Cover 3" x 17.6' PVC Decorative Pipe Cover for Air Conditioner Heat Pum...
-
Vevor Refrigerant Scale 110 lbs Digital Charging Recovery Freon Scale with Wired Remote New
-
Vevor Mini Split Pad Condenser Equipment Anti-Vibration Outdoor Base 38" x 18" x 3" New
-
Vevor Refrigerant Recovery Machine 1HP Dual Cylinder Brushless Portable AC New
-
Vevor Mini Split Line Set Cover 15.8' PVC Pipe Cover Kit New
-
Vevor Mini Split Ground Stand Dual-Level AC Base Bracket for 9000-18000 BTU New
-
Vevor Mini Split Line Set Cover 17.7' White New
Vevor Mini Split Line Set 100 ft. 1/4" and 3/8" OD Copper Tubing Insulated with Flared Nuts New
Product Overview
This 100 ft mini split line set includes a 1/4 in liquid line and 3/8 in suction line made from 99.9% pure C12200 copper for reliable, leak-resistant routing. Thick-wall copper construction is designed to resist kinking during bends for smoother installs through walls and tight spaces. The 3/8 in thick PE+EVA composite insulation helps reduce energy loss and limits condensation. It’s compatible with standard 12,000–18,000 BTU mini-split systems and includes weather-resistant strapping tapes for a cleaner, secured run.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

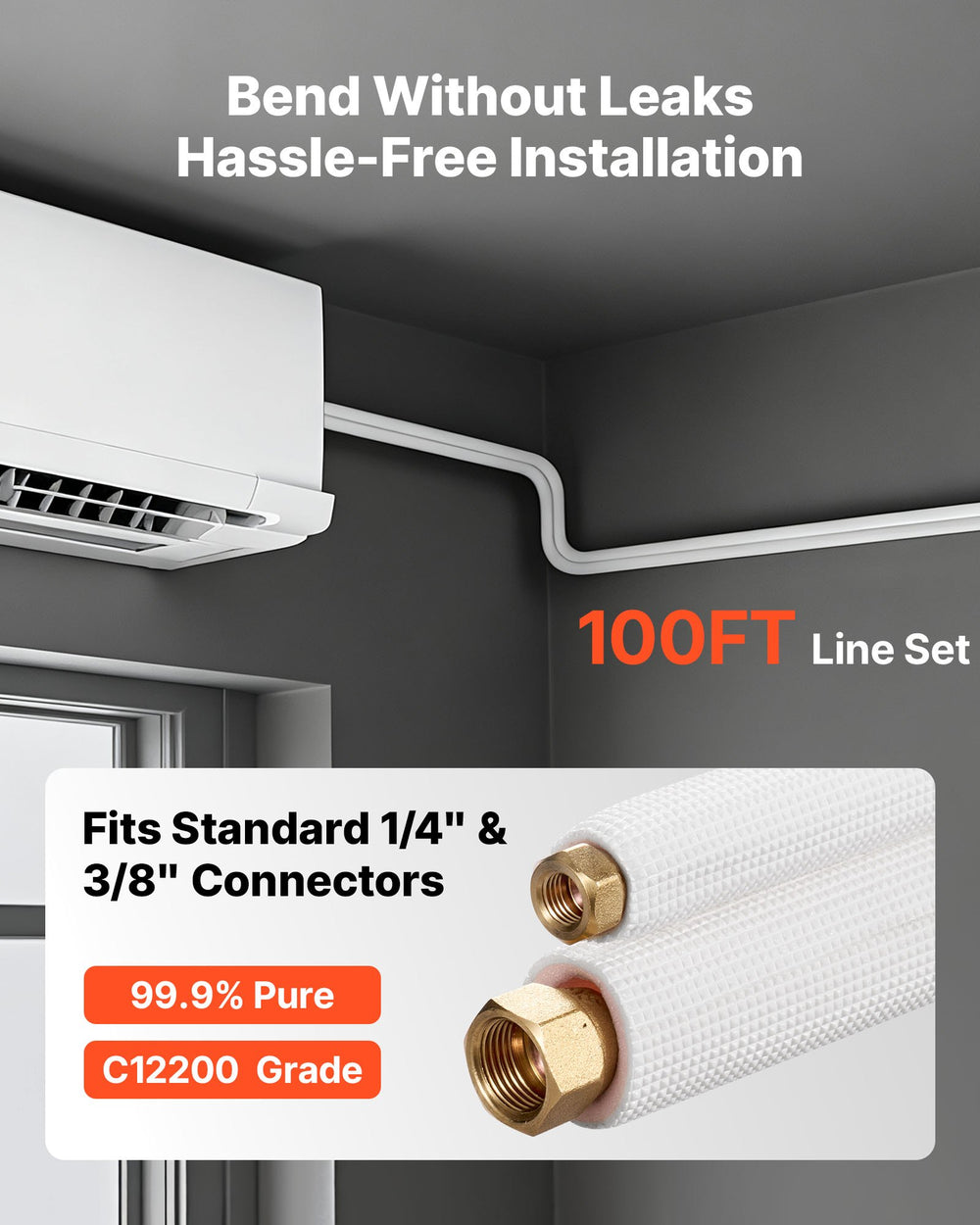

- Premium 100ft Copper Lines: Made with 99.9% Pure C12200 Copper and Thick-Wall for bend-resistant, leak-free installation of your mini split line set even when routing through walls
- Extreme Reliability: 850 PSI pressure rating well above R410A operating range ensures stable performance for mini split ac line set in extreme heat, reducing burst risk

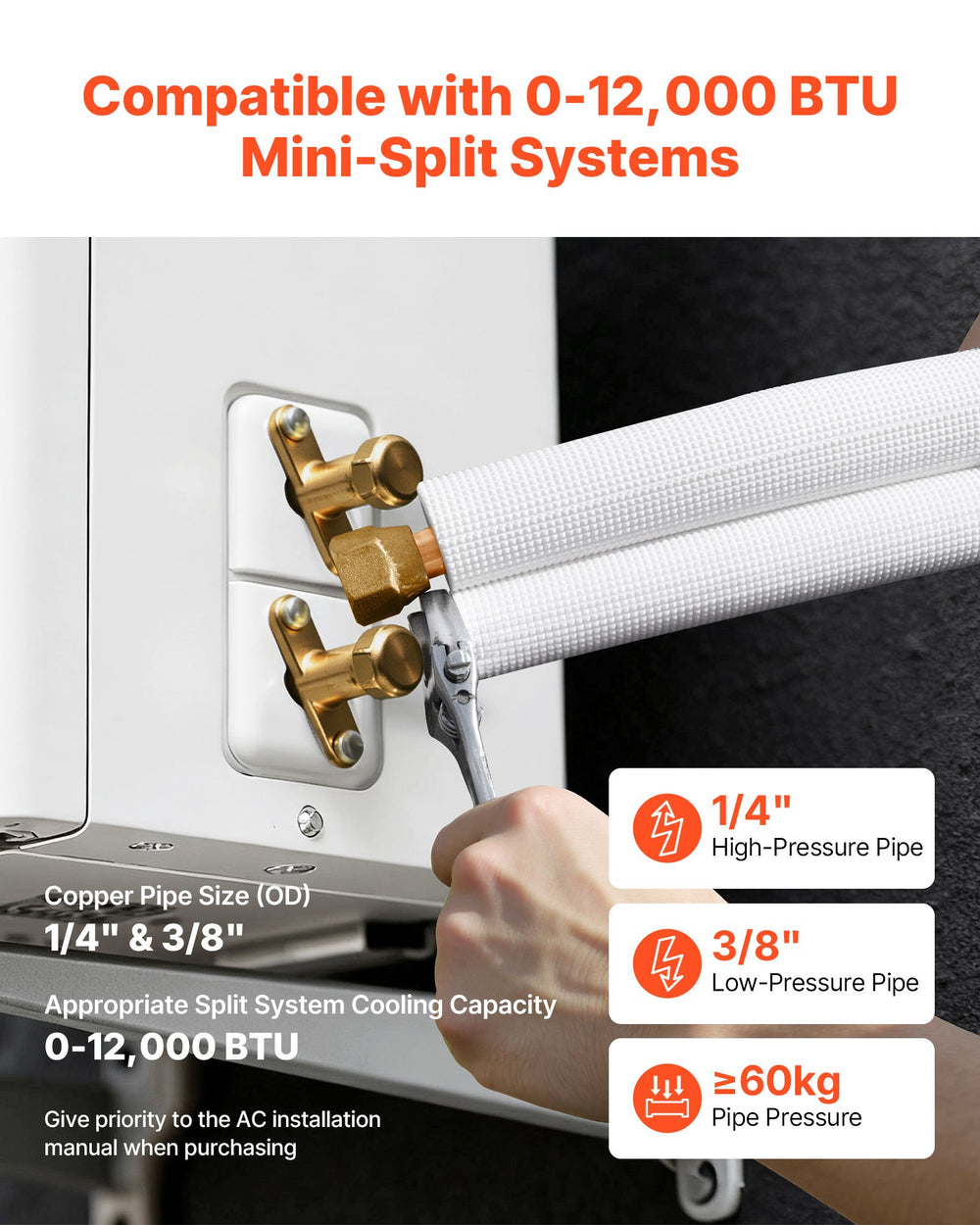

- Compatible with All Models: Standard 1/4 inch liquid line + 3/8 inch suction line configuration matches all 12000-18000 BTU mini split copper line set for hassle-free installation

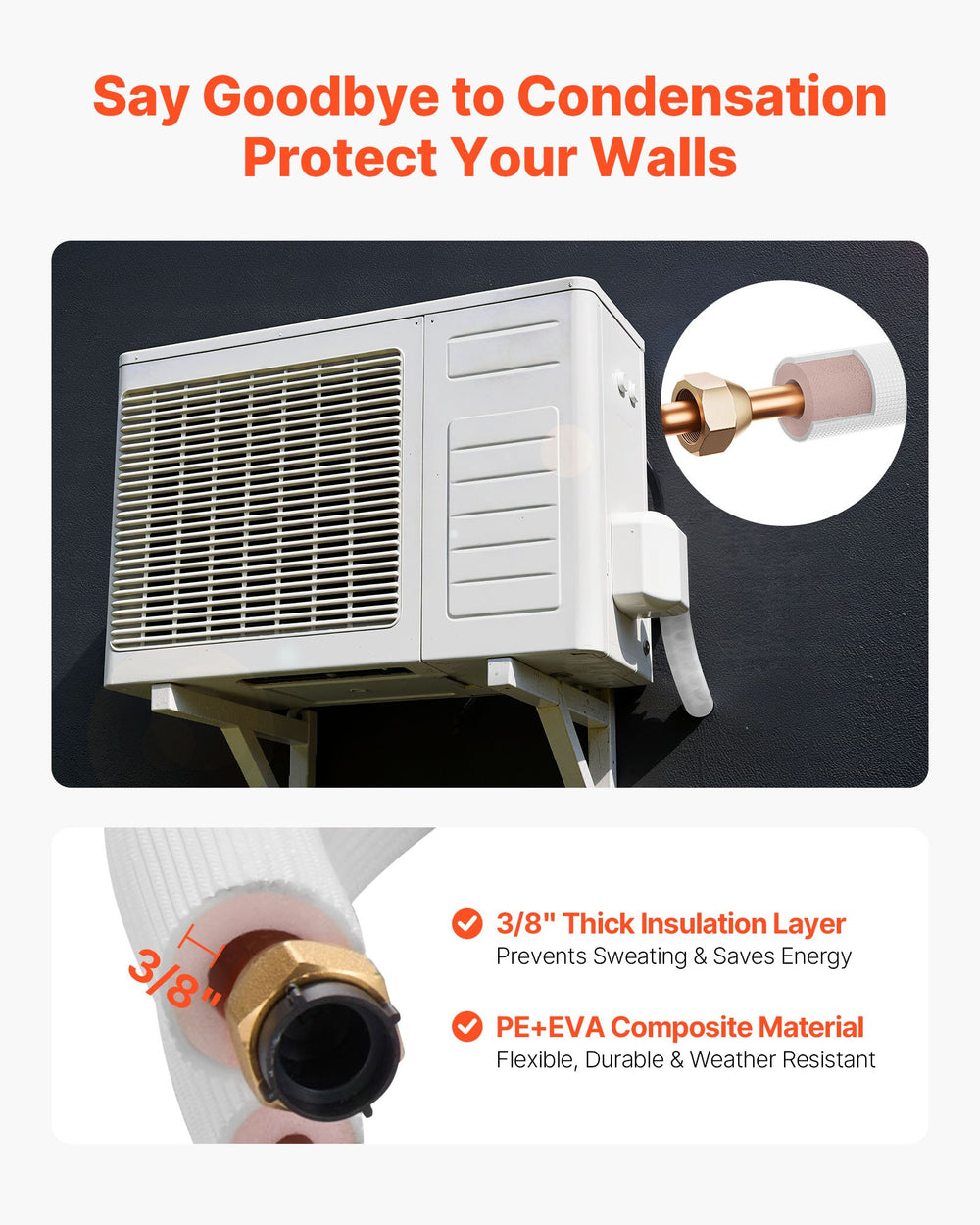

- Energy Saving Insulation: 3/8 thick PE+EVA composite insulation is stronger and weather-resistant than standard, effectively lowering cooling loss in your mini split installation kit and condensation

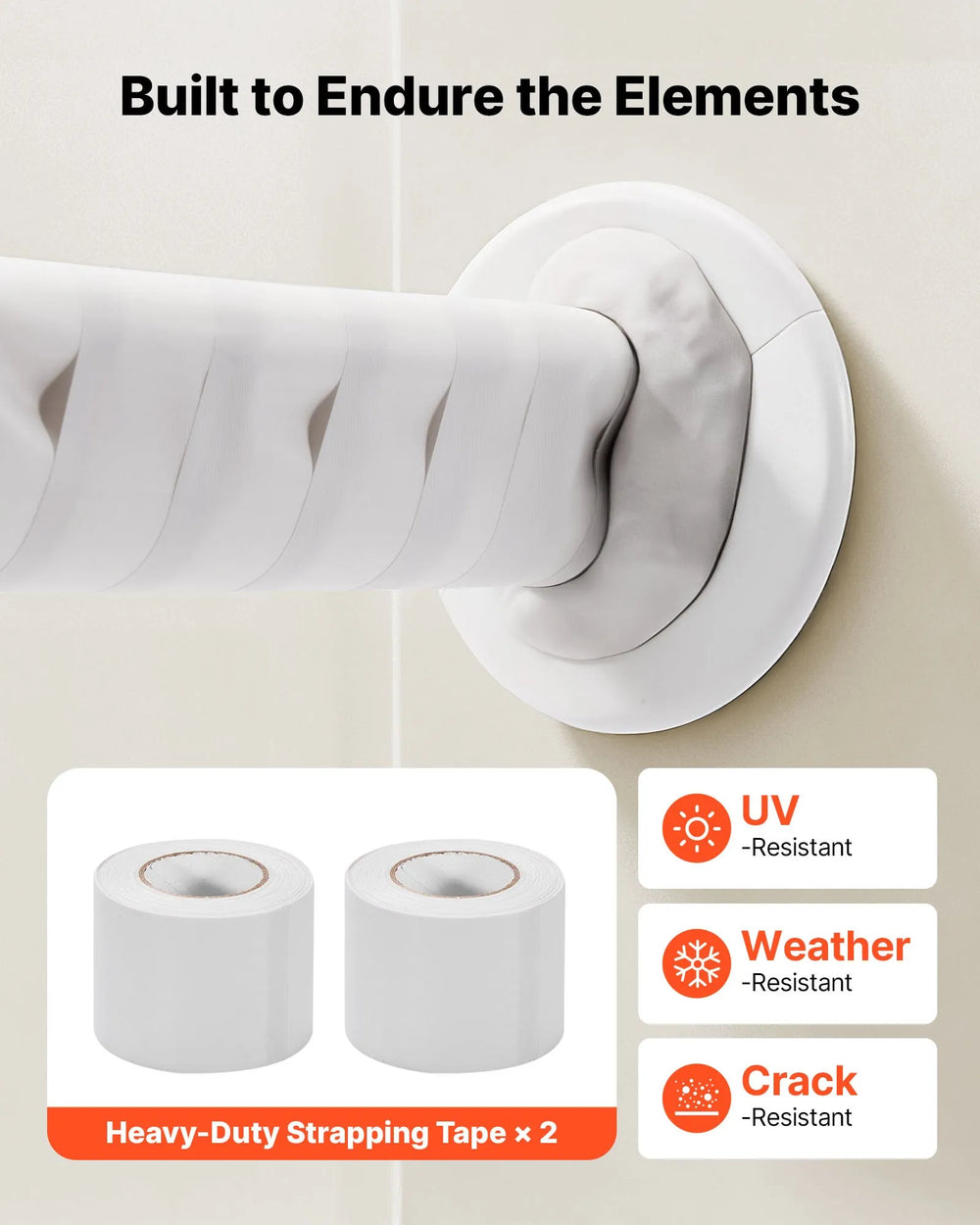

- Outdoor Protection: Includes 2 Weather-resistant strapping tapes for long-lasting outdoor performance and quick secure installation of mini split tubing for a neat, professional-looking setup

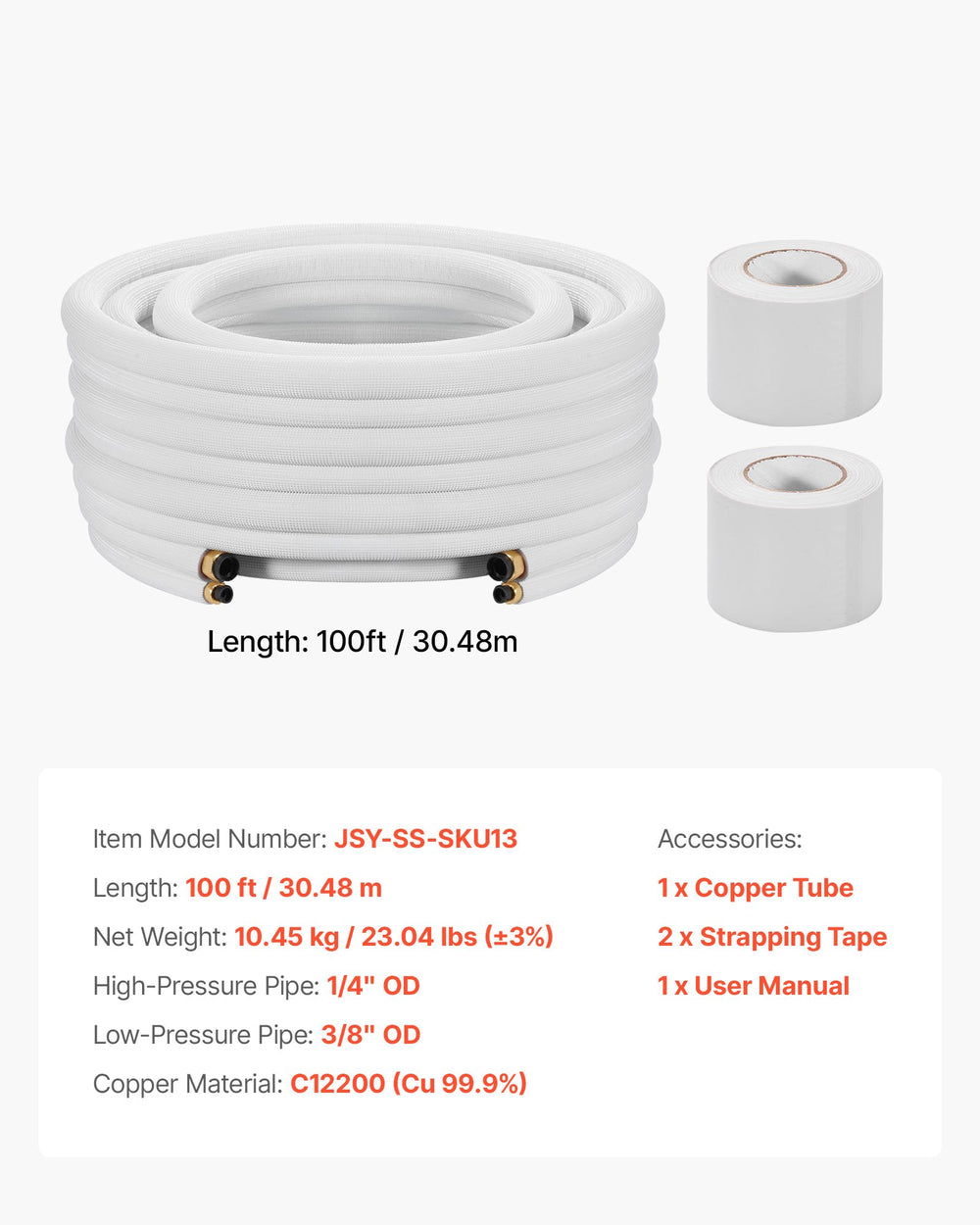

Specifications
| Item Model Number | JSY-SS-SKU13 |
| Length | 100.0 ft / 30.5 m |
| High-Pressure Pipe | 1/4" OD |
| Low-Pressure Pipe | 3/8" OD |
| Copper Material | Copper C12200 (Cu 99.9%) |
| Outer Material | PE Insulation Tube (PE + EVA) |
| Compatible Capacity Range | 12000-18000 BTU |
| Net Weight | 22.5 lbs (with accessories) |
| Item Size (Expanded) | 1200.0 x 1.1 x 2.1 in |
Package Contents
Vevor Mini Split Line Set 100 ft.
Copper Tube
(2) Strapping Tube
User Manual
Warranty
This item comes with a 1 year factory warranty.
