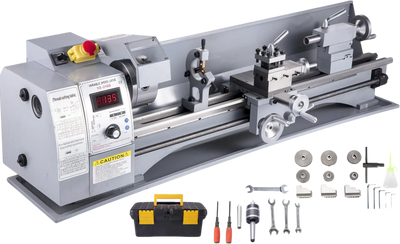

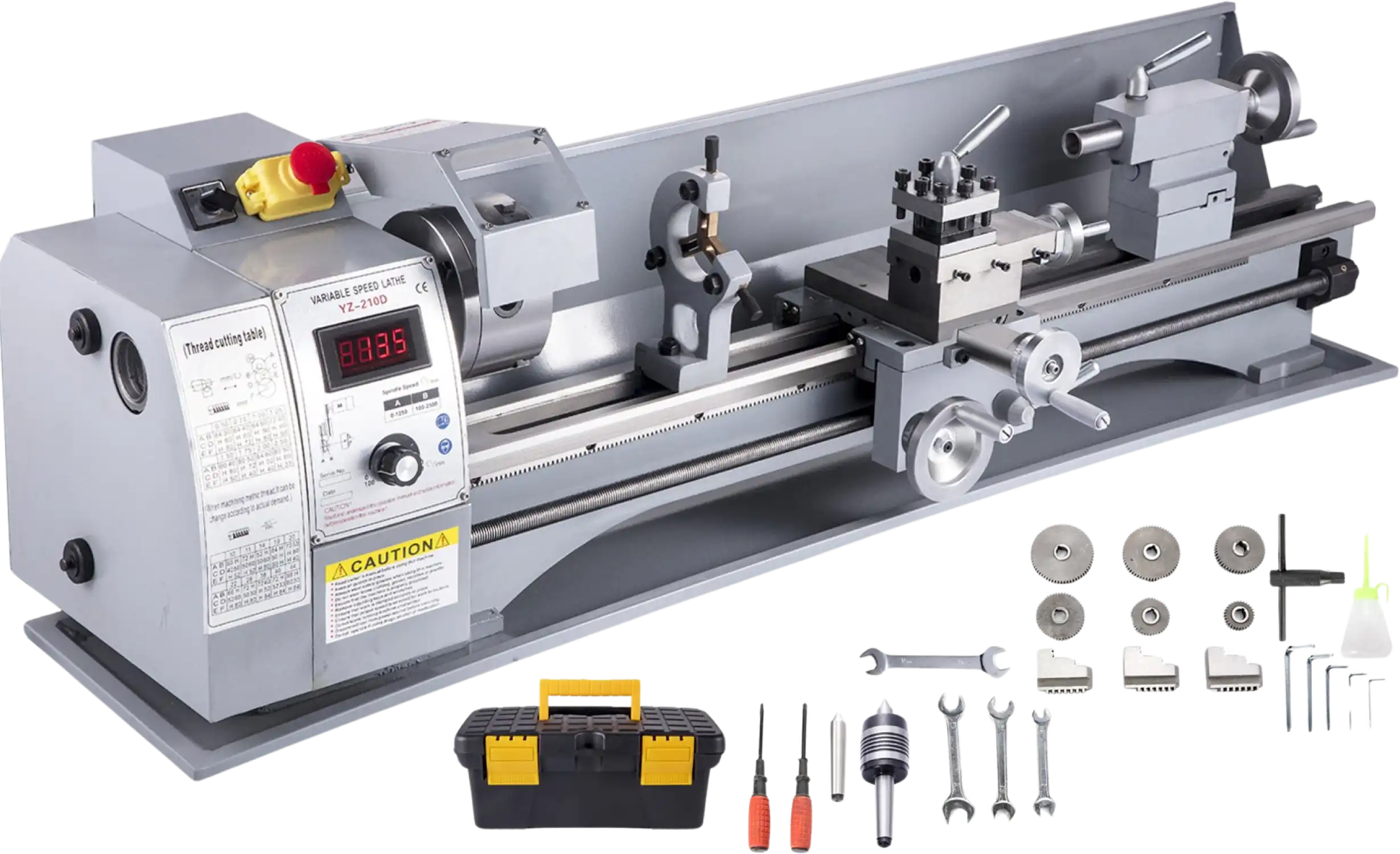

Vevor Mini Metal Lathe Machine 8.3" x 31.5" 2500 RPM Variable Speed 750W New
Product Overview
Vevor's 8" x 32" mini metal lathe is made of rigid cast iron for rust and corrosion resistance, and long term durability. It comes with variable speeds of 50-2500 RPM. The mini lathe features a 3-jaw chuck and a 38mm spindle bore. The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools, allowing you to do bevel cuttings. Whether you’re crafting intricate components, repairing small parts, or creating custom pieces, this mini lathe will be a reliable option.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Sturdy & Durable Construction: The mini lathe is made of high-quality HT200 cast iron, which stands up to tear and wear. It is equipped with an 750W motor that delivers a great deal of energy. If you are into making models, it would be your punctilious assistant.
- Infinitely Variable Speeds: Revolving Speed Range: 50-2500. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
- Works with Precision: Spindle Bore: 1.5"/38 mm. The metal working lathe is pre-installed with a 3-jaw chuck, that can clamp raw materials tight, and a backsplash guard that prevents metal filings.
- Stable & Reliable Operation: Swing Over Bed: 8.3"; Swing Over Cross Slide: 28.3". The small metal lathe features a turret post for quick tool change and a center rest for tight pieces holding, making internal cutting, face cutting, and bevel cutting possible.
- Adjustable Tailstock: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Specifications
| Item Model # | WM210V |
|---|---|
| Material | HT200 Cast Iron |
| Motor Power | 750W, 110V |
| Spindle Speed | 50-2500 RPM |
| Swing Over Bed | 8.3" / 210mm |
| Swing Over Cross Slide | 31.5" / 800mm |
| Chuck Diameter | 4.9" / 125mm |
| Spindle Bore | 1.5" / 38mm |
| Spindle Taper | MT5 |
| Tailstock Taper | MT2 |
| Product Dimensions | 40.5" x 15" x 16" |
| Weight | 166.4 lbs (75.5 kg) |
Package Contents
Vevor Mini Metal Lathe 8.3" x 31.5"
Center Rest
(6) Metal Gears
(3) Jaws
Oil Gun
(5) Allen Keys
(4) Wrenches
Tool Kit
Accessory Set
User Manual
Warranty
This item comes with a 1 year factory warranty.
