Vevor Mini Metal Lathe 7" x 12" Precision Benchtop Variable Speed 50-2500 RPM 550W New
Product Overview

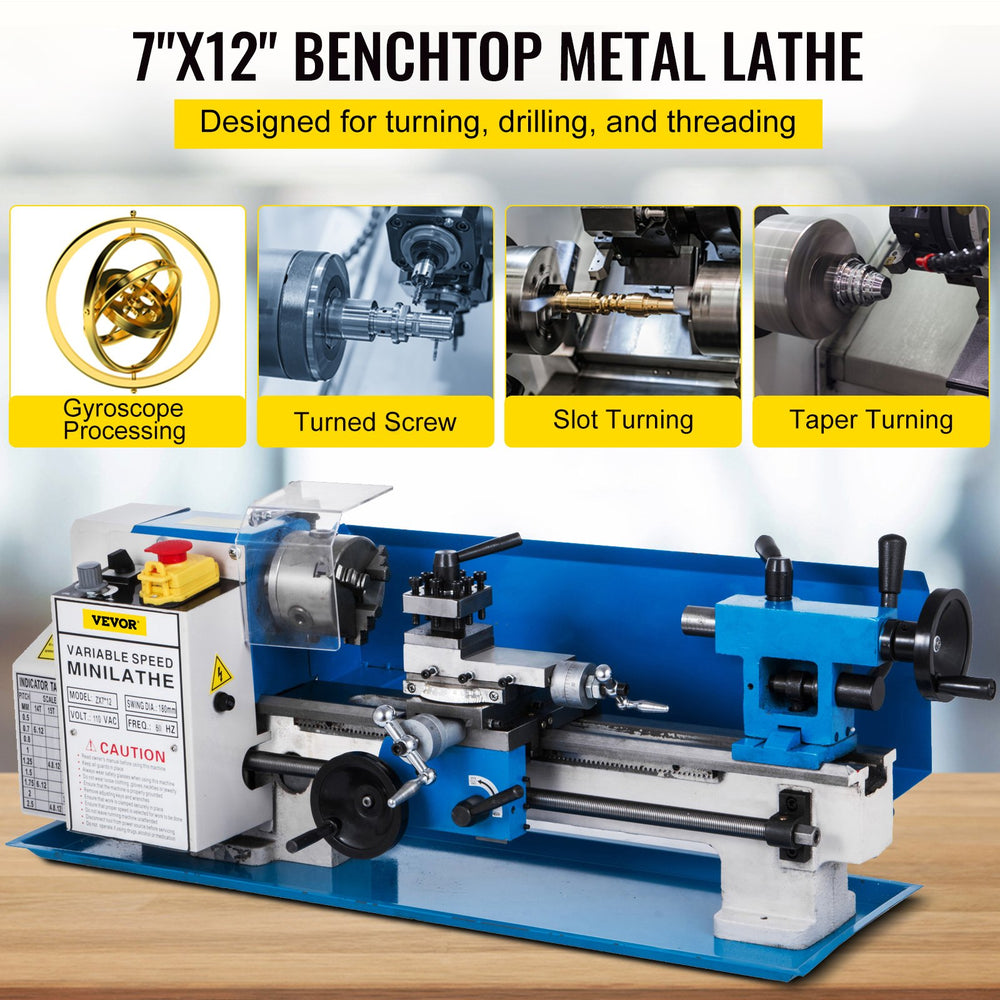

The 7" x 12" precision mini benchtop lathe features a 3-jaw chuck, a MT3 spindle taper, MT2 tailstock taper, a tool rest and a 550W DC single phase motor, designed to perform various types of metal turning, simple to operate. Features variable spindle speed from 0-2250 RPM and equipped with a lamp for accurate operation in dark circumstances. The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

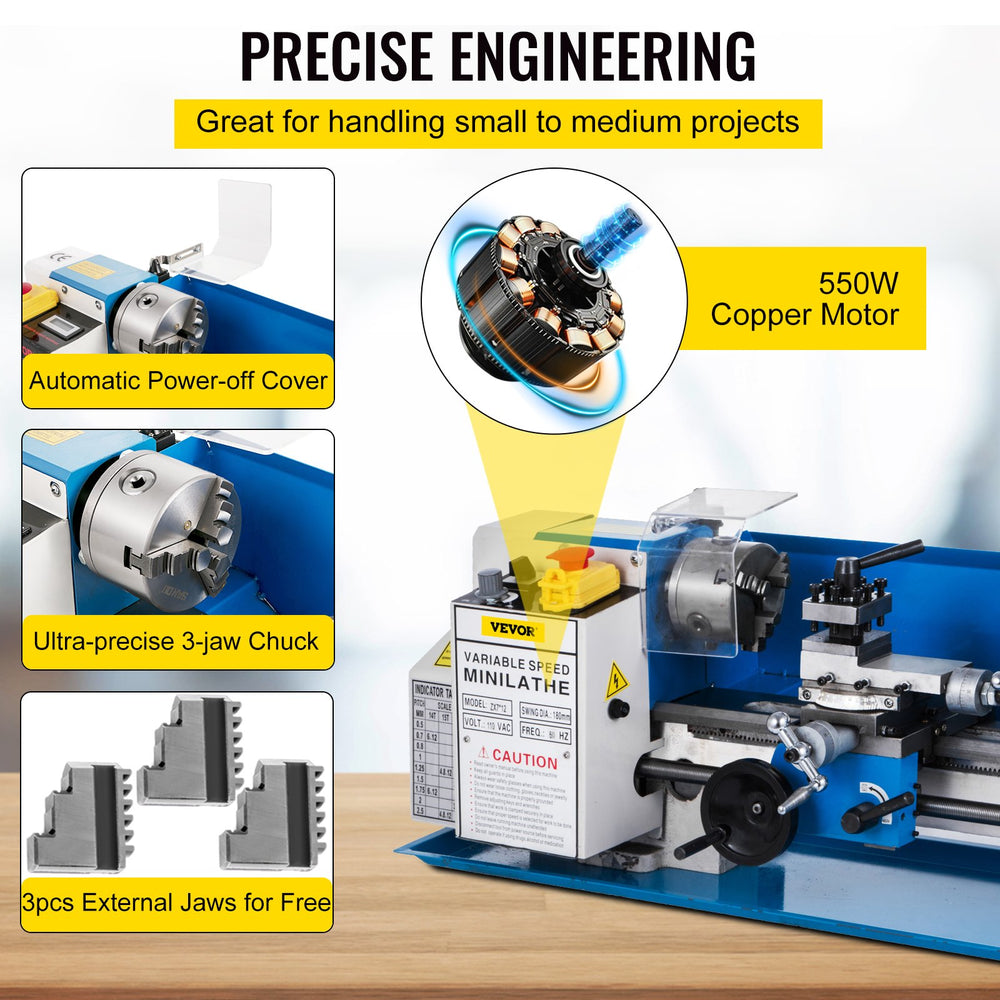

- Sturdy Iron Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.

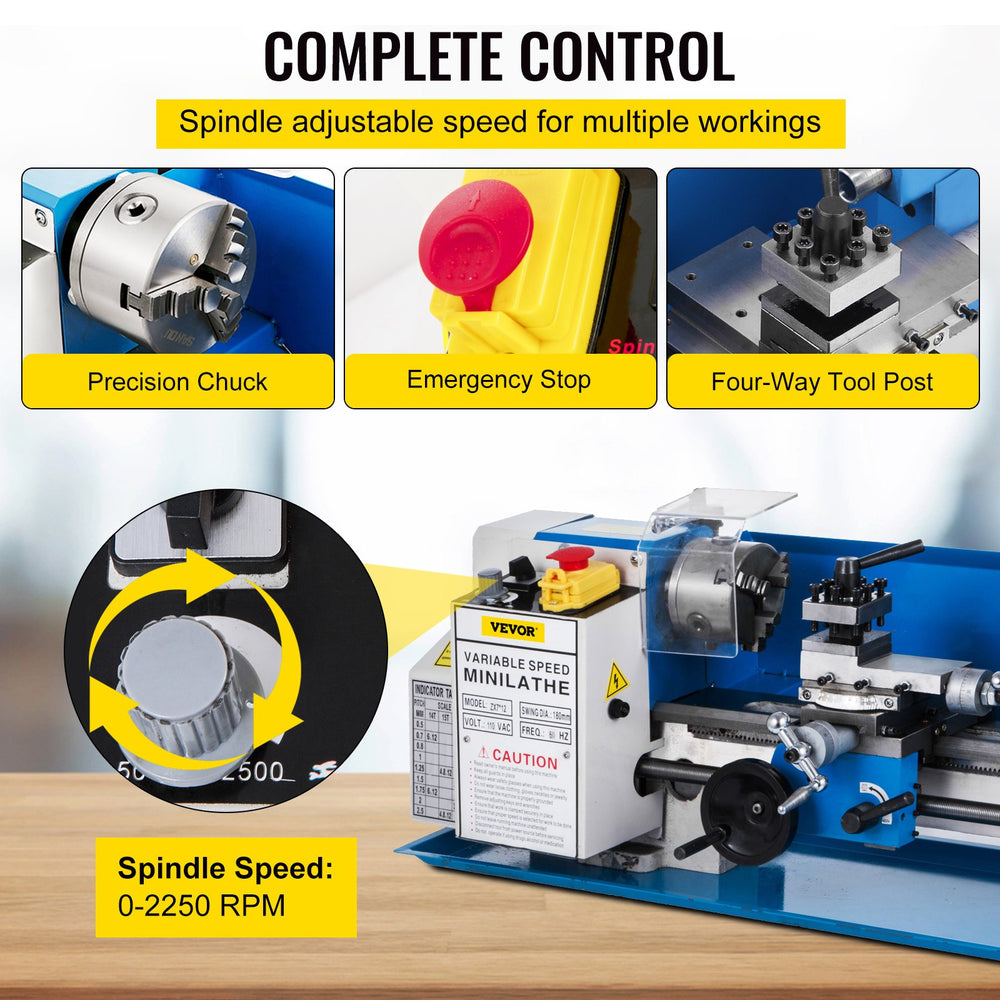

- Infinitely Variable Speeds: Spindle Speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004 in / 0.01 mm. A free lamp is included.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Diversified Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
Specifications
| Motor Power | 550W DC Single Phase |
|---|---|
| Voltage | 110V |
| Spindle Speed | 0-2250 RPM |
| Tail Stock Taper | MT2 |
| Spindle Taper | MT3 |
| Swing Over Bed | 7.09" (180 mm) |
| Chuck Diameter | 3.15" (80 mm) |
| Centers Distance | 11.8" (300 mm) |
| Spindle Bore | 0.79" (20 mm) |
| Inch Thread | 12-52 TPI |
| Metric Thread | 0.4-2 mm |

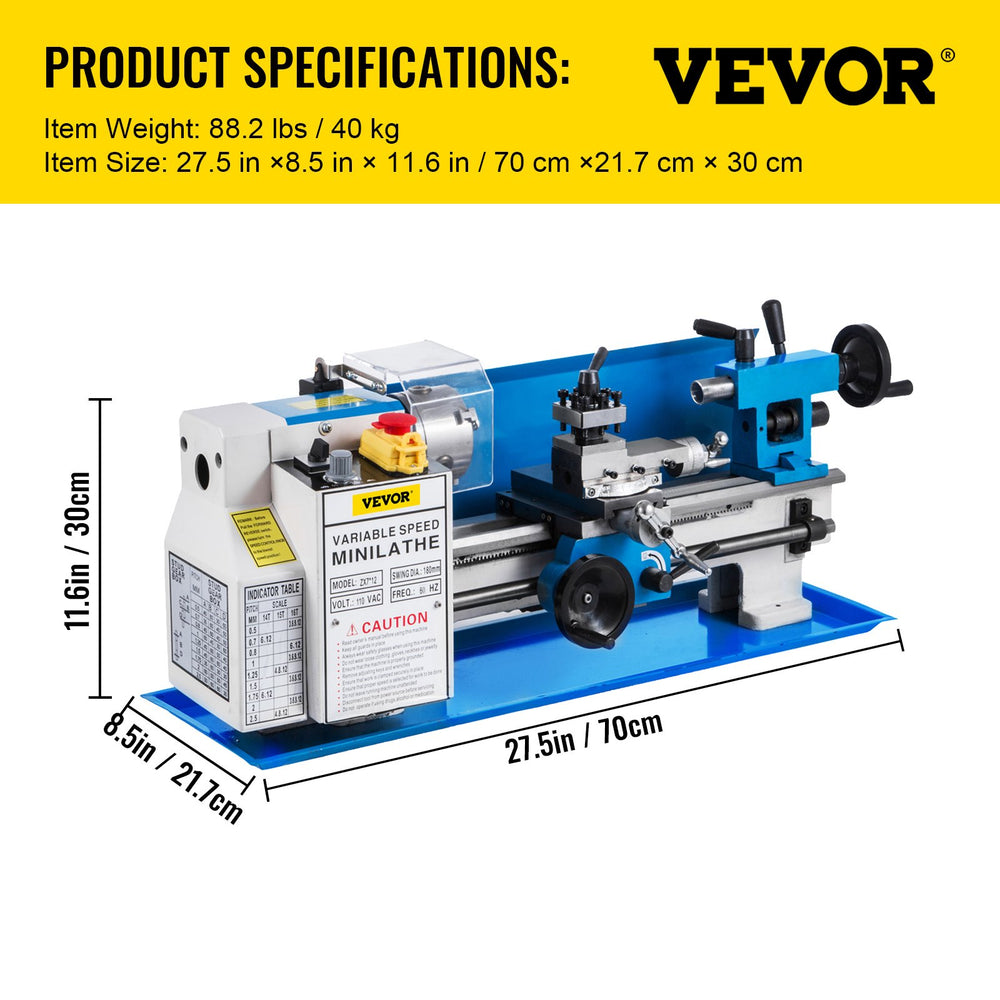

| Product Dimensions | 27.5" x 8.5" x 11.6" |
| Weight | 88.18 lbs (40 kg) |
|---|

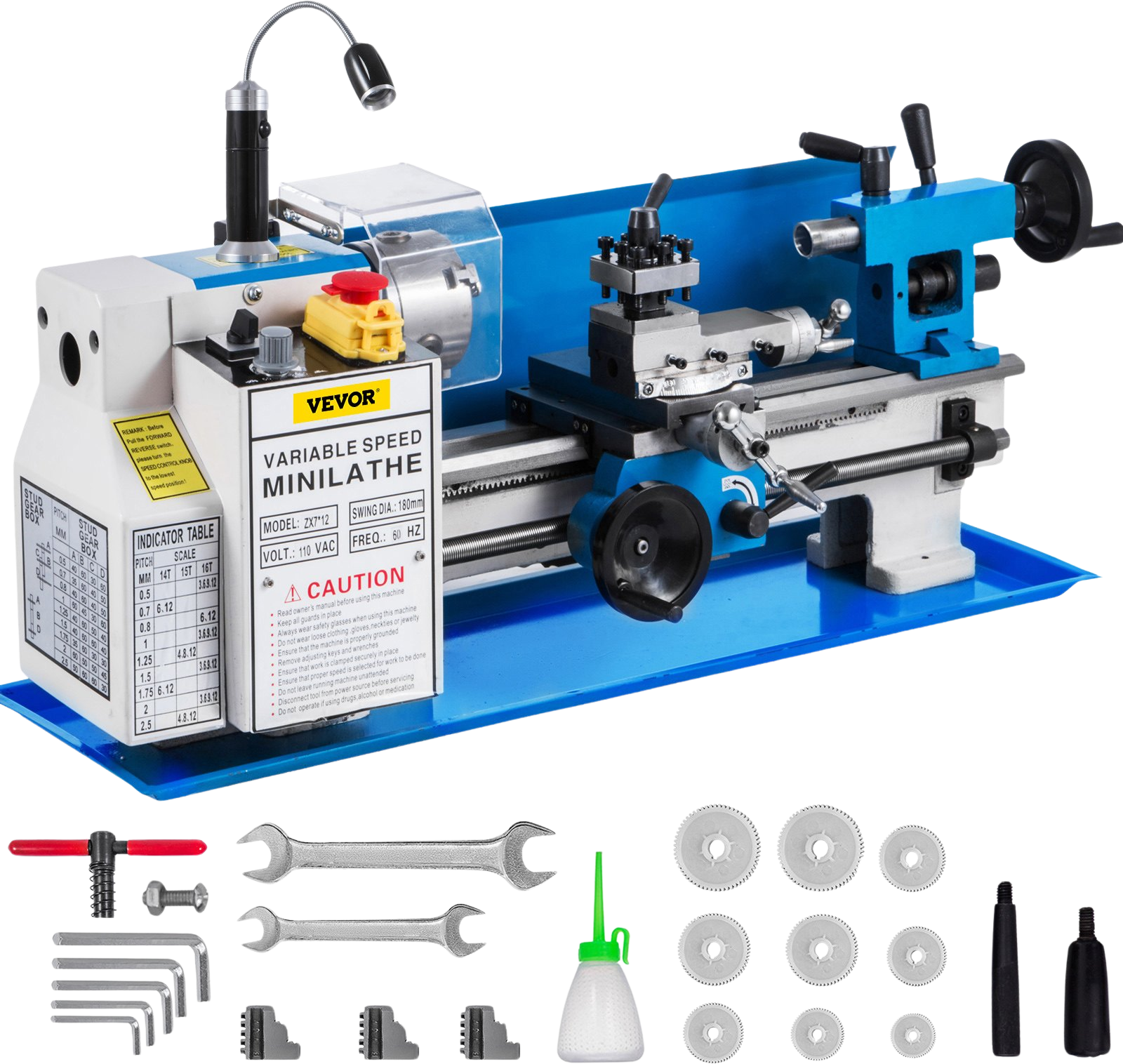

Package Contents
Vevor Mini Metal Lathe 550W
Oil Bottle
(3) Chuck Jaw
(9) Gear
(5) Allen Key
(2) Wrench
Set of Fittings
User Manual
Warranty
This item comes with a 1 year factory warranty.
