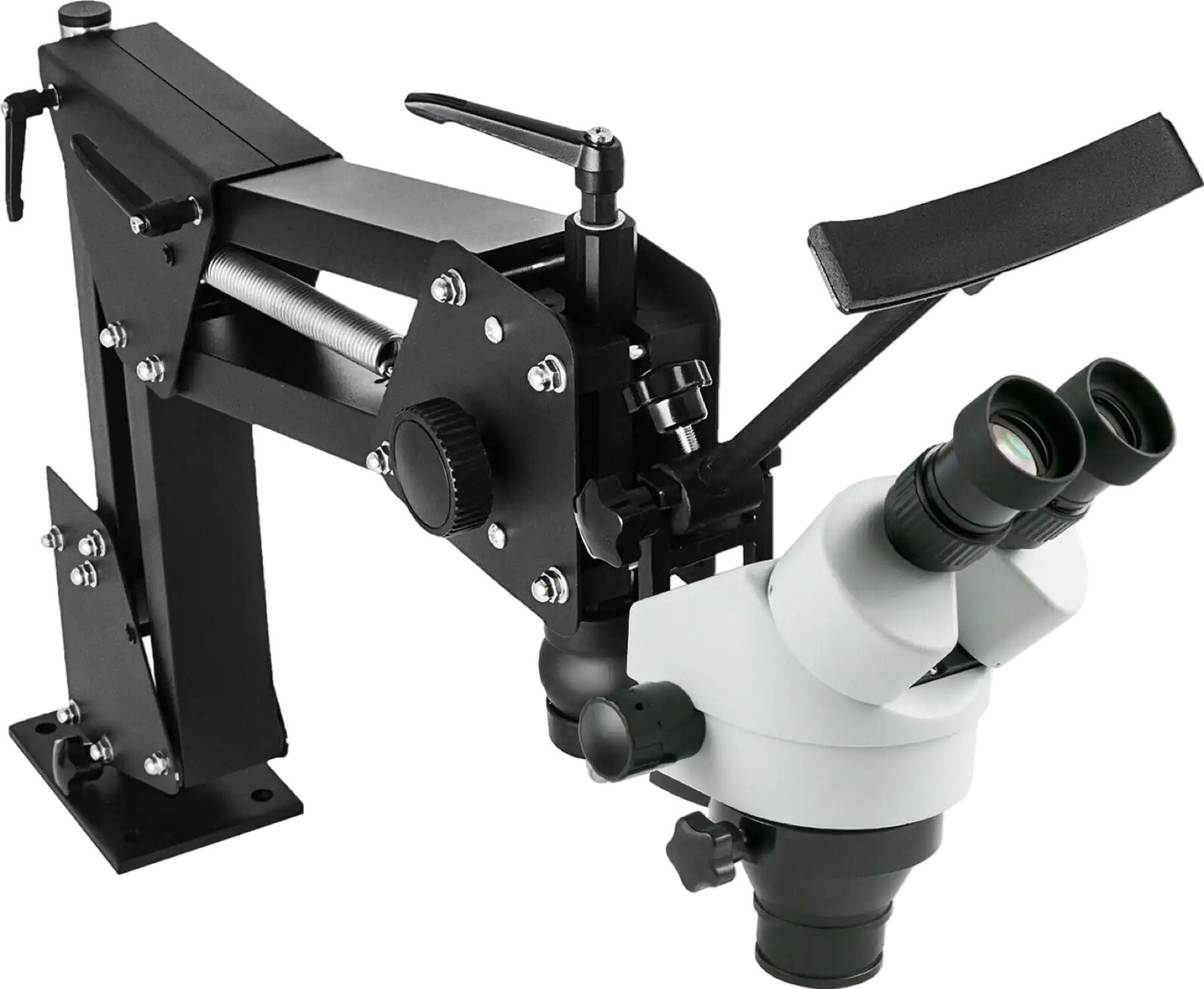

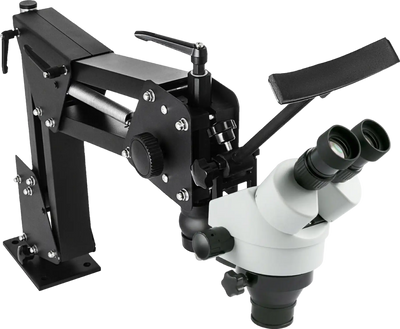

Vevor Micro Inlaid Mirror Multi-Directional Microscope with Spring Bracket 7X-45X Magnification New
Product Overview
The micro inlaid mirror features superior optical performance design, large zoom ratio and wide field, long working distance, and is an essential tool for the jewelry micro-inlay industry. Its flexible telescopic focusing mechanism makes the operation more convenient and user-friendly, and the unique headrest frame reduces operator fatigue. The stereo microscope head with 0.7X-4.5X continuous zoom function features high definition, large depth of field, and strong stereoscopic effect.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Detailed Parameters: Continuous Zoom: 0.7X-4.5X, Long Working Distance: 95mm-300mm/ 3.7''-11.8”, Material: Hard Aluminum Alloy, Machine Objective Lens: 0.5X/165Mm, Machine Eyepiece: Wf10X/20Mm, Field Of View: 5.1-33 Mm (0.2-1.3 inch), Spin Angle: Horizontal ±15°, Straight: ±15°, Main Straight: 270°.
- Continuous Zoom & Stereoscope Sense: The continuous zoom microscope lens is characterized by high-definition, large field of view, and strong stereoscopic sense. Wide-angle vision technology brings high resolution and a large field of view with easy operation.
- Powerful Performance: The jewelry microscope inlaid stand is made of high rigidity aluminum alloy. With compact and stable chassis, it occupies a small space to store easily. A large zoom ratio & a wide field of view make the observation clearer and brighter.
- User-Friendly Design: The unified headrest rest frame, as a user-friendly operating design, relieves neck fatigue. Aesthetic and practical cross-section universal joints are suitable for various heights & azimuth angles.
- Various Applications: An essential tool for the micro-inlay jewelry industry, it’s able to meet all needs of operating requirements. Help you zoom in on the details of the jewelry and do better inlay work.
Specifications
| Continuous Zoom | 0.7X - 4.5X |
| Long Working Distance | 3.7" - 11.8" (95mm-300mm) |
| Material | Hard Aluminum Alloy |
| Bracket Hole | 3.35" (85 mm) |
| Control High Range | 2.36" (60mm) |
| Straight | ±15° |
| Main Straight | 270° |
| Machine Objective Lens | 0.5X / 165mm |
| Machine Eyepiece | WF10X / 20mm |
| Binocular Pupil Distance Adjustment | 2.13"-2.99" (54-76mm) |
| Field of View | 0.2"-1.3" (2.1-33mm) |
| Total Magnification | 7X-45X |
| Product Dimensions | 27" x 21" (68.58 x 53.34 cm) |
| Gross Weight | 18.7 lbs (8.5 kg) |
Package Contents
Vevor Micro Inlaid Mirror Microscope
User Manual
Warranty
This item comes with a 1 year factory warranty.
