Vevor Metal Lathe 7" x 14" Variable Speed 0-2250 RPM with 4" 3-Jaw Chuck New
Product Overview

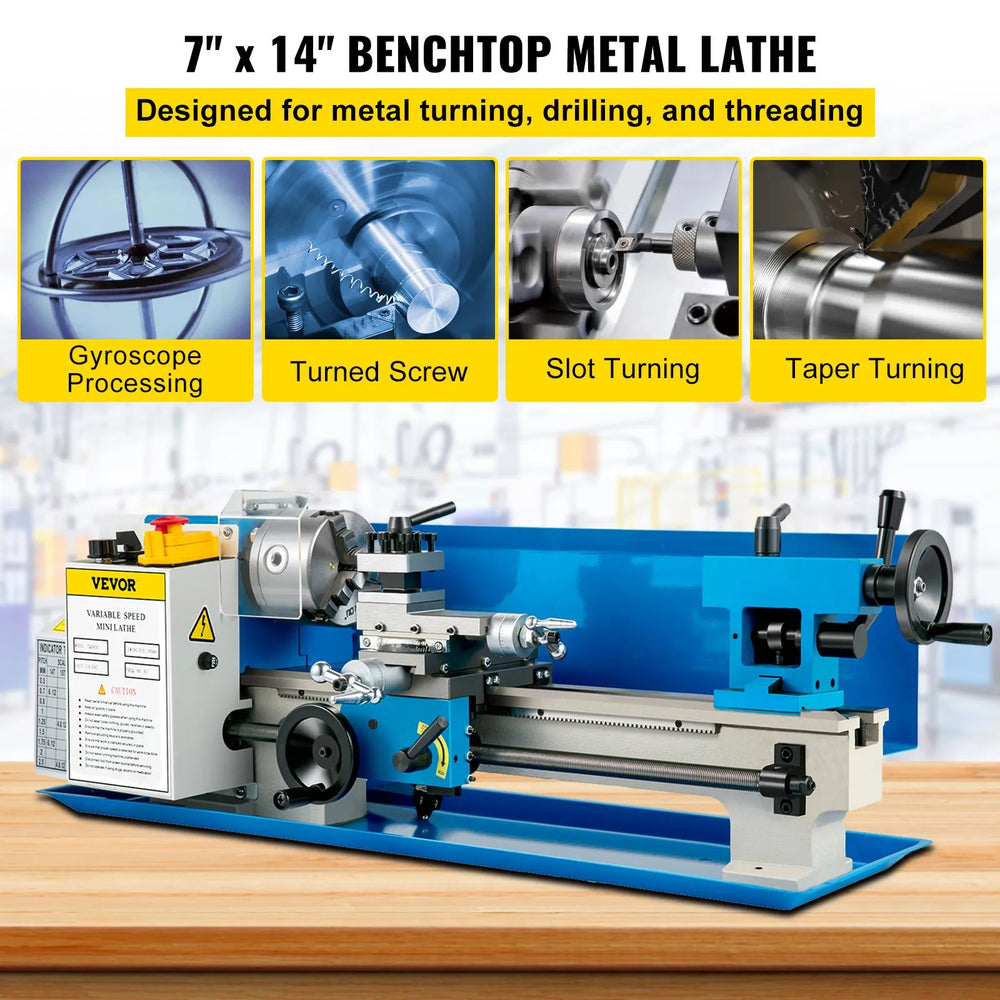

This 7 x 14 in. benchtop lathe features a 3-jaw chuck, a MT3 spindle taper, MT2 tailstock taper, a tool rest, and a 3/4 HP motor, designed to perform various types of metal turning. Variable speed from 0-2250 RPM, it can be easily adjusted according to different workpieces. The 3-jaw self-centering chuck ensures high accuracy and repeatability during work, with a back splash guard included.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

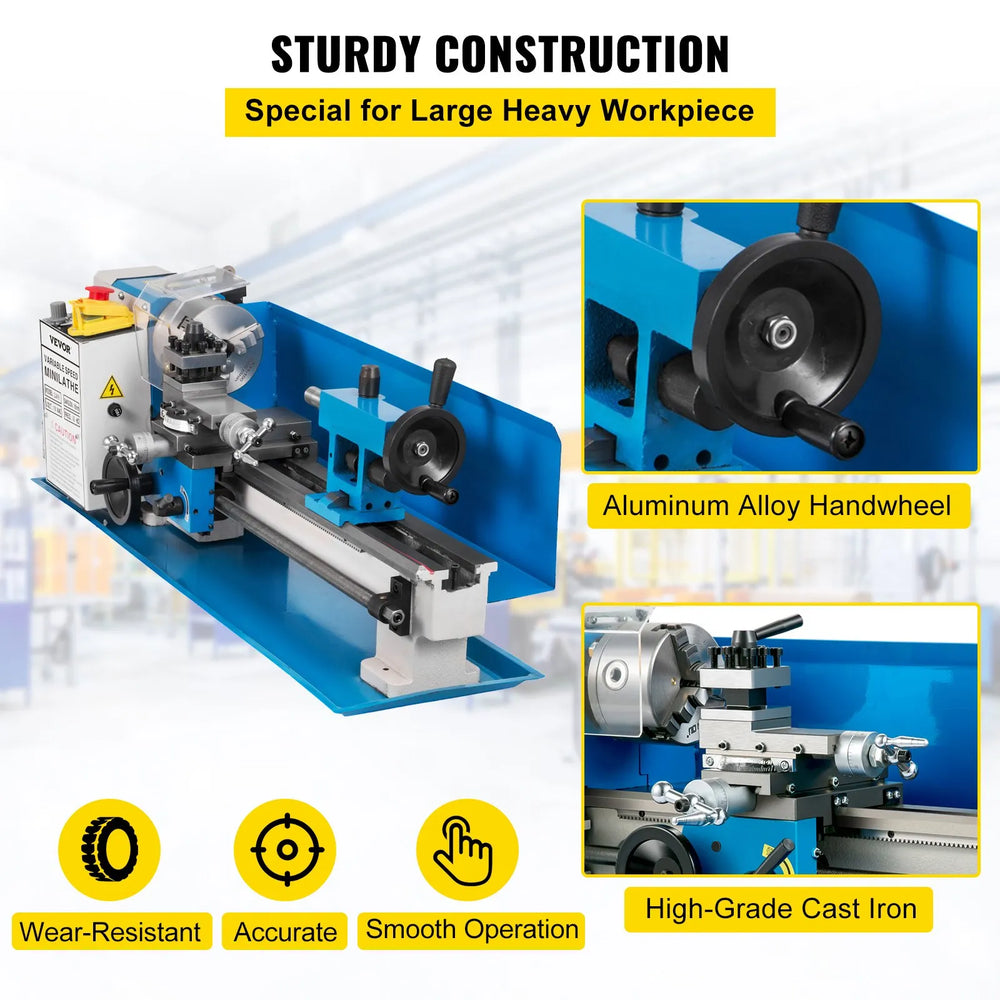

- Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.

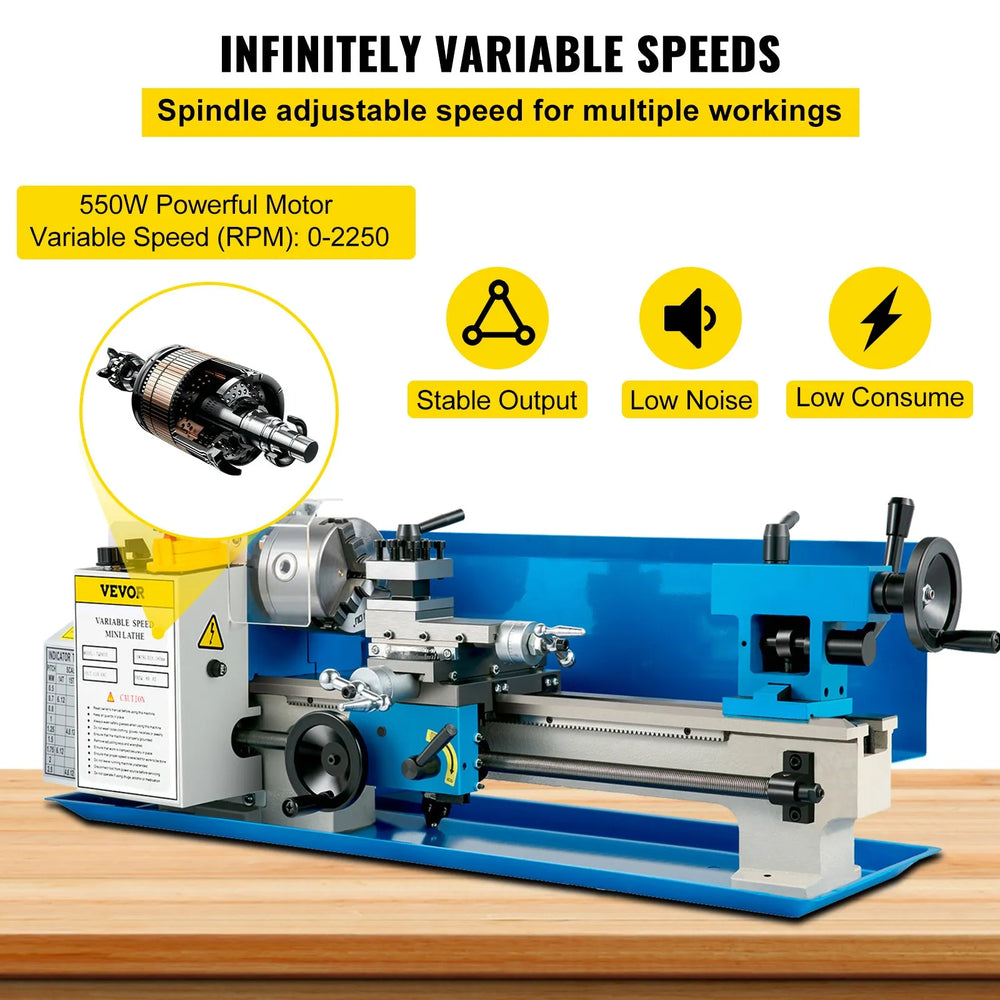

- Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.

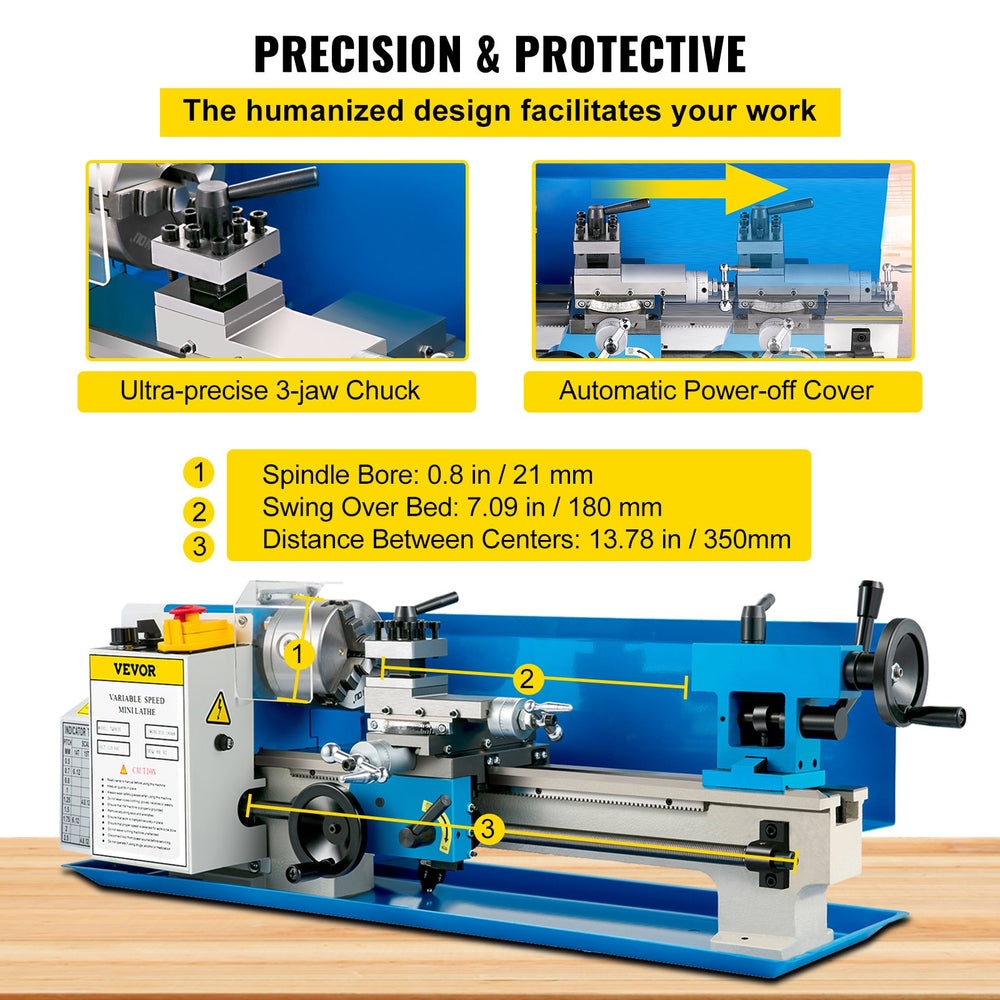

- Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.

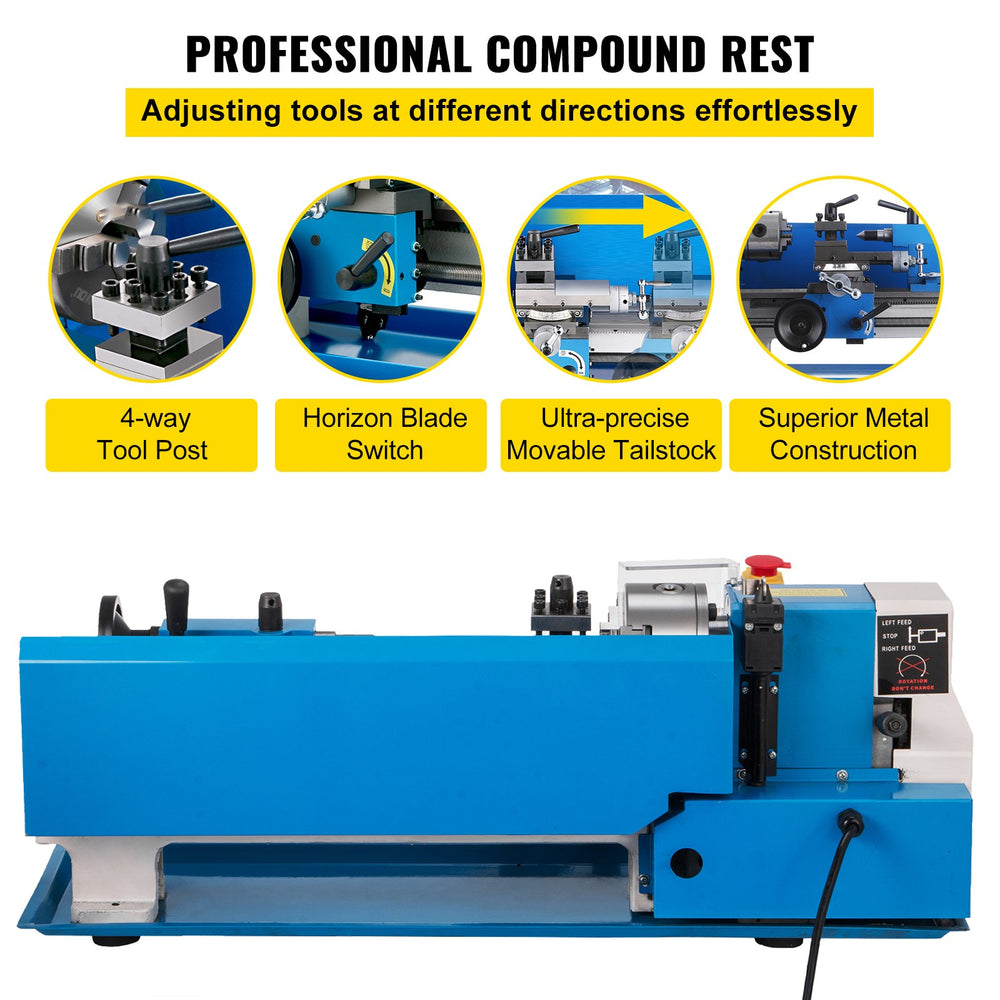

- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
- Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
Specifications
| Power of Motor | 550W DC Single Phase |
|---|---|
| Spindle Speed | 0 - 2250 RPM |
| Swing Over Bed | 7.09" / 180 mm |
| Swing Over Cross Slide | 4.3" / 110 mm |
| Chuck Diameter | 3.94" / 100 mm |
| Centers Distance | 13.78" / 350 mm |
| Spindle Bore | 0.79" / 20 mm |
| Spindle Taper | MT3 |
| Tailstock Taper | MT2 |
| Cross Slide Travel | 2.53" / 65 mm |
| Top Slide Travel | 1.36" / 35 mm |
| Spindle Accuracy | 0.0004" / 0.01 mm |
| Inch Thread | 12 - 52 T.P.I |
| Metric Thread | 0.5 - 2.5 mm |

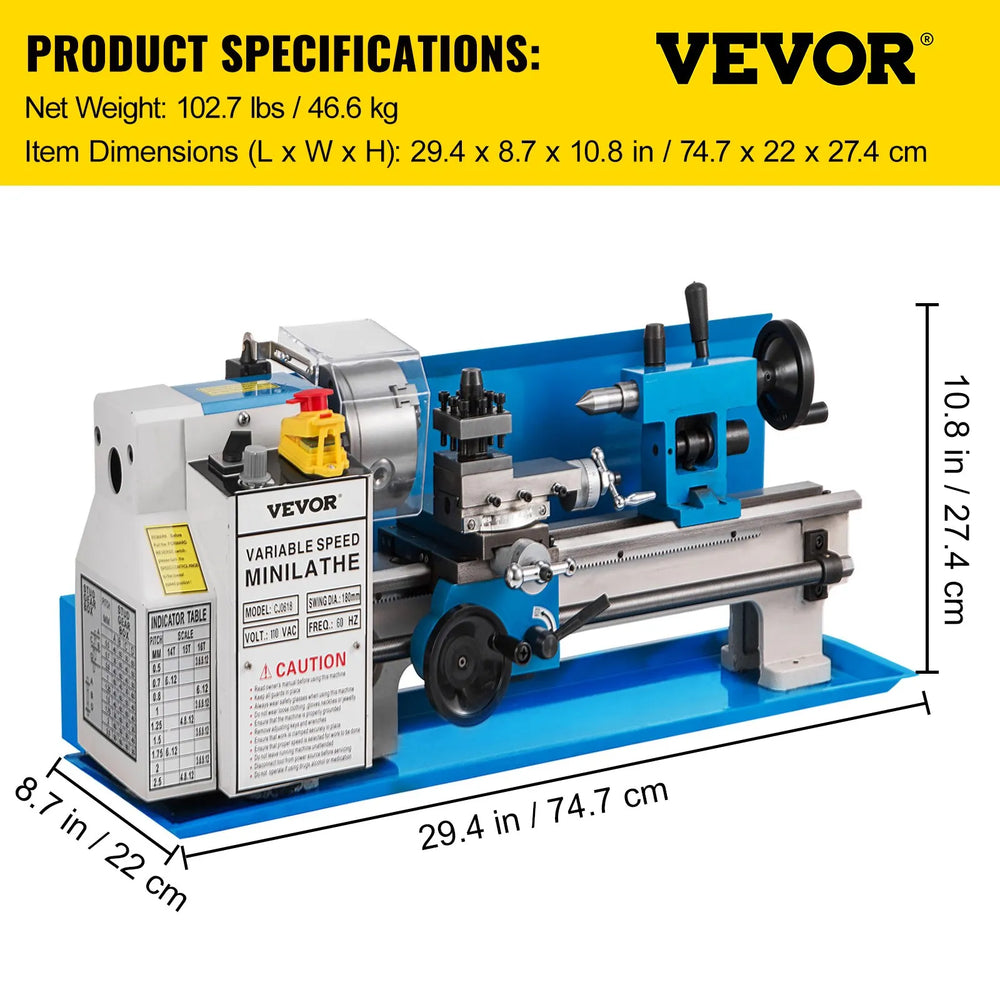

| Item Dimensions (L x W x H) | 29.4 x 8.7 x 10.8 in |
|---|---|
| Net Weight | 102.7 lbs |

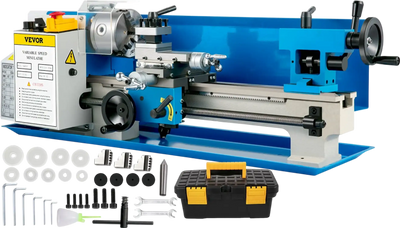

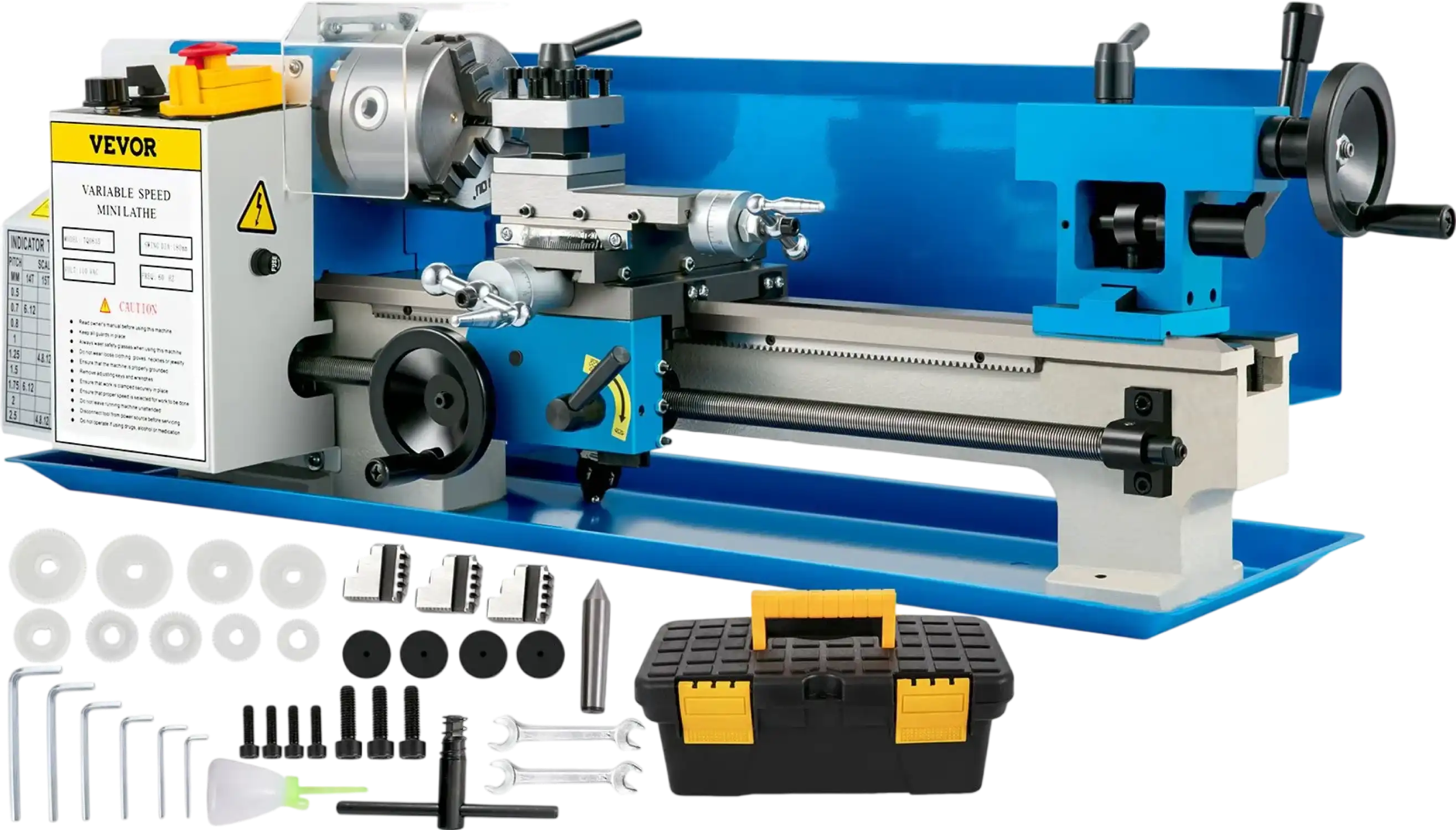

Package Contents
Vevor Compact Metal Lathe 7" x 14"
(3) Chuck Jaws
Lathe Center
Chuck Wrench
Oil Can
(5) Hex Wrenches
(9) Nylon Gears
Tool Box
User Manual
Warranty
This item comes with a 1 year factory warranty.
