Vevor Linear Stage Actuator 100 mm Ball Screw CNC Linear Motion Guide Rail New
Product Overview

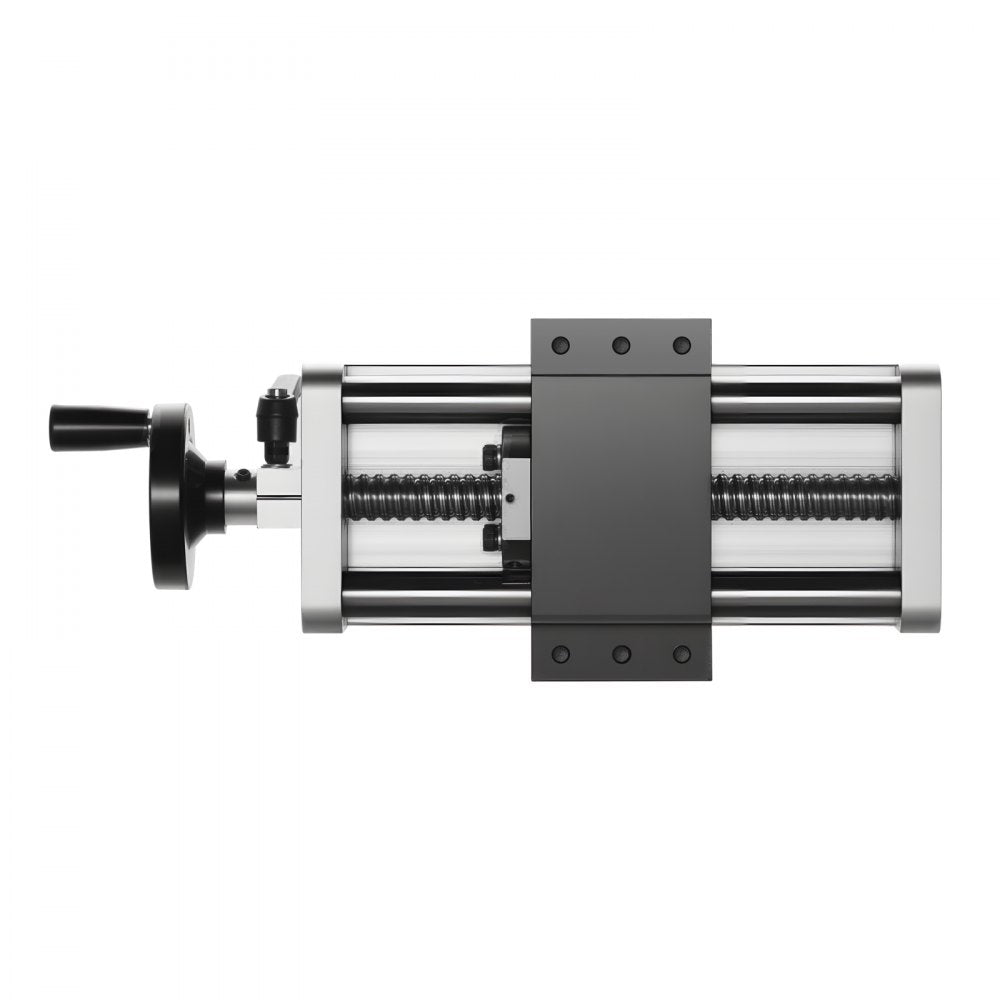

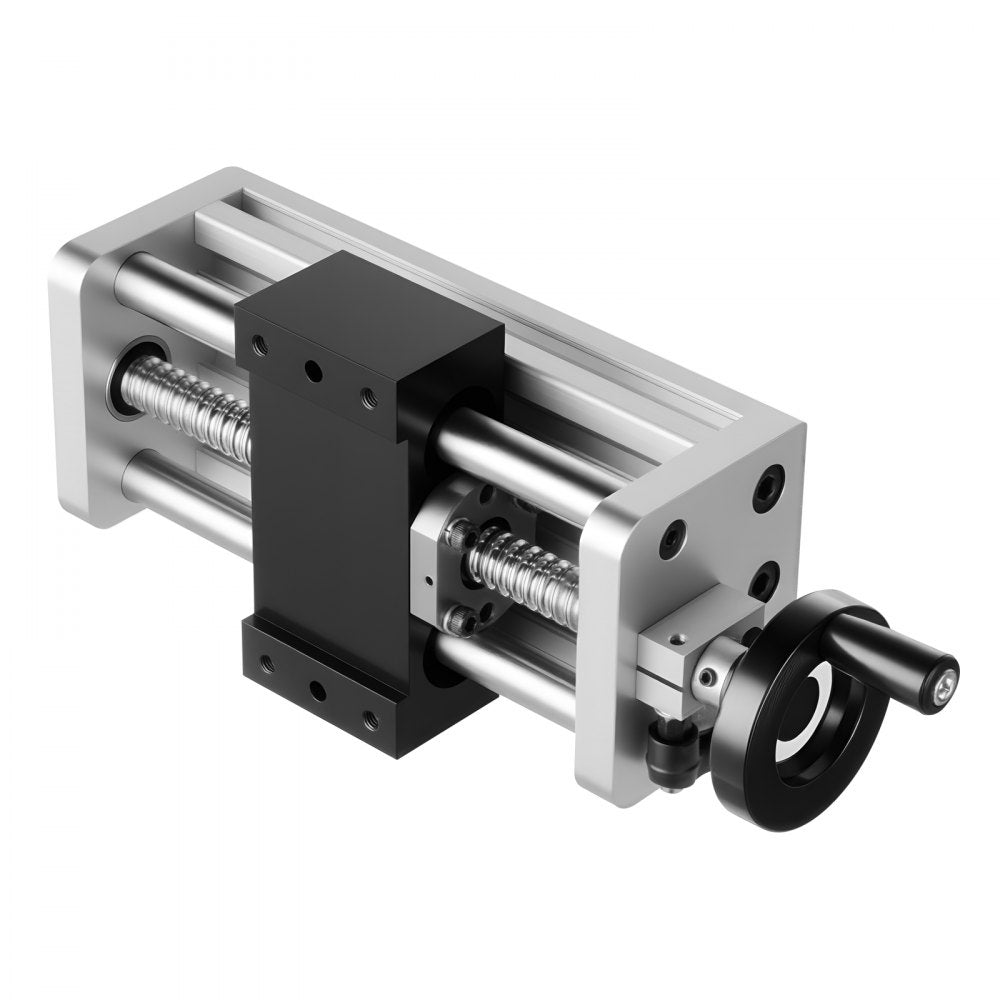

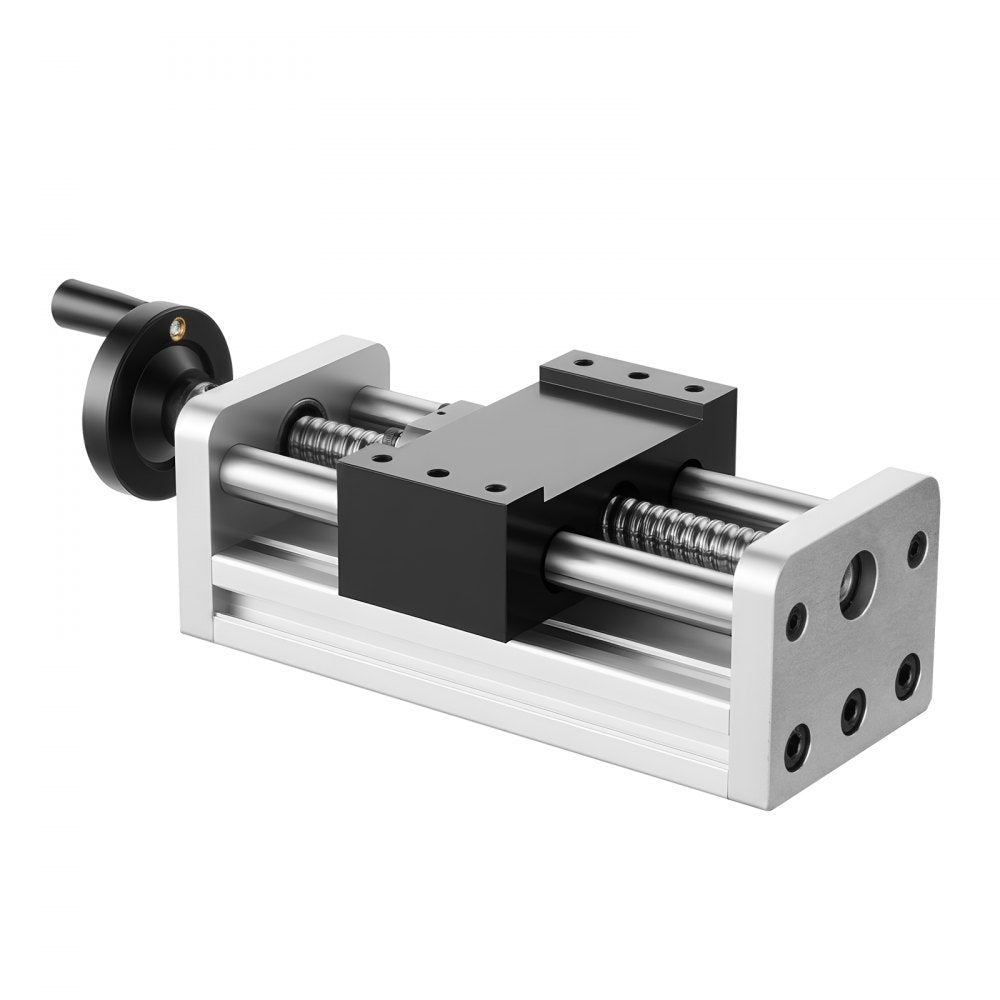

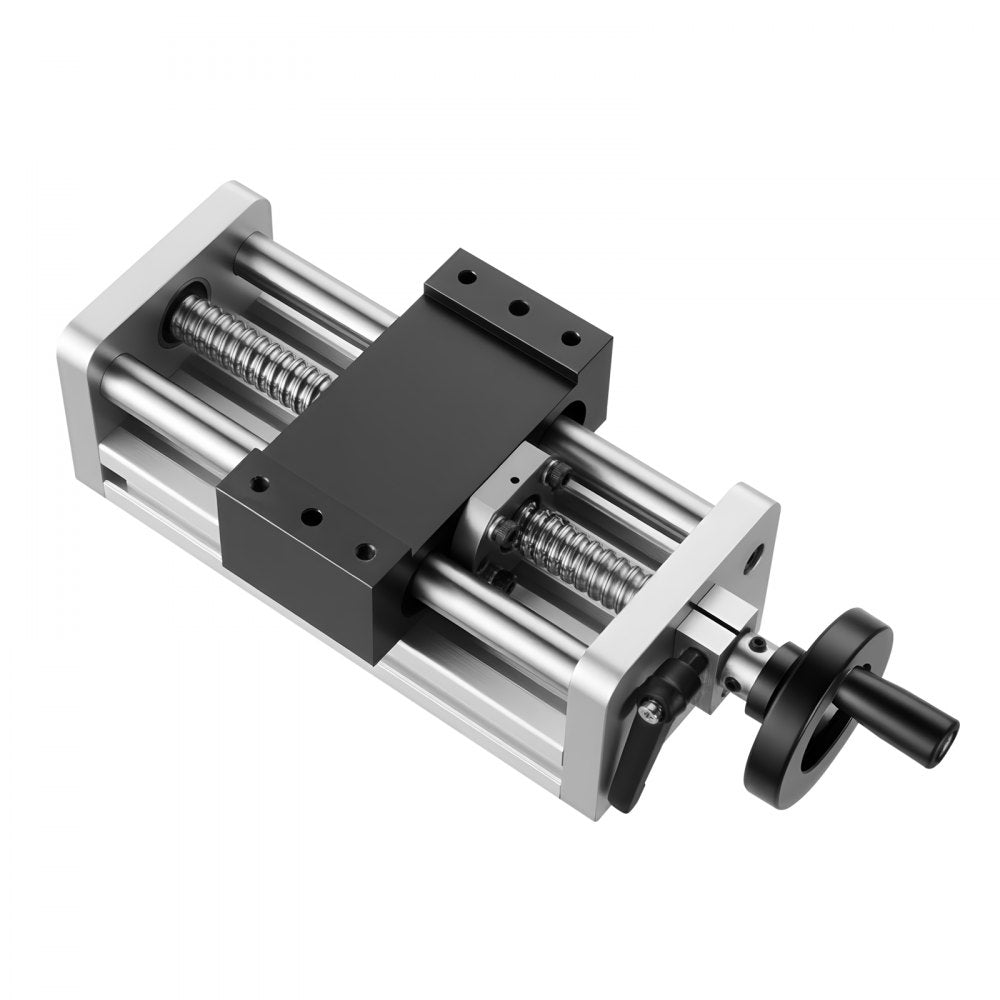

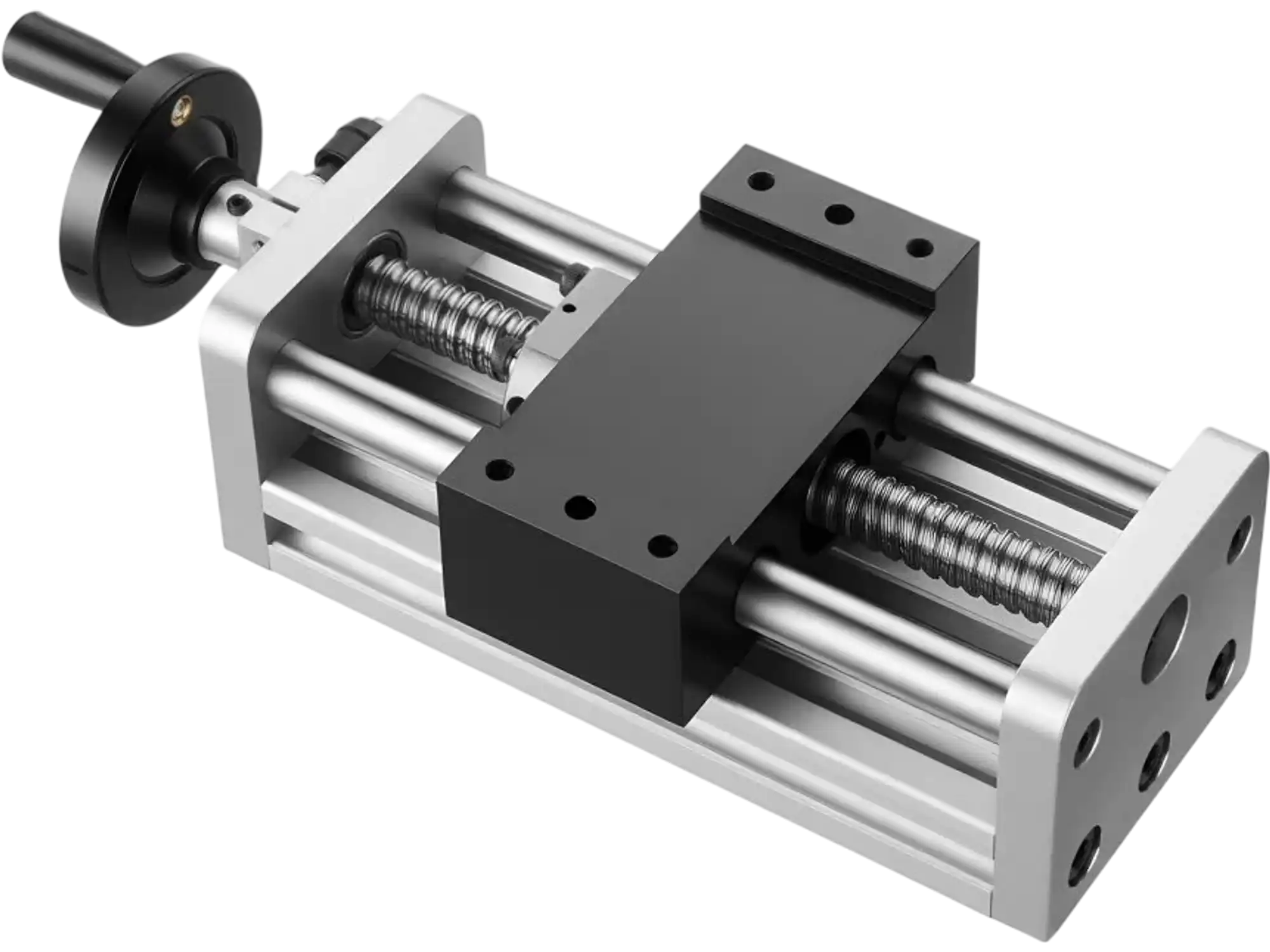

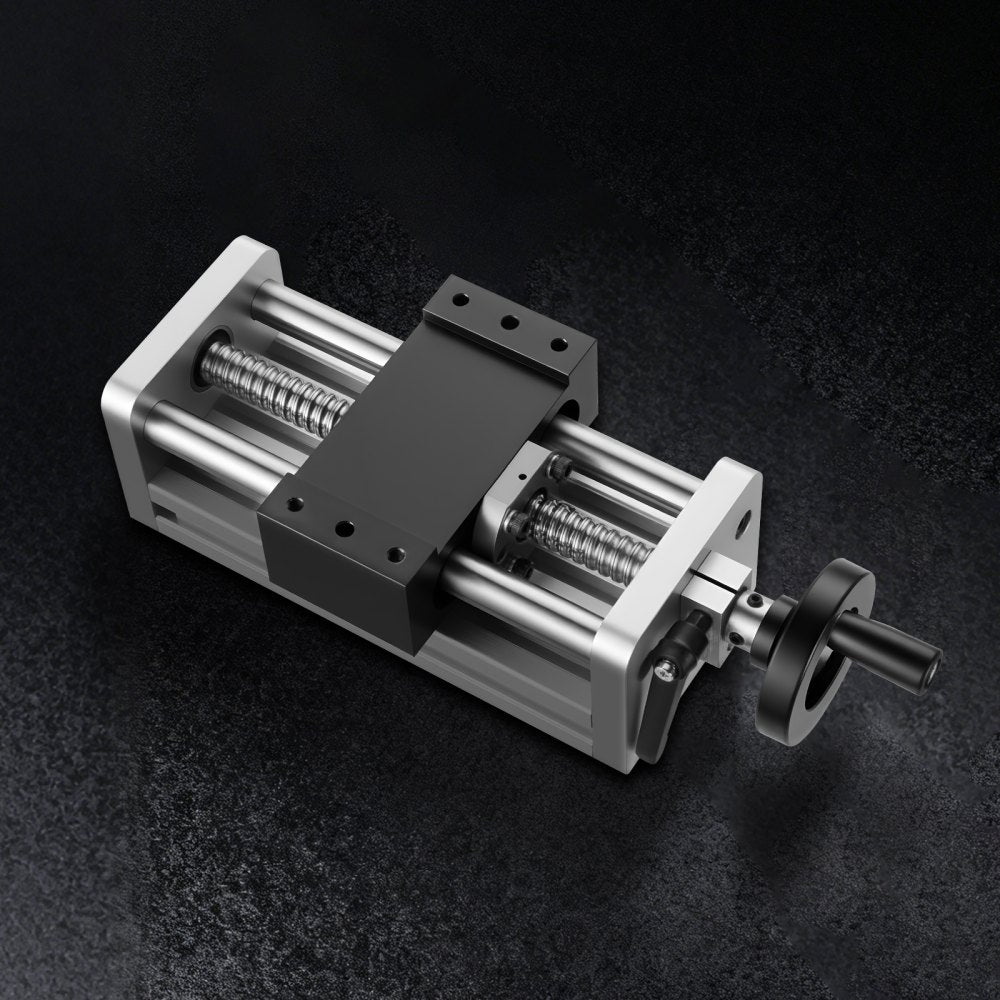

The Vevor linear stage actuator is designed for precise linear motion in CNC systems, 3D printers, compact machines, and industrial automation setups. It features a 100 mm effective stroke, a high-precision ball screw, dual linear guide rails, and a ball-bearing slide block for smooth, stable travel. The chrome-plated steel and aluminum construction helps provide durability and long-term accuracy. A manual handwheel is included for fine position adjustment. Its design also supports low-noise operation with dependable horizontal and vertical load handling.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

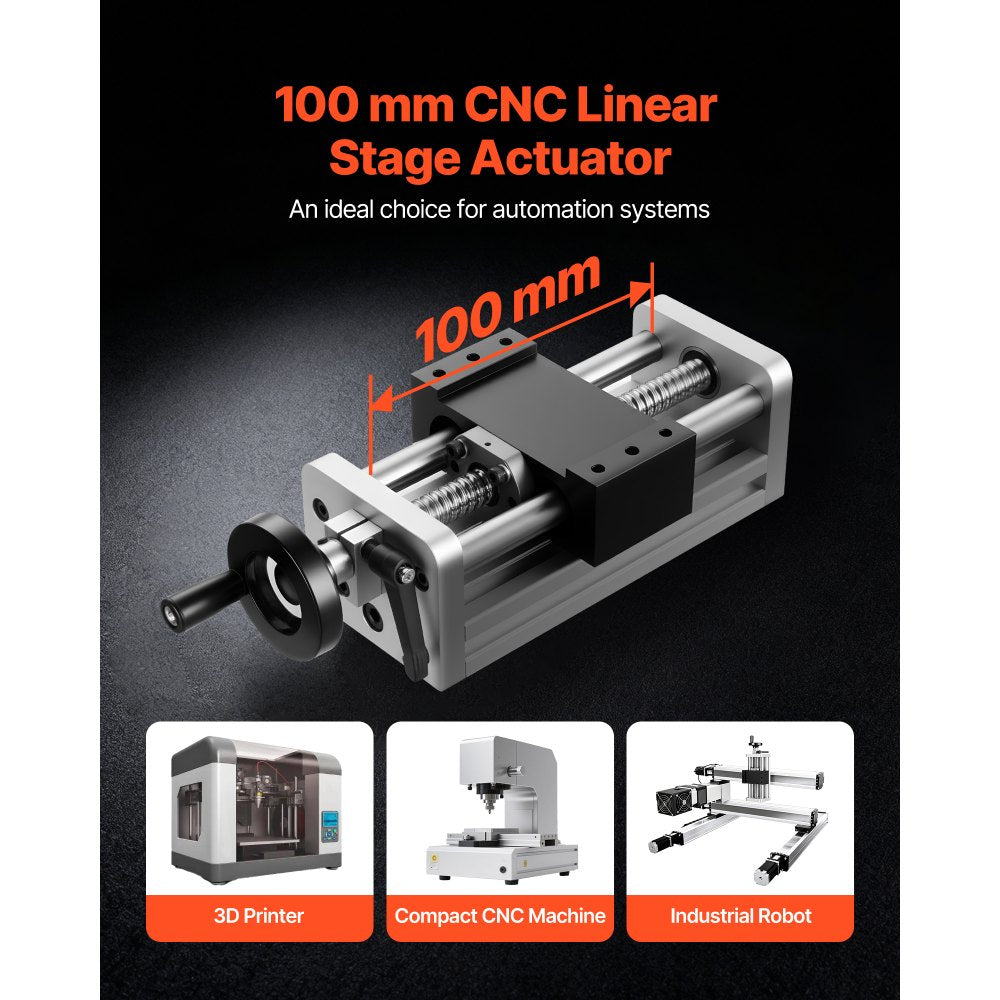

- CNC Linear Stage Actuator: This set includes one linear stage actuator with a 100 mm effective stroke and one handwheel. Compatible with 3D printers, compact CNC machines, and industrial robots

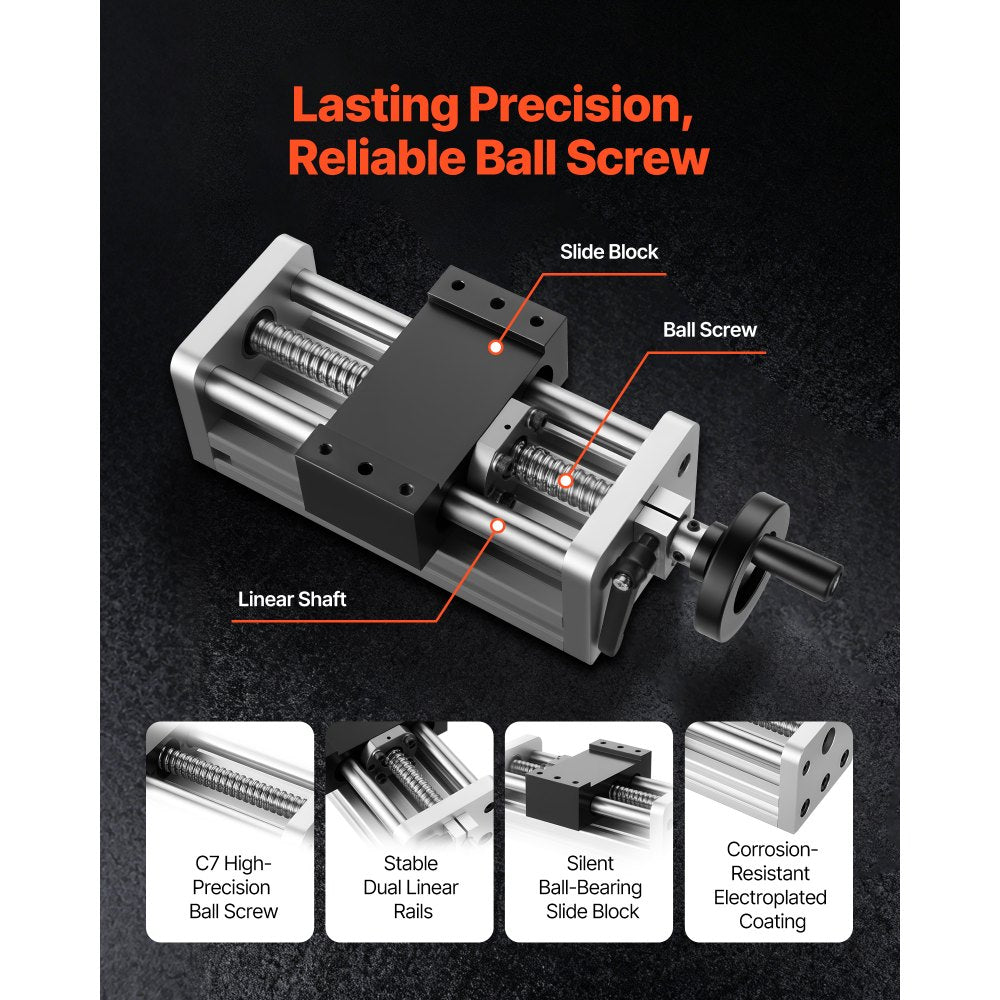

- High-Precision Ball Screw: Features a premium ball screw, dual linear guide rails, and a ball-bearing slide block. Electroplated coating enhances long-term accuracy and durability

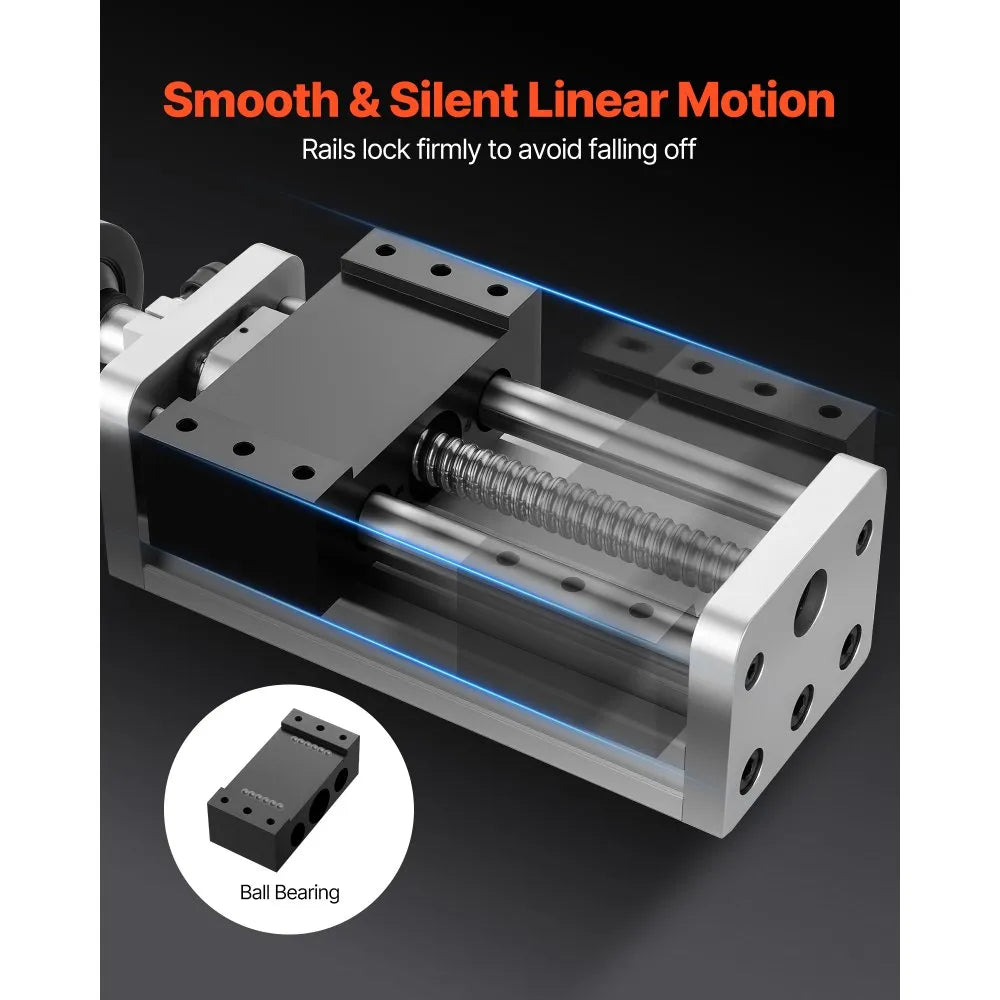

- Silent & Smooth Sliding: Built-in ball-bearing slide blocks deliver quiet, low-friction motion while gripping the shaft tightly for stable linear travel. Less noise, less wear, more precision—every time you move

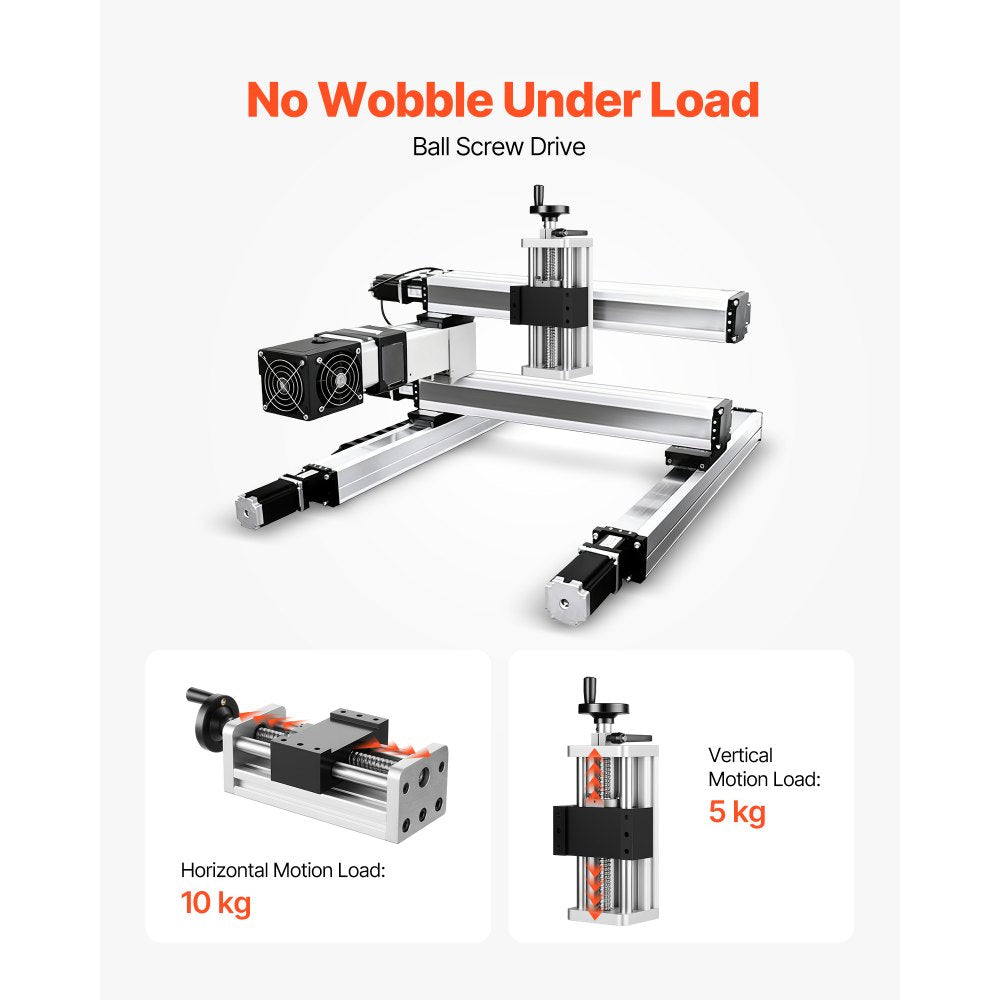

- Reliable Load Capacity: Our CNC linear stage actuator handles both horizontal and vertical motion with ease. Supports up to 10 kg horizontally and 5 kg vertically without wobble

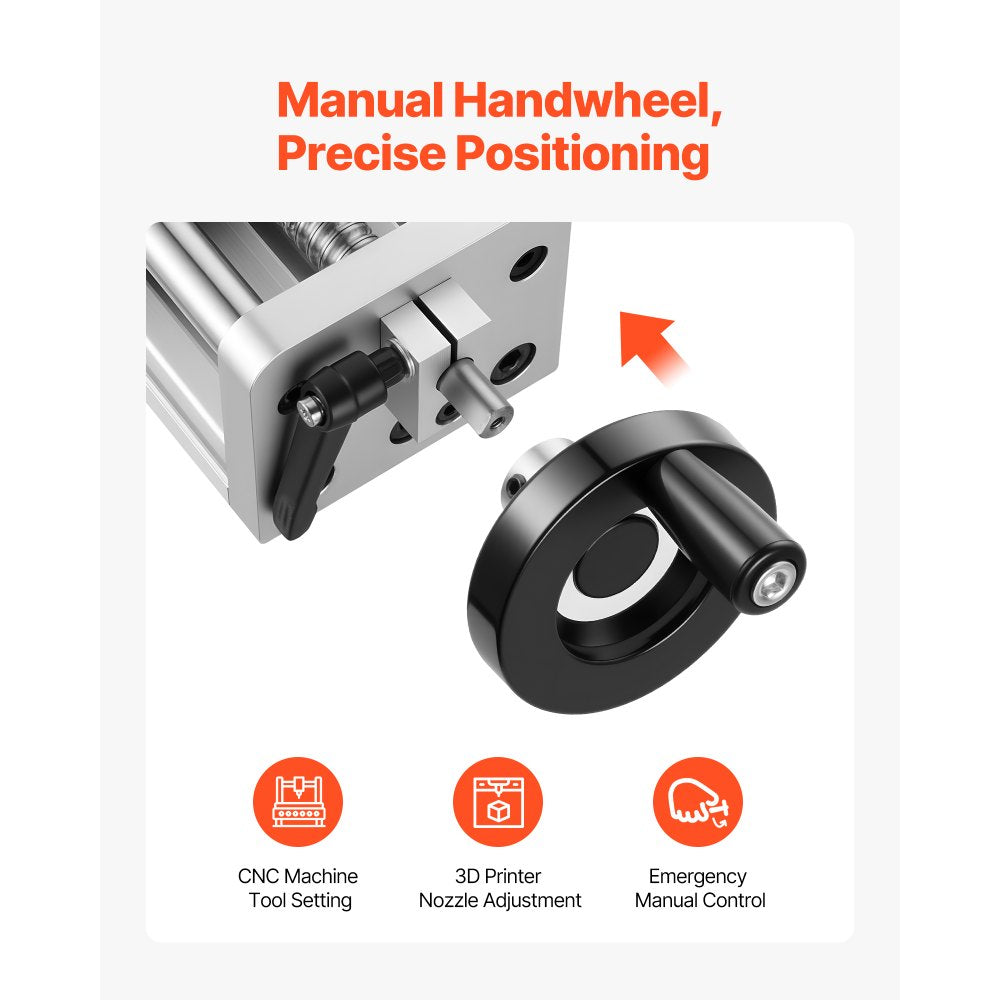

- Handwheel Included: Our CNC linear guide rail comes with an additional handwheel, allowing you to manual fine-tune the position
Specifications
| Item Model Number | CFJY90-1605-C-100-SL |
| Product Type | Linear Stage Actuator |
| Effective Stroke | 100 mm |
| Material | Chrome-Plated Steel & Aluminum |
| Motor Rated Voltage | DC 24–75V |
| Quantity | 1 pc |
| Accessories | 1 x Handwheel |
| Horizontal Load Capacity | 10 kg |
| Vertical Load Capacity | 5 kg |

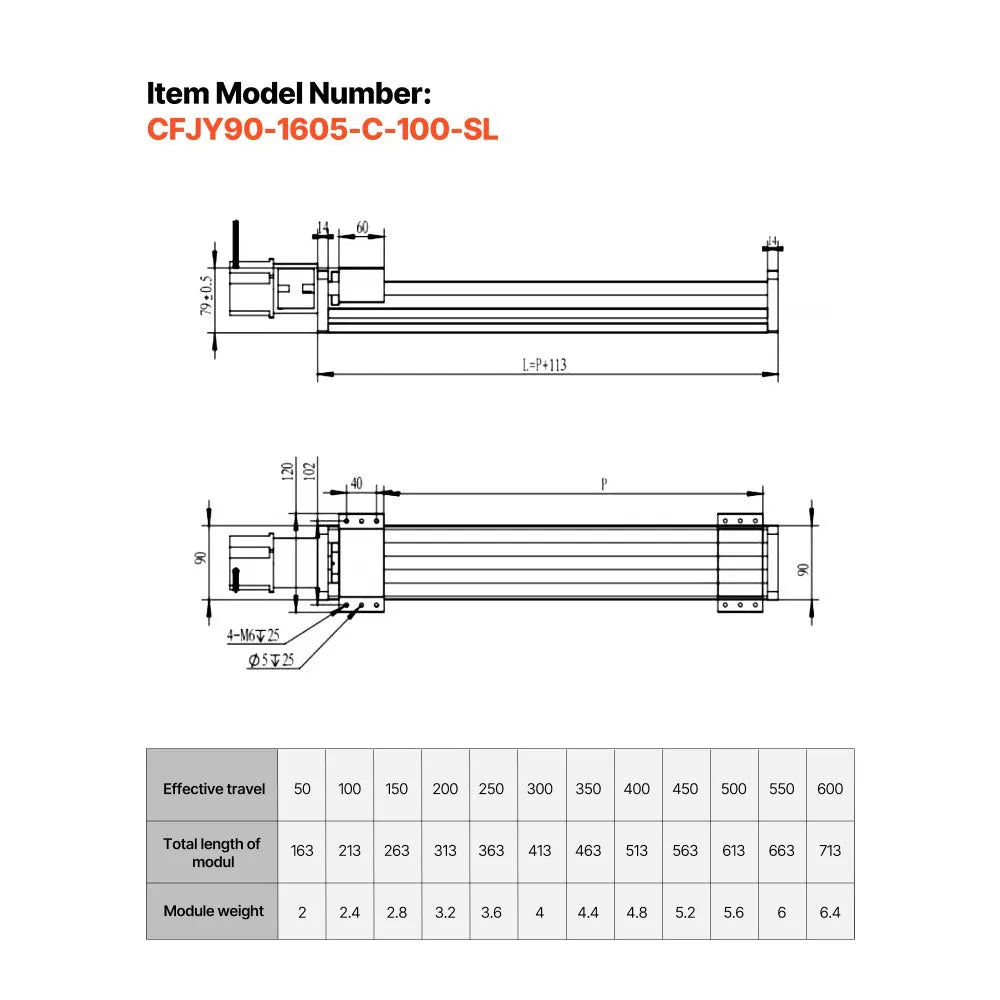

| Dimensions | 213 mm total module length |
Package Contents
1 x Linear stage actuator
1 x Handwheel
Warranty
This item comes with a 1 year factory warranty.
