Vevor Linear Scale 3-Axis DRO Display Kit 16" 18" 38" New
Product Overview
The Vevor 3-axis linear scale DRO display kit is designed to deliver precise measurements for machine tool applications across three axes. It includes 16", 18", and 38" measuring ranges, a crystal-clear multifunction display, and a 5μm resolution read head for accurate positioning. The system supports advanced functions such as arc cutting, circumference drilling, oblique line drilling, and inverse trigonometric calculation. Its IP54-rated design helps protect against dust and splashing liquids for dependable shop use. Suitable for vertical or horizontal installation on compatible cutting and drilling machines.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

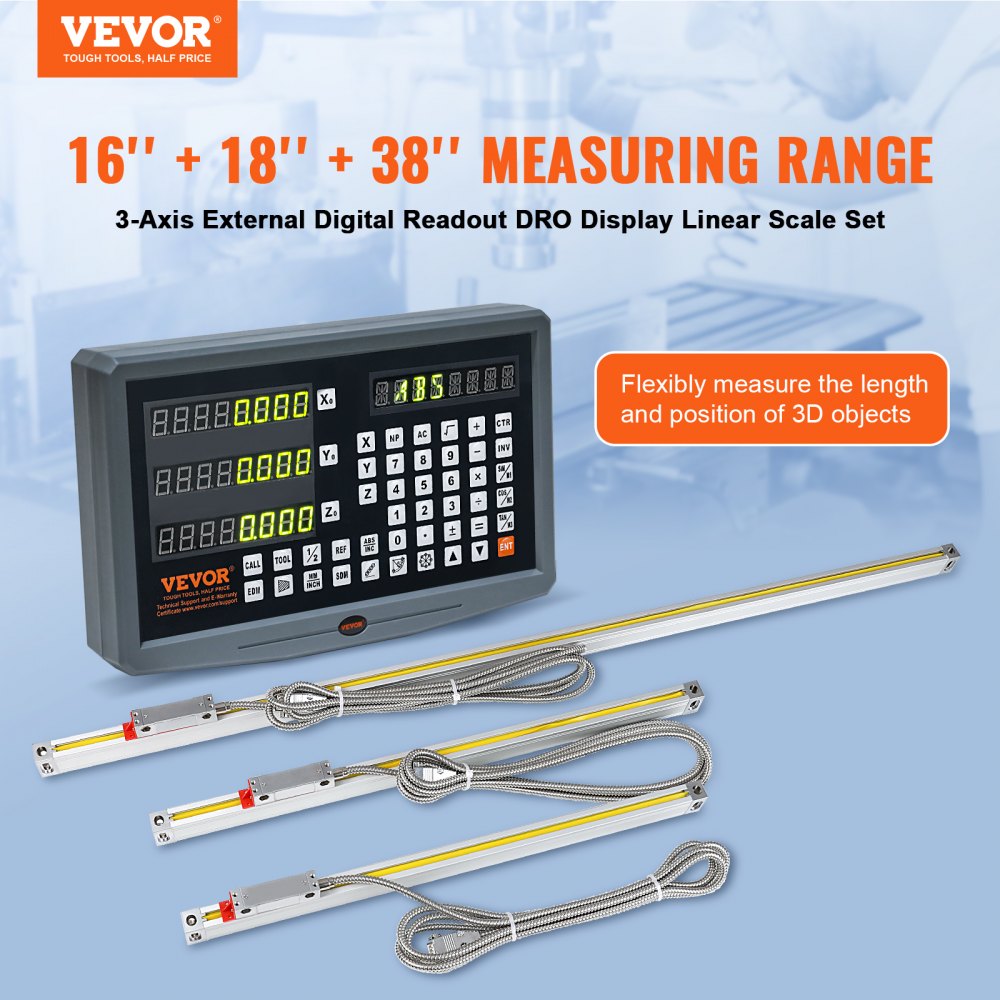

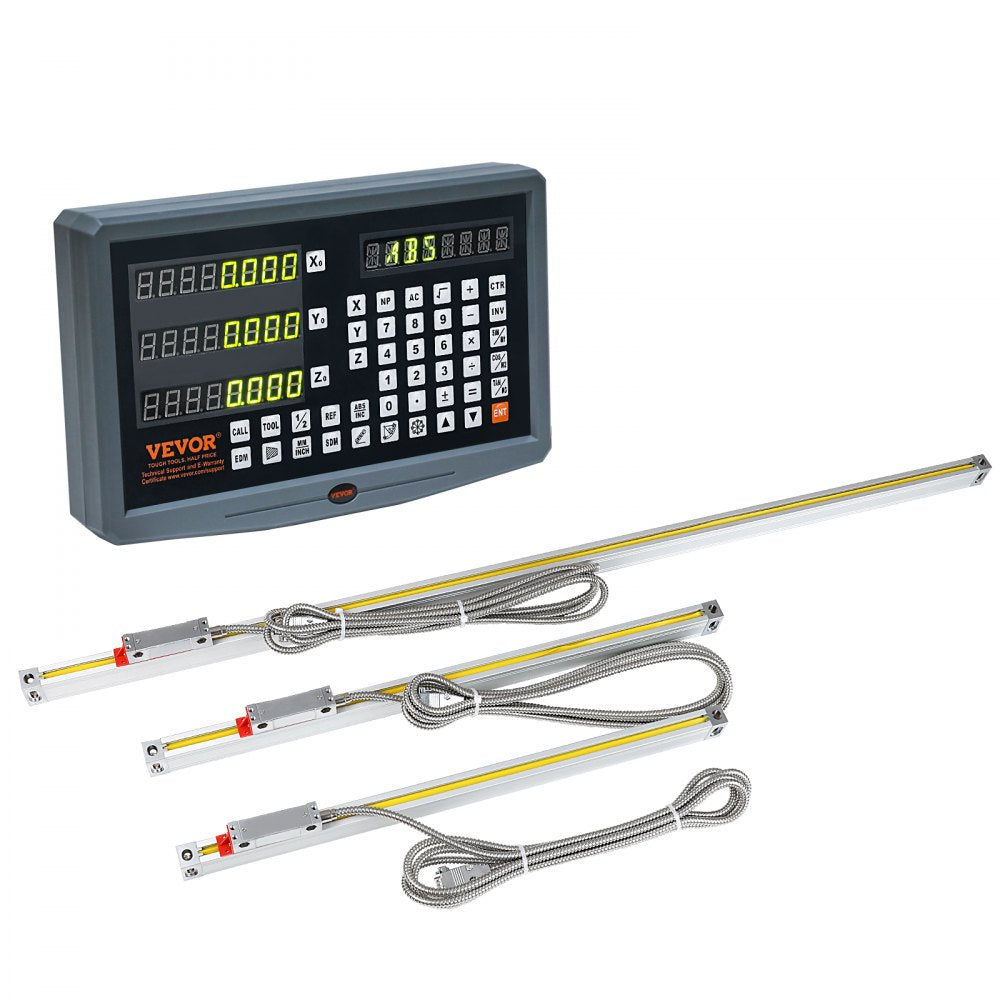

- 16'' + 18'' + 38'' Travel Length: Experience versatility with our 3-axis linear scale set, offering three travel lengths: 16 in/400 mm, 18 in/450 mm, and 38 in/950 mm. Adapt to your specific needs on the X-axis (length), Y-axis (height), and Z-axis (width), enabling seamless measurements of three-dimensional workpieces such as wood, stone, and metal. Facilitate high-precision processes such as circumference drilling.

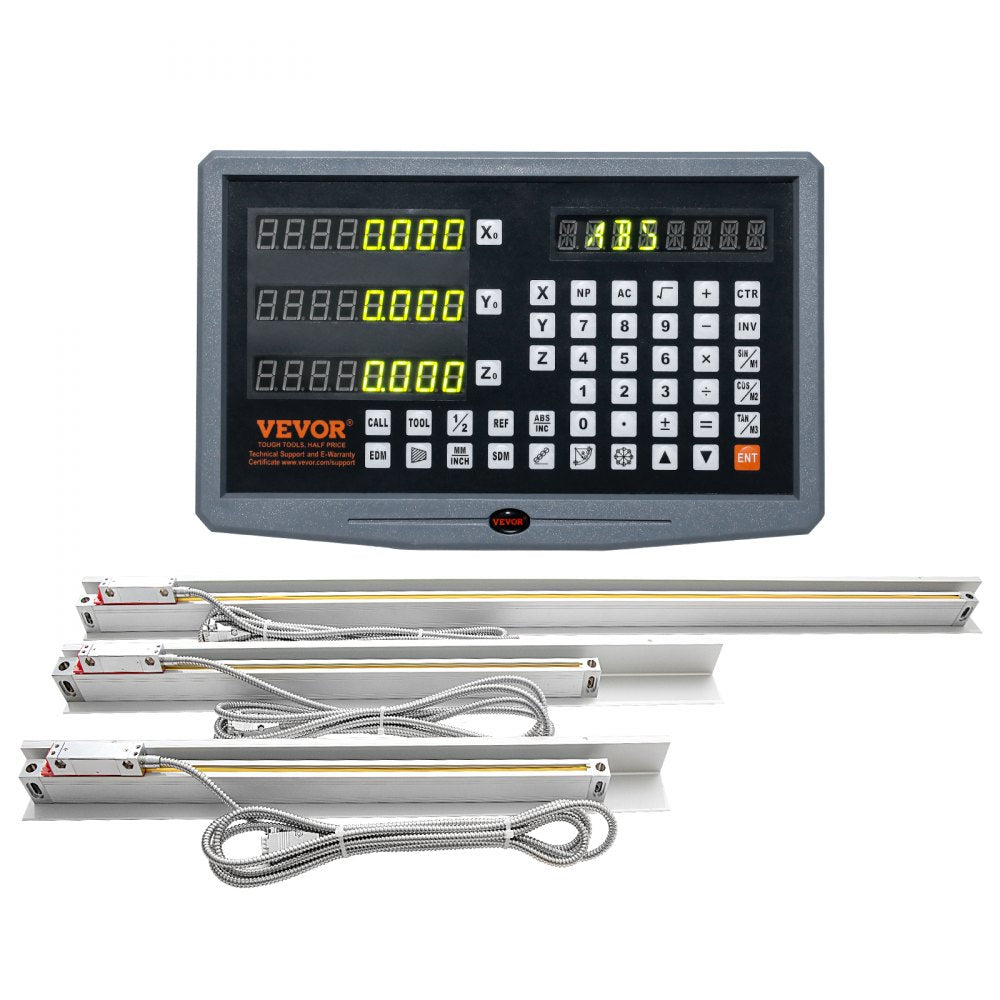

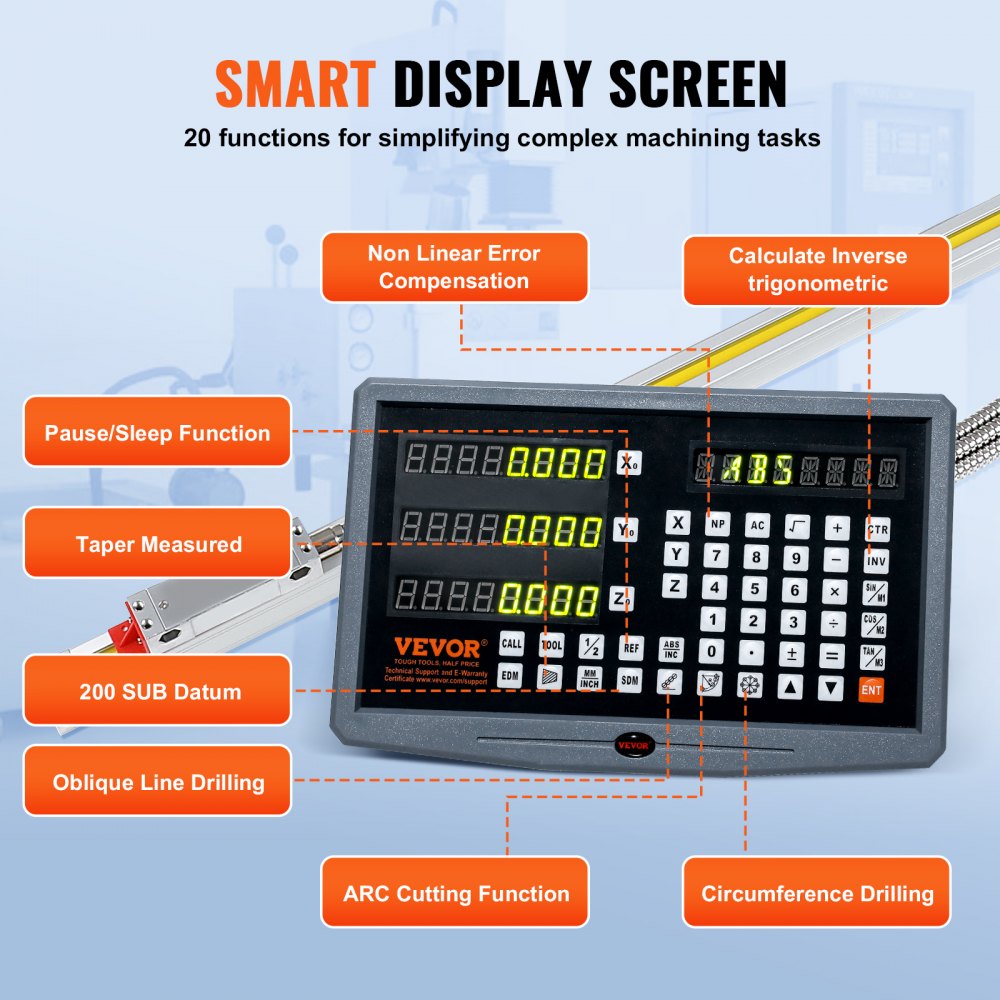

- Multifunctional Crystal-Clear Display: Our display screen offers many basic and specialized functions to ensure convenient measurement and positioning. The basic functions include standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, and more. Specialized functions encompass ARC cutting function, circumference drilling, oblique line drilling, and calculate inverse trigonometric.

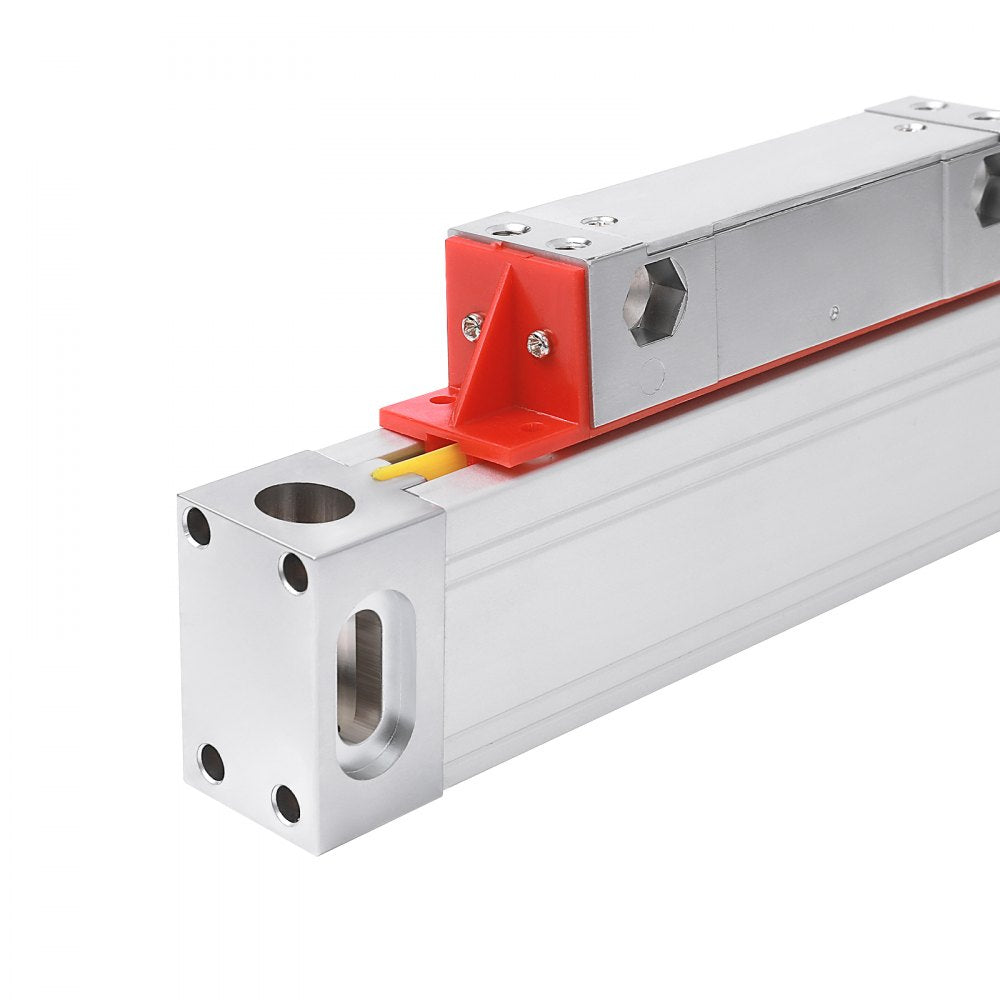

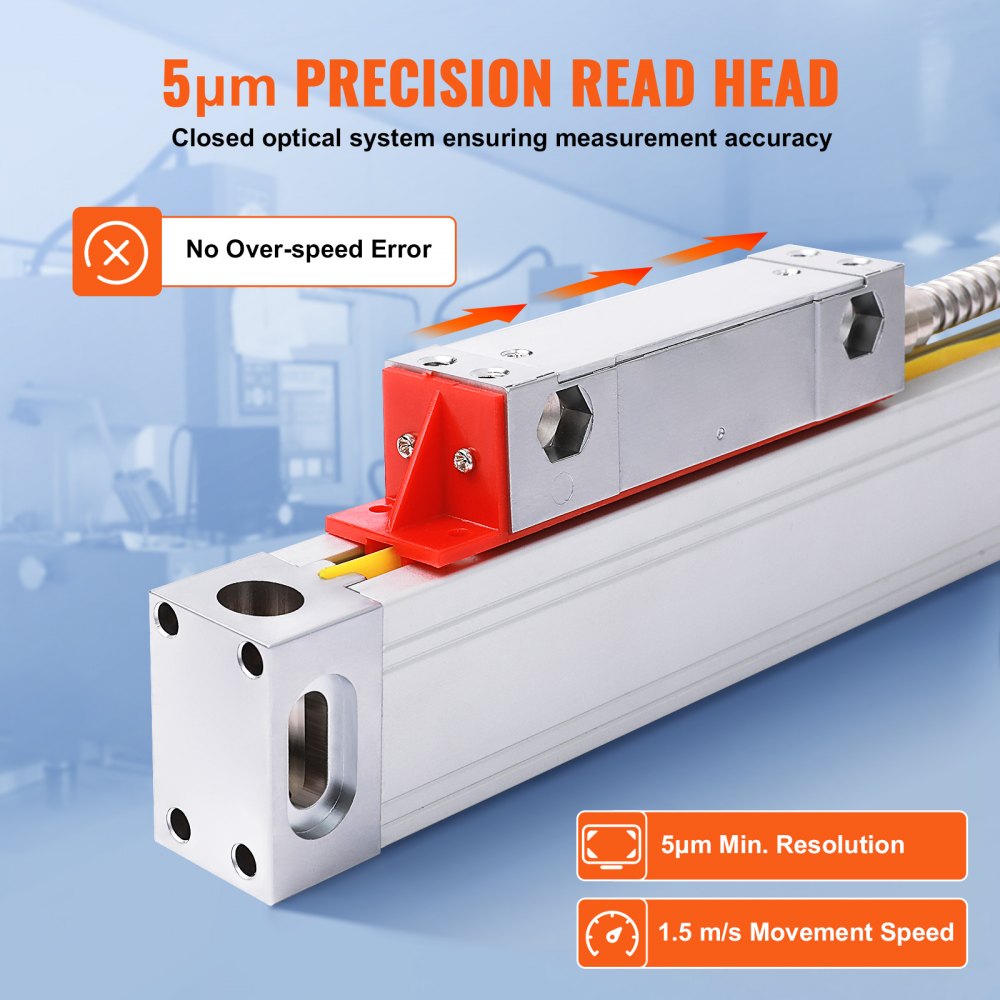

- Precision 5μm Read Head: Our linear scale boasts a remarkable 5μm minimum resolution. Even at the longest range of 38 in(950 mm), it exhibits an error of only 0.004 in (0.1 mm) during standard and repeated measurements. With a rapid read head movement speed of 1.5 m/s, it leaves no room for overspeed errors. Precision redefined, where every micron counts.

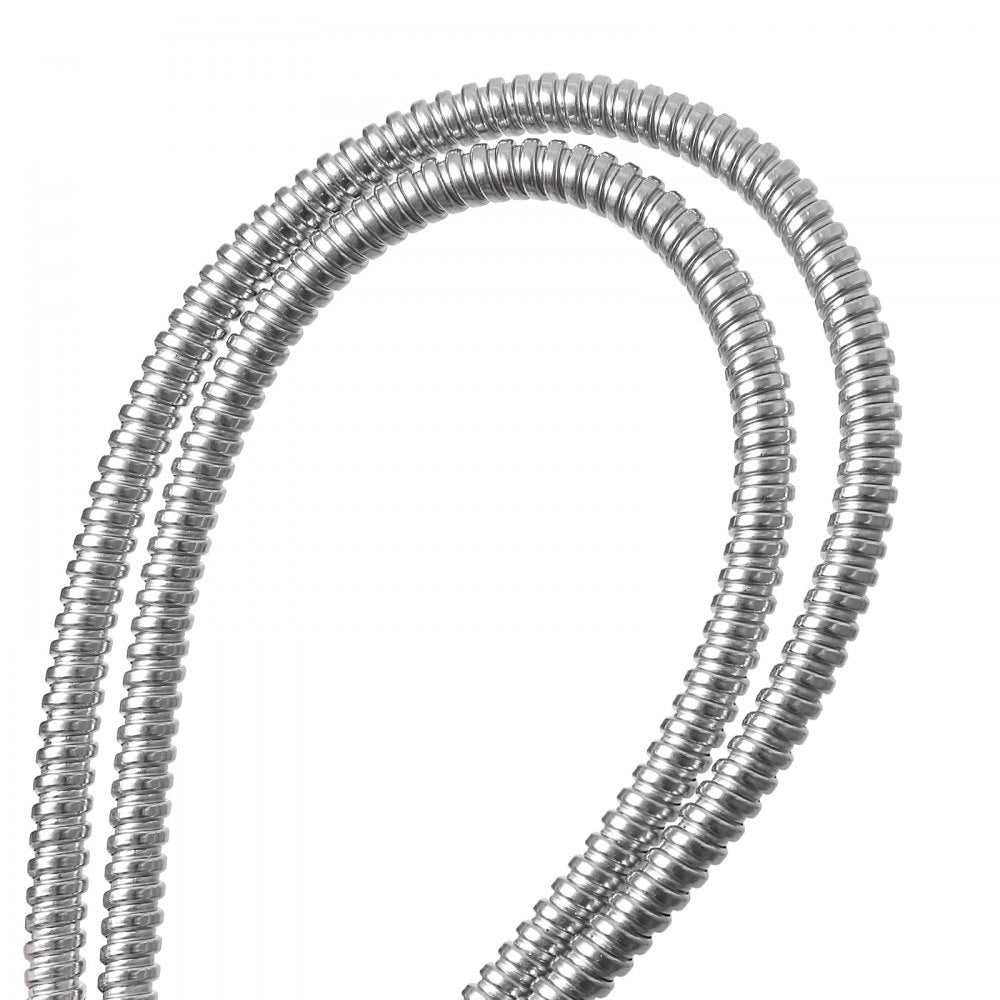

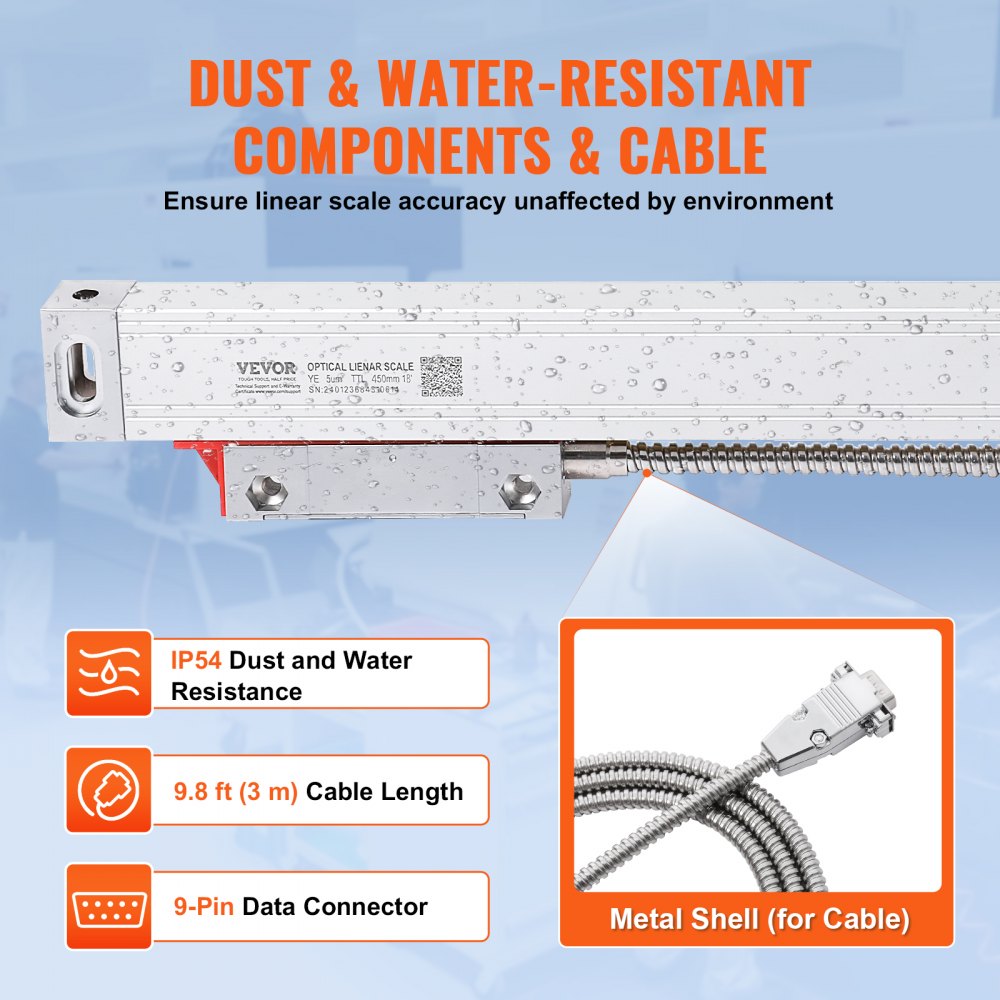

- Defense Against Debris and Liquids: With a dual-layer lubricated seal and thickened optical glass protection, our linear scale achieves an IP54 dust and waterproof rating. It avoids dust accumulation and shields against splashes from all directions. The 9.8 ft (3 m) signal cable, equipped with a 9-pin data connector, features multiple layers of shielded steel wires and a soft metal casing, providing outstanding waterproofing and interference resistance.
- Vertical or Horizontal Installation: Our linear scale is designed for both vertical and horizontal installation on various machine tools, including cutting and drilling machines. During scale installation, ensure that the height direction is parallel to the mounting surface of the workbench with a tolerance of less than 0.1 mm. Please note that when installing on non-machined surfaces, shims must be added to the back of the scale for stability. Your precision setup is made easy.
Specifications
| Product Type | 3-Axis Linear Scale DRO Display Kit |
| Model | SNS-3V-YE161838 |
| Rated Voltage | AC 80-230V, 50 Hz/60 Hz |
| Max Power Consumption | 15W, ±10% |
| Resolution | 5μm |
| Number of Axes | 3 |
| Measuring Range | 16" / 400 mm, 18" / 450 mm, 38" / 950 mm |
| Net Weight | 10.4 lbs / 4.7 kg, ±3% |
| Display Functions | Standard data measurement, calculation, zeroing, unit conversion, pause sleep, power-off memory, non-linear error compensation, ARC cutting function, circumference drilling, oblique line drilling, inverse trigonometric calculation |
| Protection Rating | IP54 |
| Signal Cable Length | 9.8' / 3 m |
| Measurement Error | 0.004" / 0.1 mm at 38" / 950 mm |
| Read Head Speed | 1.5 m/s |
| Installation Orientation | Vertical or horizontal |
Package Contents

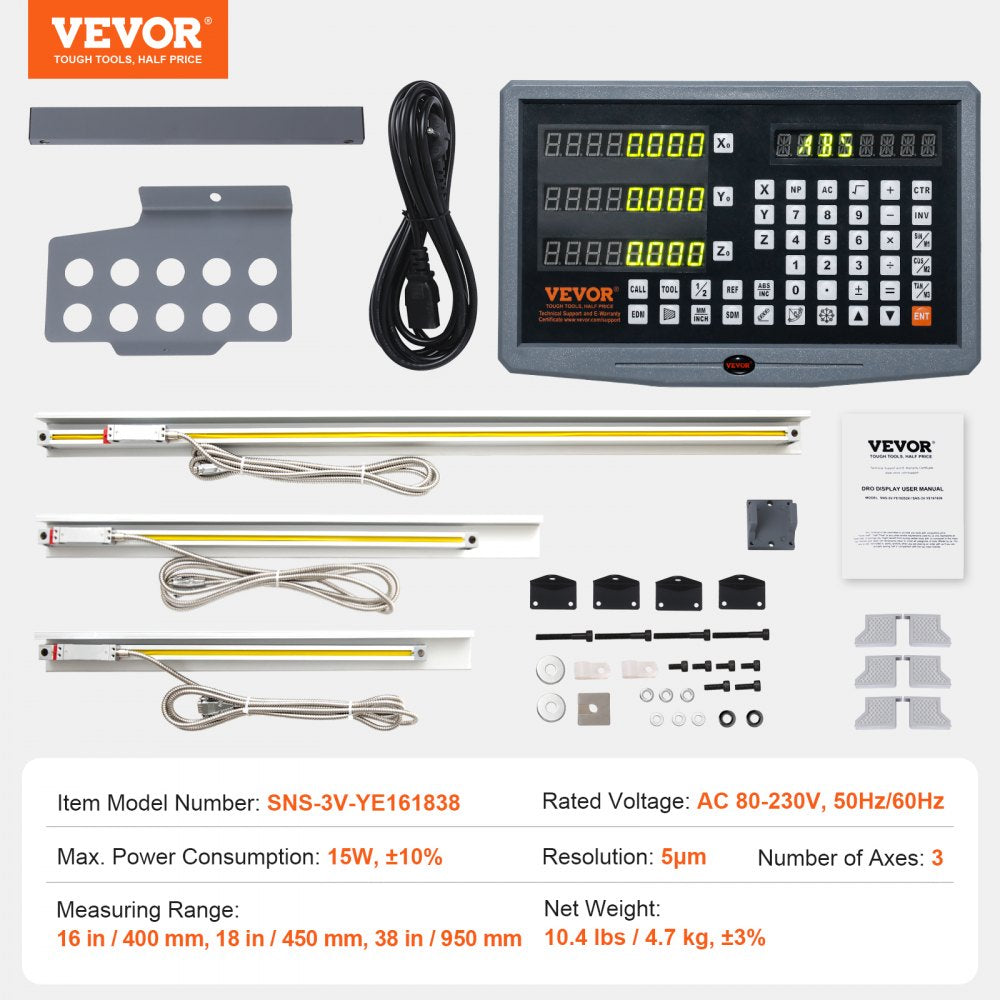

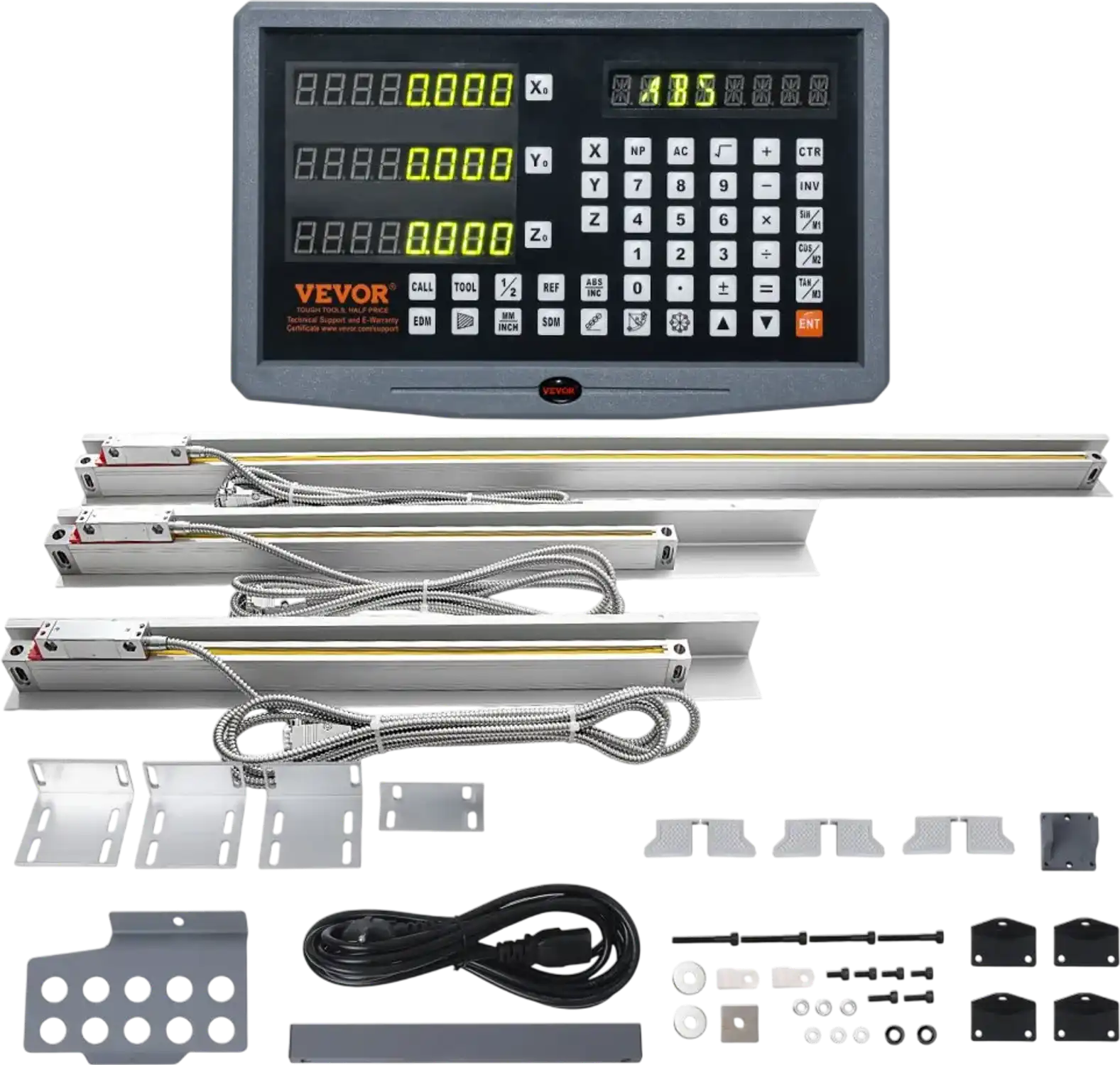

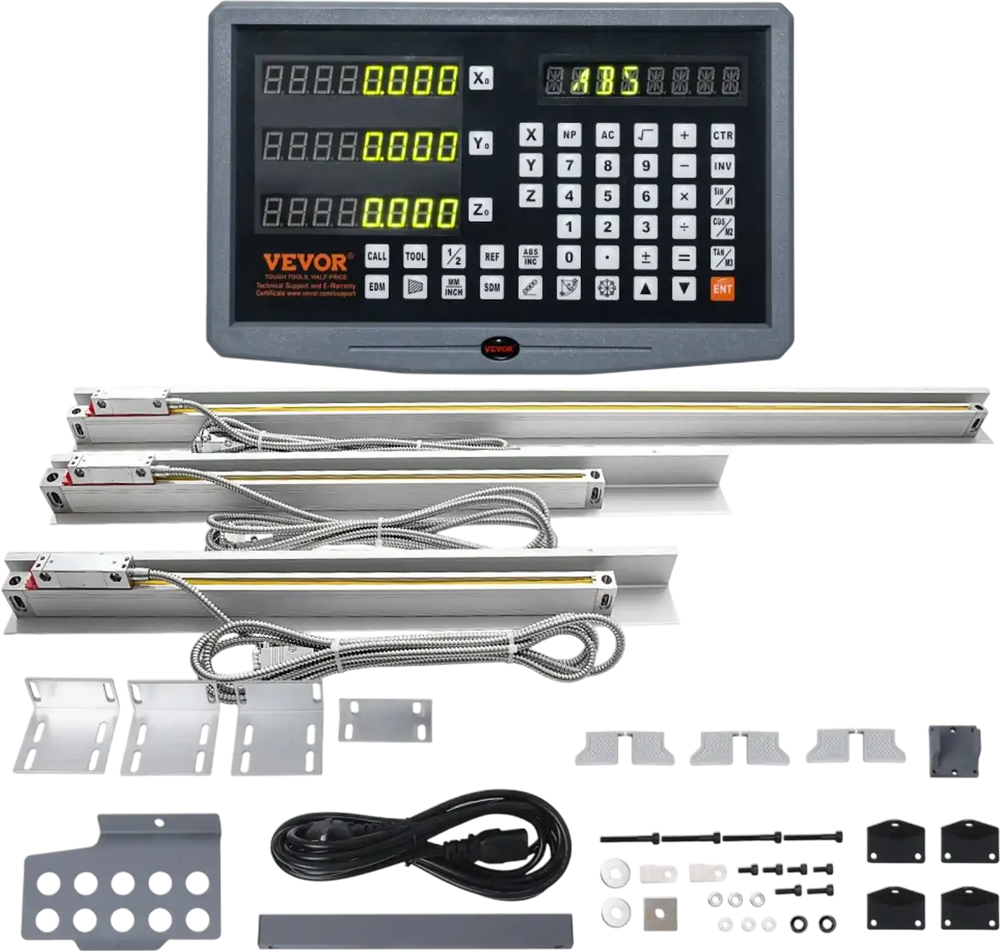

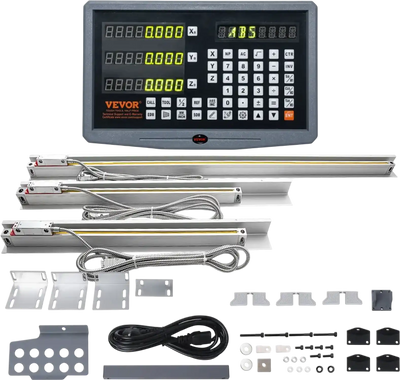

3-axis digital readout display
16" linear scale
18" linear scale
38" linear scale
Warranty
This item comes with a 1 year factory warranty.
