Vevor Linear Rail Guide Kit HGR20 23.62" Ball Screw Slide Block Set New
Product Overview
The Vevor linear rail guide kit is a high-precision motion system designed for DIY CNC routers, lathes, milling machines, 3D printers, and other industrial equipment. It includes two 23.62" linear rails, four slide blocks, and a ball screw with matching support components for stable and repeatable linear travel. The rails are made from high-hardness medium-carbon steel, while the slide blocks use alloy steel construction with built-in ball bearings for smooth, quiet motion. Its corrosion-resistant finish helps protect the assembly in humid or demanding work environments. This kit is built for accurate positioning, reduced vibration, and reliable daily use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

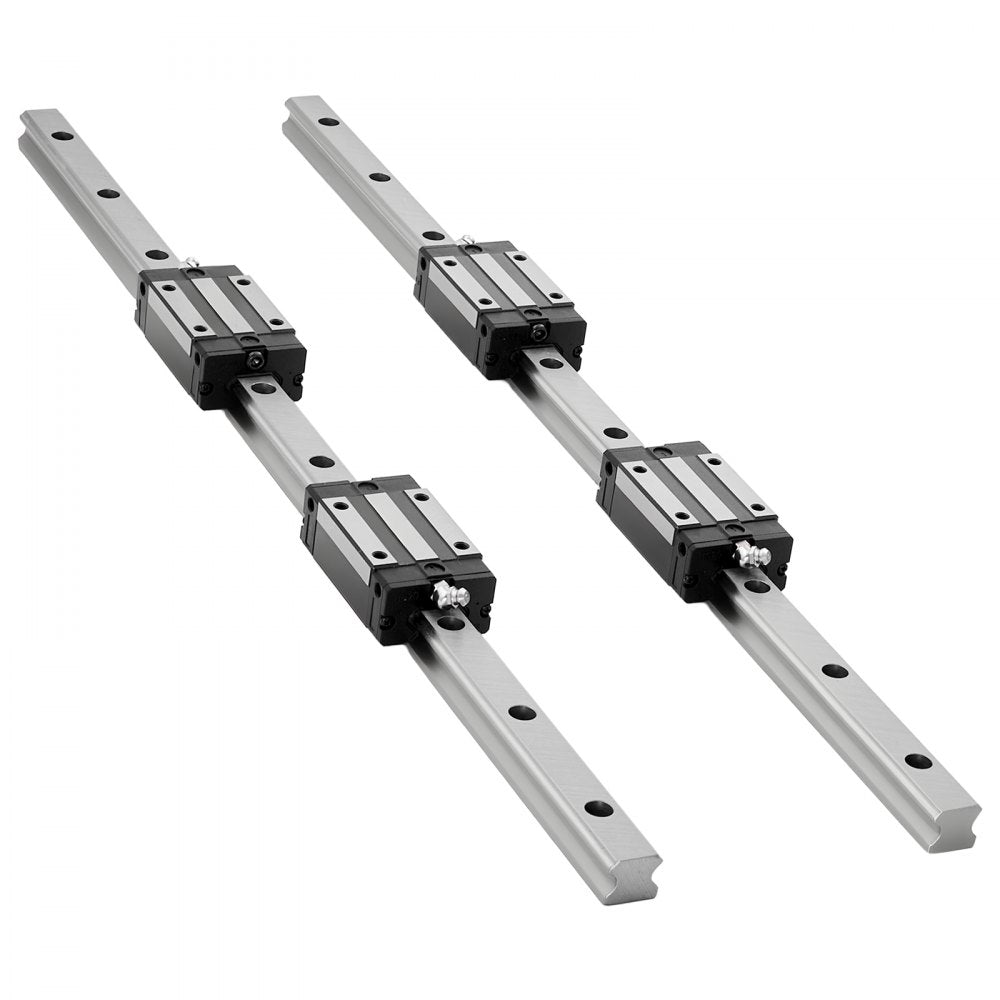

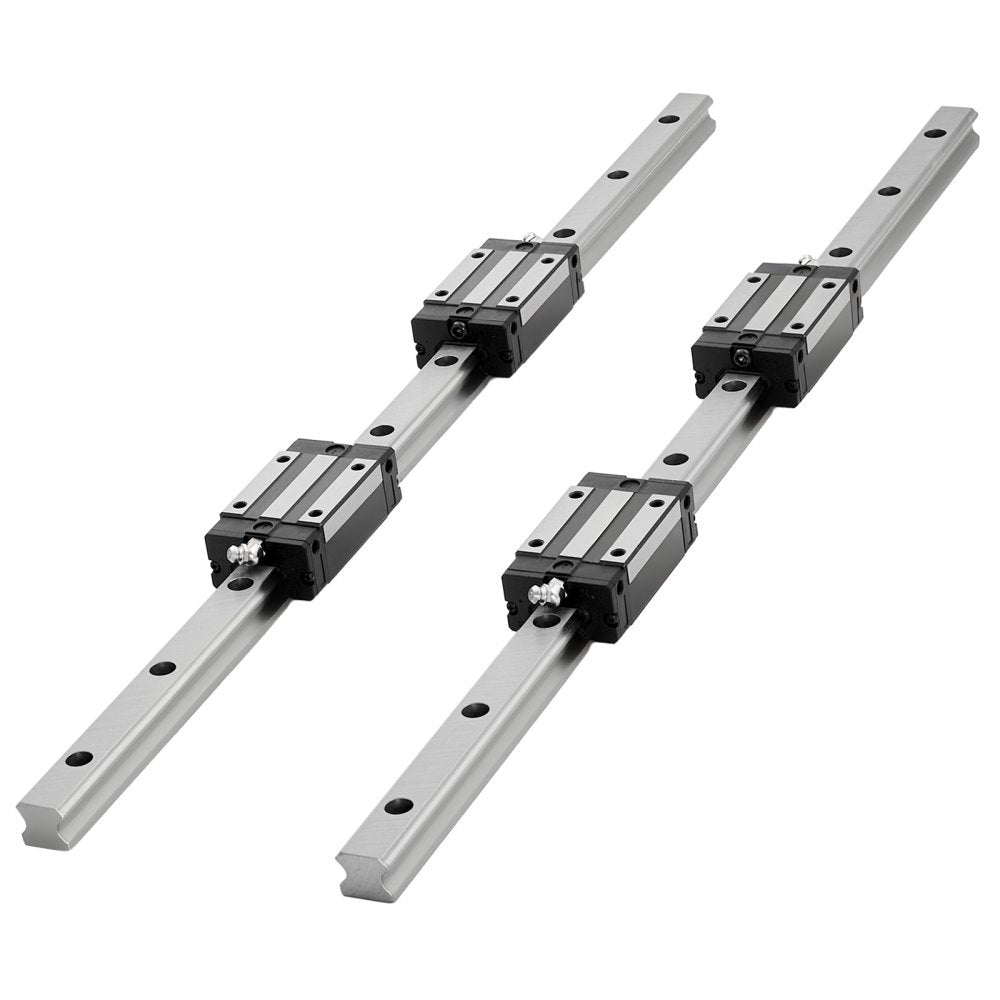

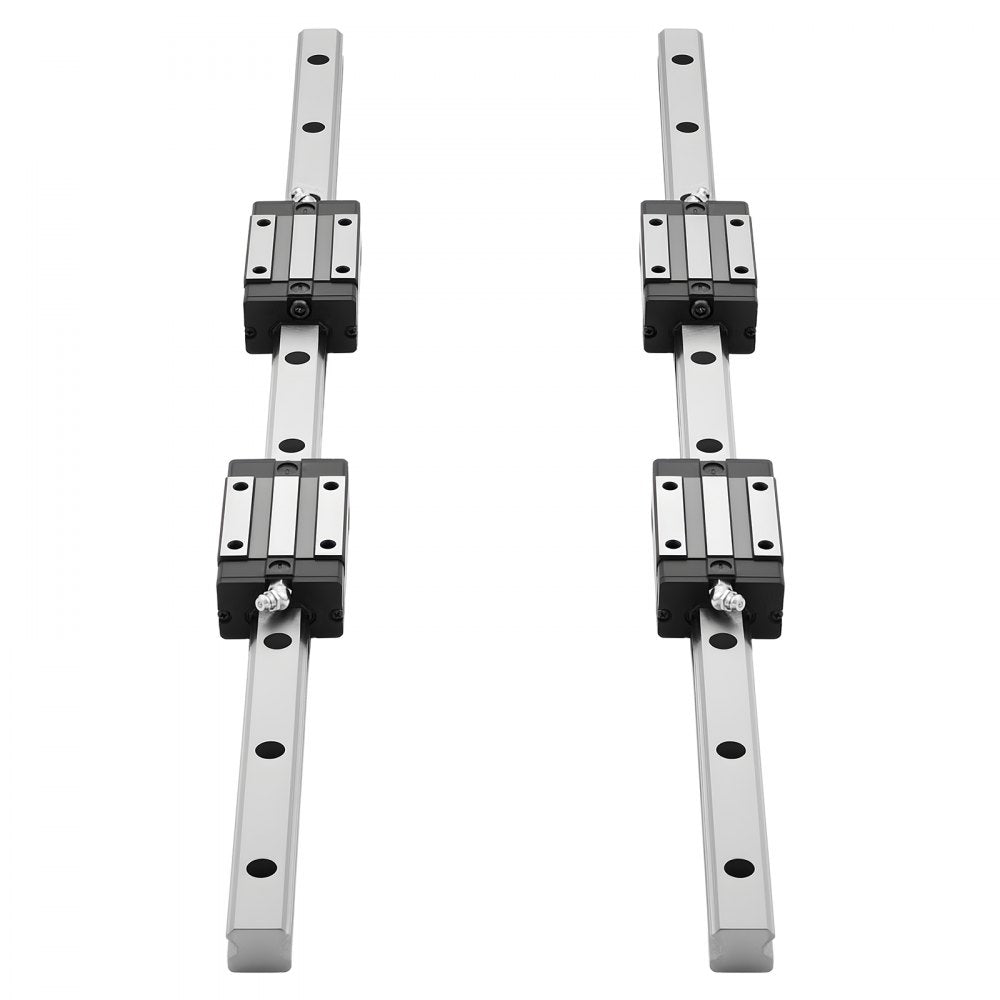

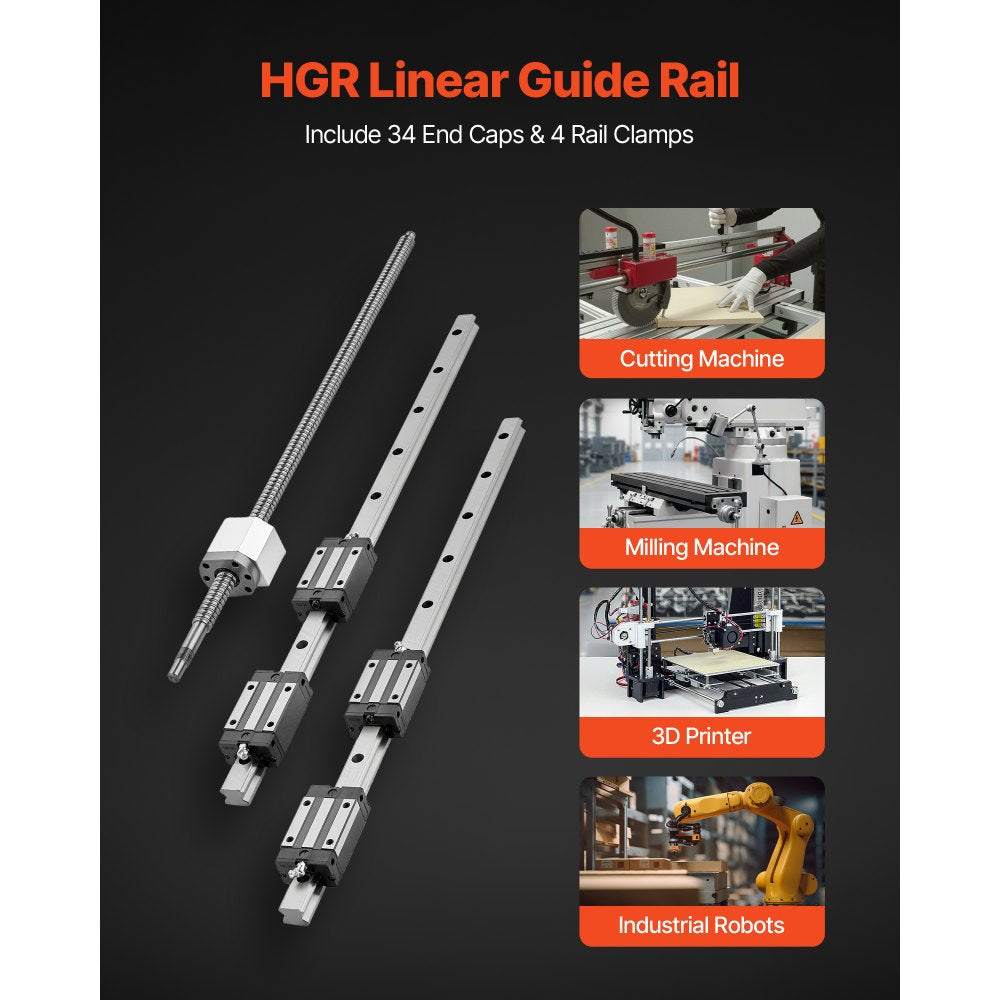

- HGR Linear Rail Kit: Comes with two 23.62 in (600 mm) linear rails and a ball screw. This set is compatible with milling machines, 3D printers, industrial machines, and cutting machines

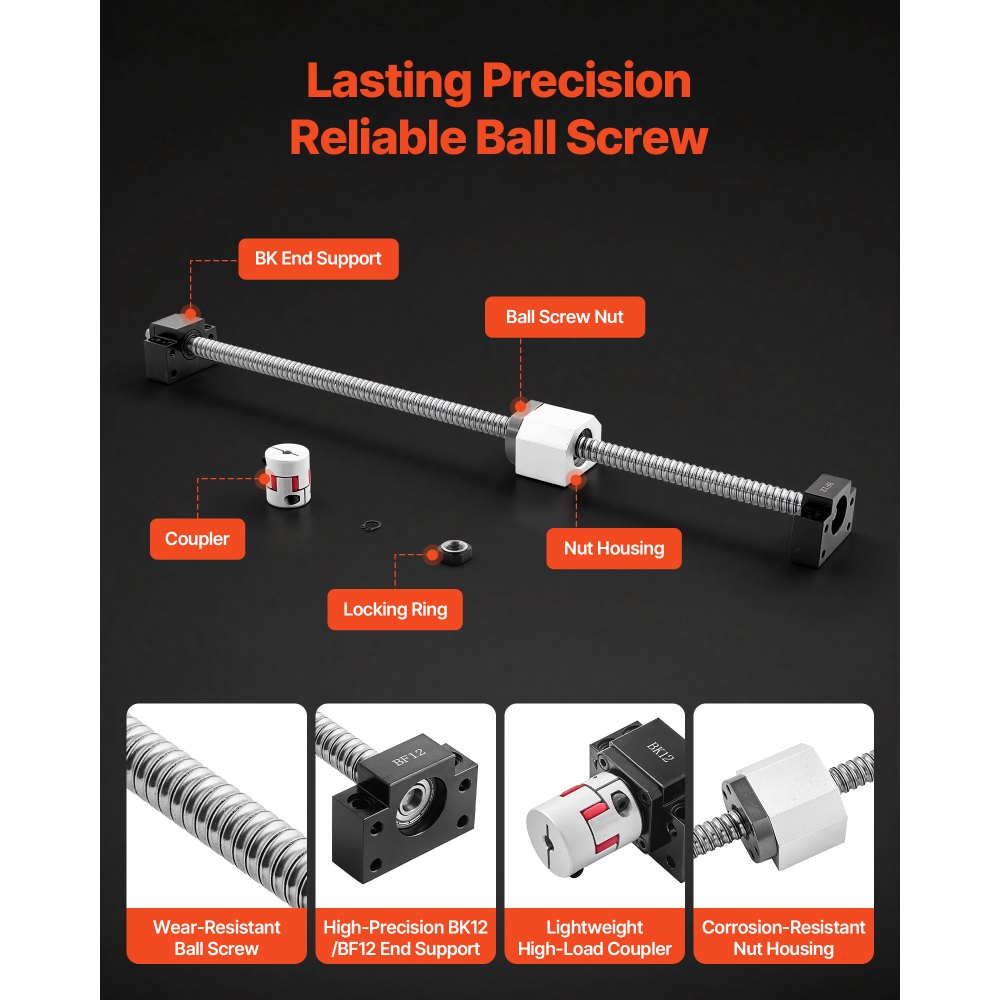

- Premium Ball Screw: This linear guide rail kit features a wear-resistant ball screw, high-precision BK12/BF12 end supports, high-load coupler, and a corrosion-resistant nut housing. Maintains repeatability over time, even under daily use

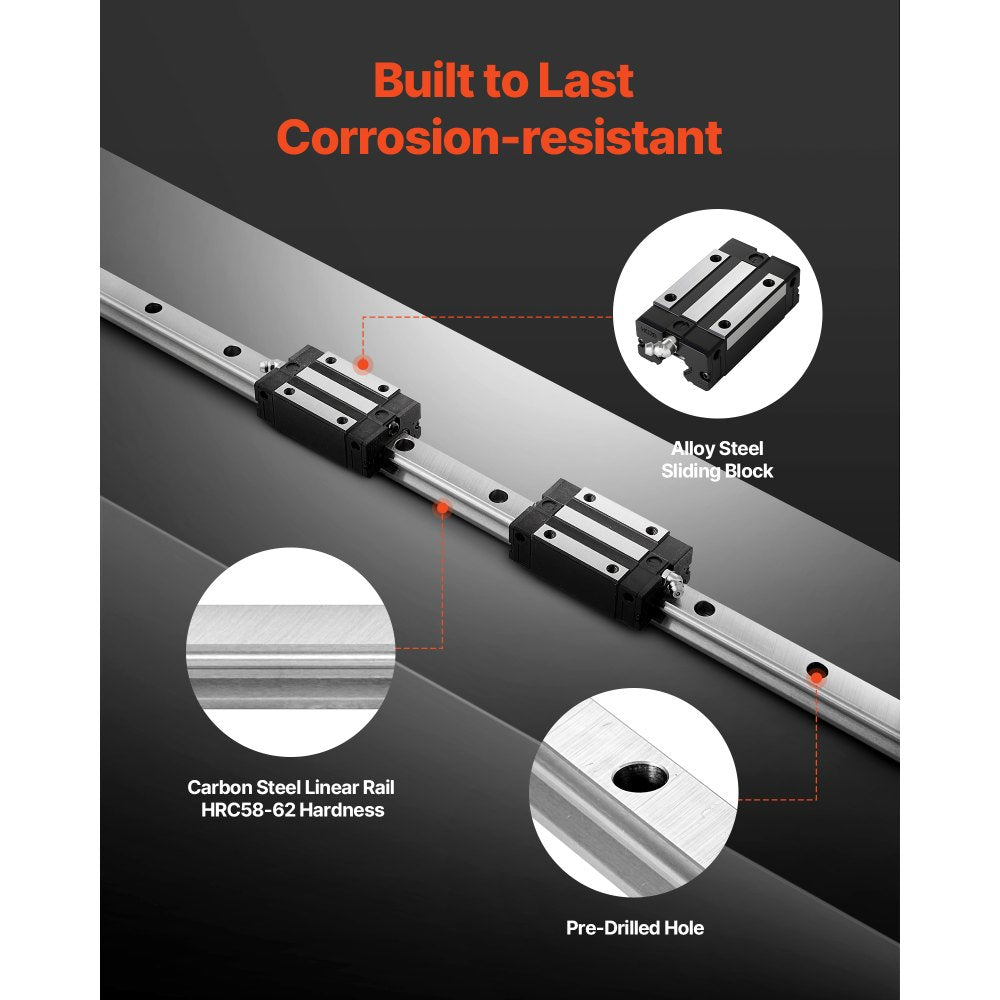

- Rust & Corrosion Protection: Crafted from high-hardness medium-carbon steel (HRC58–62) linear rail and alloy steel slide blocks with pre-drilled holes. Electroplated coating is at least 10 μm to resist rust and corrosion even in humid basements

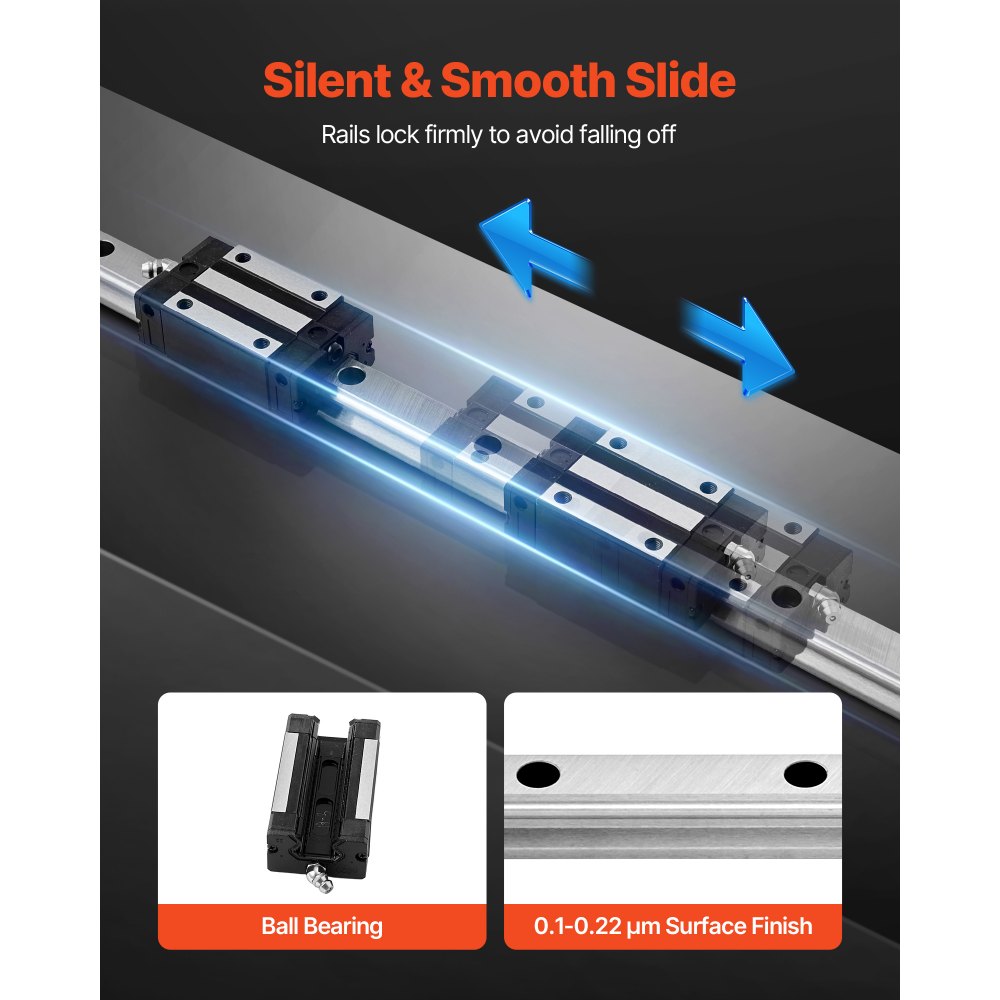

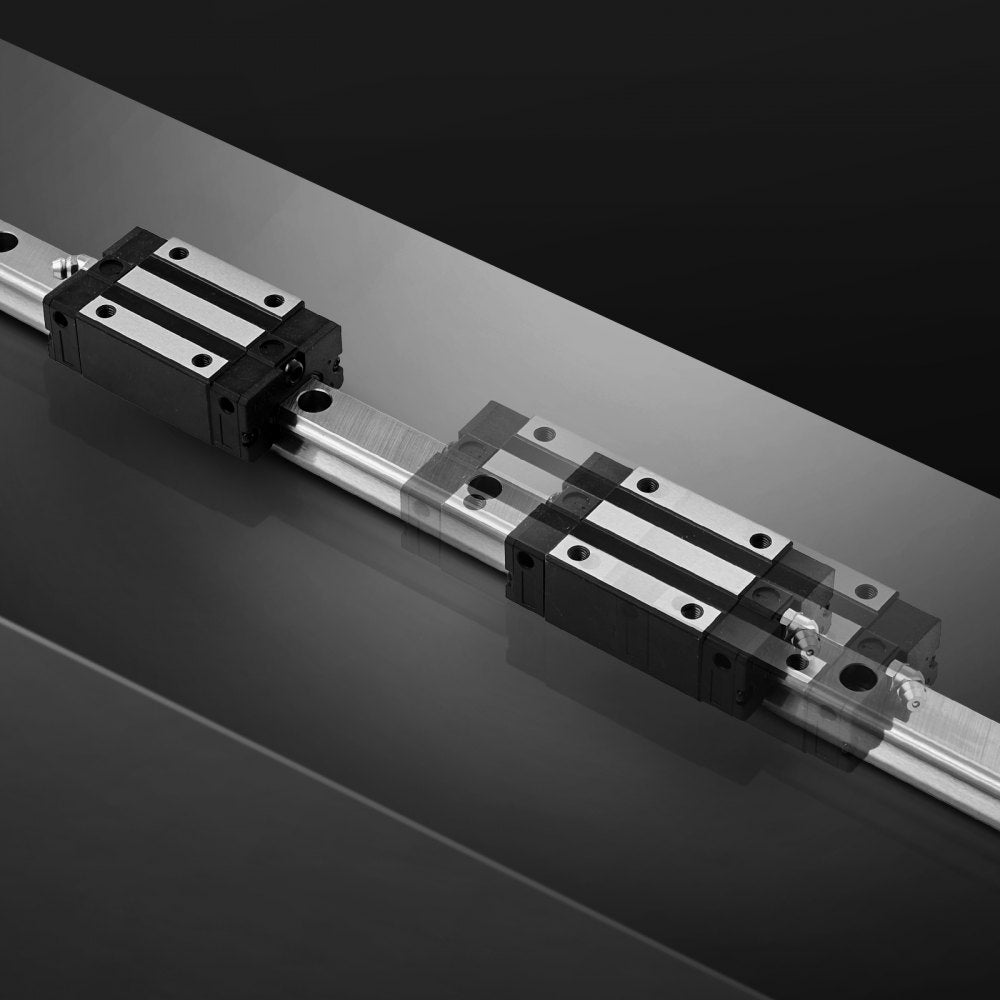

- Silent & Smooth Sliding: Built-in ball-bearing slide blocks deliver quiet, low-friction motion while gripping the shaft tightly for stable linear travel. Less noise, less wear, more precision—every time you move

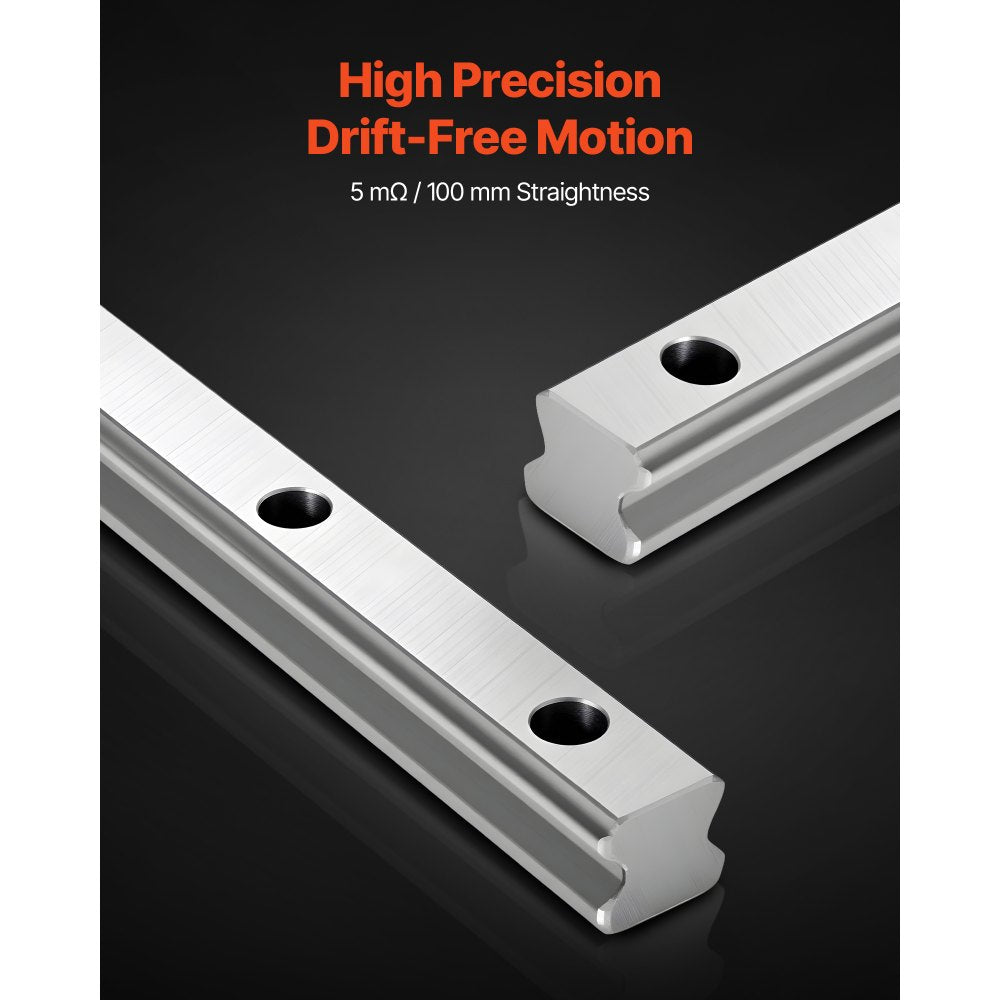

- High Precision, No Deviation: Feature a 0.1–0.22 μm surface finish and 5 mΩ straightness, paired with precise hole diameter and spacing, this linear slide rail set ensures easy installation and repeatable positioning, even over long travel distances

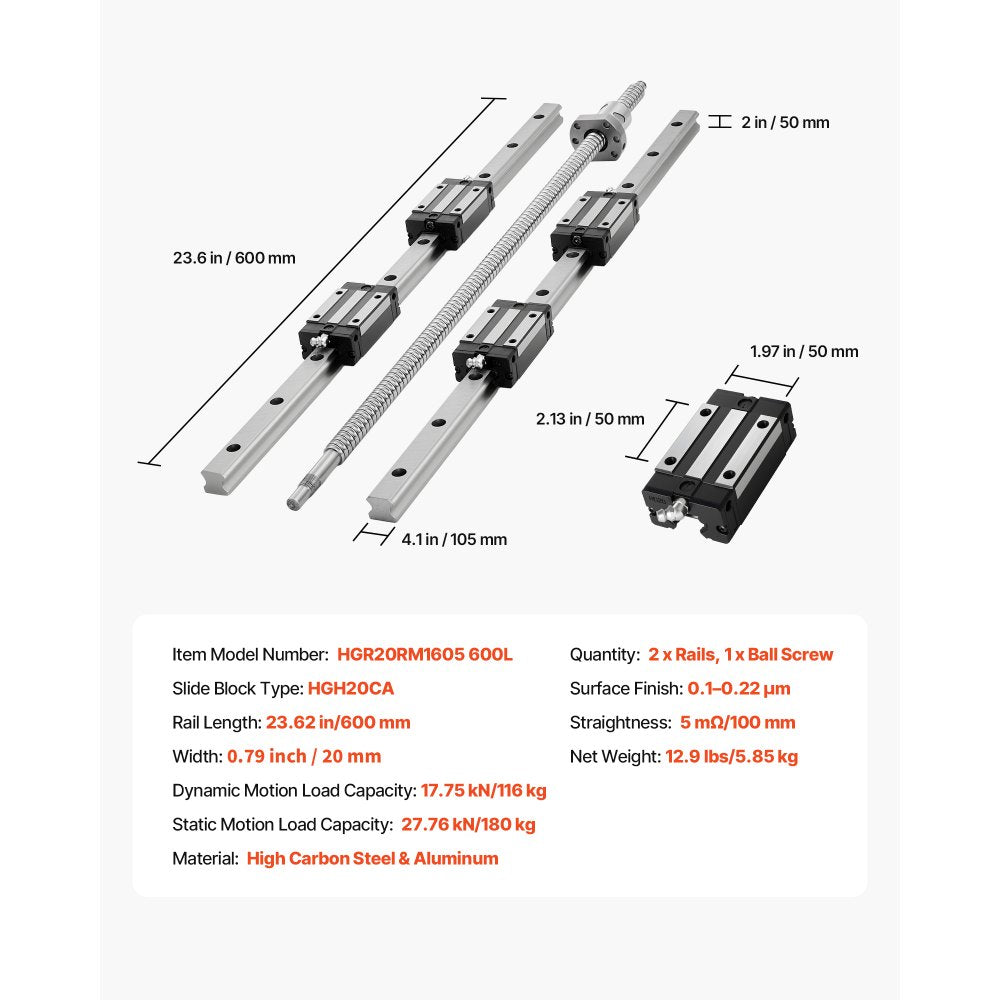

Specifications
| Item Model Number | HGR20RM1605 600L |

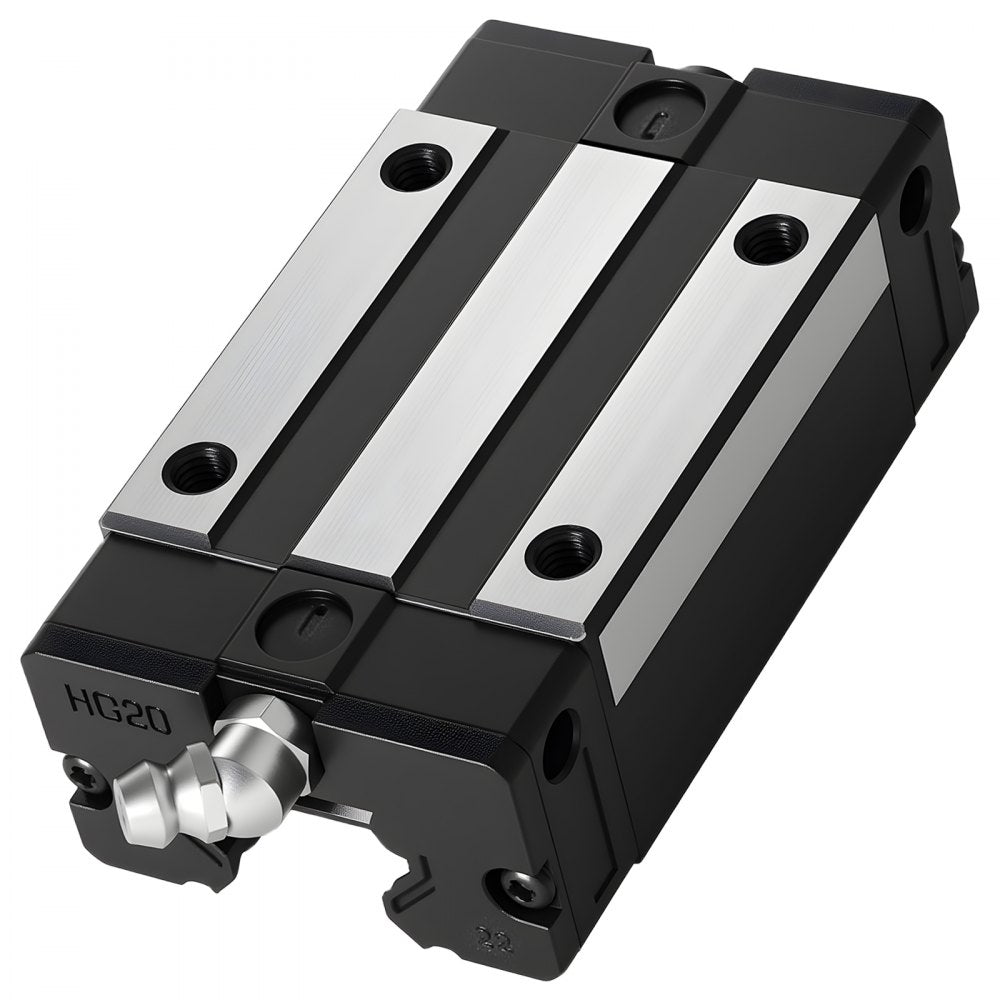

| Slide Block Type | HGH20CA |
| Rail Length | 23.62 in / 600 mm |
| Diameter | 0.98 in / 25 mm |
| Straightness | 5 mΩ / 100 mm |
| Surface Finish | 0.1–0.22 μm |
| Dynamic Motion Load Capacity | 17.75 kN / 116 kg |
| Static Motion Load Capacity | 27.76 kN / 180 kg |
| Material | High Carbon Steel & Aluminum |
| Quantity | 2 x Rails, 1 x Ball Screw |
| Dimensions | 23.62 in rail length; 0.98 in diameter |

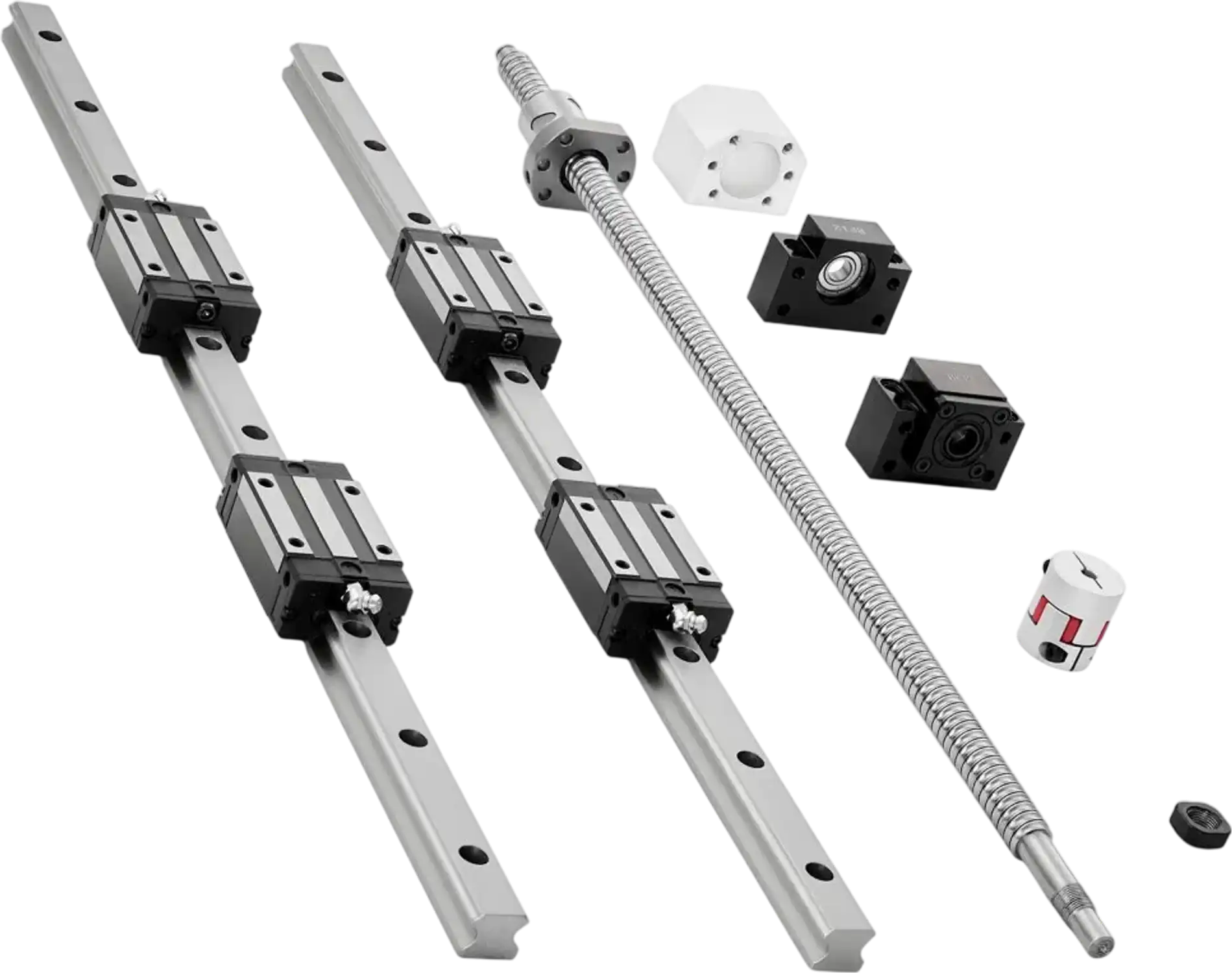

Package Contents
2 x Linear Rails
4 x Slide Blocks
1 x Ball Screw
BF12/BK12 End Support
Coupling
Nut Housing
Warranty
This item comes with a 1 year factory warranty.
