Vevor Linear Guide Stage Actuator 39.4" Ball Screw Motion CNC High Precision New
Product Overview

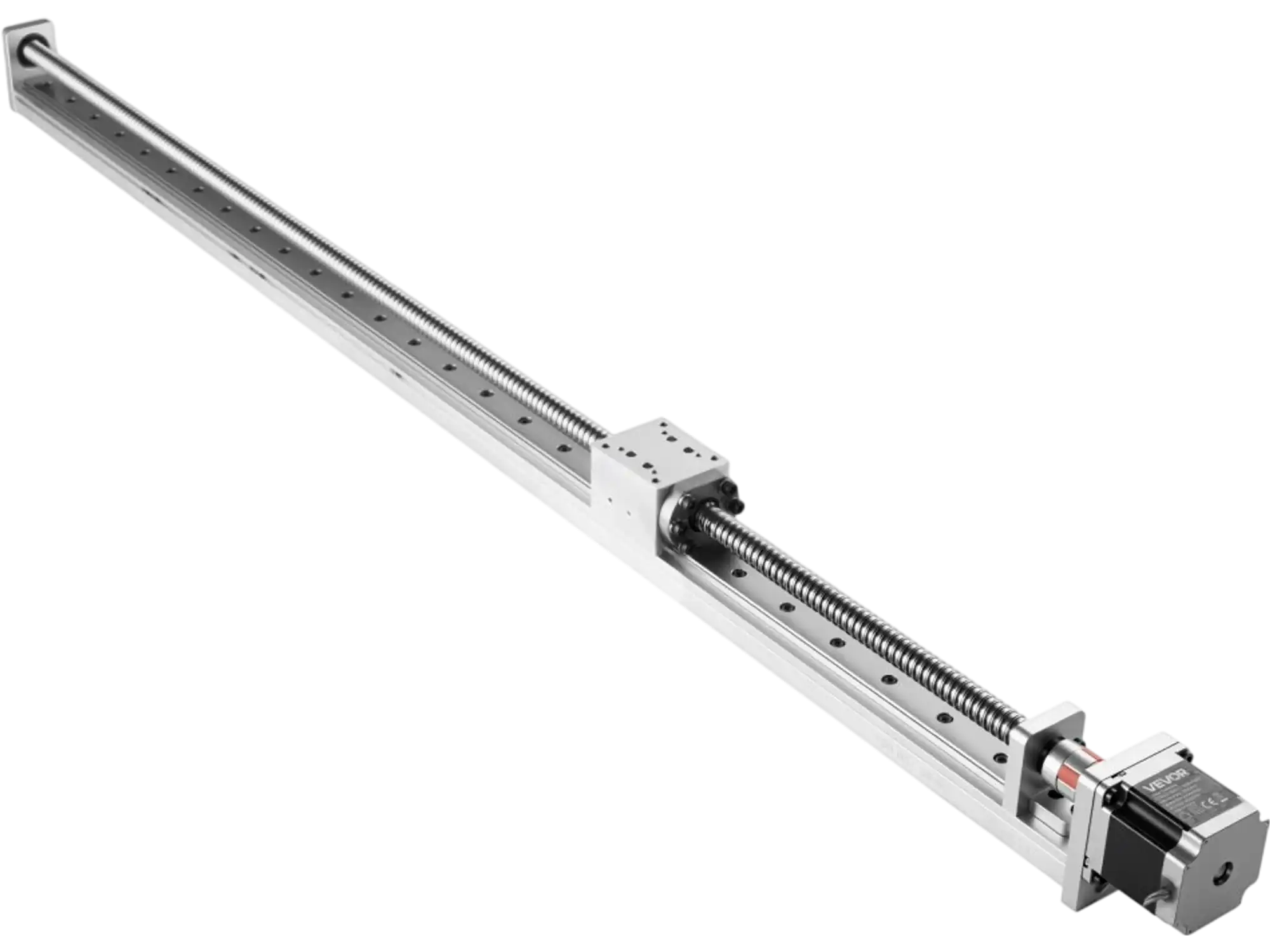

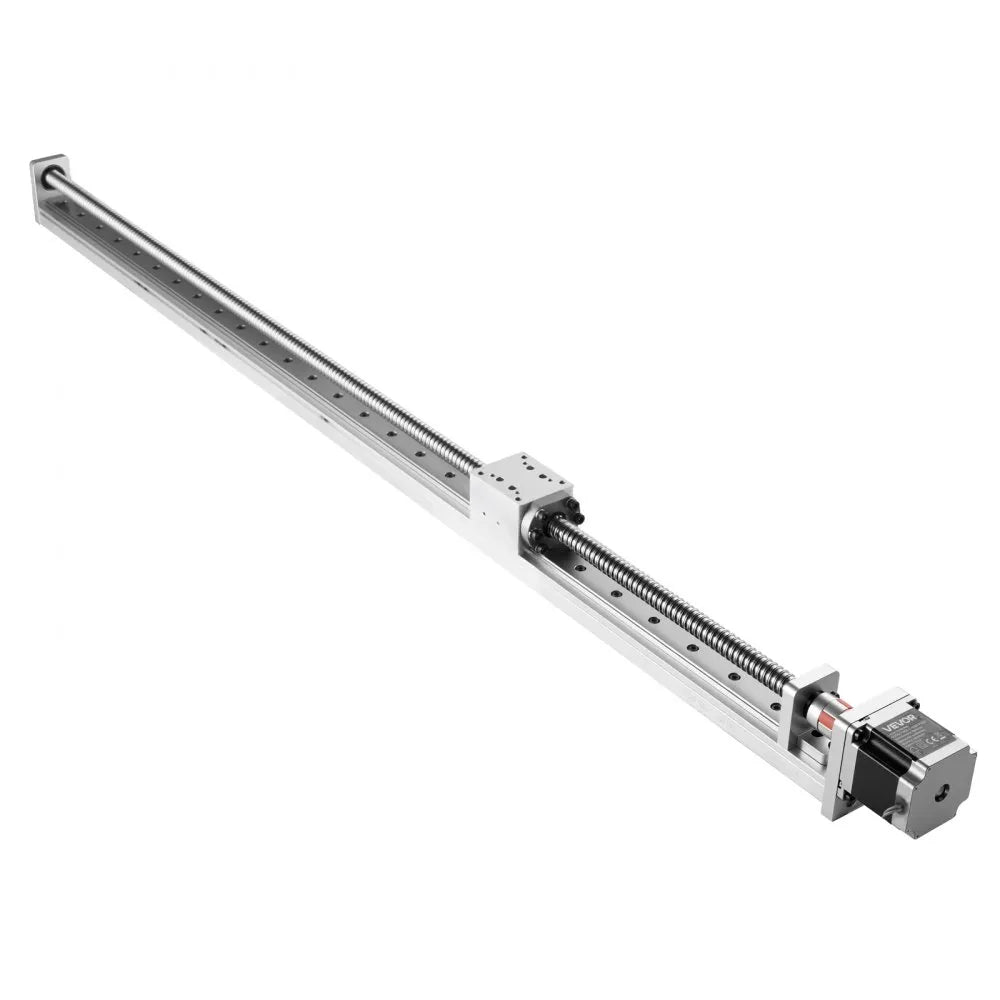

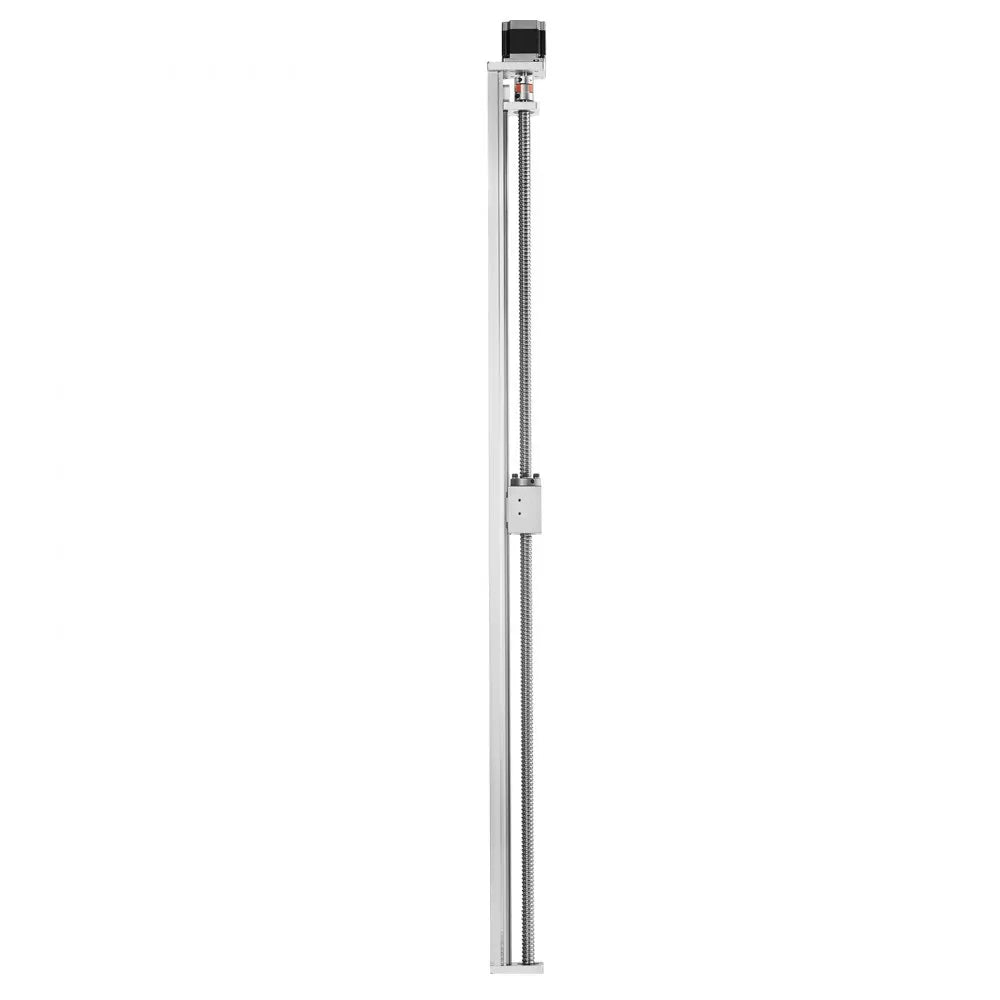

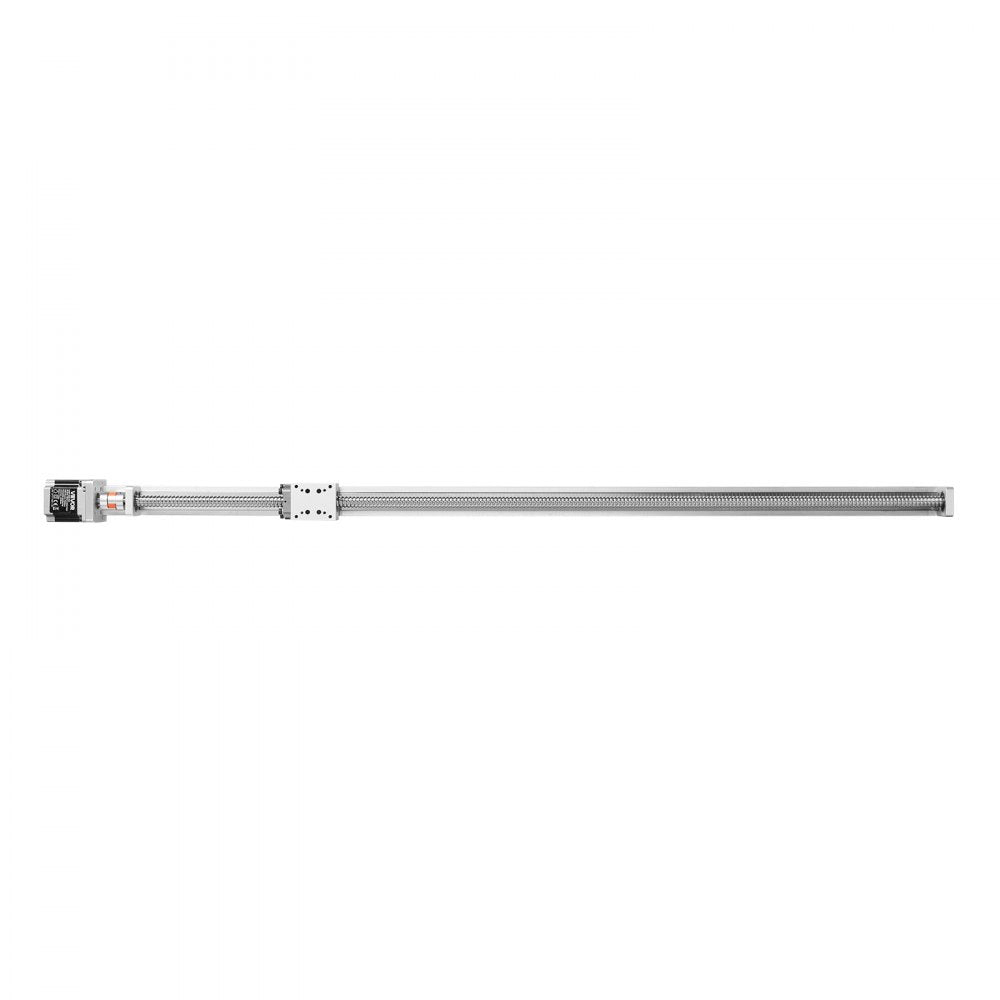

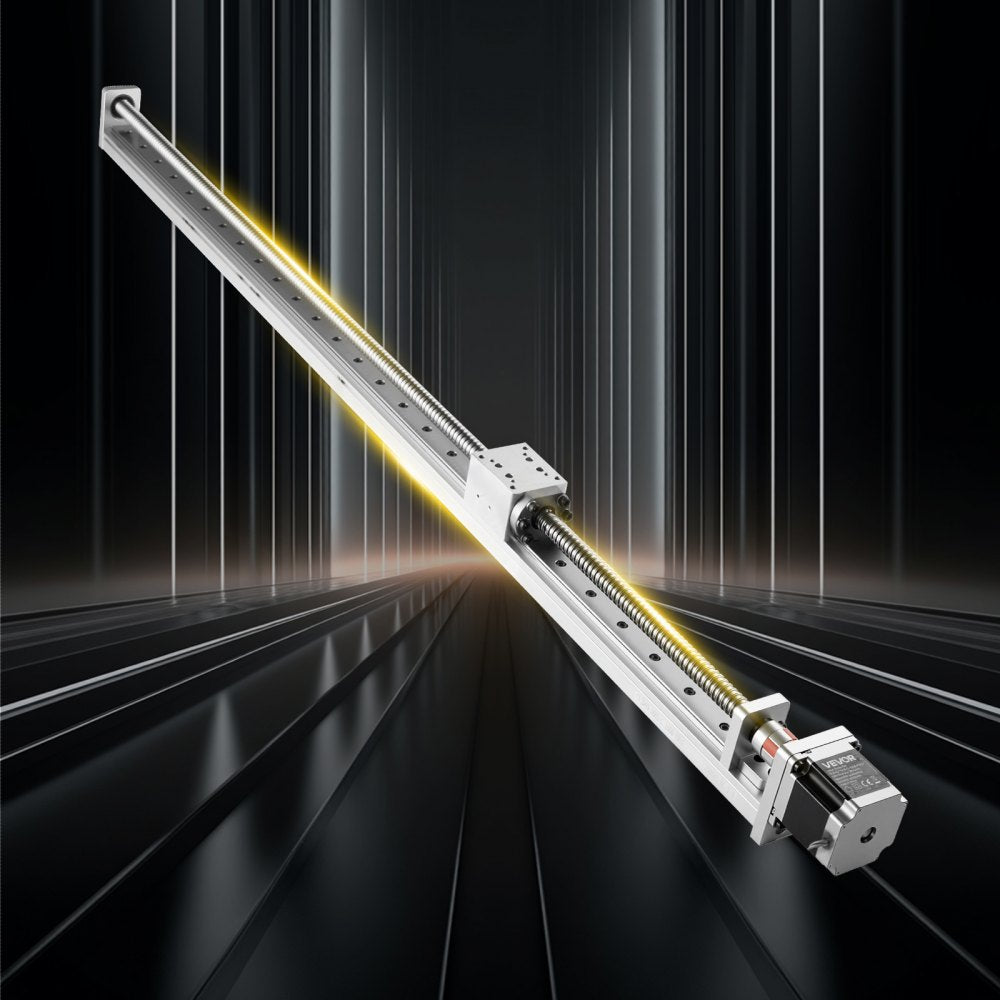

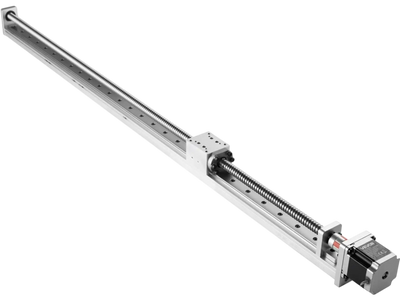

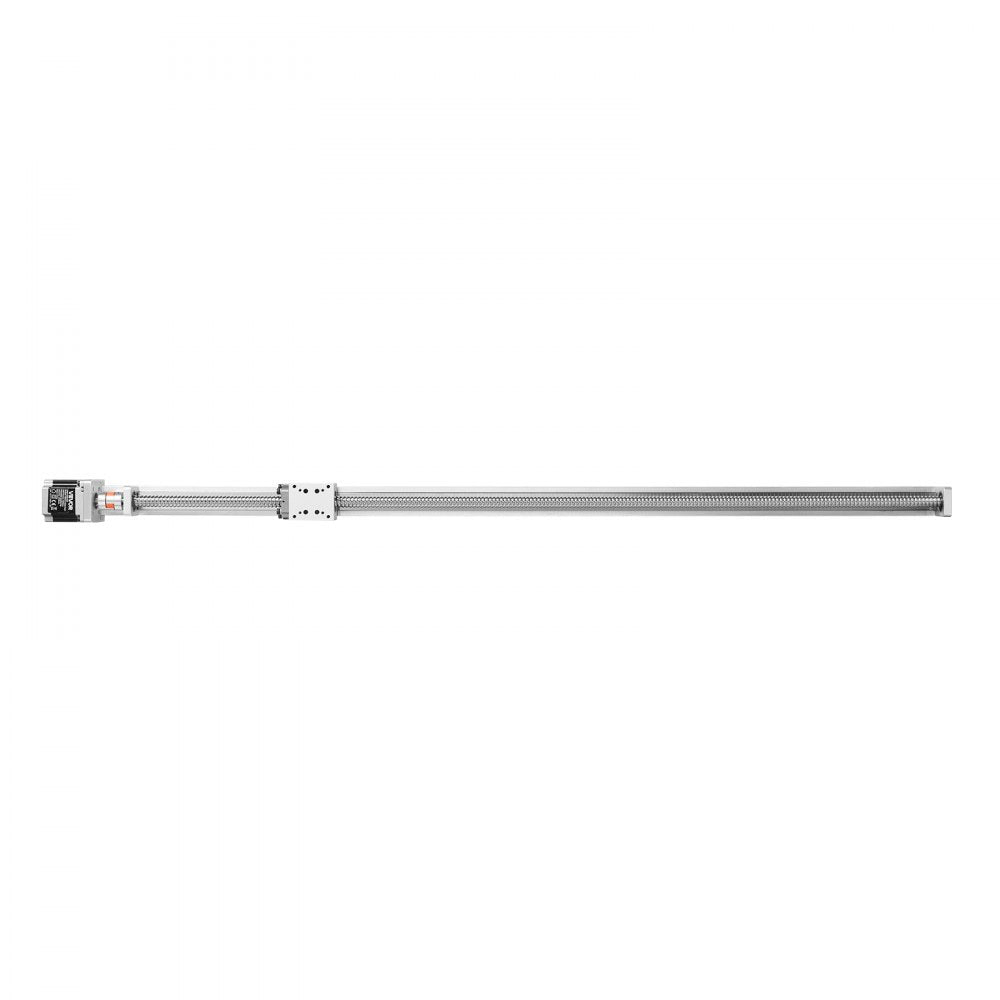

This motorized linear guide stage actuator is designed for precise long-stroke motion in CNC and industrial automation applications. It features a 16 mm ball screw, a built-in NEMA 23 stepper motor, and C7-grade precision for smooth, accurate movement. The chrome-plated steel and aluminum construction helps resist corrosion and supports long-term use. With ±0.02 mm repeatability and support for both horizontal and vertical movement, it is well suited for engraving machines, CNC milling machines, and 3D printers.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

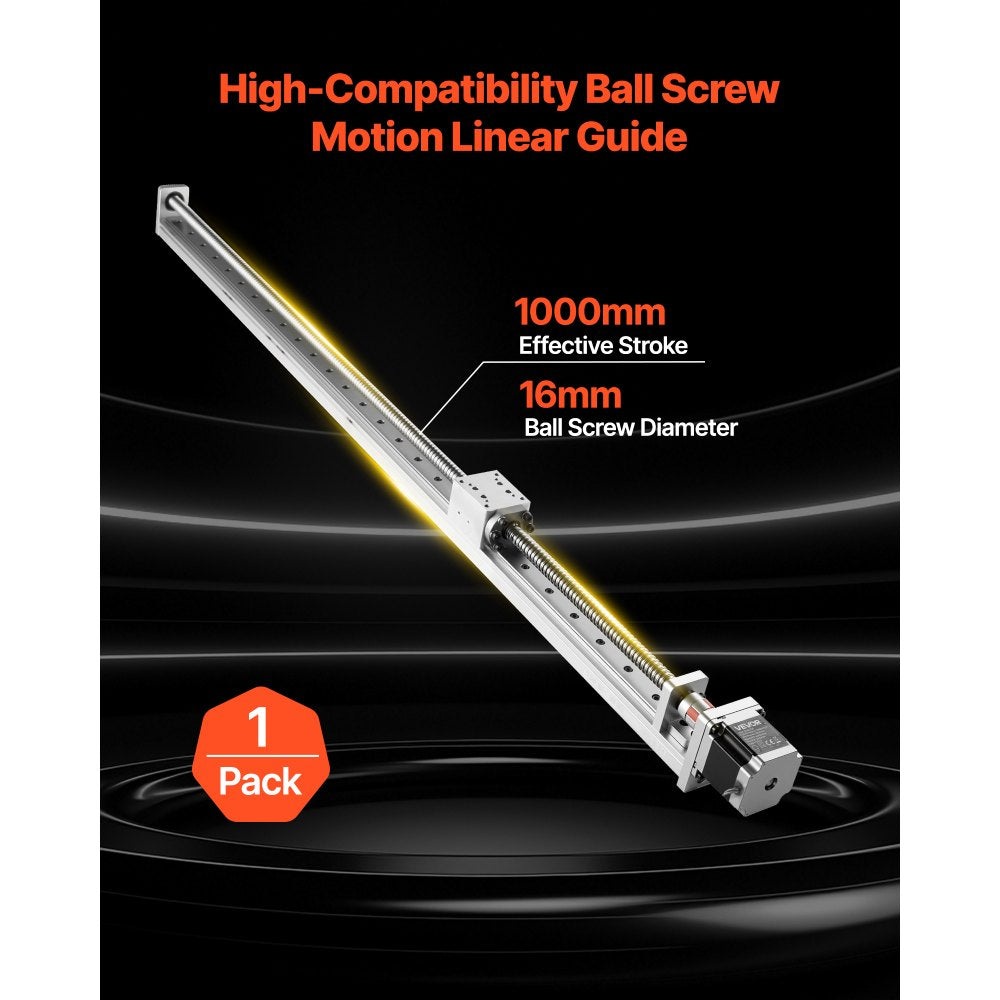

- 1-Piece Ball Screw: With a 16 mm diameter, 1000 mm effective stroke, and a built-in NEMA 23 stepper motor, our ball screw motion CNC linear guide stage actuator ensures reliable, stable motion in industrial automation settings

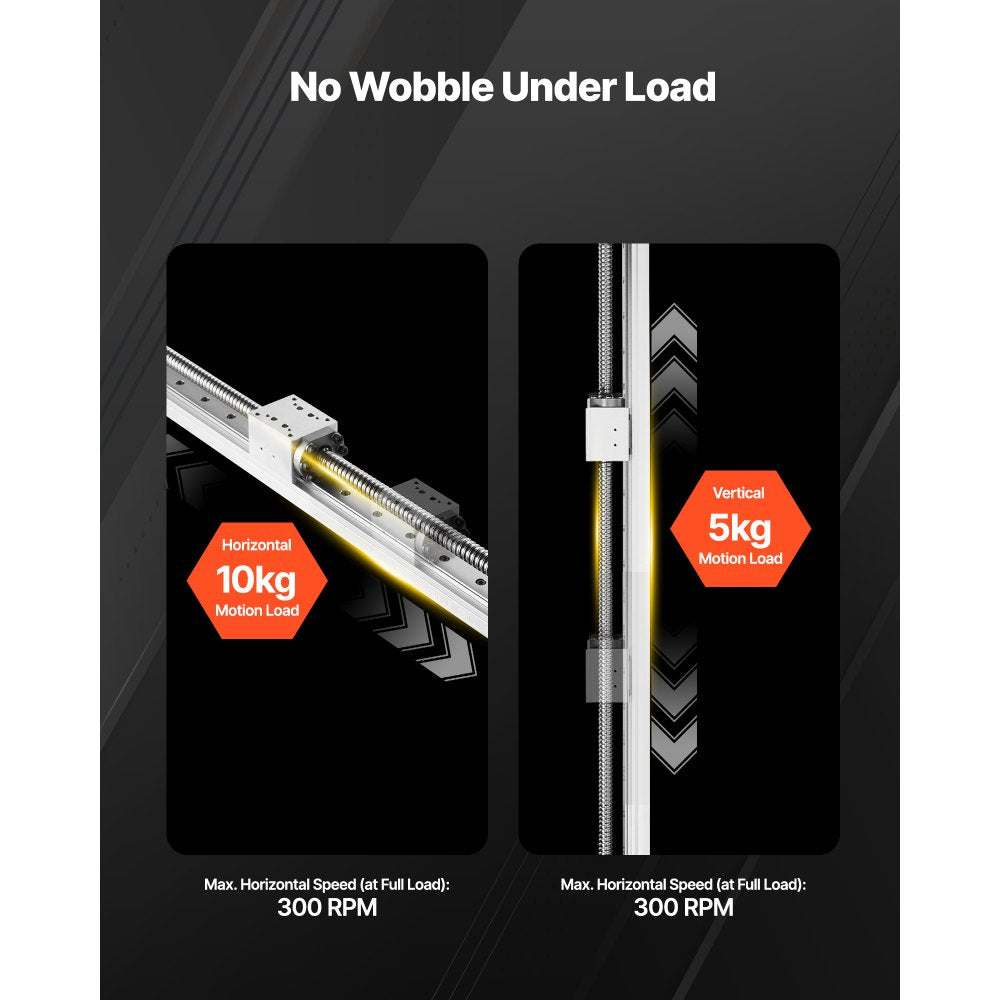

- High Load Capacity: This ball screw linear guide stage actuator supports both horizontal and vertical movement with ease. Handles up to 10 kg horizontally and 5 kg vertically

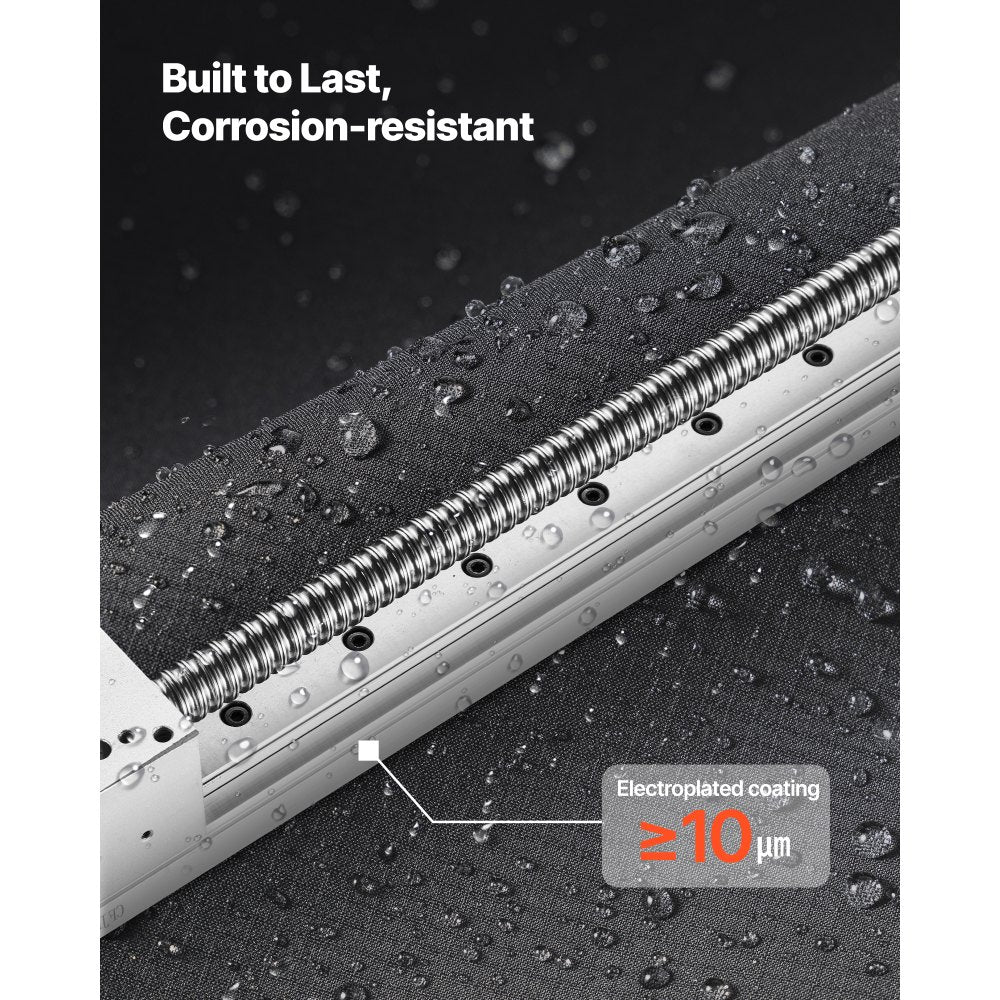

- Rust & Corrosion Protection: Features an anti-corrosion and ≥10 μm electroplated coating, this ball screw motion linear guide resists corrosion and rust even in humid environments like basements for long-term use

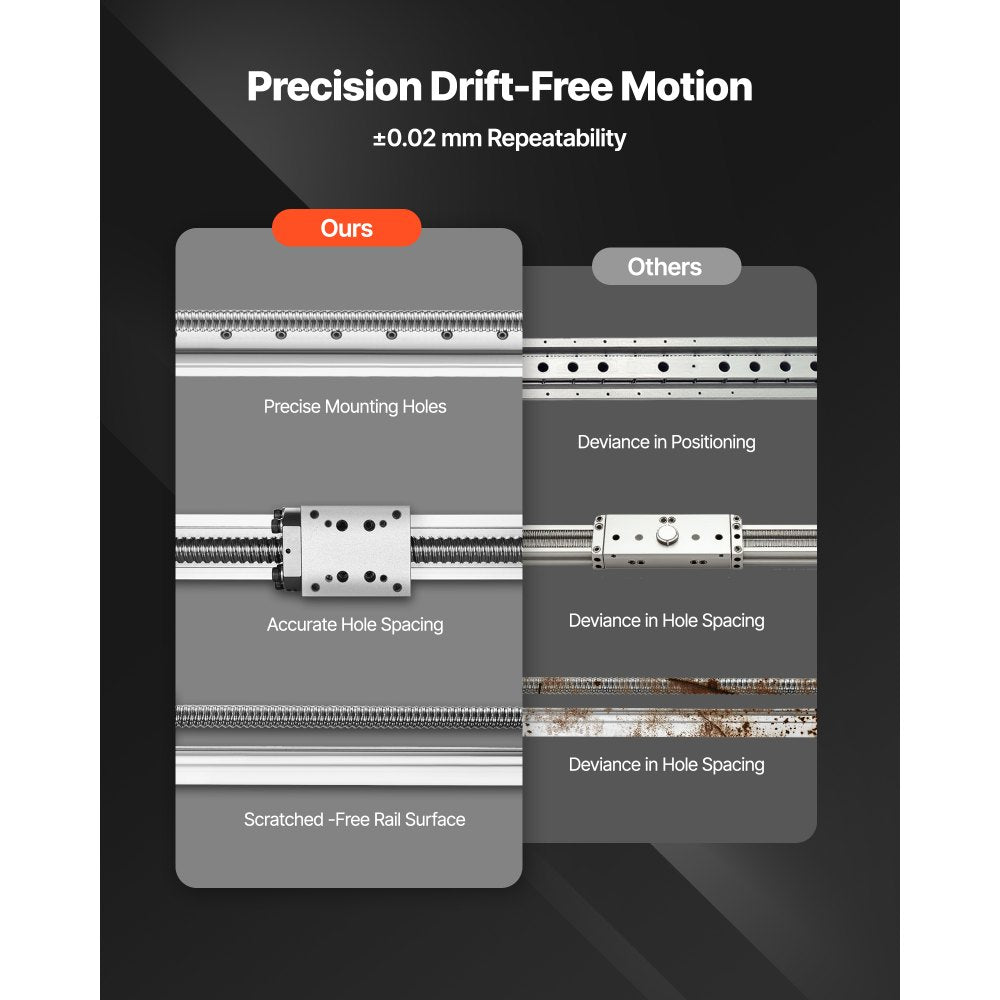

- High Precision, No Deviation: Provides ±0.02 mm repeatability, our ball screw motion linear guide stage actuator features precisely machined mounting holes and spacing. It ensures accurate long-stroke motion and easy installation
- Widely Compatible Applications: This ball screw linear motion guide rail is widely used in automated machinery, such as engraving machines, CNC mills, and 3D printers
Specifications

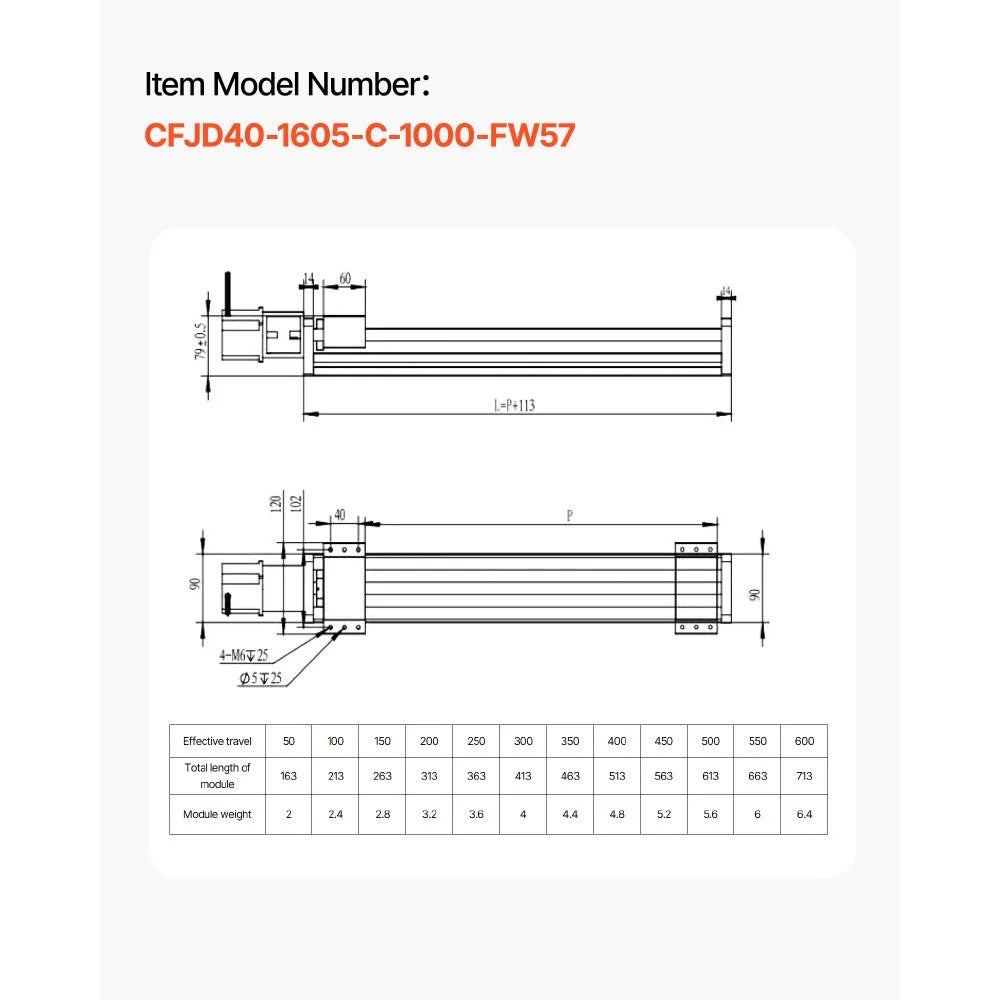

| Item Model Number | CFJD40-1605-C-1000-FW57 |
| Product Type | Linear Guide Stage Actuator |
| Motion Type | Ball Screw Motion |
| Stroke Work Size | 1000 mm |
| Stroke Work Size | 39.4" |
| Ball Screw Diameter | 16 mm |
| Motor Type | NEMA 23 Stepper Motor |
| Repeatability | ±0.02 mm |
| Precision Grade | C7 |
| Load Capacity Horizontal | 10 kg |
| Load Capacity Vertical | 5 kg |
| Coating Thickness | ≥10 μm |
| Material | Chrome-Plated Steel & Aluminum |
| Quantity | 1 pc |
| Dimensions | 1000 mm stroke length |
Package Contents
1 x Linear guide stage actuator
Warranty
This item comes with a 1 year factory warranty.
