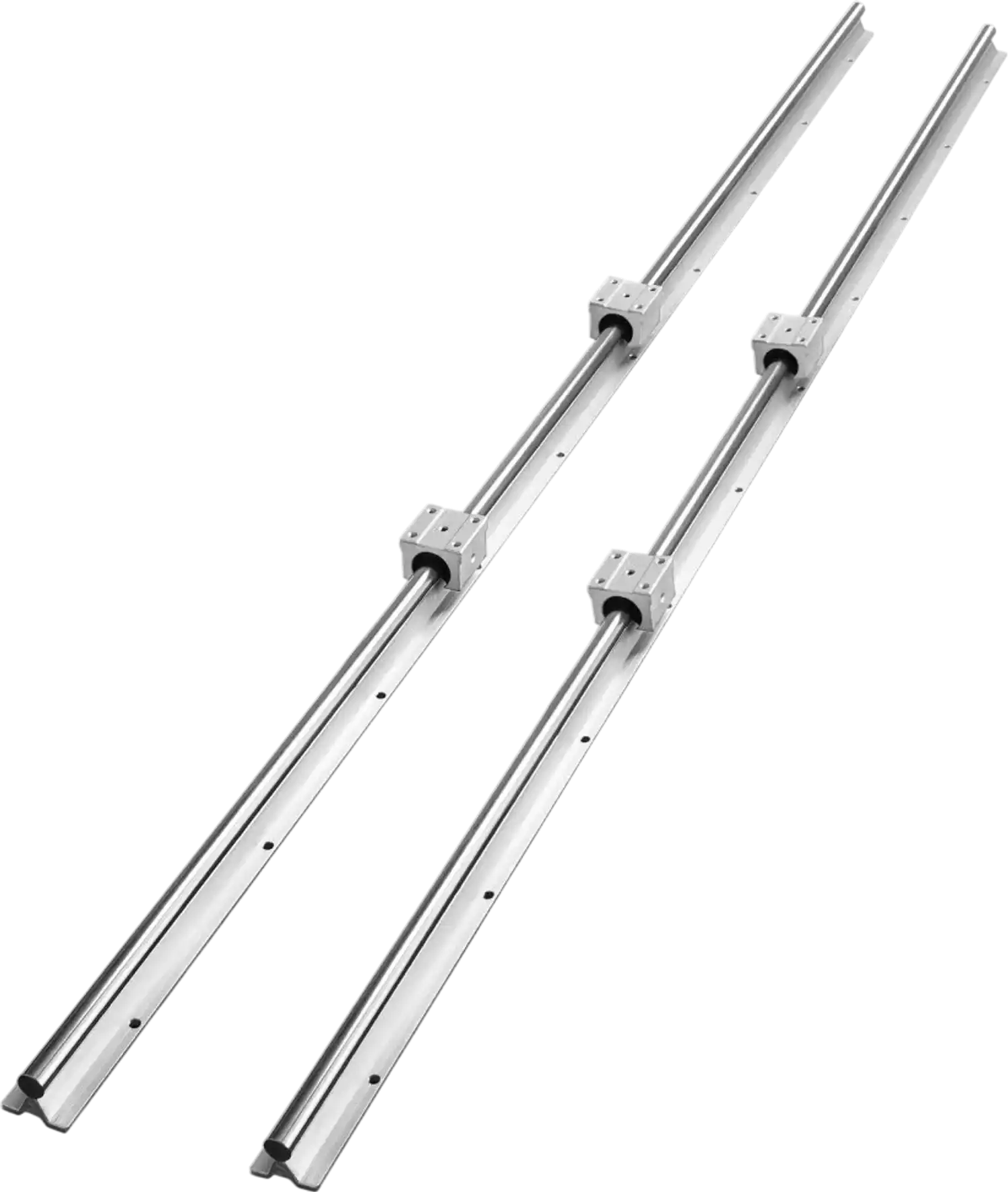

Vevor Linear Guide Rail Set SBR20 59" 1500 mm with 4 Slide Blocks New
Manufacturer: Vevor
SKU: ZXDGSBR20MM15WNLNV0
Guide Rail Length Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$93.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Spindle Motor Air Cooled with ER20 Collet for CNC Router 2.2kW 24000 RPM 220V New
-
Vevor Hydraulic Shop Press 6-Ton H-Frame Adjustable Floor Press New
-
Vevor Milling Working Table 17.7" x 6.7" 2-Axis Cross Slide New
-
Vevor Linear Guide Rail Set SBR20 1800 mm for CNC Machines New
-
Vevor Linear Guide Rail Set 86.6" w/ 4 Slide Blocks New
-
Vevor Router Sled 60" Adjustable Slab Flattening Jig New
-
Vevor Linear Rail Guide Kit 78.74" HGR20 High-Precision Motion Rails & Bearing Slide Blocks New
-
Vevor Linear Guide Rail Set 78.7" SBR16 Bearings Kit New
-
Vevor Linear Guide Rail Set 59" SBR16 for CNC Router Machines New
-
Vevor Linear Guide Rail Set 39.4" SBR16 CNC Router Machine Kit New
-
Vevor Linear Guide Rail Belt Drive CNC Linear Motion Stage Actuator 600 mm New
-
Vevor Linear Guide Rail Set 47.2" SBR20 CNC Router Slide Blocks New
-
Vevor Linear Guide Rail Set 39.4" SFC20 with 4 SC20 Slide Blocks New
-
Vevor Linear Guide Rail Set 39.4" CNC Router Machine Bearing Kit New
-
Vevor Linear Guide Rail Set 47.2" Linear Rails and Bearings Kit New
-
Vevor Linear Rail Kit 47.24" Linear Motion Guide Rails with 4 Slide Blocks New
-
Vevor Linear Guide Rail Set SBR25 47.2" 1200 mm Linear Motion Kit New
Vevor Linear Guide Rail Set SBR20 59" 1500 mm with 4 Slide Blocks New
Product Overview

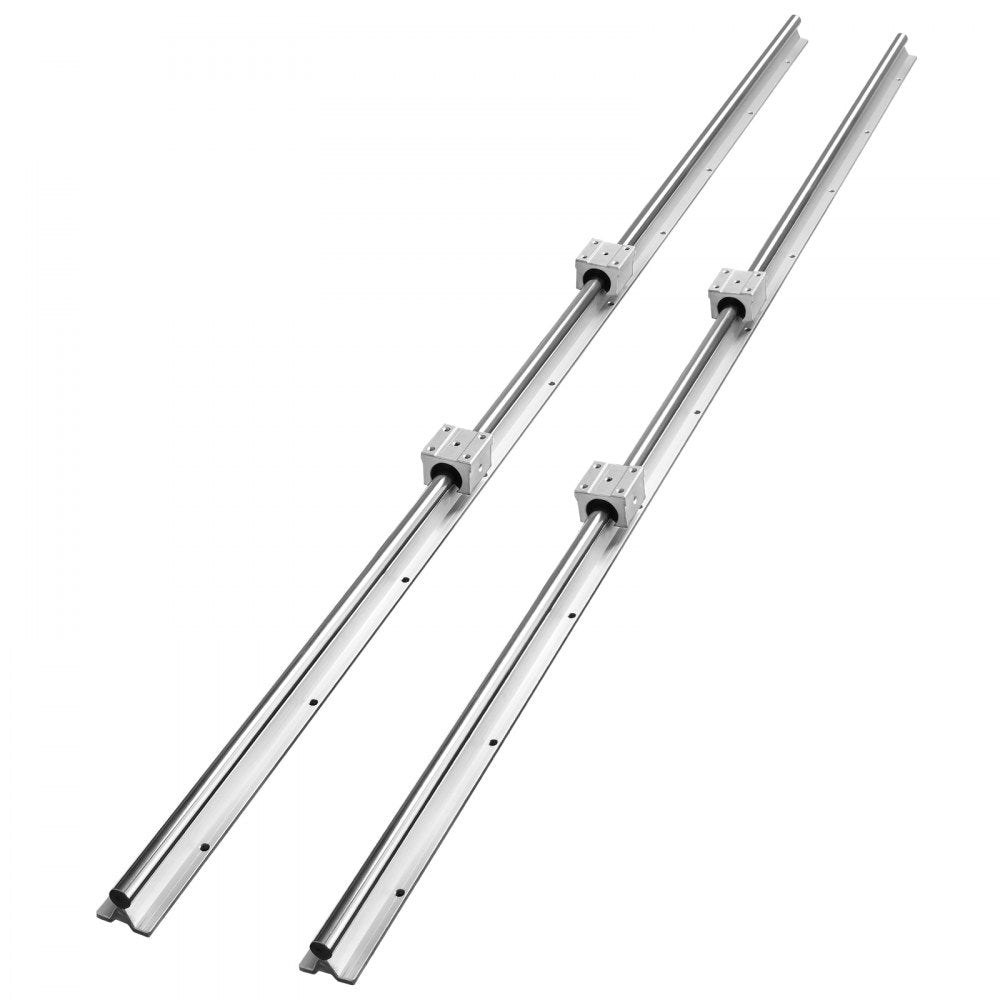

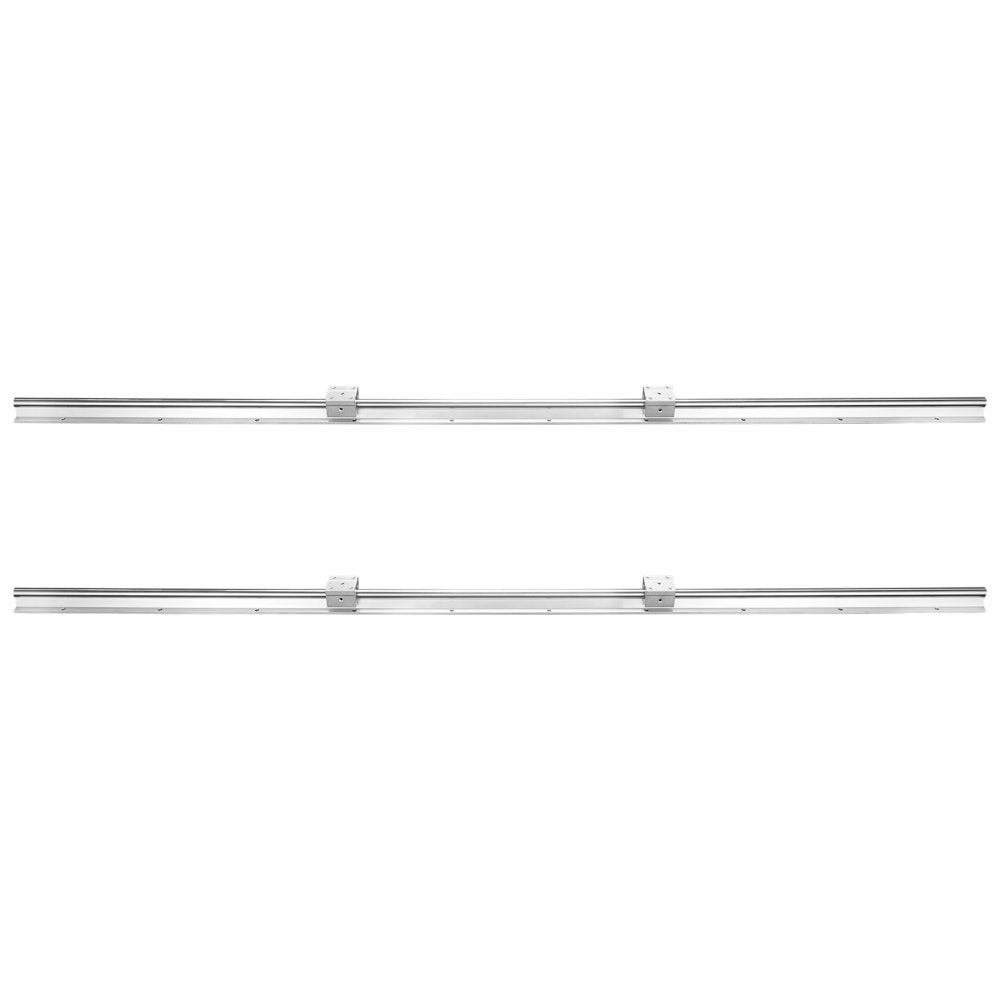

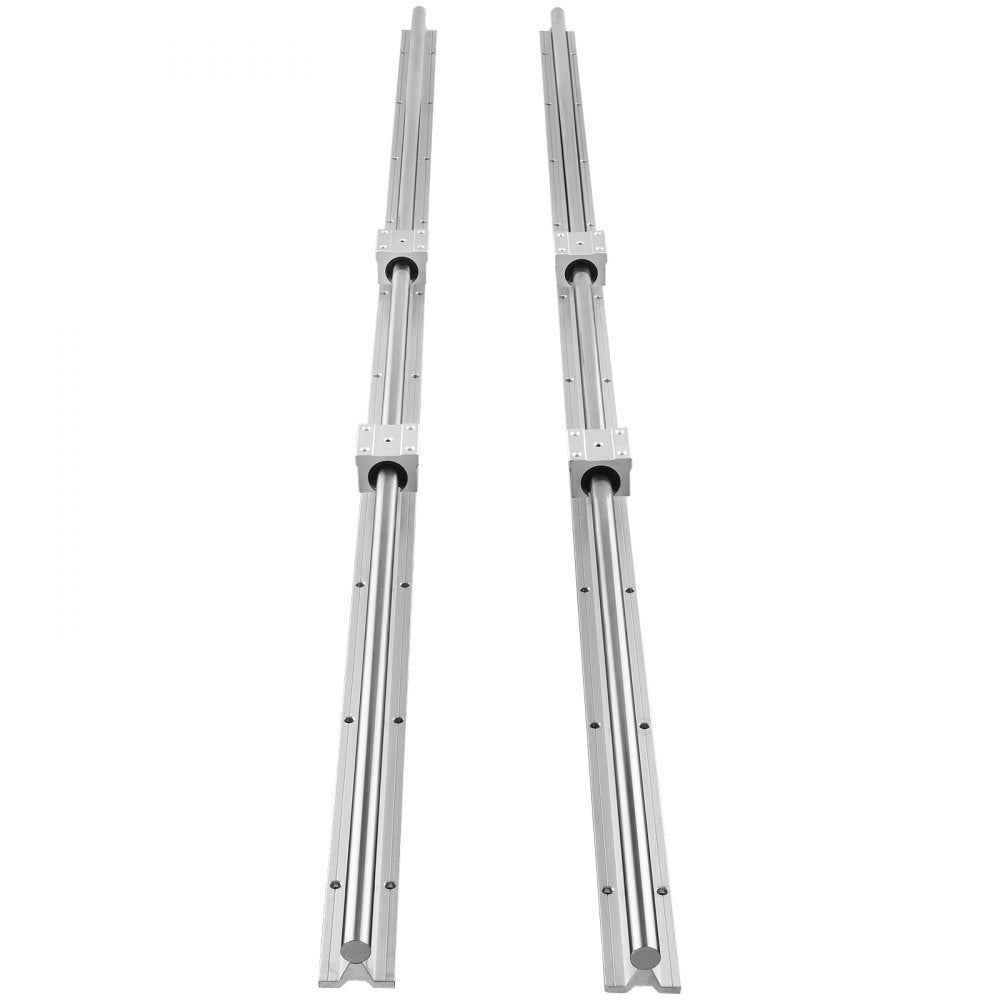

The Vevor linear guide rail set is designed to provide smooth, precise linear motion for CNC routers, automated machines, 3D printers, laser engravers, and other DIY equipment. It includes two 59" SBR20 guide rails and four SBR20UU slide blocks for stable movement and reliable support. Built from high carbon steel and aluminum with a chrome-plated surface, it is made for durability and rust resistance. The built-in ball bearings help deliver low-friction, low-noise sliding performance. Its accurate mounting holes and precise shaft dimensions support dependable installation and repeatable motion.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- SBR Linear Guide Rail Set: SBR20-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.

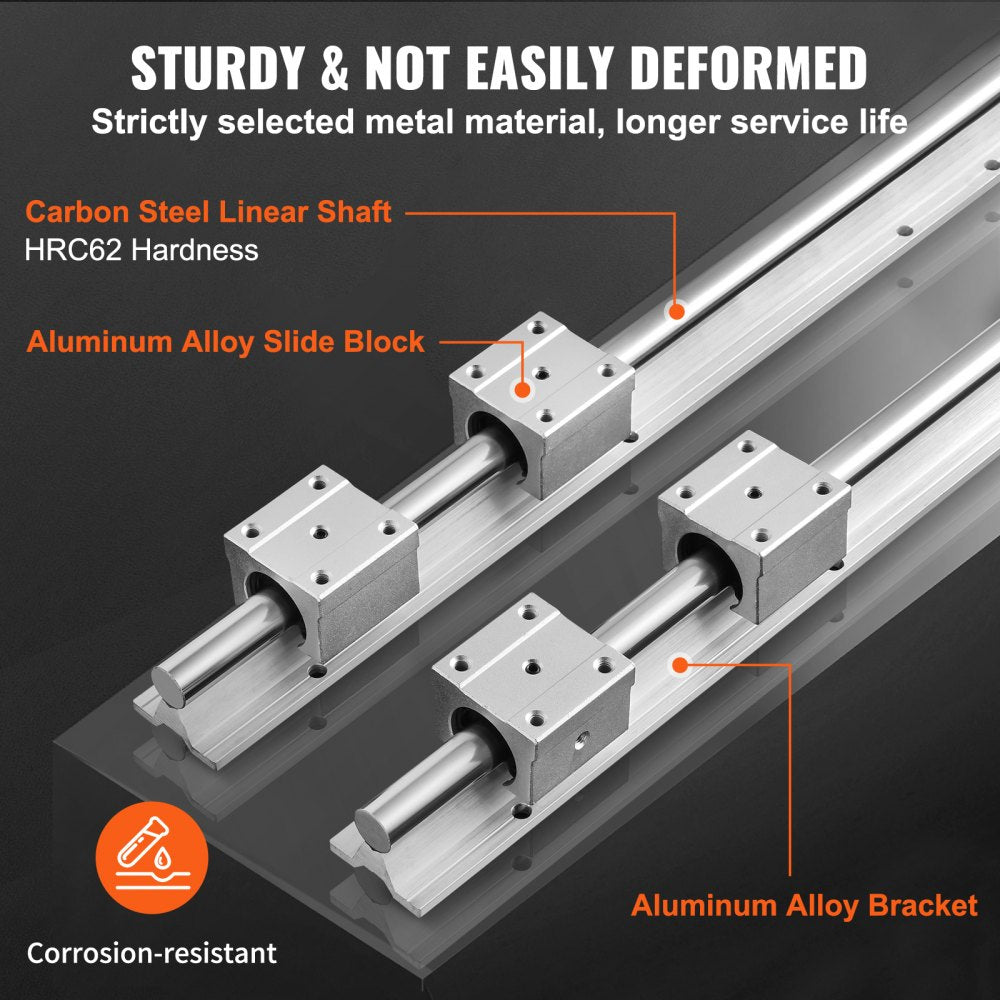

- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.

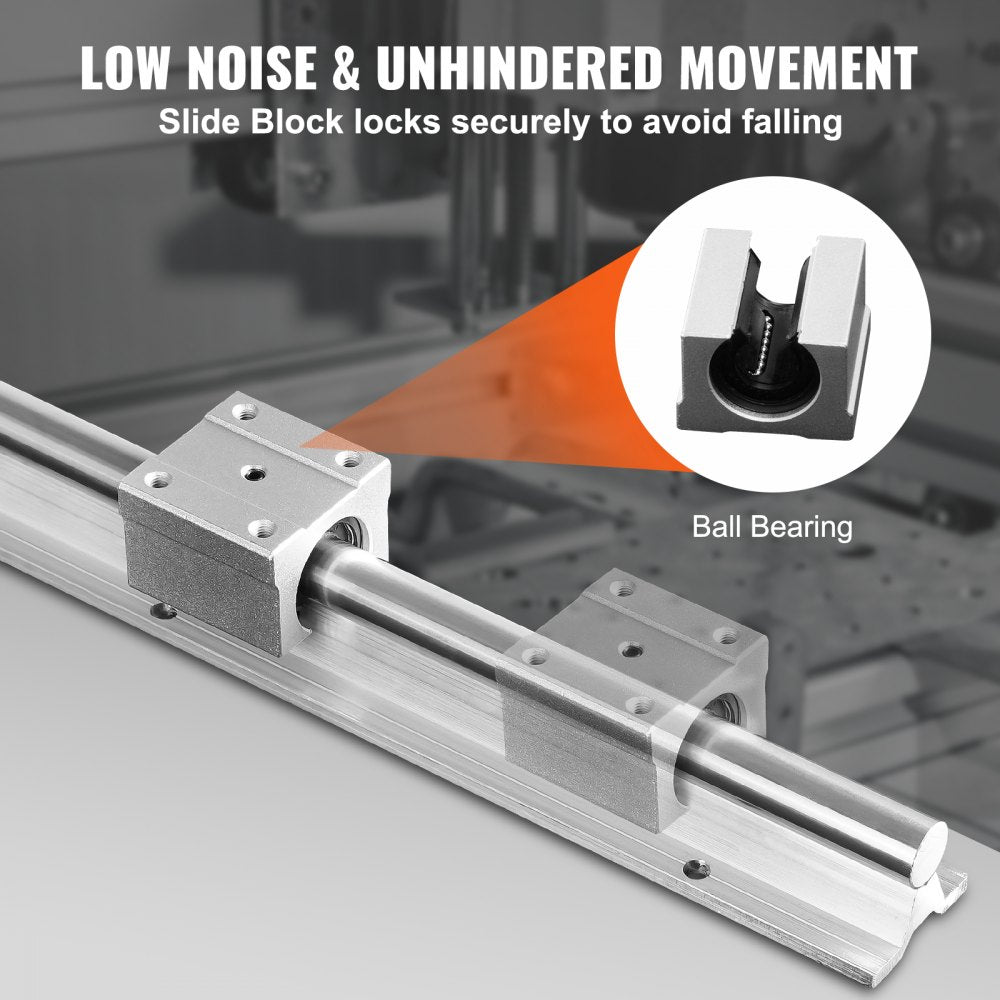

- Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.

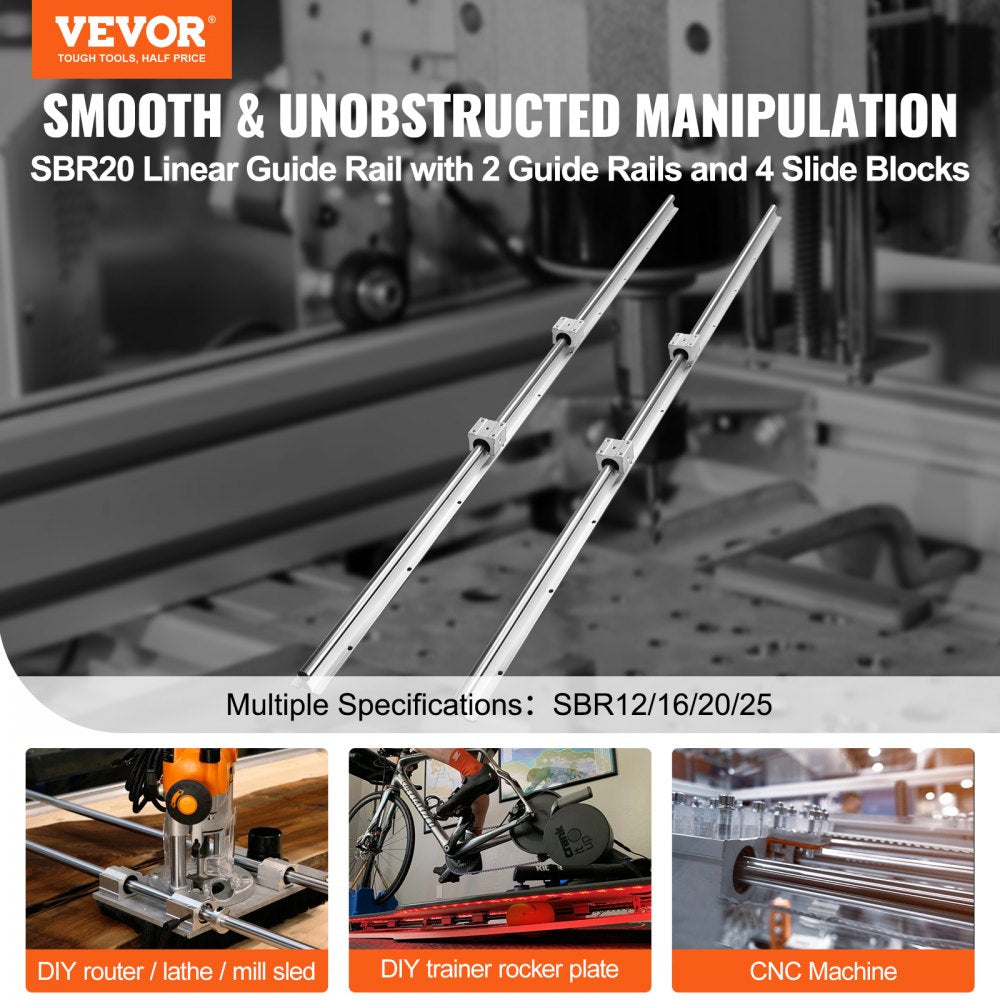

- Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.

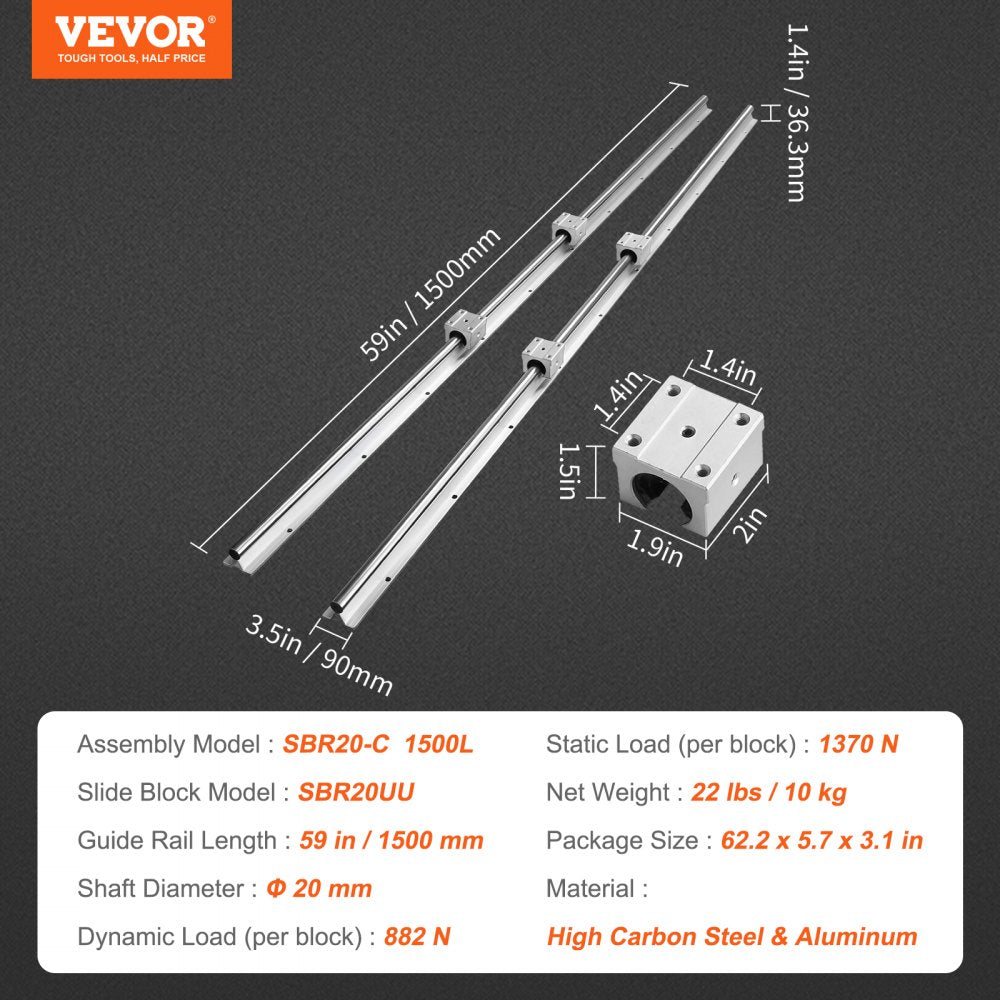

Specifications
| Model Number | SBR20-C 1500L |
| Slide Block Model | SBR20UU |
| Guide Rail Length | 59" / 1500 mm |
| Shaft Diameter | 20 mm |
| Dynamic Load per Block | 882 N |
| Static Load per Block | 1370 N |
| Material | High Carbon Steel and Aluminum |
| Mounting Hole Distance A | 1.4" / 35 mm |
| Mounting Hole Distance B | 1.4" / 35 mm |
| Slide Block Size L x W x H | 2 x 1.9 x 1.5" / 50 x 48 x 39 mm |
| Product Dimensions L x W x H | 59 x 3.5 x 1.4" / 1500 x 90 x 36.3 mm |
| Package Size L x W x H | 62.2 x 5.7 x 3.1" / 1580 x 145 x 80 mm |
| Net Weight | 22 lbs / 10 kg |

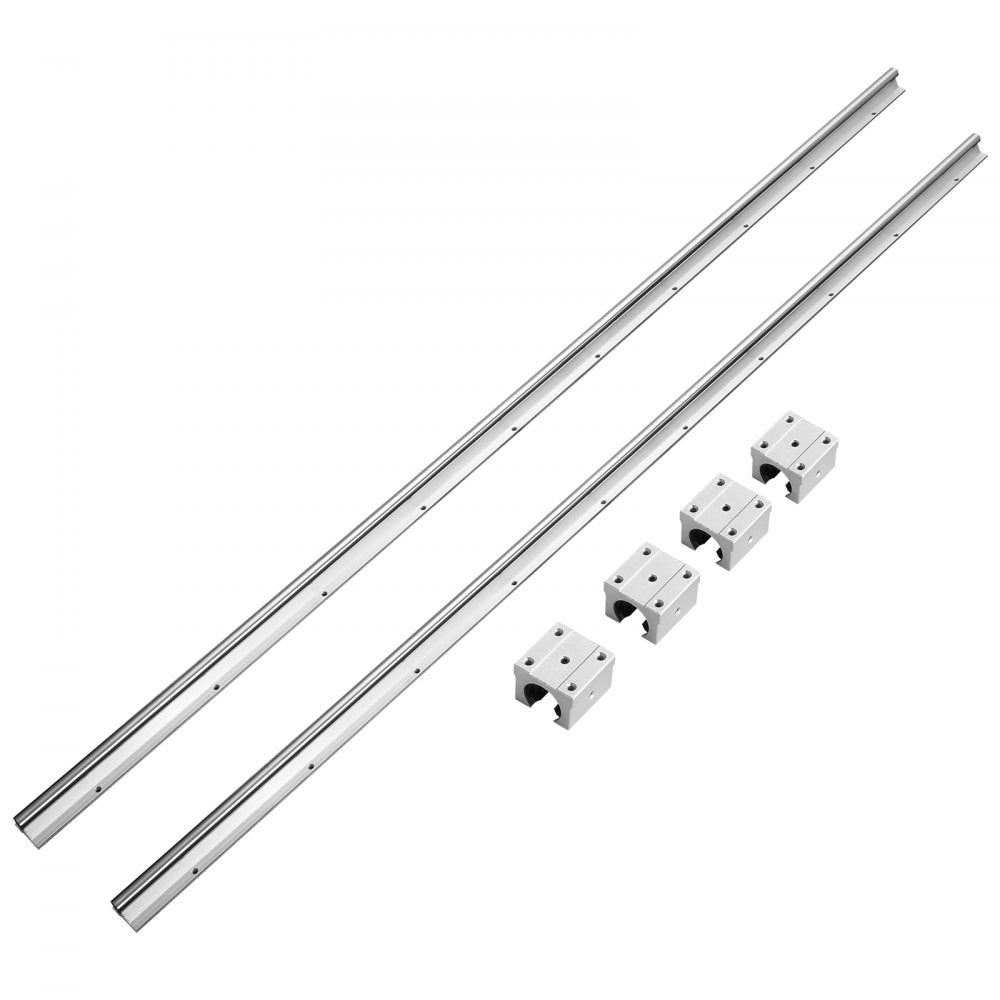

Package Contents

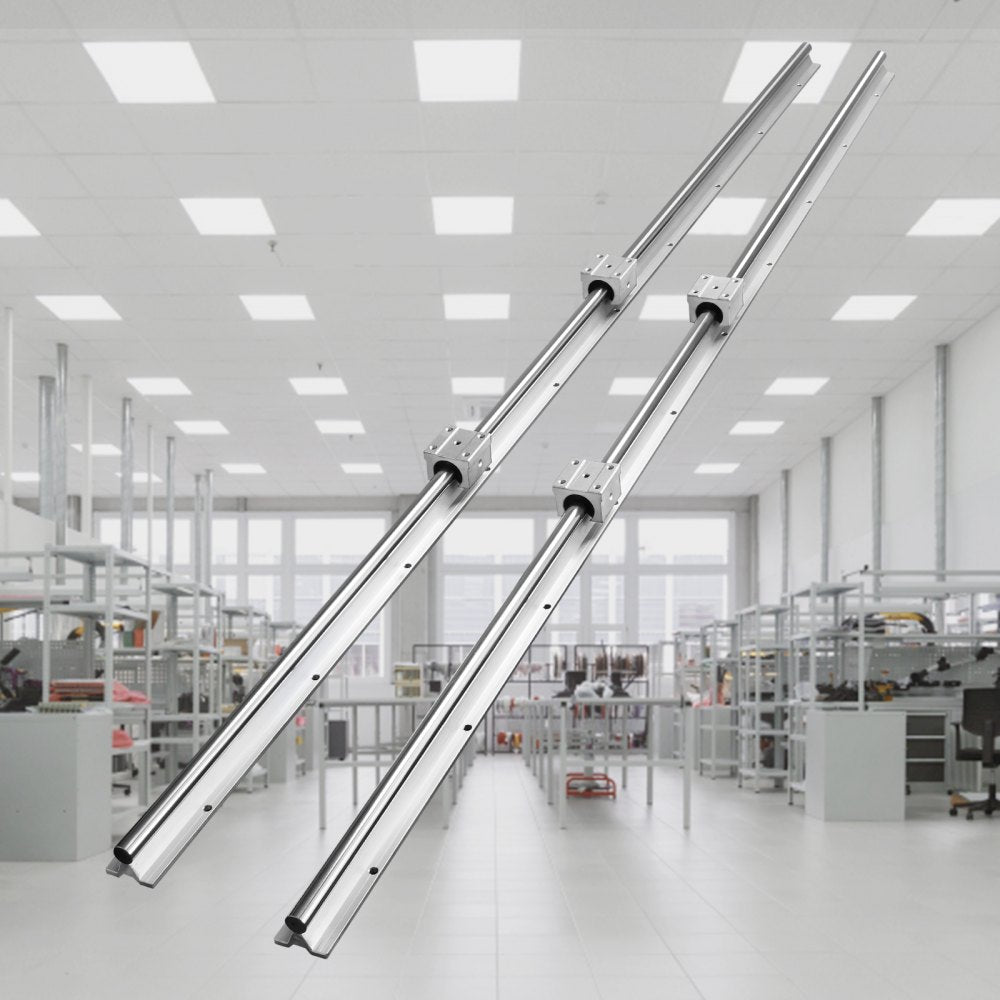

2 x 59" SBR20 guide rails
4 x SBR20UU slide blocks
Warranty
This item comes with a 1 year factory warranty.
