Vevor Linear Guide Rail Kit RM1605-350mm 650mm 1050mm for CNC Machine New
Product Overview
This Linear Guide Rail kit features SBR20-300/600/1000 mm rails, three ball screws, 3 sets of BF/BK 12 supports, and 3 flexible couplings. This bearing rail is constructed with high hardness steel material. The rust-proof and antioxidant surface treatment provide smooth running. The linear rail and ball screw kit is widely used in automation machinery such as CNC routers, lathes, machine tools, bending machines, laser welding machines, etc.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Complete Linear Rail Kits: This set includes supported linear rails SBR20-300/600/1000 mm rails, two for each type, 3pcs of ball screws RM1605-350/650/1050 mm-C7, 3 sets of BK/BF12, and 3pcs of couplings 6.35 mm*10 mm.

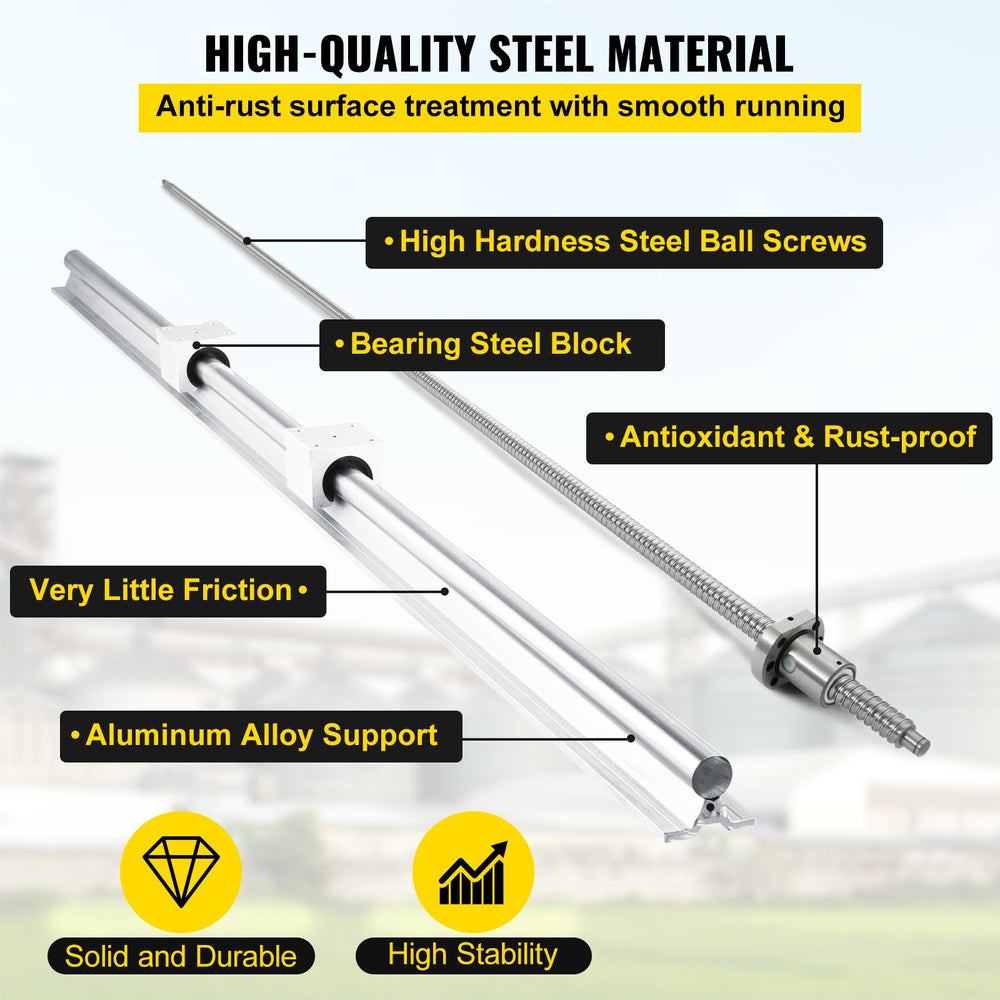

- High-Quality Steel Material: Linear guides are made of quality material. The ball screw with high efficiency and low heat generation can ensure accurate micro feed and get a higher rigidity.

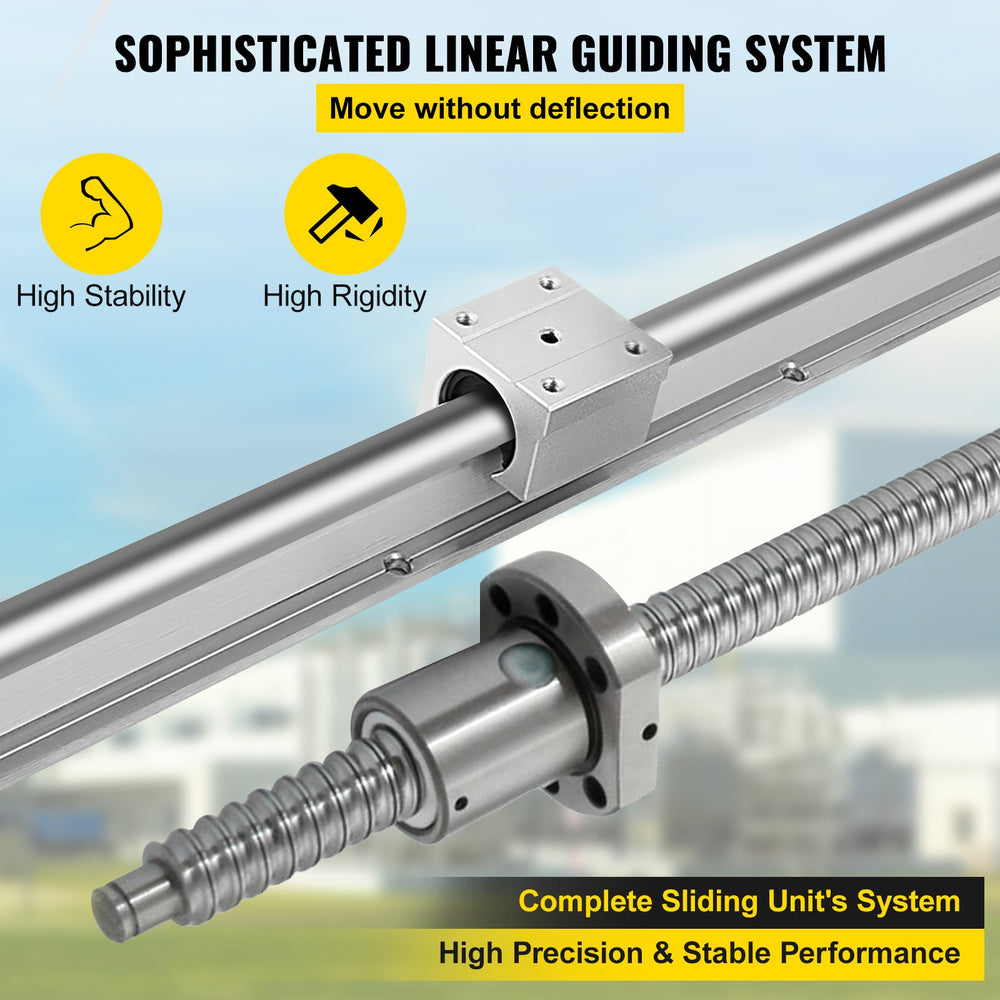

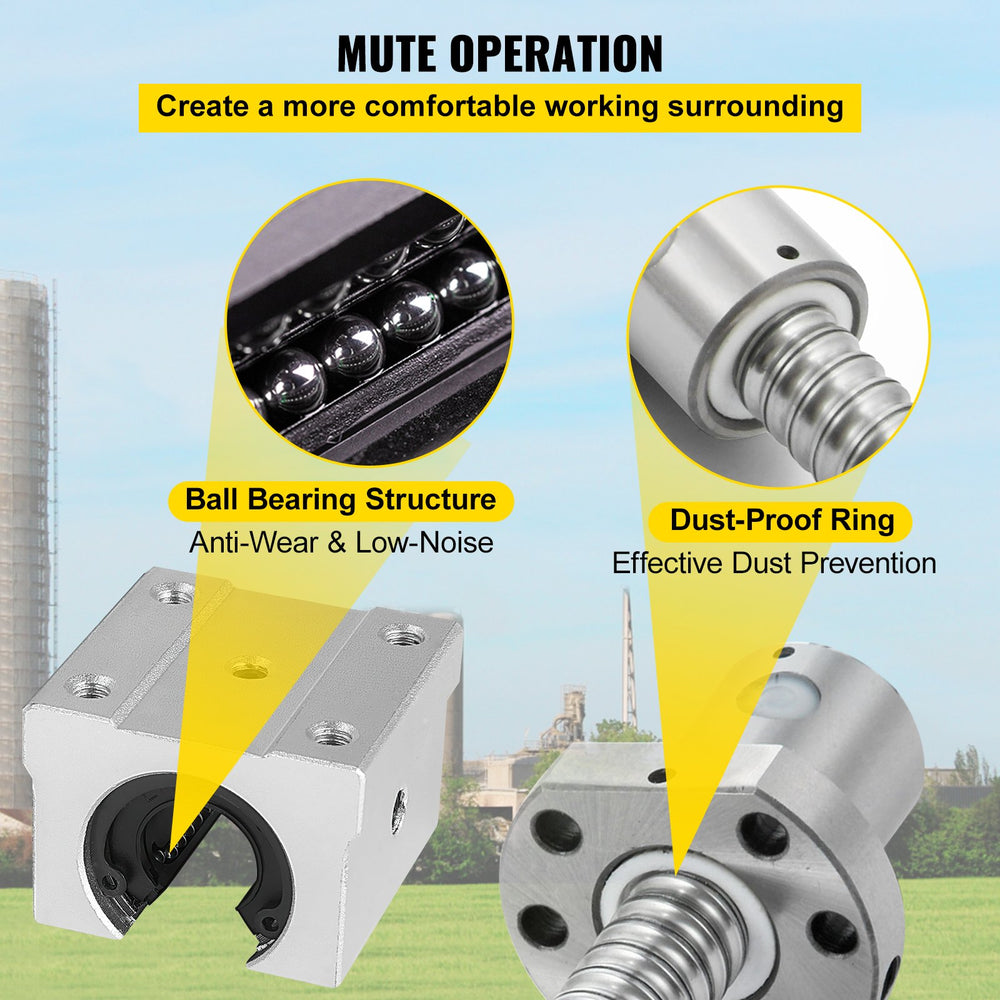

- Premier Linear Guiding System: Complete sliding unit's system with high accuracy and can be moved without deflection. There is a lot of ball rolling motion between the screw shaft and nut. Therefore, it is possible to obtain a high efficiency of movement.

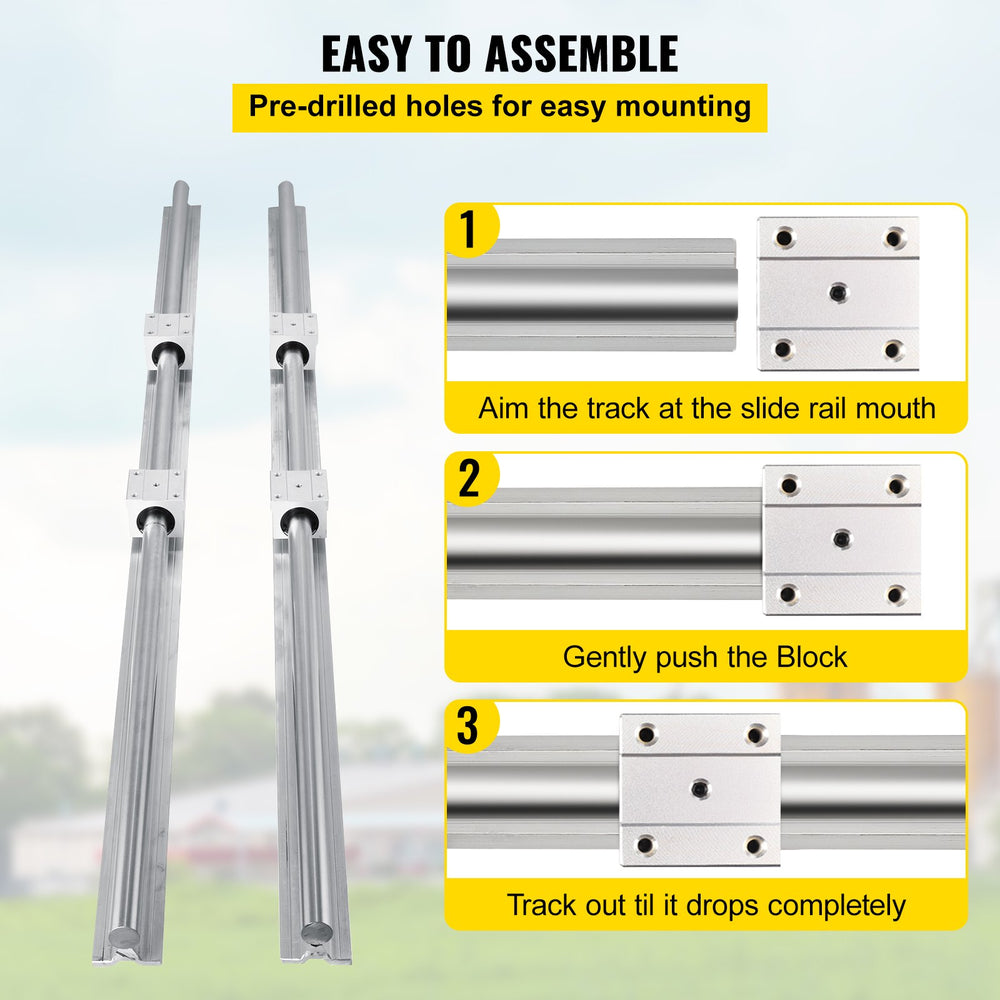

- Easy to Install: Quality support rail with pre-drilled holes for ease of mounting. The ball screw movement achieves high-speed feed. Convenient to install it, less effort to maintain.

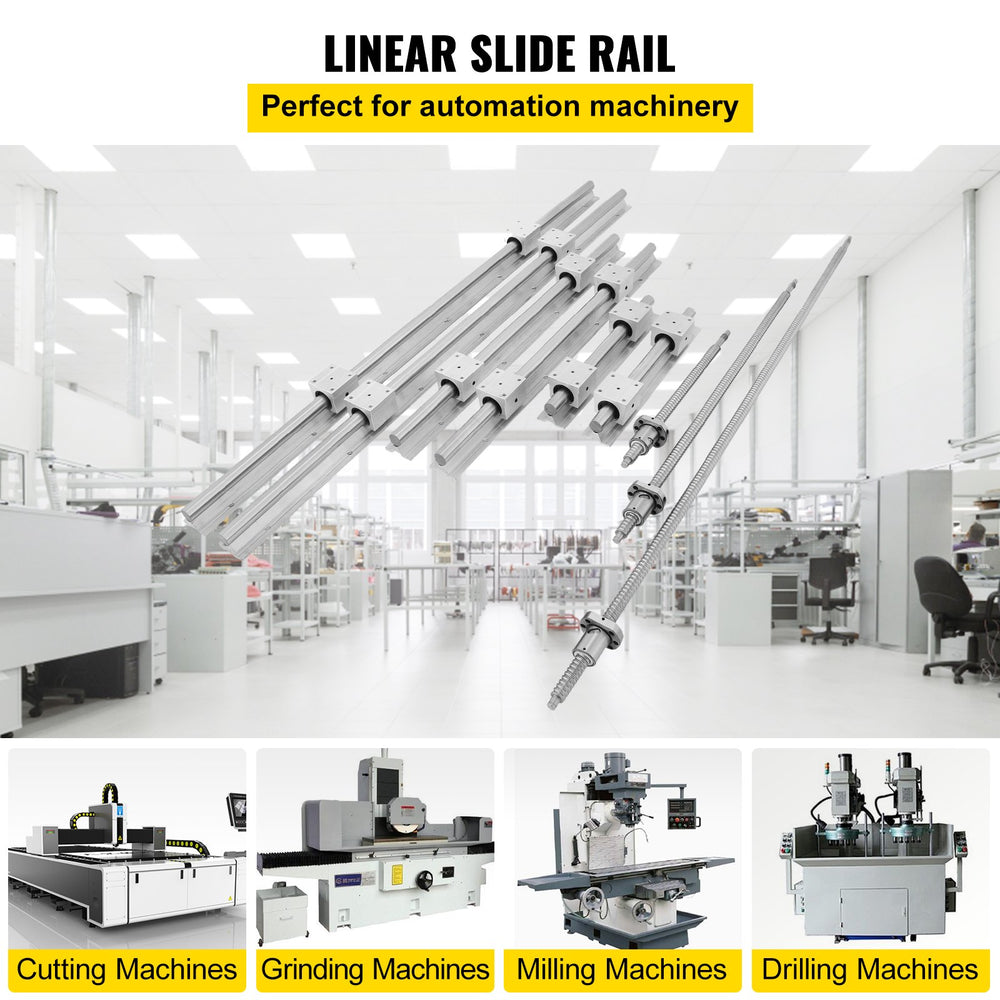

- Wide Application: The linear guide rail is widely used in CNC Router / CNC Grinding machines, industrial machinery printing, paper-processing, automatic machine, X-Y table, factory automation equipment, etc.

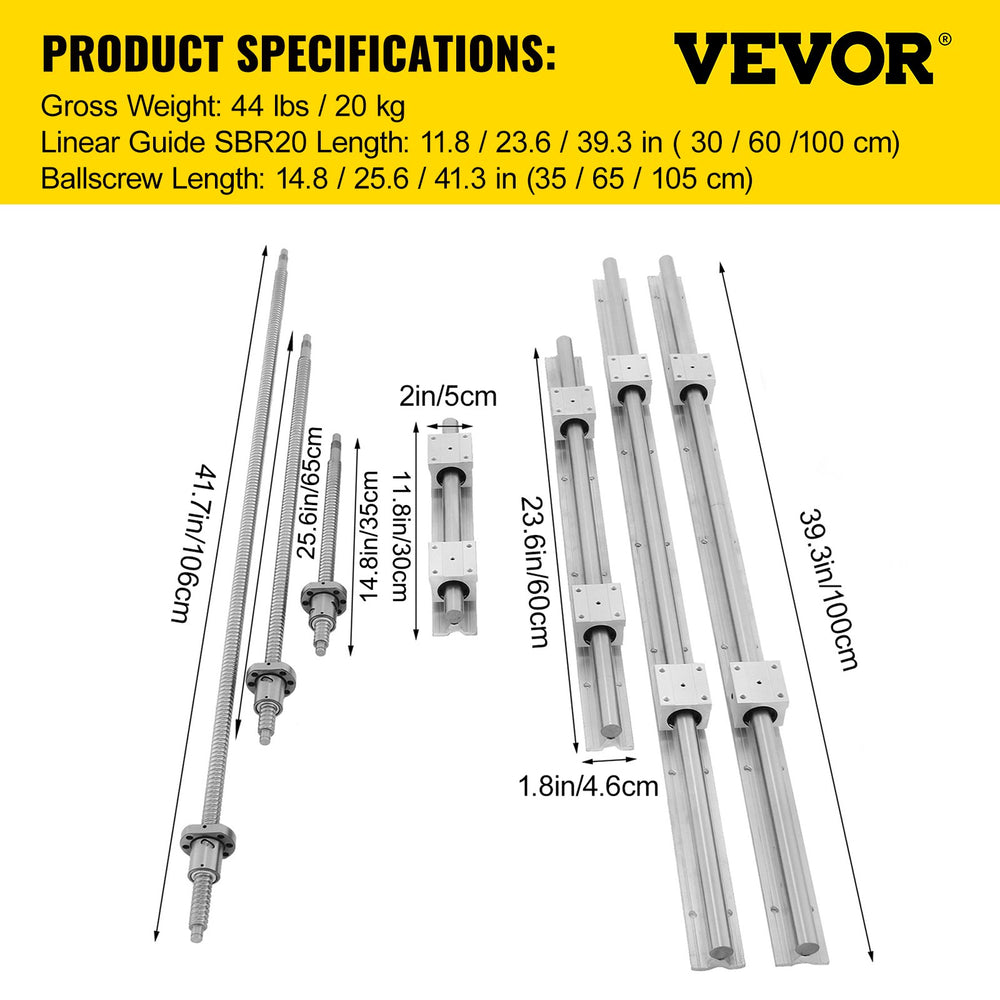

Specifications
| Linear Guide SBR20 Length | 11.8/23.6/39.4 in (300/600/1000 mm) |
| Ballscrew Length | 14.8/25.6/41.3 in (350/650/1050 mm) |
| Class | C7 |
| Screw Diameter | 0.63 in / 16 mm |
| Screw Pitch (Lead) | 0.197 in / 5 mm |
| Screw Length | 7.87 in / 200 mm |
| Packaging Size | 44" x 8" x 4" |
| Gross Weight | 44 lbs (20 kg) |

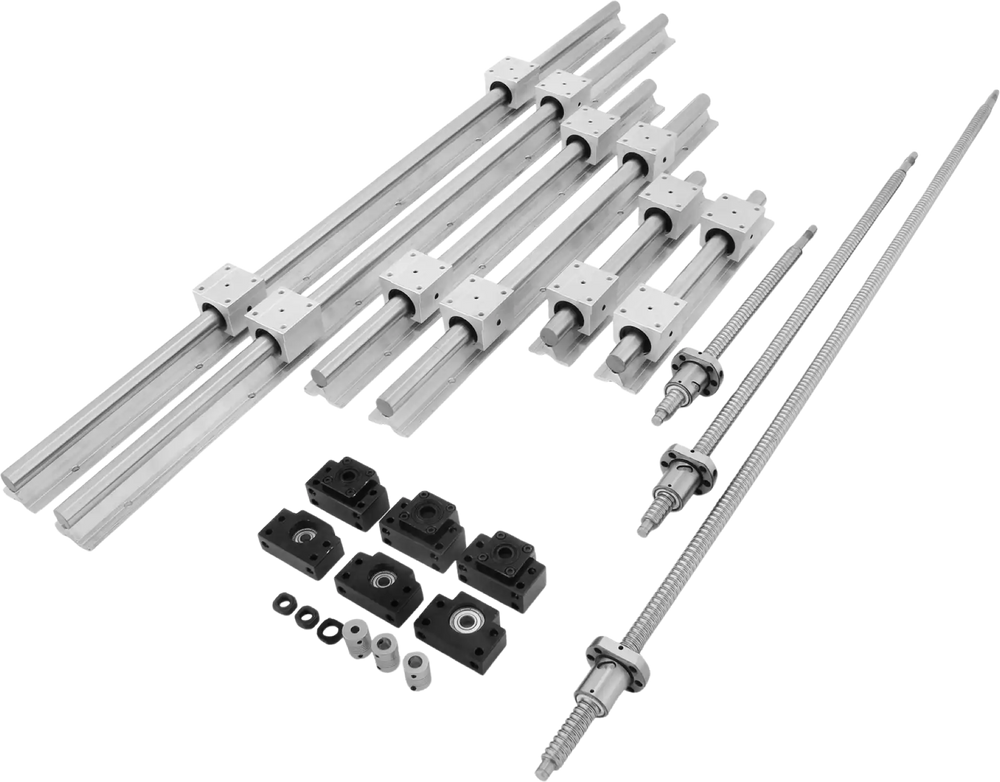

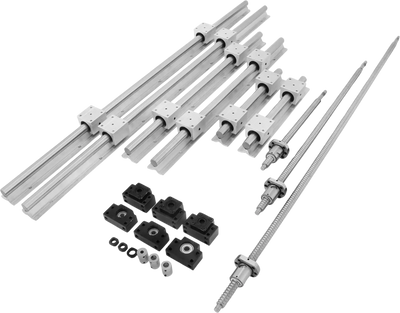

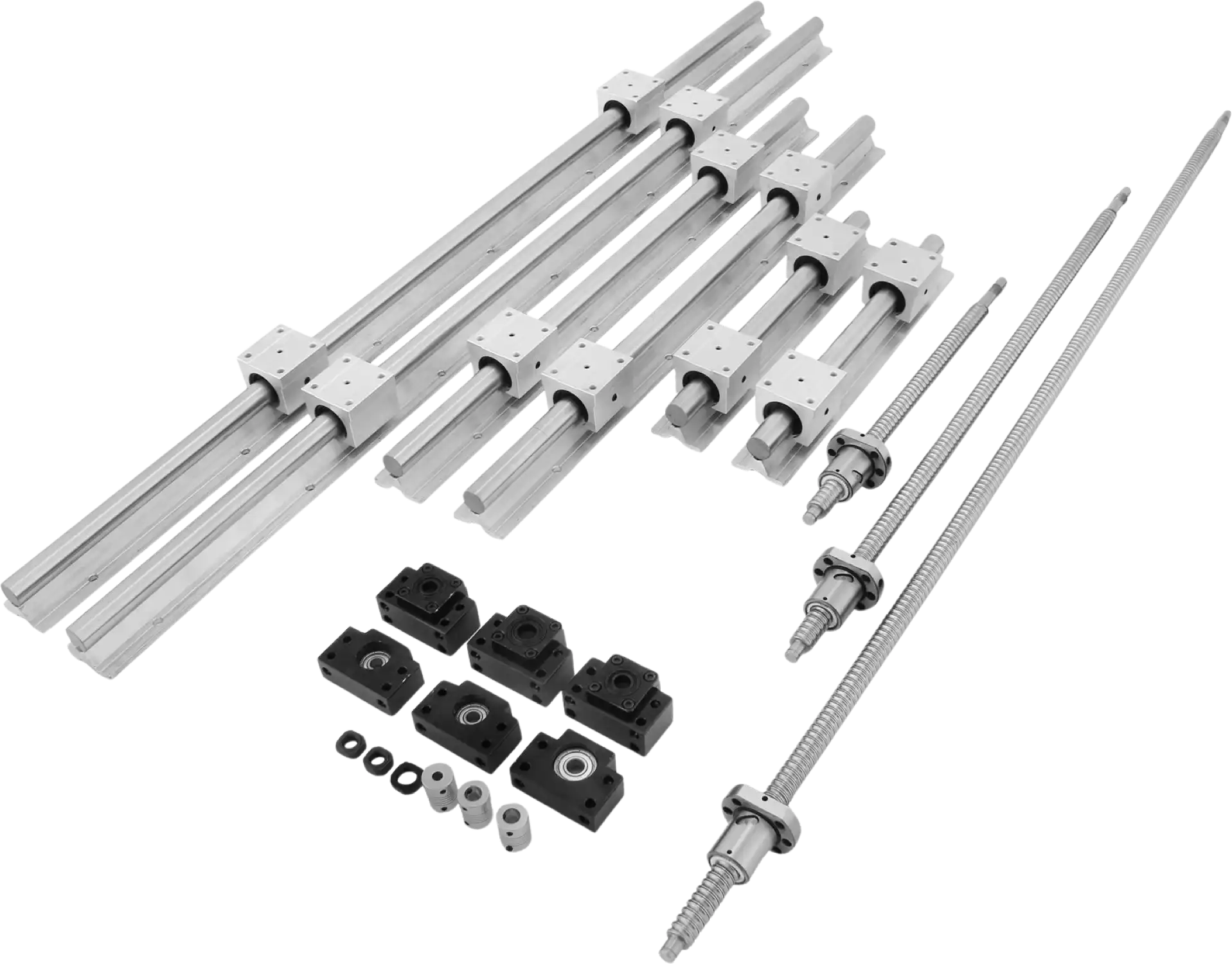

Package Contents
Vevor Linear Guide Rail Set
(2) SBR20-300mm Linear Rail Guide
(2) SBR20-600mm Linear Rail Guide
(2) SBR20-1000mm Linear Rail Guide
(3) Ballscrew SFU / RM 1605 - 350mm/650mm/1050mm - C7 with End Machined
(12) Linear Blocks
(3) BK/BF 12 Support for Ballscrews
(3) Flexible Couplings
User Manual
Warranty
This item comes with a 1 year factory warranty.
